SPECIFICATIONS

Applicable Object: Other

Brand Name: Gaqqee

Certification: CE

Choice: yes

Contact Arrange: DPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Equipped with fixed bolt holes for easy installation: Power indicator light (green), relay status indicator light (red)

GND external GND: 1N relay control interface connected to microcontroller IO port (low level effective)

High-concerned chemical: none

Load Current: 30A

Model Number: 8550

Origin: Mainland China

Power Source: DC,DC

Protect Feature: Sealed

The blue KF301 terminal block is more convenient for connecting control wires: VCC external 3V

The maximum AC voltage is 250V, the maximum AC current is 10A, the maximum DC voltage is 30V, and the maximum DC current is 10A.: Using 8550 transistor driver, with strong driving capability

Theory: Voltage relay

Use: General Purpose

Voltage: 5V

is_customized: Yes

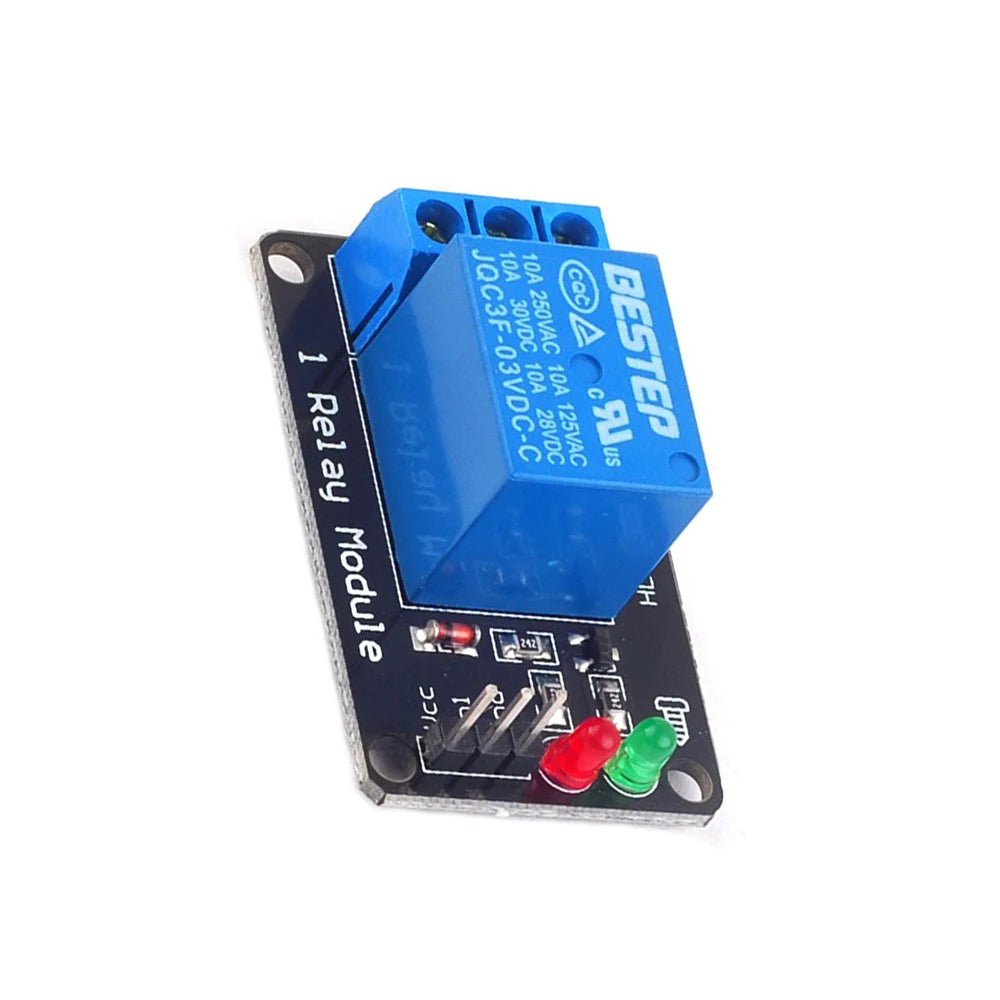

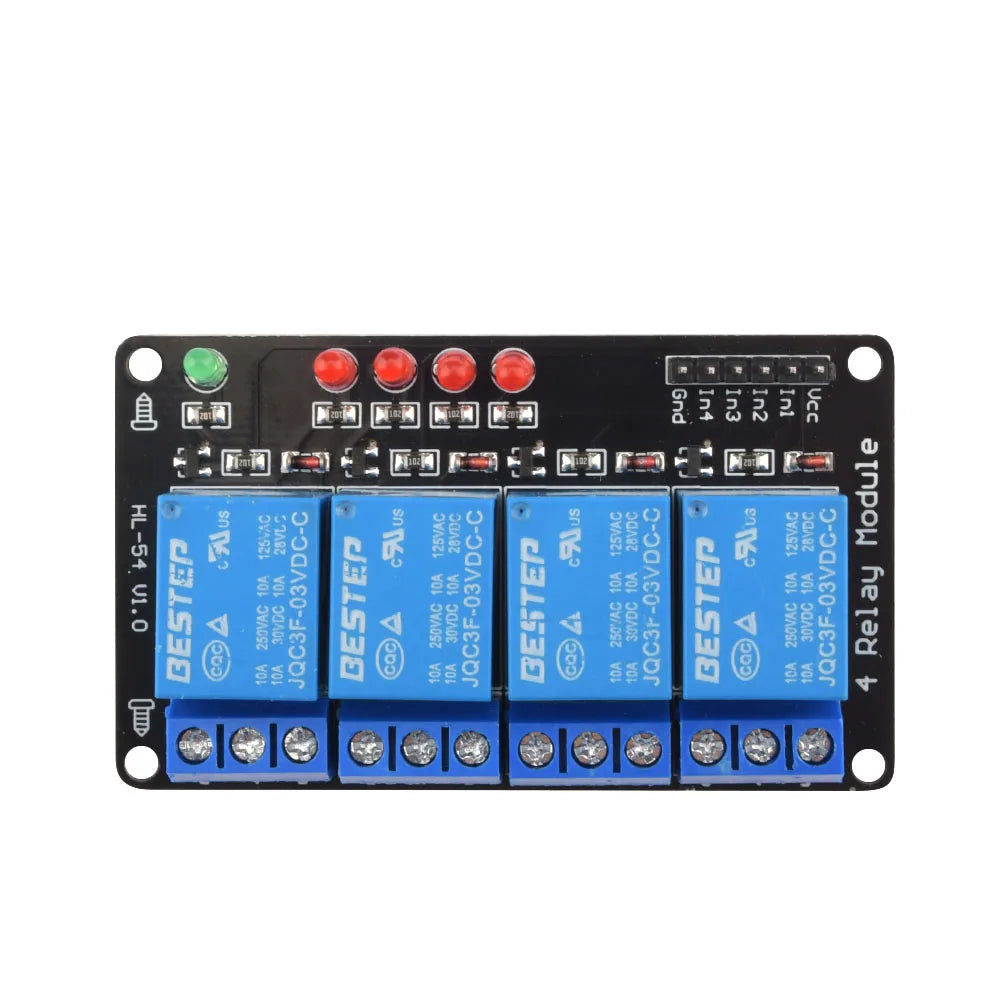

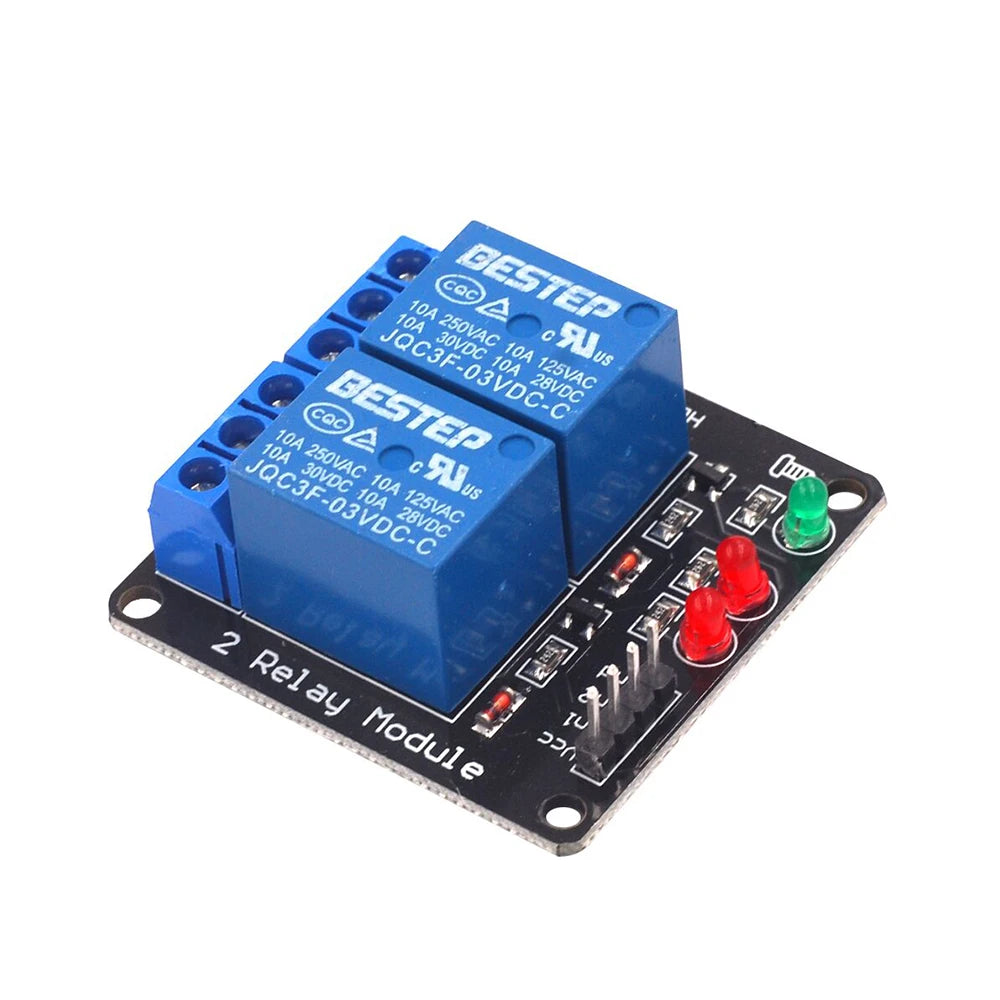

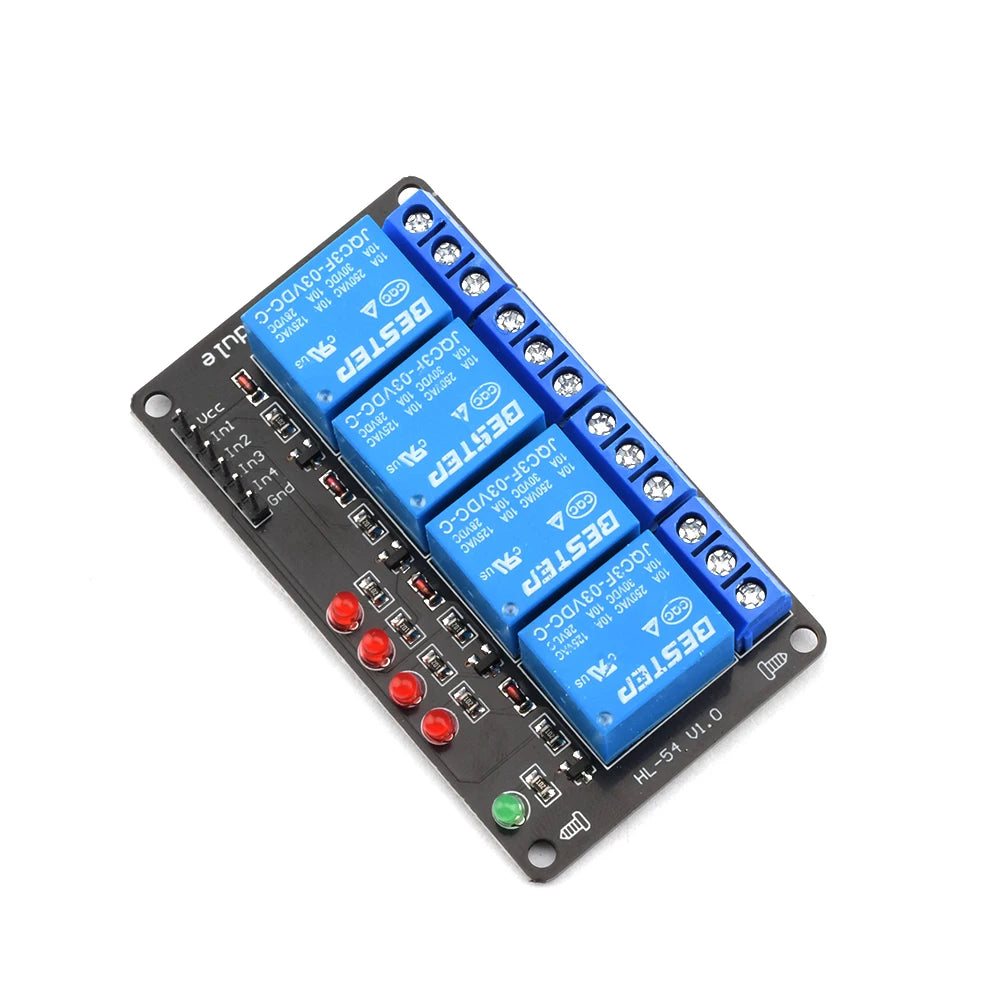

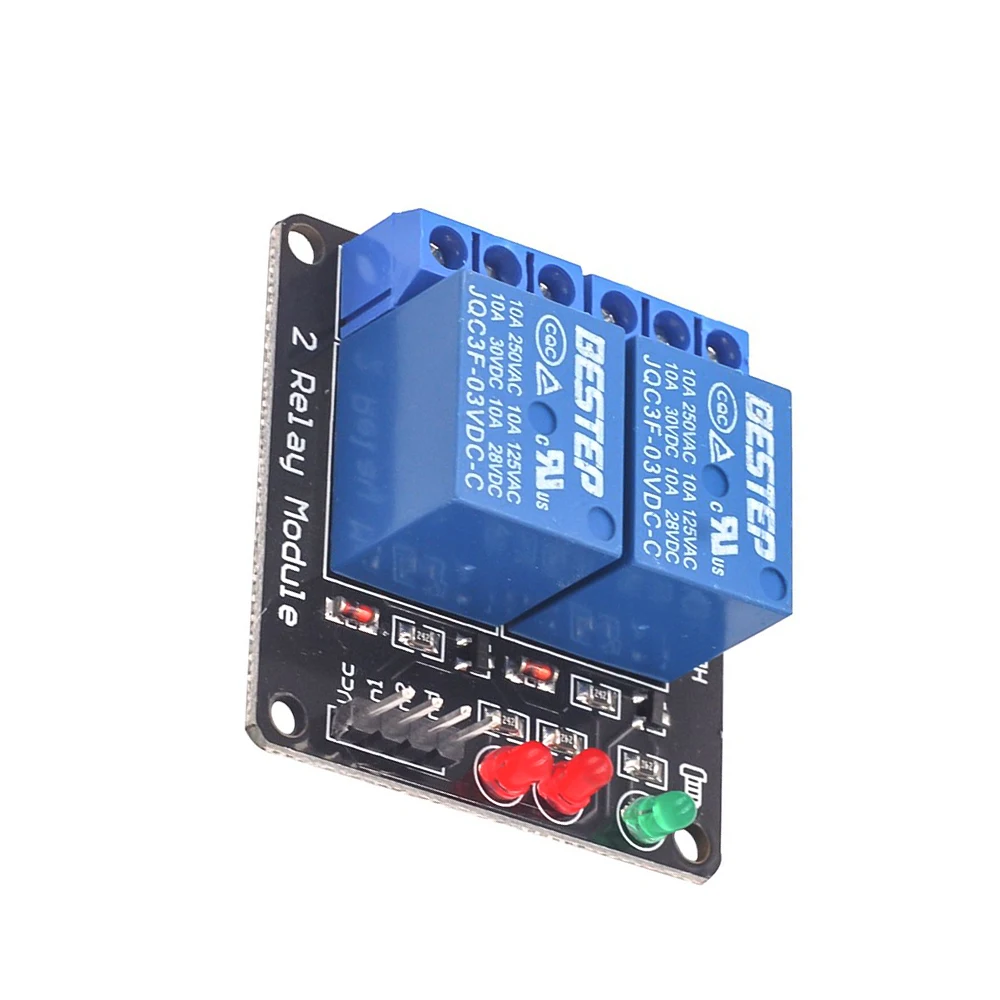

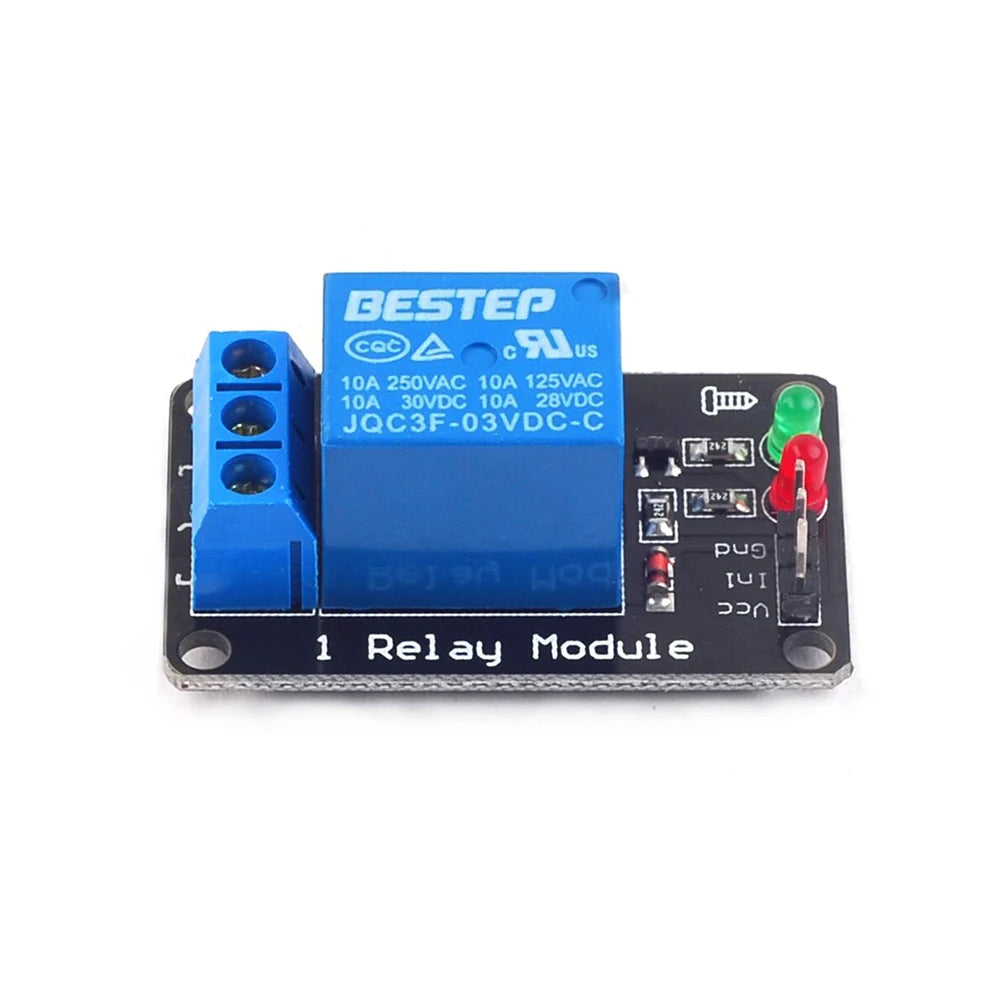

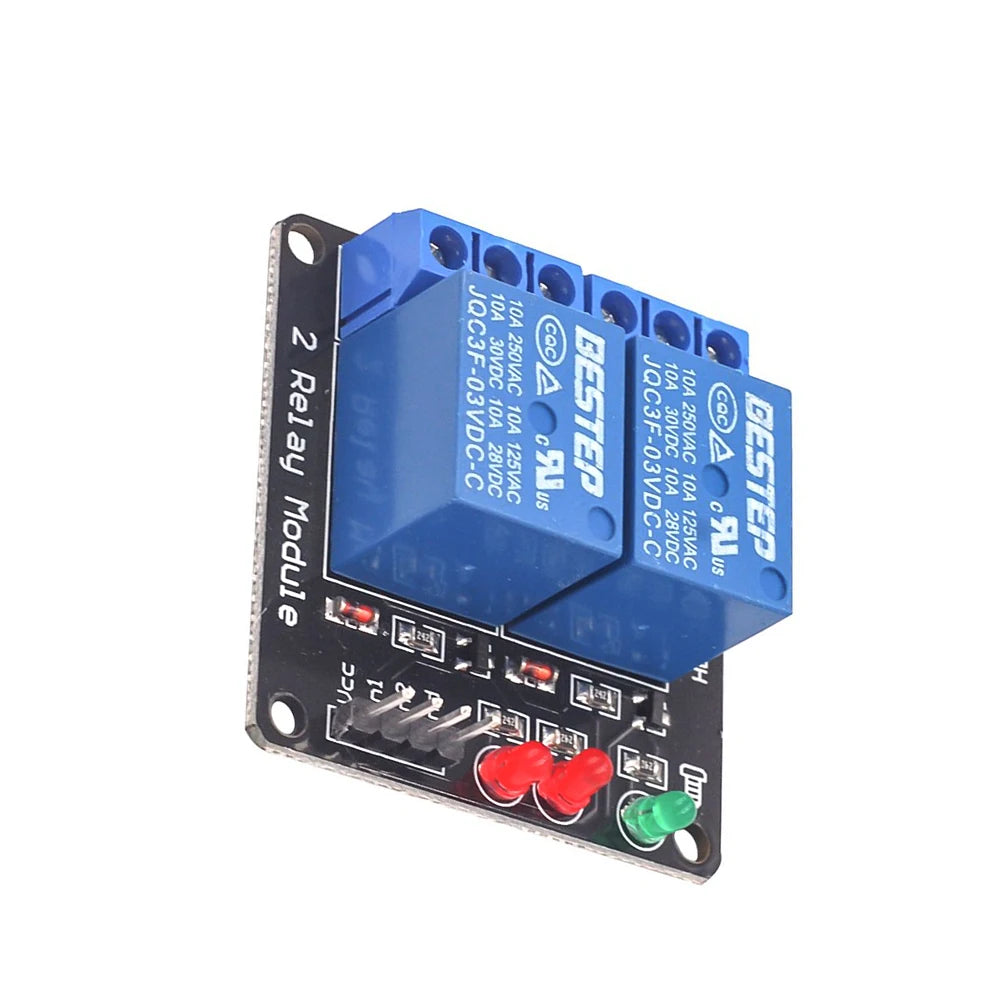

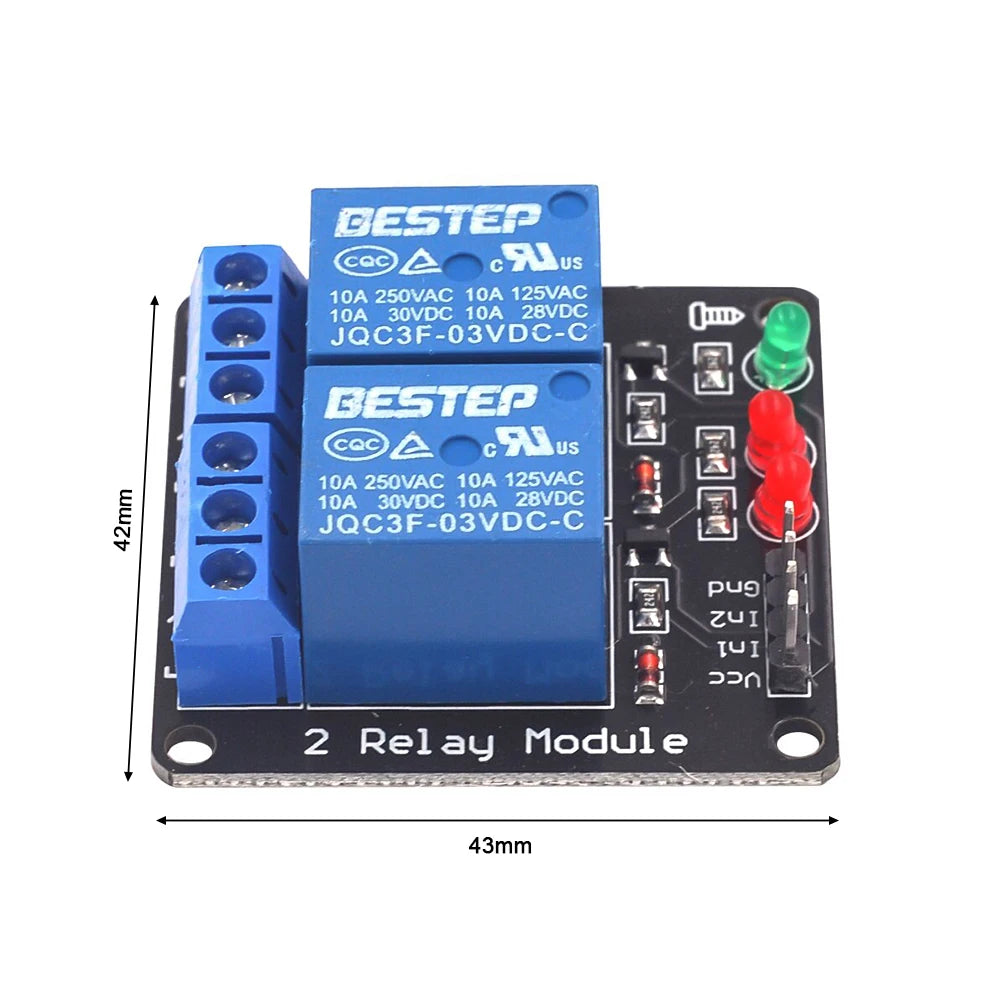

Product features:

1. The module adopts relay control, with a maximum AC voltage of 250V, a maximum AC current of 10A, a maximum DC voltage of 30V, and a maximum DC current of 10A;

2. Using 8550 transistor driver, with strong driving capability;

3. Equipped with fixed bolt holes for easy installation

4. Power indicator light (green), relay status indicator light (red)

5. The blue KF301 terminal block is more convenient for connecting control wires.

Instructions:

1 VCC external 3V

2 GND external GND

3 1N relay control interface connected to microcontroller IO port (low level effective)

Detailed list:

Relay module X1
