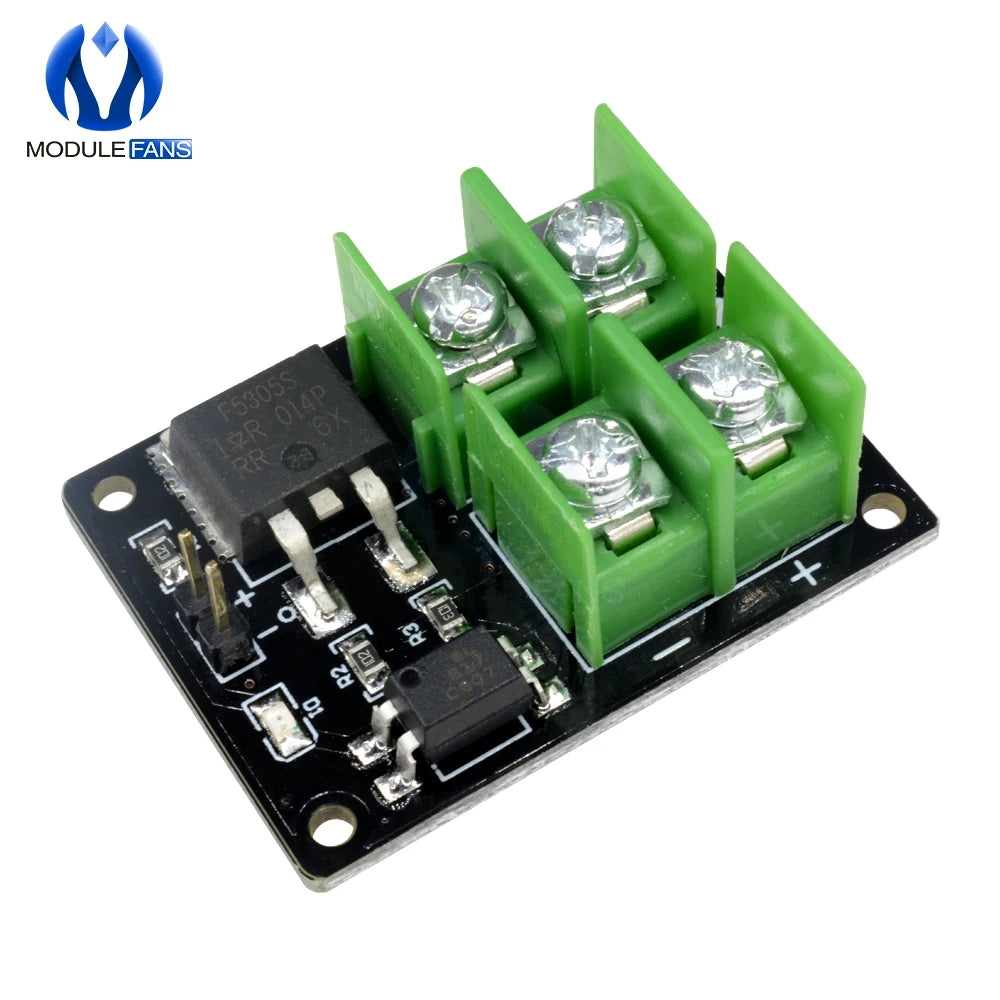

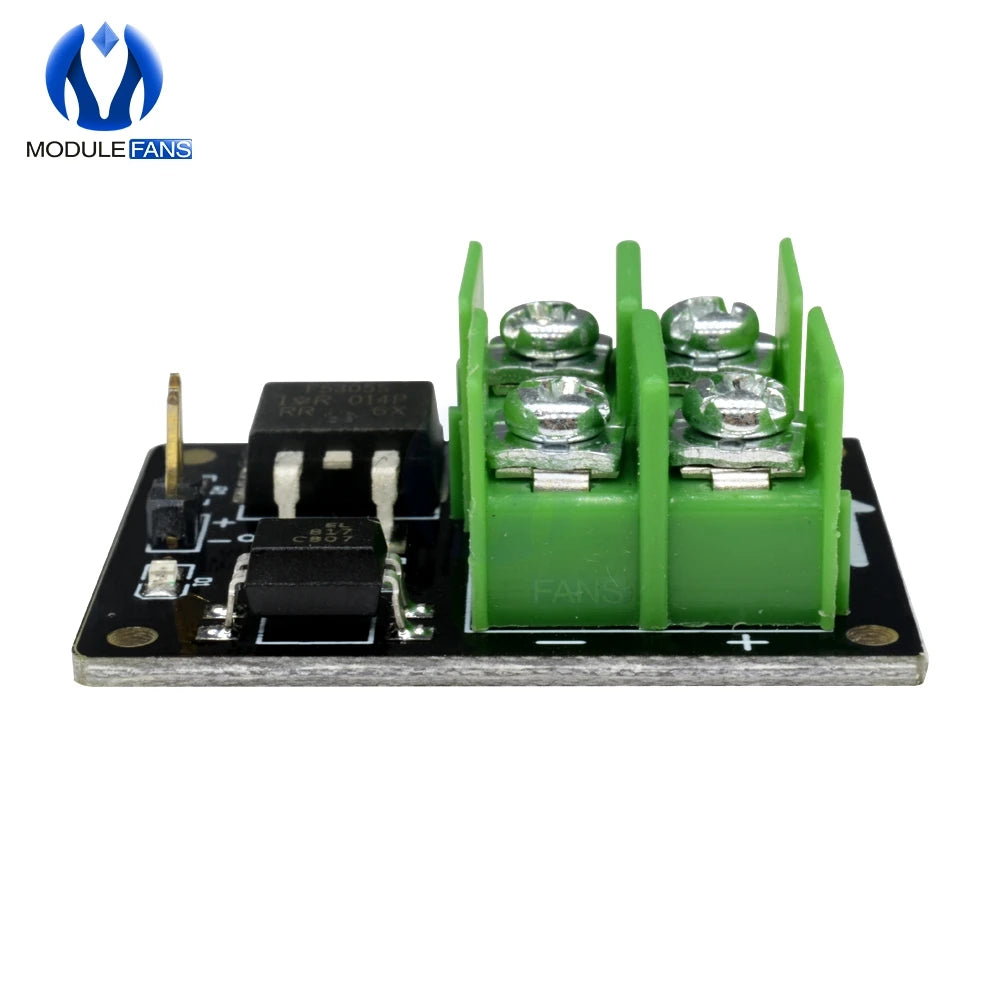

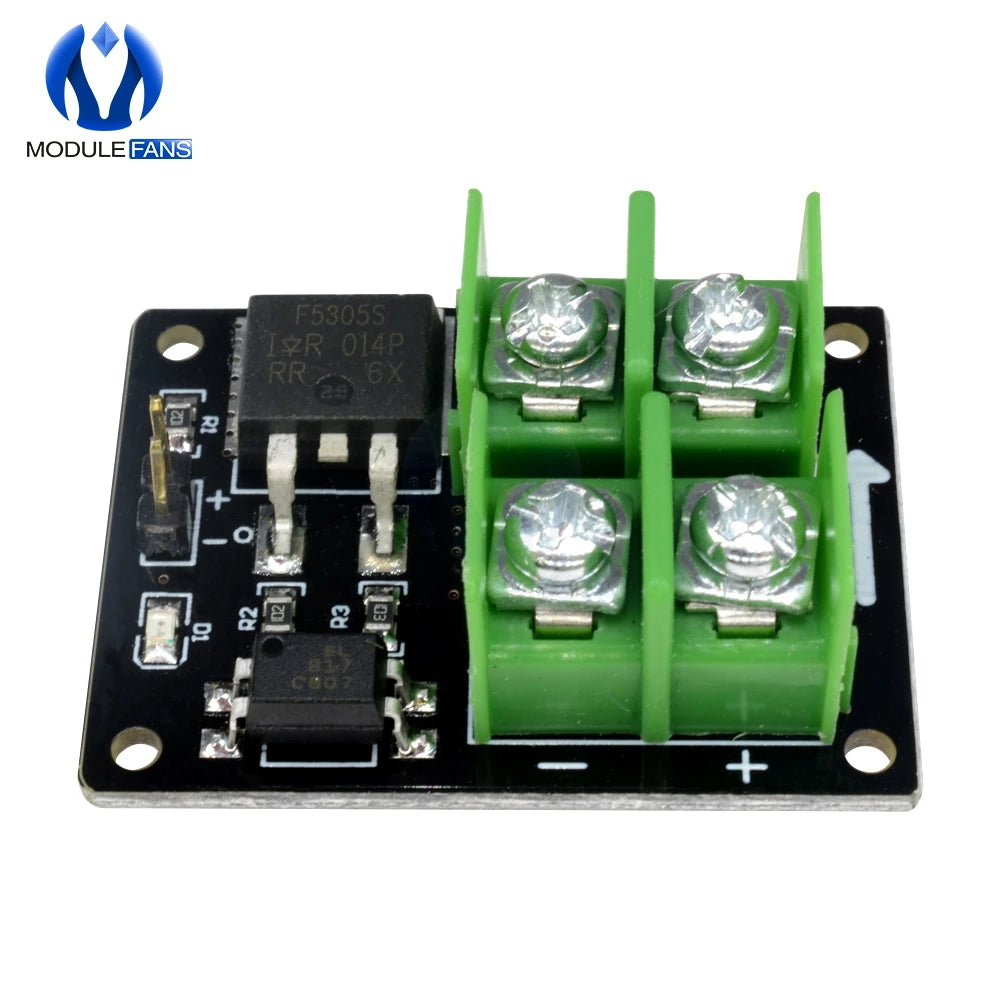

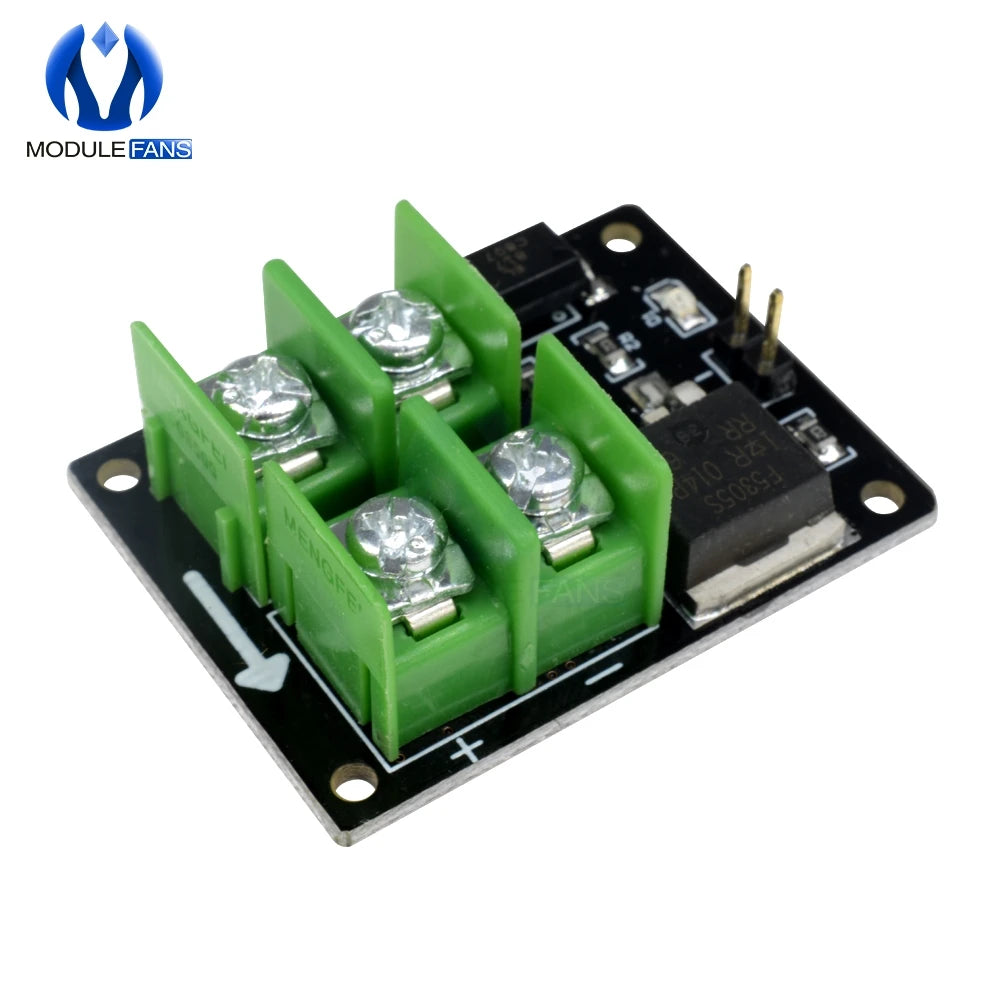

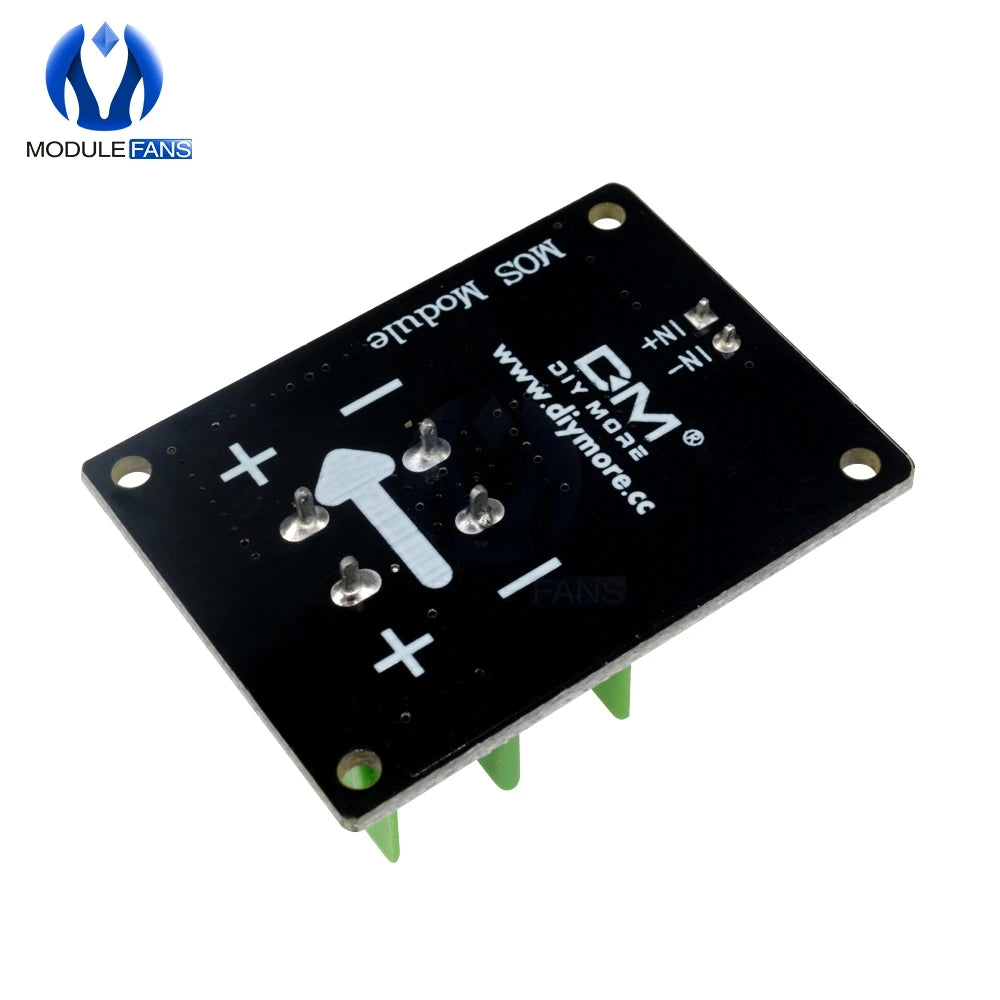

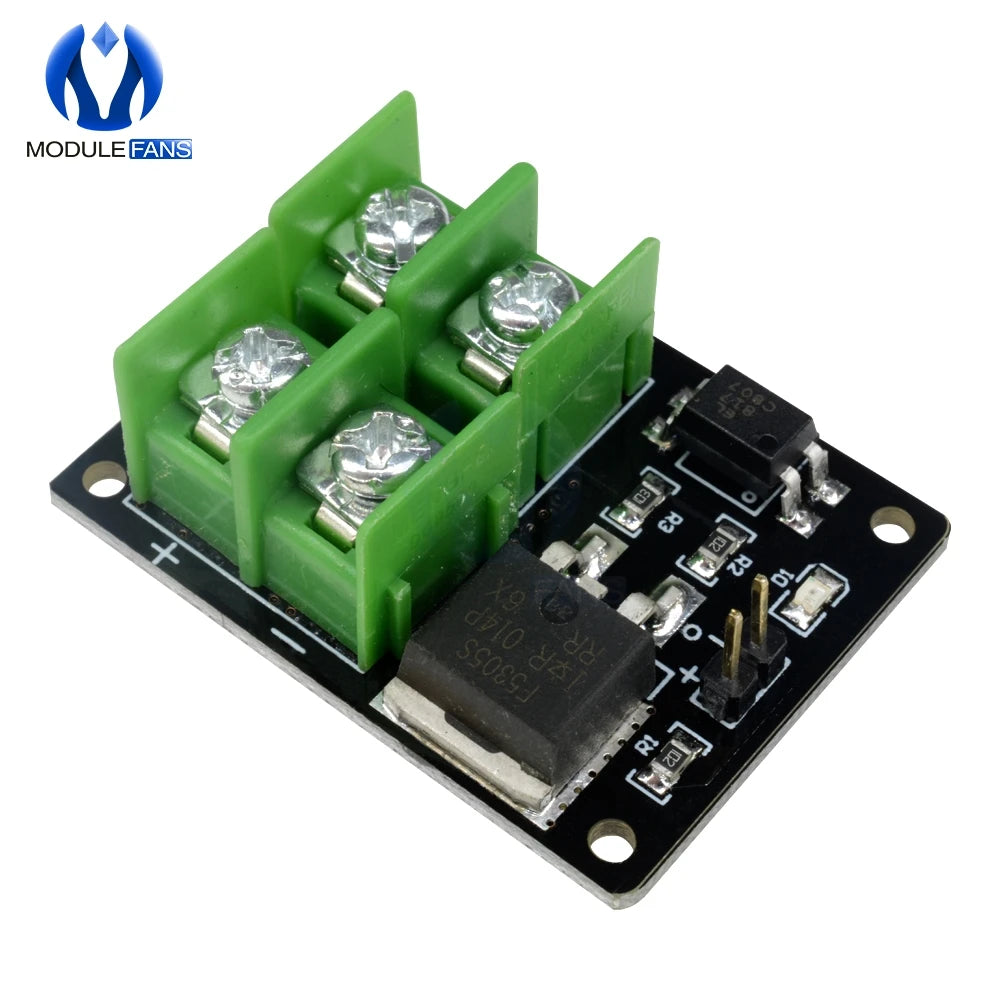

3V 5V Low Control High Voltage 12V 24V 36V switch Mosfet Module for Arduino Connect IO MCU PWM Control Motor Speed 22A
Default Title
$8.28
Sale price
$8.28
Regular price
$0.00
Skip to product information
3V 5V Low Control High Voltage 12V 24V 36V switch Mosfet Module for Arduino Connect IO MCU PWM Control Motor Speed 22A
$8.28
Sale price
$8.28
Regular price
$0.00
Description
SPECIFICATIONS
Application: Low voltage MOSFET switch module
Brand Name: diymore
Choice: yes
Condition: New
Dissipation Power: 0.5W-5W
High-concerned chemical: none
Operating Temperature: -40°C-70°C
Origin: Mainland China
Package: SOP
Quantity: 1
Supply Voltage: 5-36V
Type: Module
is_customized: Yes
semi_Choice: yes
Input control voltage :3.3V-12V
Output charged voltage: 5-36V
Board use of opto isolated, completely separated from the 2-terminal voltage.
Input is controlled by a 2 pin control ,a ground control can be directly connected to the control switch.
Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED.
Charged with maximum current: 22A ,more than 5A need to add a heat sink.
Board with LED lights
Host input and output screw terminal block
Control terminal using 2.54MM pin, easy wiring.
Control can be directly connected microcontroller IO. MCU can For ARDUINO PWM control motor speed,
Board use of opto isolated, completely separated from the 2-terminal voltage.
Input is controlled by a 2 pin control ,a ground control can be directly connected to the control switch.
Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED.
Charged with maximum current: 22A ,more than 5A need to add a heat sink.
Board with LED lights
Host input and output screw terminal block
Control terminal using 2.54MM pin, easy wiring.
Control can be directly connected microcontroller IO. MCU can For ARDUINO PWM control motor speed,
the brightness of lights and so on. Note that large current need to add additional heat sink
Board size: 4.2 X 2.6 cm
Board size: 4.2 X 2.6 cm
Package Included:
1 x 3V 5V Low Control High Voltage 12V 24V 36V E-switch Mosfet Module For Arduino
