SPECIFICATIONS

Brand Name: NONE

Certification: CCC

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Item Type: SWITCHES

Material: Plastic

Model Number: Low-Voltage MOSFET Switch Module

Origin: Mainland China

Switch Type: Pressure Switch

semi_Choice: yes

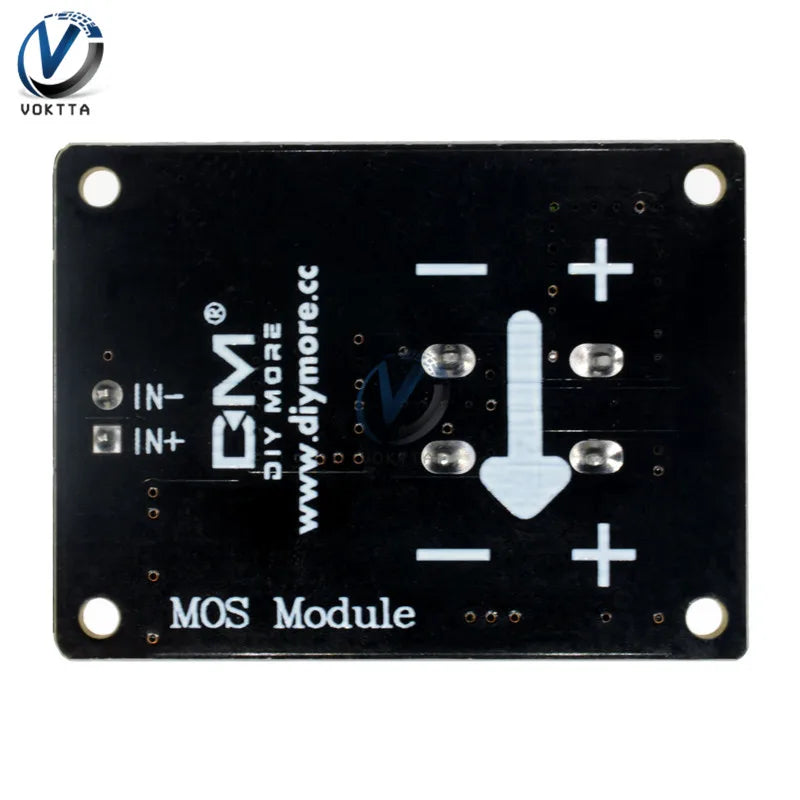

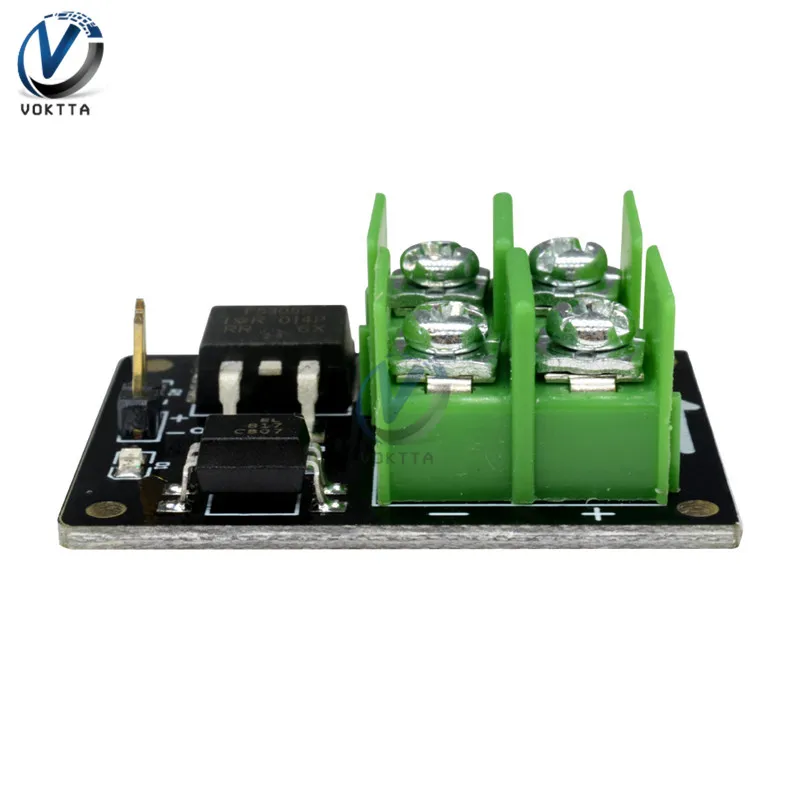

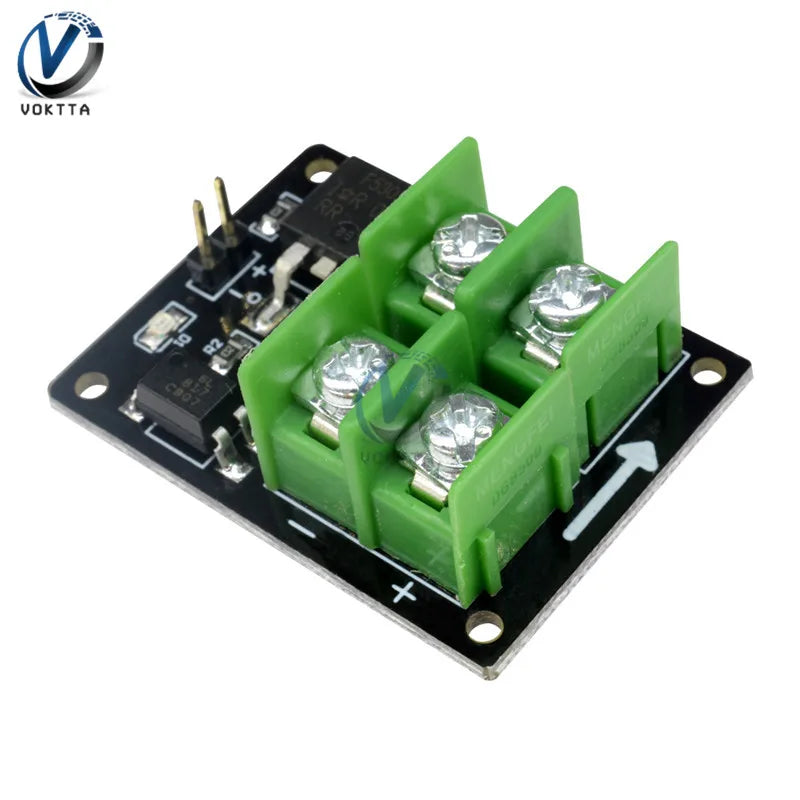

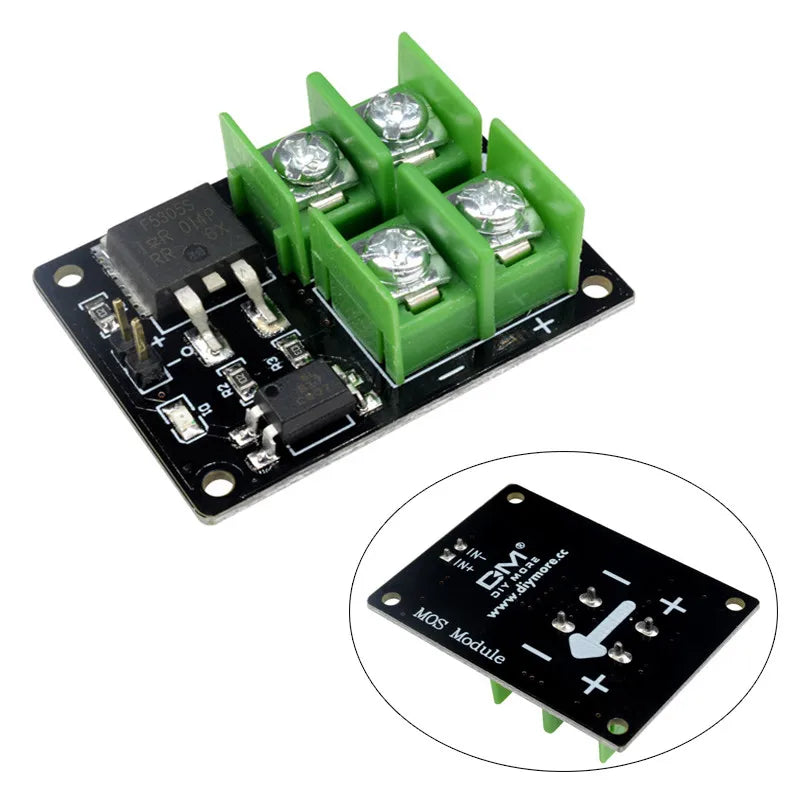

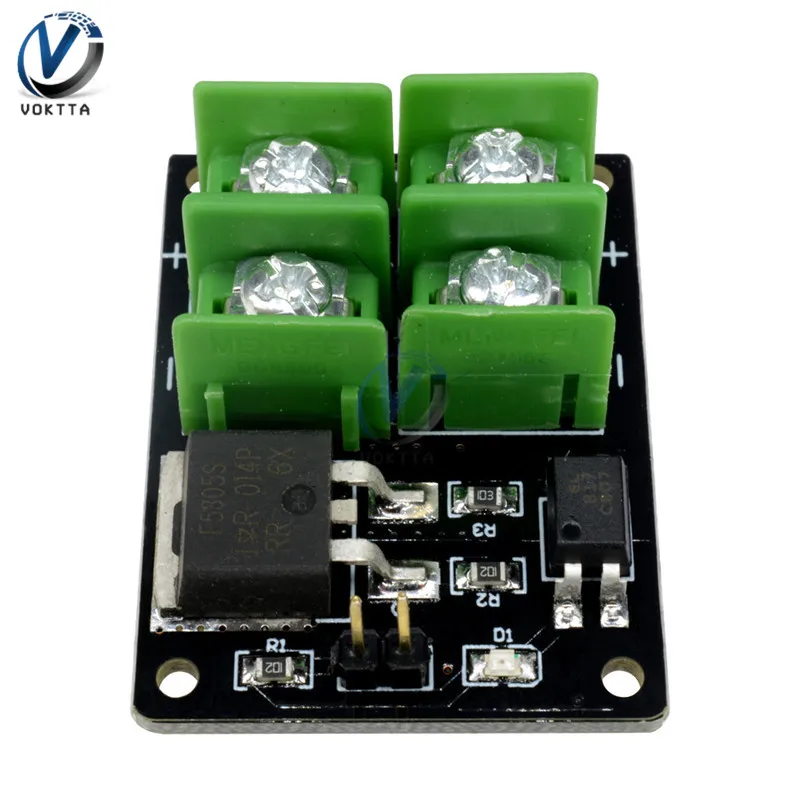

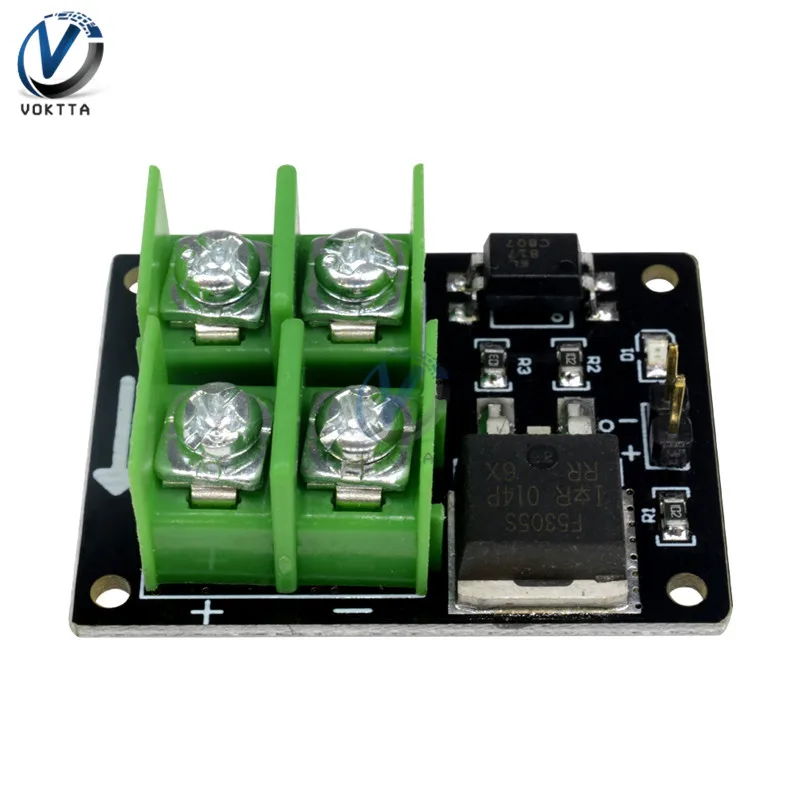

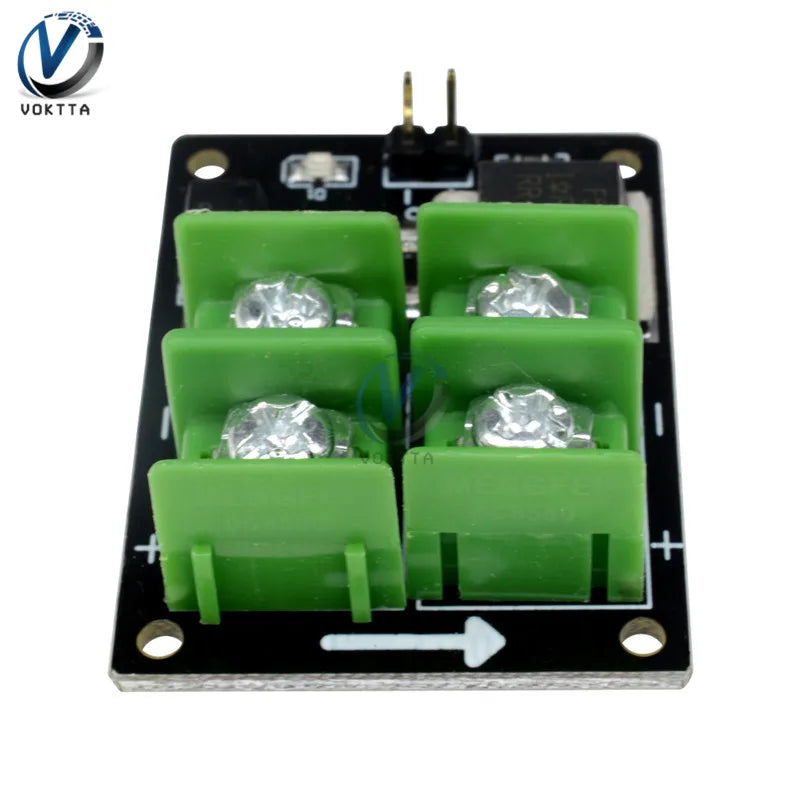

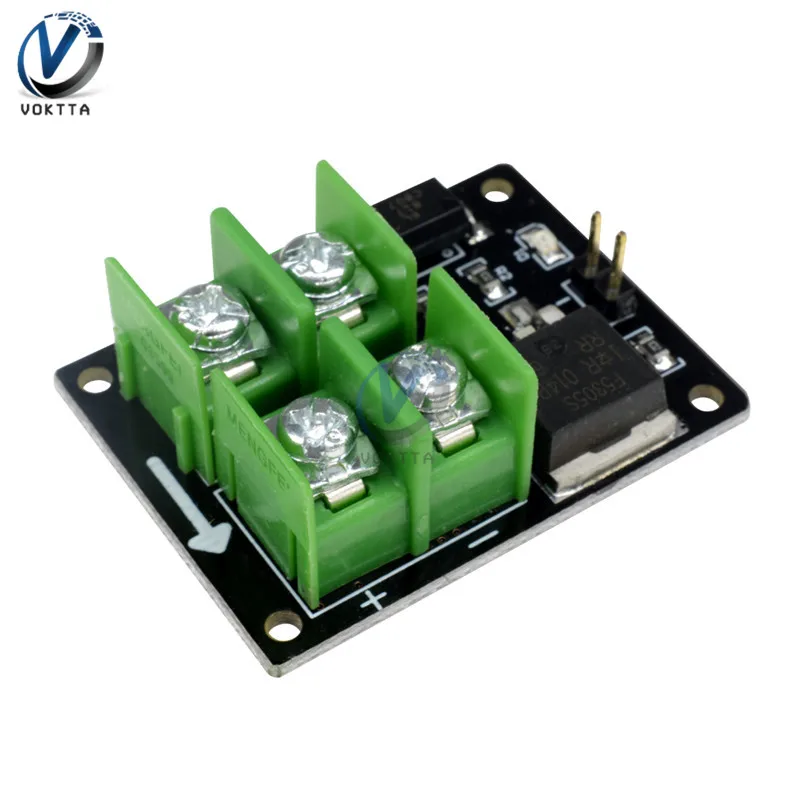

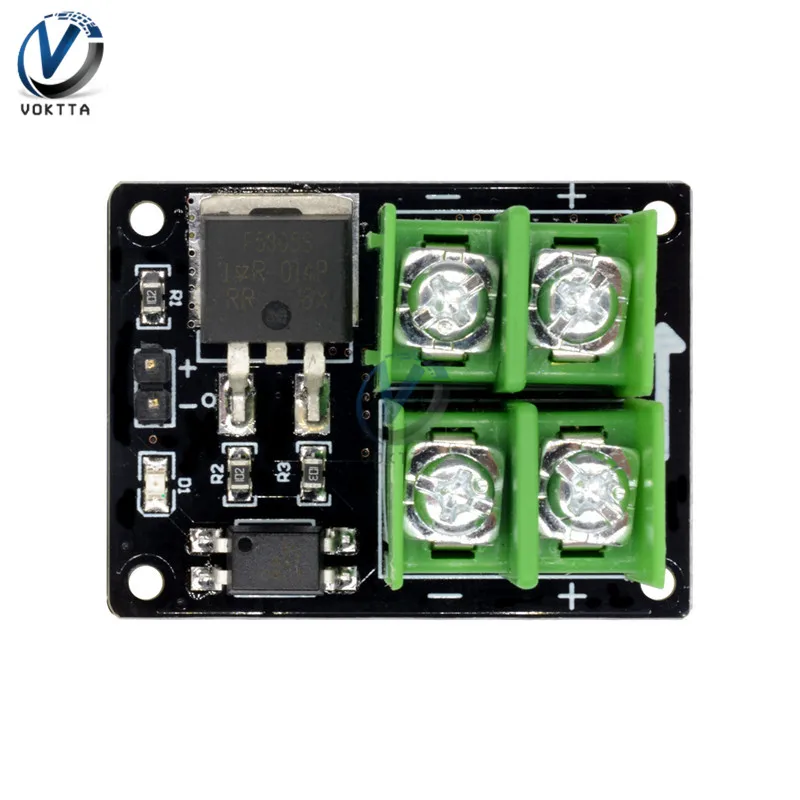

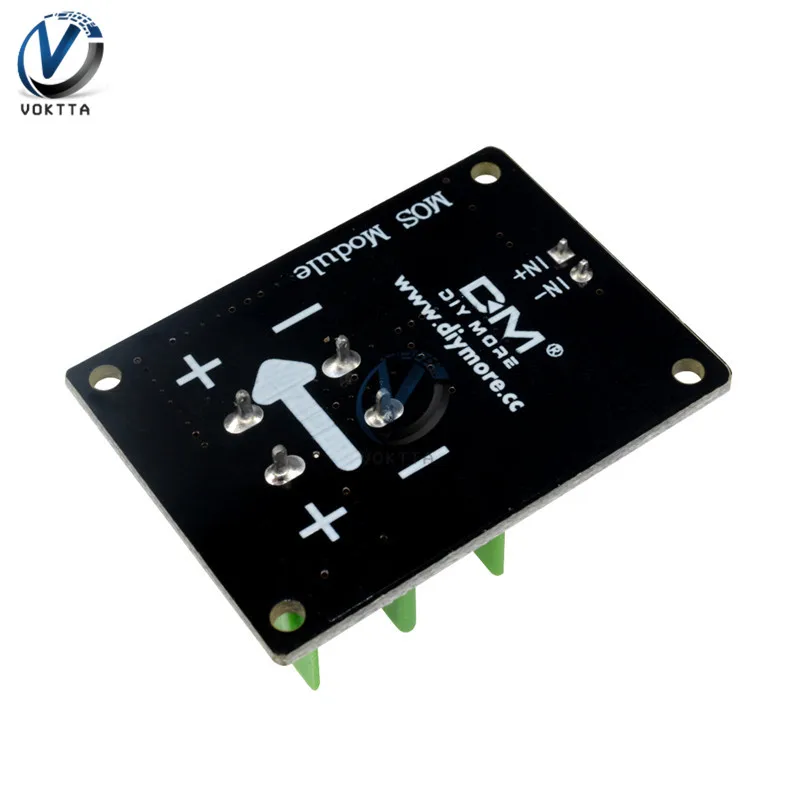

3V 5V Low-Voltage MOSFET Switch Module 12V 24V 36V Switch Module P-Channel Effect Tube For PWM Control Motor Speed





Description:



Input control voltage :3.3V-12V

Output charged voltage: 5-36V

Board use of opto isolated, completely separated from the 2-terminal voltage.

Input is controlled by a 2 pin control ,a ground control can be directly connected to the control switch.

Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED.

Charged with maximum current: 22A ,more than 5A need to add a heat sink.

Board with LED lights

Host input and output screw terminal block

Control terminal using 2.54MM pin, easy wiring.

Control can be directly connected microcontroller IO. MCU can for ARDUINO PWM control motor speed,

the brightness of lights and so on. Note that large current need to add additional heat sink

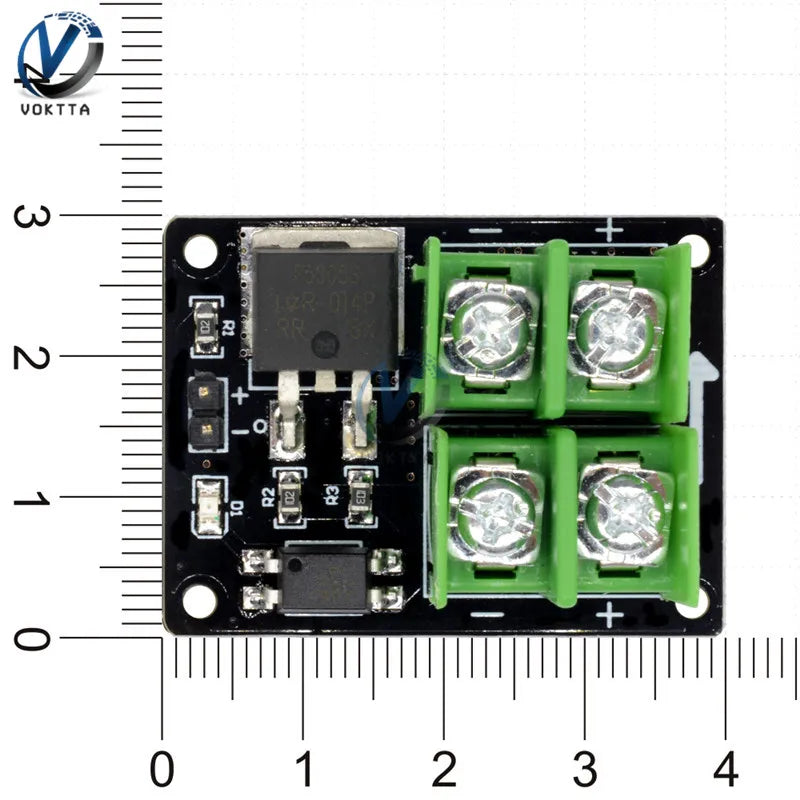

Board size: 4.2 X 2.6 cm



Package Included:



1 x Low-Voltage MOSFET Switch Module
