3v 6v DC N20 Mini Micro Metal Gear Motor 3mm Shaft Worm Gear Reduction Motor Model Aircraft Folding Landing

3v 6v DC N20 Mini Micro Metal Gear Motor 3mm Shaft Worm Gear Reduction Motor Model Aircraft Folding Landing

$22.28

$22.28 $0.00

Description

SPECIFICATIONS

Actual Rated Input Voltage: DC 3V - 6V

Base RPM: 31RPM - 62RPM

Brand Name: NONE

Certification: CCC

Choice: yes

Commutation: Brush

Condition: New

Construction: Permanent Magnet

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Model Number: N20 Gear Motor

Origin: Mainland China

Output Power: ＜18.65

Protect Feature: Explosion-proof

Reversible/Non-Reversible: Reversible

Shaft Diameter: 3mm

Special Motor Construction: Explosion-Proof Motor

Type: Gear Motor

Use: Home Appliance

semi_Choice: yes

Specification:

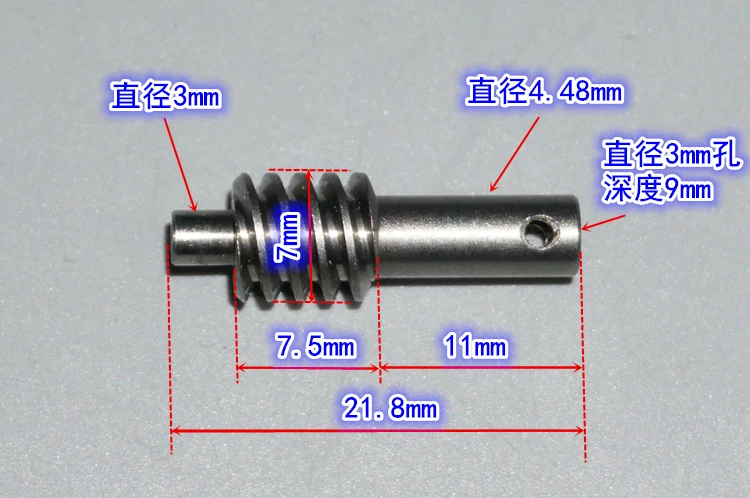

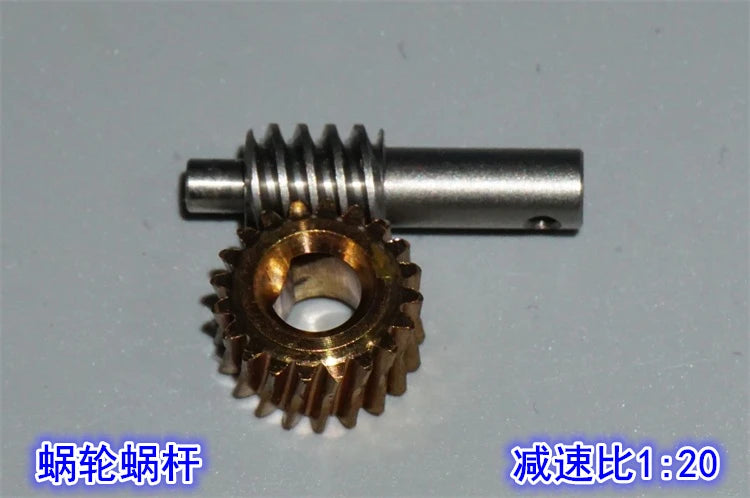

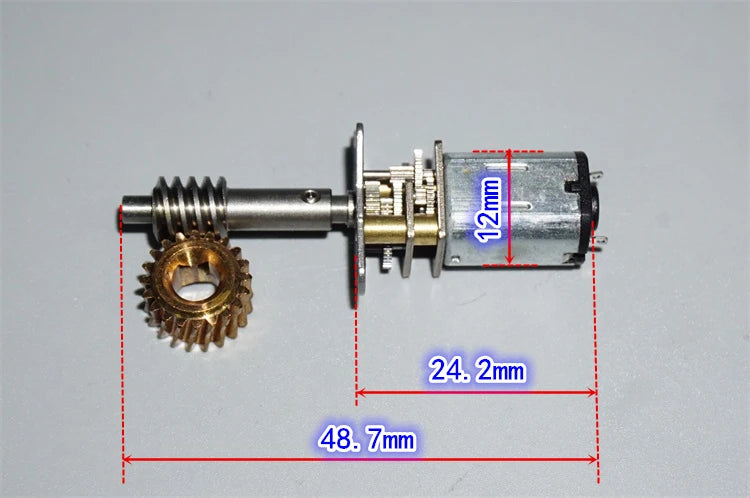

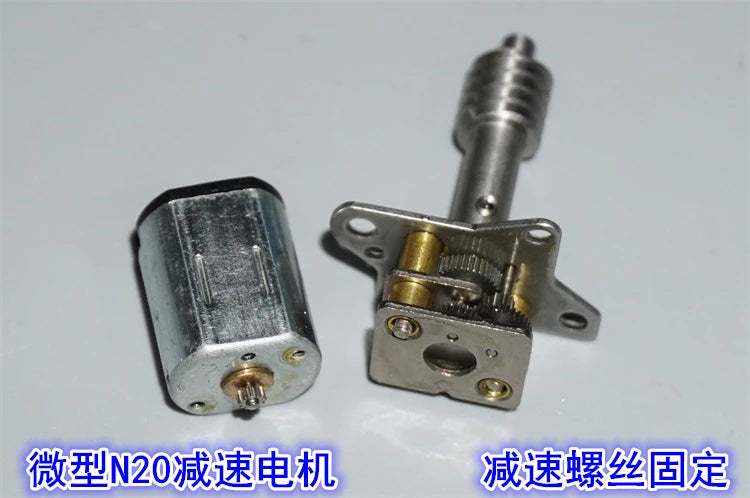

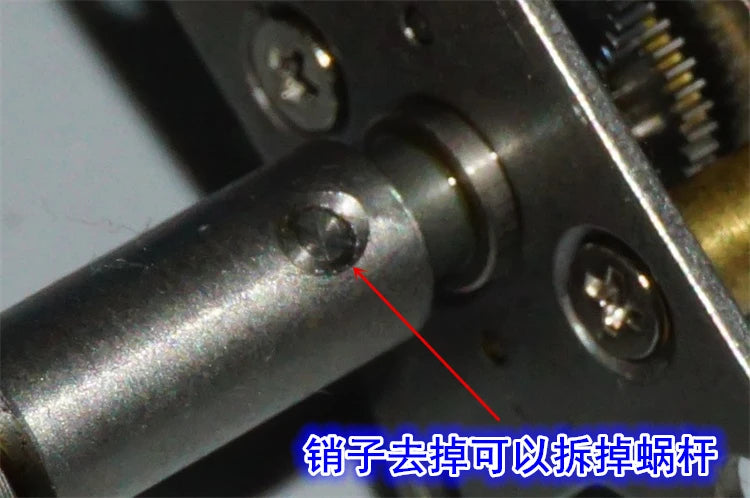

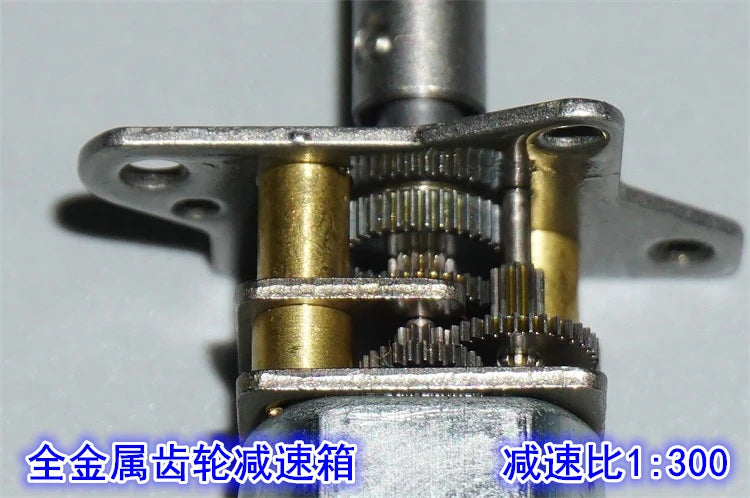

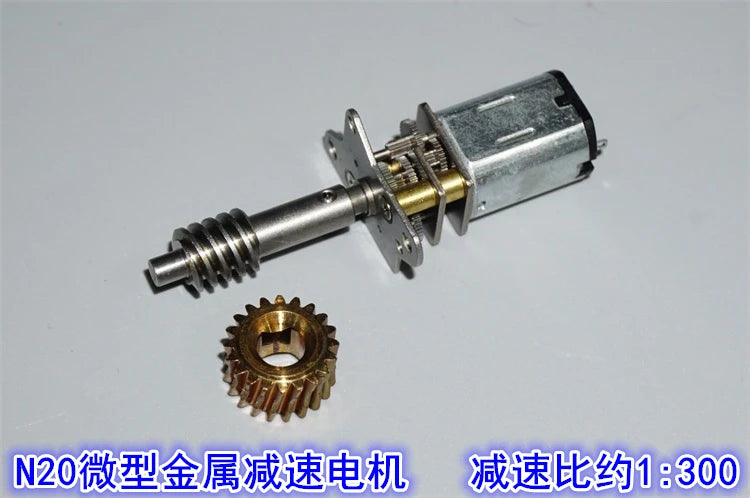

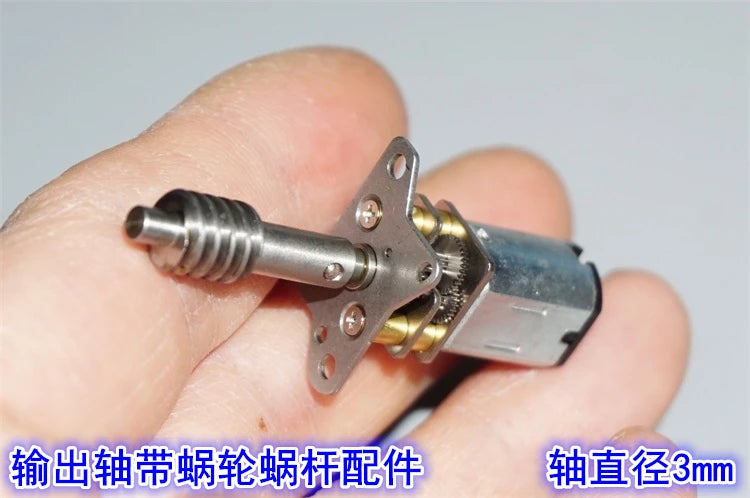

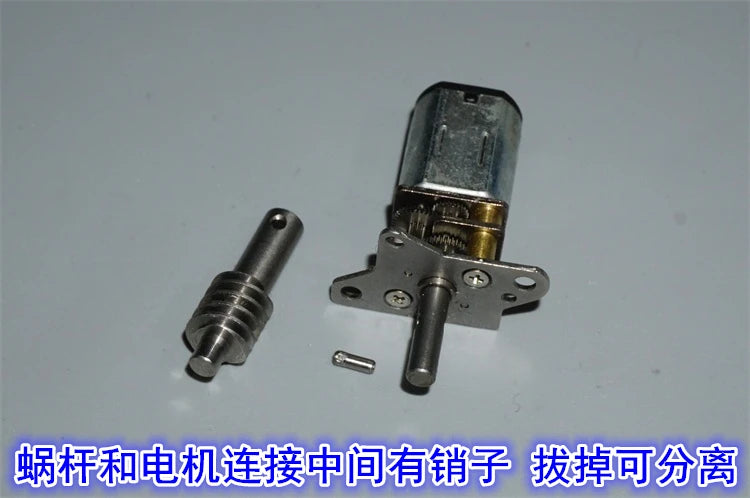

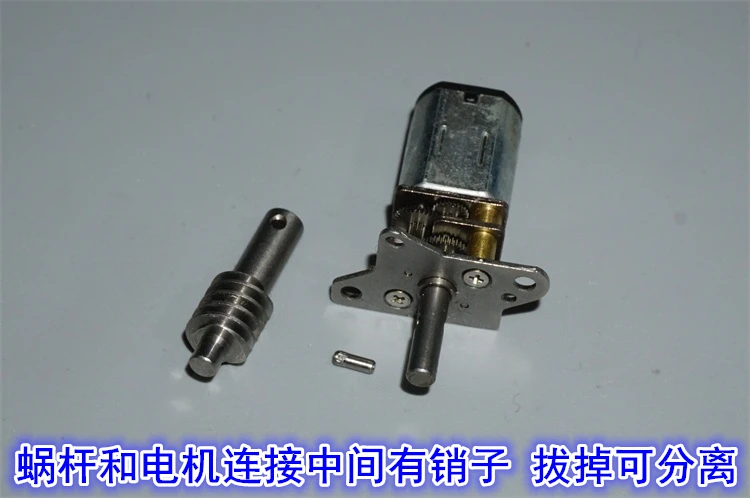

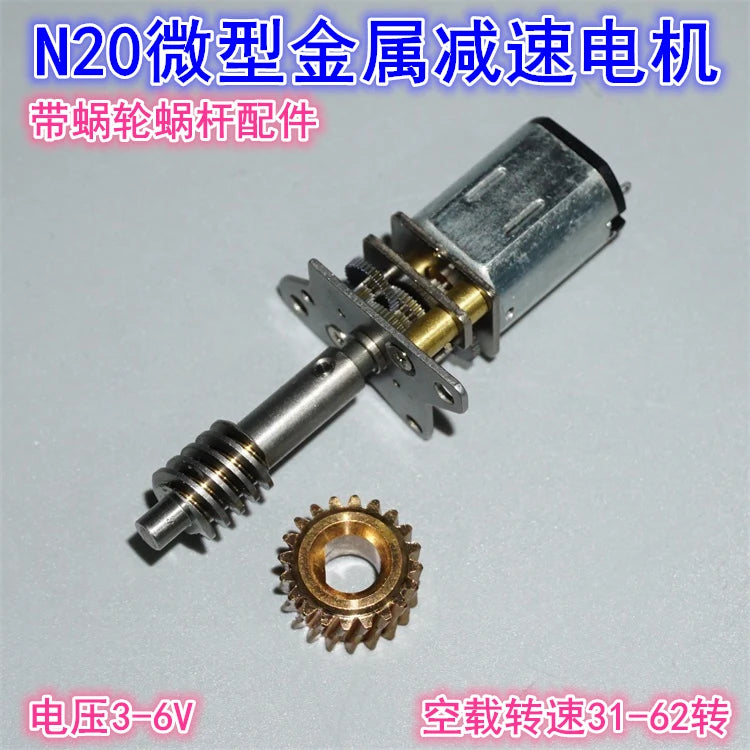

The new stock N20 micro reduction motor, with worm gear attachment and all-metal gear, was originally used on the folding landing gear of the model airplane. The rated voltage is 5V. The measured reduction motor can run at 3-6V. The reduction ratio of the reduction box is about 1:300, the reduction ratio of the output worm gear is 1:20, and the reduction worm can be pulled out by removing a pin. The reduction output shaft has a diameter of 3mm and a length of 10.7mm.

The running sound of this reduction motor is very good, precision machining of gears, micro reduction requires high gear, especially tens of thousands of revolutions of high-speed motor deceleration, slightly almost gear running sound feels loose noise, this high-speed operation reduction box running sound is still very good.

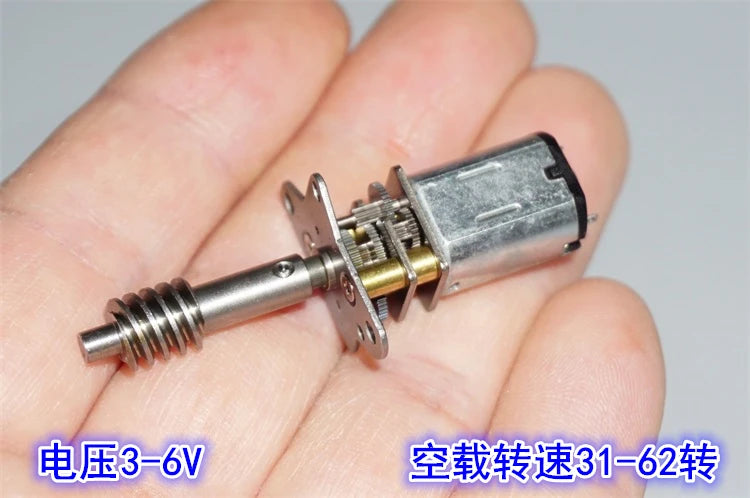

Motor measured 3V,5V and 6V voltage speed as follows:

Voltage 3V, no-load current 30ma, no-load speed 31 rpm.

Voltage 5V, no-load current 32ma, no-load speed 52 rpm.

Voltage 6V, no-load current 33ma, no-load speed 62 rpm.

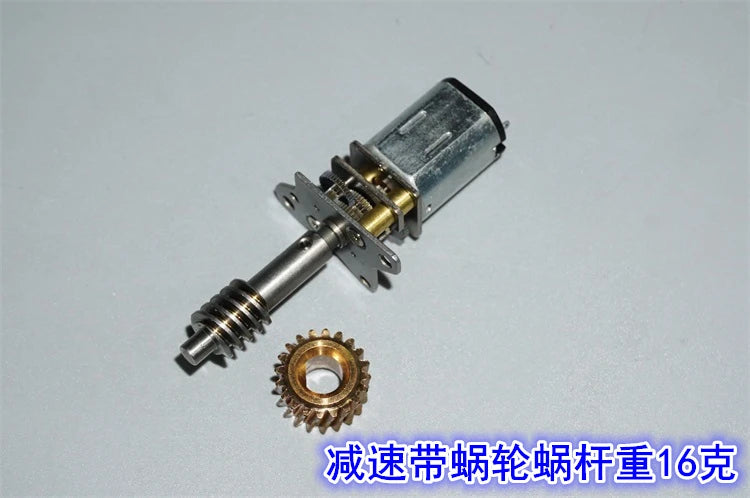

The reduction motor weighs about 16g (including worm gear teeth).
