SPECIFICATIONS

Brand Name: NONE

Certification: CCC,ce,ROHS

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): 3v 90mA ; 6v 170mA

Customized Support: Customizable

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Model Number: GA12-N20

Origin: Mainland China

Output Power: ＜18.65

Output Voltage: -

Protect Feature: Totally Enclosed

Speed(RPM): 20-1550RPM

Torque: 0.03-2.5kg.cm, according to the speed

Type: Gear Motor

Usage: BOAT,Car,Fan,Home Appliance

Voltage(V): 3V 6V

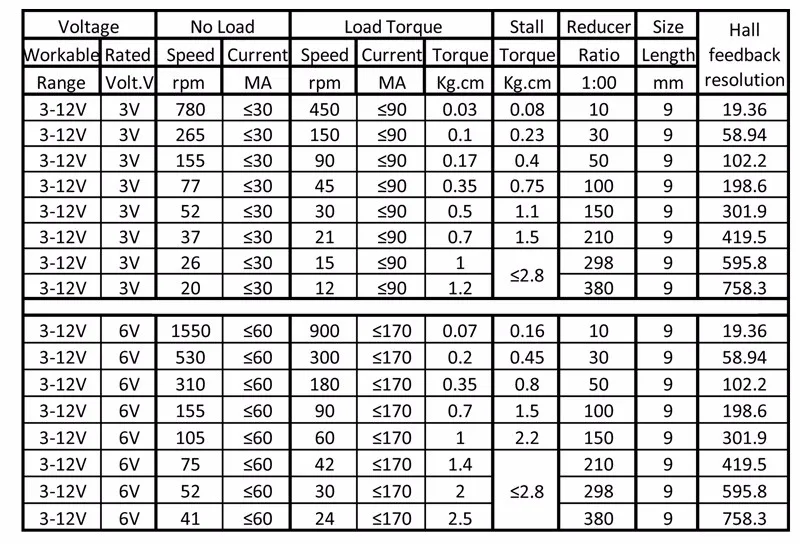

3V No Load Speed: 780rpm 265rpm 155rpm 77rpm 52rpm 37rpm 26rpm 20rpm

6V No Load Speed: 1550rpm 530rpm 310rpm 155rpm 105rpm 75rpm 52rpm 41rpm

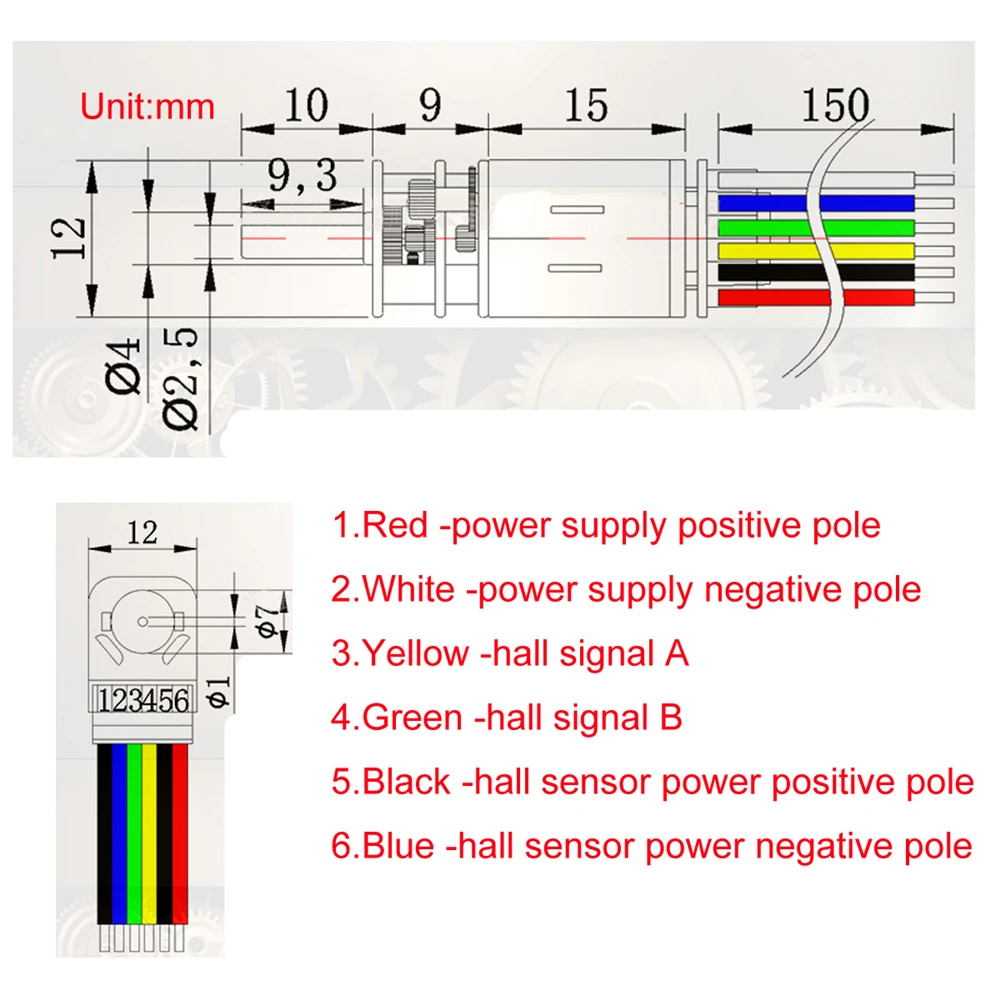

Encoder wiring methods:



Red → Motor Power + (swap can control motor reversing)



Black → Coding Power supply + (positive and negative not take the wrong 3.3-5V)



Yellow → feedback signal (motor one revolution 2 signal)



Green → feedback signal (motor one revolution 2 signal)



Blue → Coding Power - (positive and negative not take the wrong 3.3-5V)



White → Motor Power - (swap can control motor reversing)
