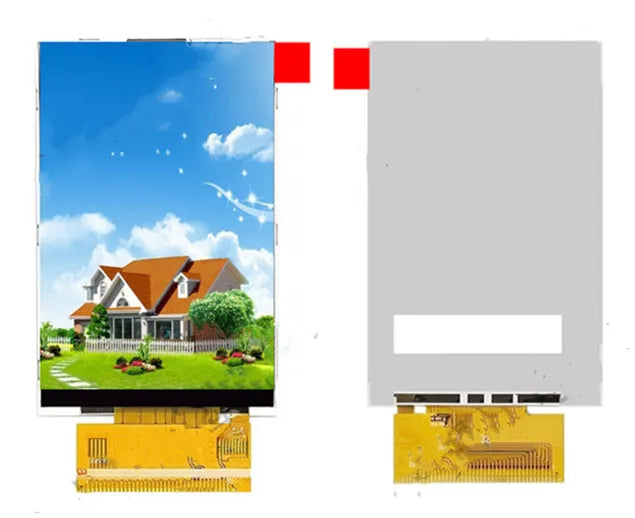

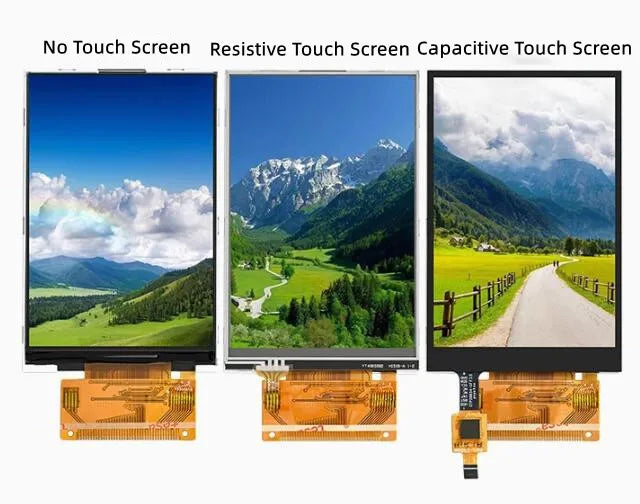

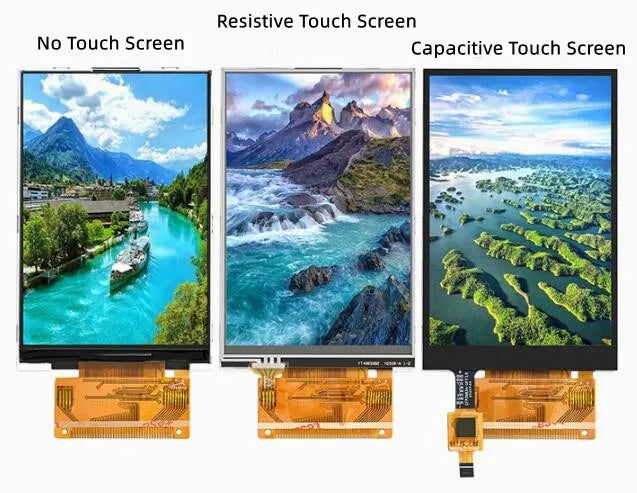

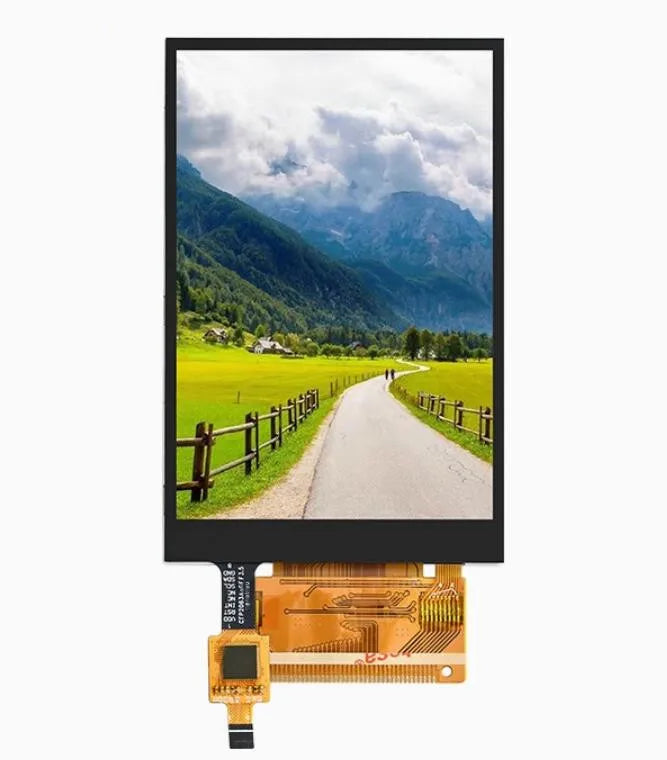

4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface

4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface

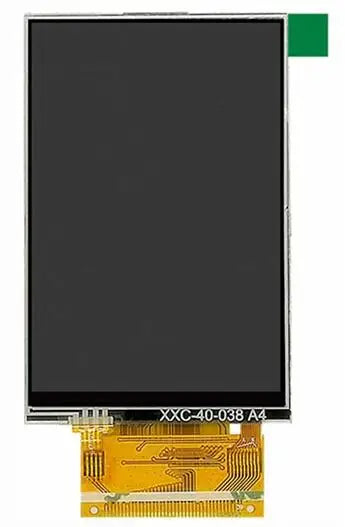

LCD Screen with RTP
$60.03
$60.03 $0.00
Skip to product information
4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
  • 4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
4.0 inch 39PIN TFT LCD Capacitive/Resistive Touch Screen ILI9488 Drive IC 320(RGB)*480 8/16Bit Parallel Interface
$60.03
$60.03 $0.00
Color
Description

SPECIFICATIONS

Brand Name: maithoga

Display Mode: /

High-concerned chemical: none

Model Number: /

Origin: Mainland China

Place of origin: Guangzhou, China

Resolution: 320*240,320(RGB)*480

Type: TFT

is_customized: Yes

4.0 inch HD TFT LCD Screen


Size: 4.0 inch

LCD Type: TFT

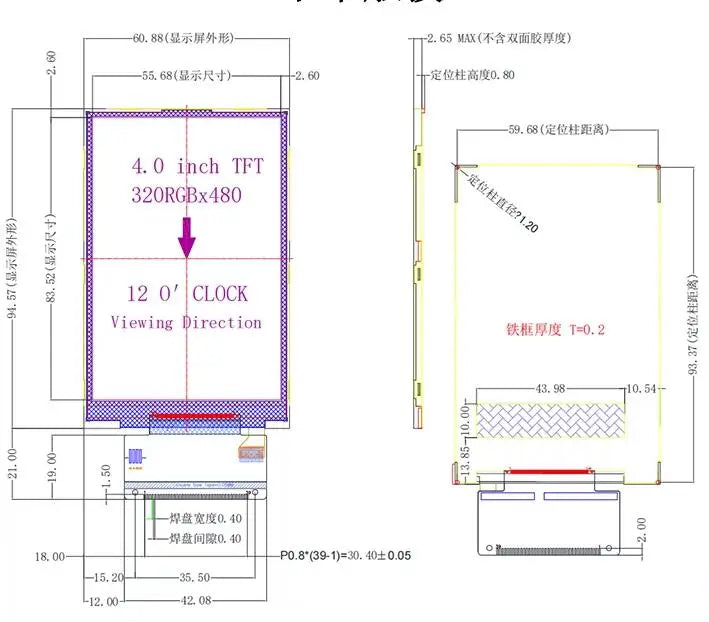

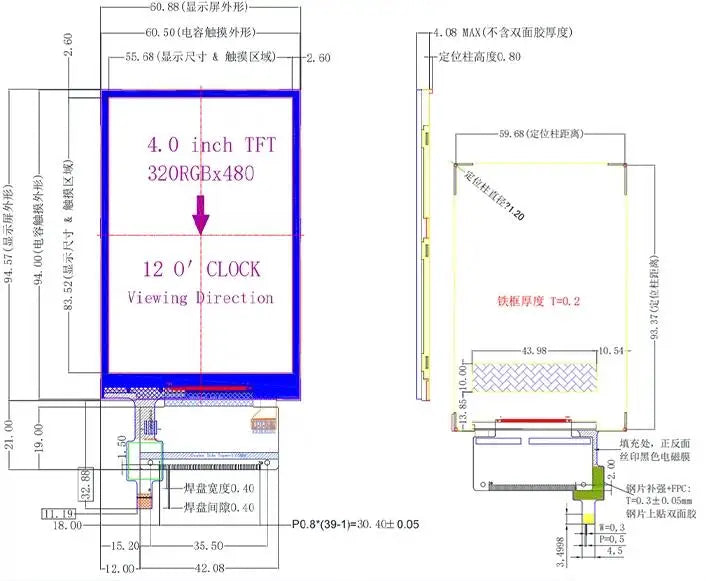

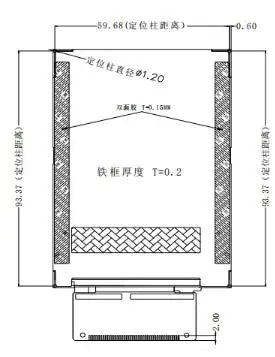

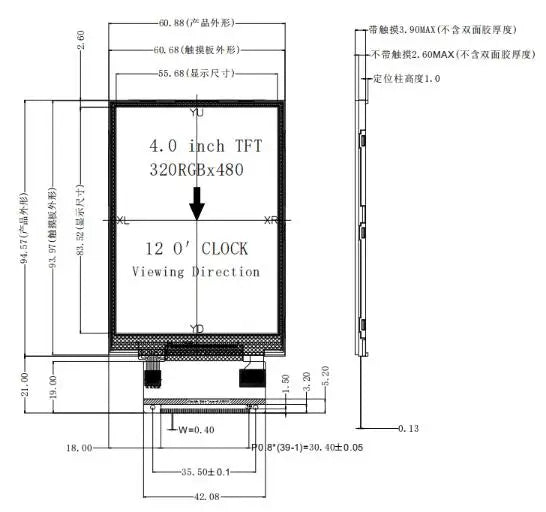

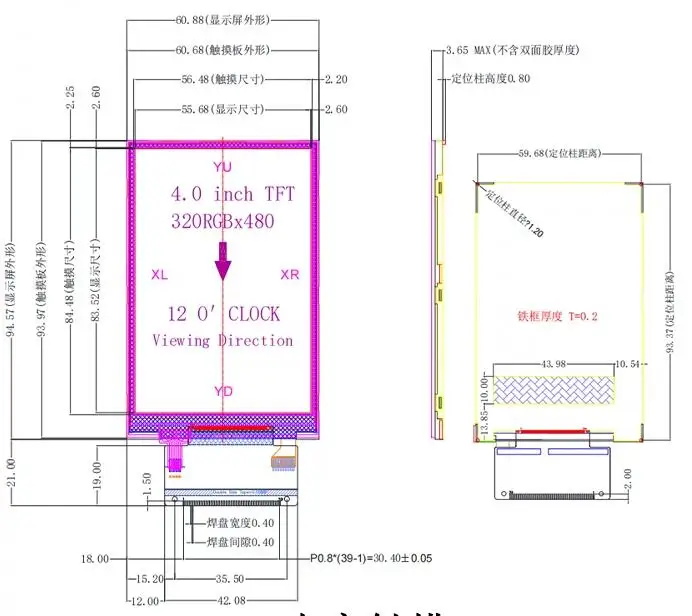

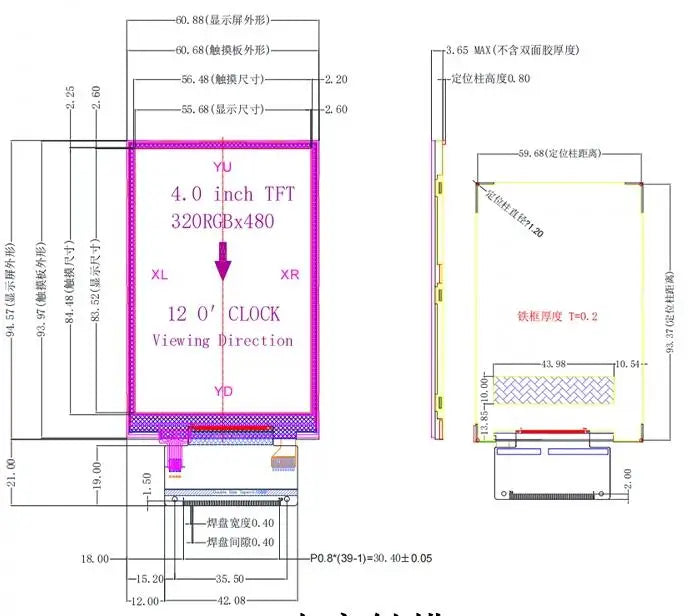

Outline Dimensions: 60.88*94.57*2.6mm(No TP) / 60.88*94.57*3.9mm (TP)

Active Area: 55.68*83.52mm

Number of Dots: 320(RGB)*480

Controller: ILI9488

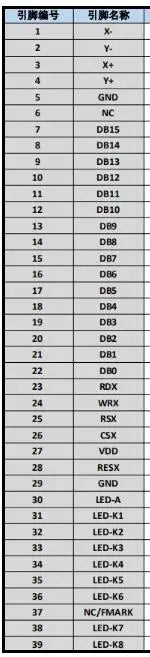

PIN NO.: 39P

Pin Pitch: 0.8mm

Display Color: 262K

Backlight: White LED * 8

Backlight Current: 120mA

Polarizer Mode: Transmissive

Data Interface: 8/16bitParallel interface

Input Voltage: 2.8V - 3.3V

Operating Temp.: -20 ~ 70 degree

Storage Temp.: -30 ~ 80 degree

Viewing Direction: 12 O’clock

Total Power: 0.43W
