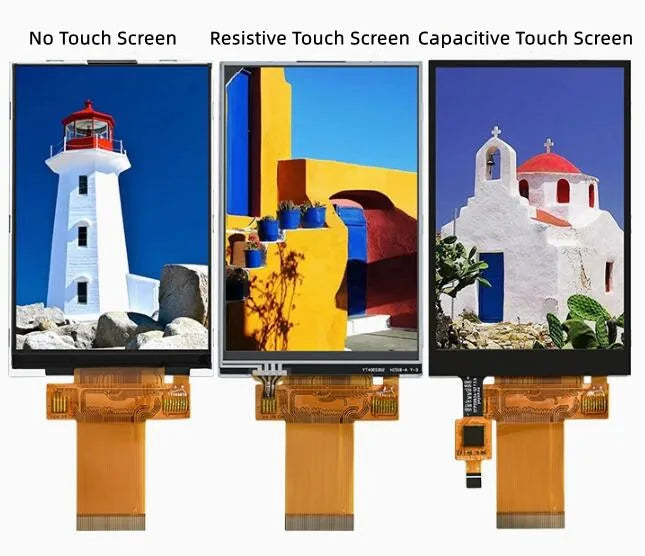

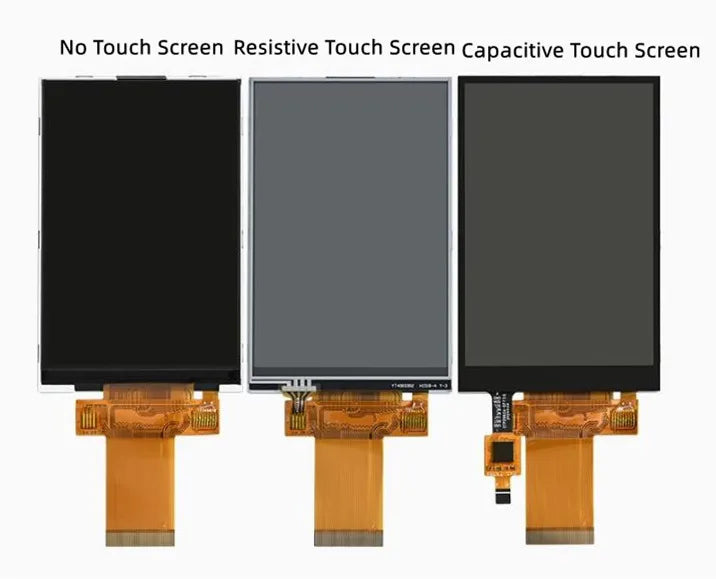

4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480

4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480

ST7796U Screen NoTP
$49.95
$49.95 $0.00
Skip to product information
4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
  • 4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
4.0 inch 40PIN SPI TFT LCD Capacitive/Resistive Touch Screen ILI9488 ST7796 GT911 IC MCU 8/16Bit Interface 320(RGB)*480
$49.95
$49.95 $0.00
Color
Description

SPECIFICATIONS

Brand Name: maithoga

Display Mode: /

High-concerned chemical: none

Model Number: /

Origin: Mainland China

Resolution: 320*240

Type: TFT

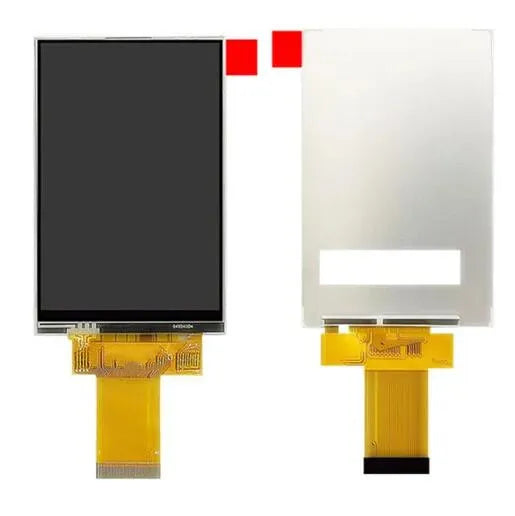

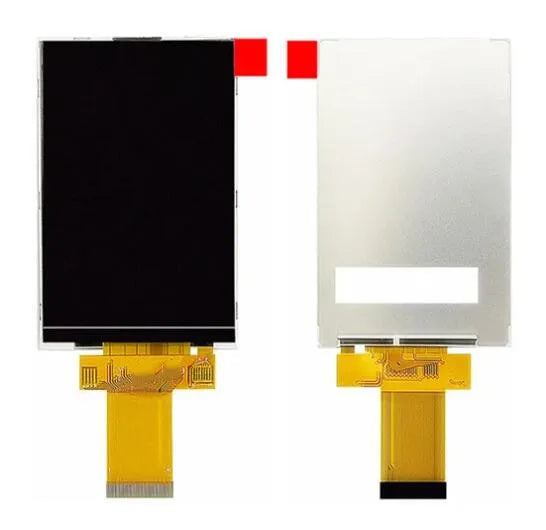

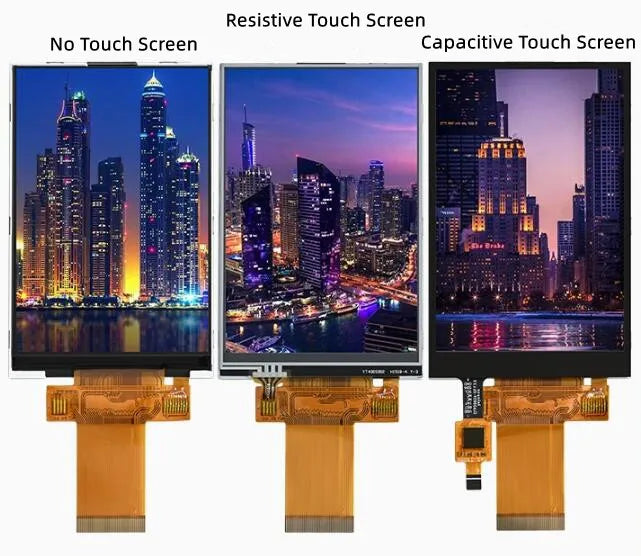

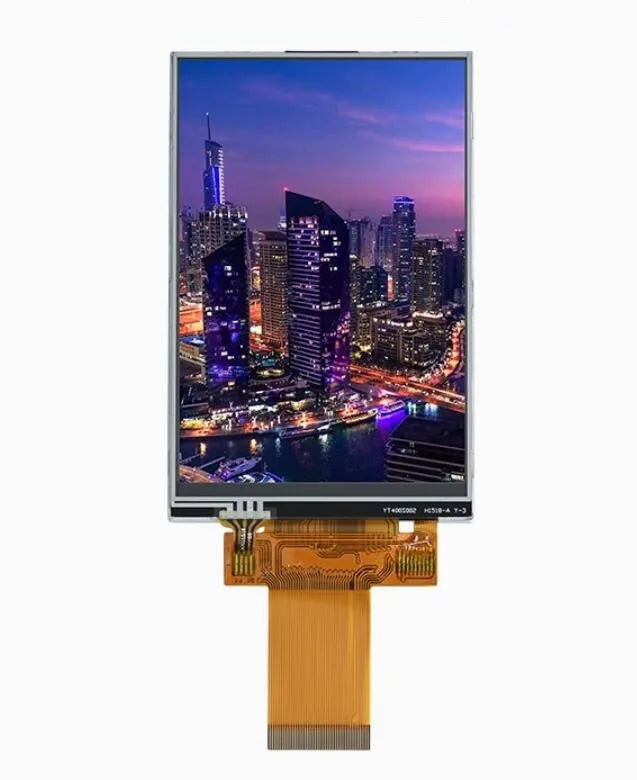

4.0 inch TFT LCD Screen

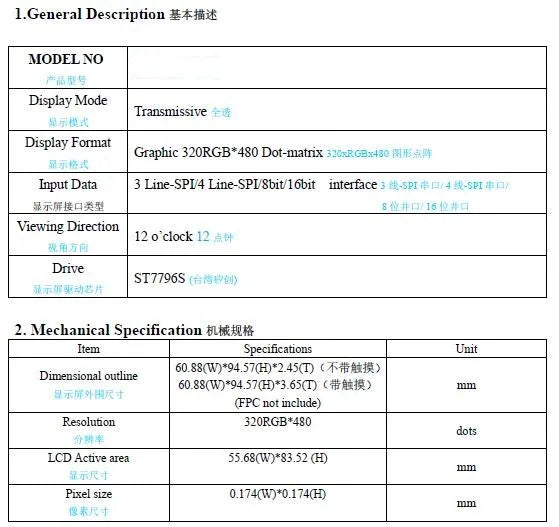

Size: 4.0 inch

LCD Type: TFT

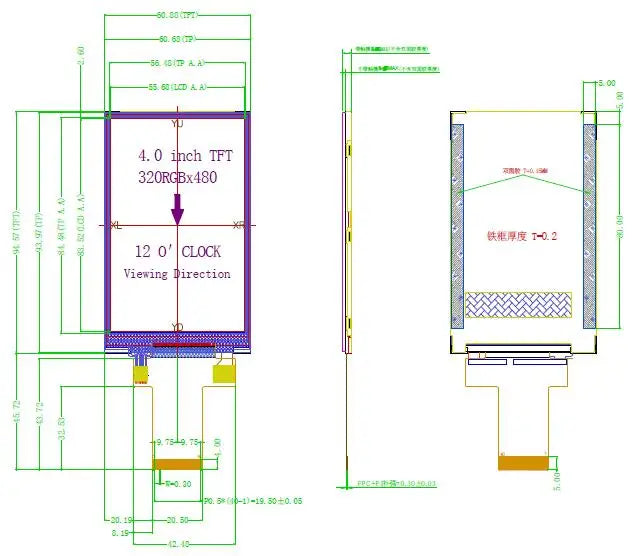

Outline Dimensions: 60.88*94.57*3.65/2.45mm

Active Area: 55.68*83.52mm

Number of Dots: 320(RGB)*480

Controller: ST7796

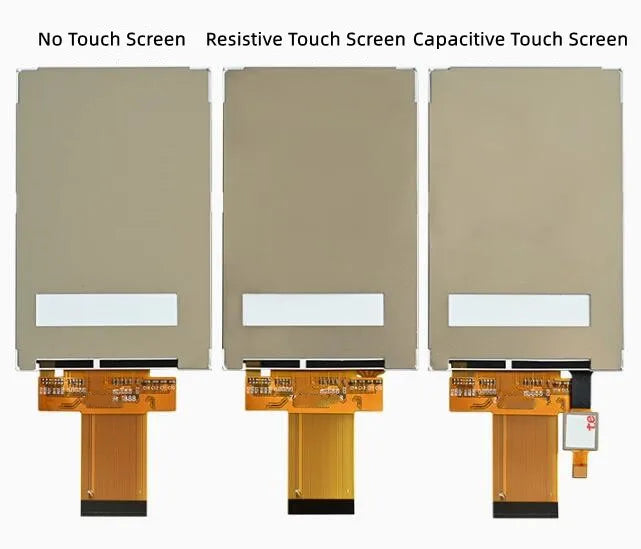

Touch IC: GT911

PIN NO.: 40P

Pin Pitch: 0.5mm

Display Color: 262K

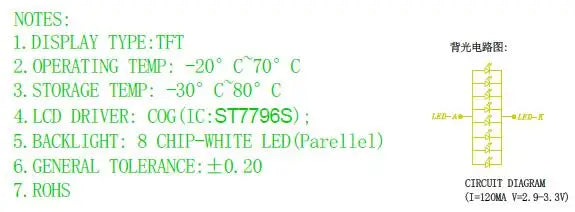

Backlight: White LED (8 CHIP Parallel)

Polarizer Mode: Transmissive

Power consumption: 0.4W

Data Interface: MCU 8/16BitParallel, 3-Wire/4-Wire SPI interface

Backlight Voltage: 3.3V

Backlight Current: 120mA

Operating Temp.: -20 ~ 70 degree

Storage Temp.: -30 ~ 80 degree

Viewing Direction: 12 O’clock
