SPECIFICATIONS

Brand Name: EQV

Choice: yes

Display Mode: 4.0 inch SPI

High-concerned chemical: none

Model Number: 4.0 inch SPI

Origin: Mainland China

Resolution: 320*240

Type: TFT

is_customized: Yes

semi_Choice: yes

Product Description

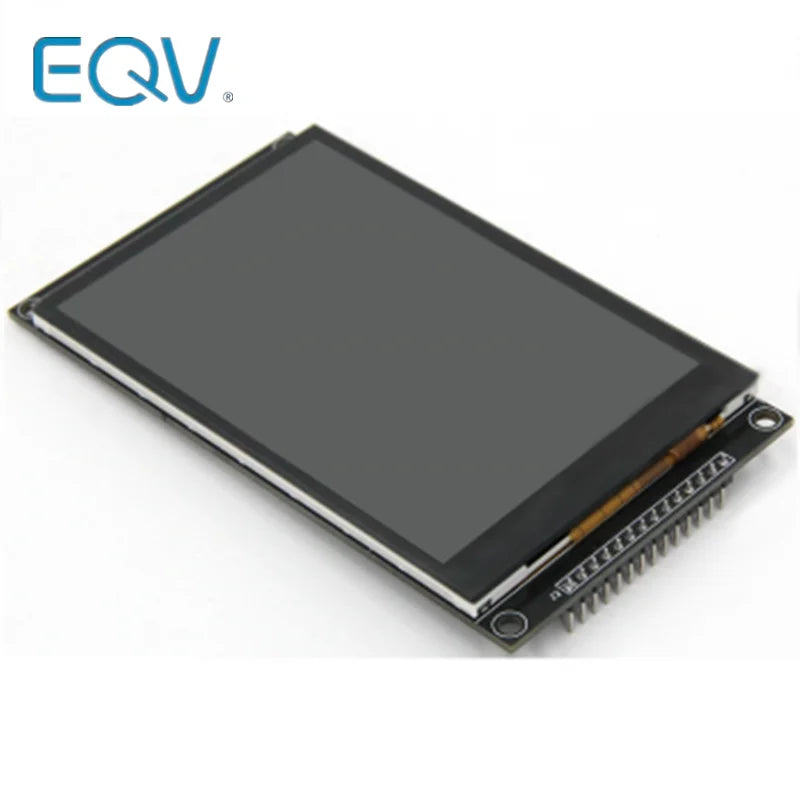

4.0inch color screen with 320x480 resolution of 65K colors and rich display colors

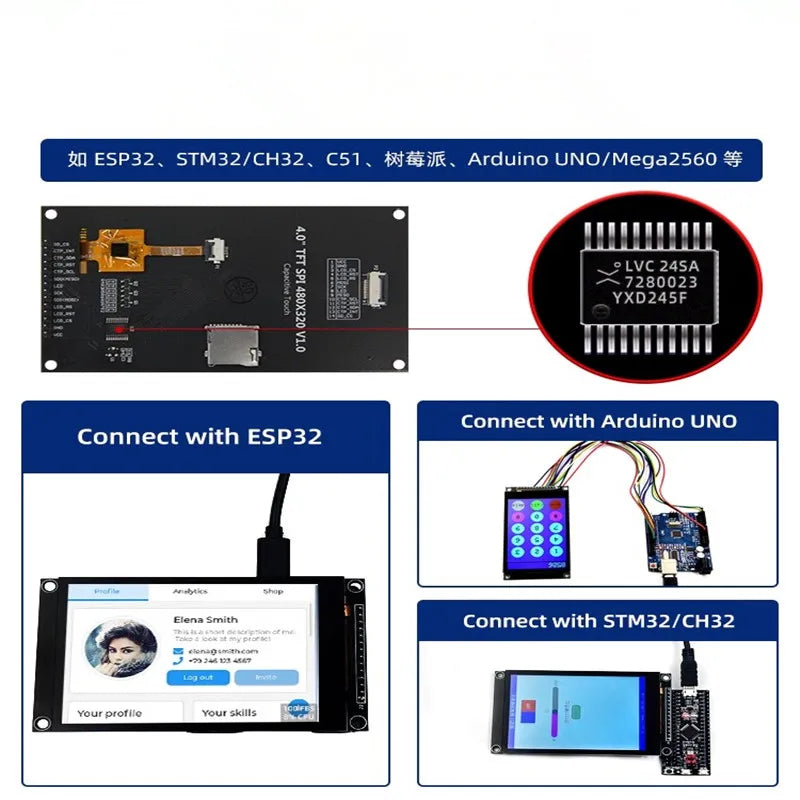

On board level conversion circuit, compatible with 5V and 3.3V MCU
Adopting a 4-wire SPI serial bus to save I/O pins
Optional capacitive touch/no touch function for modules

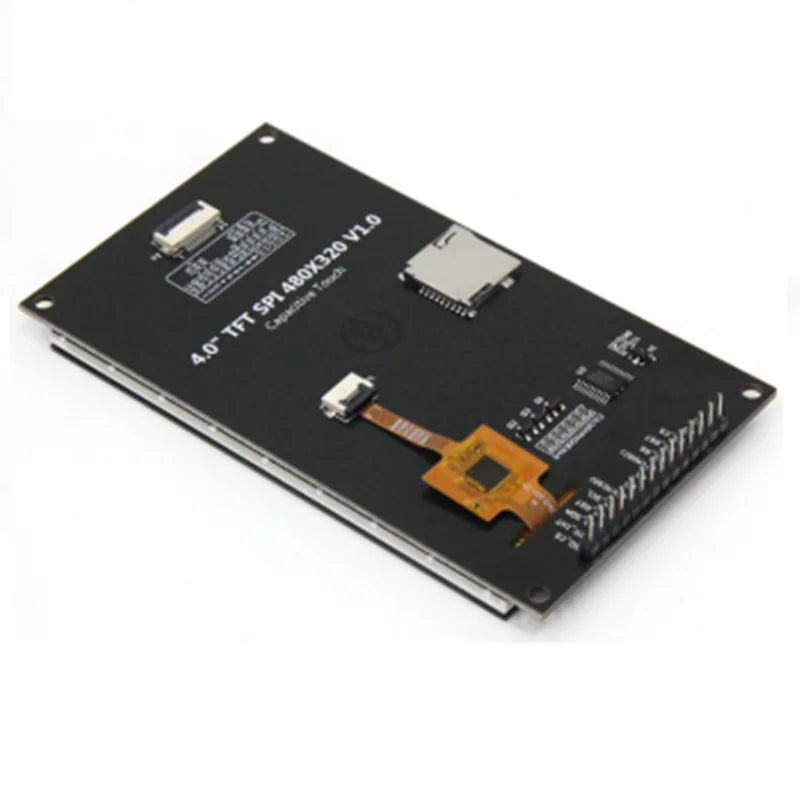

Module input supports 2.54 pin interface and FPC extension interface
Equipped with micro TF card slot for easy storage expansion
Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32)
Provide low-level driver technical support, and update WIKI information online
Multiple tests for module aging can meet military level standards, supporting long-term stable work

Name	Parameter
LCD Parameters
Screen Size	4.0 inch
Screen Type	TN
Resolution	320xRGBx480 (pixels)
Active Area (AA area)	55.68(W)x83.52(H)(mm)
Number of Colors(Max)	16.7M
Driver IC	ST7796S
Display Interface	4-Line SPI
Pixel Size	0.174(H)x0.174(mm)
View Angle	12 O'CLOCK
Brightness(TYP)	300(cd/m2)
Backlight Type	White LED*8
Operation Temperature	-10~50(℃)
Storage Temperature	-20~60(℃)
Touch Screen Parameters
Touch Active Area	4.0 inch
Touch Screen Type	Capacitive Touch Screen
Touch Screen Resolution	320x480(pixels)
Driver IC	FT6336U
Touch Screen Visual Area	55.98(W)x83.82(H)(mm)
Communication Interface	IIC
Operation Temperature	-20~70(℃)
Storage Temperature	-30~80(℃)
Size Parameters
TFT Outline Size	60.88±0.2(W)x94.57±0.2(H)x2.5±0.1(D)(mm)(Excluding cables and adhesive backing)
Touch Screen Outline Size	60.88±0.1(W)x94.57±0.1(H)x1.35 (D)(mm)(Excluding cables and adhesive backing)
Module Outline Size	Have Touch Screen:60.88(W)x108.0(H)x14.80(D)(mm)(including Pin Header) NO Touch Screen:60.88(W)x108.0(H)x12.95(D)(mm)(including Pin Header)
Electrical Parameters
Working Voltage	5.0 V/3.3V(Recommended to connect to 5V)
Backlight Current	103 mA
Power	0.5 W
Other Parameters
SKU	NO Touch Screen : MSP4030 Have Touch Screen : MSP4031
Interface	14P 2.54mm spacing Header and 0.5mm spacing FPC seat
Weight(including package)	MSP4030: 85g MSP4031: 106g

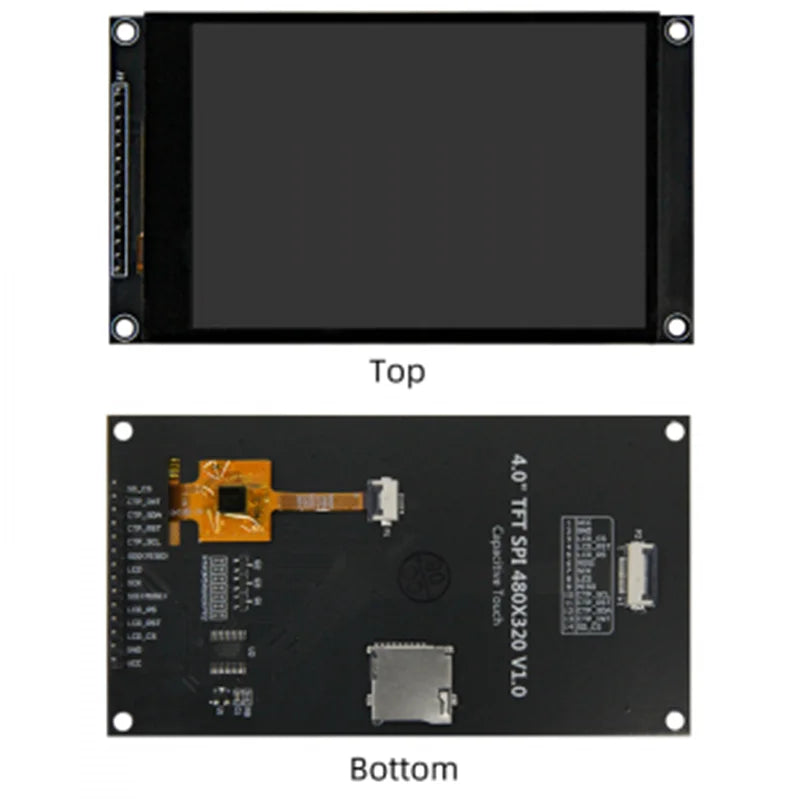

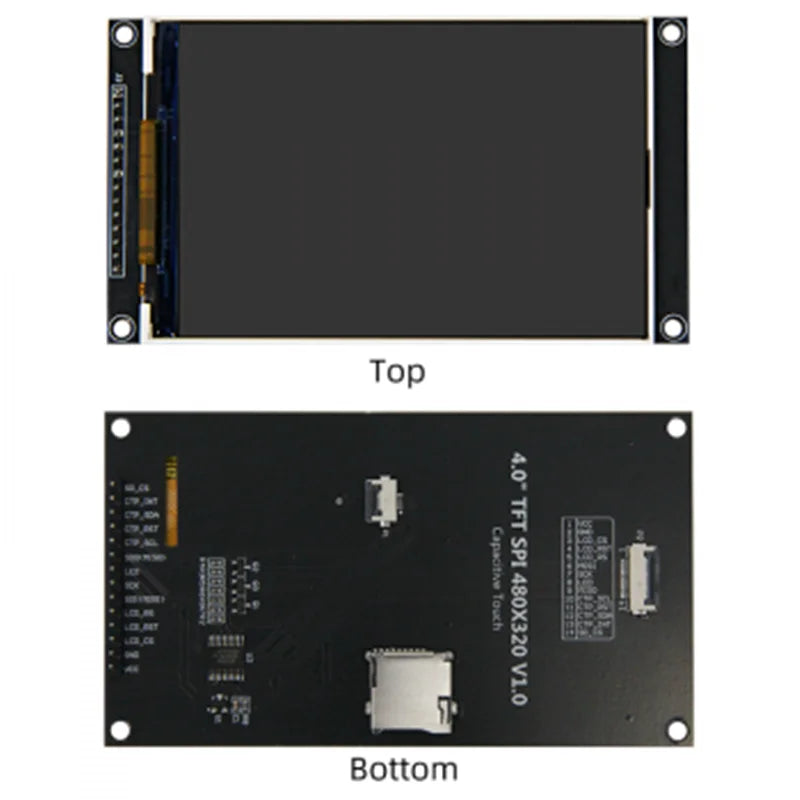

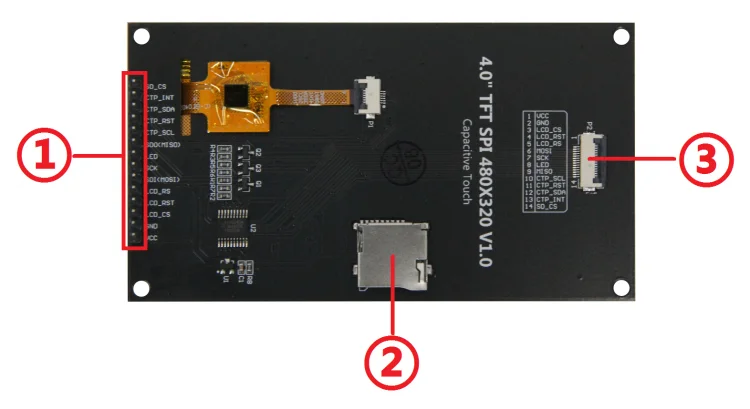

Number	Interface	Function Description
①	14 Pin Header	2.54mm spacing row pins, module signal input pins
②	Micro SD Slot	Insert a Micro SD card to expand storage space, such as storing big data content such as fonts and images
③	14P FPC	0.5mm FPC terminal, used for module signal input with the same function as ①

Number	Pin Label	Description
1	VCC	Power positive(It is recommended to connect to 5V. When connected to 3.3V, the backlight brightness will be slightly dim)
2	GND	Power ground
3	LCD_CS	LCD selection control signal, Low level active
4	LCD_RST	LCD reset control signal, Low level reset
5	LCD_RS	LCD command / data selection control signal High level: data, low level: command
6	SDI(MOSI)	SPI bus write data signal(SD card and LCD screen used together)
7	SCK	SPI bus clock signal(SD card and LCD screen used together)
8	LED	LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it)
9	SDO(MISO)	SPI bus read data signal (SD card and LCD screen used together)
10	CTP_SCL	Capacitive touch screen IIC bus clock signal (modules without touch screens do not need to be connected)
11	CTP_RST	Capacitor touch screen reset control signal, low-level reset (modules without touch screens do not need to be connected)
12	CTP_SDA	Capacitive touch screen IIC bus data signal (modules without touch screens do not need to be connected)
13	CTP_INT	Capacitor touch screen IIC bus touch interrupt signal, when generating touch, input low level to the main control (modules without touch screens do not need to be connected)
14	SD_CS	SD card selection control signal, low level active (without SD card function, can be disconnected)
