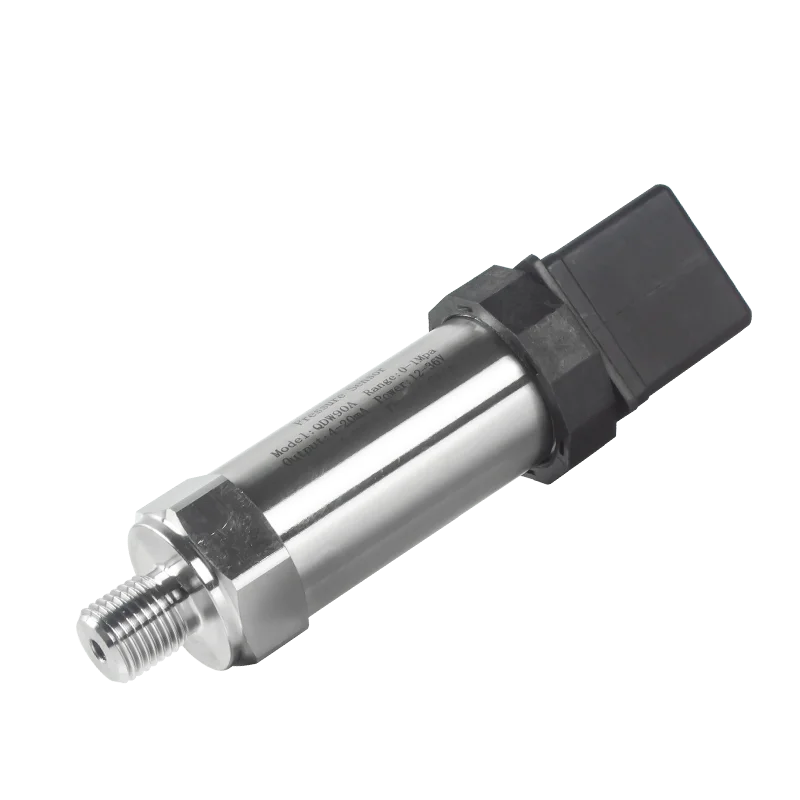

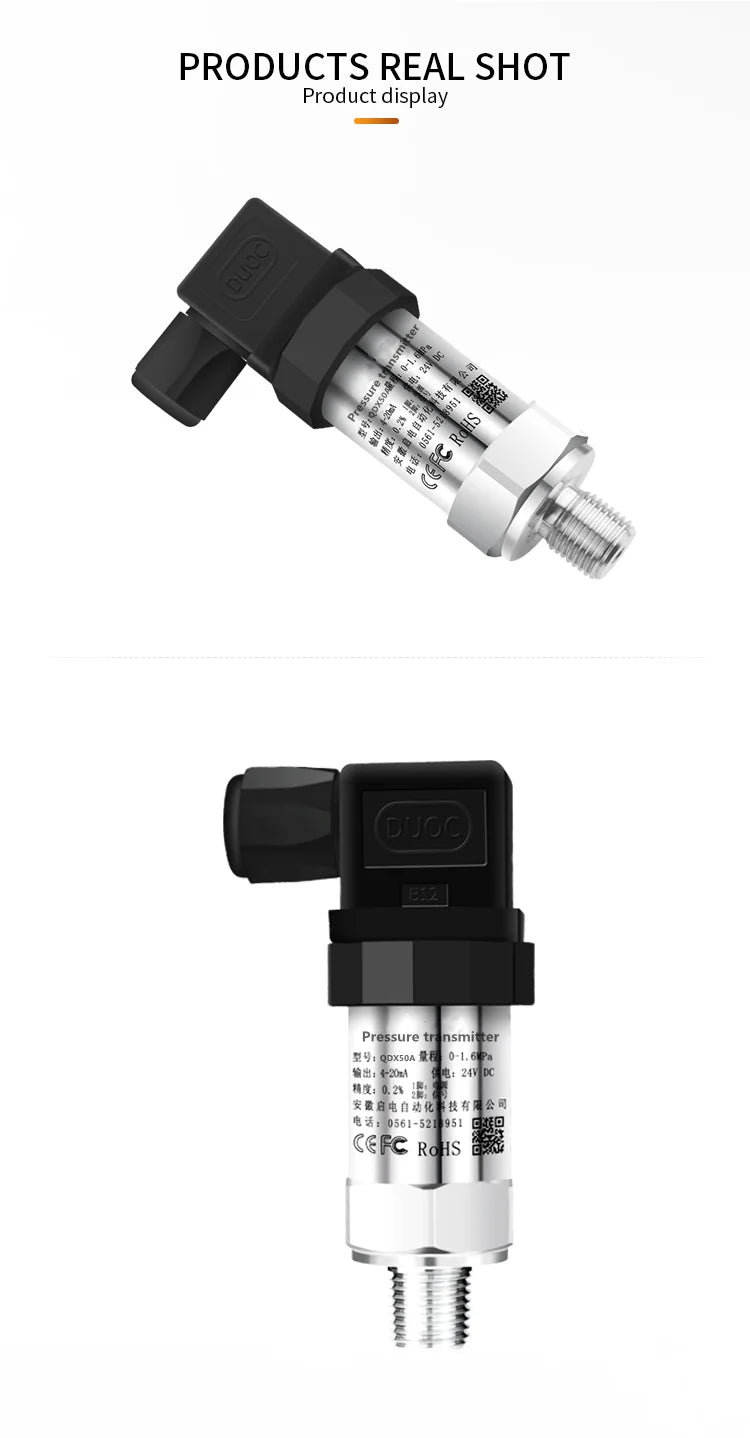

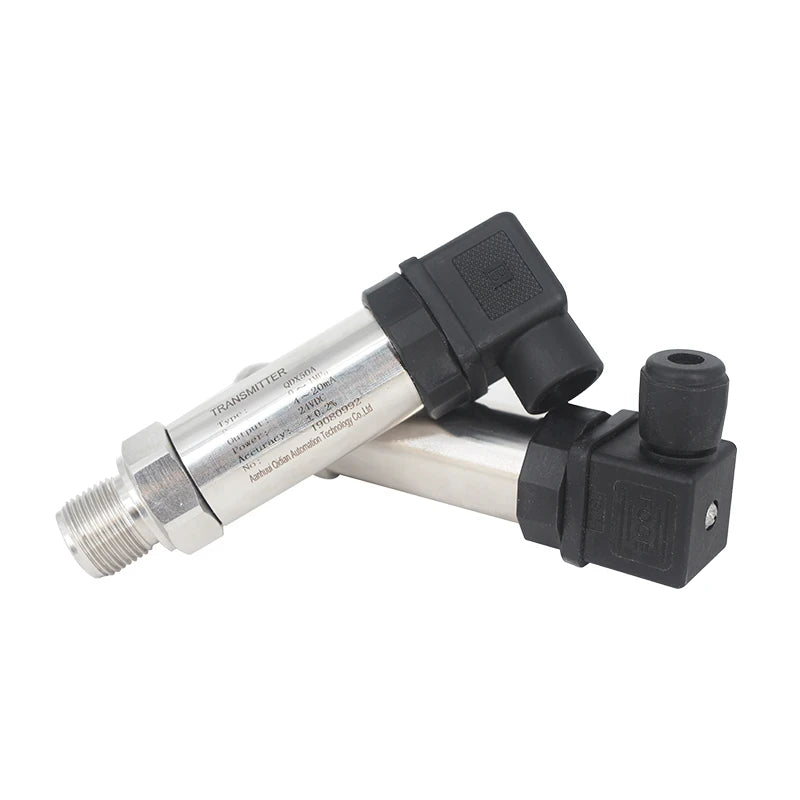

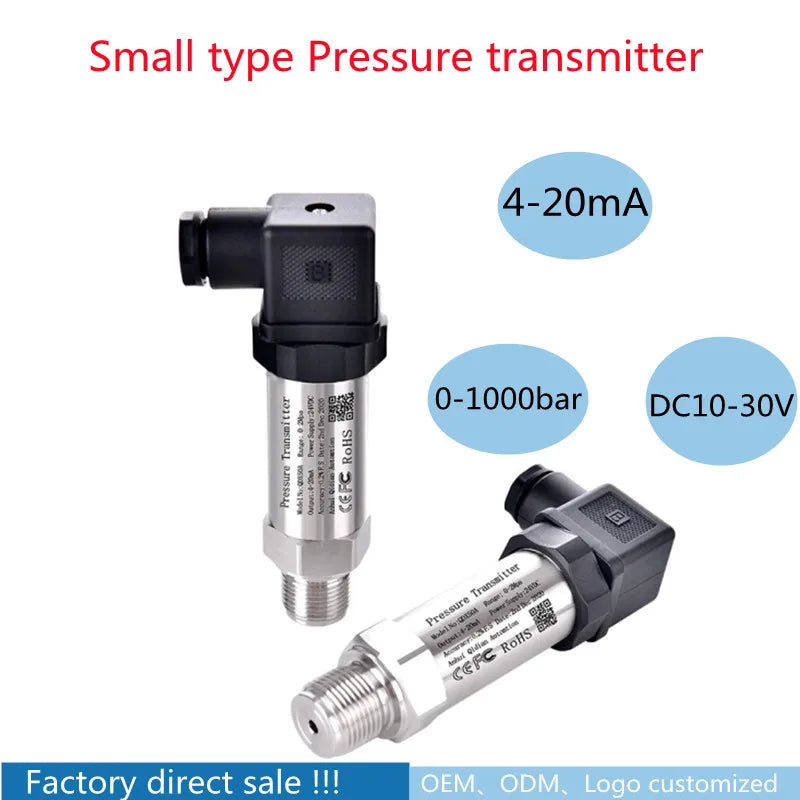

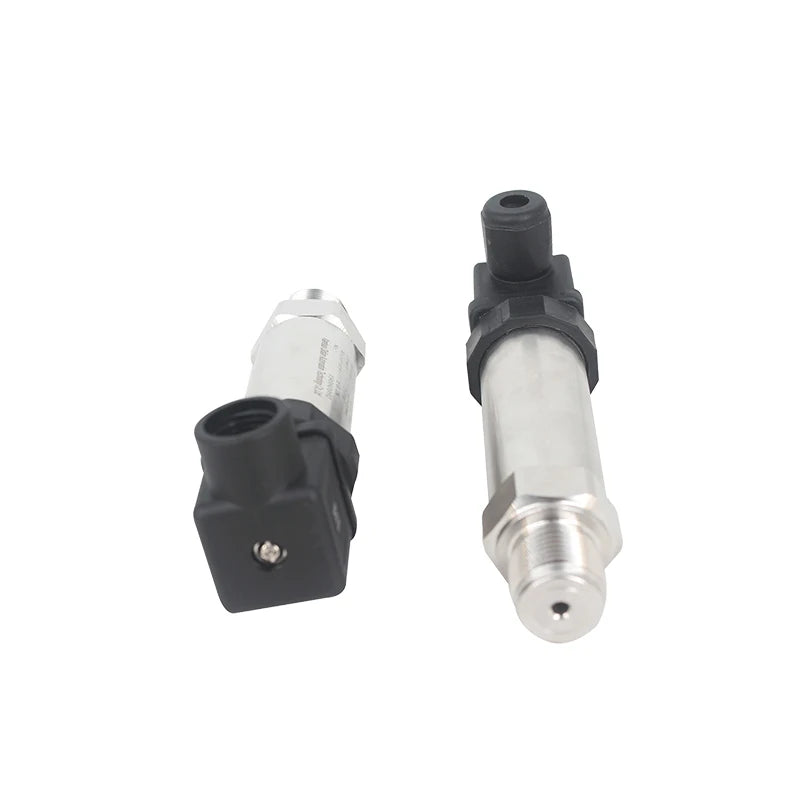

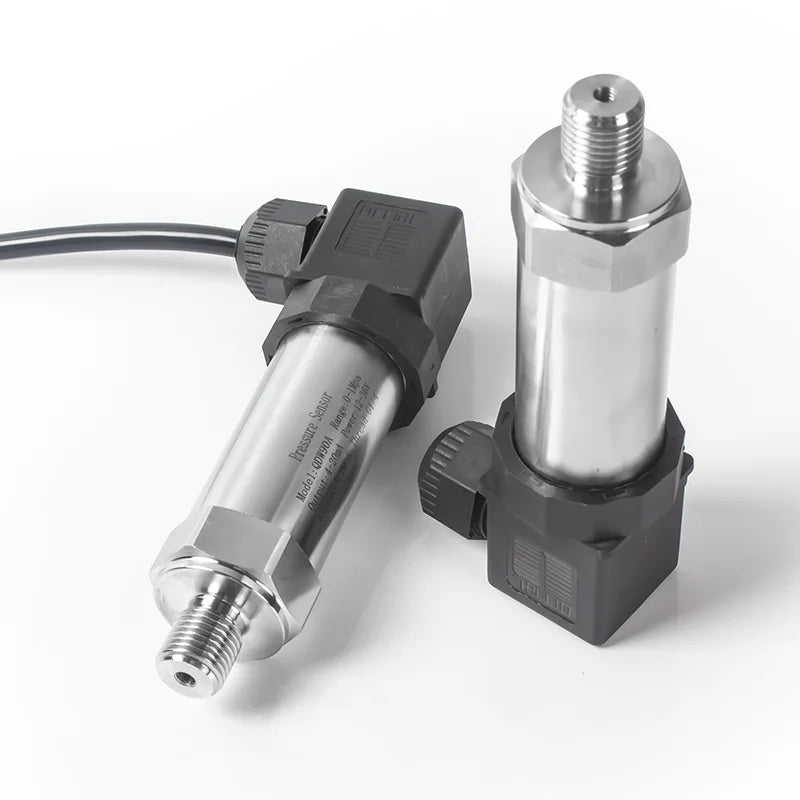

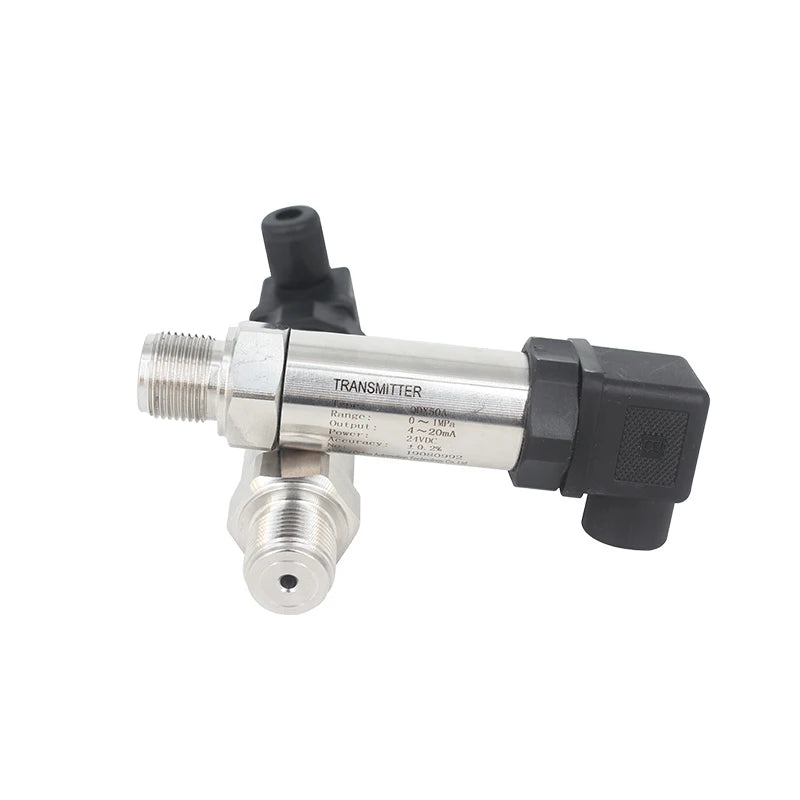

4-20mA Output Pressure Sensor Transmitter 12-36V Supply Water Gas Oil Liquid 150psi Gauge NPT1/4 G1/2 0.5bar 1bar 16 Bar 25 Bar

M20 1.5 / China Mainland / 0-0.5bar

$129.78

Sale price $129.78 Regular price $0.00

Skip to product information

4-20mA Output Pressure Sensor Transmitter 12-36V Supply Water Gas Oil Liquid 150psi Gauge NPT1/4 G1/2 0.5bar 1bar 16 Bar 25 Bar

4-20mA Output Pressure Sensor Transmitter 12-36V Supply Water Gas Oil Liquid 150psi Gauge NPT1/4 G1/2 0.5bar 1bar 16 Bar 25 Bar

$129.78

Sale price $129.78 Regular price $0.00

Color M20 1.5 NPT1-4 G1-2 G1-4 NPT1-8 G3-8 NPT1-2

Ships FromChina Mainland

Measuring Range 0-0.5bar 0-1bar 0-10bar 0-16bar 0-2bar 0-5bar 0-25bar 0-100bar 0-200bar 0-50bar 0-60bar 0-400bar 0-700bar 0-25Mpa 0-30Mpa -1bar to 0 0-0.2bar 0-600bar 0-800bar 0-1.6bar

Description

SPECIFICATIONS

Accuracy: 0.5%fs 0.2%fs

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Measuring range: -0.1~0~100Mpa

Medium: Oil, Gas, Water, Air

Model Number: QDX50A Hersman Pressure Transmitter

Origin: Mainland China

Output Signal: 4-20mA, 0-10V, 0-5V, RS485

Power Supply: DC24V, DC12-36V,

Semi-finishedproduct: No

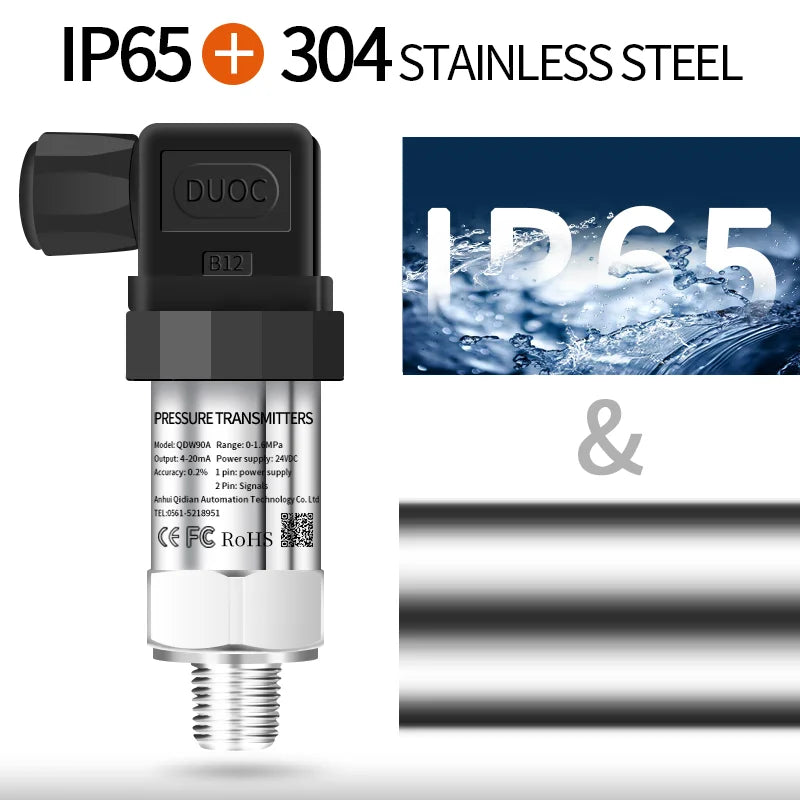

Shell Protection: IP65

Thread Size: M20*1.5, G1/2, G1/4 customization

NOTES:

We can make -0.1bar~0~600bar.If you need other special parameters,please contact me or mark it on the order,tks

Our Default:

Output:4-20mA （can be customized such as 0-5v,0-10v,1-5V)

Power Supply:24VDC

Introduction:

<1>. This series precision pressure transducer has been specially designed to cover the majority of industrial applications which need high accuracy measurement.

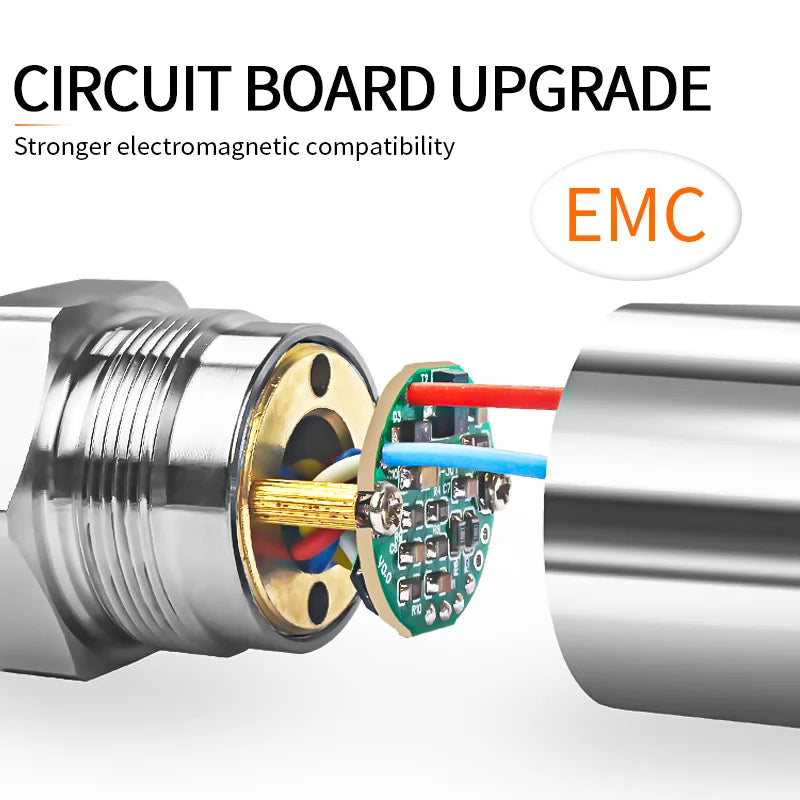

<2>.The pressure transducer are made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently.
<3>.This pressure transmitter is suitable for all applications in process control, laboratory and materials testing equipments.

<4>.Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

FEATURES:

◆ CE conformity

◆ Low cost and high quality

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ 4-20mA, 1-5V, 0-5V, 0-10V, various voltage output

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

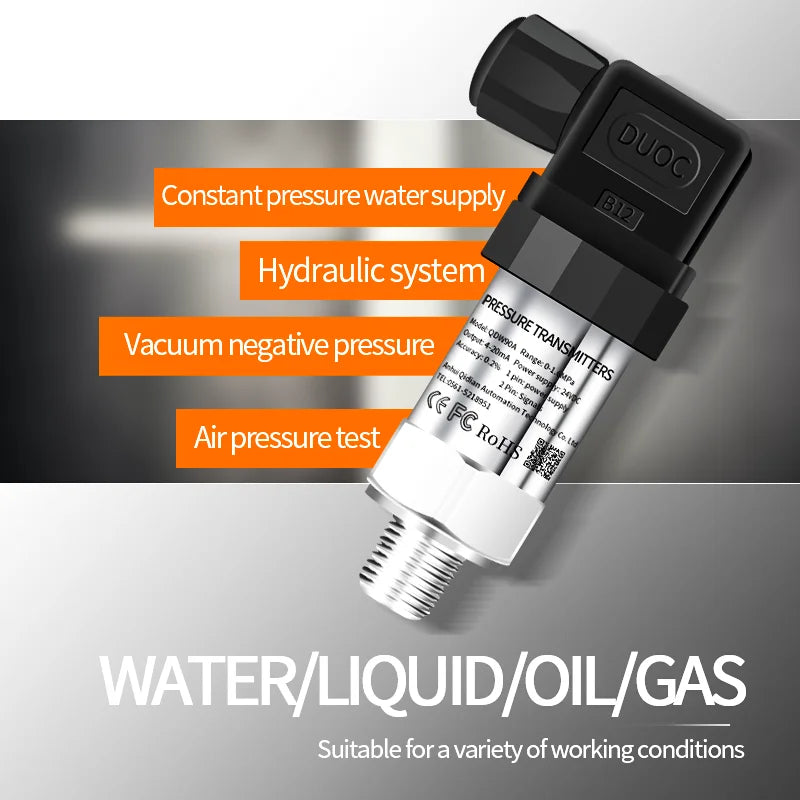

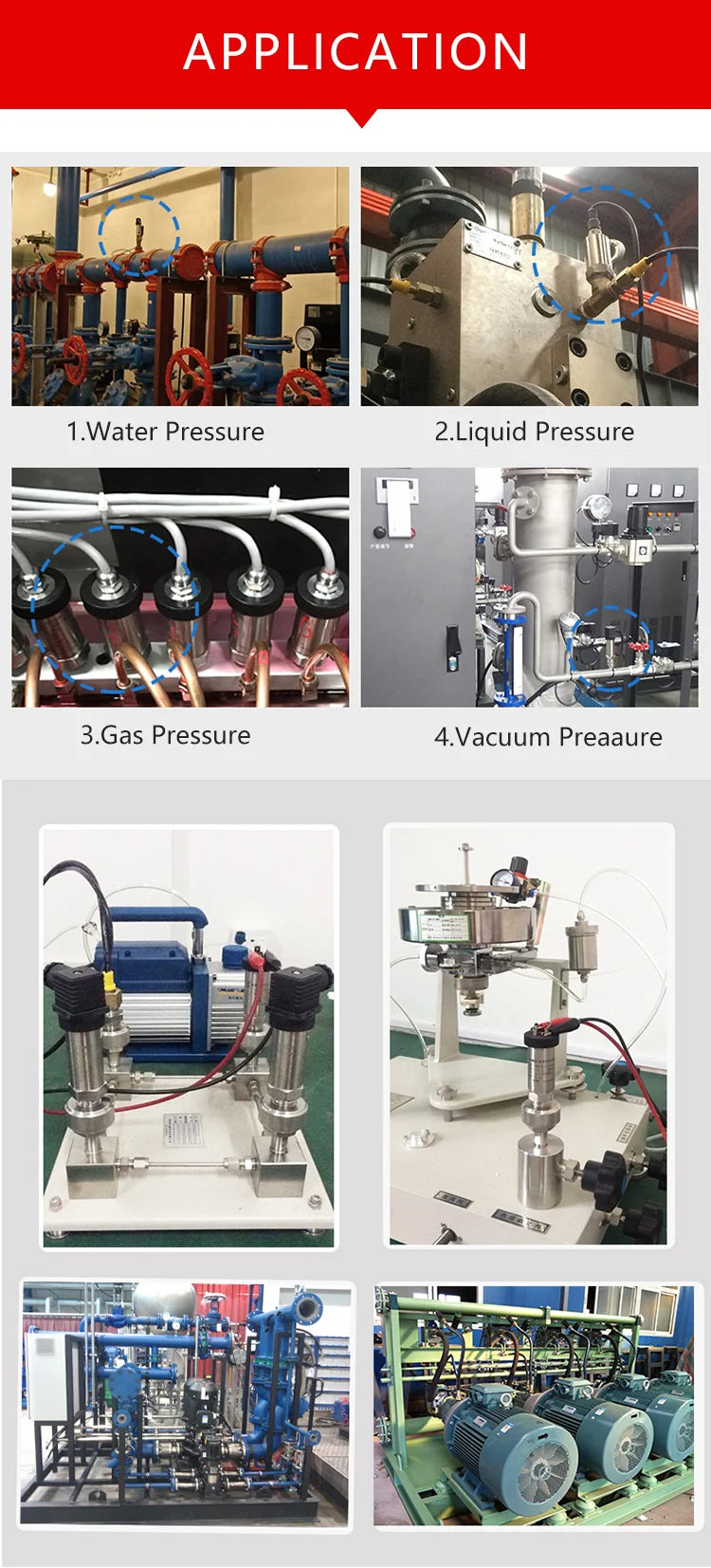

Application:

◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration equipment

◆ Water pump, air compressor pressure monitoring

Technical parameters:

Model	QDX50A
Measuring range	0~100MPa; -1~0~1 Bar.....600 Bar
Pressure type	Gauge pressure, Absolute pressure
Overload	150%F.S.
Output signal	4~20mA, 0~5V, 0~10V, 1~5V,RS485
Power supply	12~36VDC (Default: DC24V)
Response time	<3ms
Accuracy	0.2%FS; 0.5%FS
Long-term stability	±0.1%F.S/year; ±0.2%F.S/year
Load resistance	RL=(U-12V)/0.02A (4~20mA current output) U—loop voltage(V)
Operating temperature	-30~80℃
Sorage temperature	-40~120℃

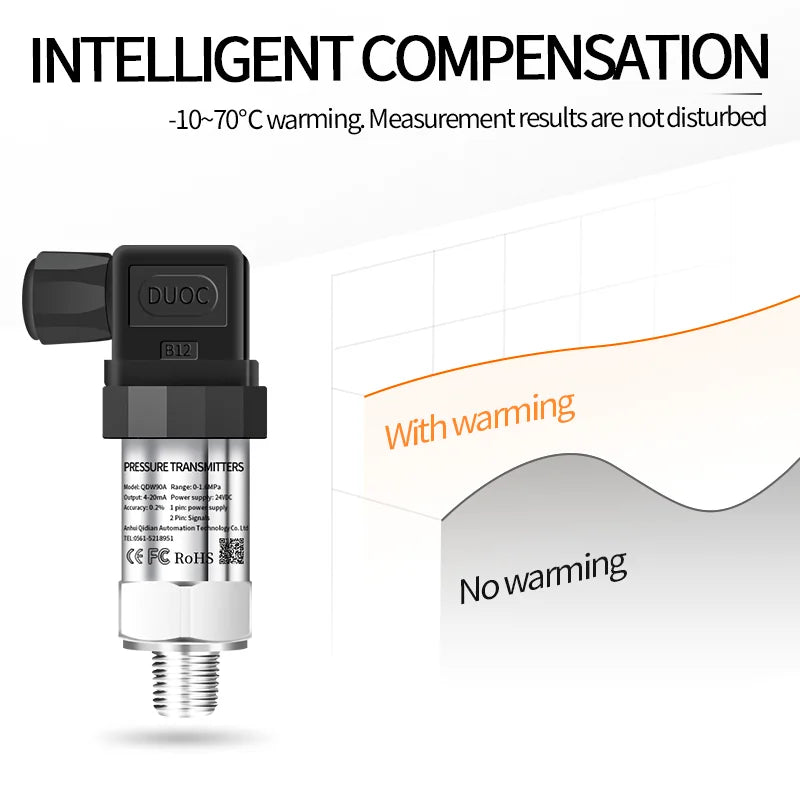

Zero Tempe Drift	0.2%FS/10℃
Pressure connection	G1/4 (Default),M20*1.5,G1/2,1/2NPT (Customized)
Material	Stainless steel shell; internal sensor 316L
Protection grade	IP65

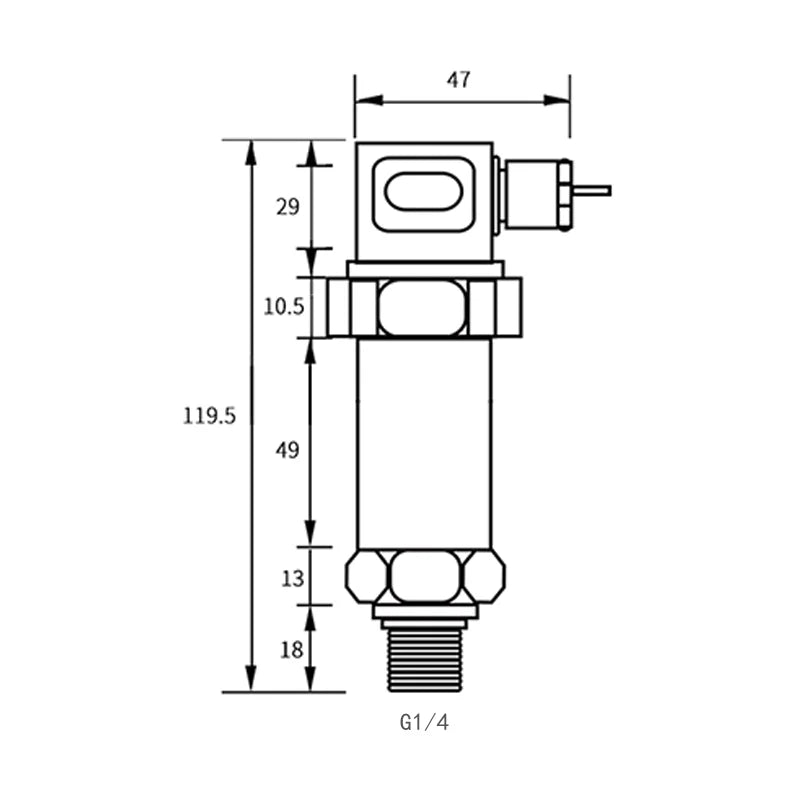

Size:

Installation:

FAQ :

Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for pressure transducer.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation?
A: Contact us directly at you will get the reply within 12hours, and the quotation will send to you according to your requirements.
Q: How can I get my sensors?/ What's the means of transport?
A: We main delivery goods by express: Aliexpress, e-Packet, DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q: How to order other parameters I want ?
A:In order to recommend you the most suitable (Sensors) and make an accurate quotation,please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
