Description

SPECIFICATIONS

Accuracy: 0.5% F.S

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE

Compensation temperature: -10Deg.C-70Deg,C

Electrical connections: Hessmann

High-concerned chemical: none

Long-term stability: ±0.03%F.S/Deg.C

Max Measuring Range: 59 Bar & Under

Measuring medium: Oil,water,gas etc

Measuring range: 0...10kpa...100kpa-6Mpa

Model Number: HDP702

Origin: Mainland China

Output signal: 4-20mA,1-5v,0-10v,0-10V etc

Overload pressure: 200%F.S

Power supply: 5-30VDC

Process connection: M20*1.5

Product name: Smart Water Differential Pressure Sensor

Semi-finishedproduct: No

Shell Protection: IP65

Structural materials: Full stainless steel

Warranty period: 12 months

Way of working: Differential pressure

Working temperature: -40Deg.C-80Deg.C

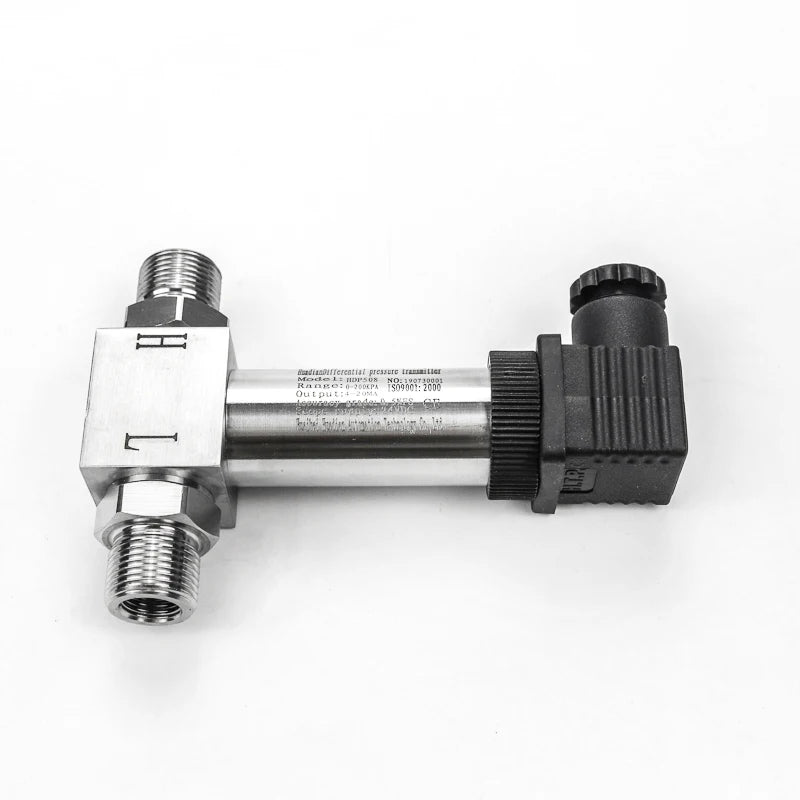

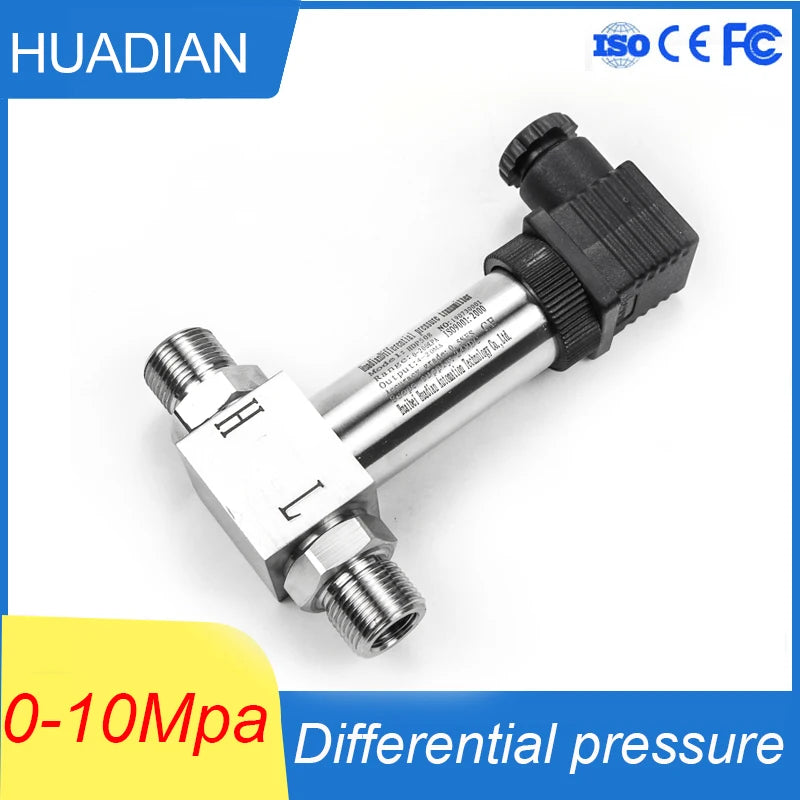

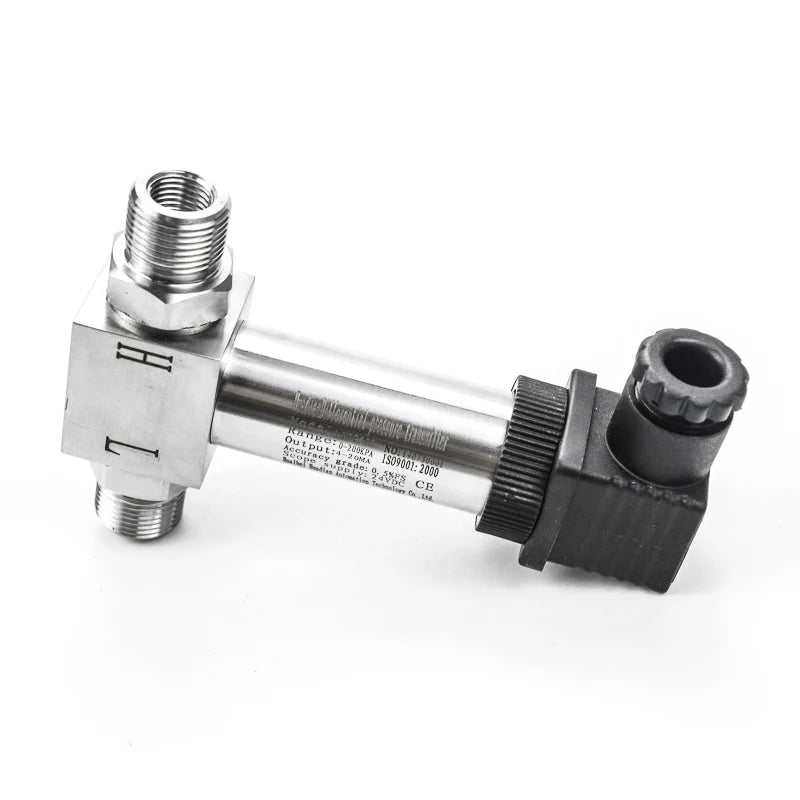

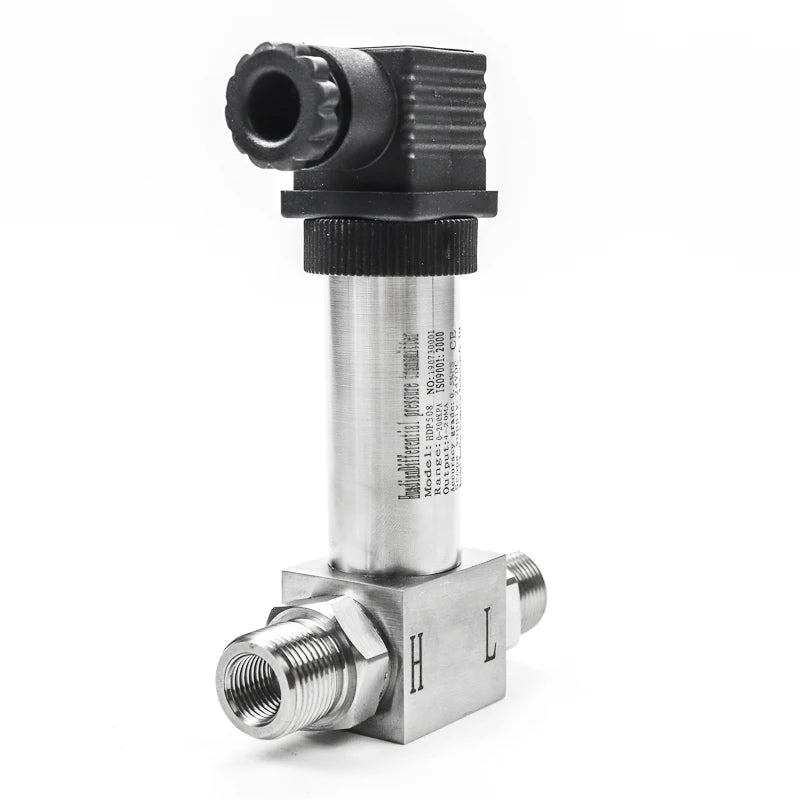

4-20mA Smart Water Differential Pressure Sensor 0-0.05Mpa Full Stainless Steel G 1/2"

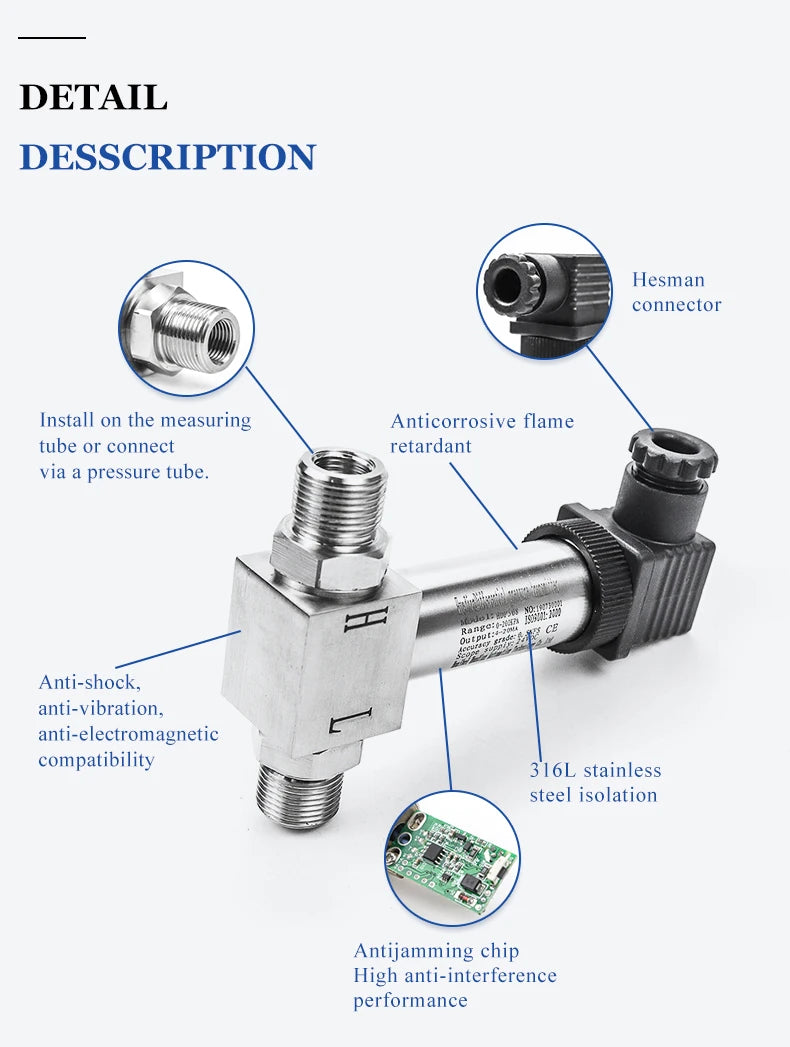

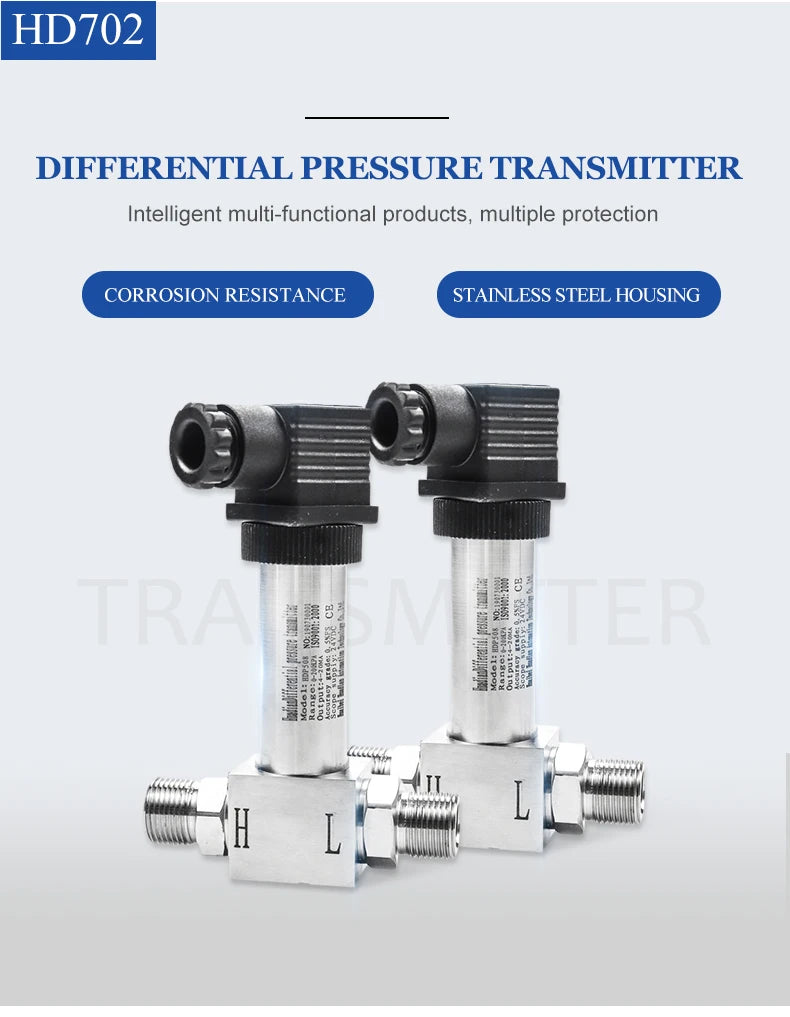

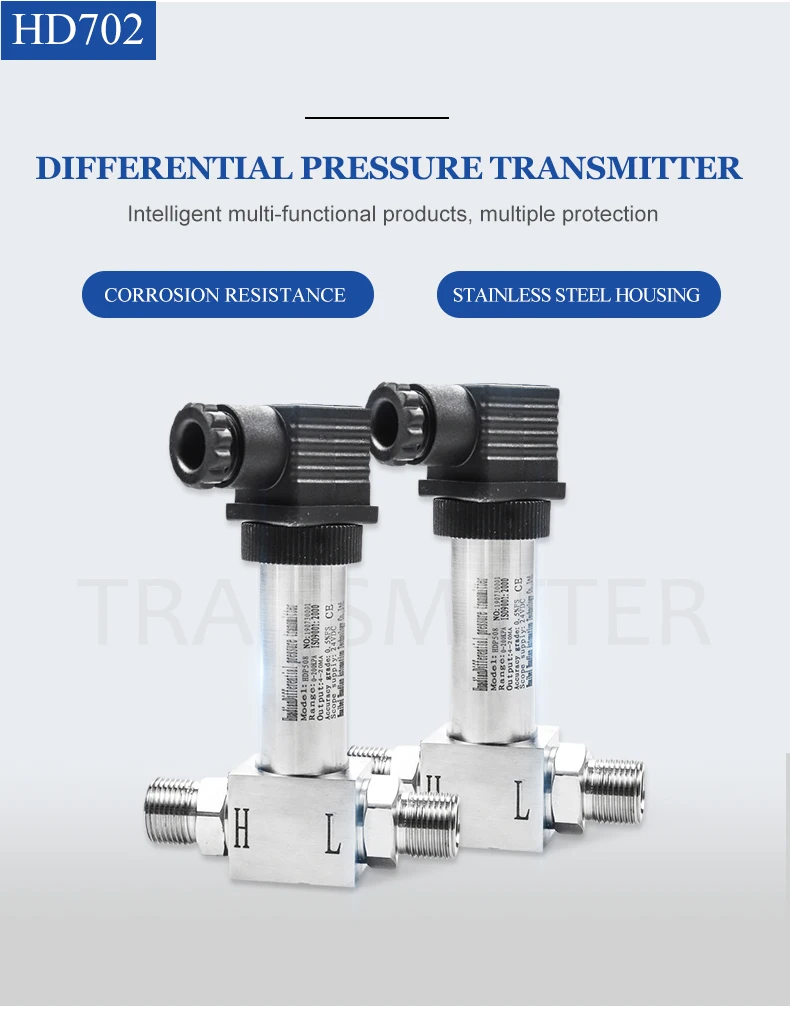

The HDP702 series integrated differential pressure transmitter is assembled with an OEM silicon piezoresistive differential pressure oil-filled core. The outer casing is made of stainless steel and has strong corrosion resistance. The two pressure ports are threaded and can be mounted directly on the measuring pipe or connected via a pressure pipe.

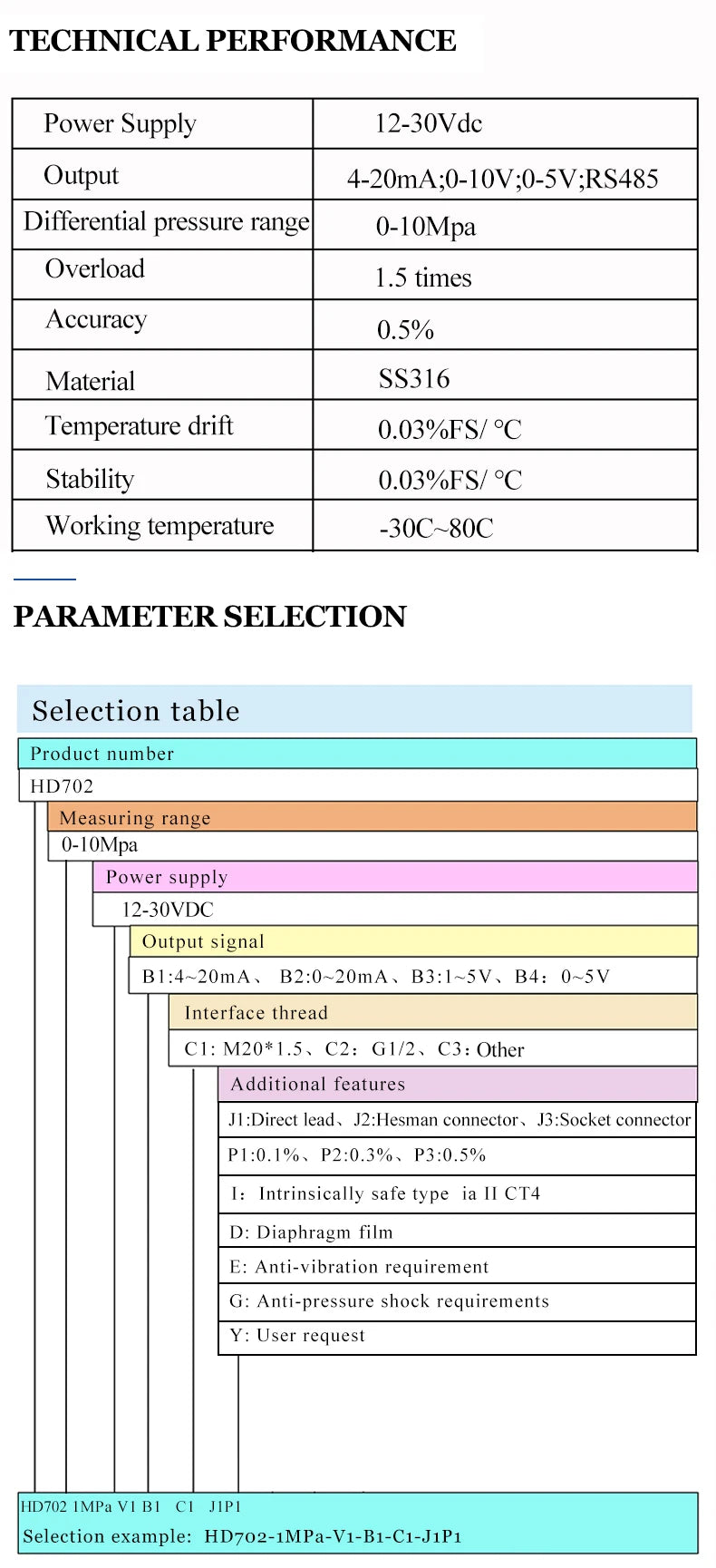

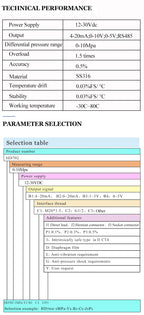

Selection Table

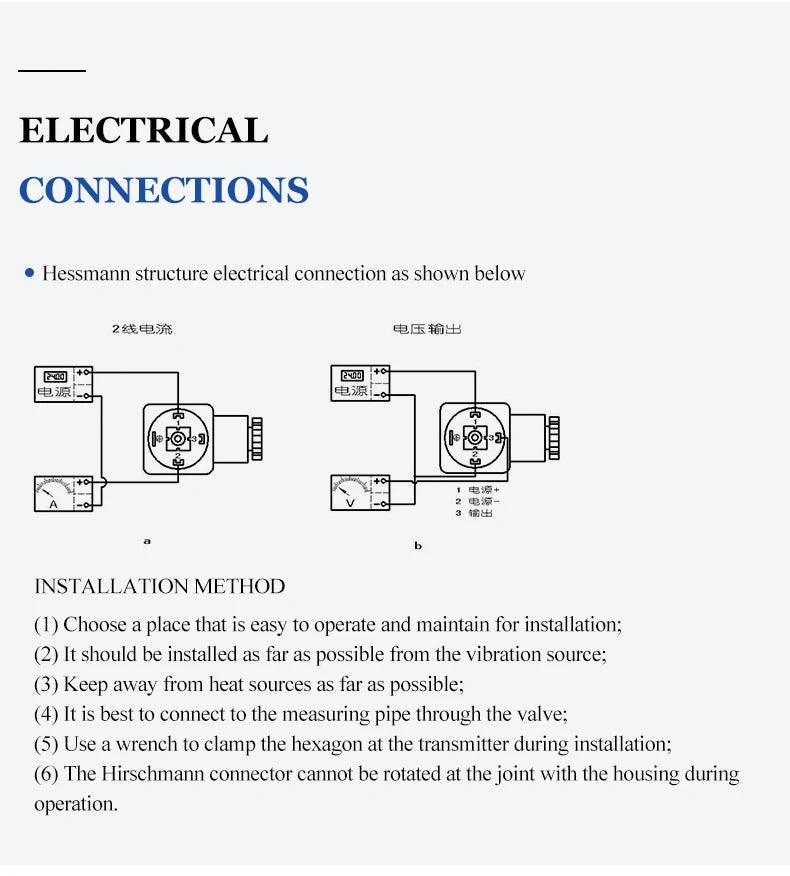

Installation Instruction

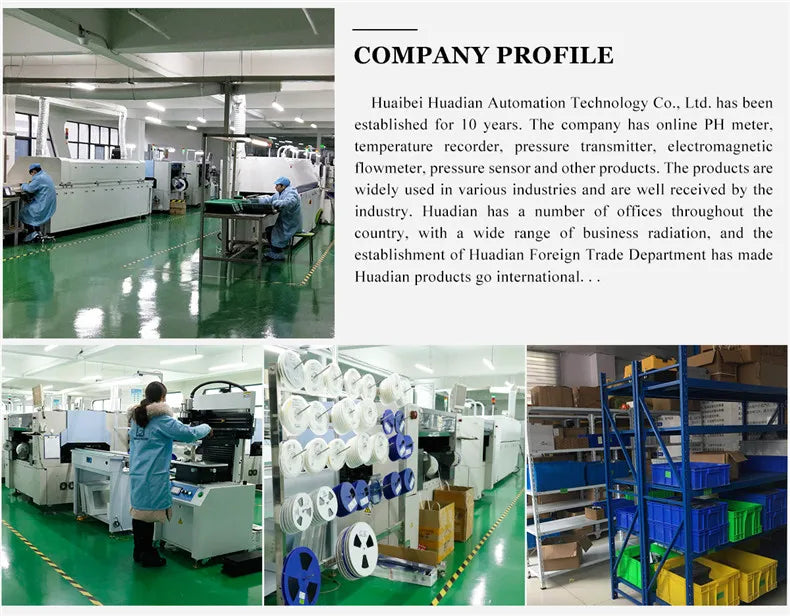

Company and Certificates

Our Services

1. We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.

2. We can guarantee you any quality issue from us will refund you immediately or replace with new & qualified products.

3.OEM, Accept lower quantity trial order

4.Fast delivery. 24 hours With Discount Courier, Air shipment

5. Contains a variety of industrial control products such as signal isolators, pressure, and liquid level sensors, temperature, current, voltage, frequency, and other transmitters.

All products are in stock (except for special customization).

6. We can support you 24Hours online service via Alibaba, email, skype, WhatsApp, Facebook, etc.

7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty!!
