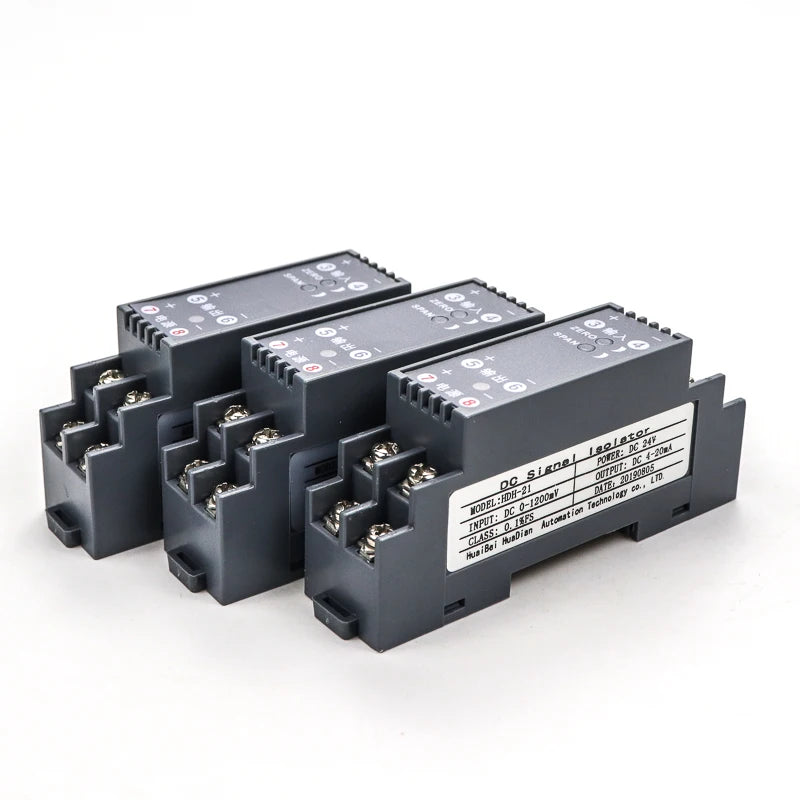

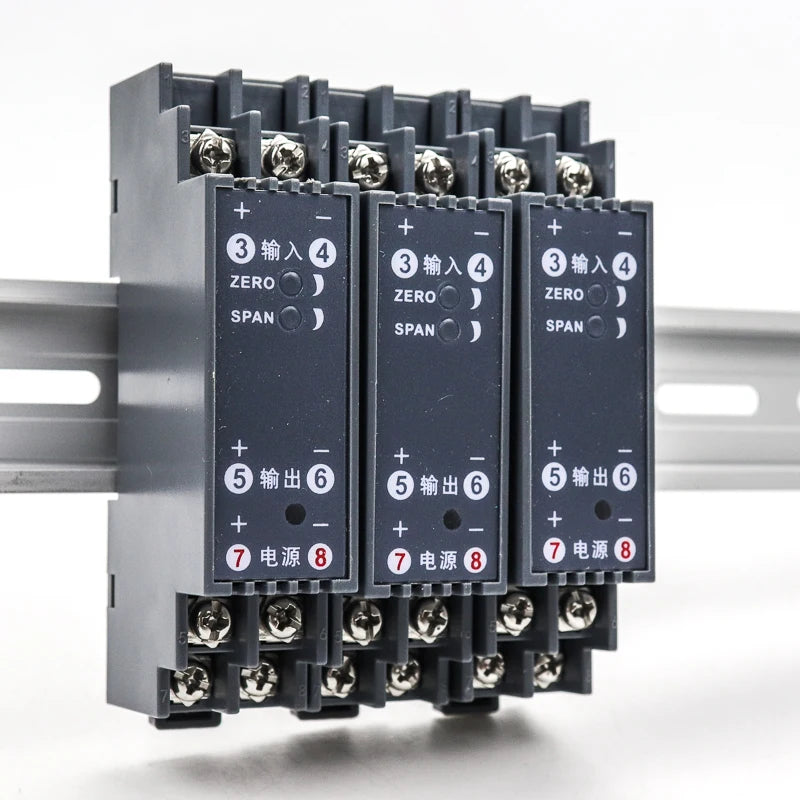

4-20mA To 0-10V Active Passive Signal Isolator Current Voltage Signal Converter
24VDC Power / 4-20mA output / 0-5V input
$116.69
Sale price
$116.69
Regular price
$0.00
Skip to product information
1 In 1 Out 4-20 To 0-10V Active Passive Signal Isolator Current Voltage Signal Converter
D C 2 4 V power supply provides isolated power distribution for the on - site transmitter
At the same time, the current or voltage signal generated by the transmitter is transmitted from the field to the control room, P L C , D C S , etc.
● Input terminal current source , two - wire system , three - wire system converter for general use ;
Internally used high - efficiency magneto - ion isolation technology , input , output , power supply
The phases are separated from each other and have characteristics such as high precision, high linearity, and low temperature drift.

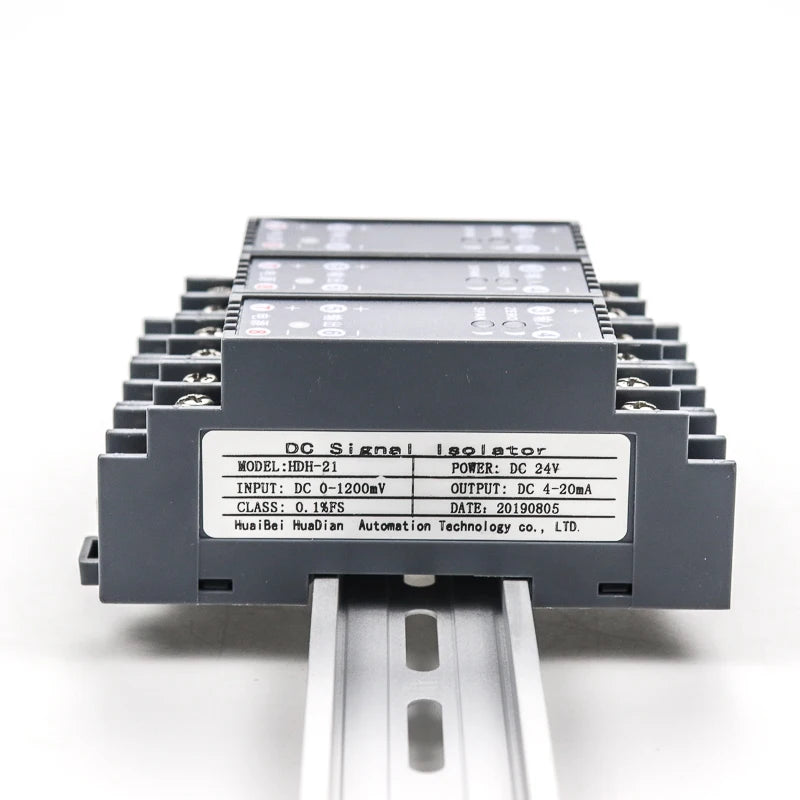

● D I N guide rail independent installation method
Detail parameters:

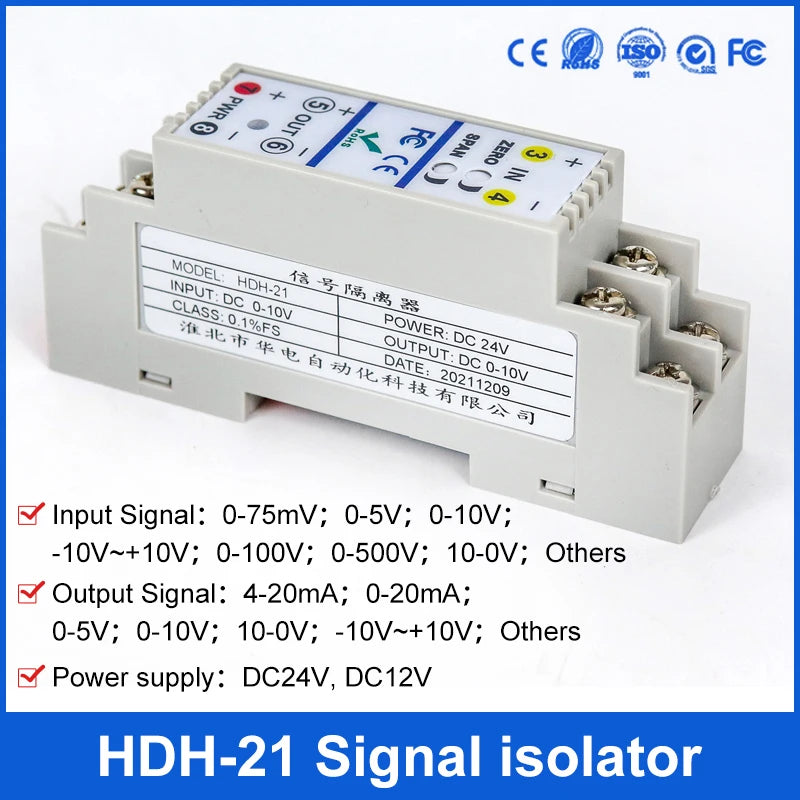

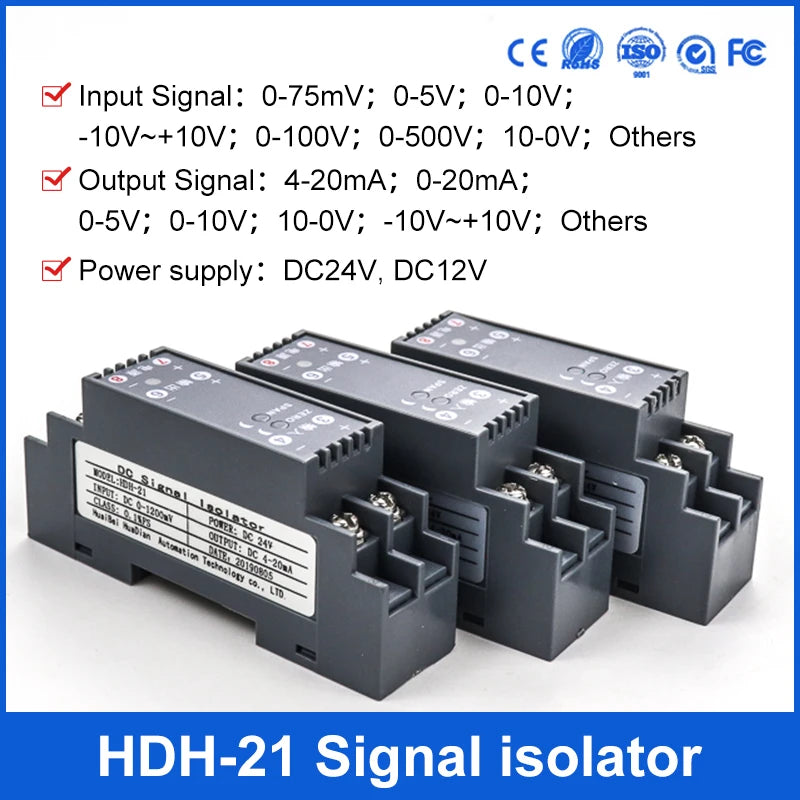

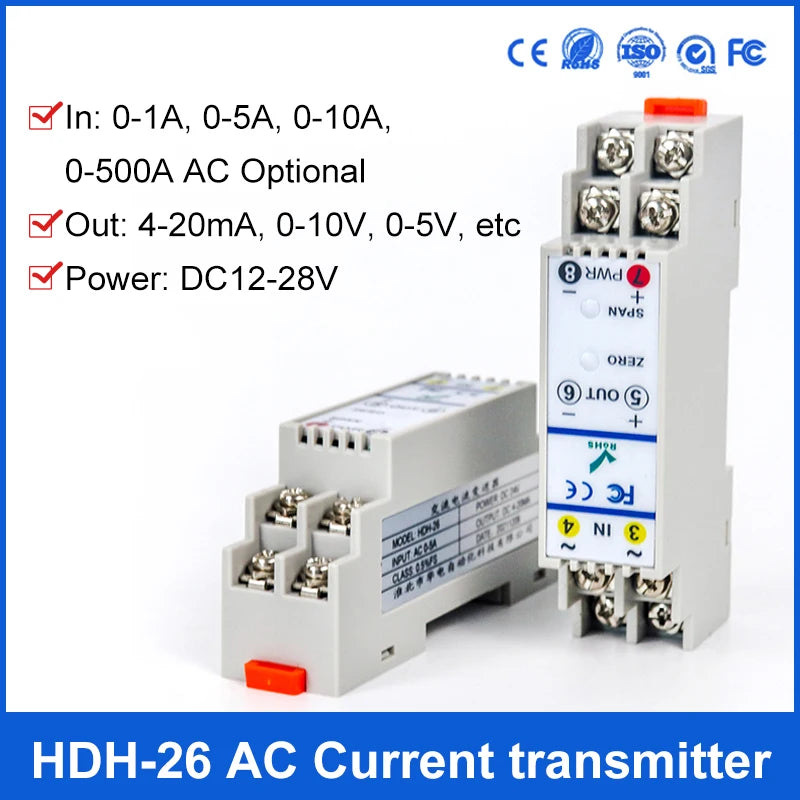

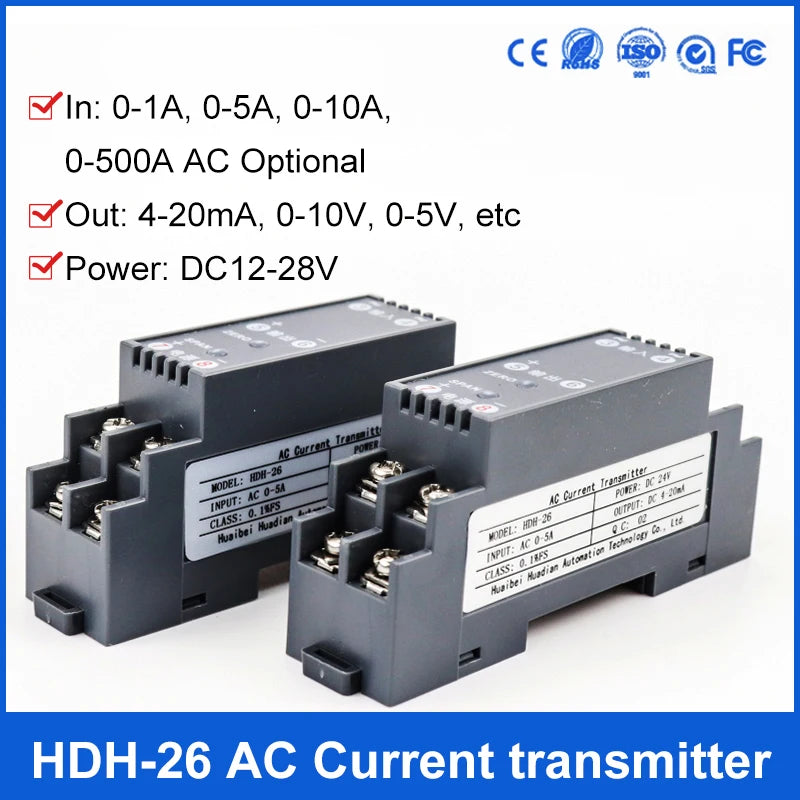

Input signal: 4 - 2 0 m A ; 0 - 2 0 m A , 0- 1A, 0- 5A, 0- 10A, 20- 4mA,
- 1A~+1A, 0 - 7 5 m V ; 0 - 5 V ; 0 - 1 0 V ; - 10~+10V; 0- 100V;
0-500V; 10-0V; other parameters.
Output signal: 4 - 2 0 m A ; 0 - 2 0 m A ; 0 - 5 V ; 0 - 1 0 V ; 10-0 V;
- 10V~+10V; other parameters
Power source: D C 2 4 V , DC12V
Distribution voltage: 2 4 V, (maximum drive current 3 0 m A )
Input impedance: ≤5 0 Ω
Output load resistance: R L ≤5 0 0 Ω (when the output is a current signal)
R L ≥1 0 KΩ (when the output is a voltage signal)
Consumption current: ≤5 0 m A (one input and one output, 2 4 V power supply, distribution input, 20 m A output)
≤7 0 m A (one input and two output, 2 4 V power supply, distribution input, 20 m A output)
Temperature drift: 0 . 0 0 5 % F . S . / °C ( - 2 0 °C ~ + 5 5 °C)
Response time: ≤1 0 m S ( 0 - 9 0 % ) ( T Y P )
Insulation strength: 1 5 0 0 V A C / 1 m i n (between input, output, and power)
Insulation resistance: ≥1 0 0 M Ω (between input, output, and power)
Working temperature range: - 2 0 to + 5 5 °C
Electromagnetic Compatibility: Complies with G B / T 1 8 2 6 8 ( I E C 6 1 3 2 6 - 1 )
Applicable on-site equipment: two-wire system, three-wire transmitter; current source.
Note: Let us know your input signal and output signal and power supply please. So that we can arrange produce for you.

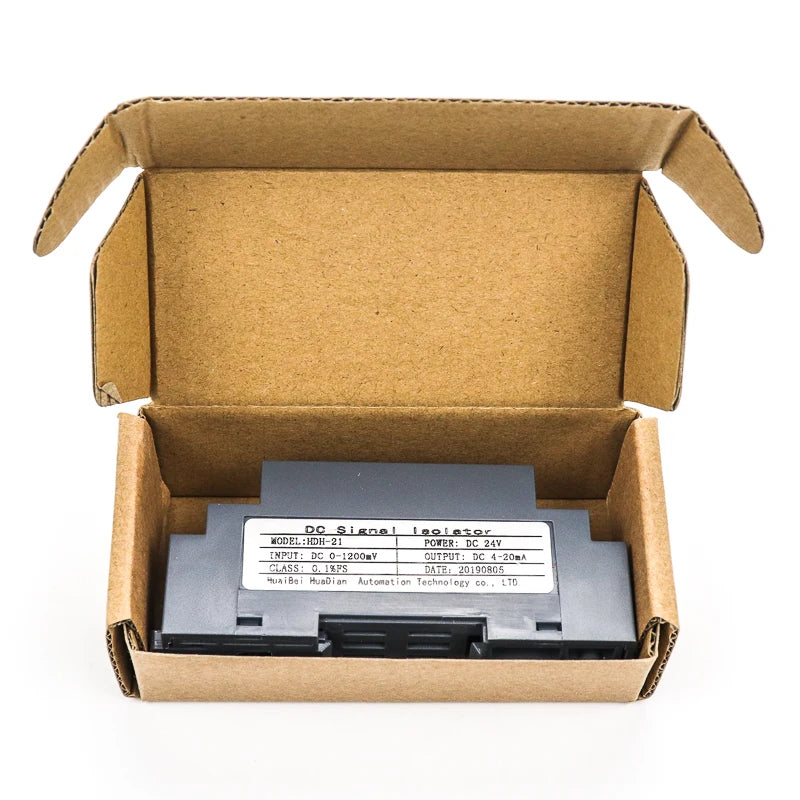

Packing include:
signal isolator + user manual + carton box + Qualified inspection
4-20mA To 0-10V Active Passive Signal Isolator Current Voltage Signal Converter
$116.69
Sale price
$116.69
Regular price
$0.00
Description
SPECIFICATIONS
Accuracy: 0.1% FS
Accuracy Class: 0.1%
Battery Included: no
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
Channels: 1 in 1 out, 1 in 2 out
DIY Supplies: Electrical
Dimensions: 25.4*108*47mm
Display Type: Analog Only
High-concerned chemical: none
Input signal: 4-20mA, 1-5V, 0-10V, etc
Installation method: 35mm din rail
Model Number: HDH
Operating Temperature: -20-60°
Origin: Mainland China
Output signal: 4-20mA, 1-5V, 0-10V, etc
Product name: Signal Isolation
Semi-finishedproduct: No
Supply Voltage: 24VDC
power supply: 24vdc
1 In 1 Out 4-20 To 0-10V Active Passive Signal Isolator Current Voltage Signal Converter
D C 2 4 V power supply provides isolated power distribution for the on - site transmitter
At the same time, the current or voltage signal generated by the transmitter is transmitted from the field to the control room, P L C , D C S , etc.
● Input terminal current source , two - wire system , three - wire system converter for general use ;
Internally used high - efficiency magneto - ion isolation technology , input , output , power supply
The phases are separated from each other and have characteristics such as high precision, high linearity, and low temperature drift.
● D I N guide rail independent installation method
Detail parameters:
Input signal: 4 - 2 0 m A ; 0 - 2 0 m A , 0- 1A, 0- 5A, 0- 10A, 20- 4mA,
- 1A~+1A, 0 - 7 5 m V ; 0 - 5 V ; 0 - 1 0 V ; - 10~+10V; 0- 100V;
0-500V; 10-0V; other parameters.
Output signal: 4 - 2 0 m A ; 0 - 2 0 m A ; 0 - 5 V ; 0 - 1 0 V ; 10-0 V;
- 10V~+10V; other parameters
Power source: D C 2 4 V , DC12V
Distribution voltage: 2 4 V, (maximum drive current 3 0 m A )
Input impedance: ≤5 0 Ω
Output load resistance: R L ≤5 0 0 Ω (when the output is a current signal)
R L ≥1 0 KΩ (when the output is a voltage signal)
Consumption current: ≤5 0 m A (one input and one output, 2 4 V power supply, distribution input, 20 m A output)
≤7 0 m A (one input and two output, 2 4 V power supply, distribution input, 20 m A output)
Temperature drift: 0 . 0 0 5 % F . S . / °C ( - 2 0 °C ~ + 5 5 °C)
Response time: ≤1 0 m S ( 0 - 9 0 % ) ( T Y P )
Insulation strength: 1 5 0 0 V A C / 1 m i n (between input, output, and power)
Insulation resistance: ≥1 0 0 M Ω (between input, output, and power)
Working temperature range: - 2 0 to + 5 5 °C
Electromagnetic Compatibility: Complies with G B / T 1 8 2 6 8 ( I E C 6 1 3 2 6 - 1 )
Applicable on-site equipment: two-wire system, three-wire transmitter; current source.
Note: Let us know your input signal and output signal and power supply please. So that we can arrange produce for you.
Packing include:
signal isolator + user manual + carton box + Qualified inspection
