Description

SPECIFICATIONS

Brand Name: eletechsup

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Relay

is_customized: Yes

semi_Choice: yes

Product Title:

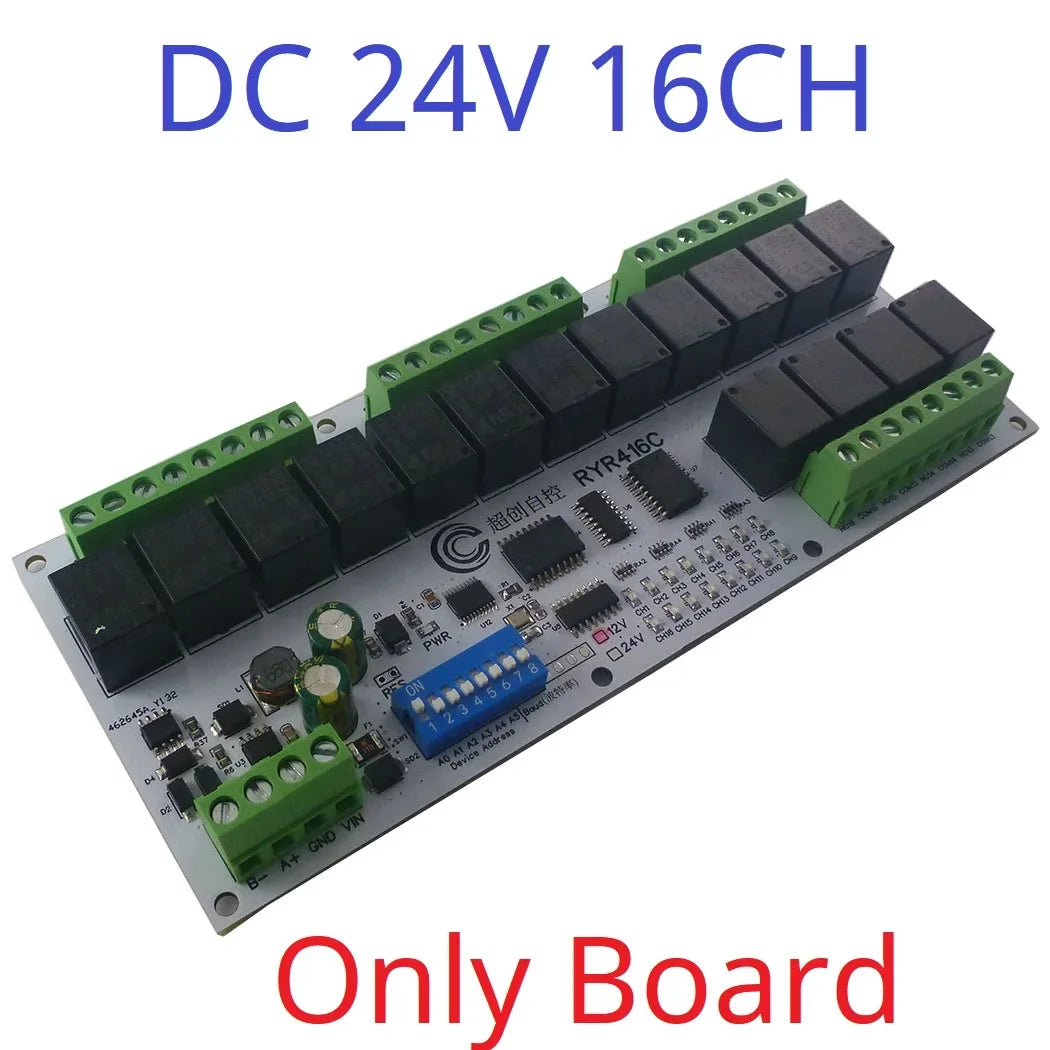

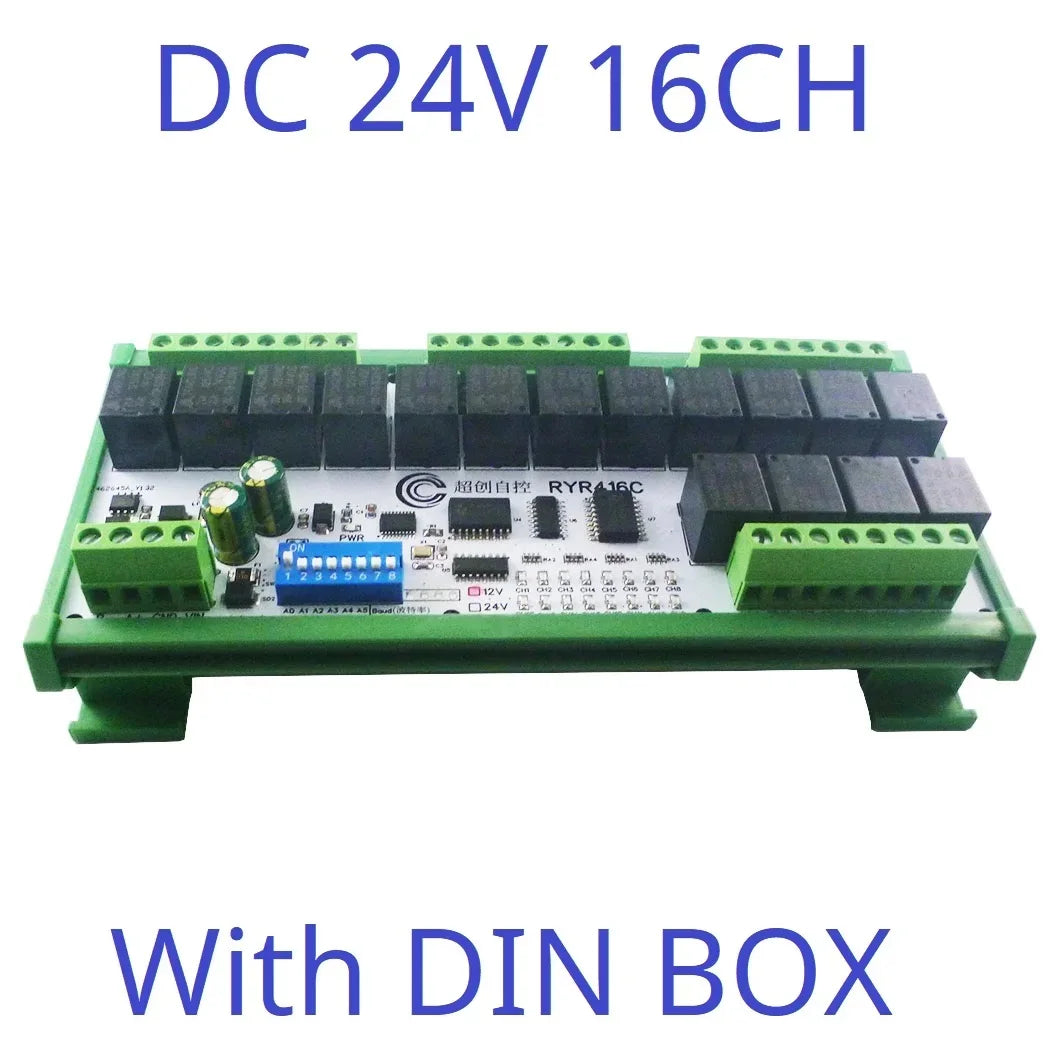

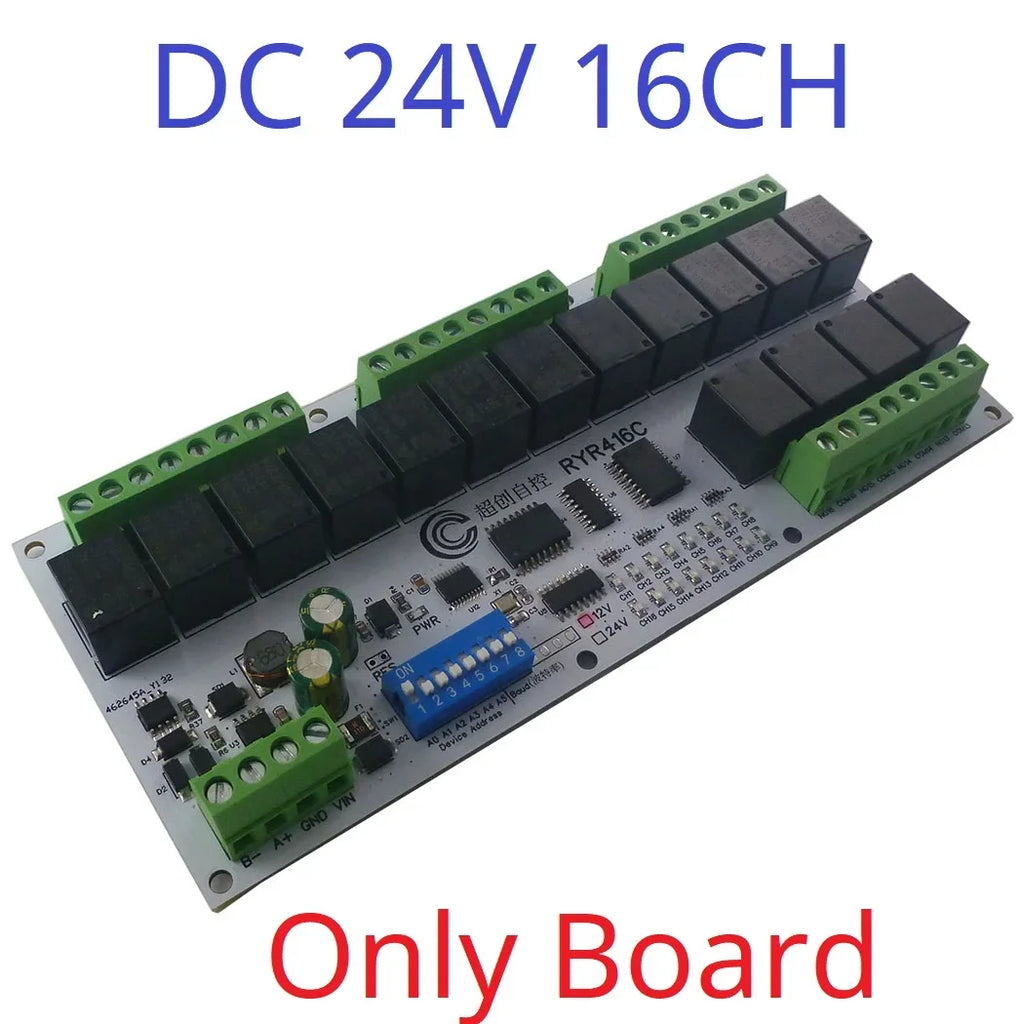

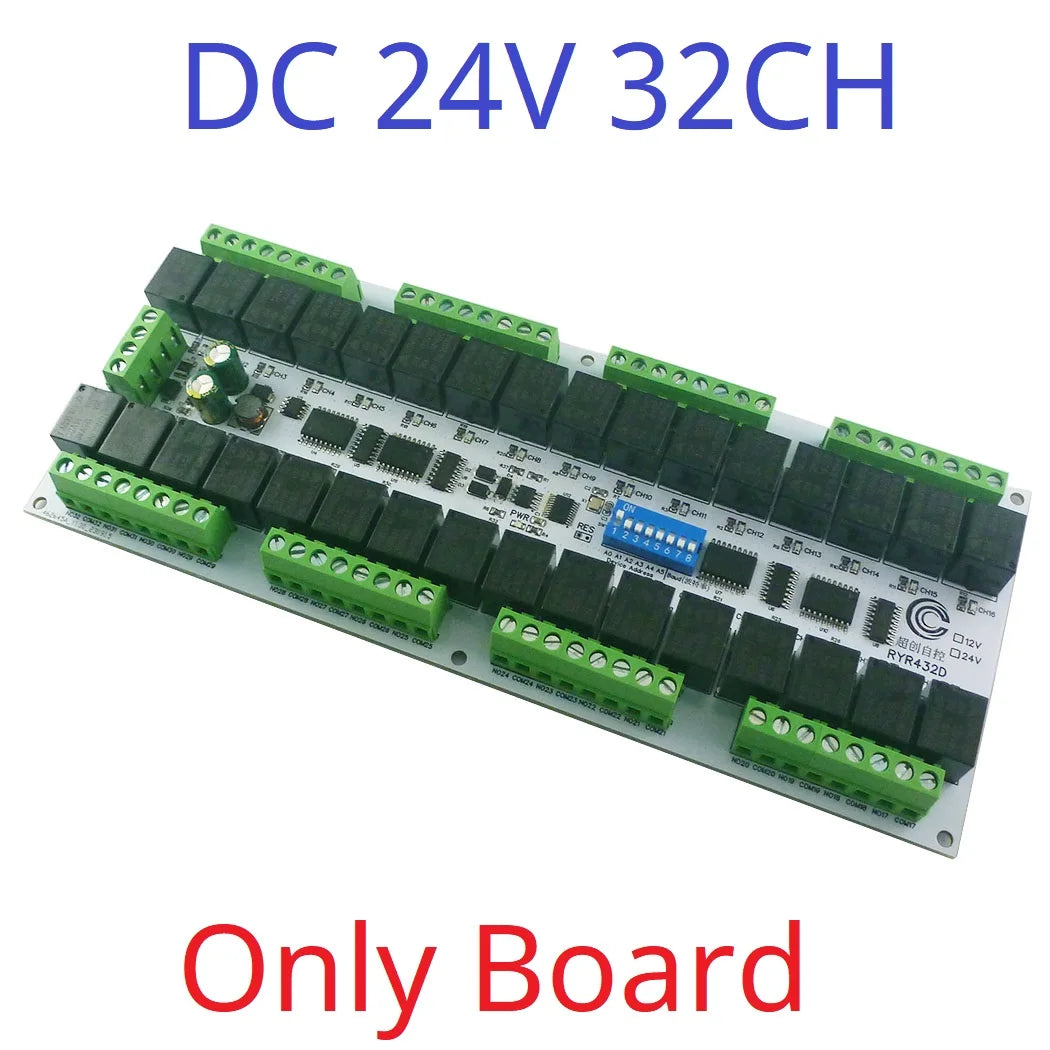

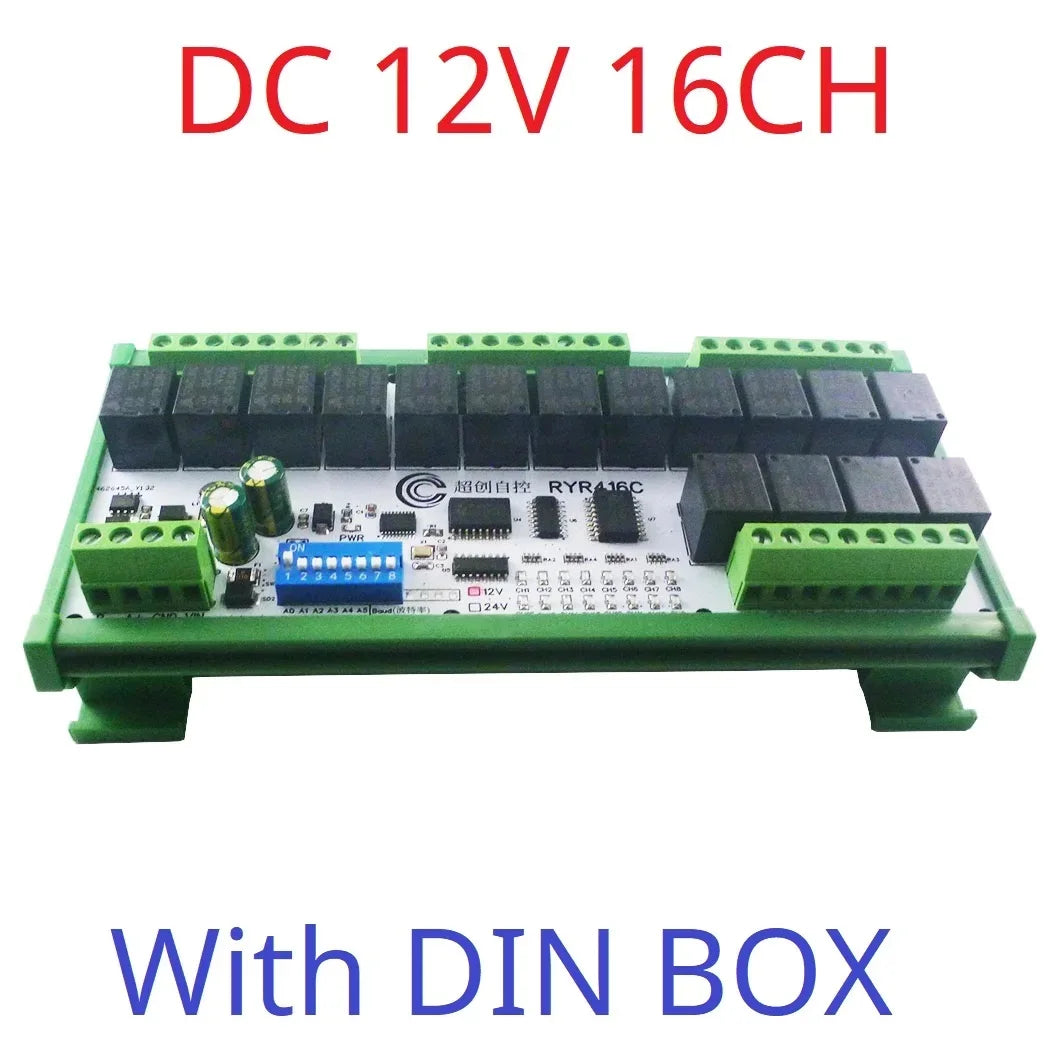

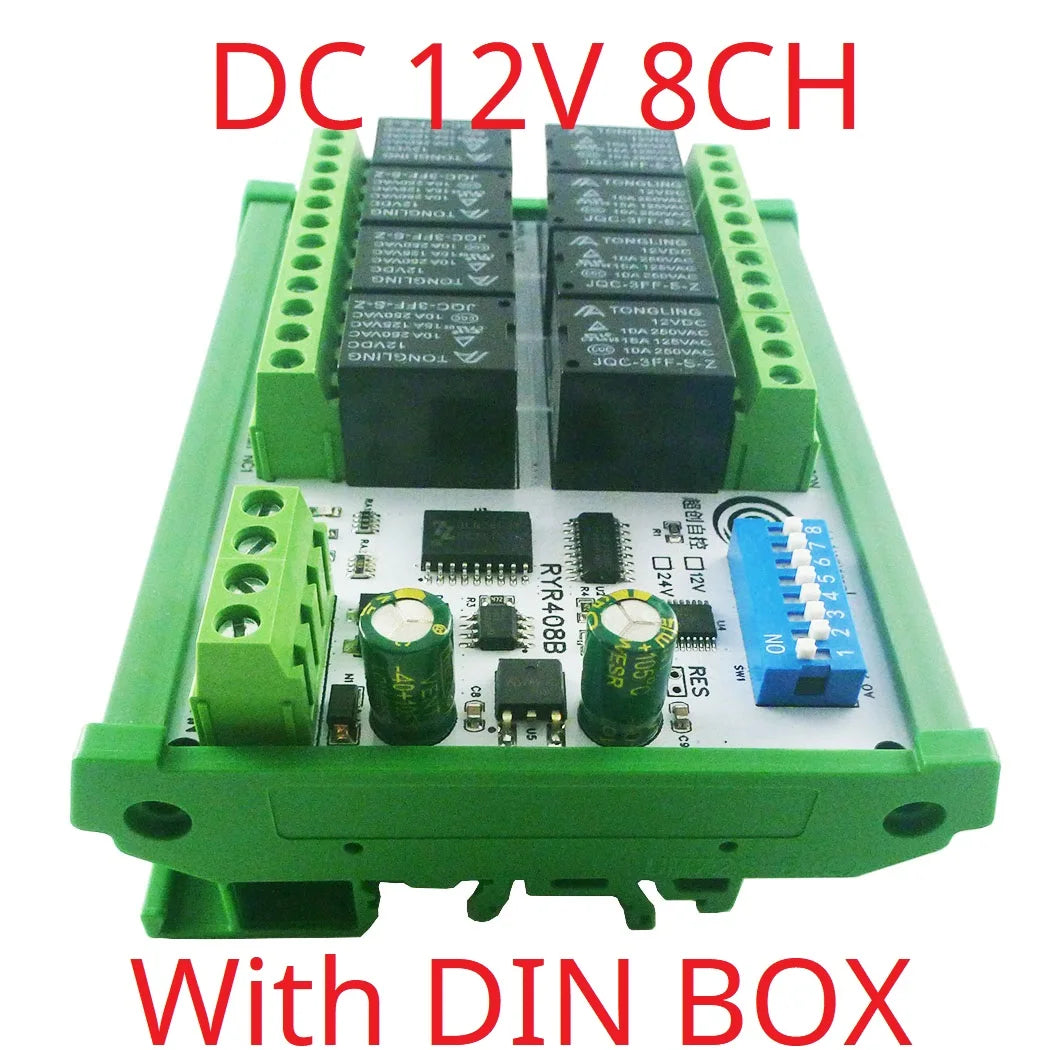

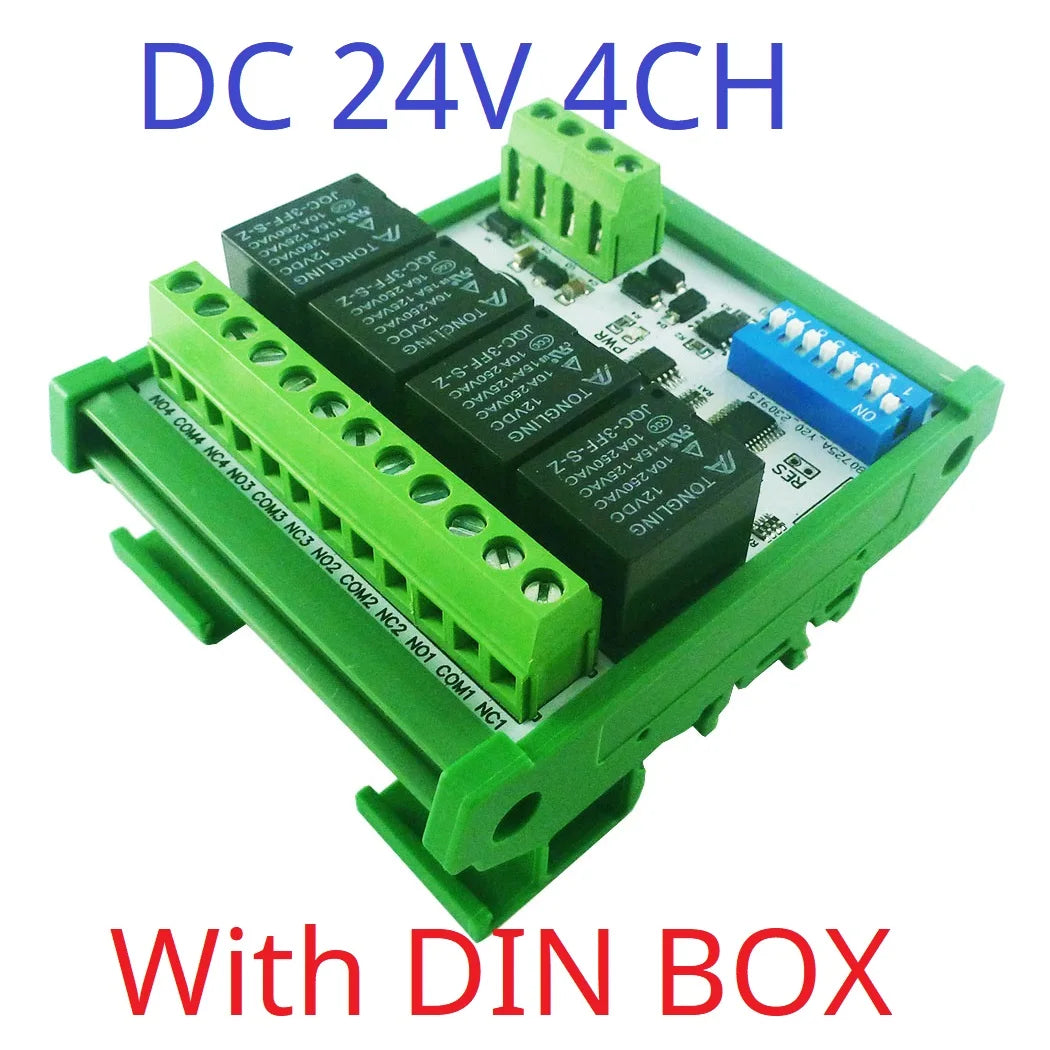

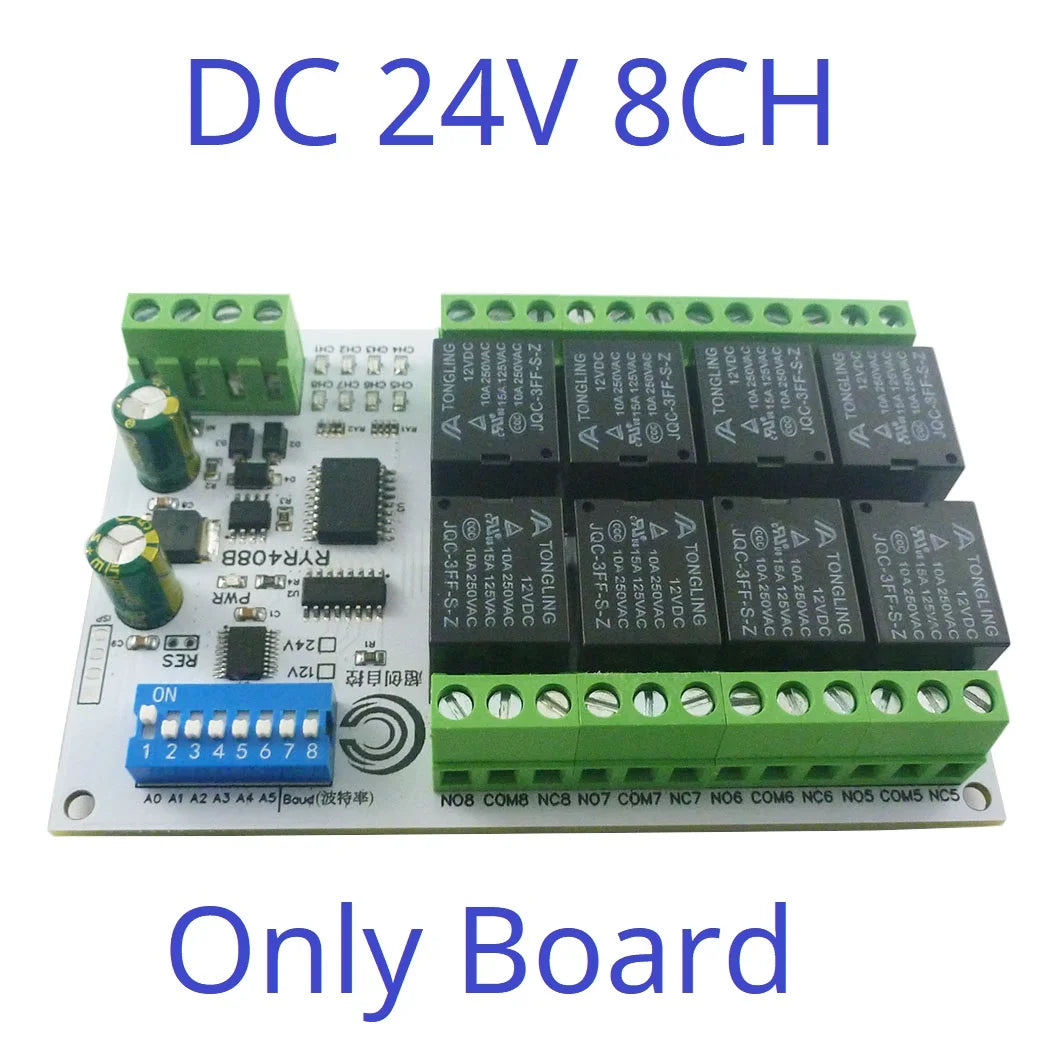

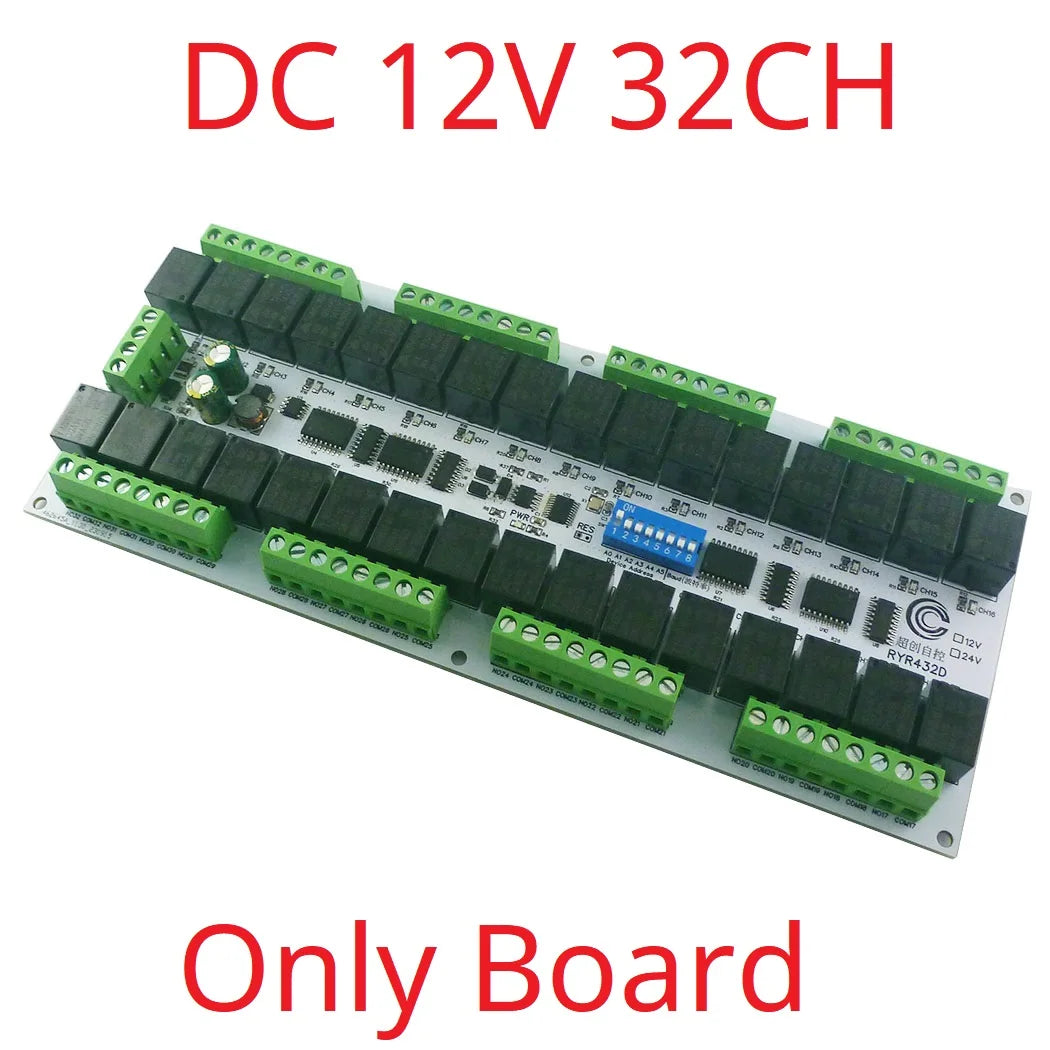

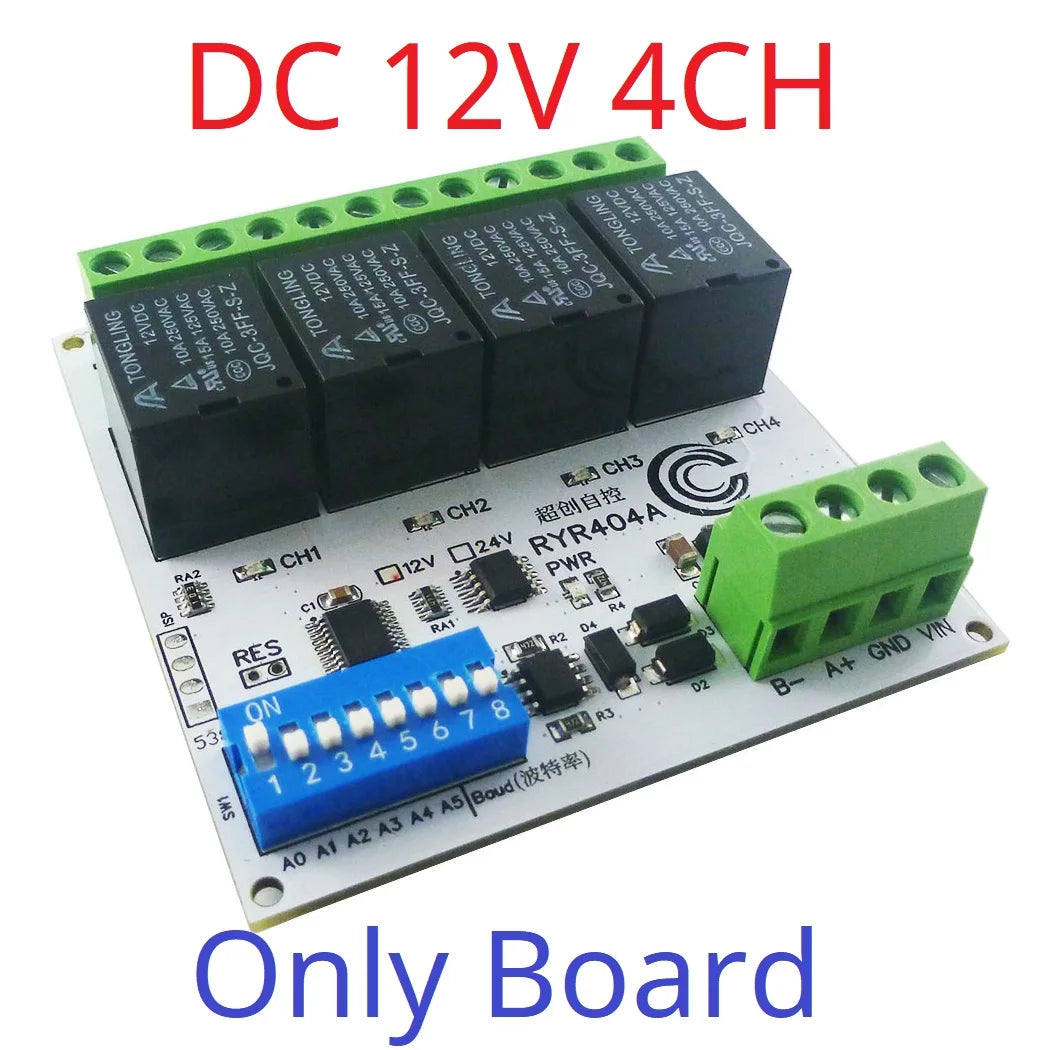

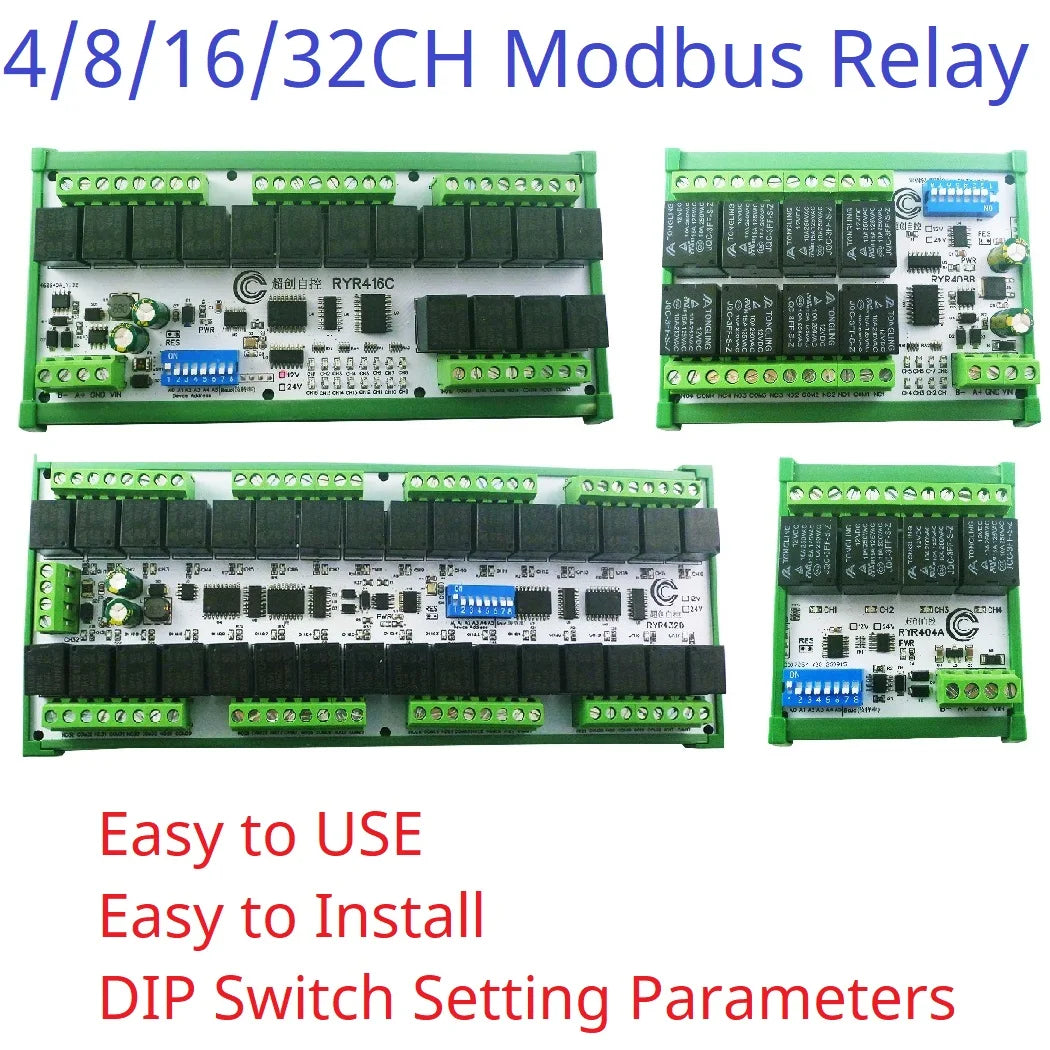

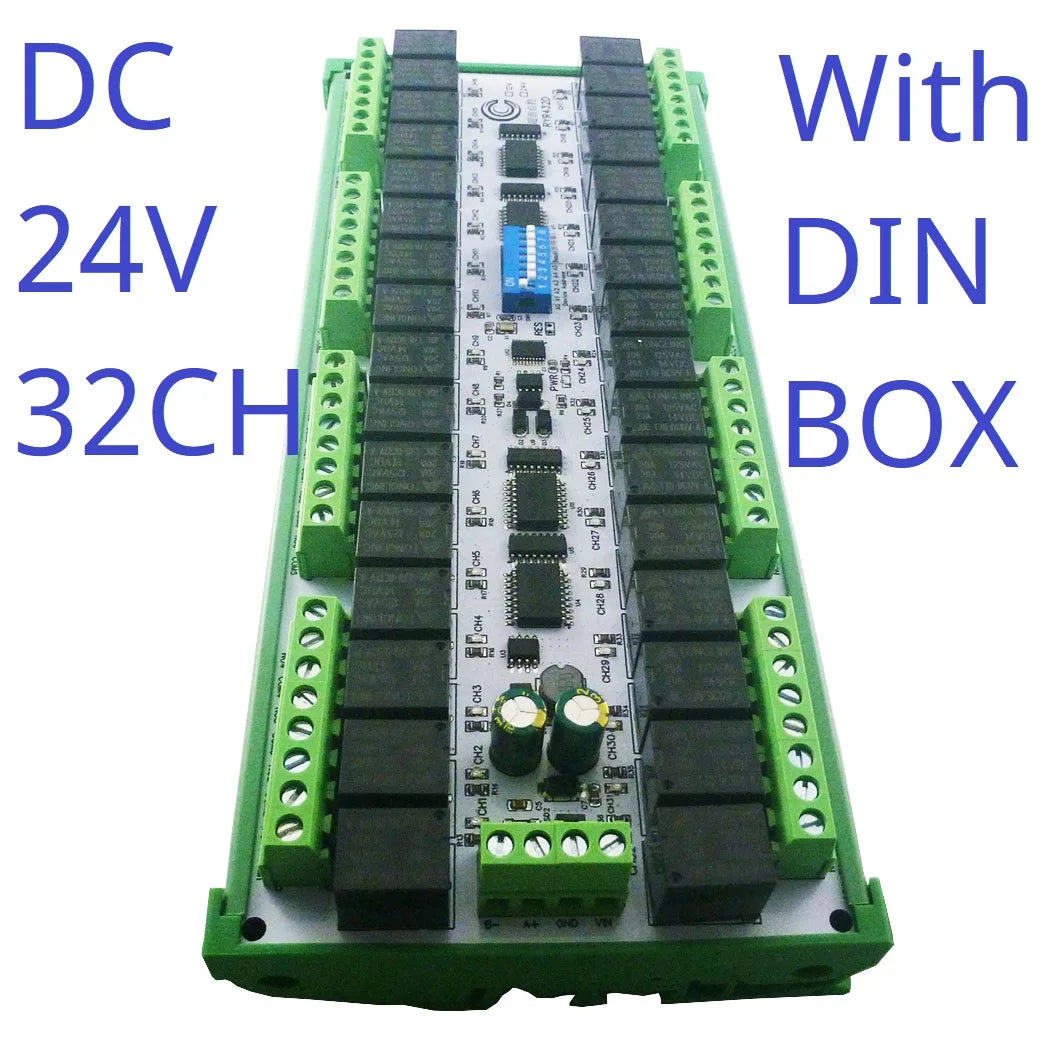

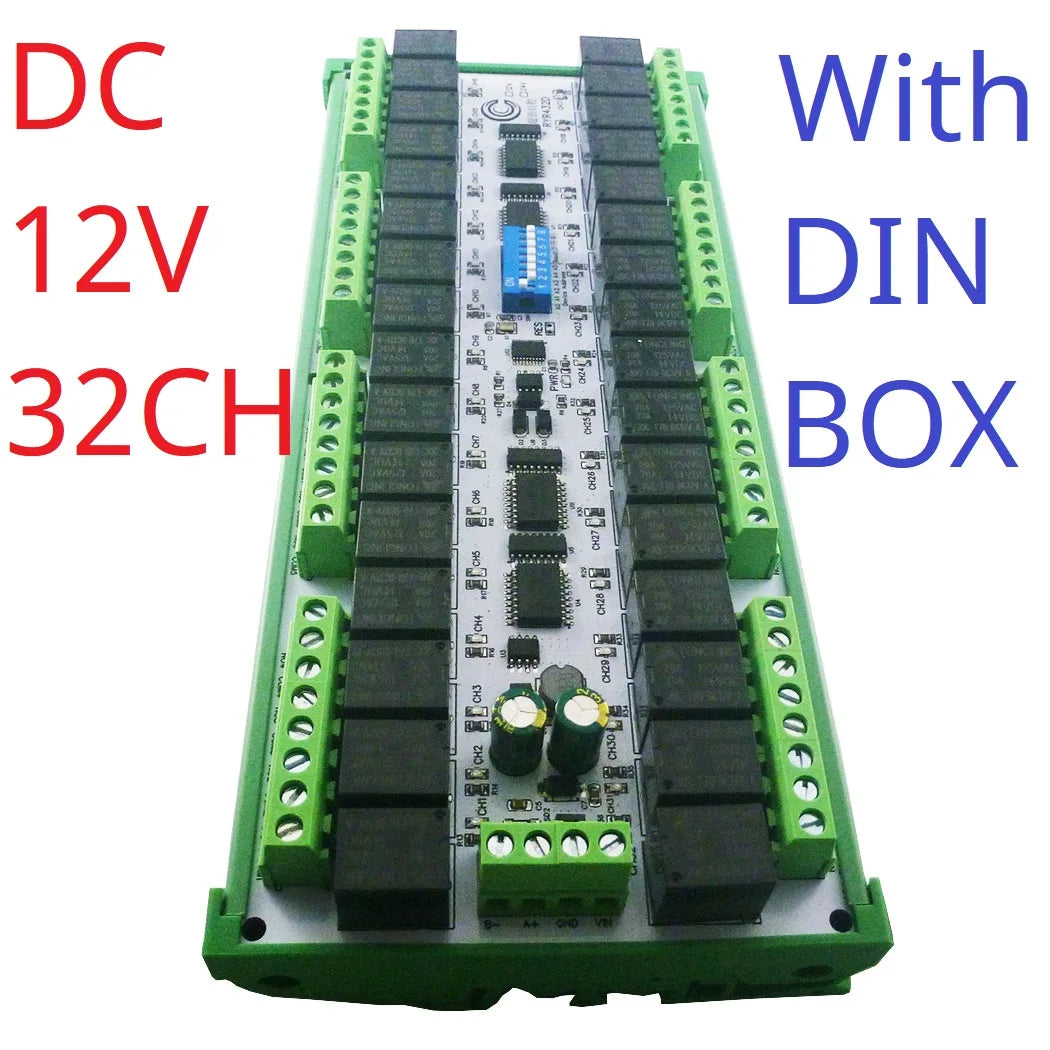

4-32CH 10A 20A DC 12V 24V RS485 Bus Relay Module DIP Setup Parameters Modbus RTU Serial Port UART Switch Board HMI PLC

Product List:
1PCS 4-32CH 10A 20A DC 12V 24V RS485 Bus Relay Module DIP Setup Parameters Modbus

(Specific according to the version and quantity you choose)

Description:

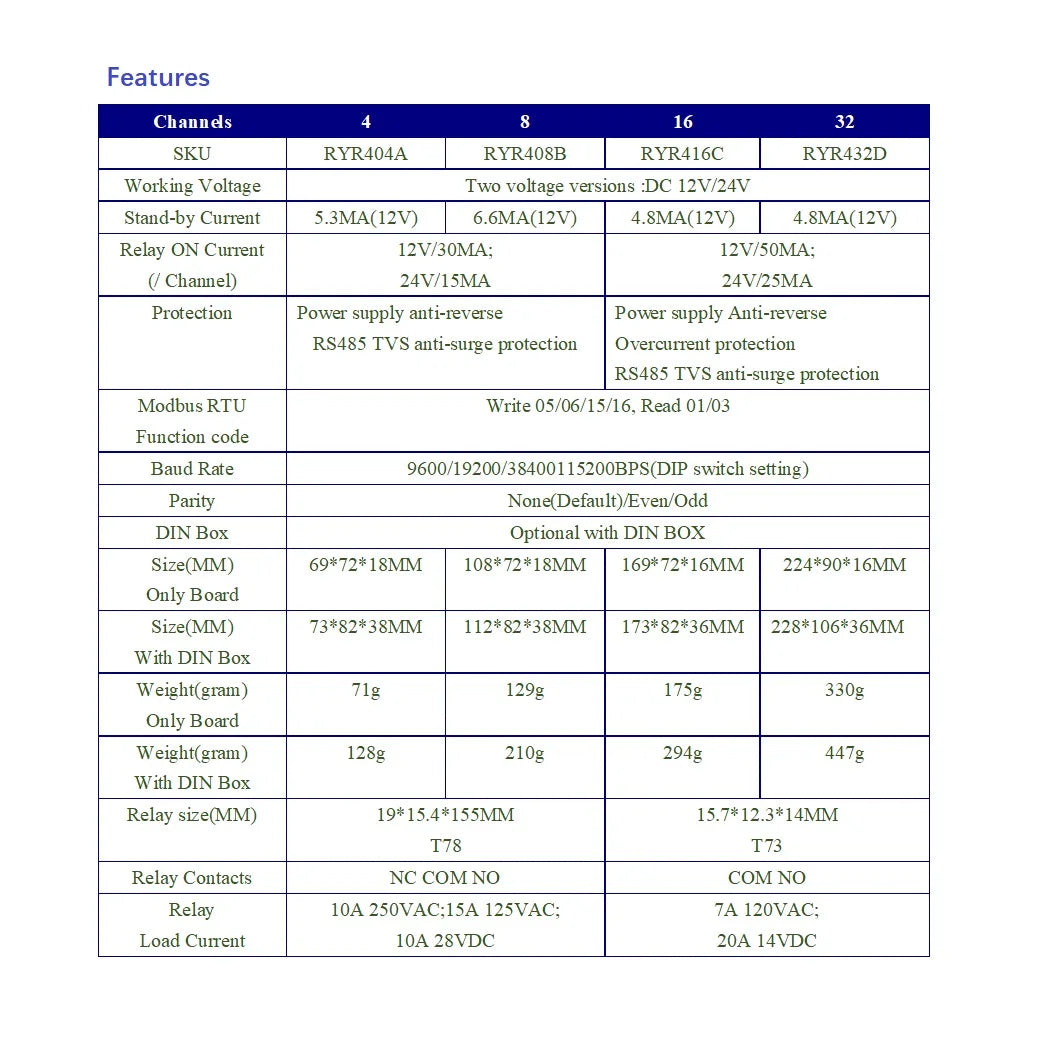

1: Working Voltage DC 12V/24V;
2: Standby current (all relays closed) 5MA, 1 relay ON 49MA, ...,32relay ON 1500MA
3: ''ON'' ''OFF'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all''8 Commands
4: MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;

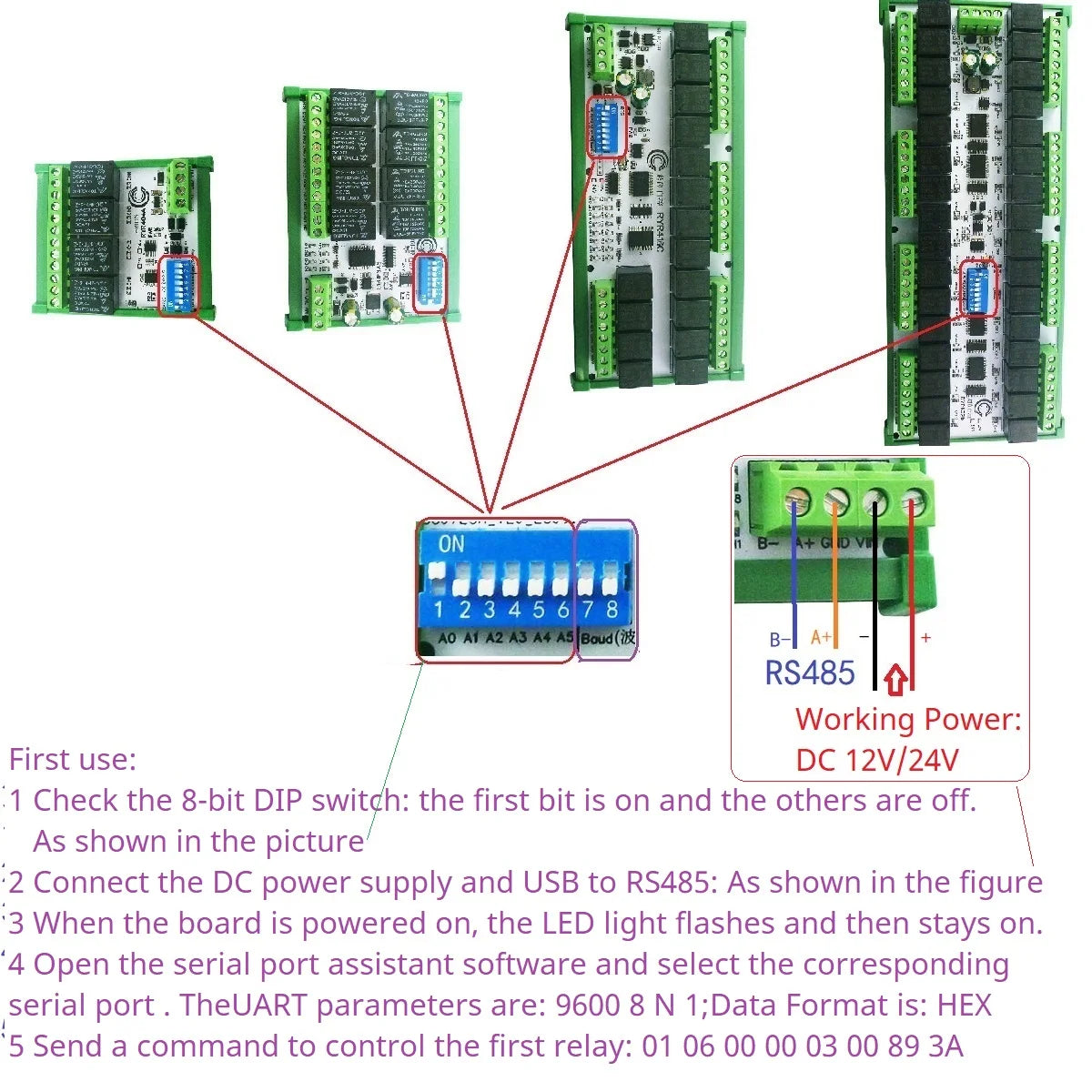

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

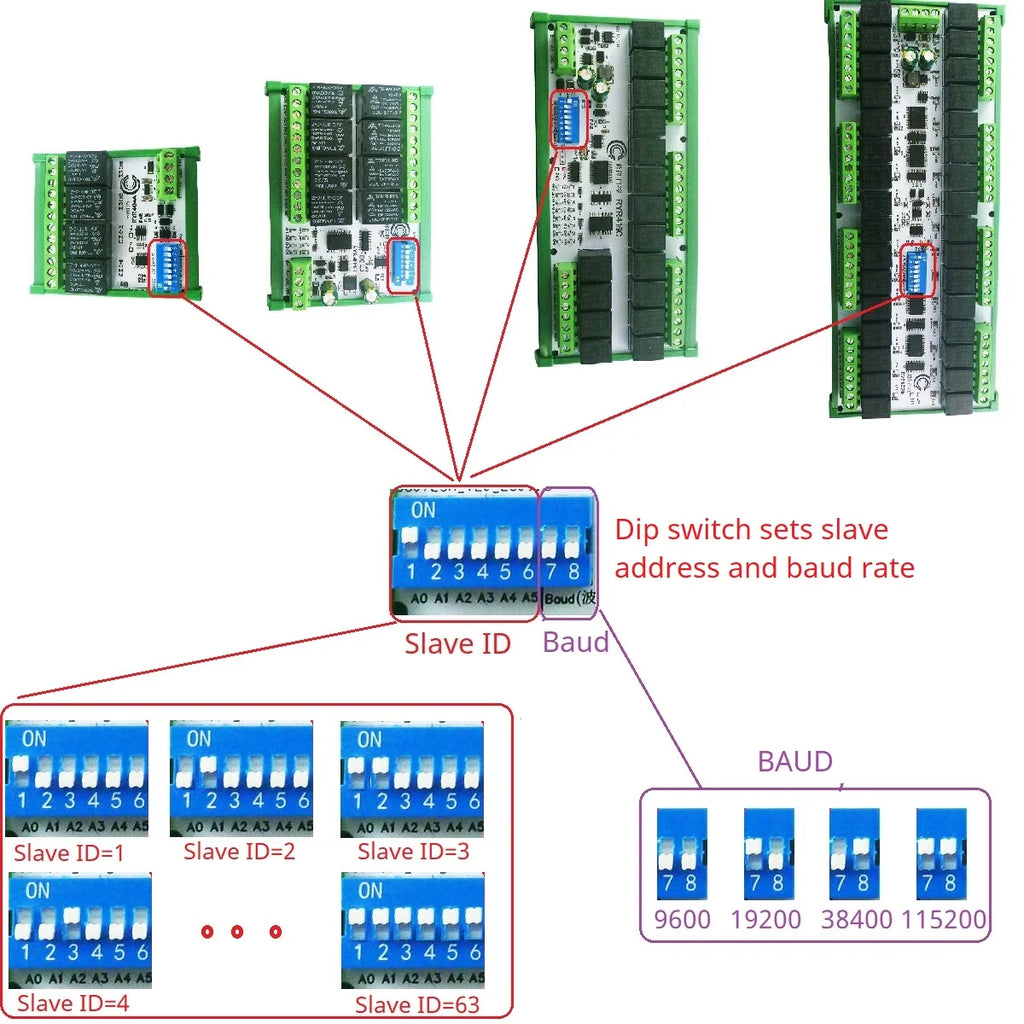

7 Set the Slave ID through the DIP Switch: 1-63 ID
8 Set BaudRate via DIP switch : 9600/19200/38400/115200BPS
9 Parity :None(Default)/Even/Odd

For more information, please open the link and download:
https://1drv.ms/u/s!Av4PLxH_z8f1vVbMX9xC_yymff2q?e=GTMvU0

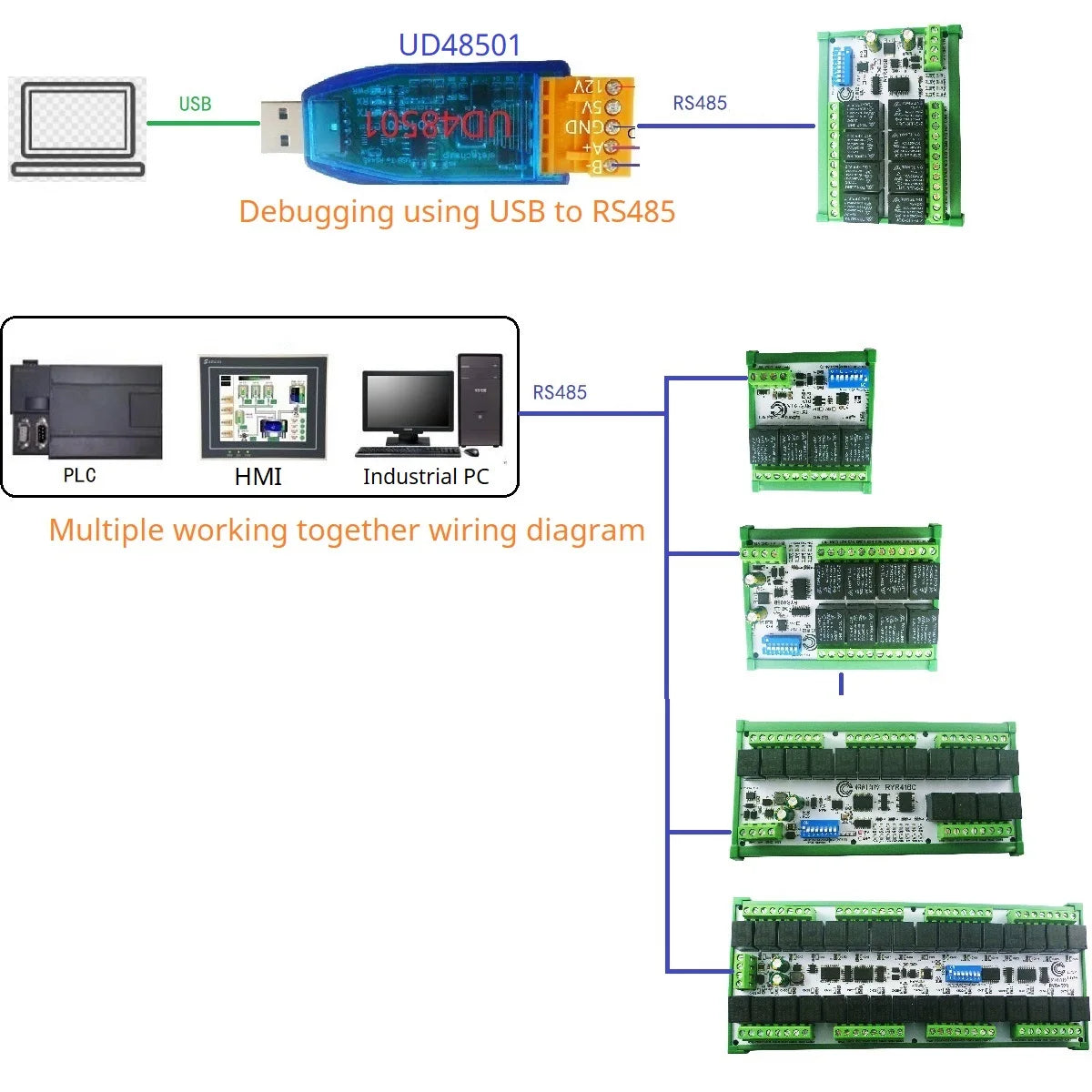

Application

PLC IO Expansion Board
HMI Configuration Software
Smart Home,Home Automation ,Automated industry;
PTZ CCTV Camera
Security Monitoring
Identification system;
Automatic curtain control
LED Control
Farm water supply system
Stirring system
