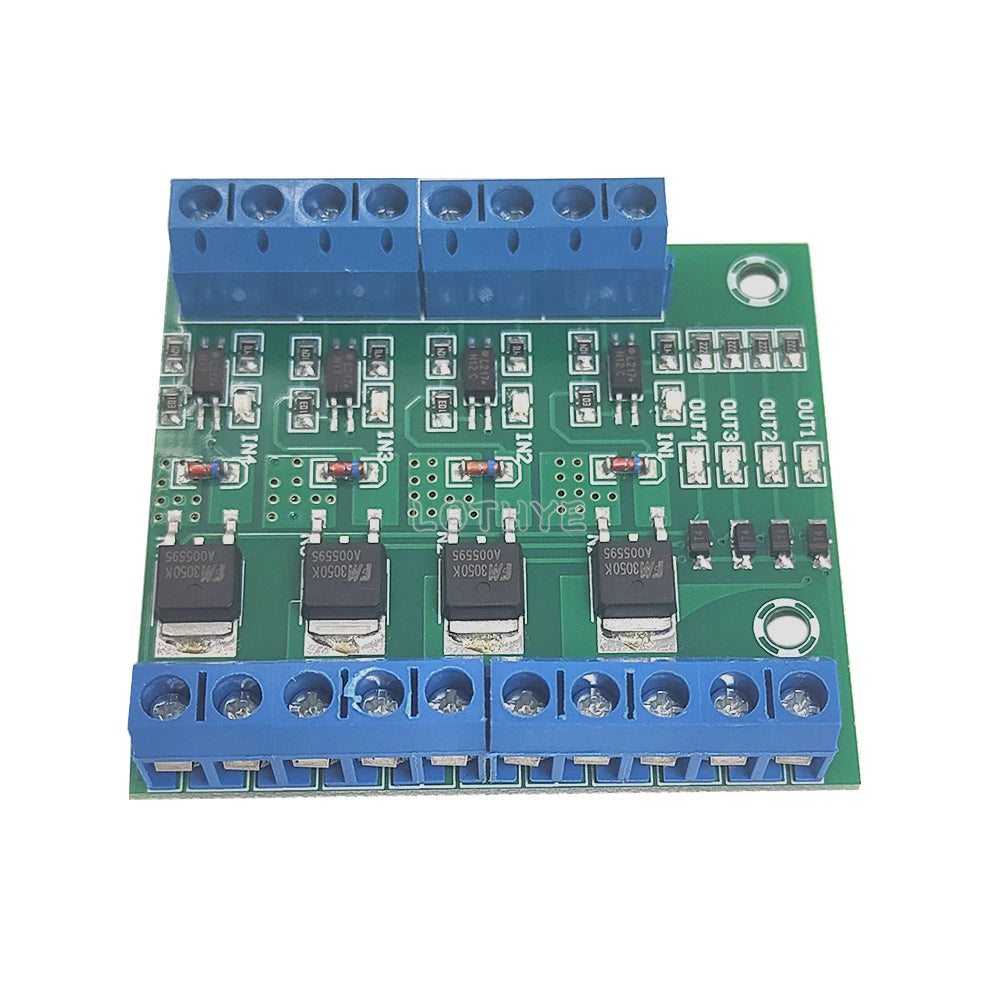

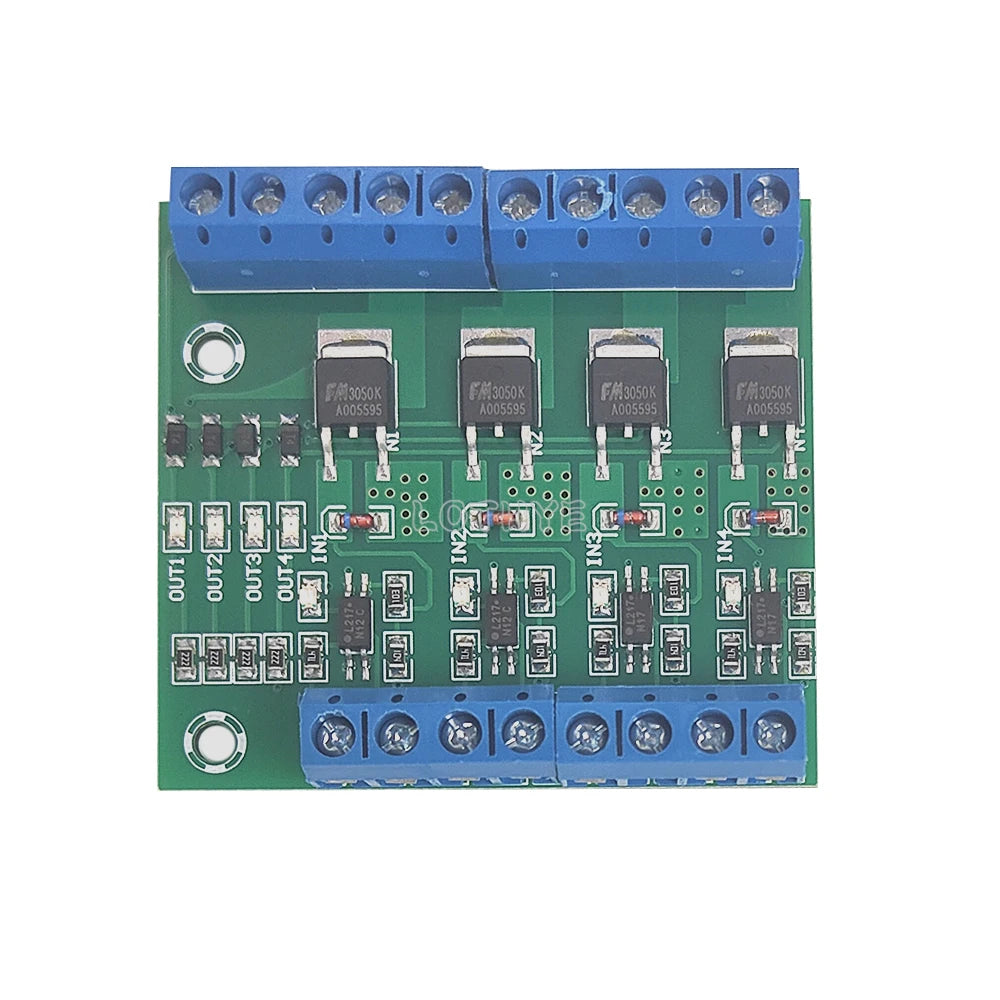

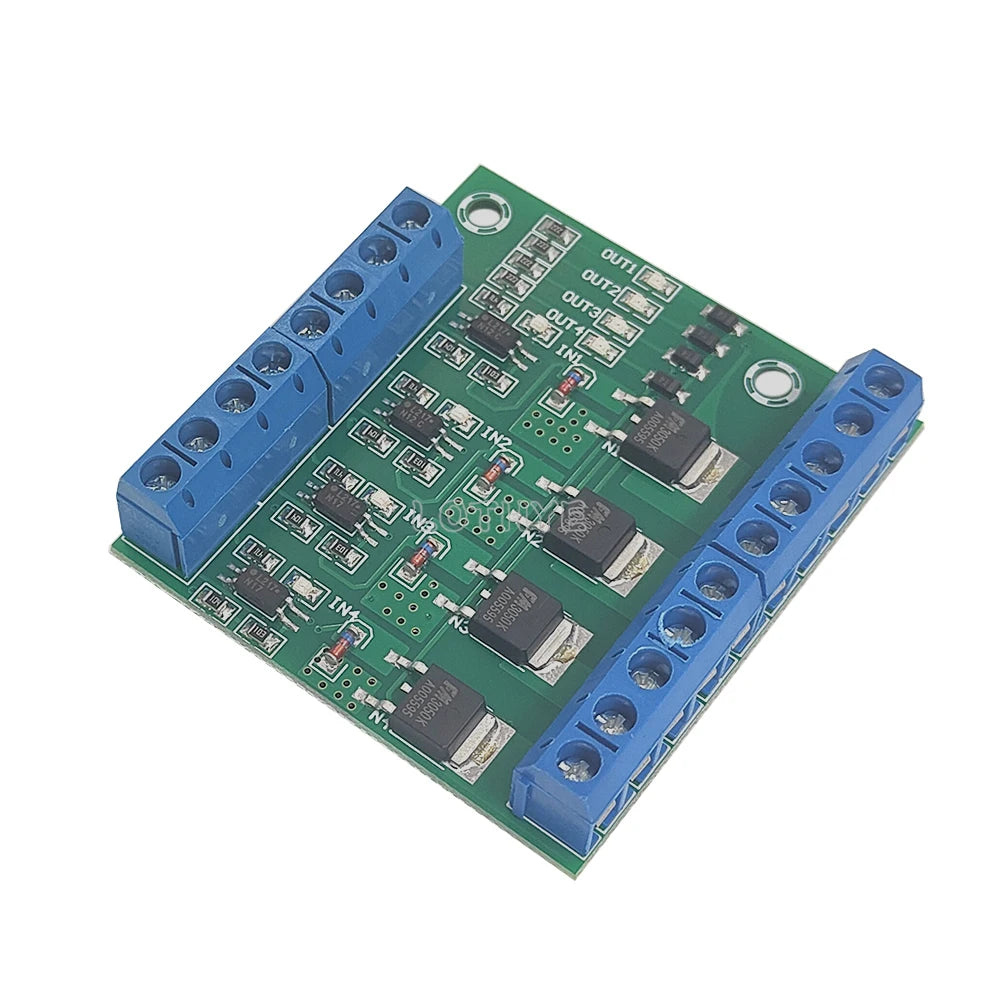

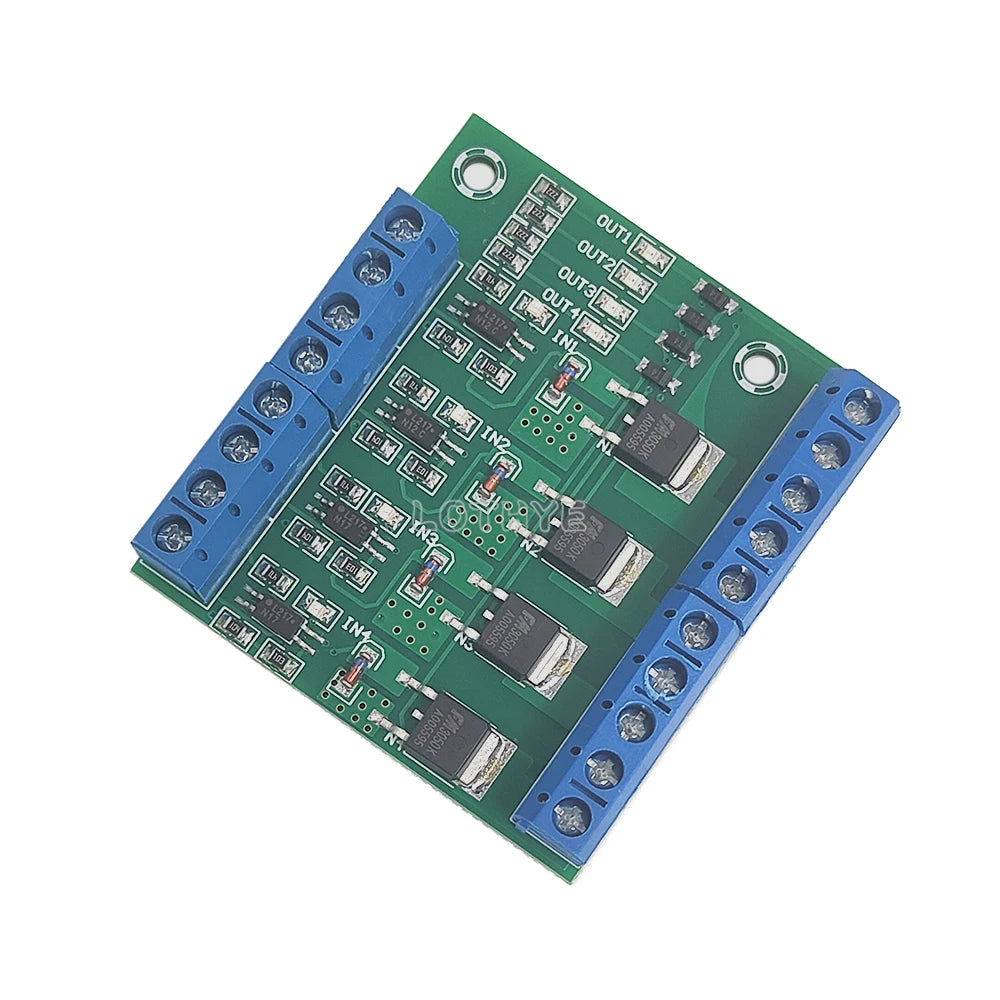

4 Channel MOS PLC Amplifier Board Driver Module PWM 3-20V To 3.7-27V DC 10A Board Driver 4-Channel MOSFET PLC Amplifier
$19.12
Sale price
$19.12
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: LOTHYE
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
Feature:
1. Strong anti-interference ability, stable performance, input signal and output isolation.
2. Input signal: PWM signal between 3~20V
3. Output capacity: DC 3.7V~27V, current within 10A per channel
4. PWM frequency: 0~200Hz
5. Indicator light: with input signal and output indicator light
6. Application description: The output terminal can control high-power equipment, motors, bulbs, LED strips, DC motors, miniature water pumps, solenoid valves, etc., and can input PWM to control motor speed, lamp brightness, etc.

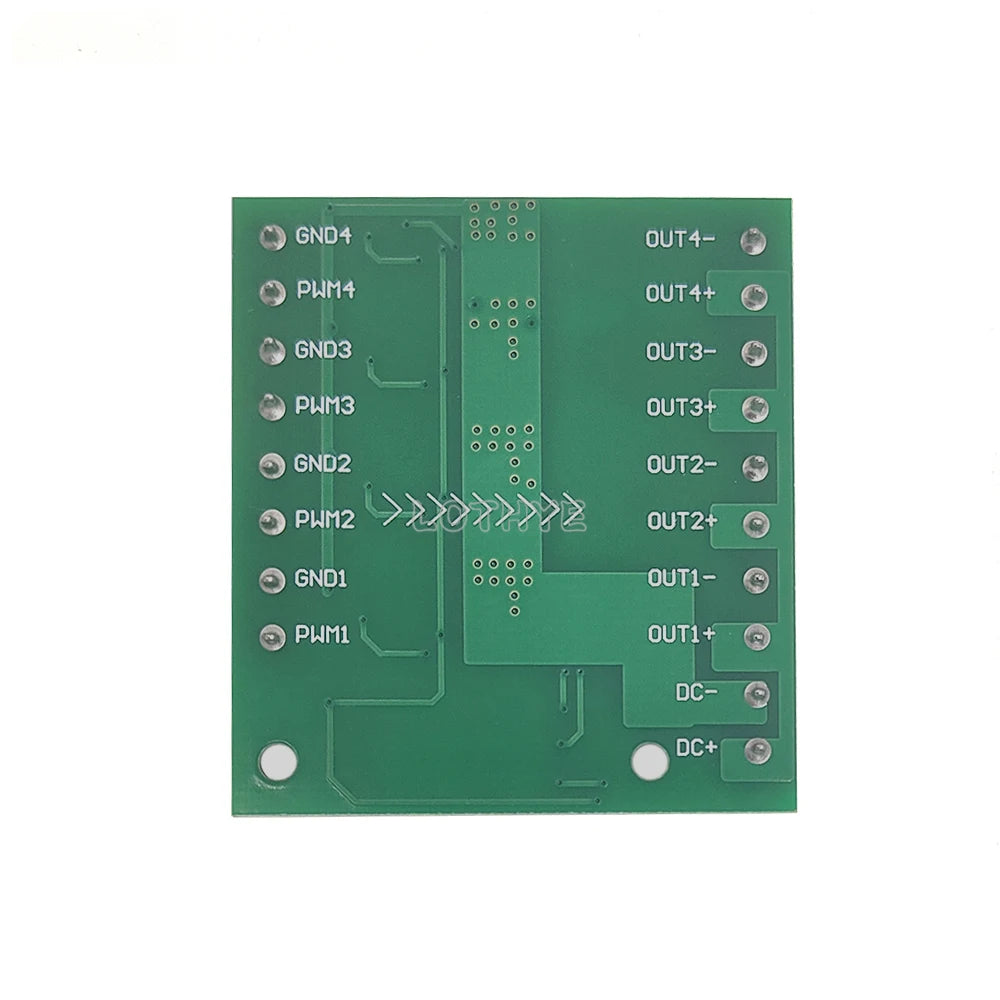

7. Module interface description:
DC+: The positive pole of the device's DC power supply
DC-: the negative pole of the device's DC power supply
PWM: signal input terminal (connected to MCU IO port, PLC interface, DC power supply, etc.)
GND: signal negative terminal
OUT+: Positive output terminal (connected to the positive pole of the device)
OUT-: The negative pole of the output terminal (connect to the negative pole of the device)
Specification:
Product weight: 27g
Product size: 56*50*10mm
