SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Voltage Regulator

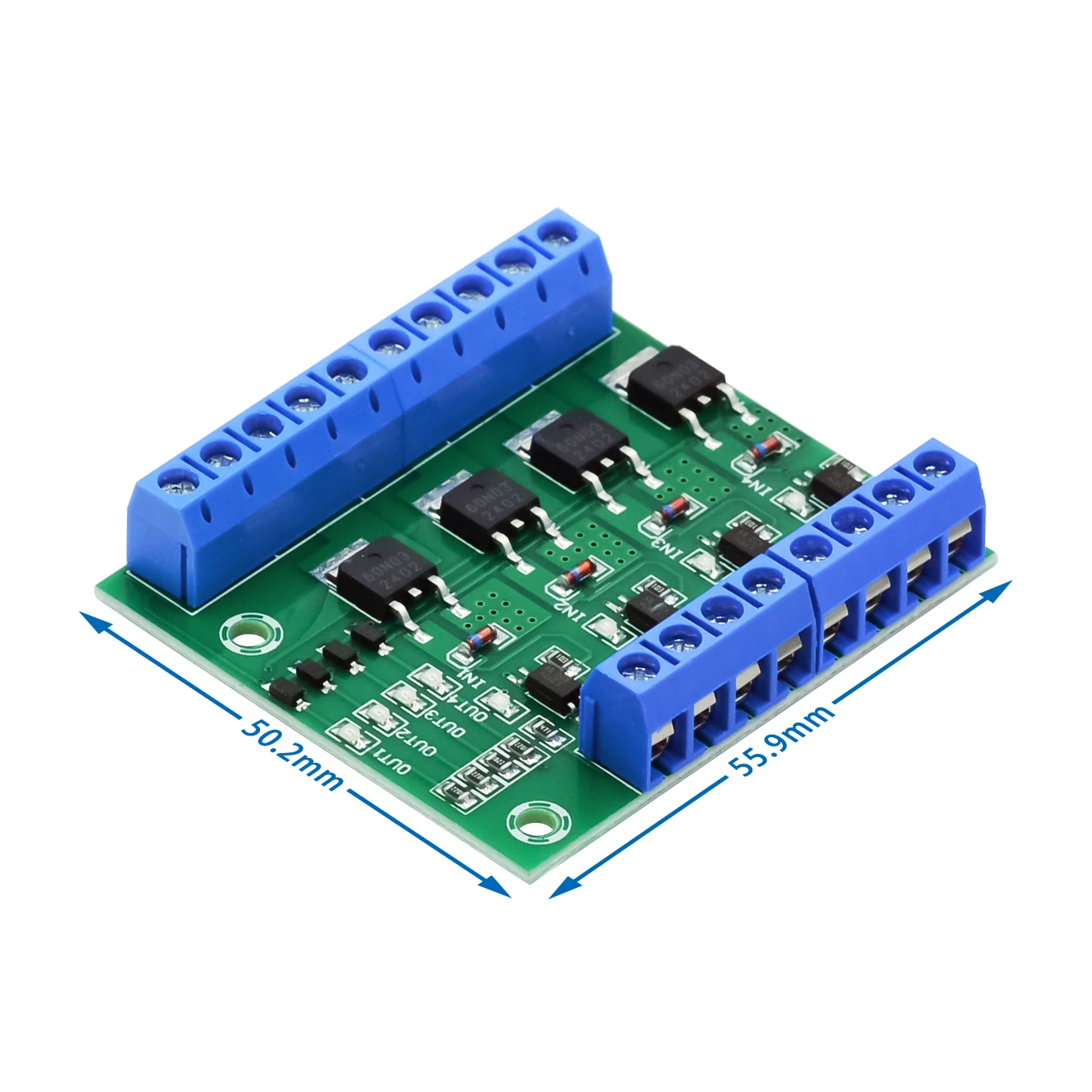

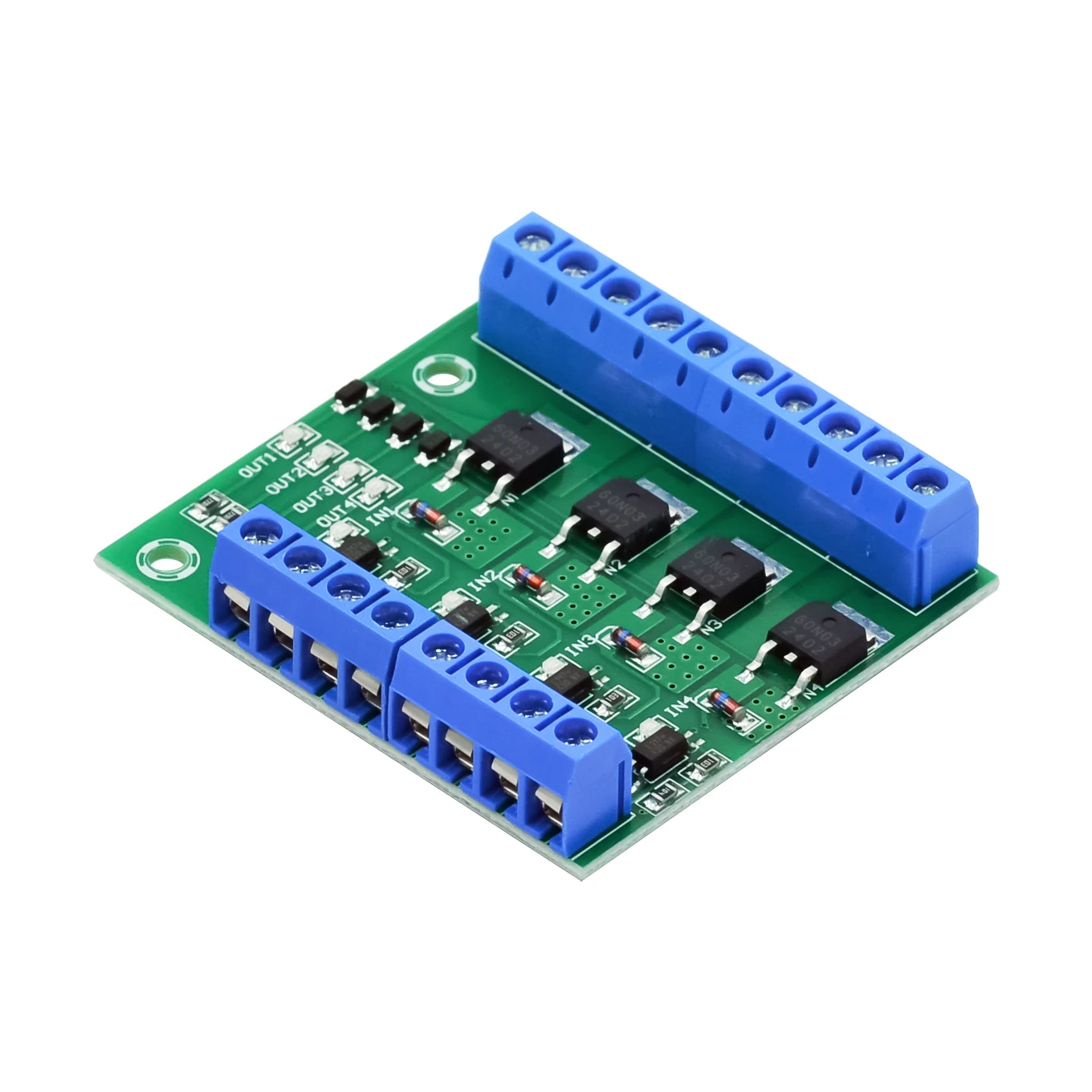

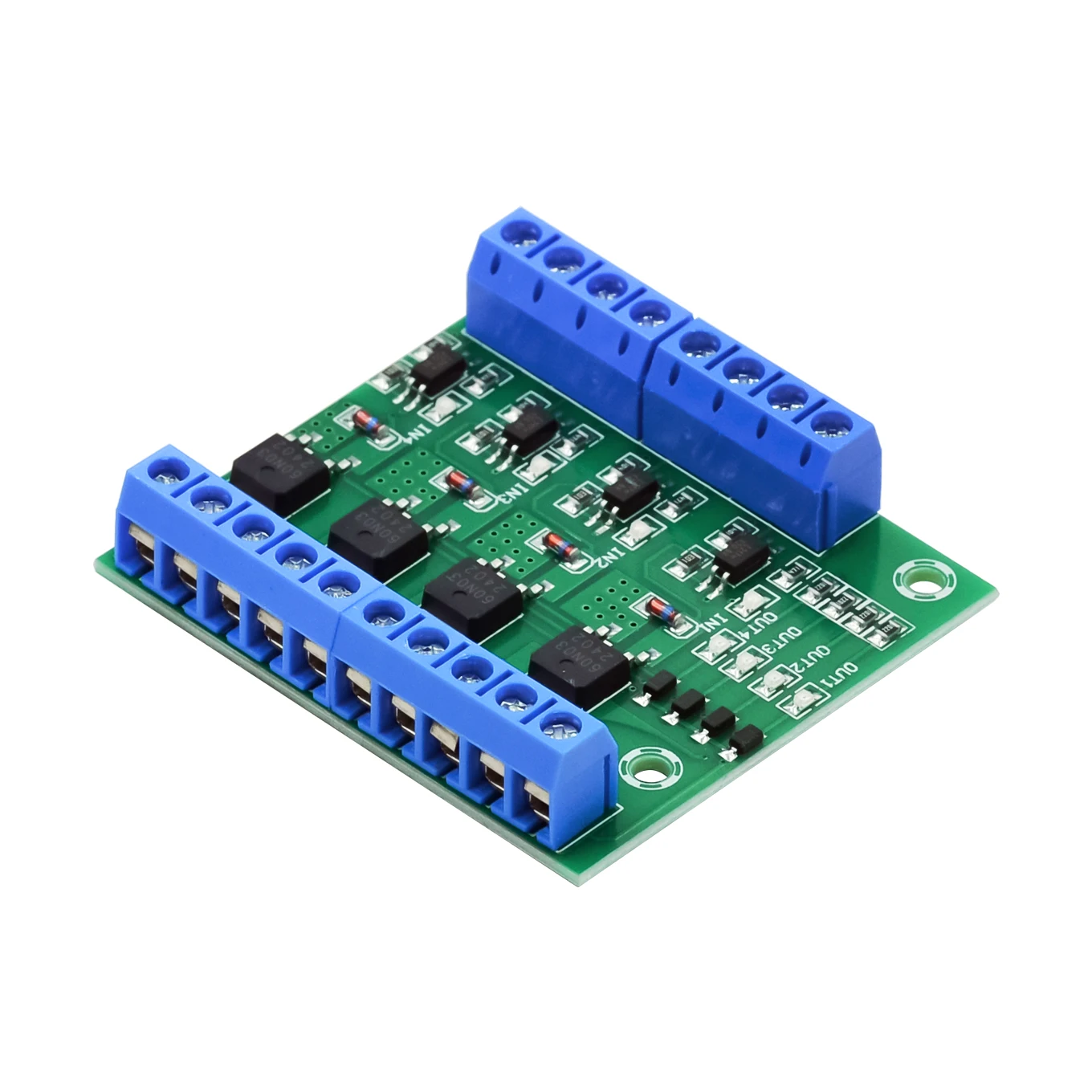

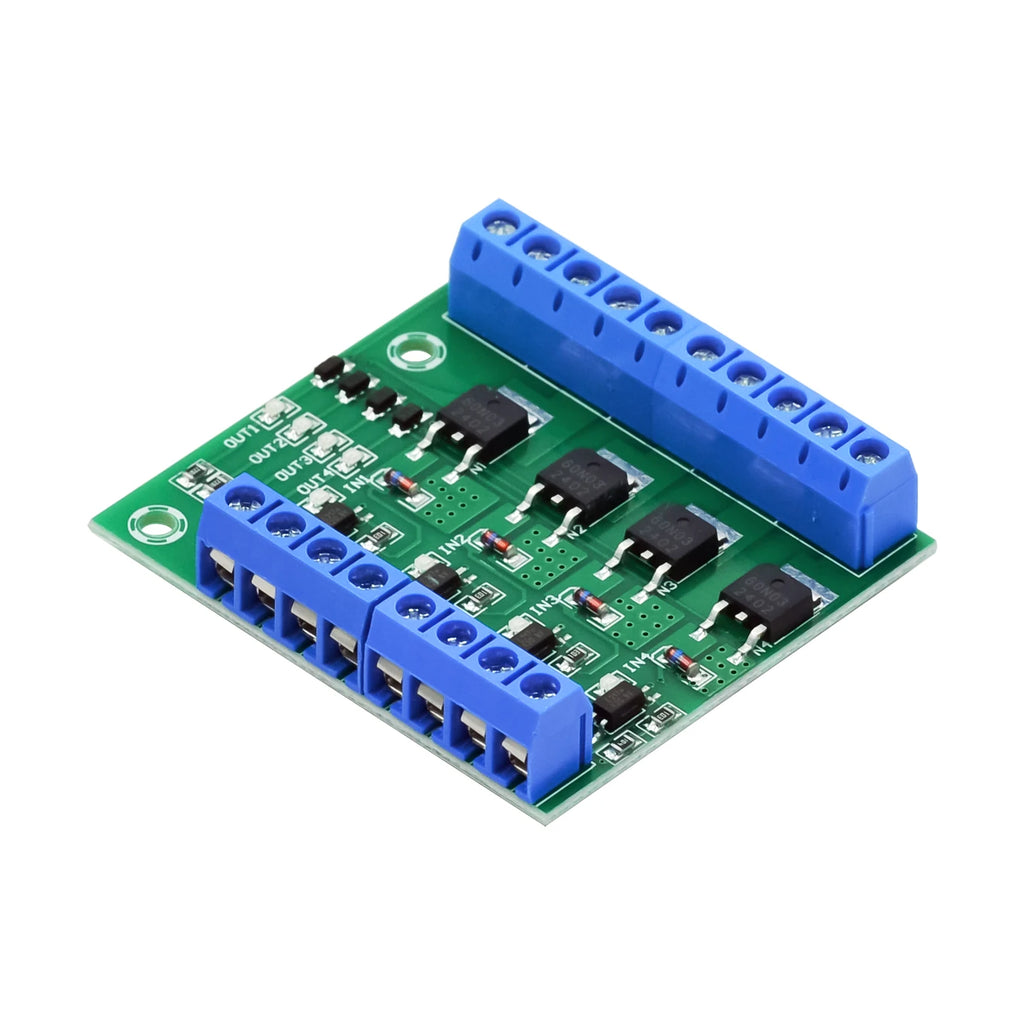

4 channel switch tube module PLC amplifier circuit board high power optocoupler isolation 3.3/5/12/24 v

1: Product model: YYNMOS-4, using the industry's top quality ultra-small optocoupler, strong anti-interference ability, stable performance, complete isolation of input signal and output.

2: Input signal: PWM signal between 3~20V

3: Output capacity: DC 3.7V~27V, current within 10A of each channel

4: PWM frequency: 0~20KHZ

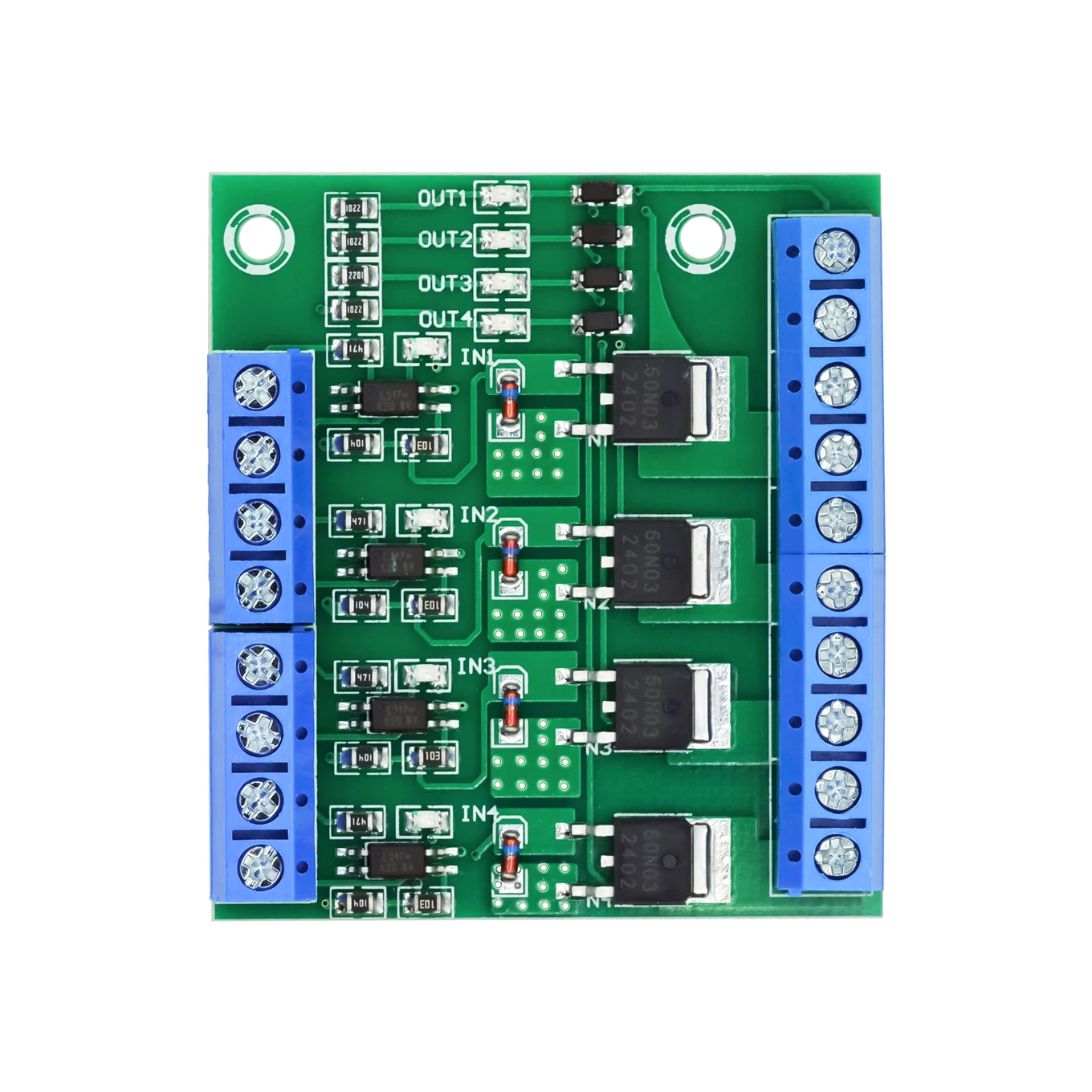

5: Indicator light: with input signal and output indicator

6: Application note: The output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump, solenoid valve, etc. It can input PWM, control motor speed, brightness of lamp and so on.

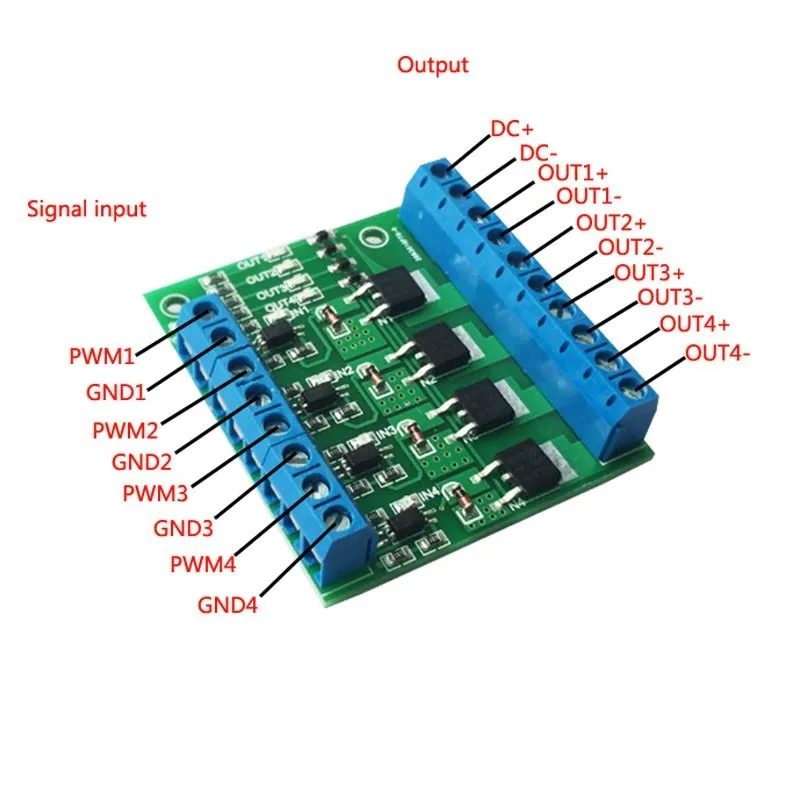

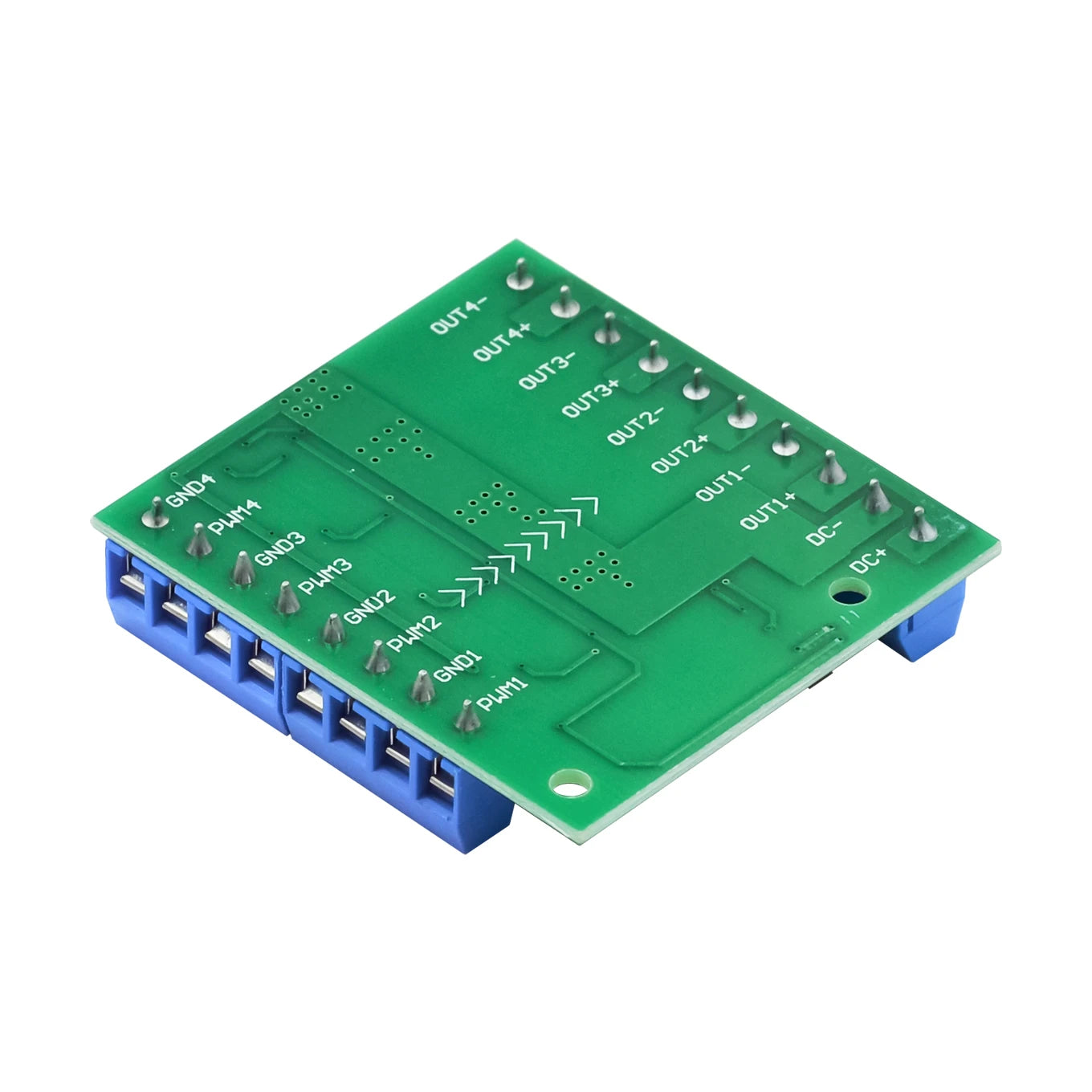

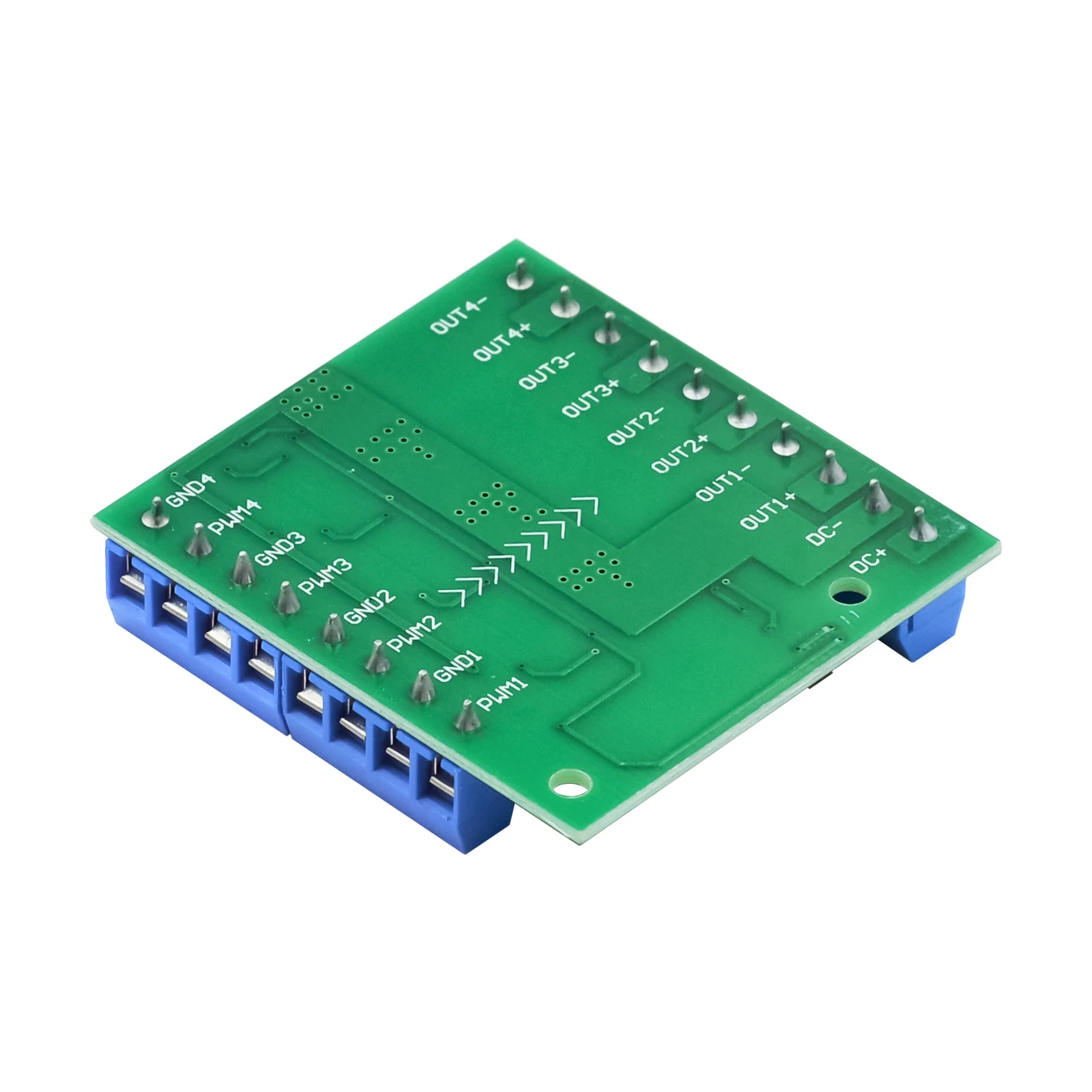

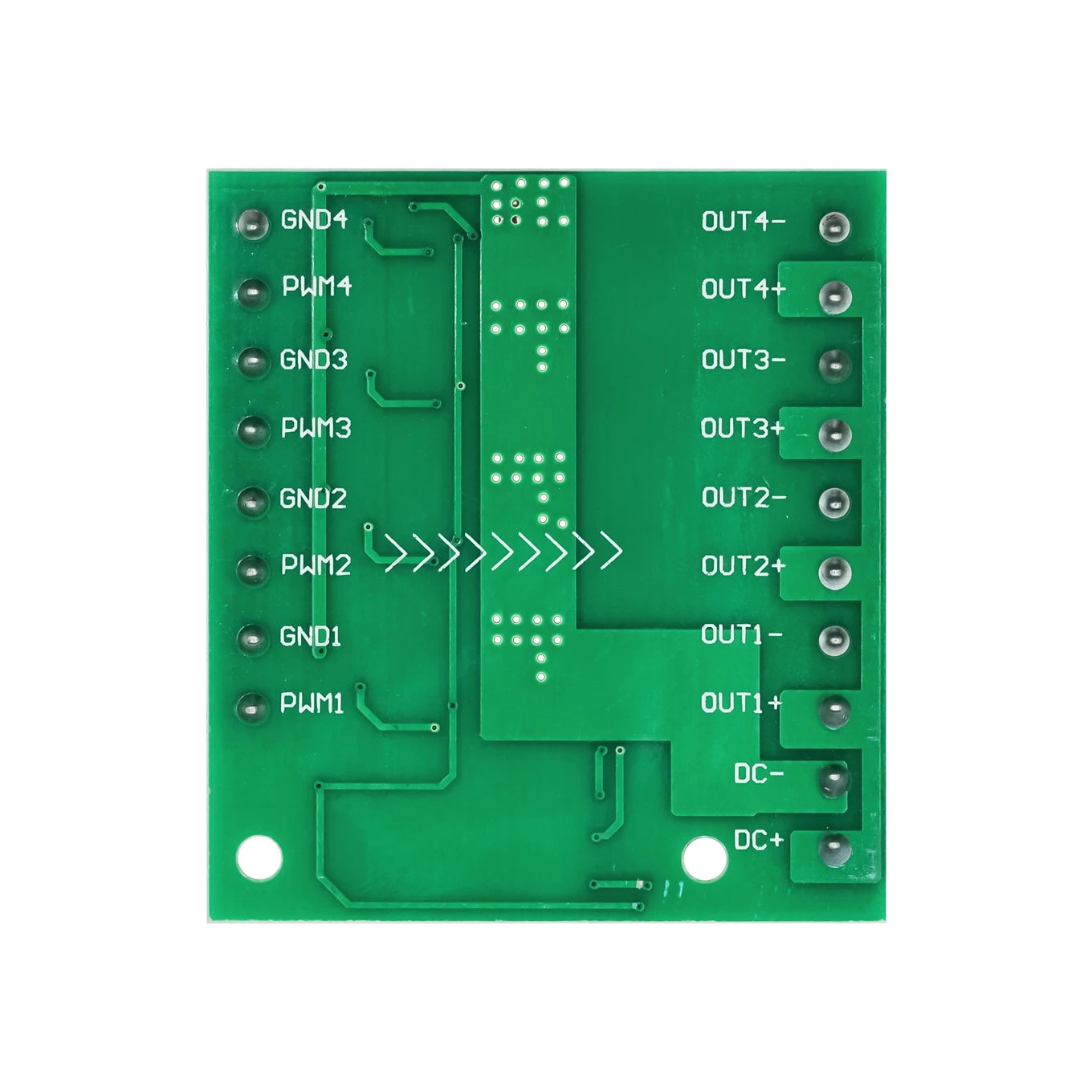

Module interface description:

1, DC+: device DC power supply positive

2, DC-: device DC power supply negative

3, PWM: signal input terminal (connected to the microcontroller IO port, PLC interface, DC power supply, etc.)

4, GND: the negative end of the signal

5, OUT+: positive output terminal (connected to the positive terminal)

6, OUT-: output terminal negative (connected to the device negative)
