SPECIFICATIONS

Average Life (hrs): More than 5000hours

Brand Name: LOAMLIN

Certification: CCC,ce,FCC,ROHS,CE,RoHs

Color Temp(K): K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/144

Luminous Flux: <60

Model Number: SK6812 5V

Nominal Voltage: 5V

Occasion: Living room,Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/144

Strip type: SMD

Voltage: DC5V

Waterproof: Yes

Note:

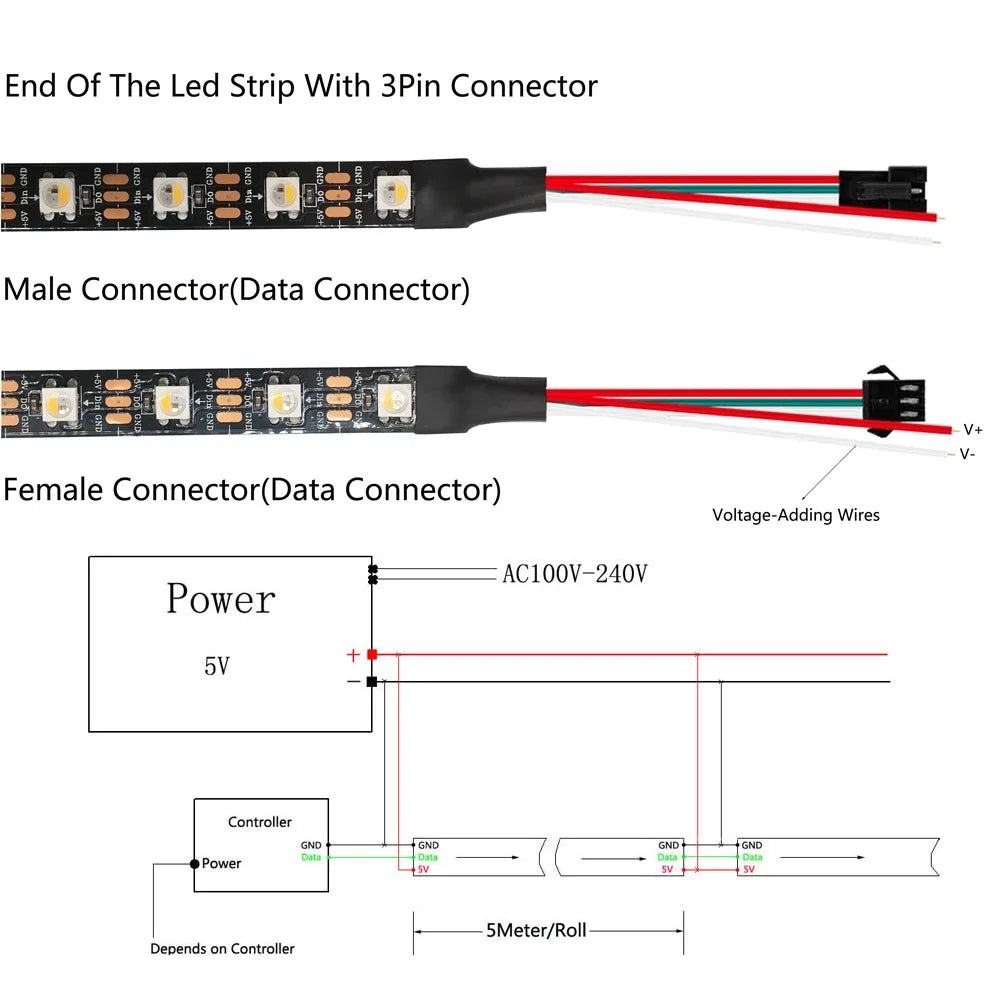

1.The Price is only Led Strip, Power Supply or Led Controller are Not Included!

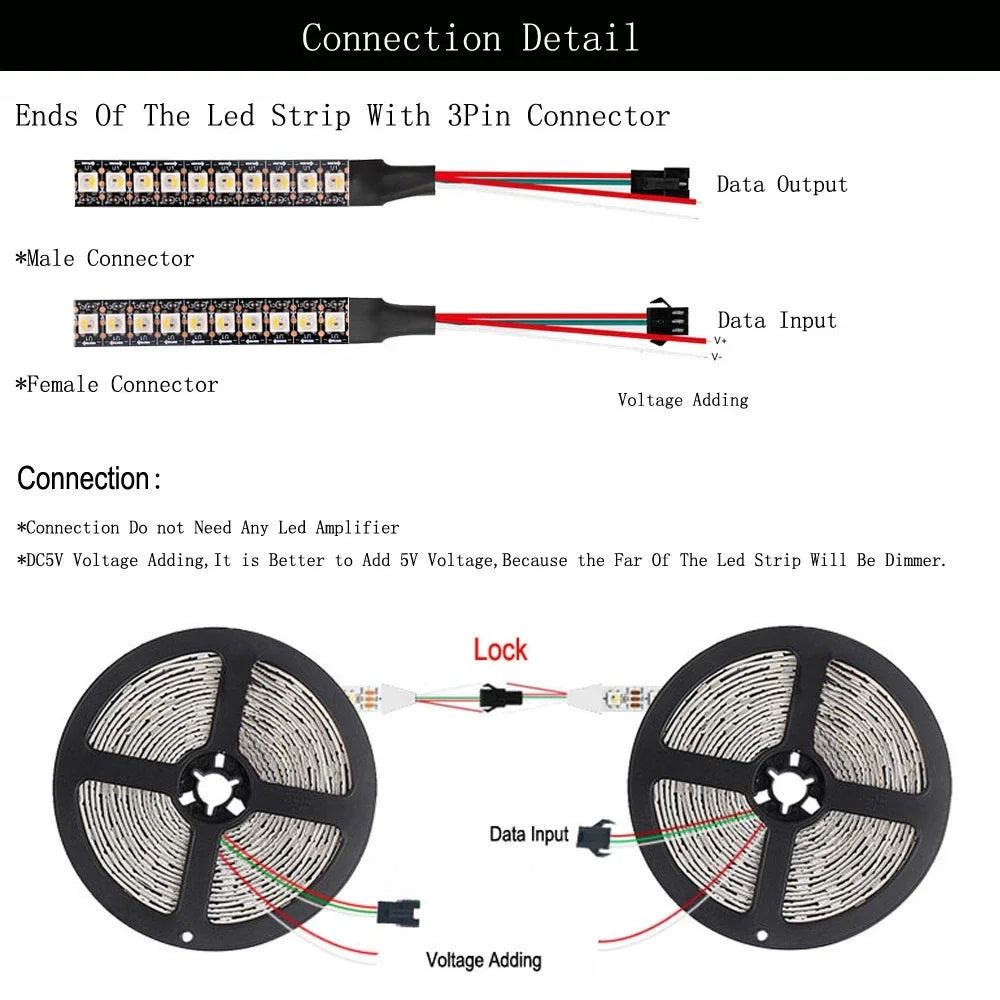

(SK6812 RGBW Must Use DC5V Power Supply and Led Controller to Control)

2.Every 0.5meter with solder joints, Please note!

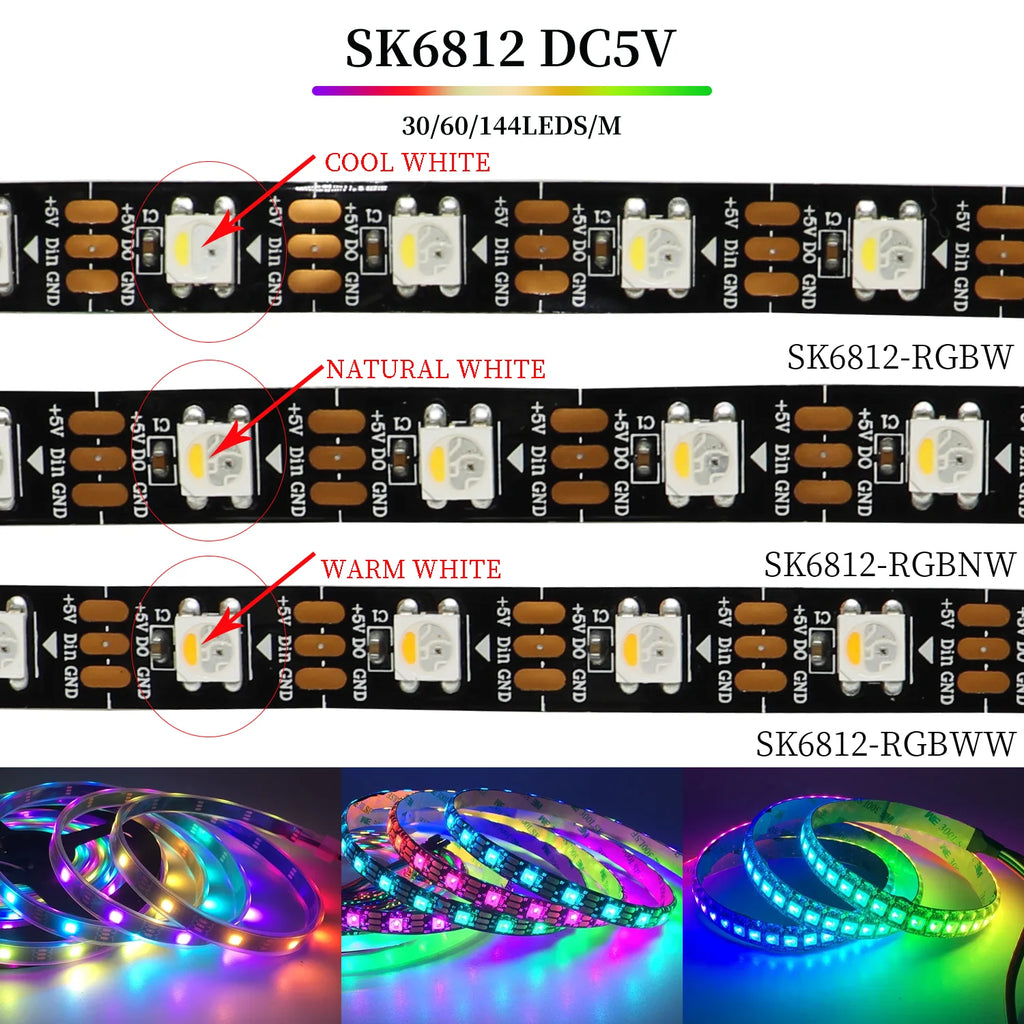

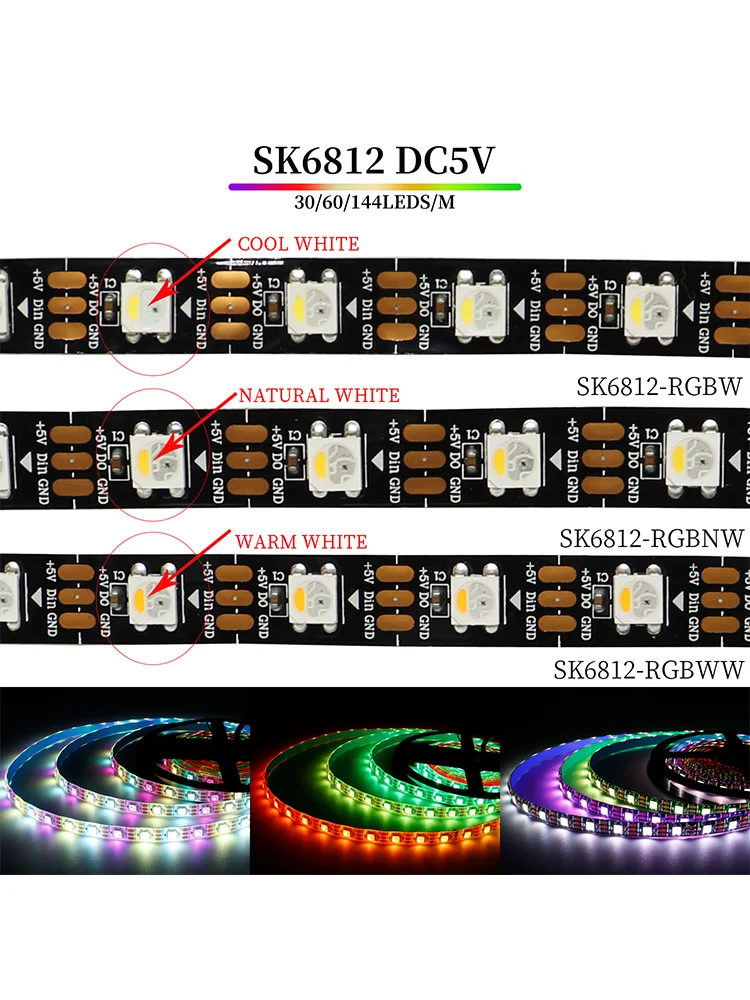

RGBCW=RGB + Cool White

RGBNW=RGB + Nature White

RGBWW=RGB + Warm White

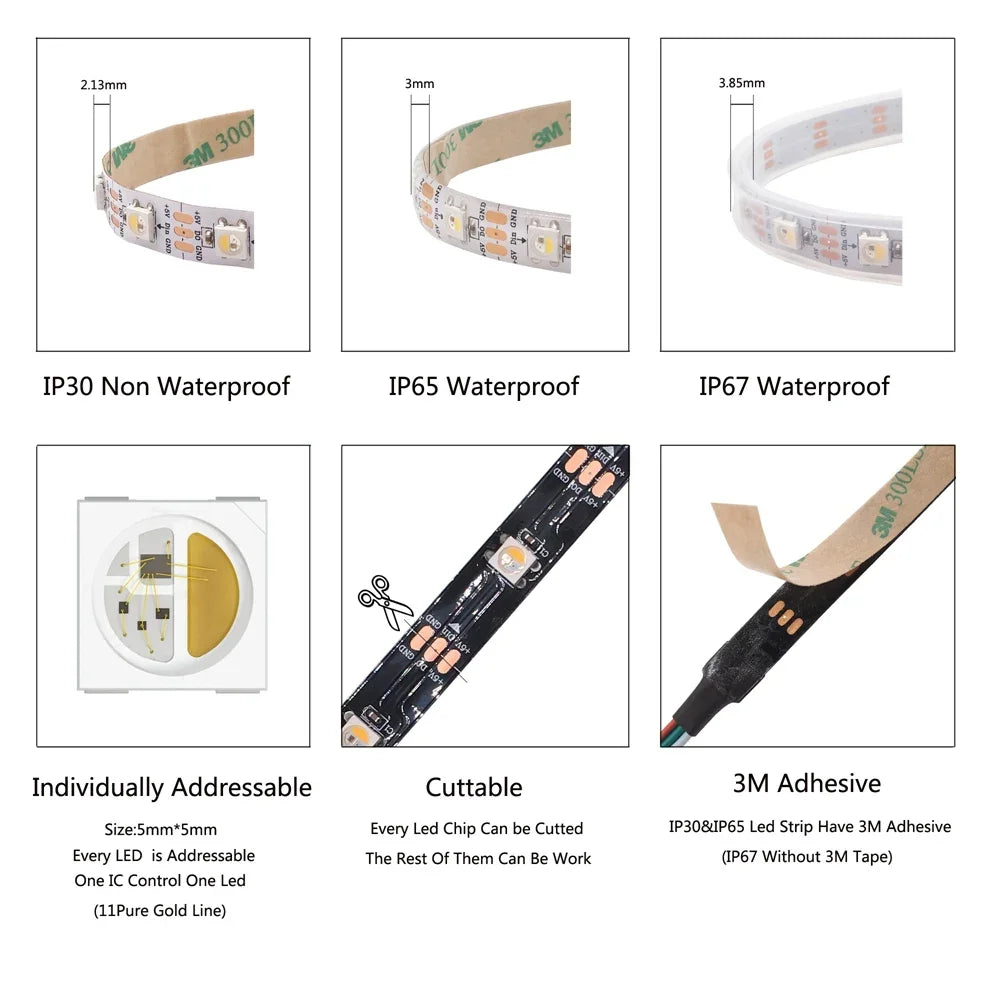

Waterproof Level:

IP30: Non- waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in Silicon Tube

The Length As You Choose

Product Details:

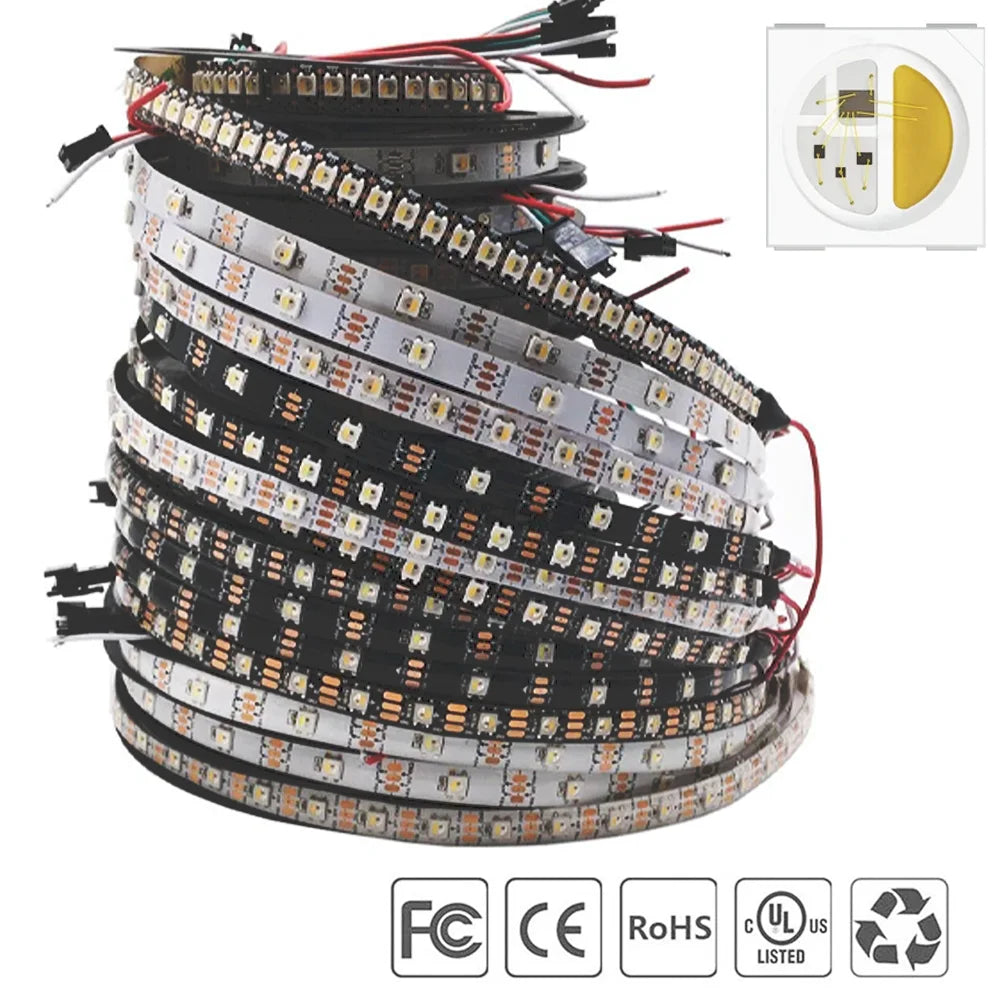

Led Source :5050SMD RGBCW/RGBNW/RGBWW Built-In SK6812 Chipset

Voltage:DC5V

Power:30LEDS/M---------about 6W / Meter

60LEDS/M ---------about 12W / Meter

144LEDS/M -------about 28.8W / Meter

Led Type :SMD5050

IC Type :SK6812(Similar WS2812B)

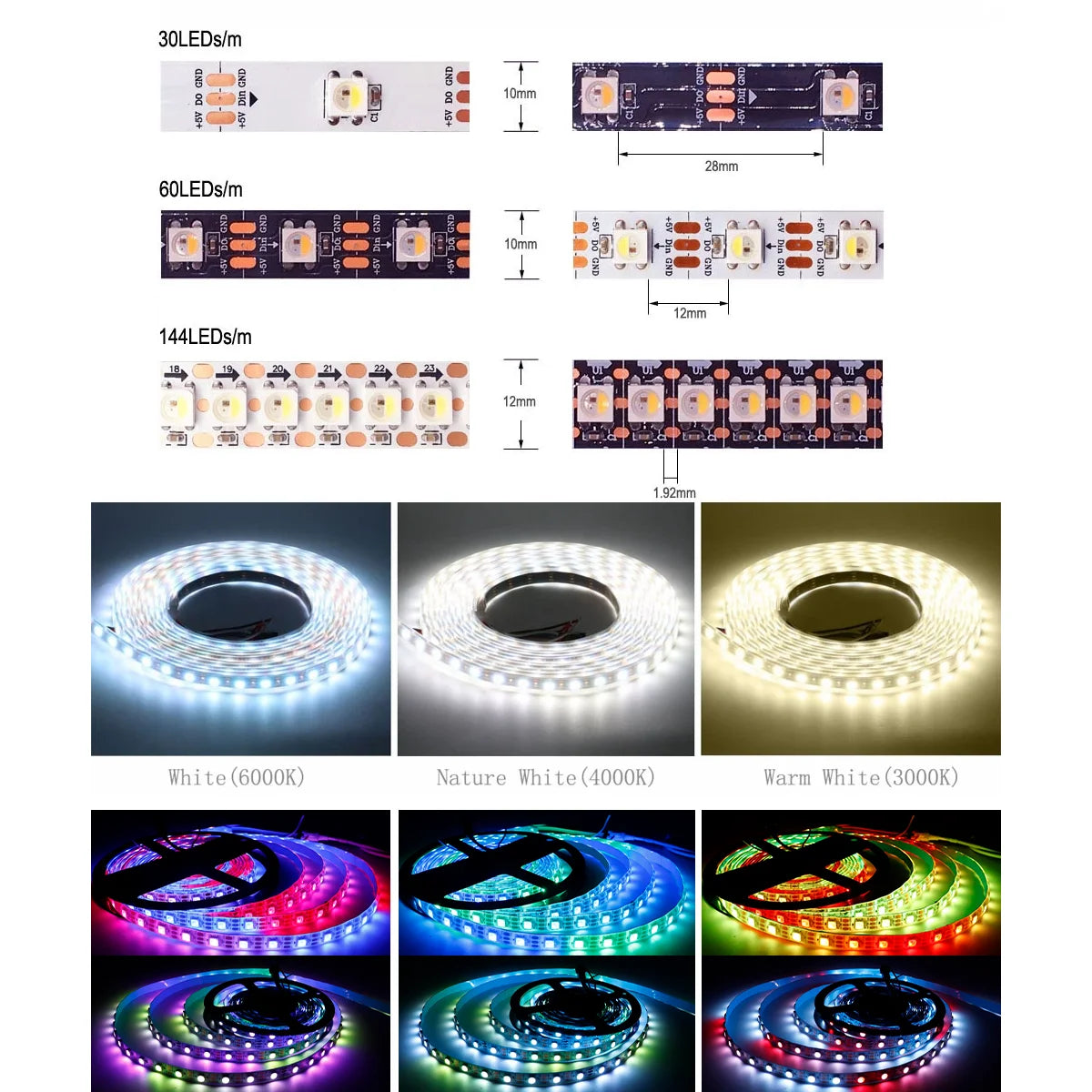

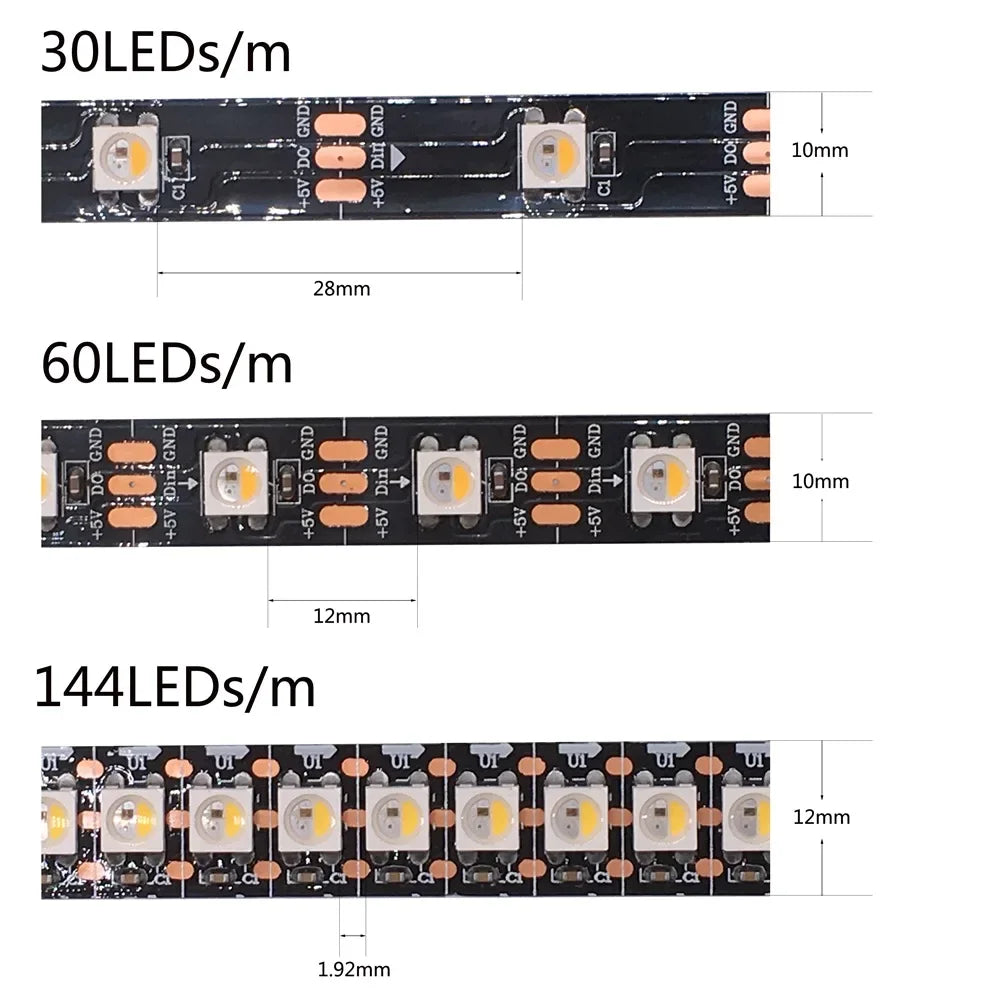

LED/Per Meter:30, 60,144Leds/Meter (Each Led Is Separately Controlled)

IC/Per Meter:30, 60,144IC/Meter (1 IC drives 1 led chip)

Pixels/M :30, 60,144Pixels/Meter

Grey Grade:256

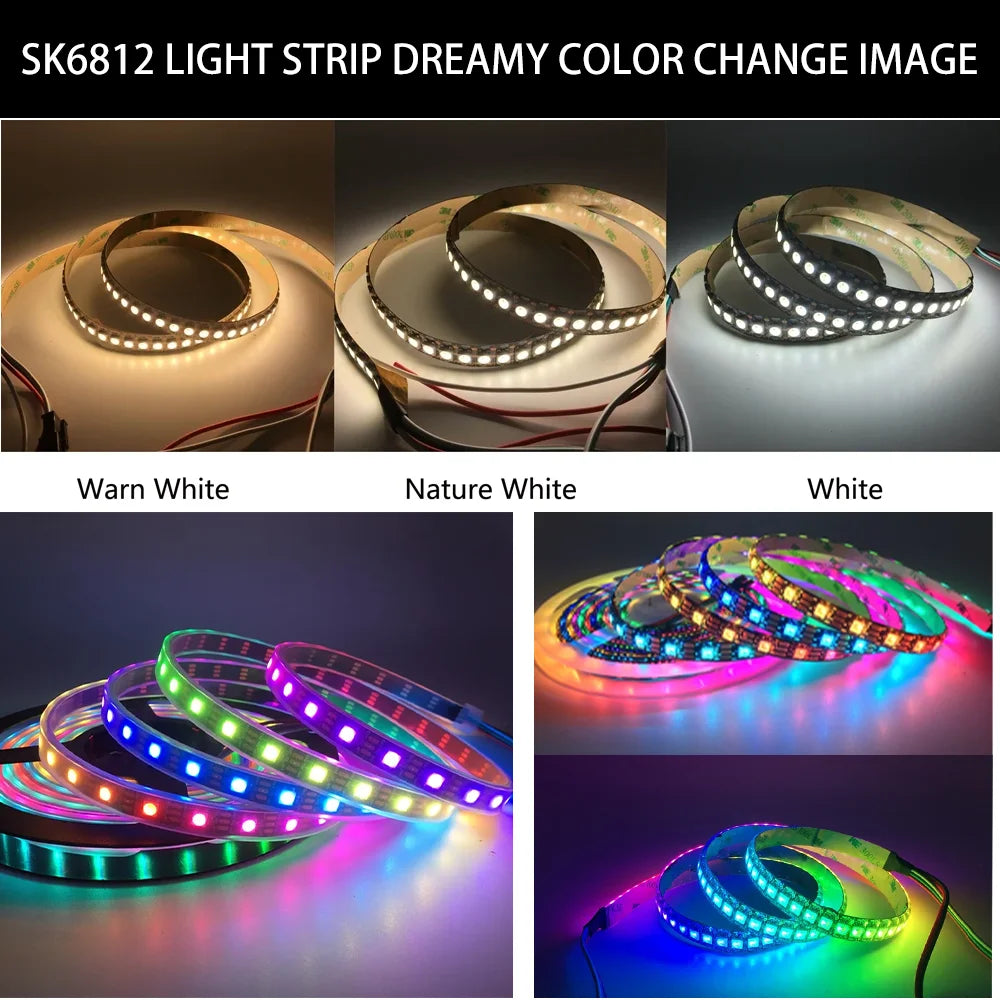

Color: RGBCW/RGBNW/RGBWW(WW 2700-3000K ; NW 4000-4500K ;

CW6000-6500K)

PCB Color: White PCB / Black PCB

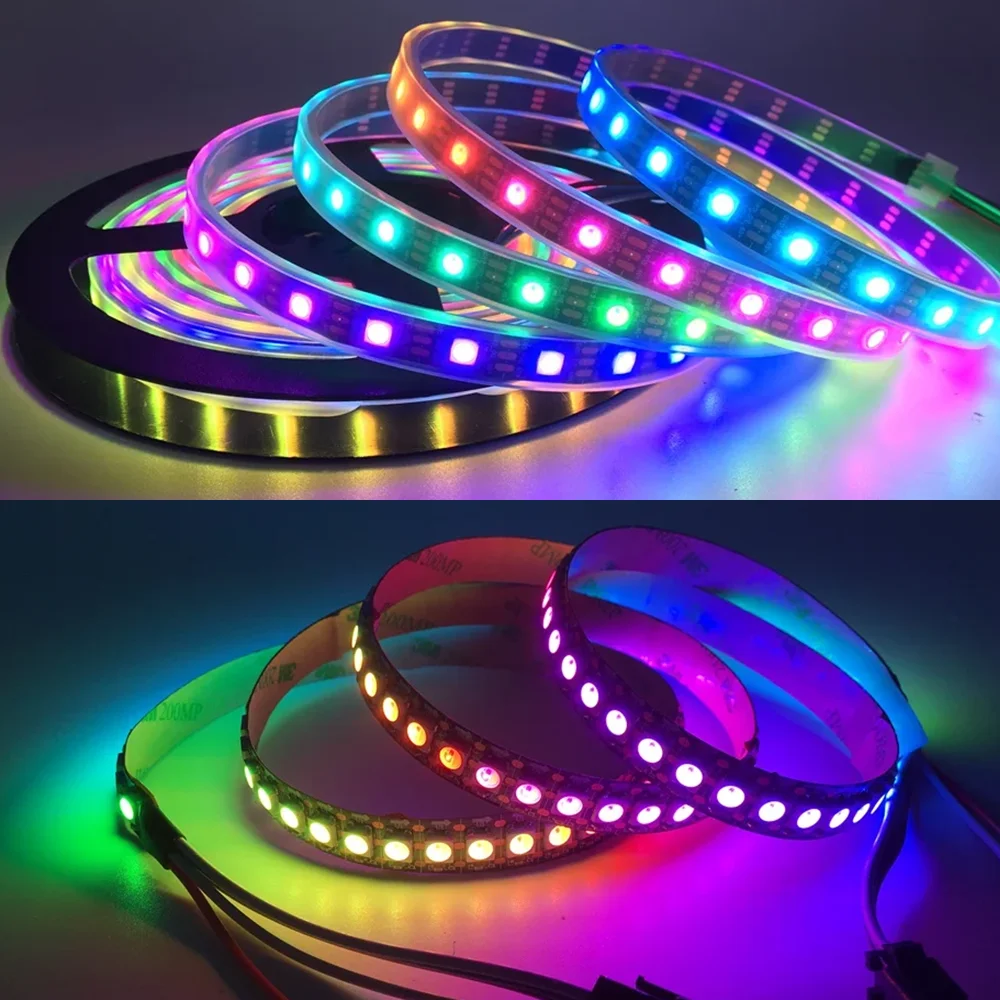

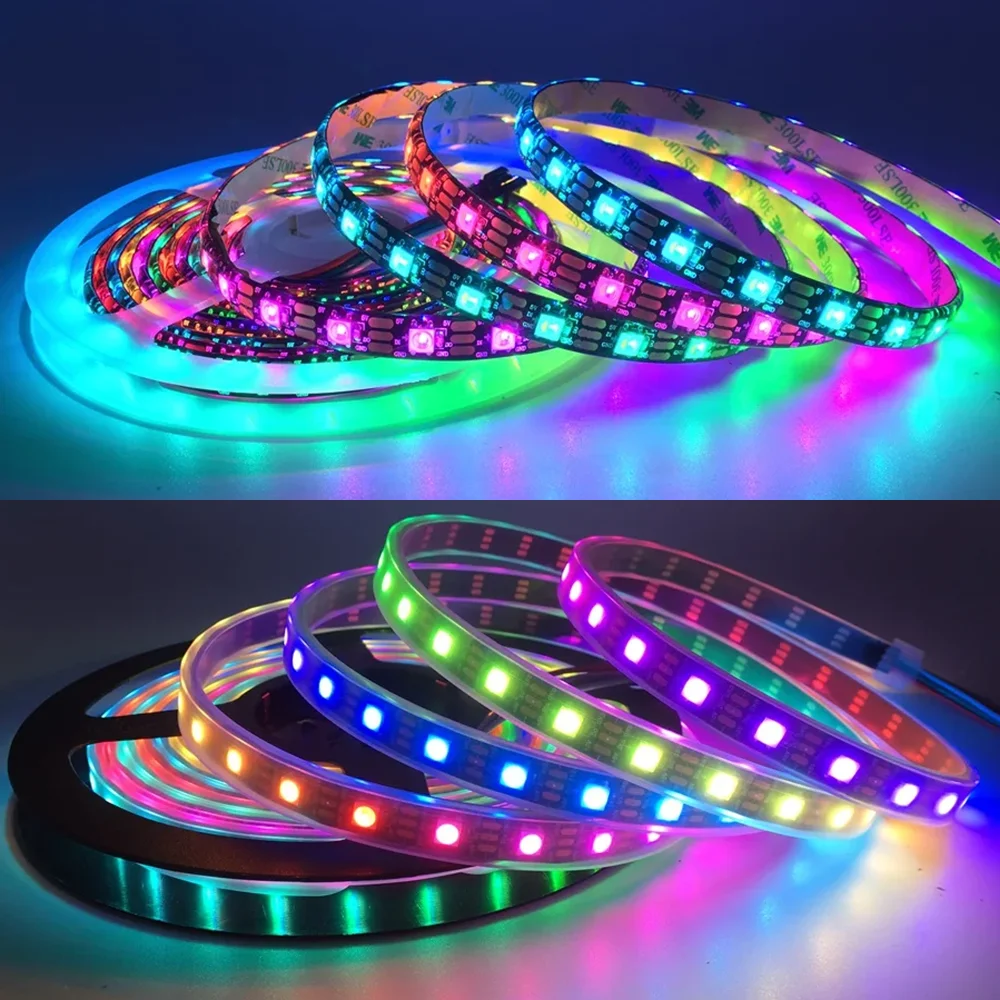

Waterproof Grade:

IP30-----no-Waterproof

IP65-----Epoxy

IP67-----silicone tube

Application:

Applicable for automobile and bicycle decoration, border or contour lighting

Widely used for home decoration use, hotels, clubs, shopping malls

Architectural decorative lighting, boutique atmosphere lighting

Extensively applied in Backlighting, concealed lighting, channel letter lighting

Emergency & security lighting, advertisement sign lighting

Decorative lights for holiday, event, show exhibition

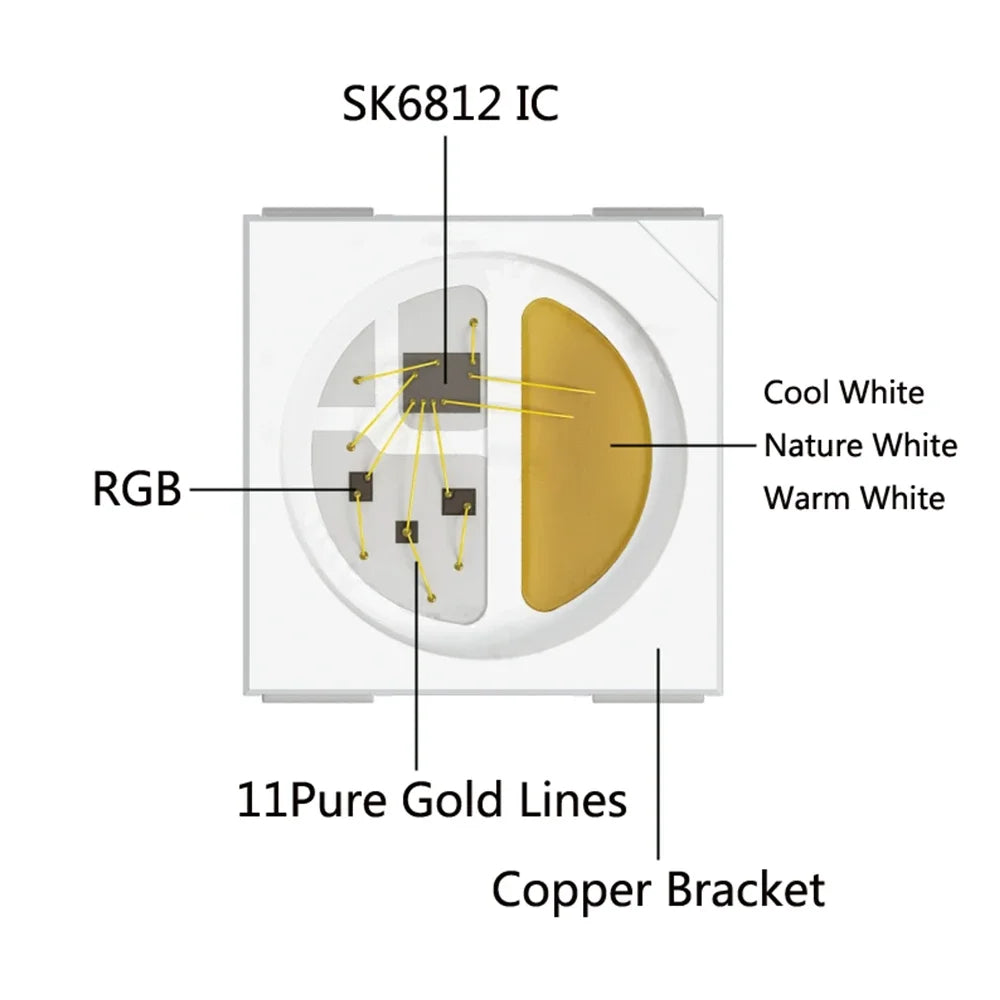

SK6812RGBW/RGBWW/RGBNW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
