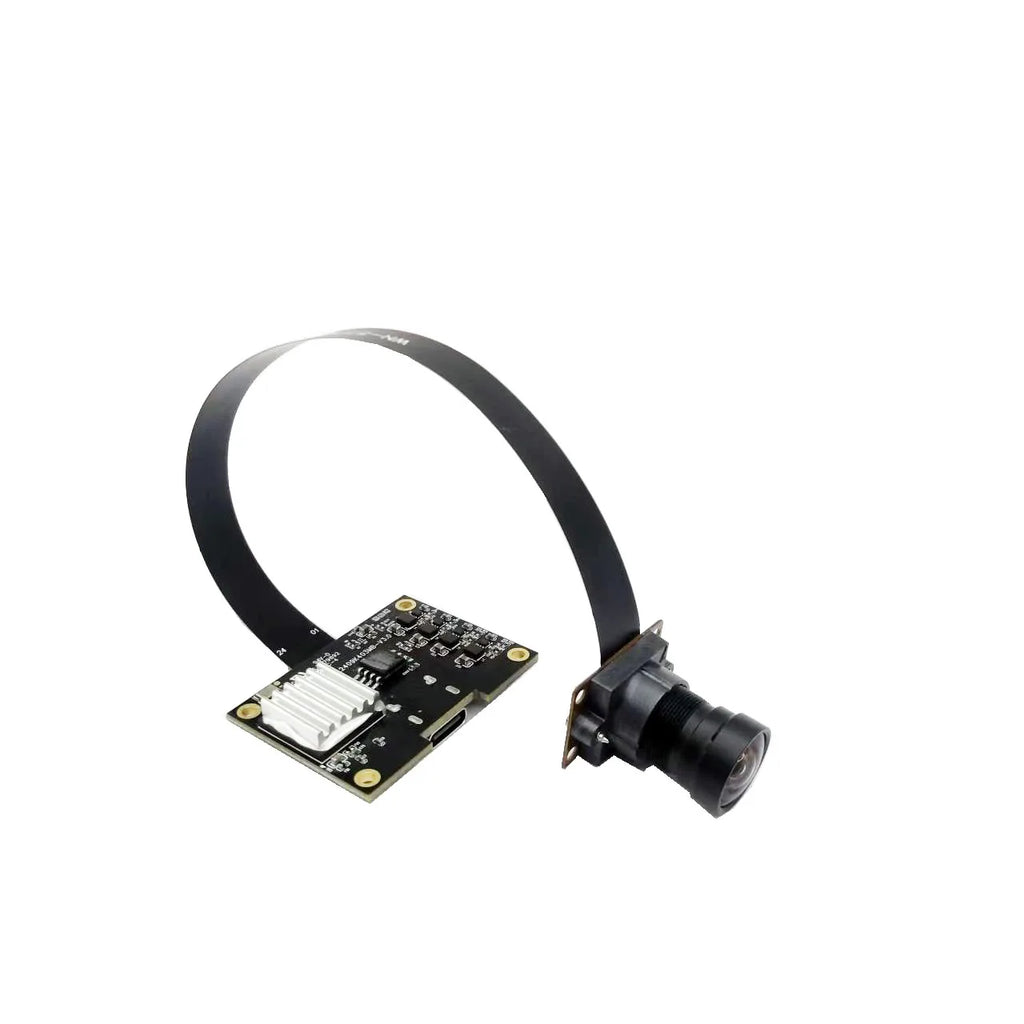

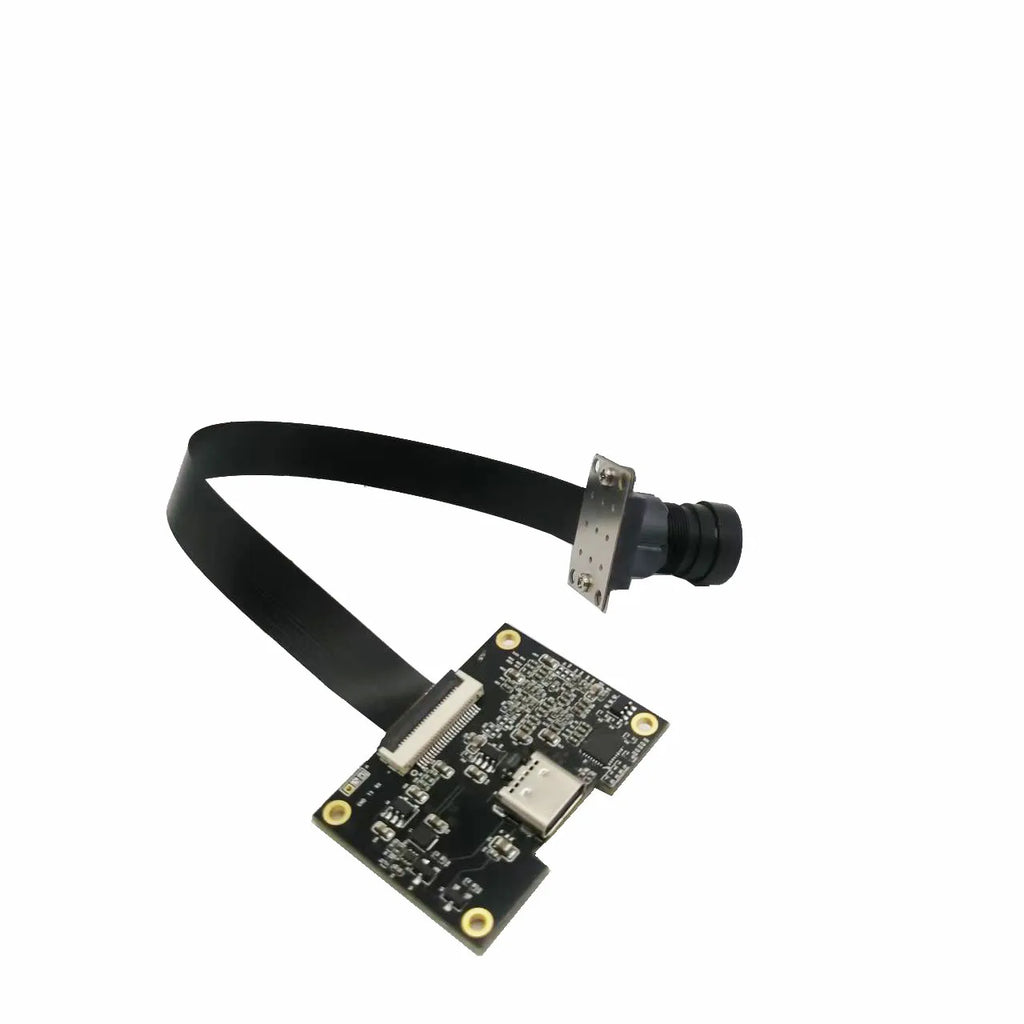

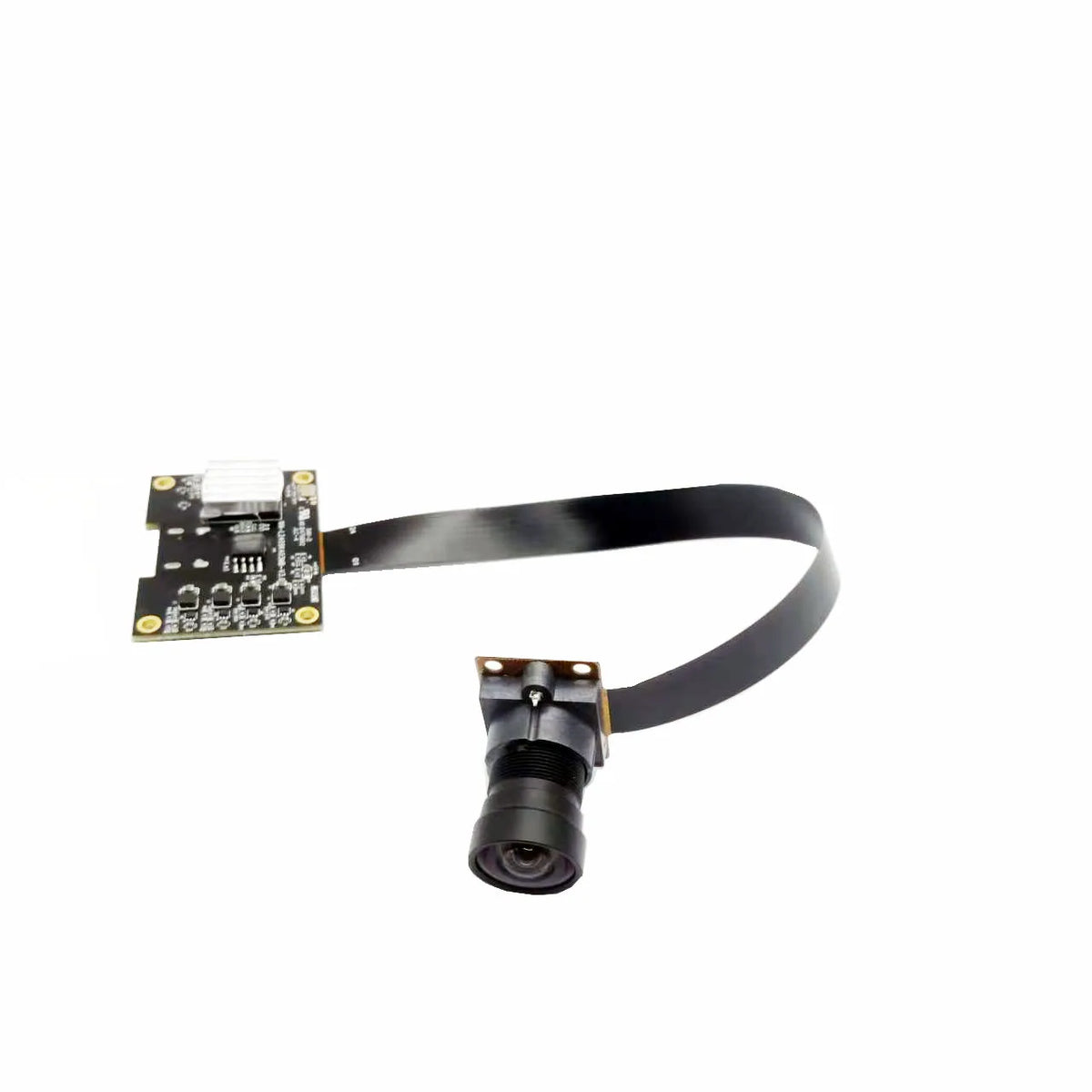

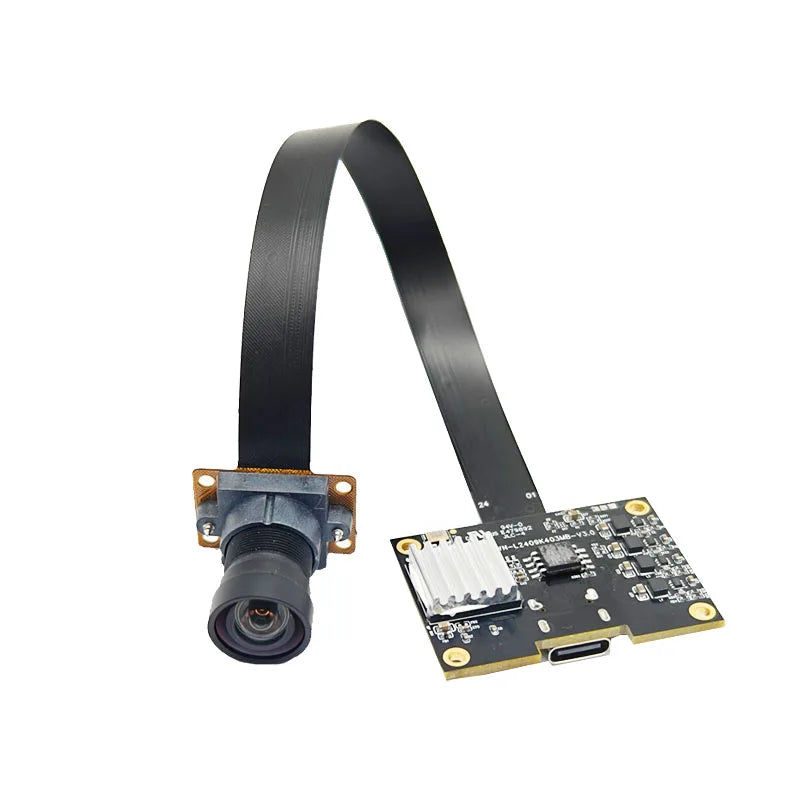

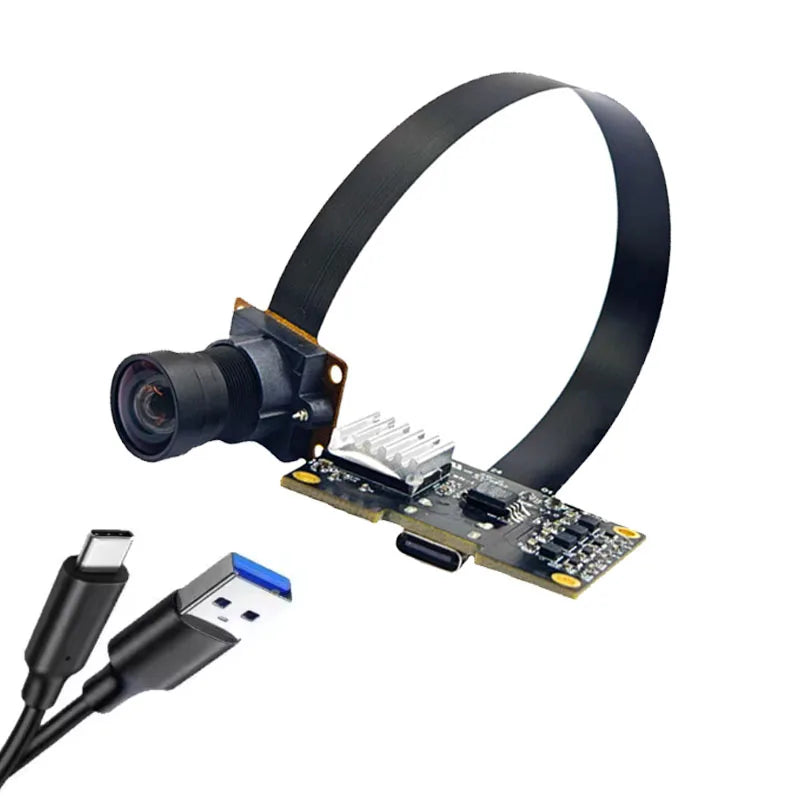

4000x3000 4K 12MP HD 1/2.3-inch IMX577 USB3.0 Camera Module PCB+FPC FF 100° UVC-compliant, Plug and Play MJPEG, YUV2 ,NV12,H264
Default Title
$455.04
Sale price
$455.04
Regular price
$0.00
Skip to product information
4000x3000 4K 12MP HD 1/2.3-inch IMX577 USB3.0 Camera Module PCB+FPC FF 100° UVC-compliant, Plug and Play MJPEG, YUV2 ,NV12,H264
$455.04
Sale price
$455.04
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
Compatible Brand: 1/2.3-Inch CMOS IMX577
Compatible Camera Style: Camcorders
Focus Type: FF
High-concerned chemical: none
Model Number: NWN-L2409K403MB-V3.0-577
Origin: Mainland China
Output Format: MJPEG, YUV2 ,NV12,H264 ,H265,
Output and Power Supply: High Speed USB3.0
Package: Yes
Resolution 4000 H x 3000 V: Resolution 4000 H x 3000 V
Sensor: 1/2.3-Inch IMX577
Formats |
Resolutions |
Frame Rates |
MJPEG
|
4000x3000 (12MP) |
25FPS |
3840x2160(4K) |
30FPS |
|
2560x1440(2K) |
30FPS |
|
2592x1944(5MP) |
30FPS |
|
2048x1536(3MP) |
30FPS |
|
1600x1200(2MP) |
30FPS |
|
1920x1080 (1080P) |
120FPS |
|
1280x720 (720P) |
120FPS |
|
640x480 (VGA) |
120FPS |
|
YUY2
|
4000x3000 (12MP) |
8FPS |
3840x2160(4K) |
15FPS |
|
2560x1440(2K) |
30FPS |
|
3264x2448(8MP) |
30FPS |
|
2592x1944(5MP) |
30FPS |
|
2048x1536(3MP) |
30FPS |
|
1600x1200(2MP) |
30FPS |
|
1920x1080 (1080P) |
30FPS |
|
1280x720 (720P) |
30FPS |
|
640x480 (VGA) |
30FPS |
|
NV12
|
4000x3000 (12MP) |
8FPS |
3840x2160(4K) |
15FPS |
|
2560x1440(2K) |
30FPS |
|
3264x2448(8MP) |
30FPS |
|
2592x1944(5MP) |
30FPS |
|
2048x1536(3MP) |
30FPS |
|
1600x1200(2MP) |
30FPS |
|
1920x1080 (1080P) |
30FPS |
|
1280x720 (720P) |
30FPS |
|
640x480 (VGA) |
30FPS |
|
H.264
|
3840x2160(4K) |
30FPS |
2560x1440(2K) |
30FPS |
|
3264x2448(8MP) |
30FPS |
|
2592x1944(5MP) |
30FPS |
|
2048x1536(3MP) |
30FPS |
|
1600x1200(2MP) |
30FPS |
|
1920x1080 (1080P) |
120FPS |
|
1280x720 (720P) |
120FPS |
|
640x480 (VGA) |
120FPS |
|
H.265
|
3840x2160(4K) |
30FPS |
2560x1440(2K) |
30FPS |
|
3264x2448(8MP) |
30FPS |
|
2592x1944(5MP) |
30FPS |
|
2048x1536(3MP) |
30FPS |
|
1600x1200(2MP) |
30FPS |
|
1920x1080 (1080P) |
120FPS |
|
1280x720 (720P) |
120FPS |
|
640x480 (VGA) |
120FPS |
Pin No. |
Signal Names |
Descriptions |
1 |
VCC |
5V Power |
2 |
DP |
Data- |
3 |
DM |
Data+ |
4 |
GND |
GND |
5 |
SSPXNI |
USB3.0 SSPXNI |
6 |
SSPXPI |
USB3.0 SSPXPI |
7 |
GND |
GND |
8 |
SSTXN1 |
USB3.0 SSTXN1 |
9 |
SSTXP1 |
USB3.0 SSTXP1 |
Product Name |
12MP 4K USB3.0 Camera Module |
Product Code |
WN-L2409K403MB-V3.0-577 |

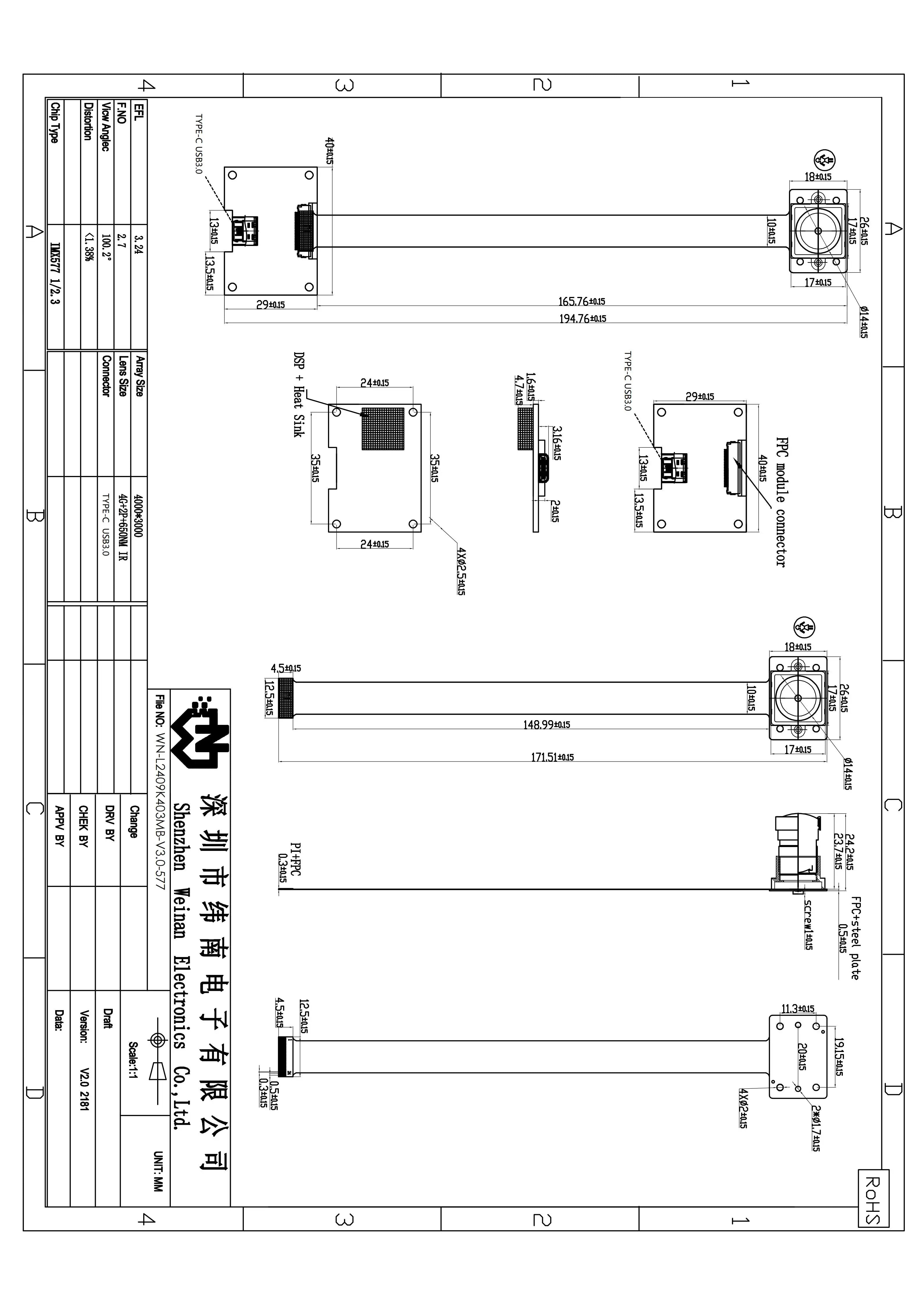

Module Size |
PCB：40X29X9.9MM FPC：196.76X26X24.5MM |
Image Sensor |
1/2.3-inch IMX577 CMOS Sensor |
Max. Resolution |
4000 H x 3000 V |
Pixel Size |
1.55*1.55μm |
Output Format |
MJPEG, YUV2 ,NV12,H264 ,H265 |
Field of View |
DFOV 100° |
Lens |
EFL: 3.24mm, F/No: 2.7, 4G2P+IR 650nm |
Focus Mode |
Fixed Focus/ Manual Focus |
Shutter Mode |
Electronic Rolling Shutter |
Output & Power Supply |
High Speed USB3.0 |
Interface |
Type C USB 3.0 |
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
Supported OS |
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc. |
Connection Cable |
Default 1.5 Meter USB Cable |
