SPECIFICATIONS

Application: Computer

Brand Name: OLNYLO

Condition: New

Dissipation Power: 15A 400W

Functions: Electronic Module

High-concerned chemical: none

Operating Temperature: -40-+85

Origin: Mainland China

Package: DIY KIT

Quantity: 1

Range of application: Switch And Sensor For Arduino STM

Supply Voltage: DC 5V--36V

Type: Voltage Regulator

is_customized: Yes

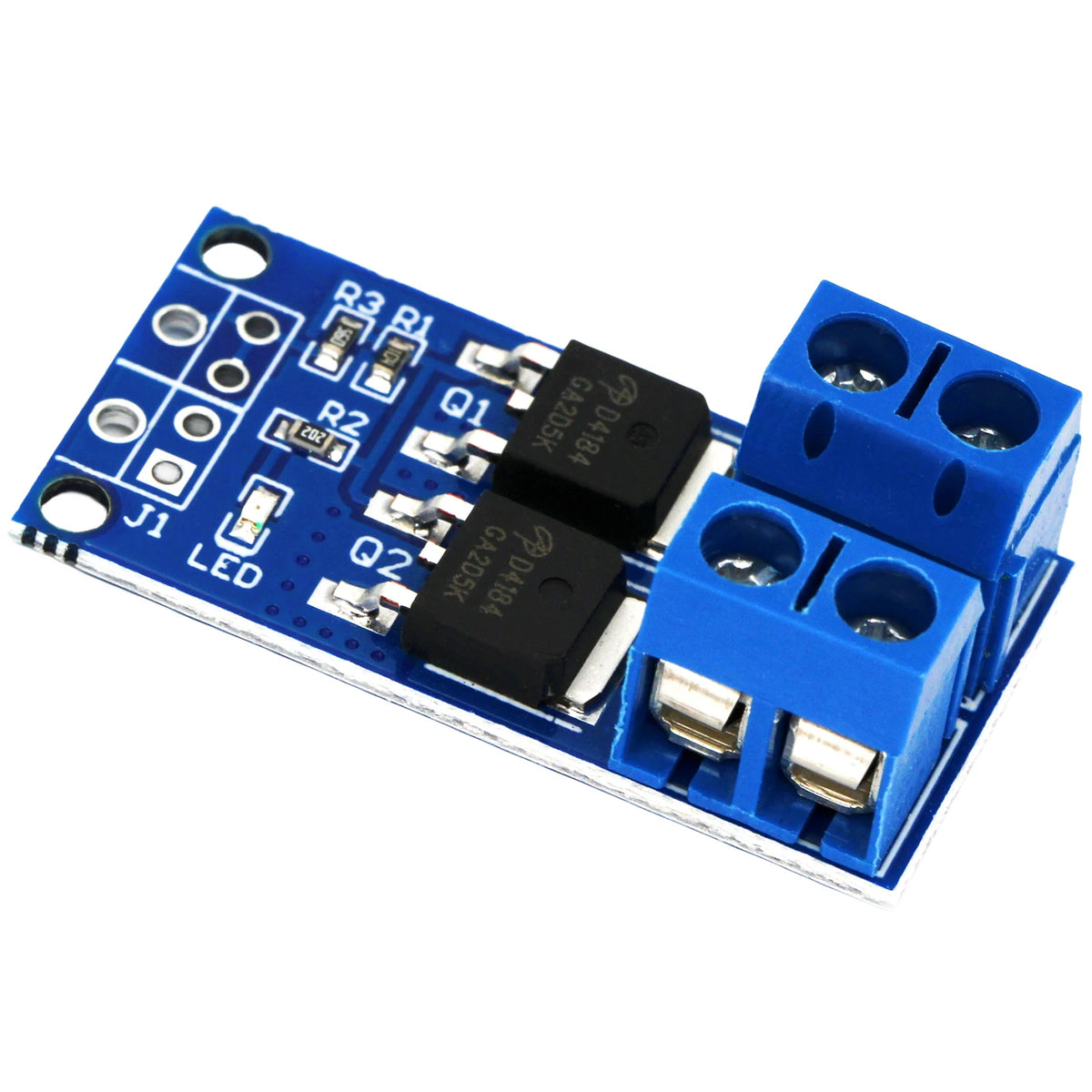

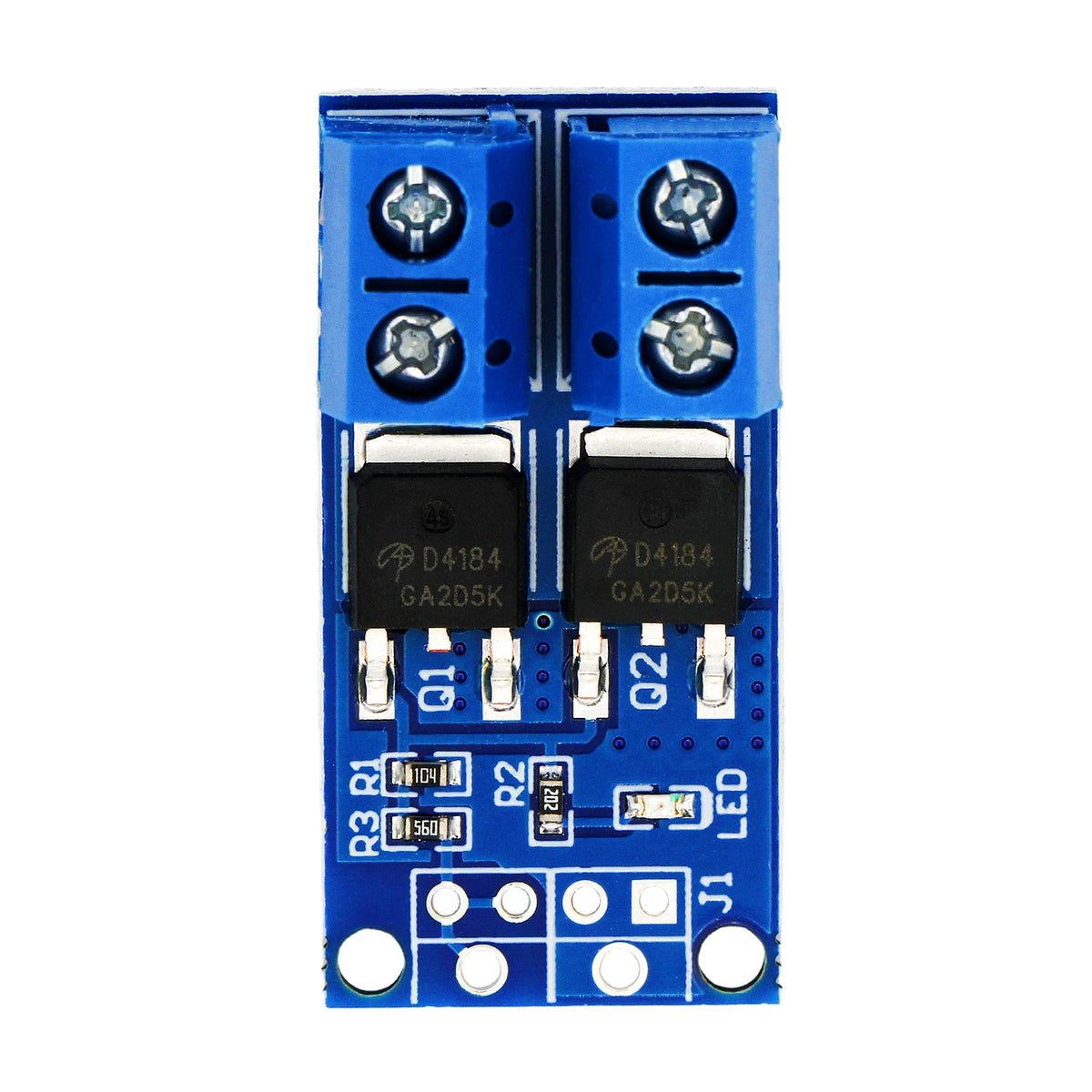

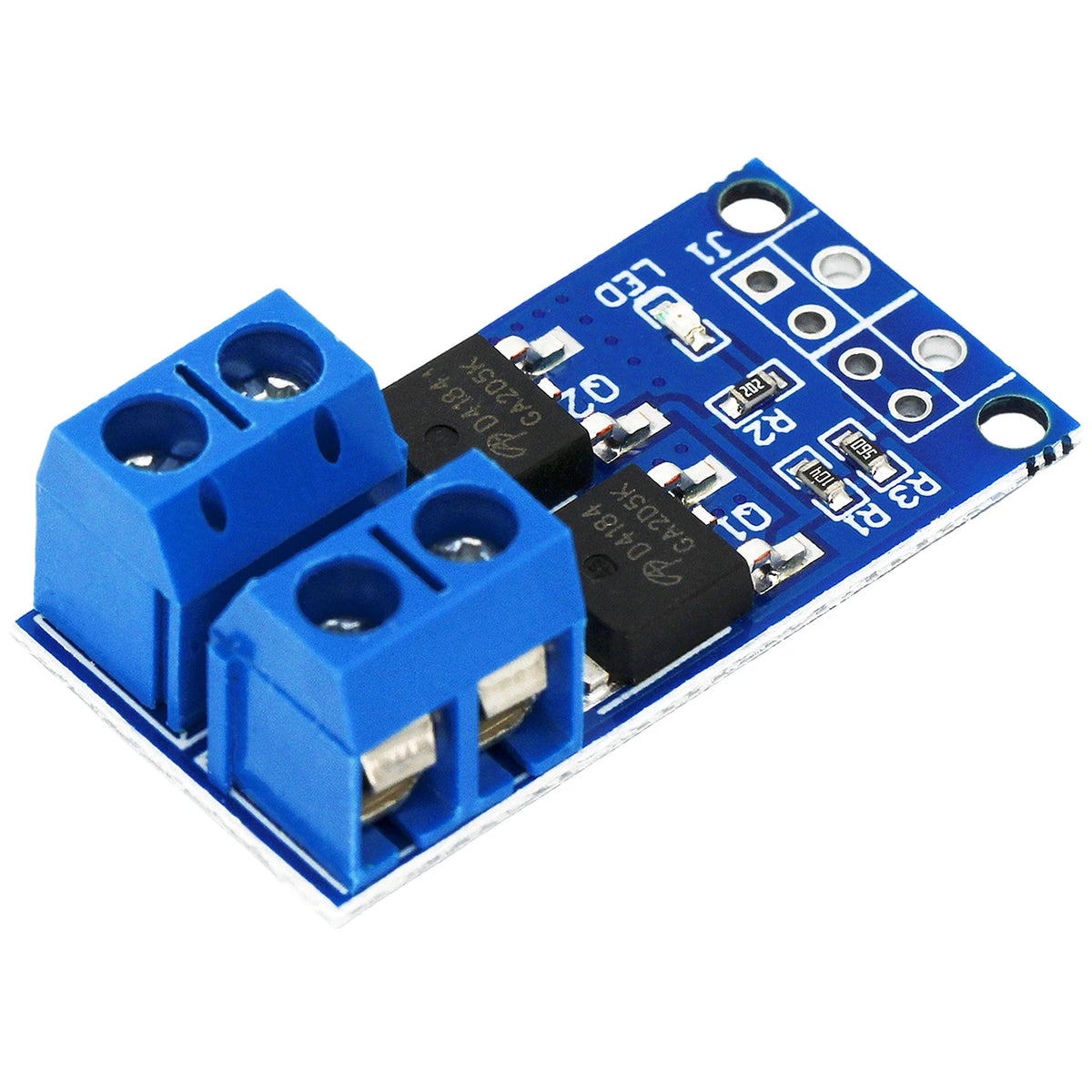

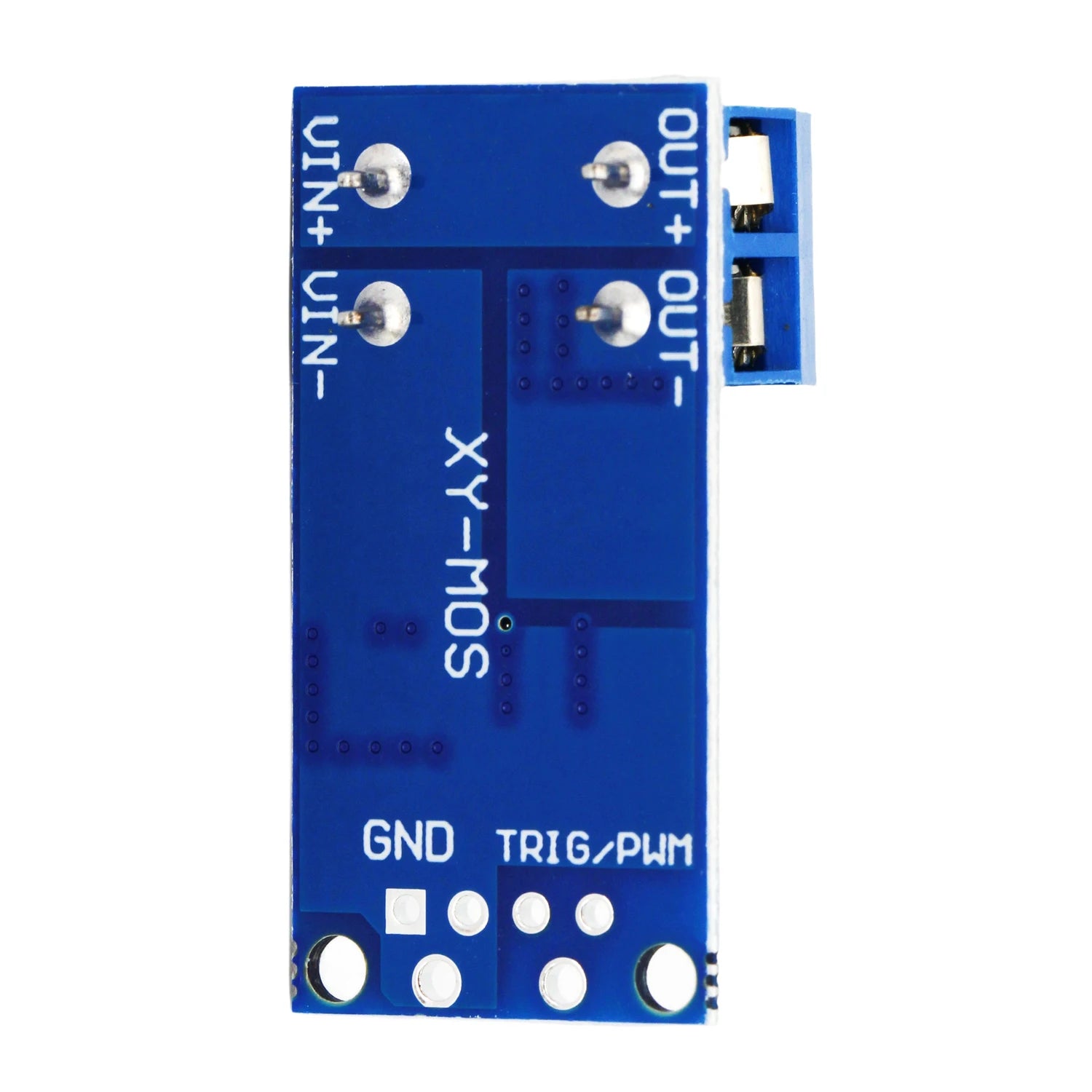

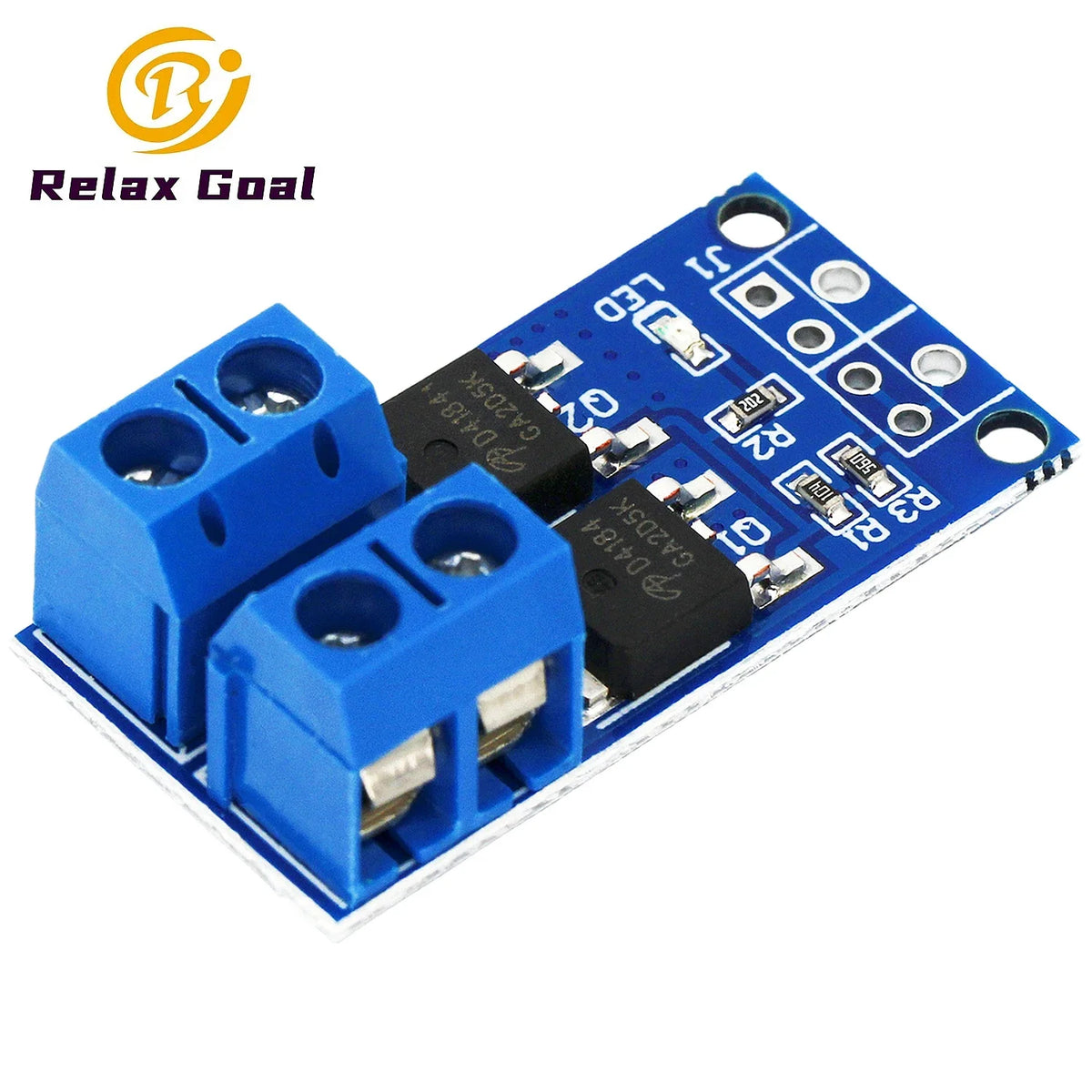

400W Max 30A PWM Regulator Adjustment Motor DC5V-36V 15A MOSFET Trigger Switch Drive Dual High-Power Speed Control Board Module

Module Highlights:

1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power. At room temperature to provide current of 15A, 400W power;

2. Wide voltage input, support PWM;

3. Easy to control high power devices.

Product specifications and applications:

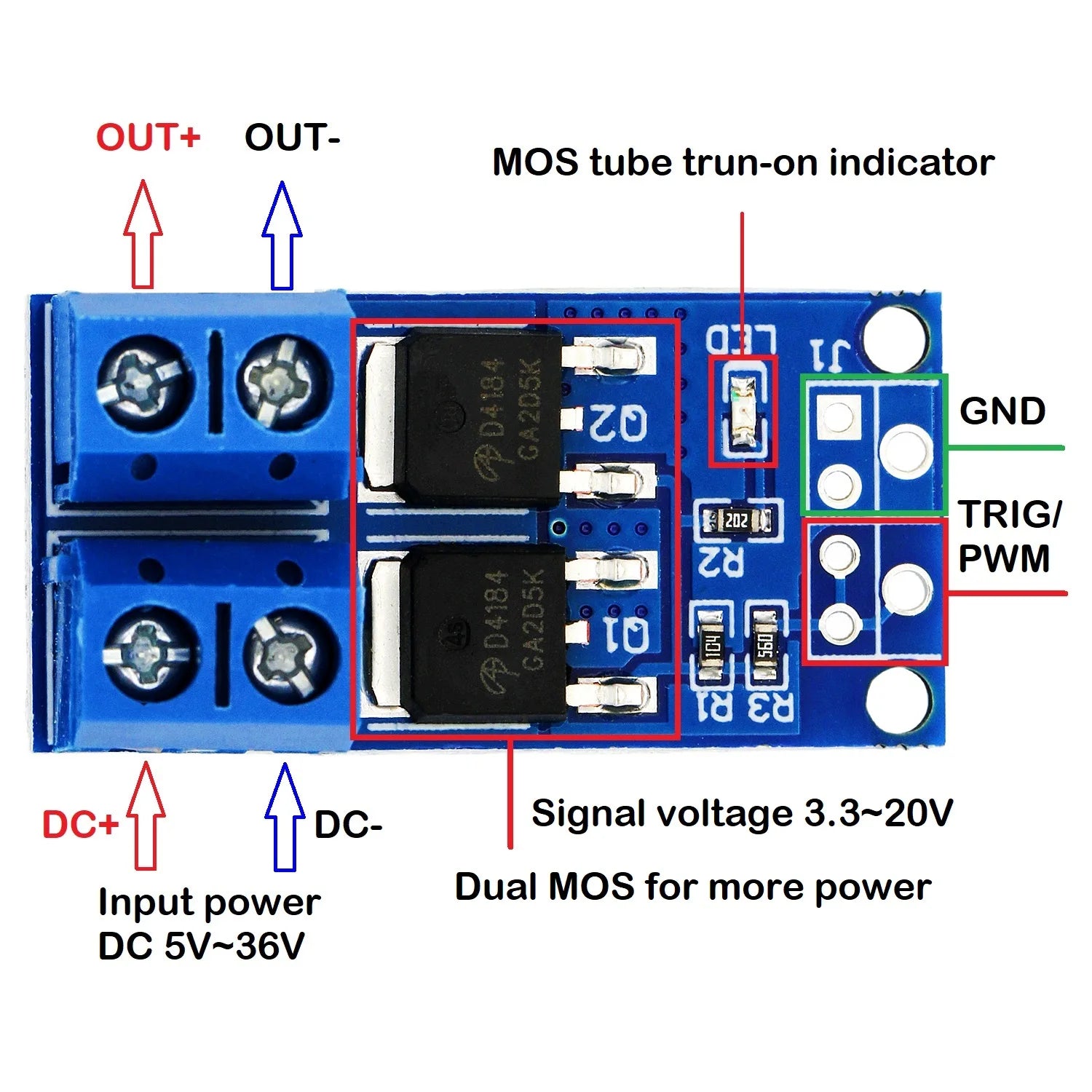

1. Working voltage: DC 5V - 36V;

2. The trigger source: Digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal can be supported frequency range 0--20KHZ.

3. Output capacity: DC 5V - 36V, at room temperature, continuous current 15A, power 400W!

4. Application: High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness.

5. Service life: unlimited-off;

6. Working temperature: -40-85 ℃;

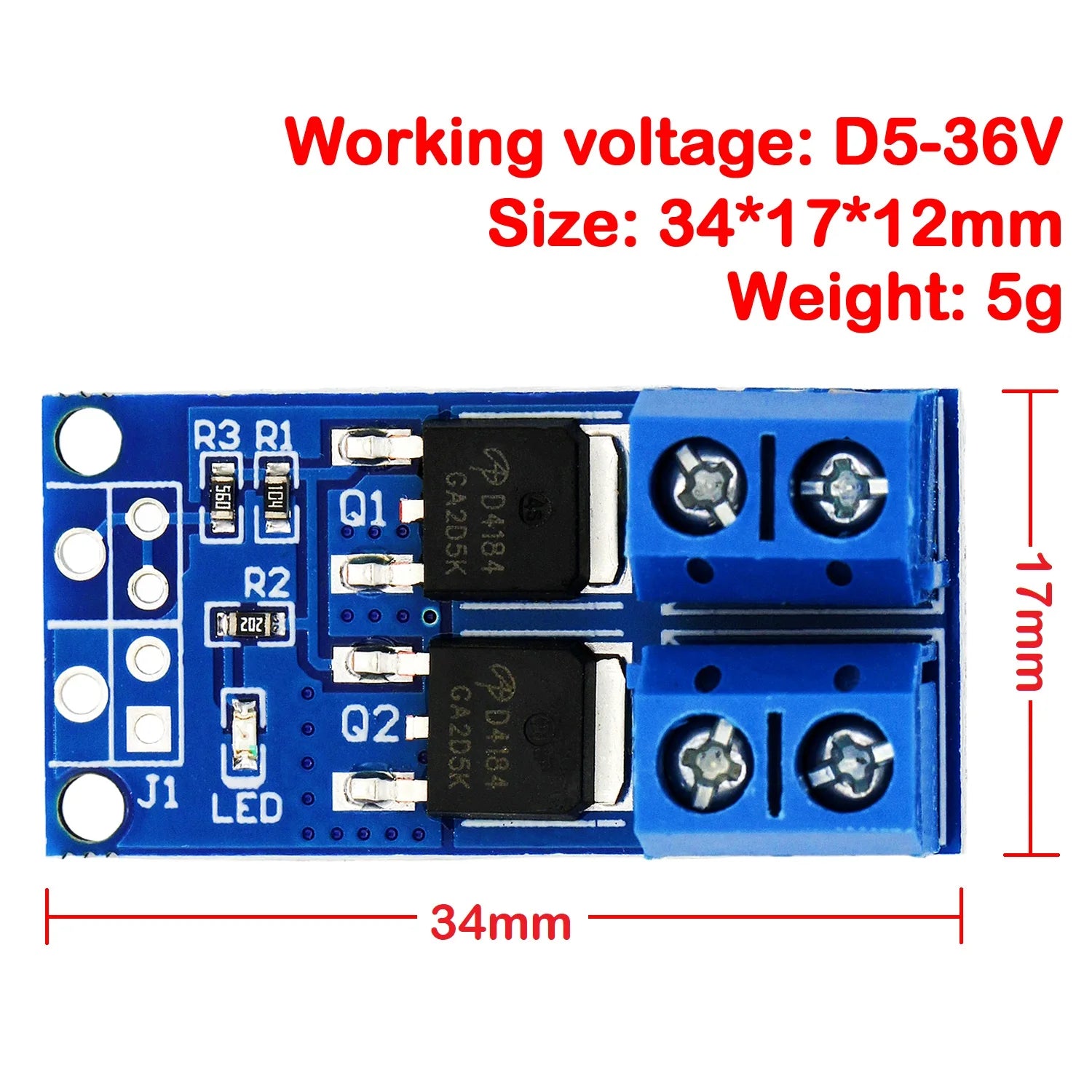

7. Size: 34 * 17 * 12mm.
8. Quantity: 1 PCS / 3 PCS
