SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

For Vehicle Type: Cars

High-concerned chemical: none

Material: Metal

Model Number: YP3240SMG

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Servos

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: 40kg Servo

Technical parameters: value 2

Use: Vehicles & Remote Control Toys

Net weight of product: 89g

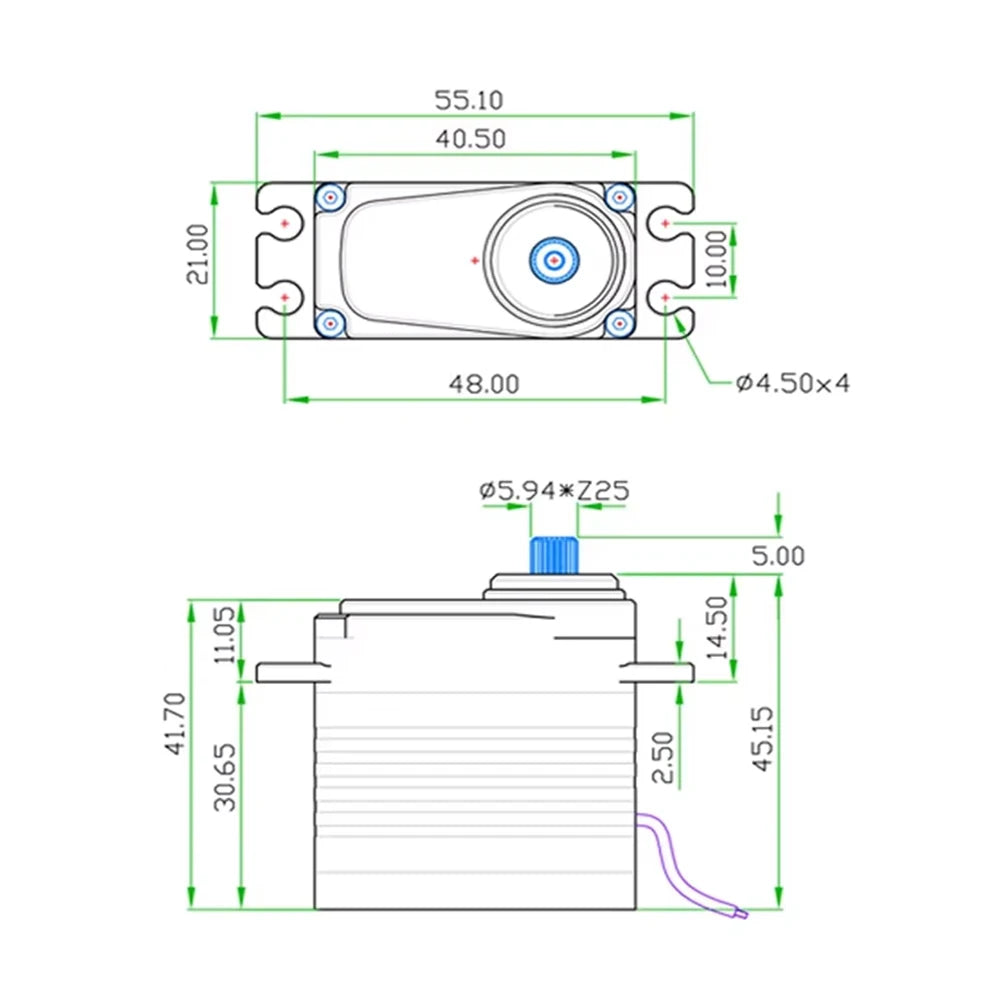

Product size: 4.05*2.1*4.17cm

Operating Voltage: 6.0-8.4V DC

Standby Current: ≤20mA

Stall Current 6.0V: ≤3.8A

Stall Current 7.4V: ≤4.0A

Stall Current 8.4V: ≤4.5A

Rated Torque: 7.4V: ≥4kg.cm

Rated Torque: 7.4V: ≥5kg.cm

Rated Torque: 8.4V: ≥6kg.cm

No Load Speed 6.0V: ≤0.15sec/60°

No Load Speed 7.4V: ≤0.14sec/60°

No Load Speed 8.4V: ≤0.13sec/60°

Max. Torque 6.0V: ≥ 35 kgf.cm

Max. Torque 7.4V: ≥ 40 kgf.cm

Max. Torque 8.4V: ≥ 45 kgf.cm

Rotating Direction: ccw(500-2500us)

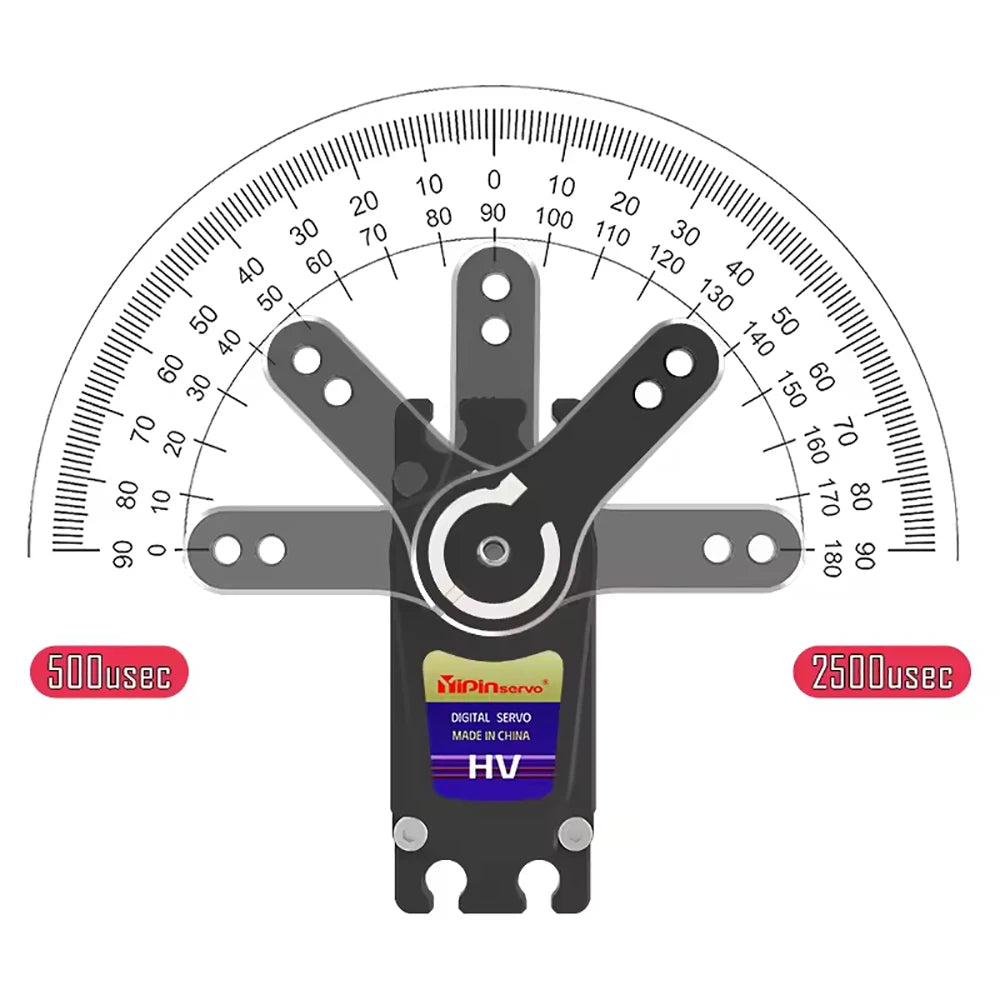

Operating Travel Angle: 180±10°(500~2500us)

Max. Operating Travel Angle: 358°±10°(500~250Ous)

Neutral Position: 1500us

Reduction ratio: 1:299

Dead Band Width: ≤4us

operating Temperature Range: '-20℃~+80C

waterproof rating: IP68

Features:

- Metal Gear

- Semi-metal case

- Iron core motor

- IP68

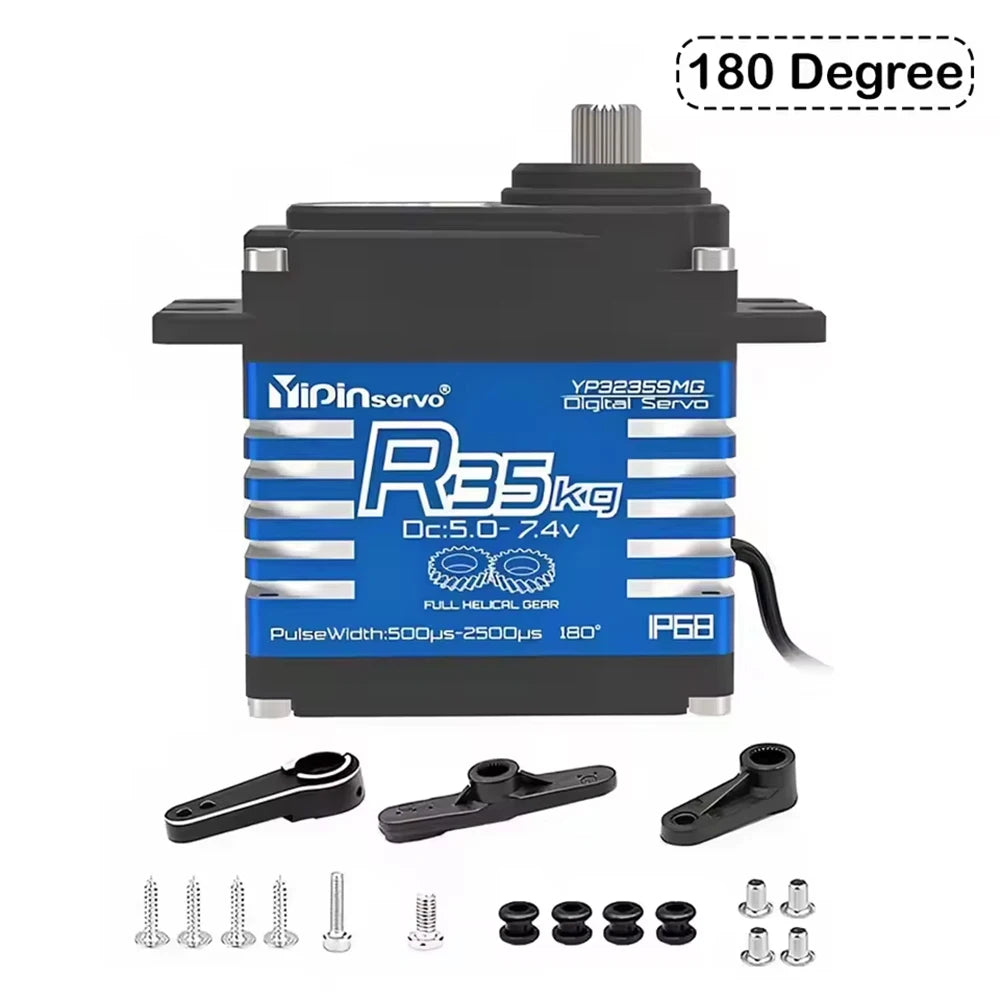

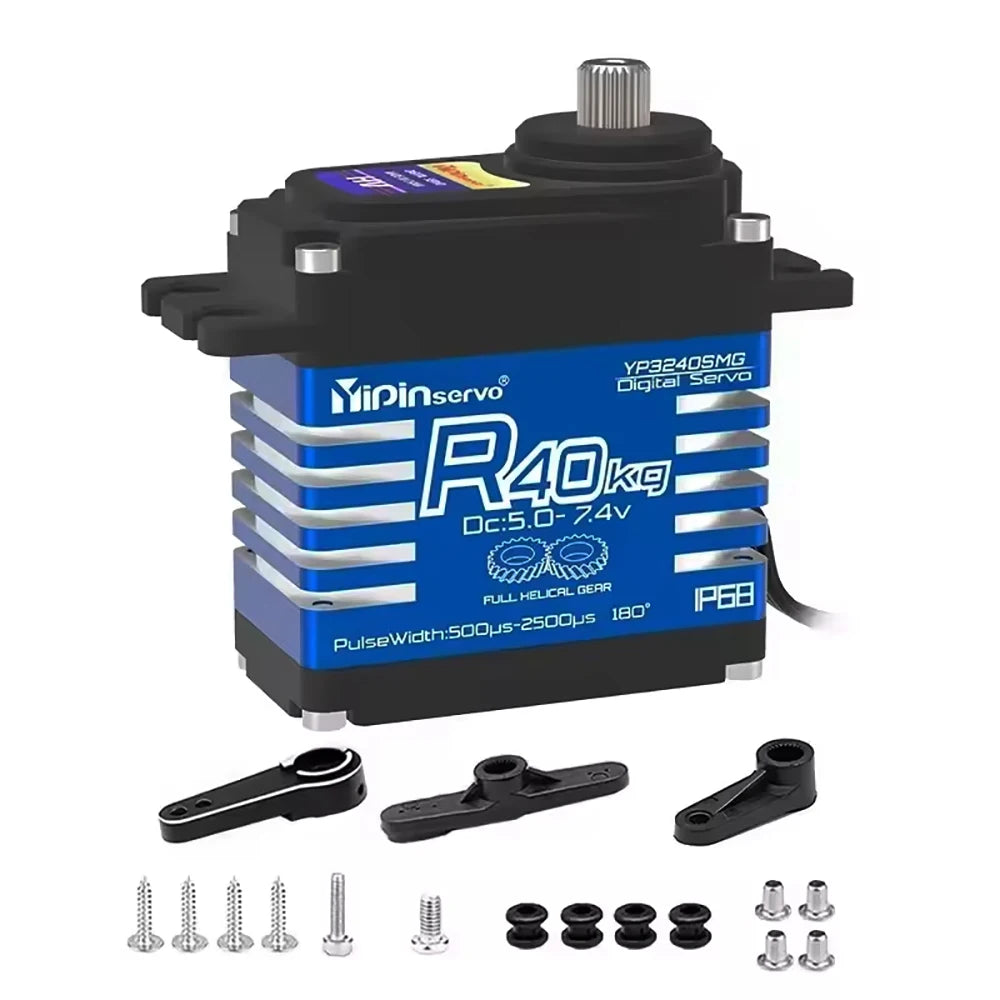

packing list:

Servo *1

Servo accessories *1

color box packing
