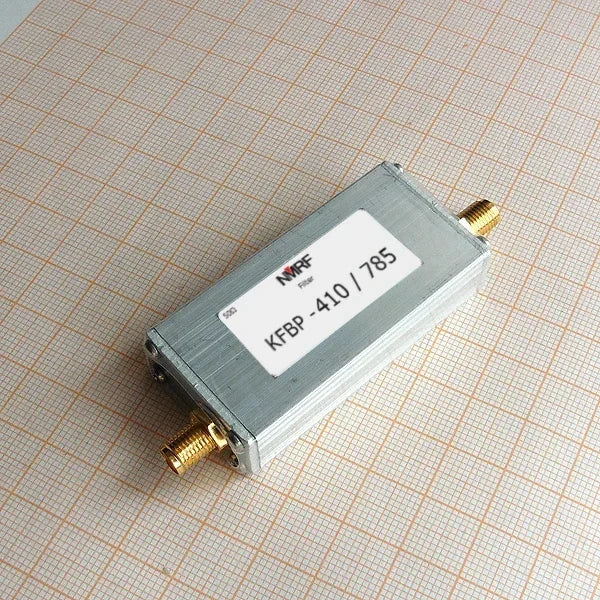

410-785MHz TV UHF Channel Bandpass Filter, SMA Interface
$386.96
Sale price
$386.96
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Origin: Mainland China
Type: RI Filter
Features:
Low insertion loss, discrete LC component production. Fast Pass Band Edge Roll-off
Application:
TV UHF channel reception
Digital TV Test
Laboratory Applications
Other specifications can be customized
---------------------------------------------
Model: KFBP-410/785
Impedance: 50 Ohms
Center Frequency/3 dB Bandwidth: 600 MHz / 390 MHz
With interpolation loss:<= 2.0 dB
Maximum carrying power: 500 mW(27 dBm)
Interface: SMA-F, SMA-F

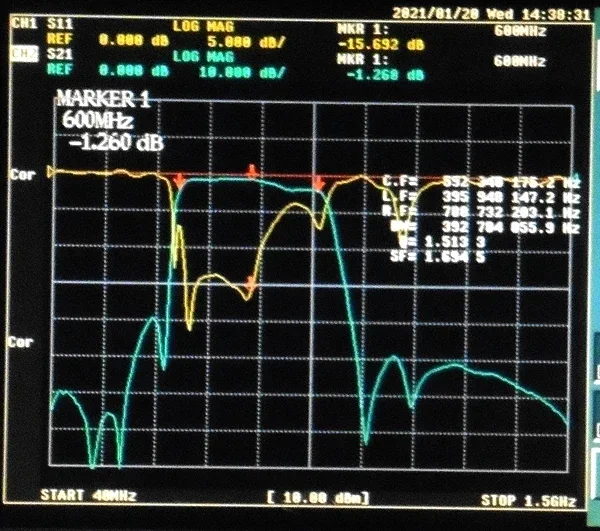

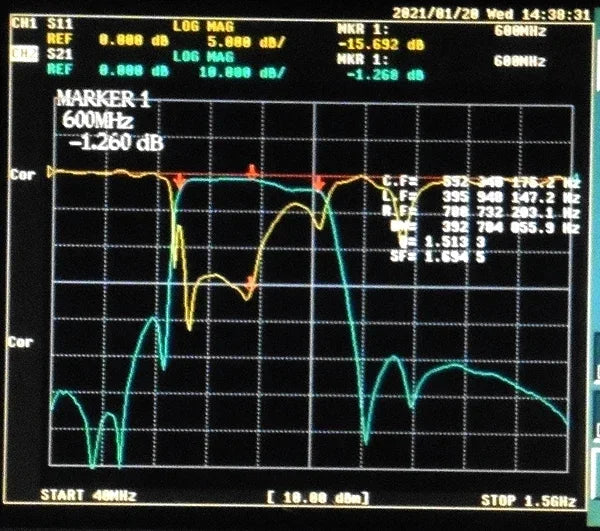

Frequency response diagram (in the figure, the bandwidth is marked as 3dB, and the frequency sweep range is 40 - 1500 MHz. The blue line is the transmission loss, and the vertical scale is 10dB per grid. The yellow line is the reflection loss, and the vertical scale is 5dB per grid):

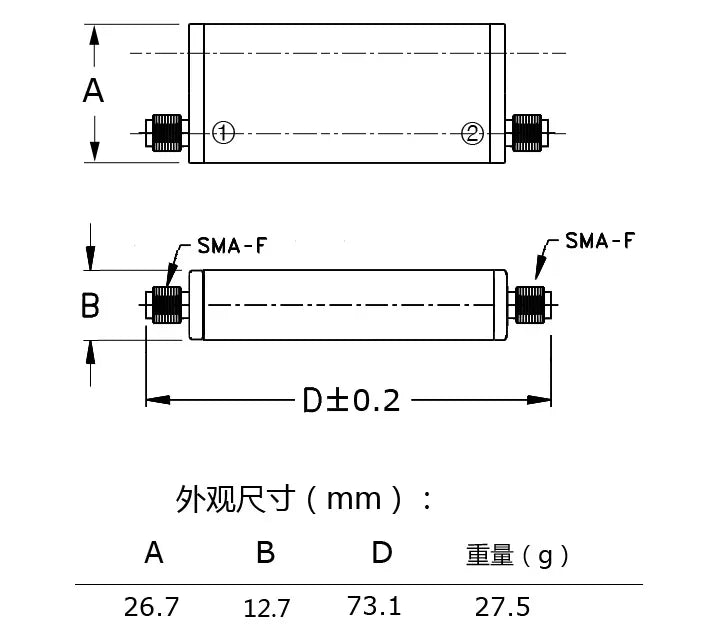

Exterior dimensions:
