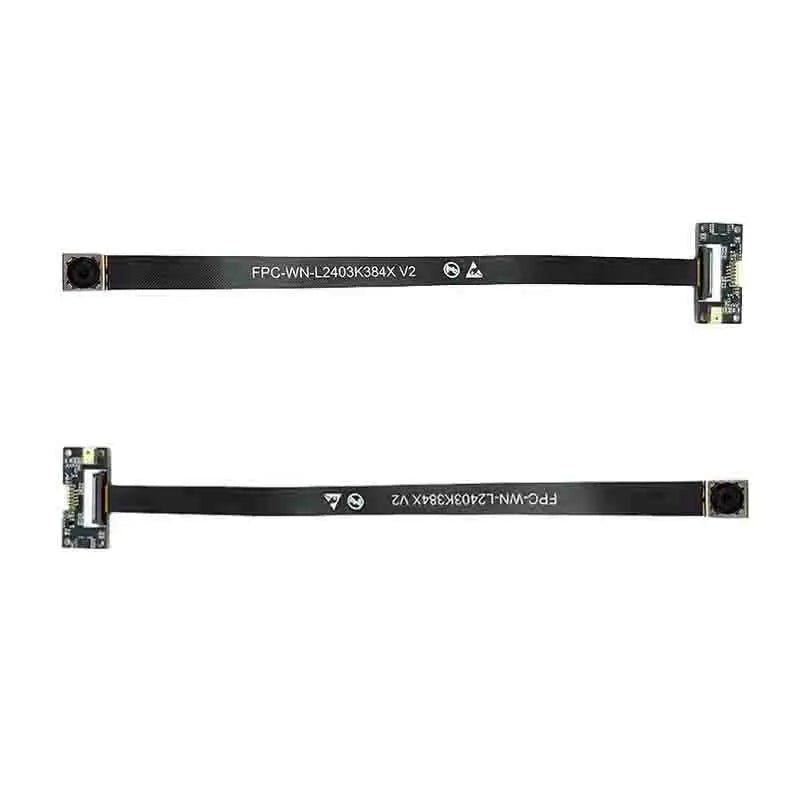

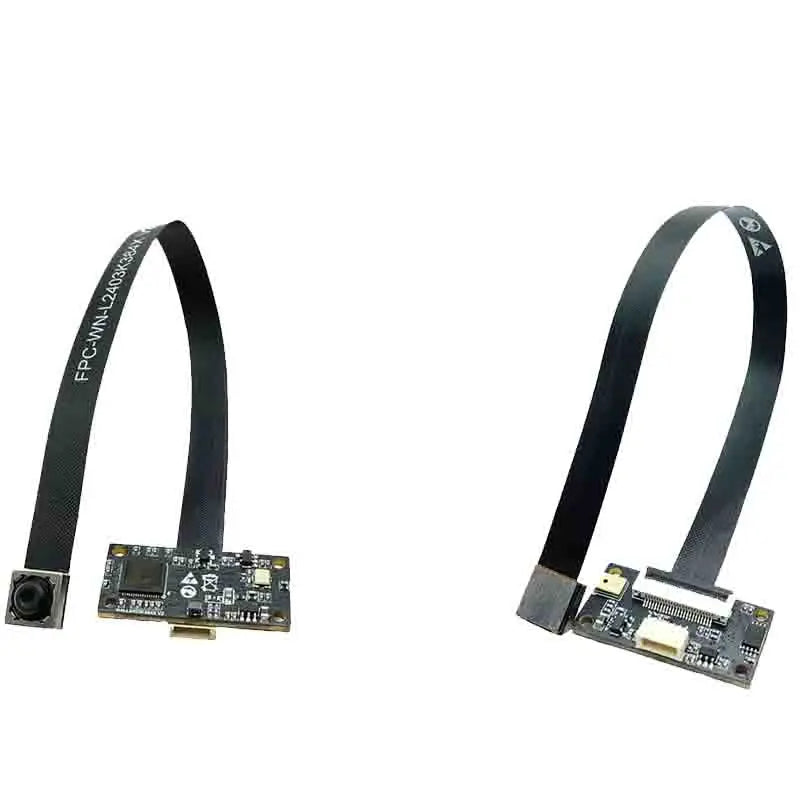

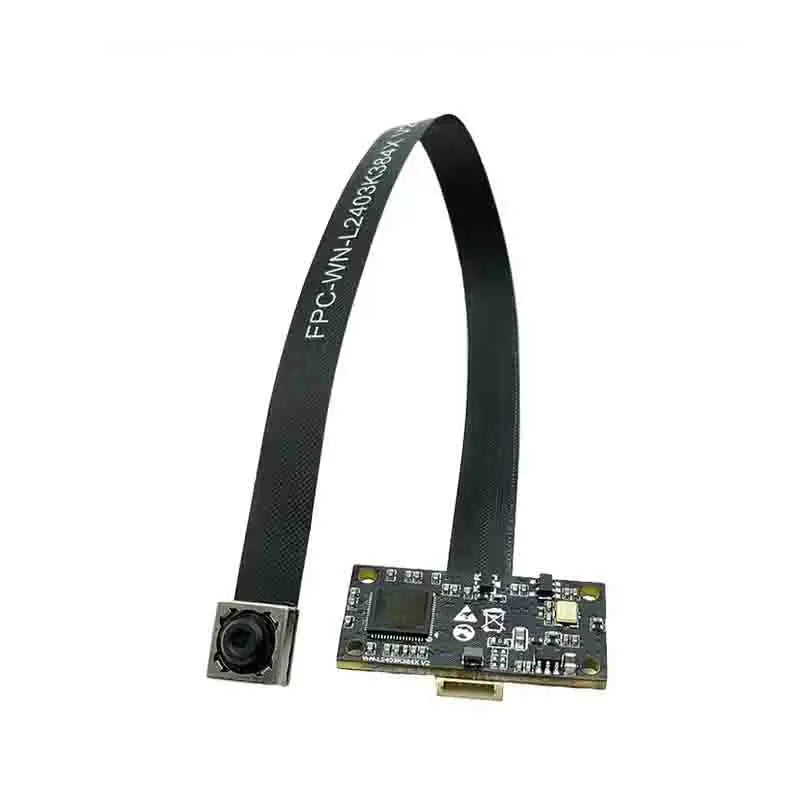

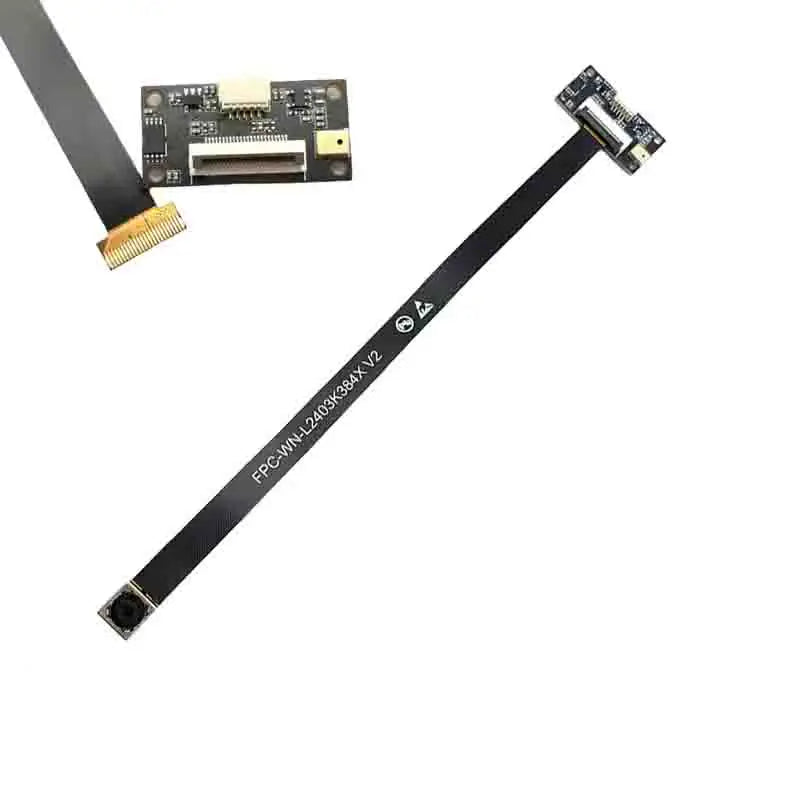

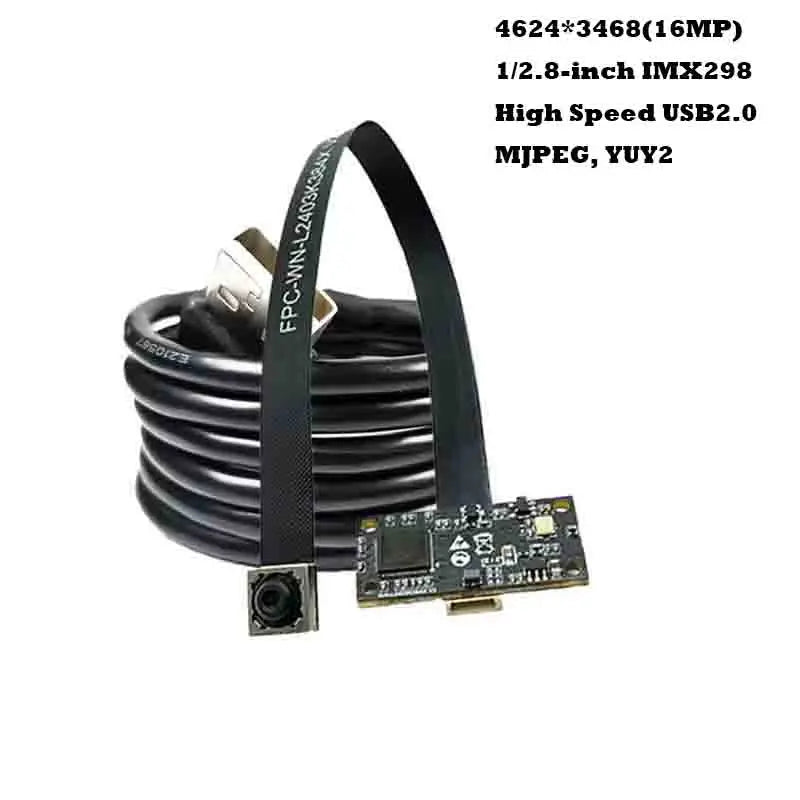

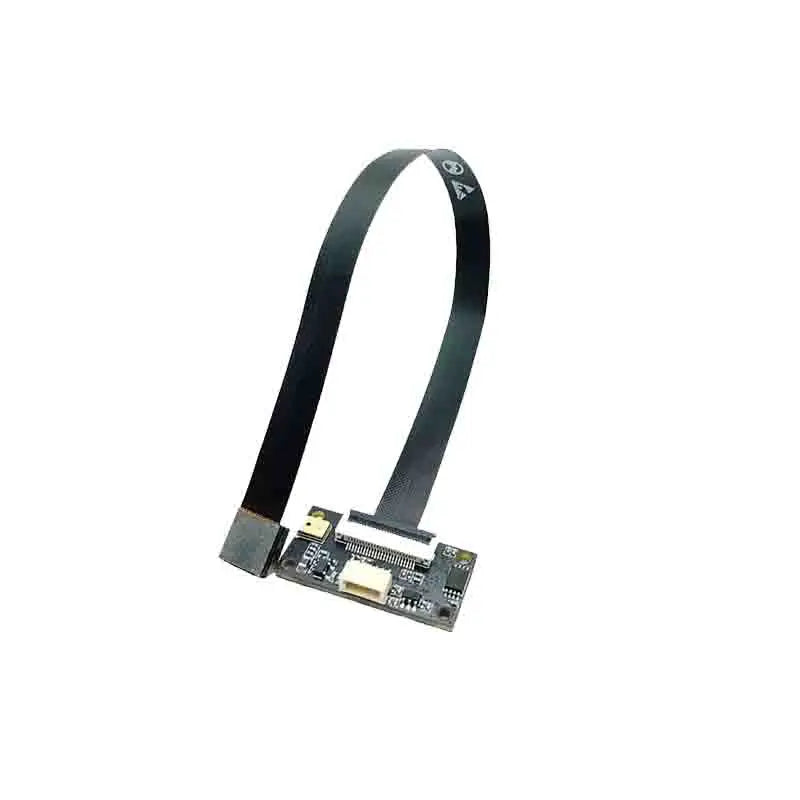

4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning

4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning

AF
$195.00
$195.00 $0.00
Skip to product information
4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
  • 4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
  • 4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
  • 4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
  • 4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
  • 4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
  • 4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
  • 4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
4264Hx3468V 4K 16MP HD USB Camera Module 1/2.8-inch IMX298 CMOS Autofocus/Fixedfocus 78.4° For Face Recognition&Device Scanning
$195.00
$195.00 $0.00
Bundle
Description

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Compatible Brand: IMX298

Compatible Camera Style: Camcorders

Field of View: 78.4°

Focus Mode: Autofocus / Fixed Focus

High-concerned chemical: none

Image Sensor: 1/2.8-inch IMX298 CMOS

Max. Resolution: 4264H*3468V

Model Number: WN-L2403k384X FT 16MP

Origin: Mainland China

Output & Power Supply: High Speed USB2.0

Output Format: MJPEG, YUY2

Package: Yes

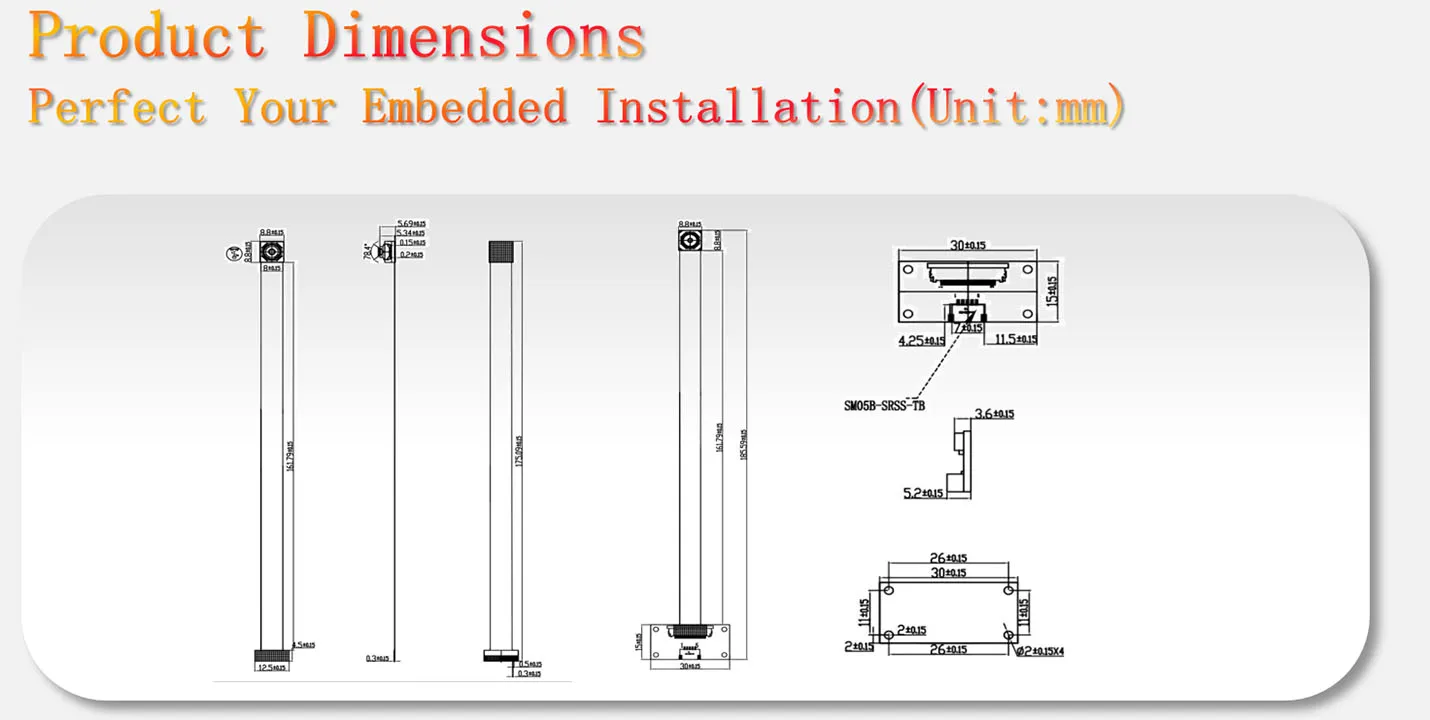

·Module Size: 105.59*30*5.69mm

·Pixel Size: 1.12*1.12μm

·Max. Resolutions: 4656H*3496V

·Frame Rate: 10fps

·Field of View: 78.4°

·Focus Mode: Autofocus/Fixed focus

·Shutter Mode: Electronic Rolling Shutter

·Compatibility: Windows,Android，wince，MacOS

·Connection Cable: Default 1.0 Meter USB Cable

Formats
Resolutions
Frame Rates
MJPEG
4624*3468(16MP)
10FPS
4168*3126(13MP)
10FPS
3840*2160(4K)
25FPS
3264*2448(8MP)
10FPS
2592*1944(5MP)
30FPS
2650*1440(2K)
25FPS
2048*1536
10FPS
1600*1200
10FPS
1920*1080
30FPS
1280*720
30FPS
640*480
30FPS
YUY2
1600*1200
5FPS
1920*1080
5FPS
1280*720
10FPS
640*480
30FPS
Working Voltage
USB DC +5V Supply
Working Current
250mA
Working Temperature
-10°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
Pin No.
Signal Names
Descriptions
1
VCC
5V Power
2
DM
Data-
3
DP
Data-
4
GND
GND
5
GND
GND
