Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Color: black,black

Commutation: Brush

Construction: Permanent Magnet,Permanent Magnet

Continuous Current(A): 500ma,500ma

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: none

Model Number: CM42-775,CM42 gearbox

Origin: Mainland China

Output Power: 18.65-37.5（include18.65and37.5）

Output Voltage: DC 12V/24V

Protect Feature: Totally Enclosed,Totally Enclosed

Torque: max 253kg.cm,max 253kg.cm

Type: Gear Motor,Gear Motor

Usage: BOAT,CAR,FAN,Home Appliance

Use: Fan,BOAT,Home Appliance

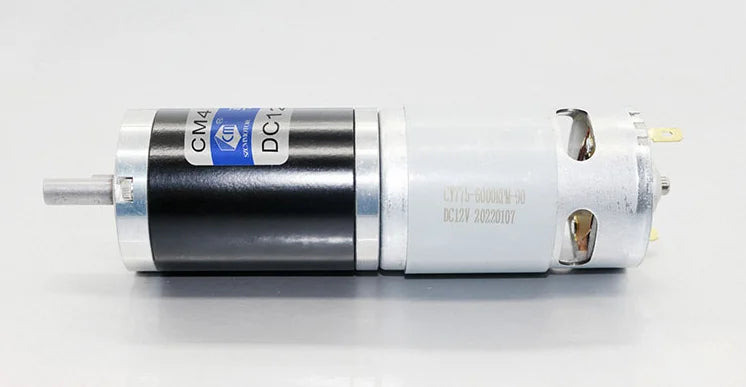

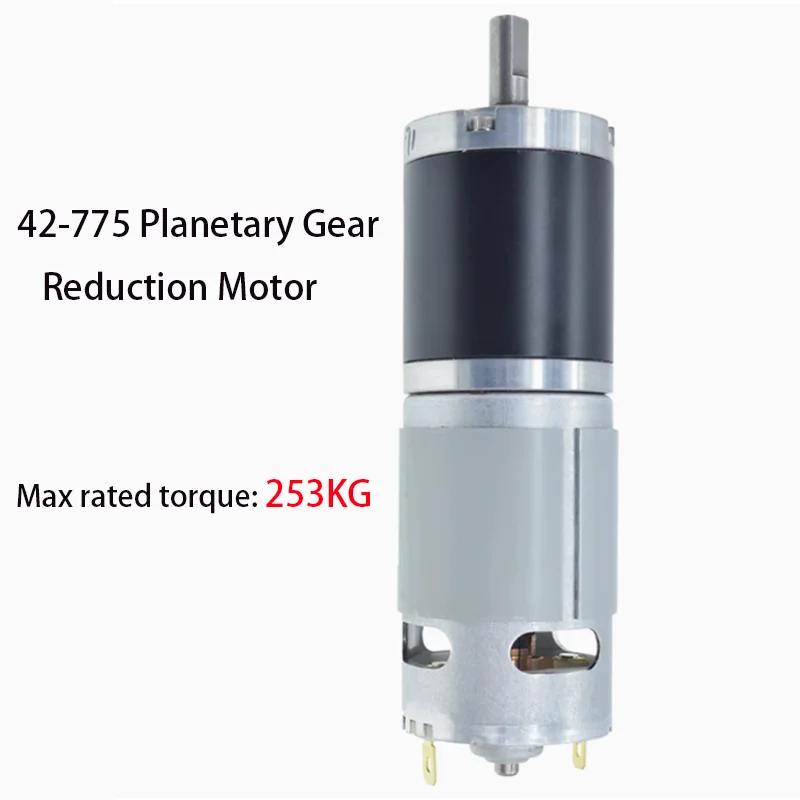

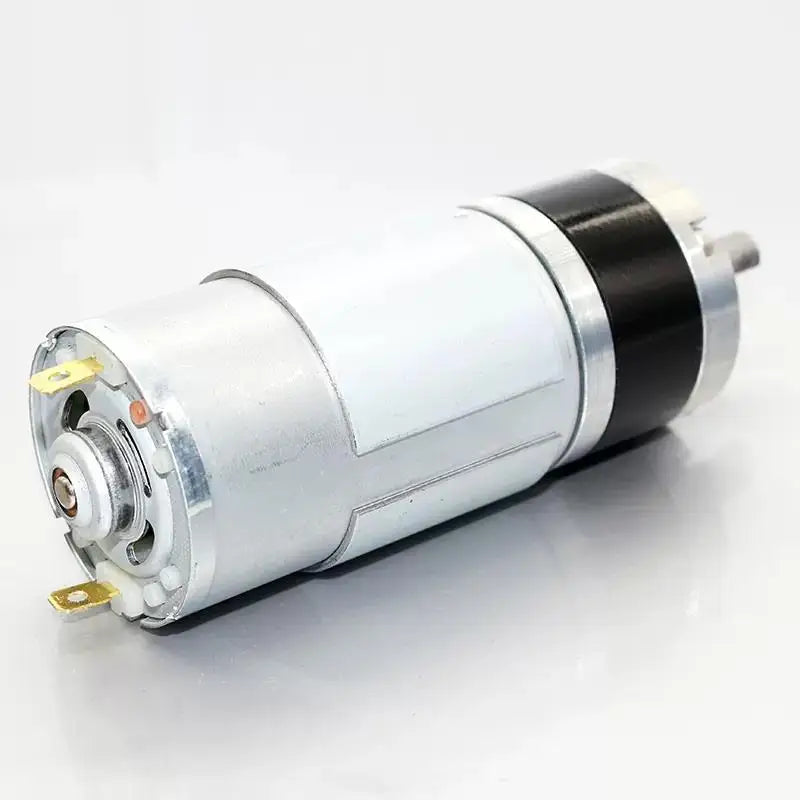

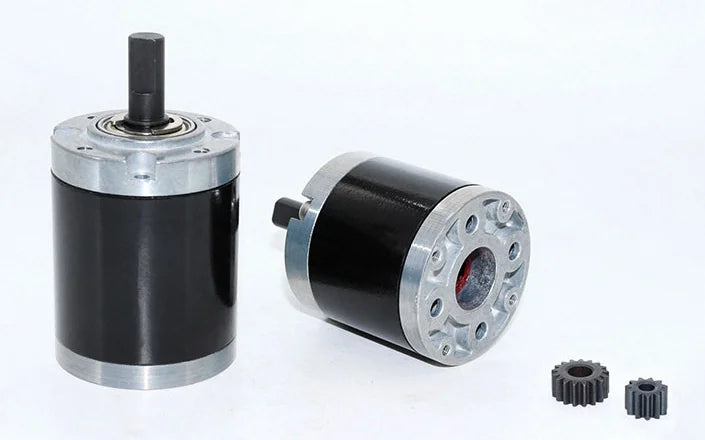

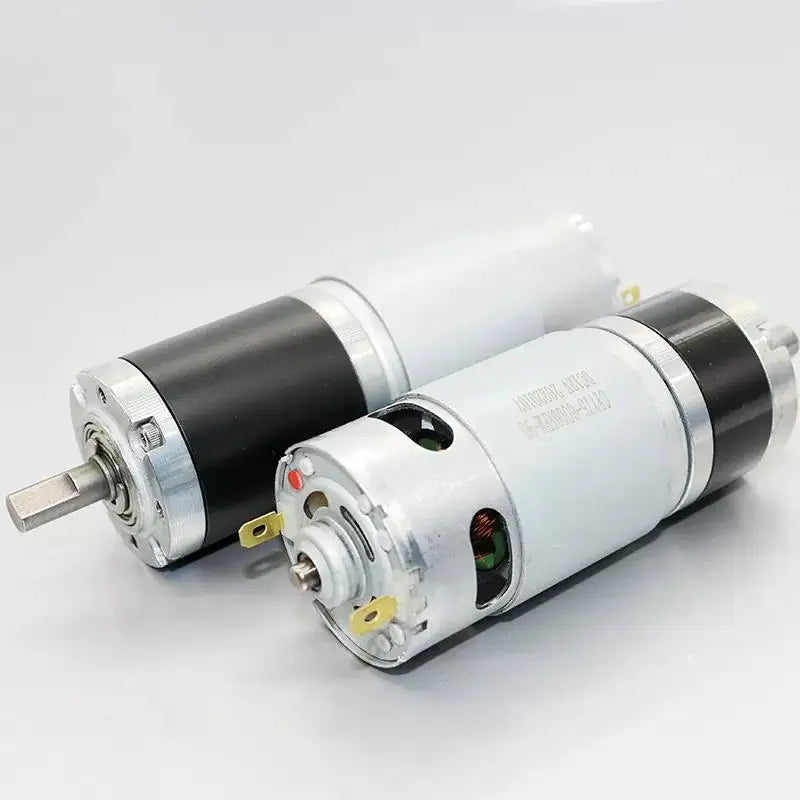

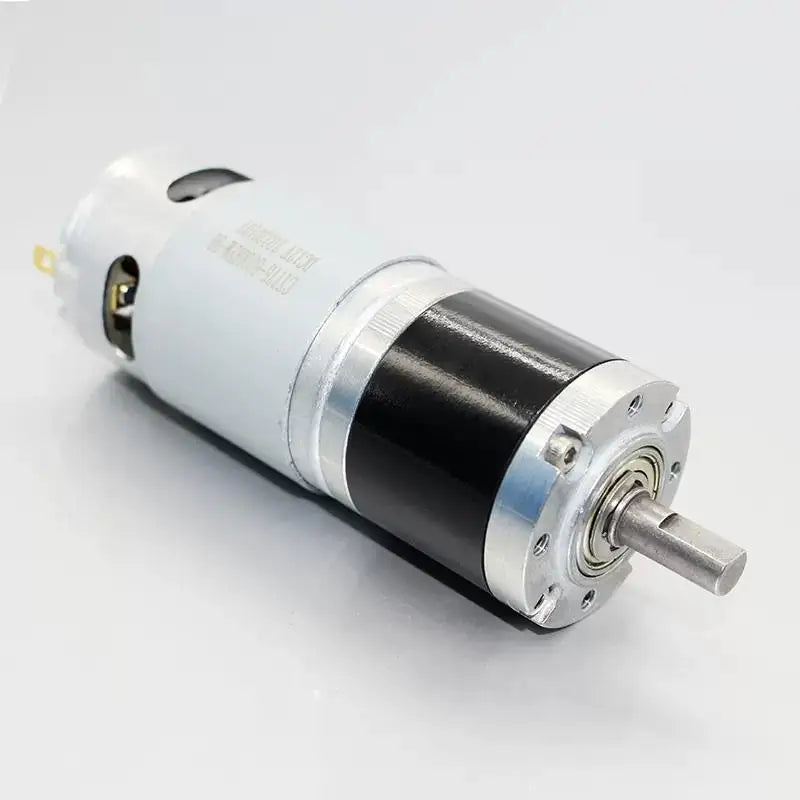

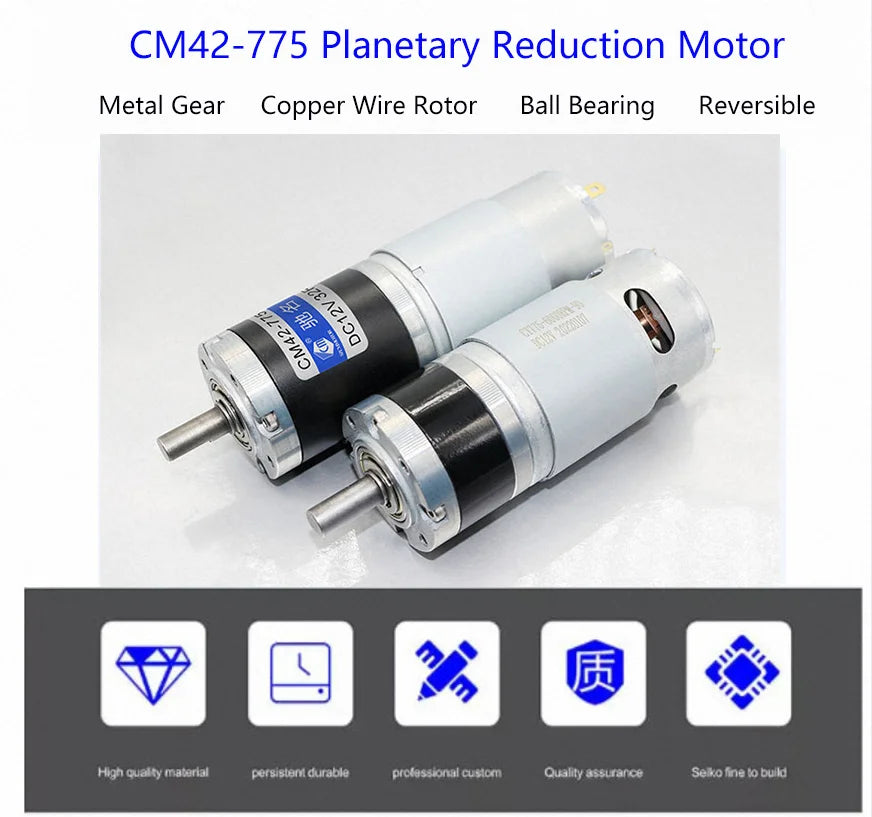

CM42-775 12v24v DC reducer motor planetary gear high-power high torque micro speed regulating low-speed motor

Features:

1. Small size, low noise, large torque, long service life, low energy consumption, high efficiency, stable transmission, durable.

2. Integrated output to ensure low noise，Motor teeth and output shafts are subject to high temperature heat treatment to increase light and wear resistance.

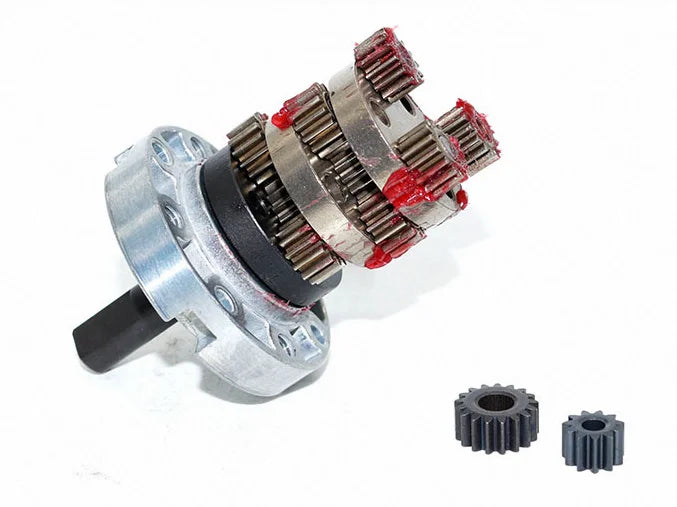

3. Metal gear, stable transmission: high-grade low-carbon alloy, carburized and quenched, hard and wear-resistant.

4. It is made of low-carbon alloy steel to ensure the wear resistance and toughness of the reducer.

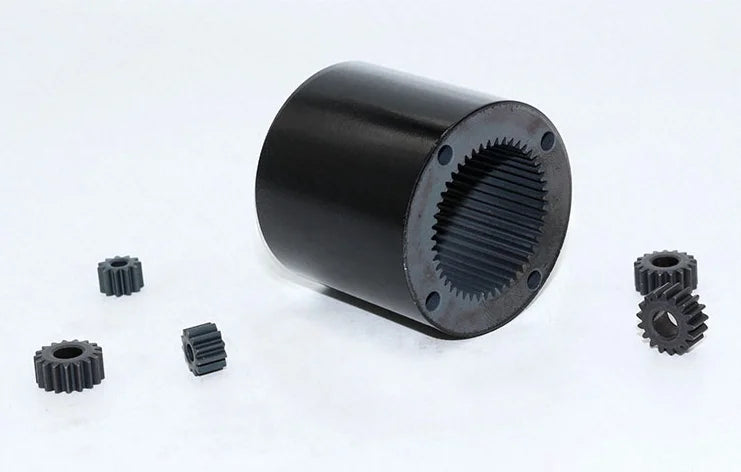

5. High strength gear ring, gear transmission reduction box, high coincidence tooth profile, balanced operation, large torque, and low clearance.

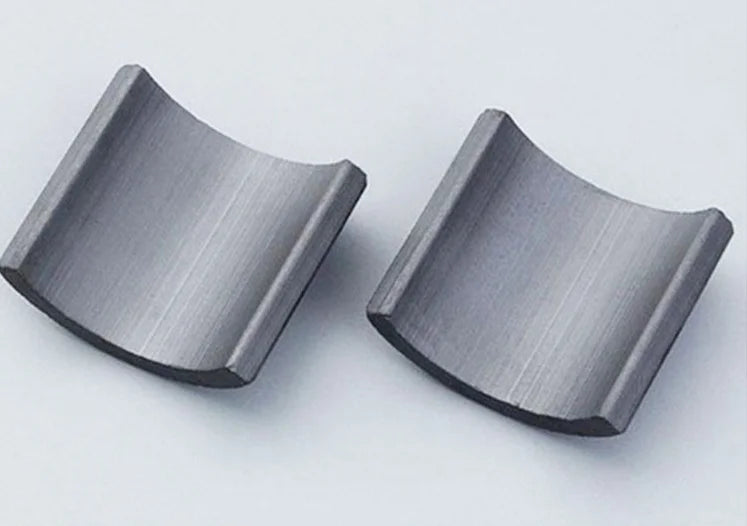

6. High quality magnetic tile has good temperature stability under high temperature.

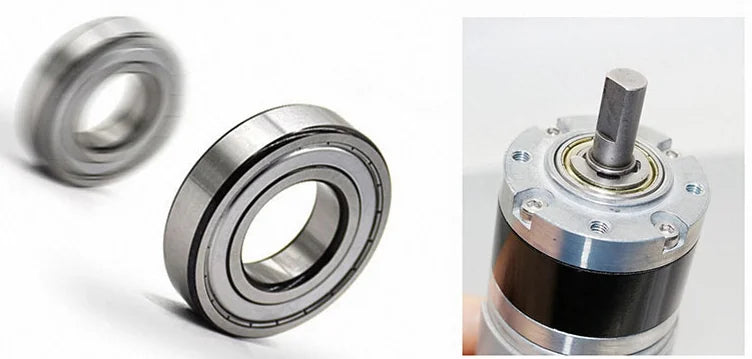

7. Ball bearing, durable: high-precision ball bearing, quiet, stable operation, high load, long service life.

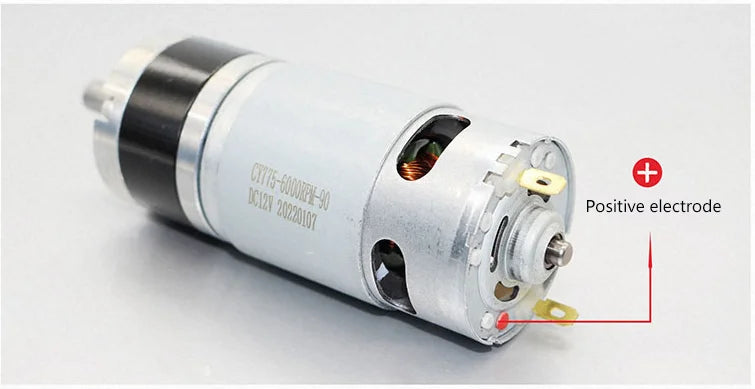

8. Wiring method: the terminal with red mark is connected to the positive pole of the motor, and the other end is connected to the negative pole, then the motor is in positive rotation; Reverse connection of positive and negative power supplies means the motor reverses!

9. The motor is mainly used in automatic quick lock doors, safe locks, 3D drawing pens, bookbinding machines, money counting machines, spotlights, toilet paper machines, office equipment, household appliances, label machines, remote control curtains, fully automatic voltage stabilized electricity, barbecue racks, ovens, cleaning machines, garbage disposal machines, etc.

More information：

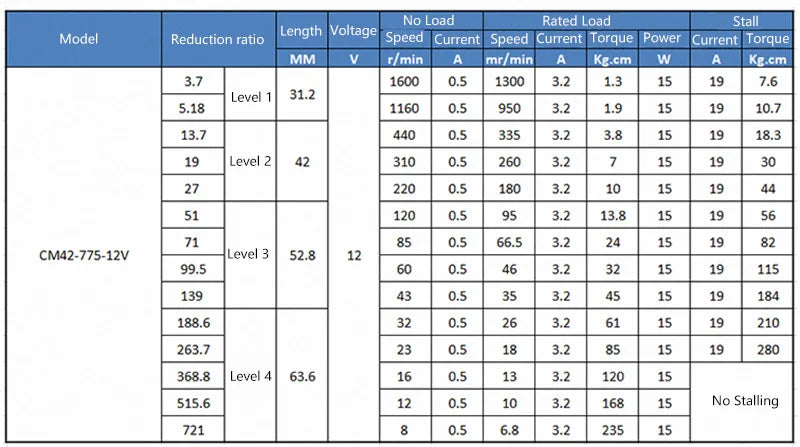

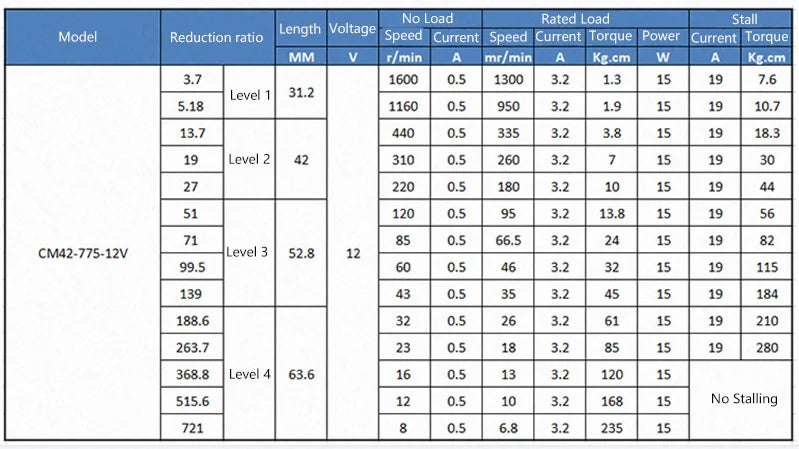

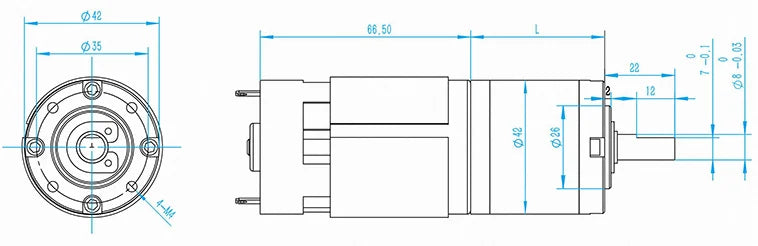

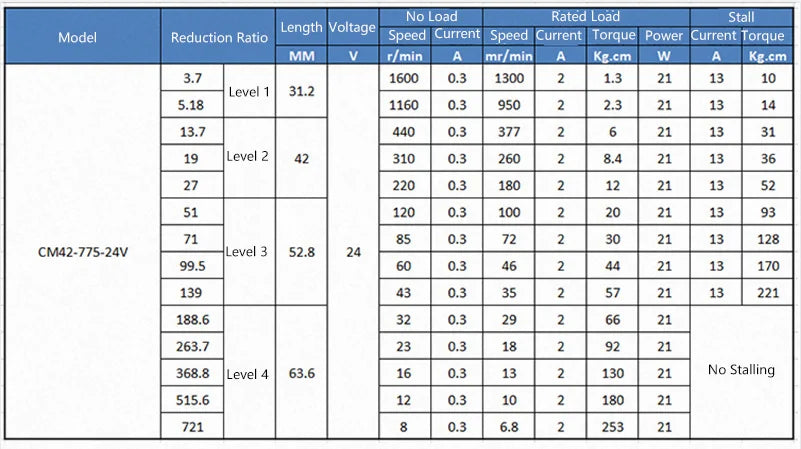

Dimensions&Parameters (mm)：

Integrated output to ensure low noise，Motor teeth and output shafts are subject to high temperature heat treatment to increase light and wear resistance.

Metal gear, stable transmission: high-grade low-carbon alloy, carburized and quenched, hard and wear-resistant.

It is made of low-carbon alloy steel to ensure the wear resistance and toughness of the reducer.

High strength gear ring, gear transmission reduction box, high coincidence tooth profile, balanced operation, large torque, and low clearance.

High quality magnetic tile has good temperature stability under high temperature.

Ball bearing, durable: high-precision ball bearing, quiet, stable operation, high load, long service life.

Wiring method: the terminal with red mark is connected to the positive pole of the motor, and the other end is connected to the negative pole, then the motor is in positive rotation; Reverse connection of positive and negative power supplies means the motor reverses!
