43025-1600 to 43020-1600 Extension Cable, 430251600 to 430201600 Female to Male Cable, Molex Micro Fit 3.0 Cable, 16P
43025-1600 to 43020-1600 Extension Cable, 430251600 to 430201600 Female to Male Cable, Molex Micro Fit 3.0 Cable, 16P
$31.00
$31.00 $0.00
Color
Cable length
Description

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Model Number: 430251600

Origin: Mainland China

Type: Custom Cable

Housing 1: 43025-1600

Terminal 1:  43030-0001

Housing 2　: 43020-1600

Terminal 2:  43031-0001

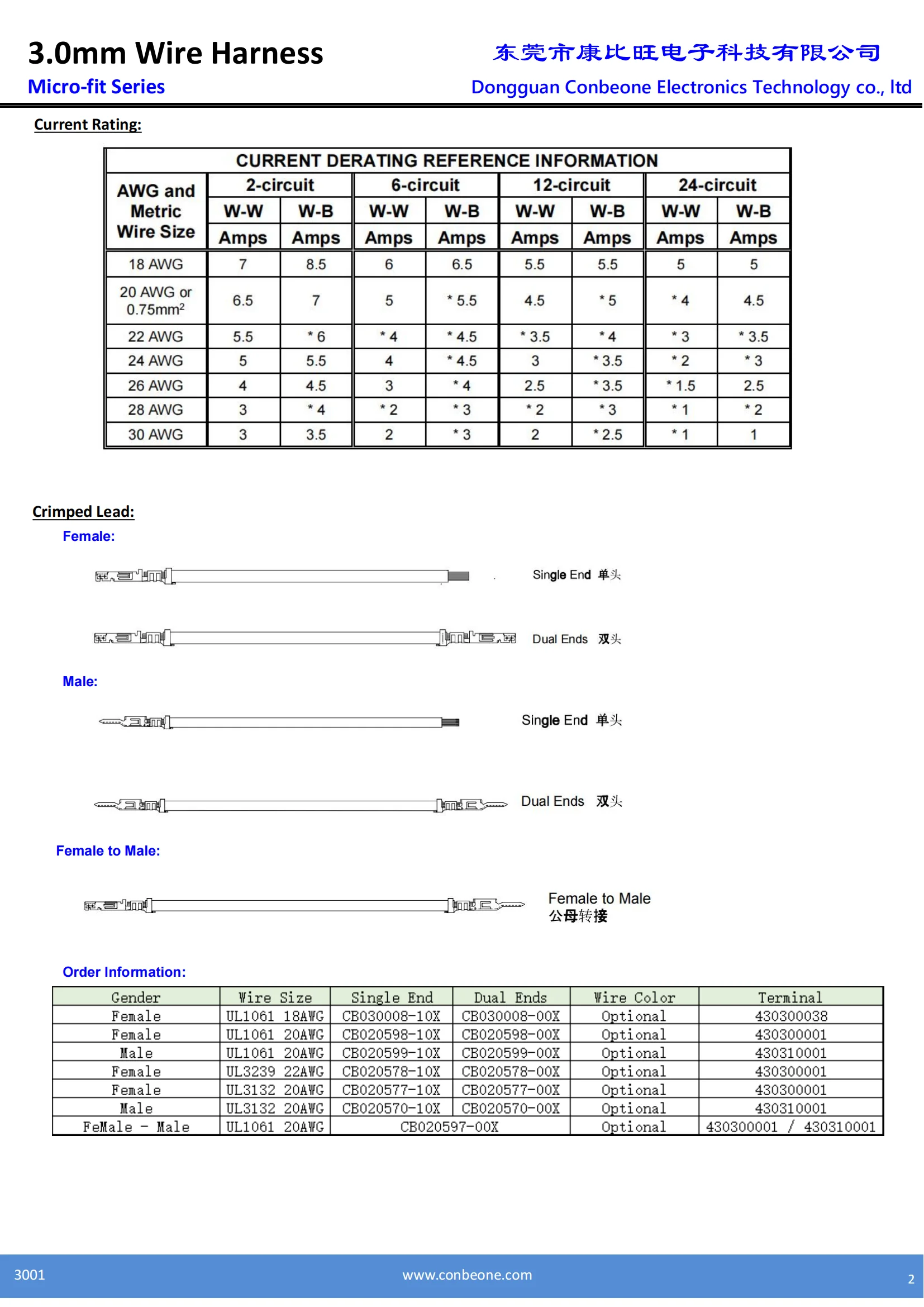

Hook Wire: UL1061, 20AWG, 80℃, 300V

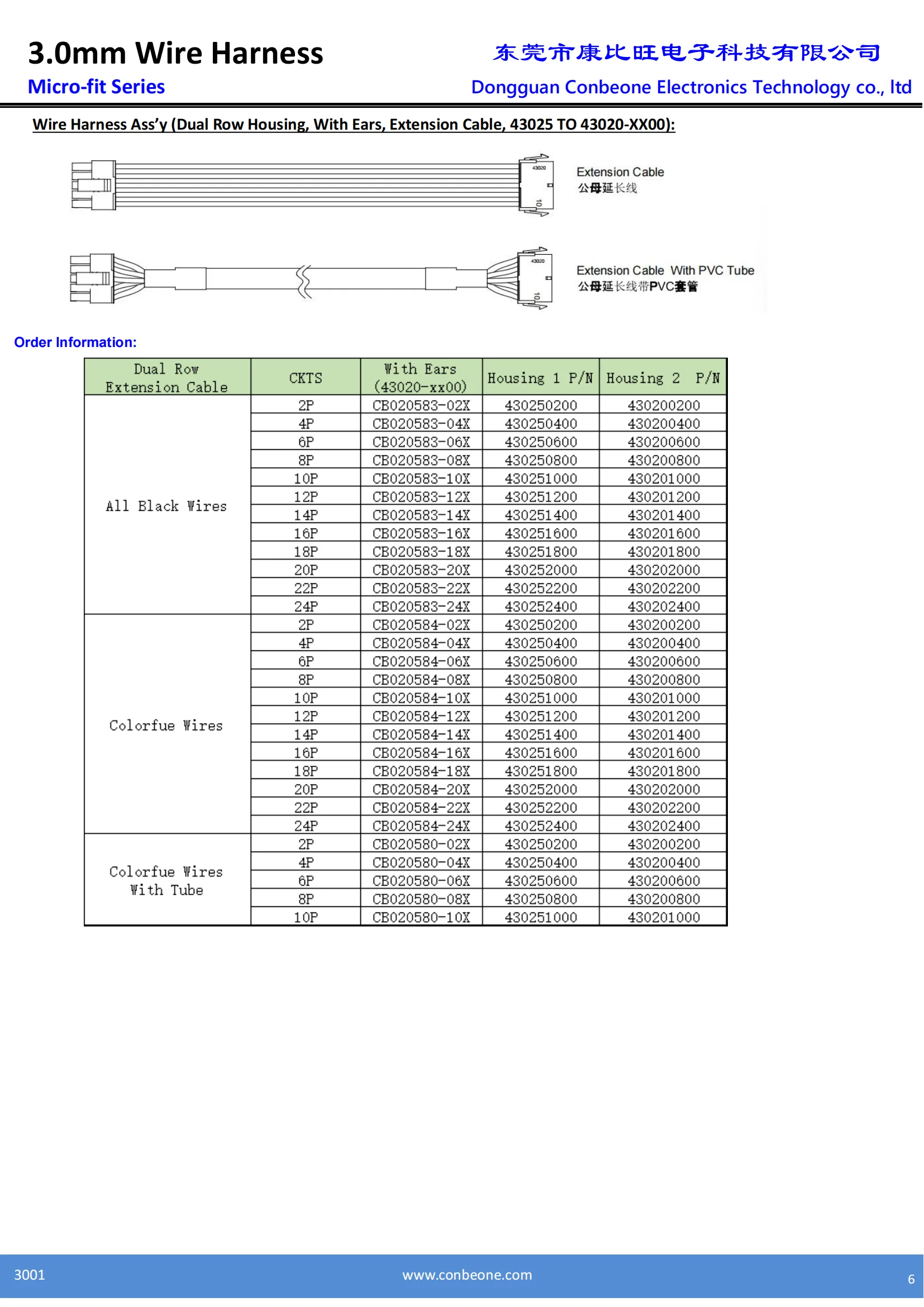

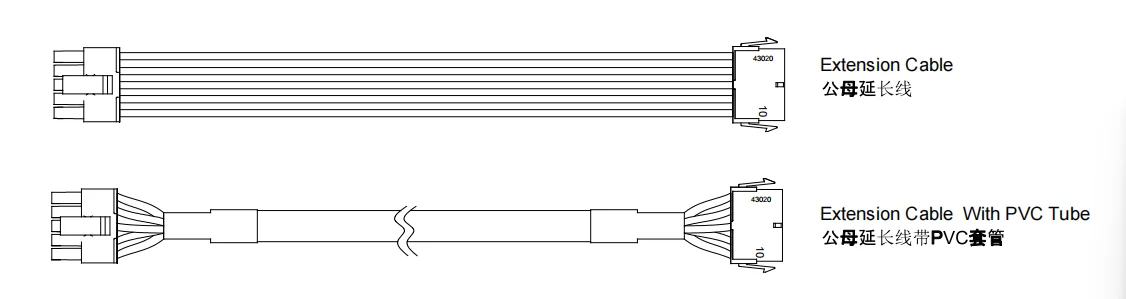

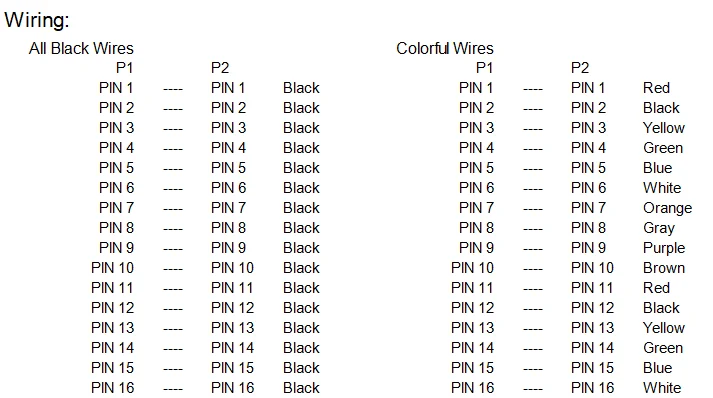

TYPE DBEW:

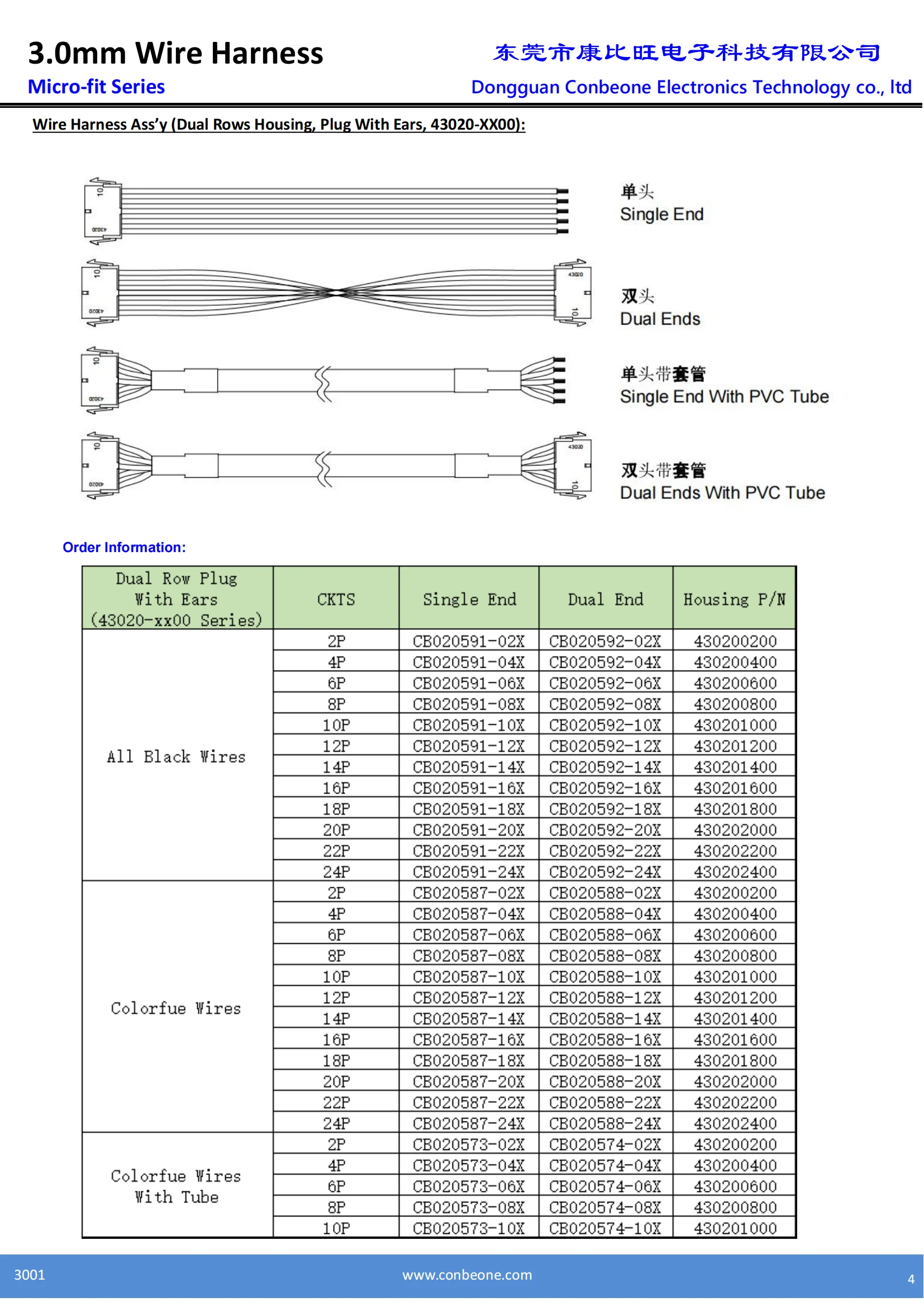

Housing:  43025-XX00 & 43020-XX00

Color Option:  All Black Wires

Termination:  Female to Male

Conbeone P/N:  CB020583


TYPE DCEW:

Housing:  43025-XX00 & 43020-XX00

Color Option:  Colorful Wires

Termination:  Female to Male

Conbeone P/N:  CB020584


TYPE DCEWP:

Housing:  43025-XX00 & 43020-XX00

Color Option:  Colorful Wires

Remark: With PVC Tube

Termination:  Female to Male

Conbeone P/N:  CB020580




If you have any question or want to customize cable assembly.

Please contact our sales engineer:

eMail: roy.wang@conbeone.com

Sype: roy.wang@conbeone.com

(CAD Drawing available on our website )
