SPECIFICATIONS

Brand Name: kebidumei

Certification: CE,FCC

Channel: 2

Choice: yes

Feature 1: wireless single-way remote control switch

Feature 2: Micro Remote Control Switch

Feature 3: for Motor Forwards Reverse Stop/DIY

Feature 4: 433Mhz RF Wireless Controllers

Feature 5: Small Relay Contact Wireless Switches

Feature 6: RF Mini Motor Remote Control Switch

Feature 7: DC 6V 12V 18V 24V Relay Module

Feature 8: LED Light Controller DIY Kit

Feature 9: 433Mhz 1 CH RF Relay Receiver

Form-factor: Others

Frequency: 433 MHz

High-concerned chemical: none

Model Number: DC Mini Relay Wireless Remote Momentary Switch

Origin: Mainland China

Package: Yes

Support APP: No

Use: Universal,Lighting,Electric Door,Automated curtains,Switch

Wireless Communication: RF

semi_Choice: yes

Product advantages

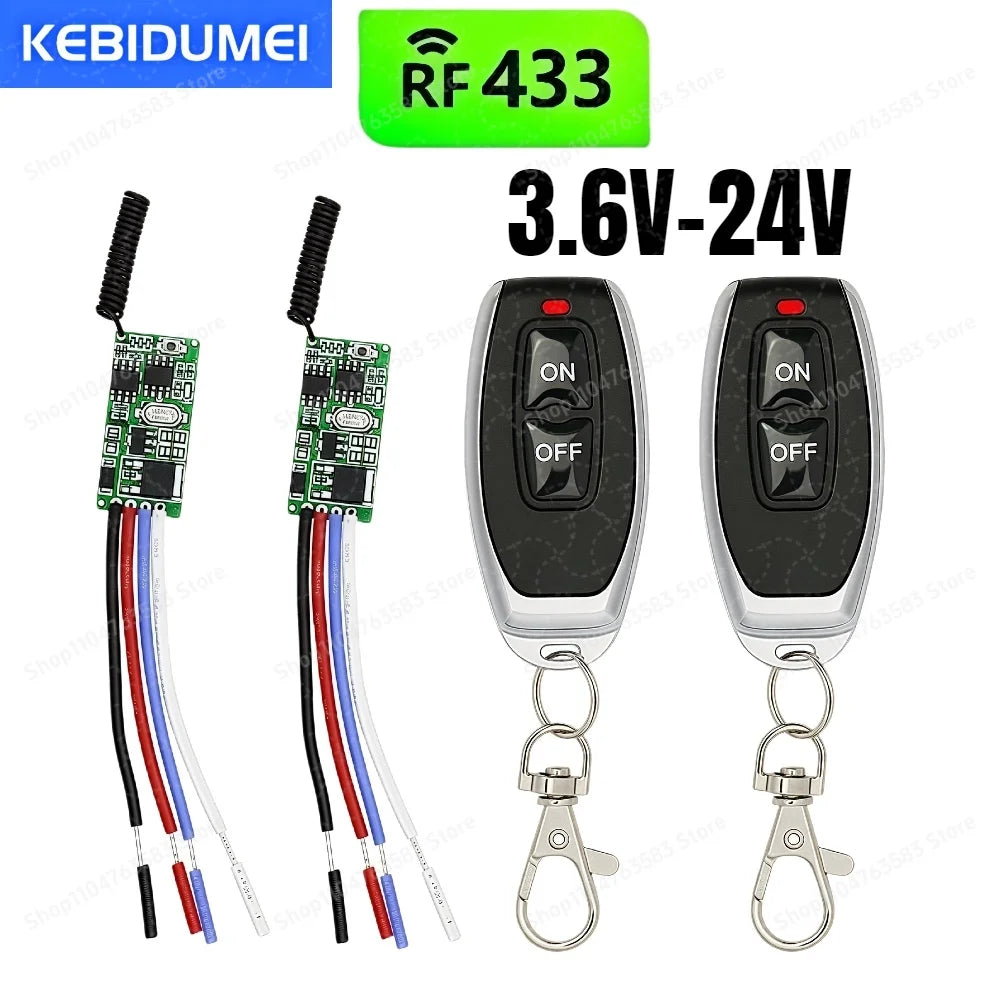

The working voltage of the receiver is DC 3.6V-24V, which is suitable for a variety of DC motors. Remote control water heater / Remote control LED / Remote control Lamp / Remote control water pump and other remote control device;
Low standby power (4mA), no need to worry about excessive power consumption.
Stable RF signal: up to 100m in open areas, extending the receiver antenna can obtain farther and more stable signals.

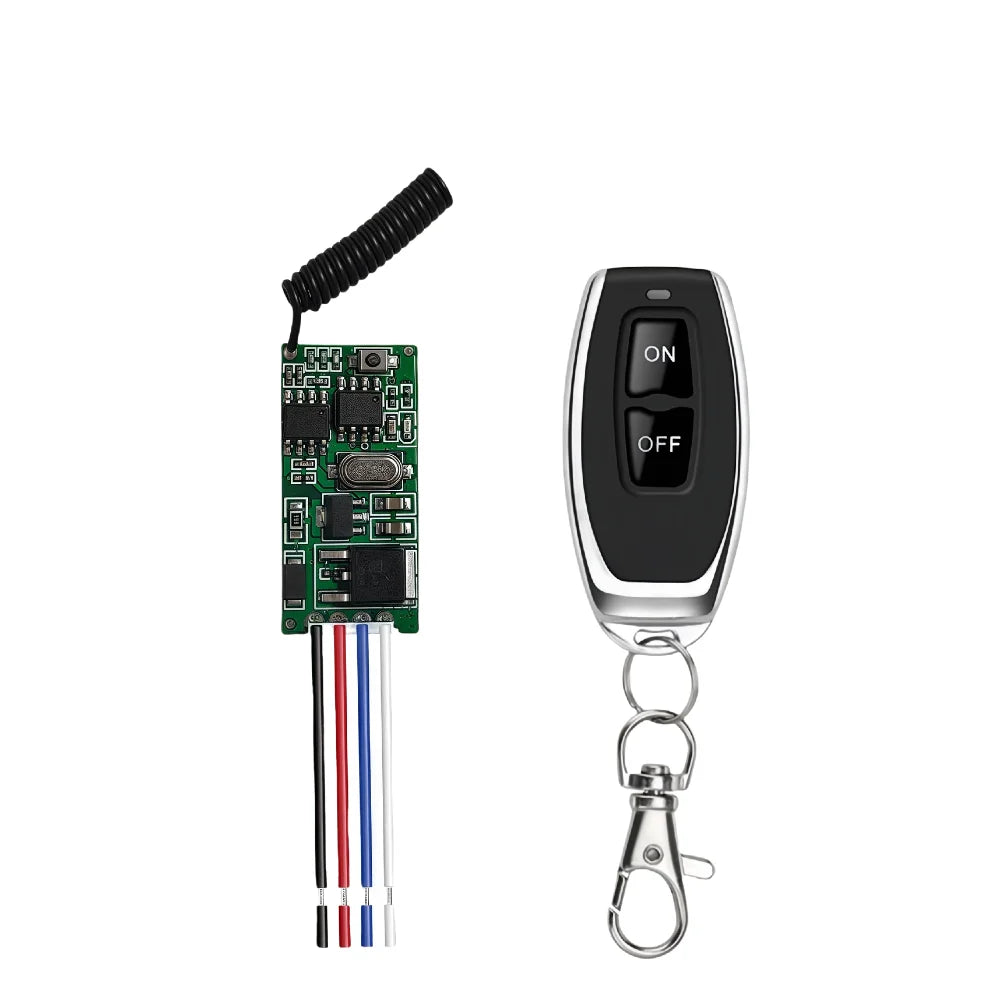

The mini receiver and remote control are both RF 433mhz type, and the remote control can also be used with other RF receivers

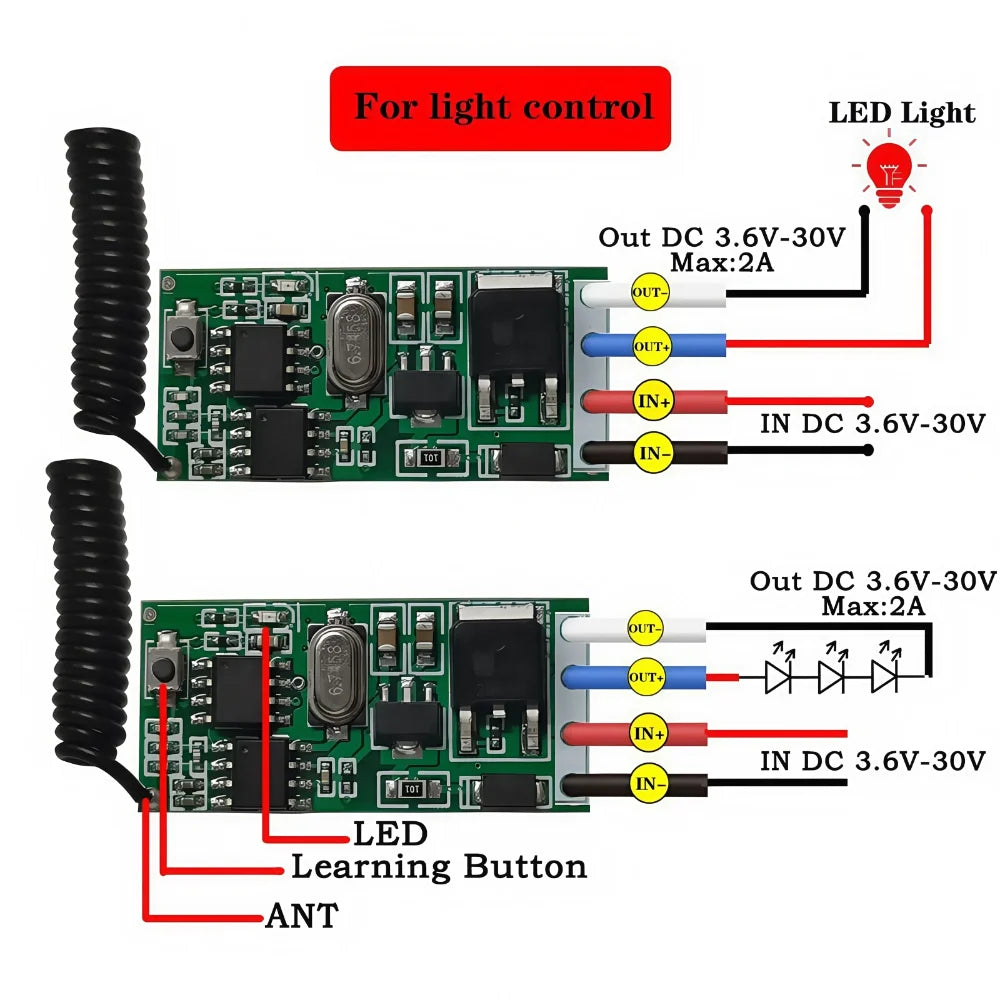

The method of use is simple: simple wiring and simple data matching.

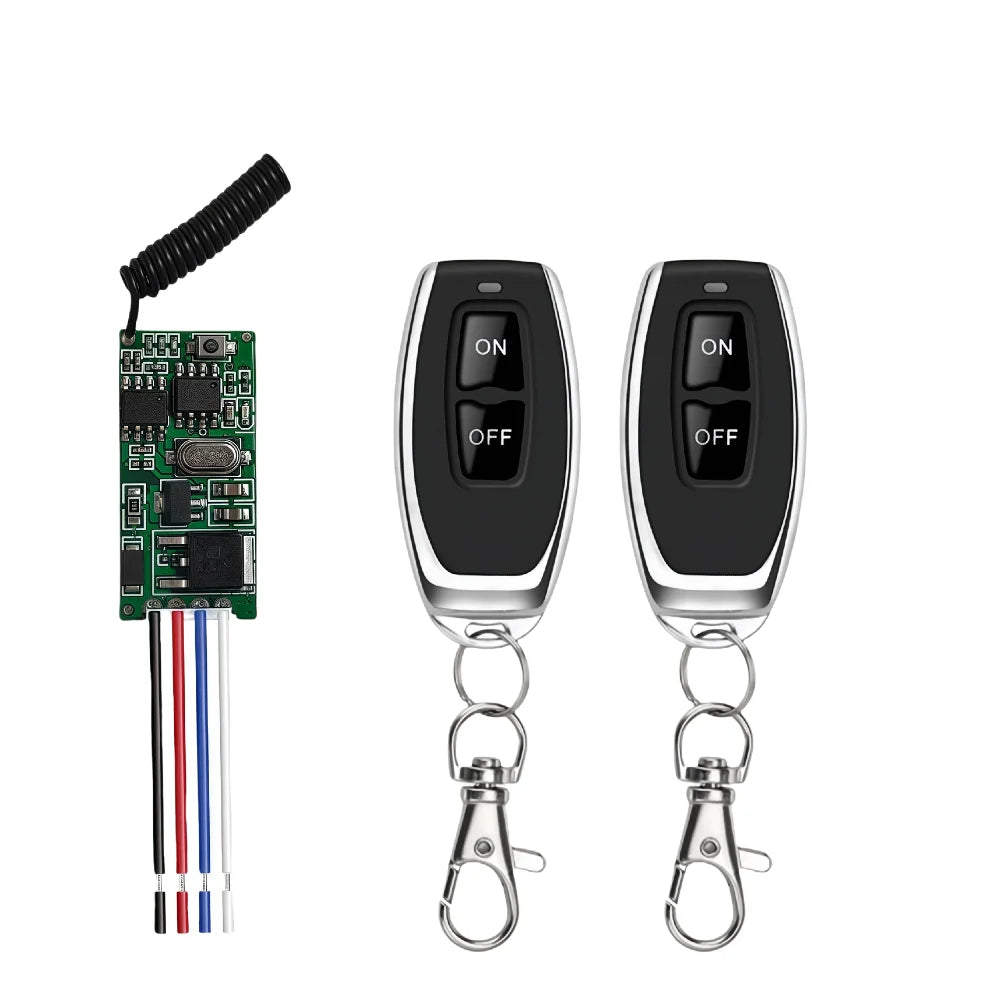

Multiple matching methods :many remotes can control same receiver at the same time(at most 20pcs remotes);
Super mini size, it can fit directly into the interior of various devices.

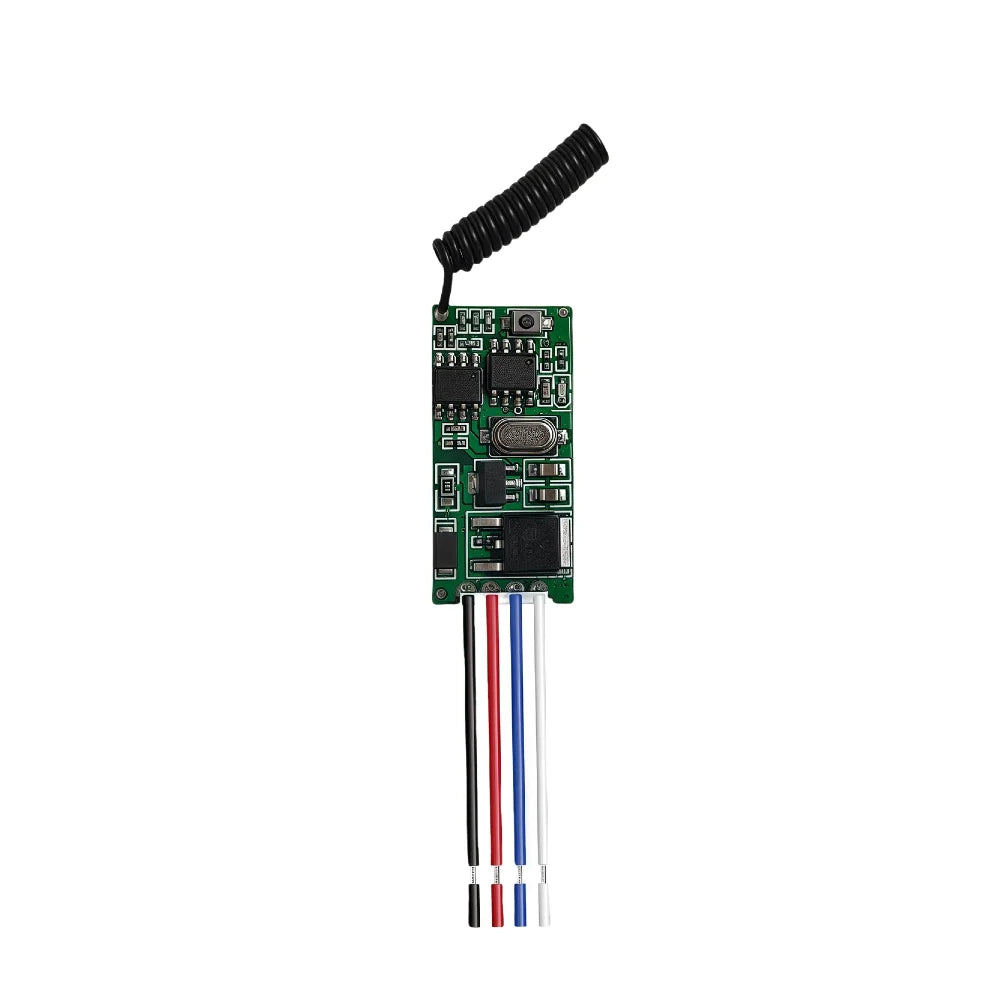

Mini receiver parameters:

Frequency: 433MHz
Max current : 10Amp
Working voltage: DC 3.6-24V
Function option: Momentary mode/Toggle mode/ Latched mode

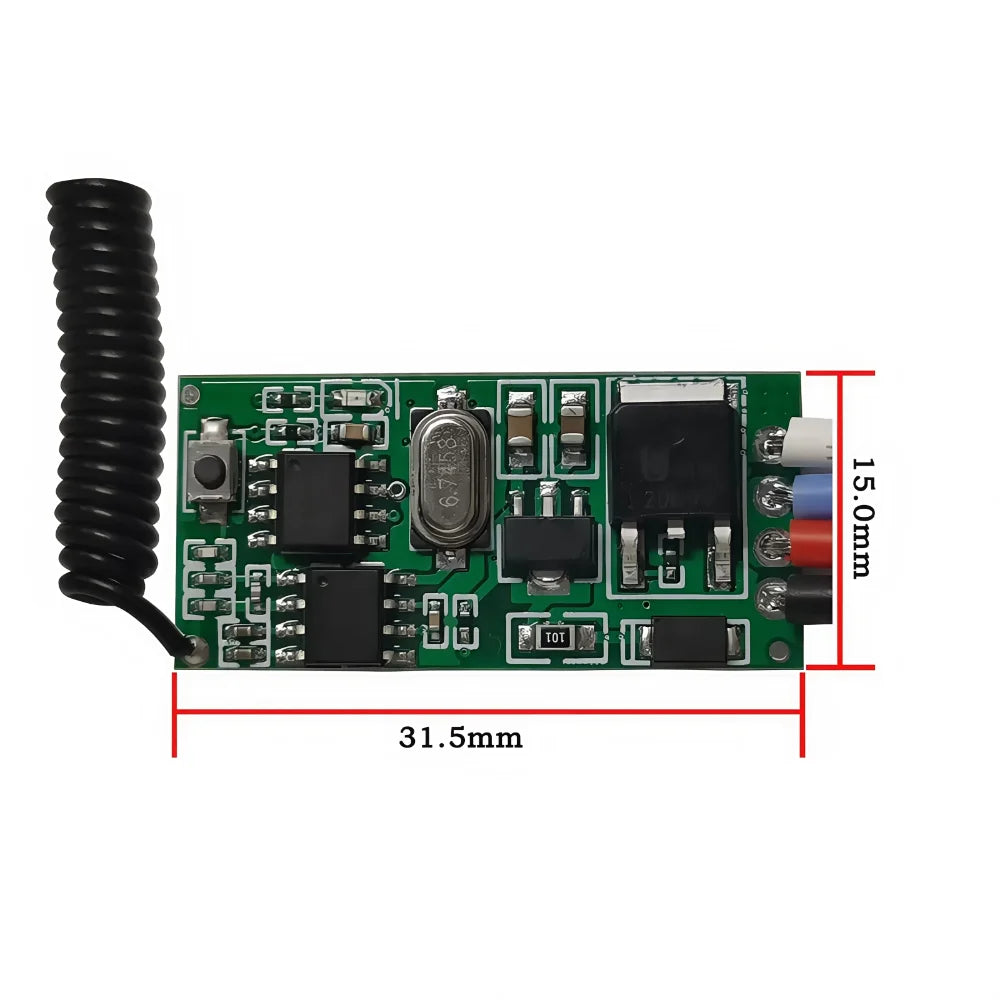

Size: 34*15mm
Modulation method: ASK
Number of compatible remote controls: up to 24 remote controls
Matching Mode: Intelligent Learning code

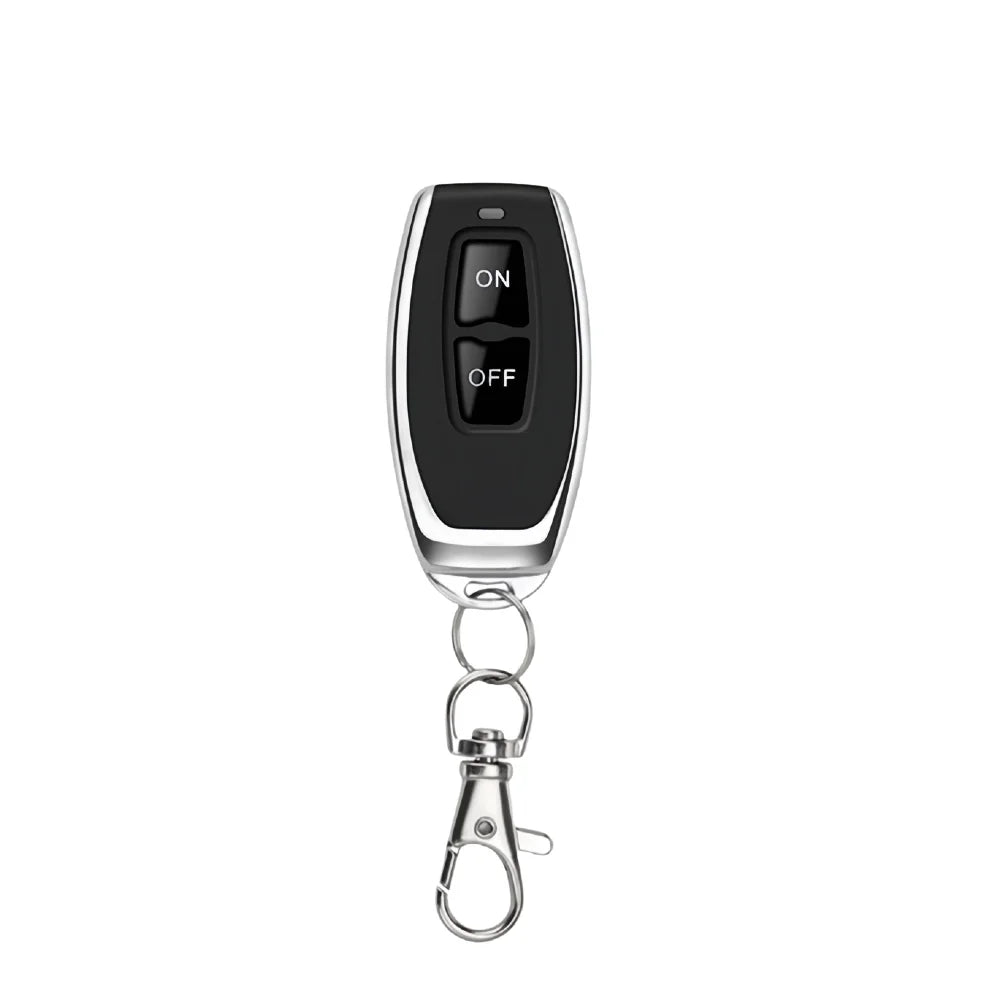

Remote controller parameters:
RF frequency : 433MHz
Control Distance : 100 meters in open space
Material : Plastic
Support encoding : 1527 Leaning code
Battery : CR2032 (included)
Size:58*28*10mm


Operating Mode

Match signal 1 Momentary mode :
Press the learn button once time,
Performance :
Press and hold on one button -> the electrical equipment will turn ON;
Release the button -> the electrical equipment will turn OFF;


Match signal 2 Toggle mode :

Press the learn button Twice time,
Performance :
Press one button -> the electrical equipment will turn ON;
Press the button again-> the electrical equipment will turn OFF;


Match signal 3 Latched mode :

Press the learn button Three times,
Performance :
Press A button -> the electrical equipment will turn ON;
Press B button -> the electrical equipment will turn OFF;


Set Up

Note: Before configuring the signal, Press the learning button 8 times , to reset the receiver.

Setting mode 1 Momentary mode :

STEP 1
Press the learning button on the Receiver Once .
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control , the LED on the receiver board will flash on;


Setting mode 2 Toggle mode :

STEP 1
Press the learning button on the Receiver Twice.
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press one button on the Remote Control , the LED on the receiver board will flash on;


Setting mode 3 Latched mode:

STEP 1
Press the learning button on the Receiver Three times.
Wait for a moment , the LED will turn on , indicating you entered the learning state.
STEP 2
Press A button on the Remote Control , the LED on the receiver board will flash on;
STEP 3
Press B button on the Remote Control , the LED on the receiver board will flash on;
