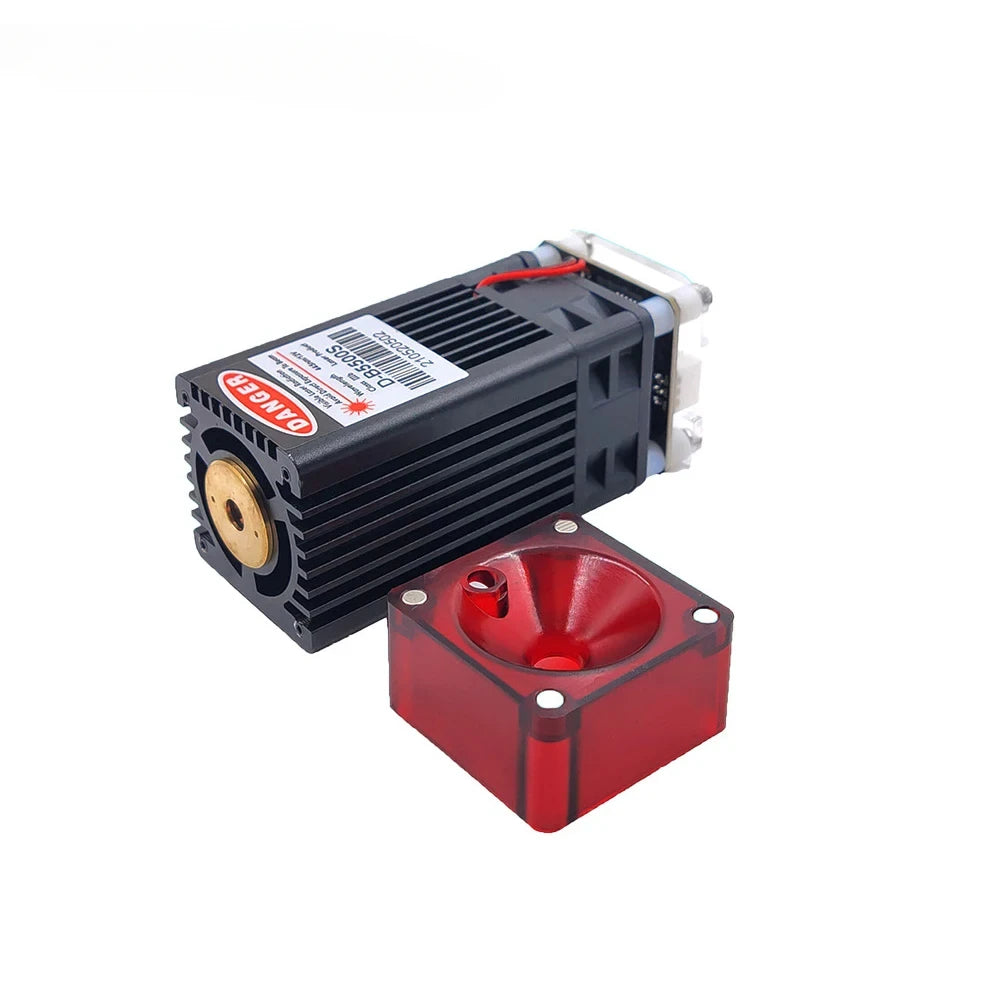

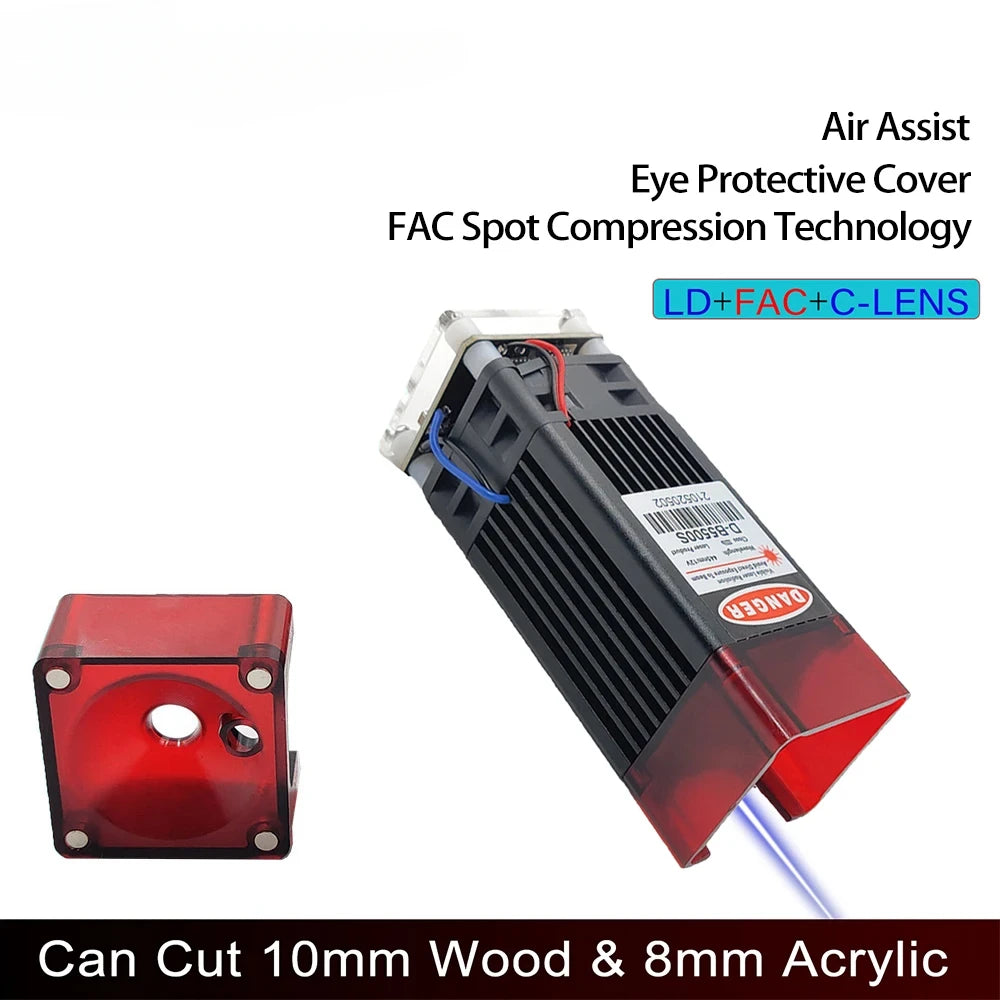

SPECIFICATIONS

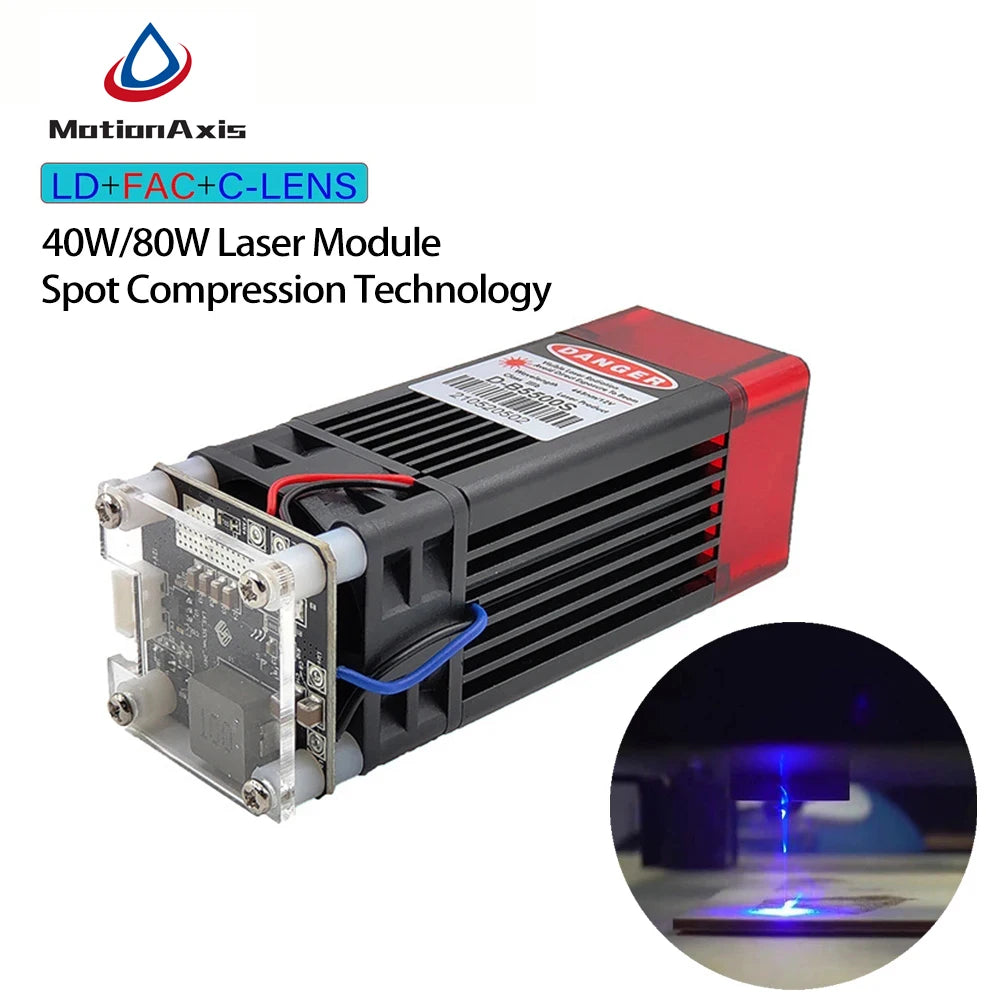

Product Features

• Imported diode, thin and clear spot, small divergence angle, good collimation

• The temperature control, drive and laser are fully integrated, the structure is small and compact, and the external only needs DC power supply

• After high and low temperature storage and vibration and shock tests, it has reliable stability. When the temperature is in the range of -20 to 70 degrees, it can work stably for 24 hours.

• Precise and scientific heat dissipation design, two-way temperature control and perfect temperature protection function can extend the life of the laser as much as possible.

• Can Cut:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper.

• FAC technology means the laser power is more centralized, the engraving/cutting/marking is more accurate.It is suitable for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, and so on.

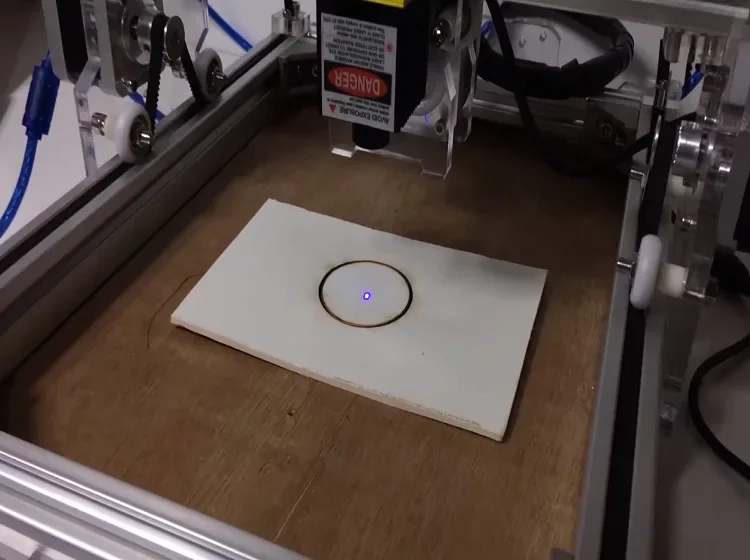

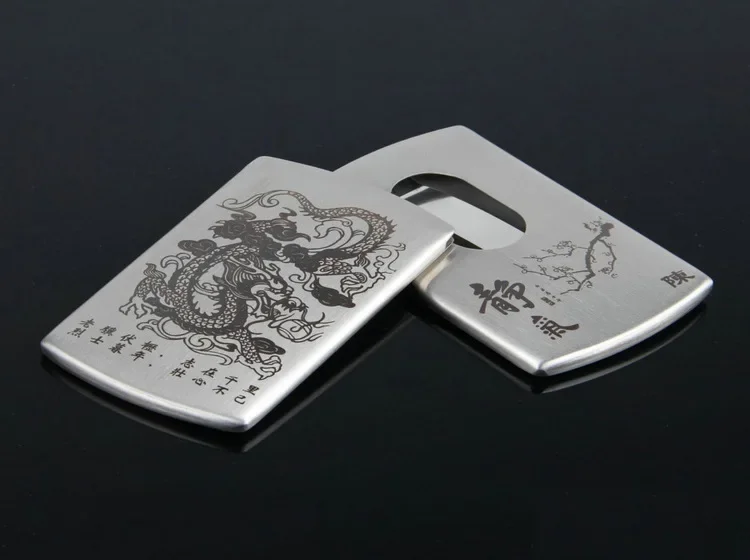

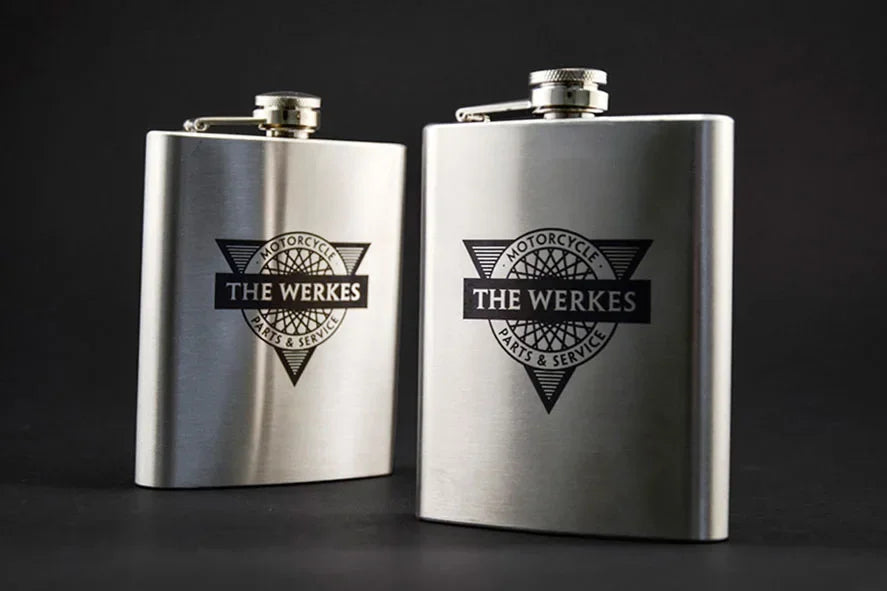

Engraving Effect

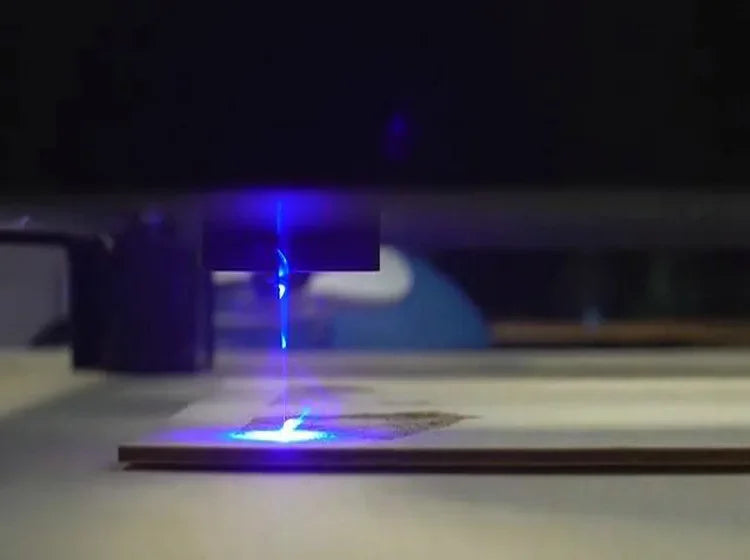

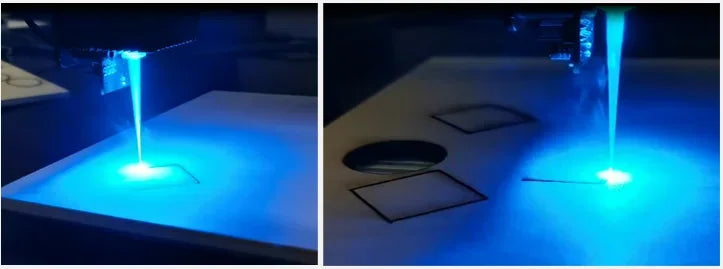

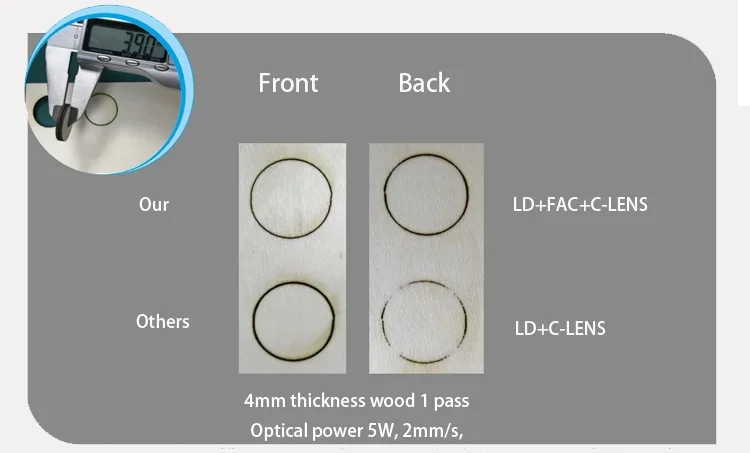

Comparison of the effect of cutting
Optical power 5W,2mm/s,4mm thickness wood with1 pass



The engraving laser module can cut through 4mm wood in one pass, with finer cut marks and lighter edge burn.

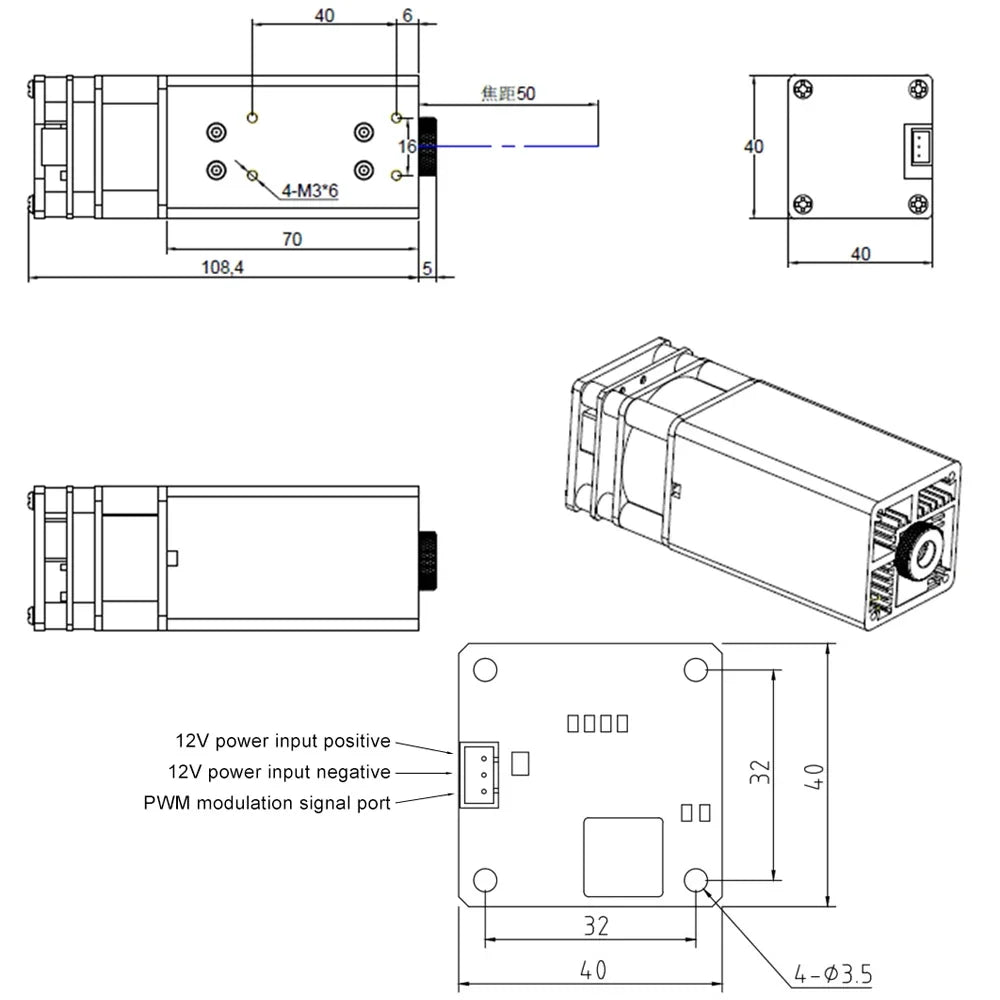

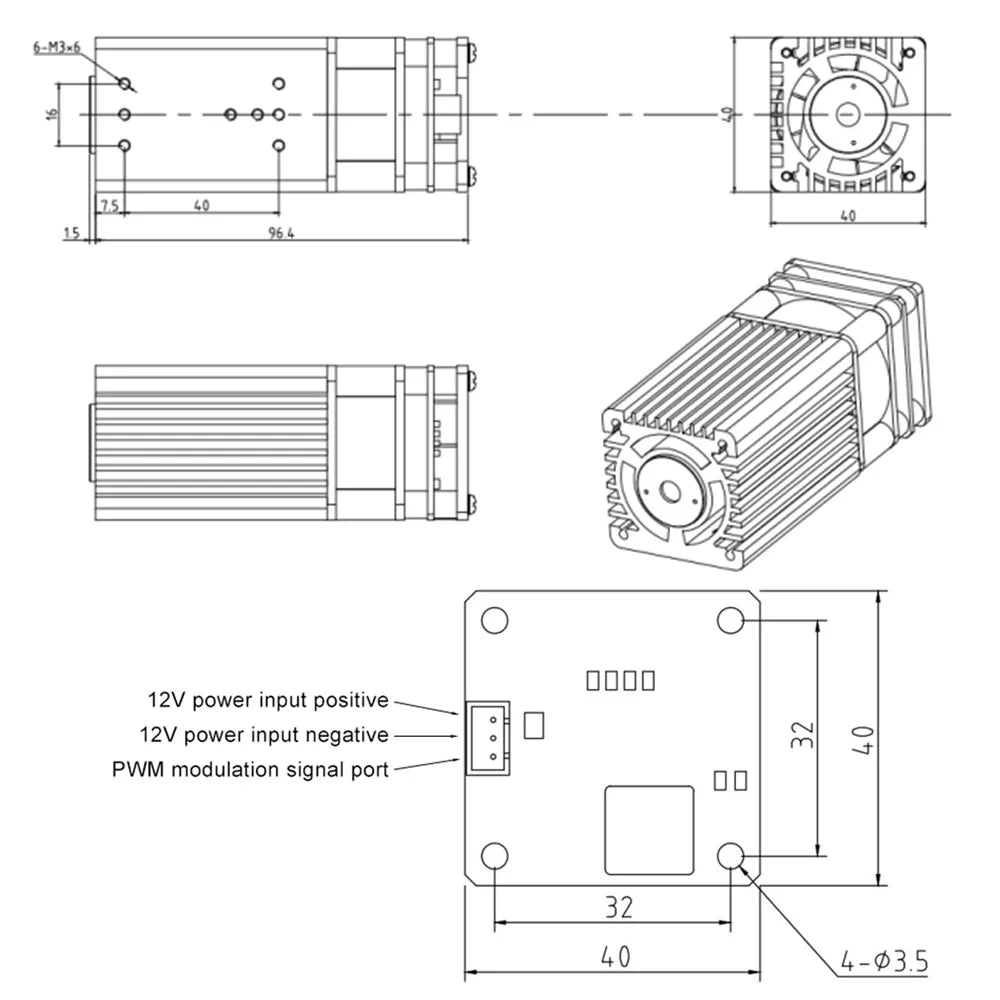

Product Specification

• Focal Length: 40W-23mm; 80W-50mm

• Working Temperature:-40-75Celsius

• Life Time:8,000 hours

• Module Material: Copper

• Shell Material: Aluminum,Surface Anodized

• Operating Voltage: 12V DC

• Cooling Method: Forced air cooling

• Drive mode: External ACC constant current drive

• Optical Power Output:5.5W/10W

• Laser Power: 40W/80W

• Laser Wavelength: 445nm (blue viole)

Laser Module: 40W
Plywood 2mm cut  : 300mm/min , S1000 , 1 Pass
Plywood 3mm cut  : 250mm/min , S1000 , 1 Pass
Plywood 4mm cut  : 200mm/min , S1000 , 1 Pass
Plywood 5mm cut  : 100mm/min , S1000 , 1 Pass
Plywood 5mm cut  : 200mm/min , S1000 , 2 Pass
MDF board 3mm cut : 100mm/min , S1000 , 1 Pass
MDF board 3mm cut : 320mm/min , S1000 , 2 Pass
Black acrylic plate 3mm : 100mm/min , S1000 , 1Pass
Black acrylic plate 5mm : 100mm/min , S1000 , 3Pass

Laser Module: 80W
Plywood 2mm cut  : 500mm/min , S1000 , 1 Pass
Plywood 3mm cut  : 450mm/min , S1000 , 1 Pass
Plywood 4mm cut  : 400mm/min , S1000 , 1 Pass
Plywood 5mm cut  : 240mm/min , S1000 , 1 Pass
MDF board 3mm cut : 180mm/min , S1000 , 1 Pass
MDF board 3mm cut : 120mm/min , S1000 , 2 Pass
Black acrylic plate 3mm : 120mm/min , S1000 , 1Pass
Black acrylic plate 5mm : 120mm/min , S1000 , 2Pass

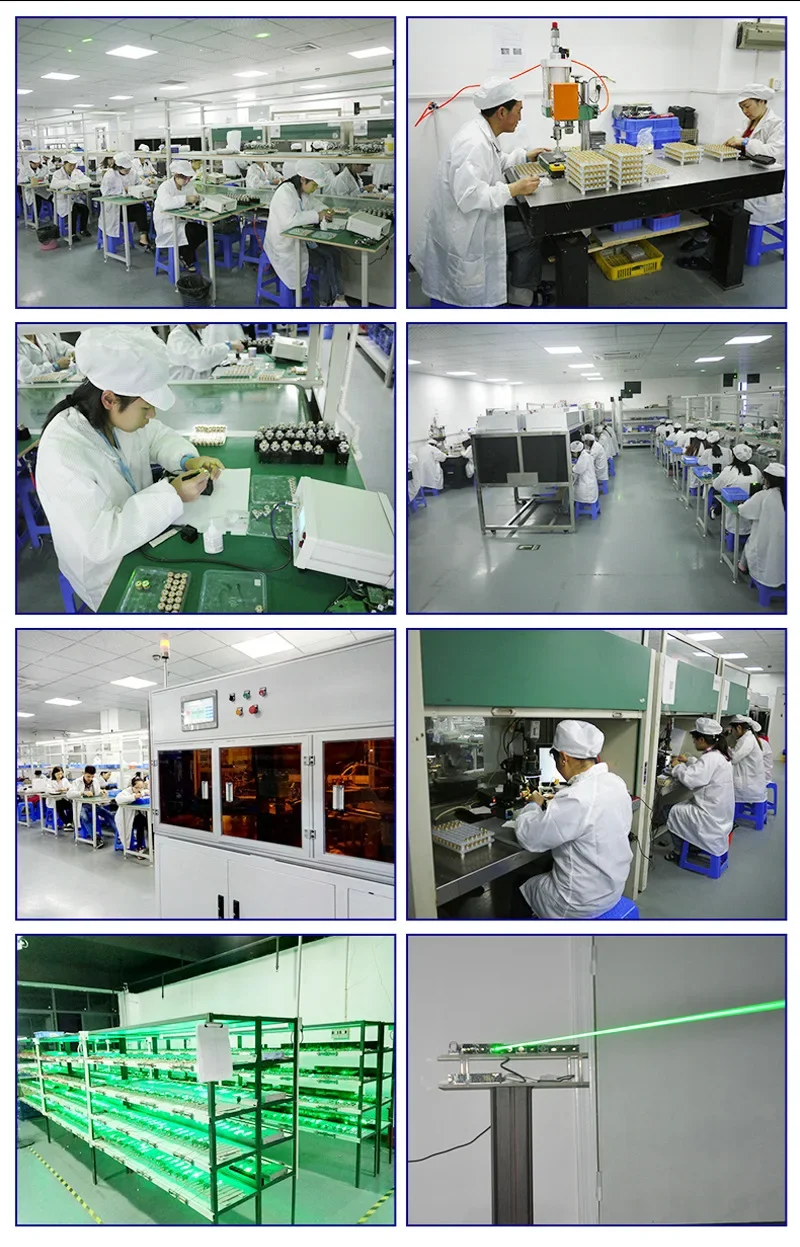

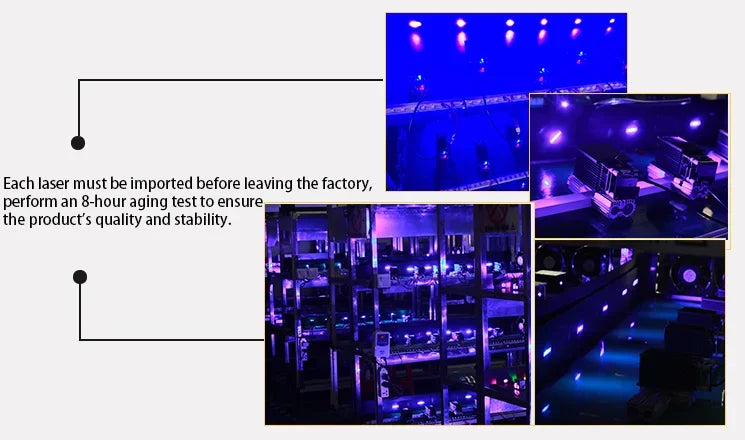

Factory Test
Each laser must be imported before leaving the factory,perform an 8-hour aging test to ensure the product's
quality and stability.




Cautions

• The laser light emitted by the laser module is likely to injure persons' eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.

• Laser module needs an appropriate laser driver (PCB). When the laser module connects with power supply,please set the output voltage to zero. The adjustment of the current should be slowly increased or decrease to avoid damaging the device.

• Keep the device working or storing in a dry environment.The anti-dust grade is over one million,in order to prevent dust inside the lens to affect the laser dot shape.

• Working at high temperatures will increase the threshold current,reduce conversion efficiency and speed up the aging of the device.

• When output power is higher than it's specific parameter of operation, it will accelerate the aging of the device.

• When the operation temperature of the laser diode is over 70 degree,please do well heat dissipation of it.

• This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.
