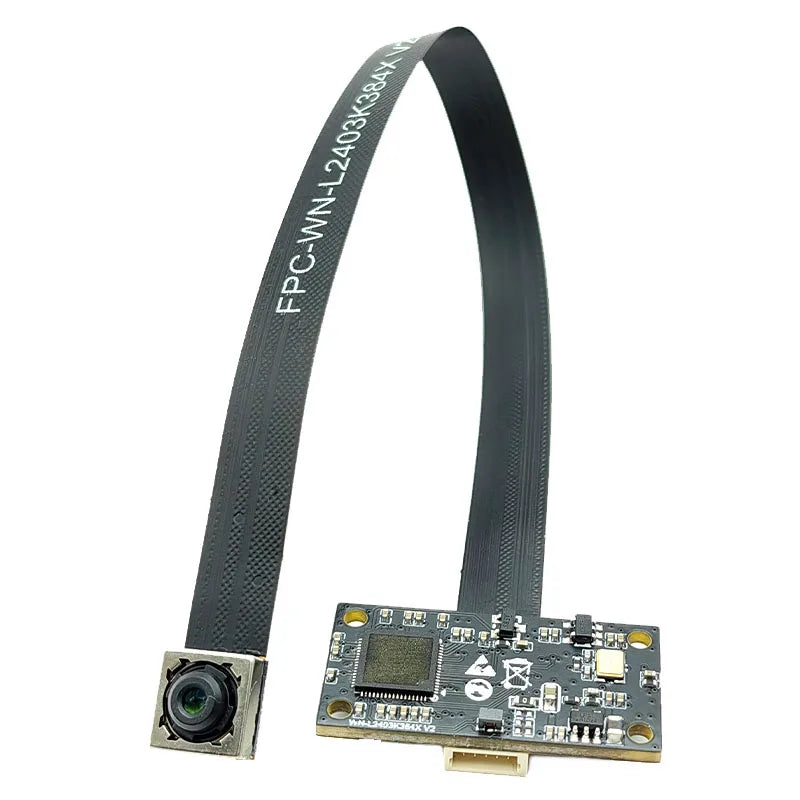

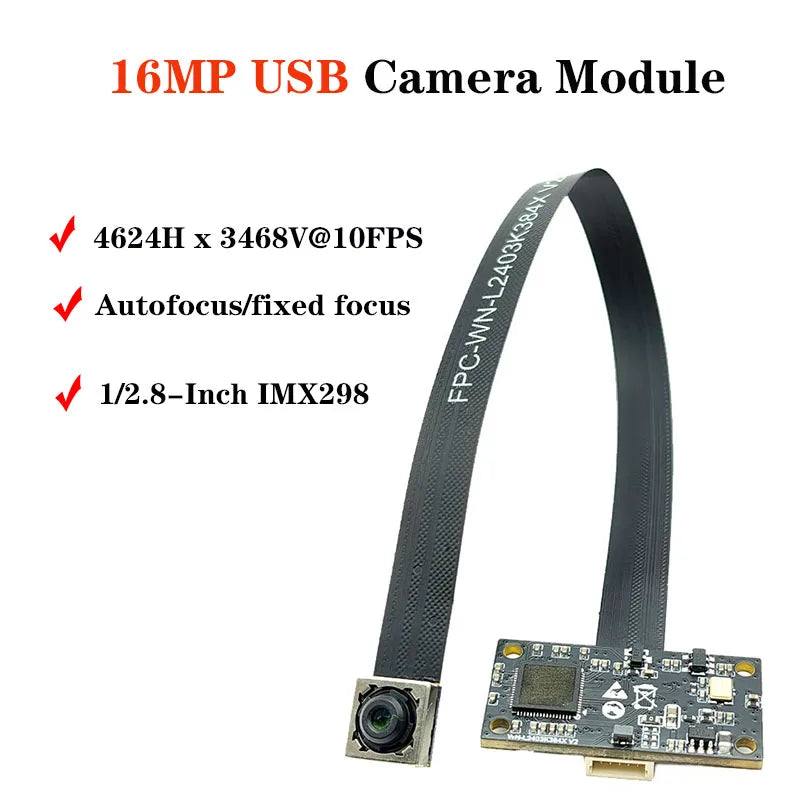

4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2

4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2

FF
$189.52
$189.52 $0.00
Skip to product information
4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
  • 4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
4624x3468 16MP HD IMX298 USB Camera Module AF/FF 78.4° PCB Board +FPC CCM Module Split UVC No-Drive Protocol MJPEG,YUV2
$189.52
$189.52 $0.00
Bundle
Description

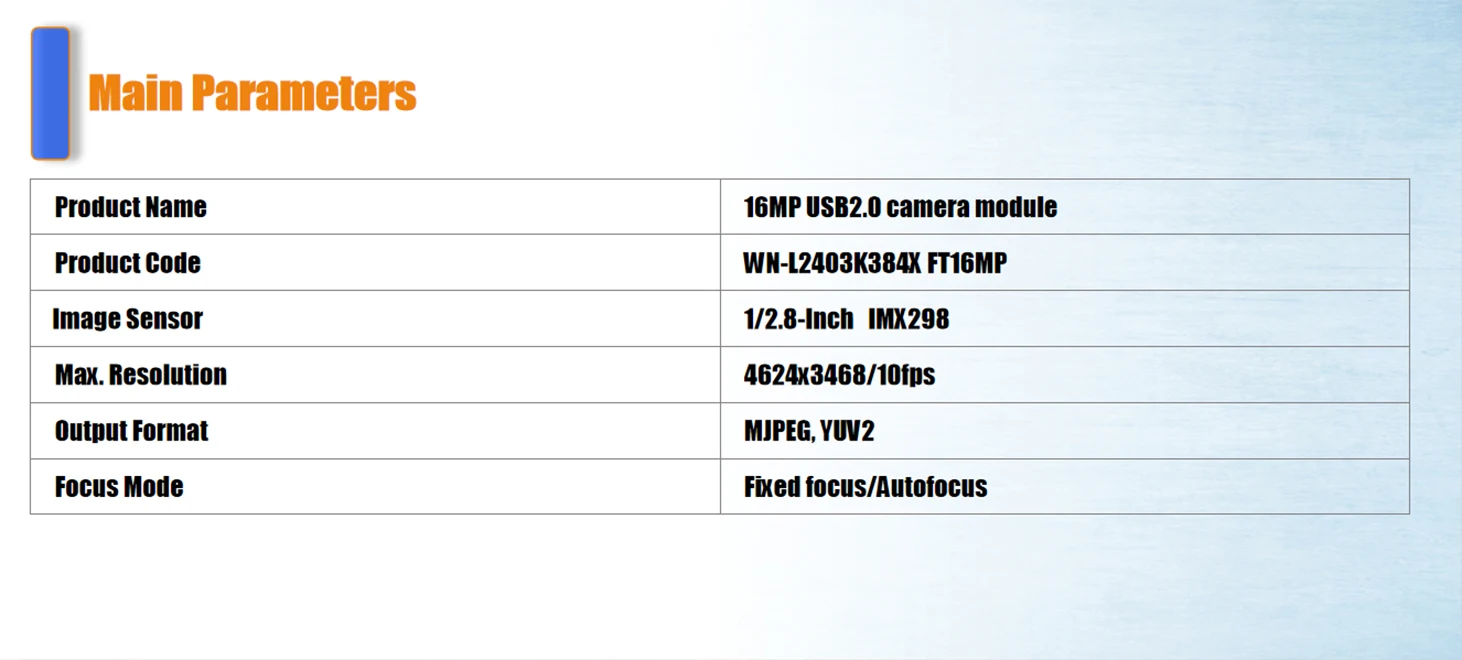

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Compatible Brand: IMX298

Compatible Camera Style: Camcorders

Customized Support: Yes

FOV: 78.4°

Focus Type: AF/FF

High-concerned chemical: none

Model Number: WN-L2403K384X FT16MP

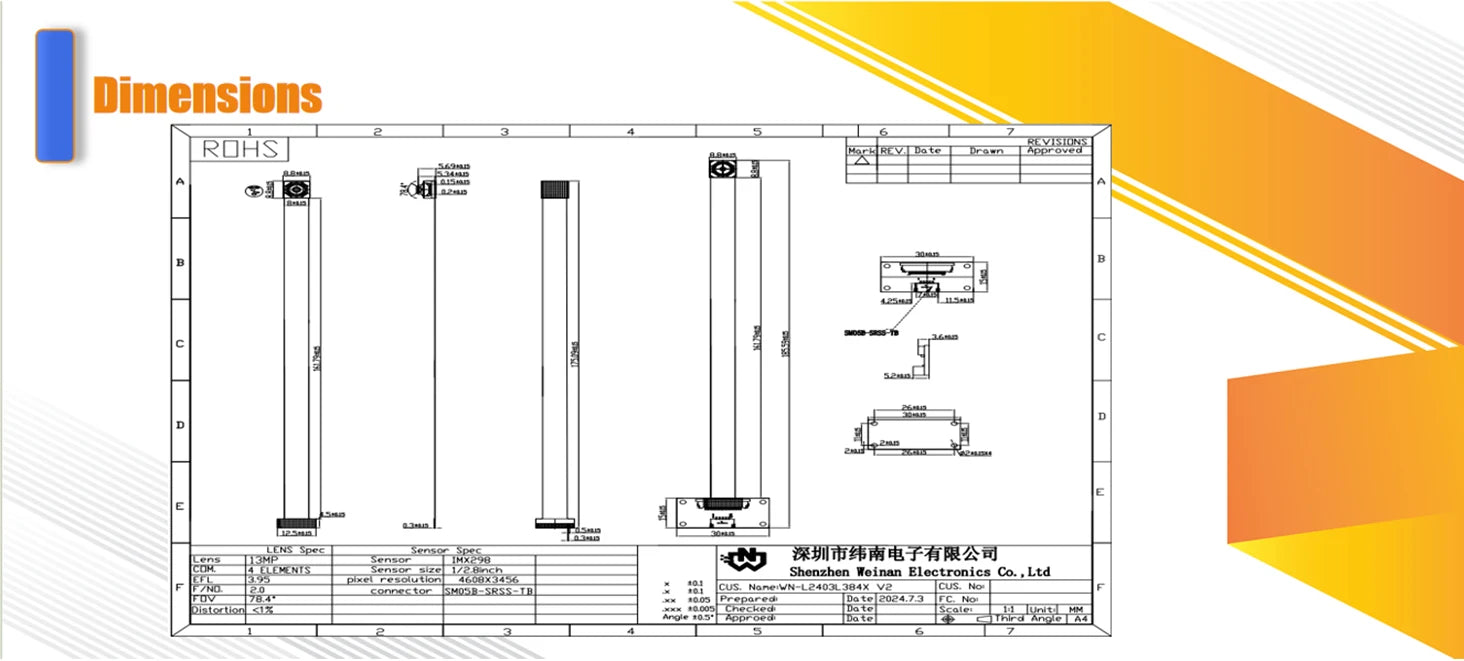

Module Size: 185.59*30* 5.69mm

Origin: Mainland China

Package: Yes

Resolution: 4624H x 3468V

Sensor: IMX298

Supported OS: Windows, Android, Linux, Wince, Mac OS

·Module Size: 105.59*30*5.69mm

·Pixel Size: 1.12*1.12μm

·Max. Resolutions: 4656H*3496V

·Frame Rate: 10fps

·Field of View: 78.4°

·Focus Mode: Autofocus/Fixed focus

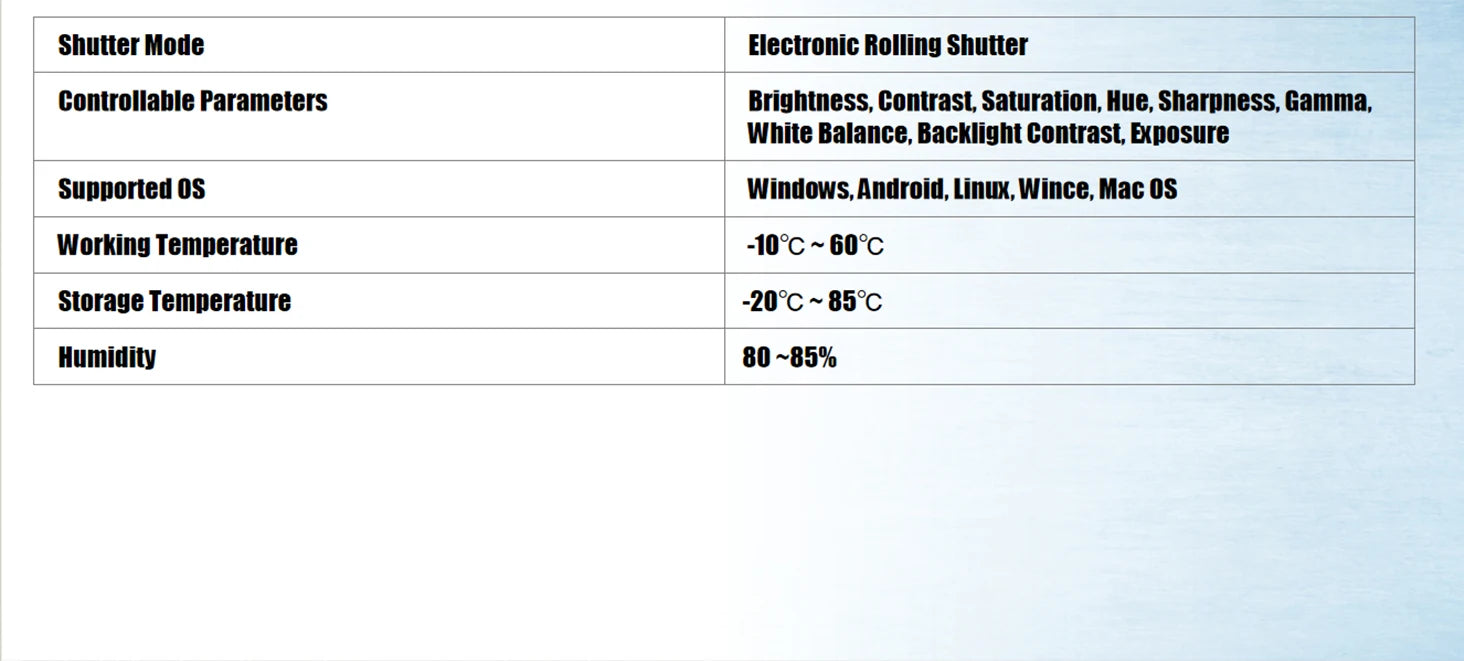

·Shutter Mode: Electronic Rolling Shutter

·Compatibility: Windows,Android，wince，MacOS

·Connection Cable: Default 1.0 Meter USB Cable

Formats
Resolutions
Frame Rates
MJPEG
4624*3468(16MP)
10FPS
4168*3126(13MP)
10FPS
3840*2160(4K)
25FPS
3264*2448(8MP)
10FPS
2592*1944(5MP)
30FPS
2650*1440(2K)
25FPS
2048*1536
10FPS
1600*1200
10FPS
1920*1080
30FPS
1280*720
30FPS
640*480
30FPS
YUY2
1600*1200
5FPS
1920*1080
5FPS
1280*720
10FPS
640*480
30FPS
Working Conditions
Working Voltage
USB DC +5V Supply
Working Current
250mA
Working Temperature
-10°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
