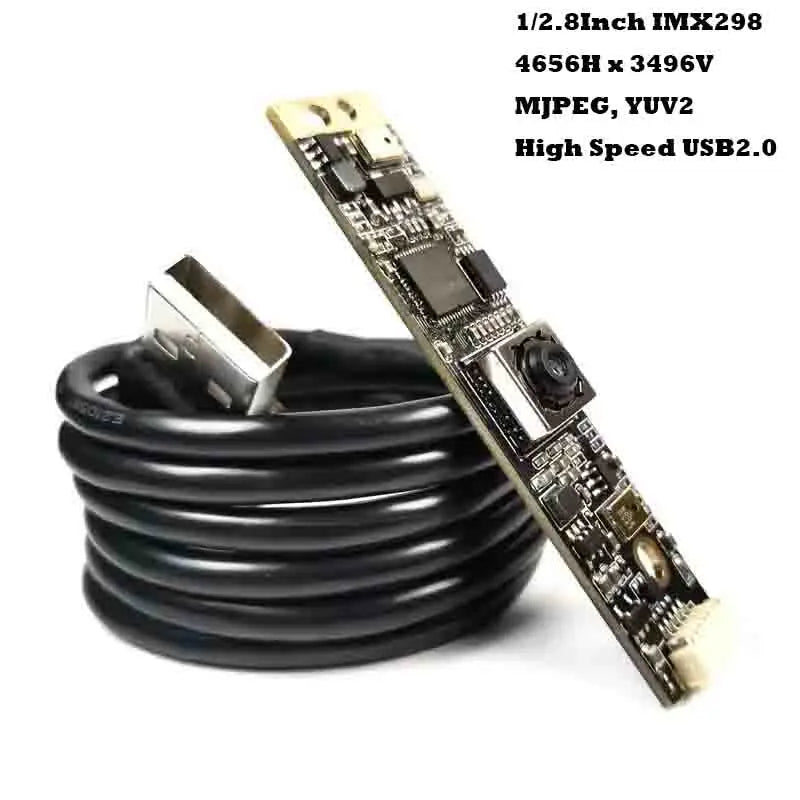

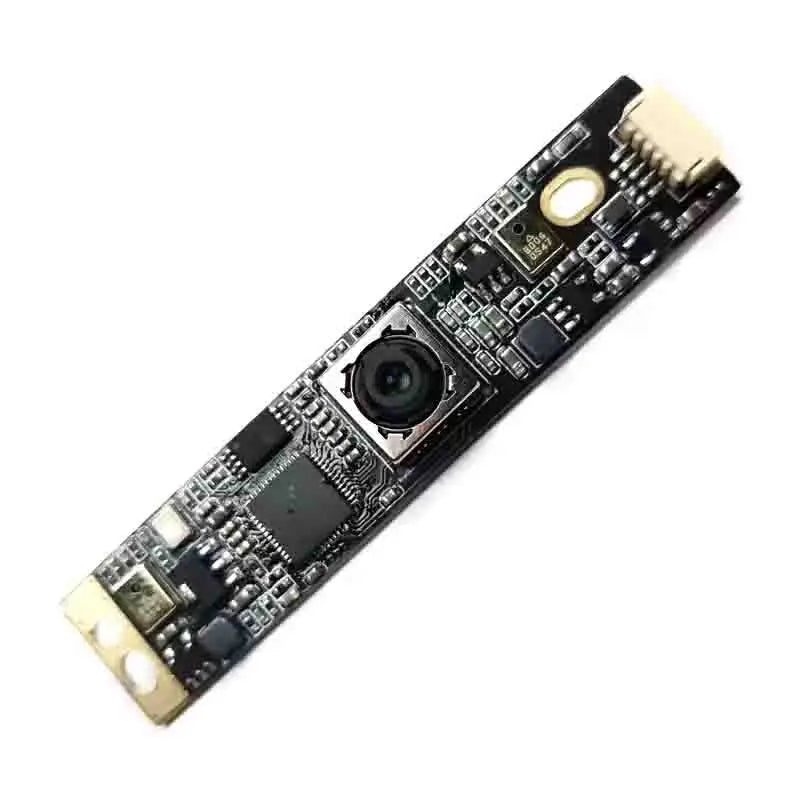

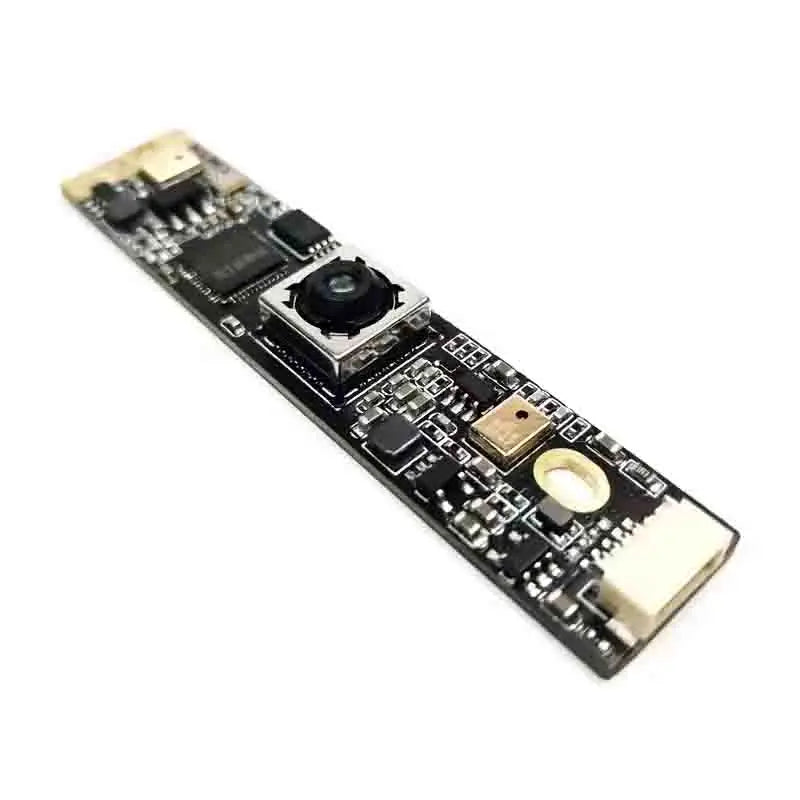

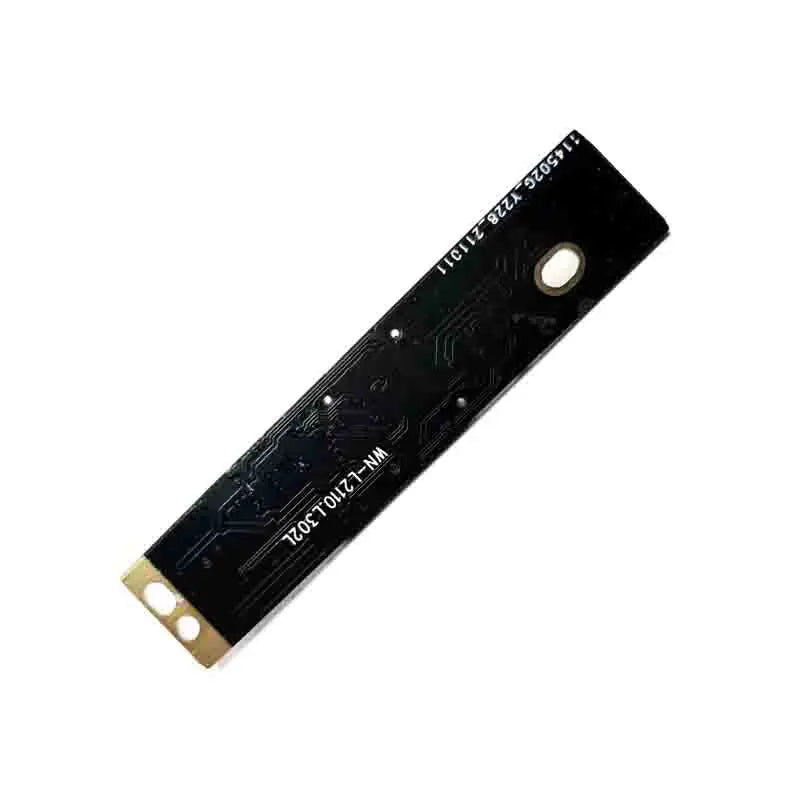

4656H x 3496V 16MP HD IMX298 USB Camera Module Autofocus 78.4 Degree with Micphone for Face Recognition Digital Laptop
Default Title
$227.16
Sale price
$227.16
Regular price
$0.00
Skip to product information
4656H x 3496V 16MP HD IMX298 USB Camera Module Autofocus 78.4 Degree with Micphone for Face Recognition Digital Laptop
$227.16
Sale price
$227.16
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
Compatible Brand: 1/2.8Inch CMOS IMX298
Compatible Camera Style: Camcorders
FOV: 78.4 Degree
Focus Type: AF
High-concerned chemical: none
Interface: 5 PIN 1.25MM Socket
Model Number: NWN-L2110.L302L
Origin: Mainland China
Package: Yes
Resolution: 16MP 4656H x 3496V
Sensor: 1/2.8Inch CMOS IMX298

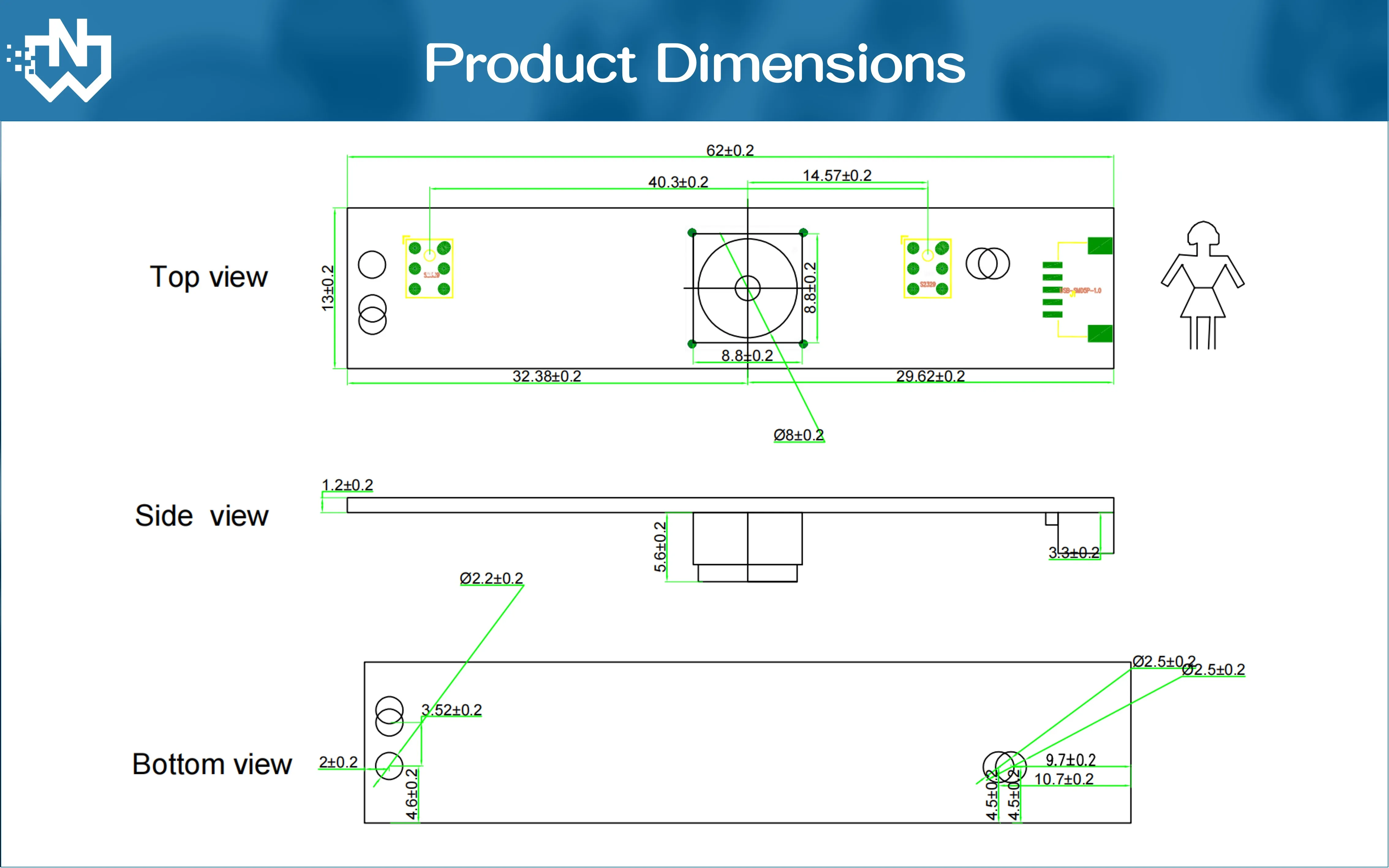

·Module Size: 62*13mm
·Pixel Size: 1.12*1.12μm
·Max. Resolutions: 4656H*3496V
·Frame Rate: 8fps
·Output Format: MJPEG, YUY2
·Field of View: 78°
·Focus Mode: Autofocus
·Shutter Mode: Electronic Rolling Shutter
·Compatibility: UVC-compliant, Plug and Play
·Connection Cable: Default 1.0 Meter USB Cable
Module Size |
62*13m |
Sensor |
1/2.8Inch CMOS IMX298 |
Pixel Size |
1.12um x 1.12um |
Resolution |
4656H x 3496V |
Output Format |
MJPEG, YUV2 |
FOV |
Auto Focus: 78.4 Degree, Manual and Fixed: TBD |
Focus Type |
AF/ FF/ MF |
Shutter Type |
Electronic Rolling shutter |
Audio Input |
Digital Two-way Audio |
Output and Power Supply |
High Speed USB2.0 |
Interface |
5 PIN 1.25MM Socket |
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
Cable Length |
Default 1.0 Meter USB Cable |
Format |
Resolution |
Frame Rate (USB2.0) |
MJPEG
|
4656X3496(16MP) |
8FPS |
4208X3120 |
10FPS |
|
3264 x 2448 (8MP) |
10FPS |
|
2592X1944 (5MP) |
10FPS |
|
2048*1536 (3MP) |
10FPS |
|
1920x1080 (1080P) |
15FPS |
|
1280X720 (720P) |
15FPS |
|
640X480 (VGA) |
15FPS |
Pin No. |
Signal Name |
Description |
1 |
VCC |
5V Power |
2 |
DM |
USB2.0 Data+ |
3 |
DP |
USB2.0 Data- |
4 |
GND |
GND |
5 |
GND |
GND |
Operating Voltage |
USB DC +5V Supply |
Operating Current |
220mA |
Operating Temperature |
-20℃ ~ 70℃ |
Storage Temperature |
-20℃ ~ 85℃ |
Humidity |
80 ~85% |
