SPECIFICATIONS

Product Name: 4bit UART TTL Serial Port Digital Tube Display Module replace TM1650 MAX7219 TM1637 74HC595 for Arduiuo NODEMCU Pi

Packing list:

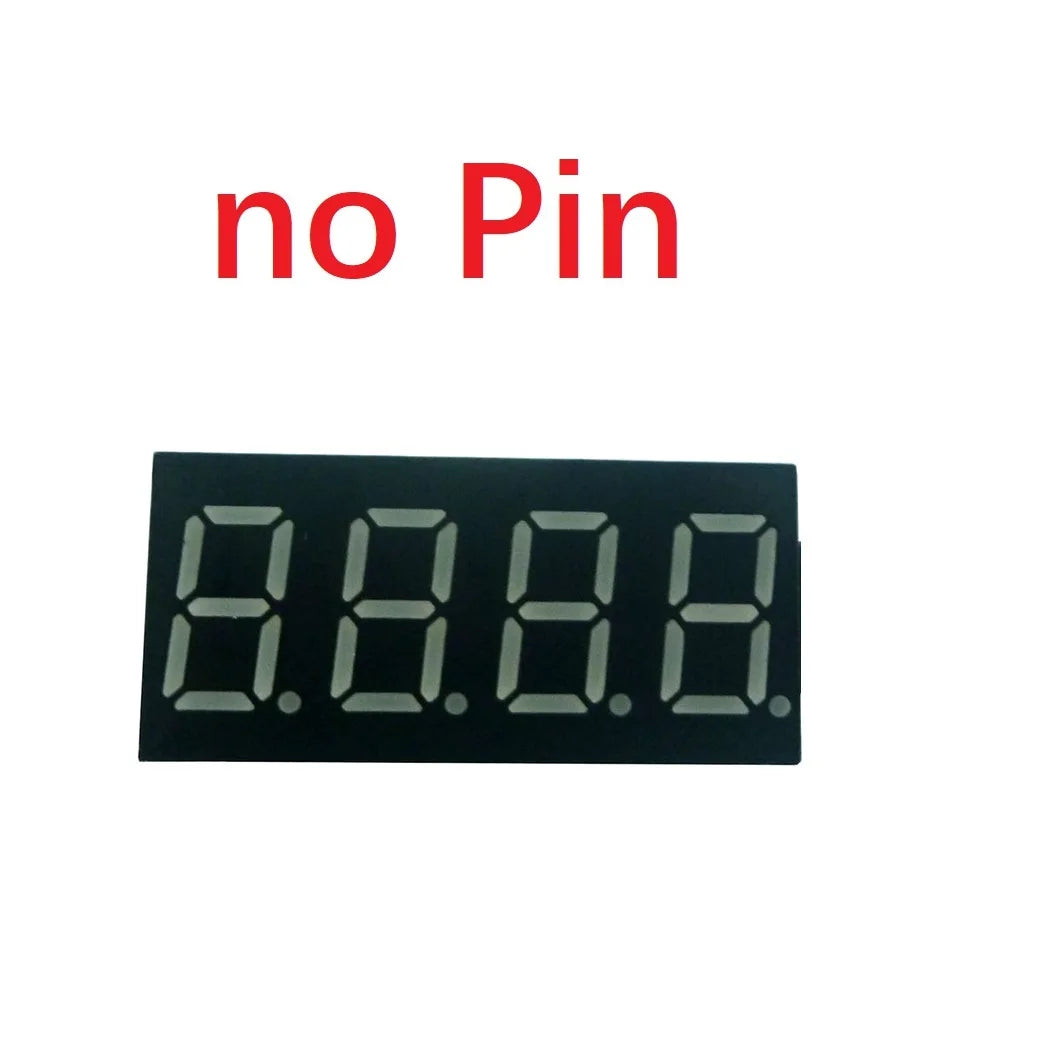

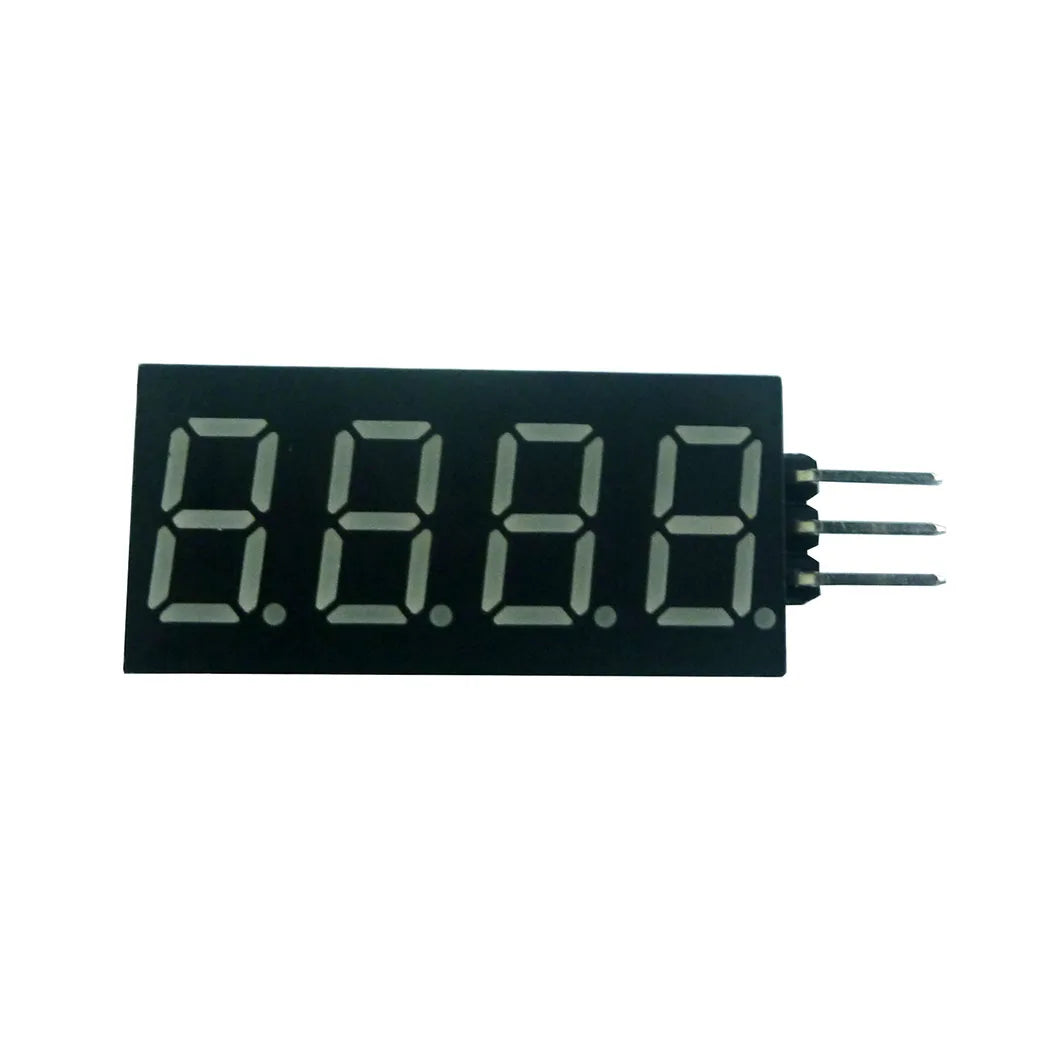

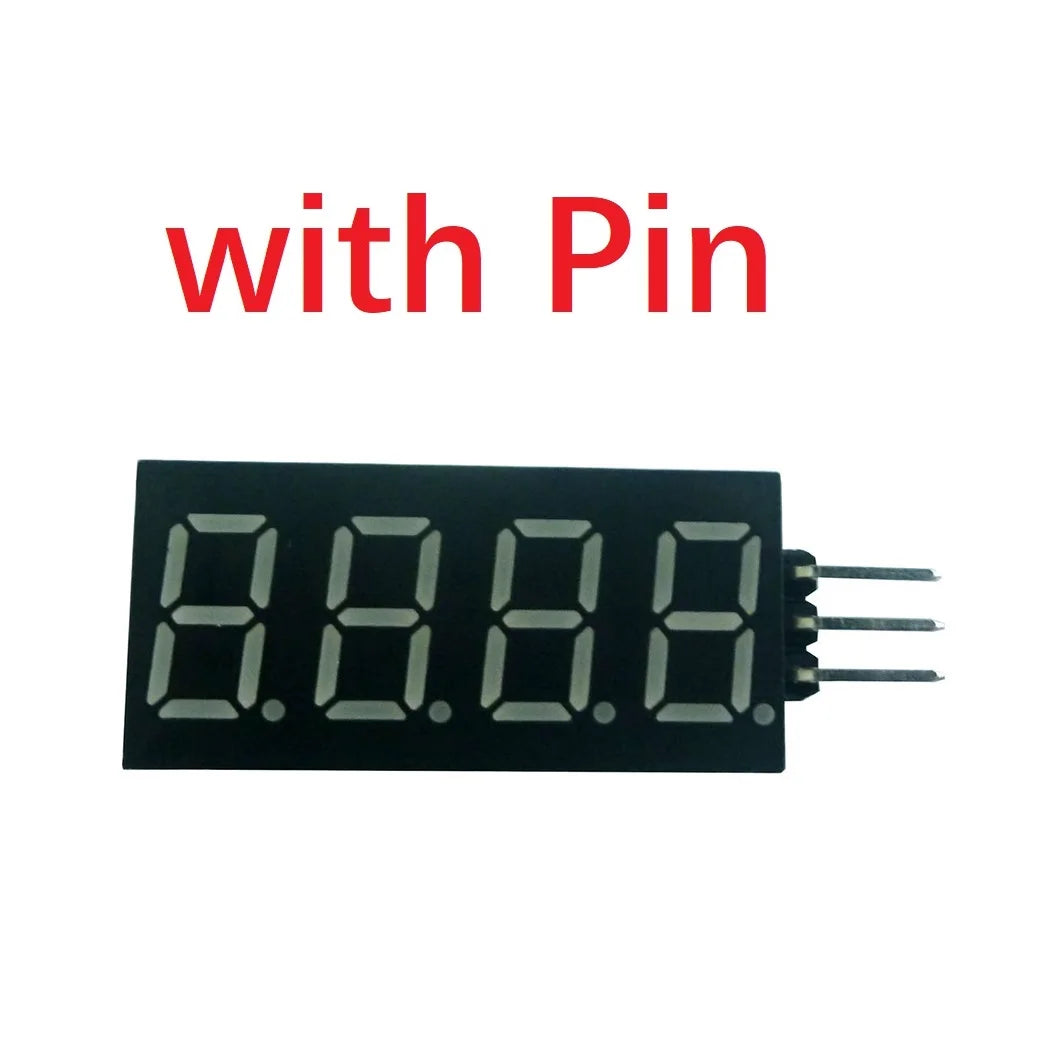

1 PCS 4 bit RXD TTL232 Digital Tube LED Display Module;

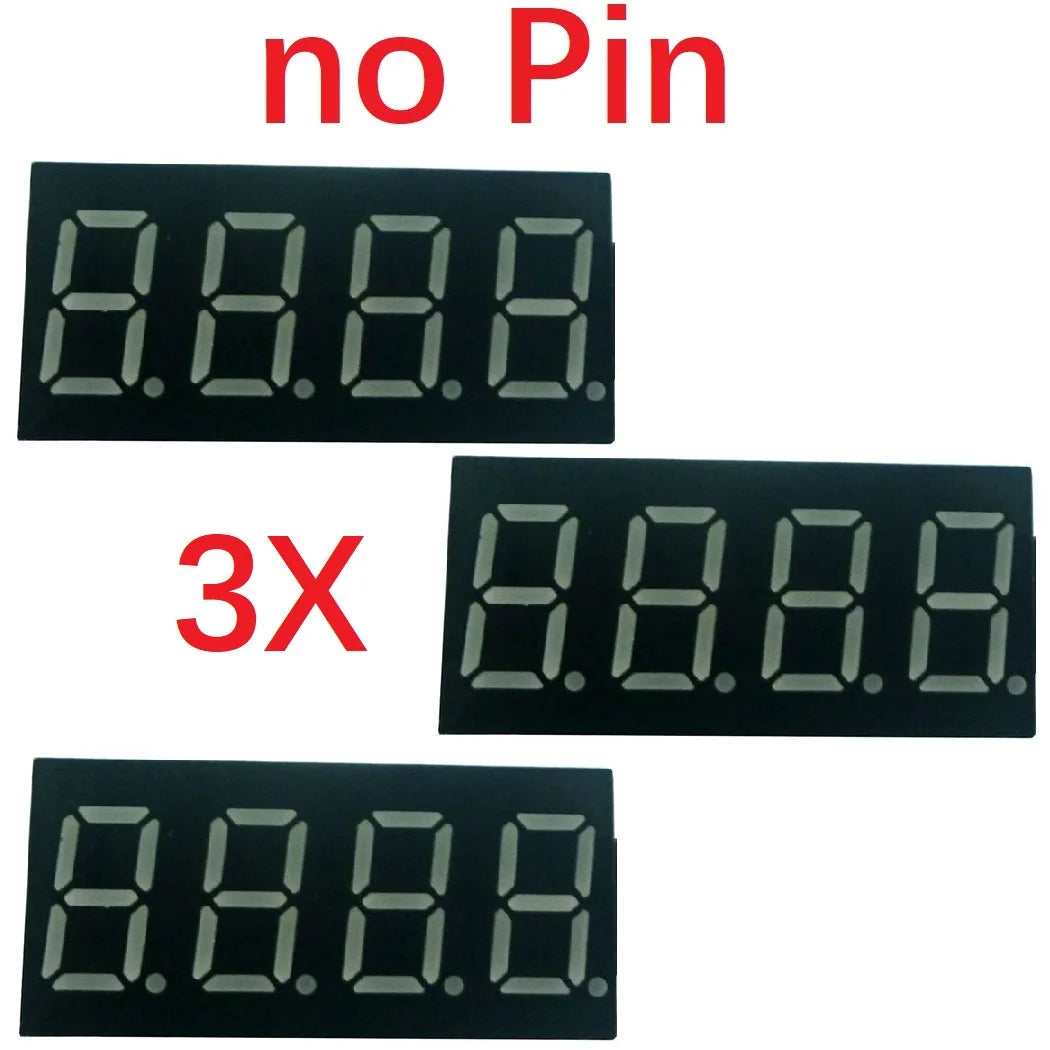

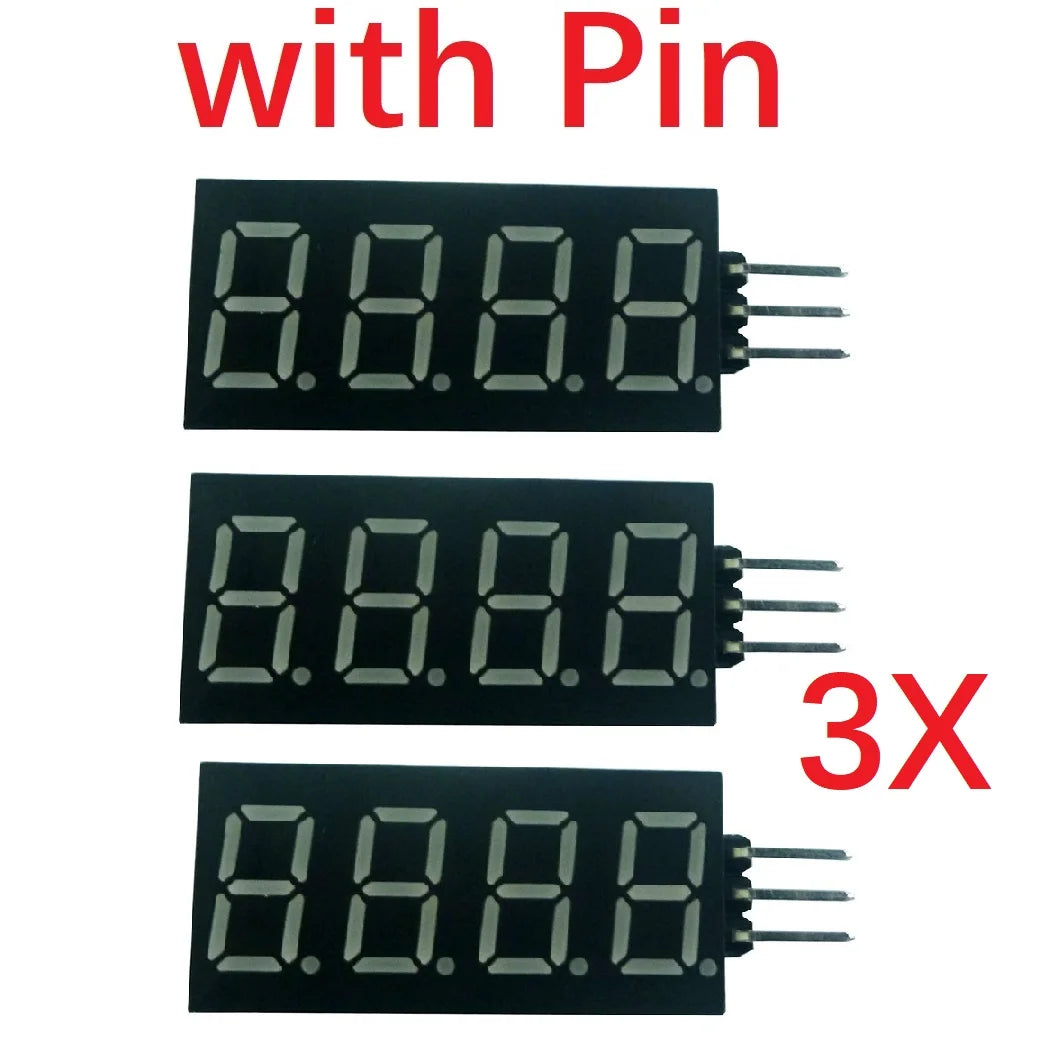

(Specific according to the version and quantity you choose)

Description:

Working voltage: DC 5V

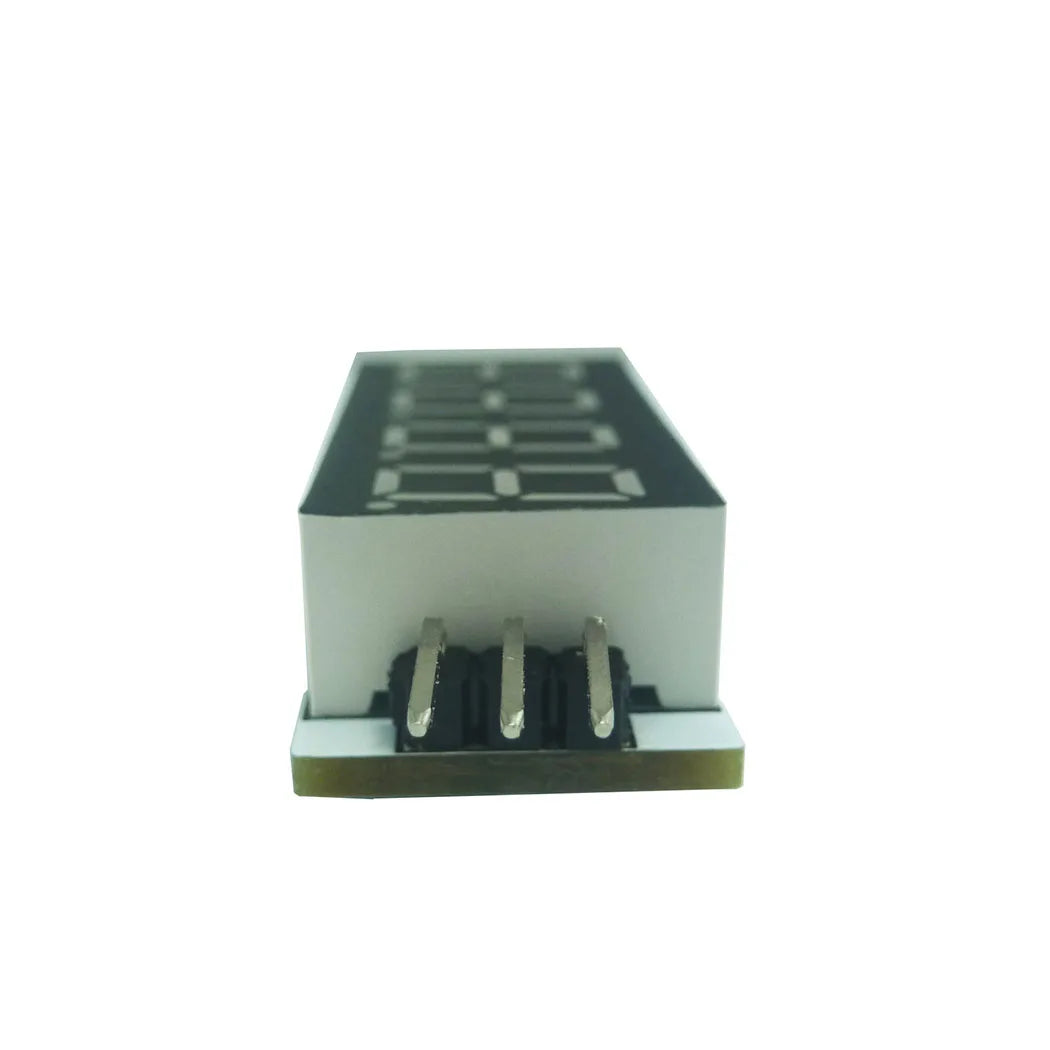

4-bit 0.36-inch red digital tube
Driver chip: the company's custom chip
Driver interface: TTL232 (RXD Pin), driven by USB to TTL or MUC UART TXD interface
Can display characters: AbcdEFGHIJKLMnopqrStUvWXYZ1234567890
Size: 33mm*15mm*11mm
Weight: 5 grams

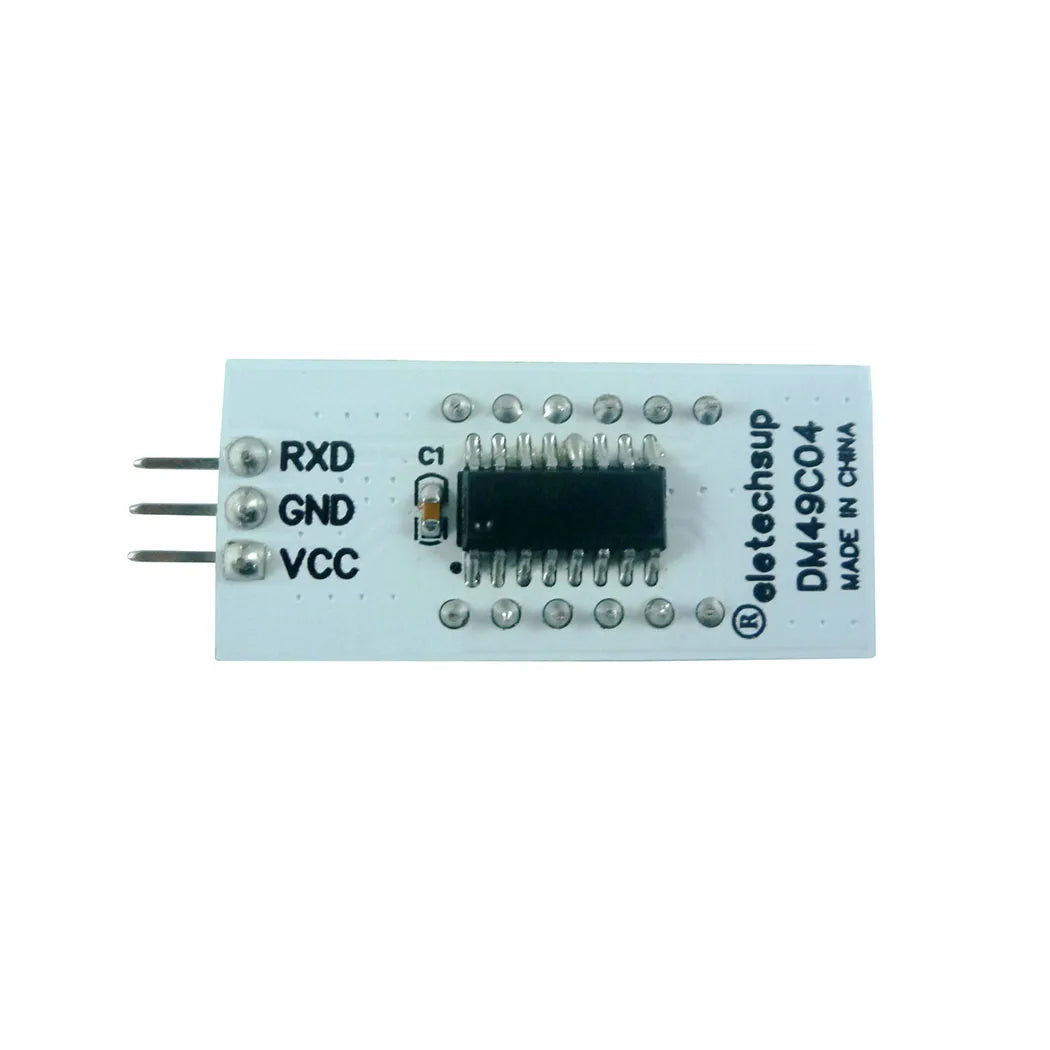

Pin description:
VCC: positive power supply 5V
GND: negative power supply
RXD: serial port receiving line (connected with the TXD of the single-chip USB to TTL)

Applications:

for Arduiuo UNO MEGA2560 LEONARDO MICRO NANO ADAPTER Pro Mini ZERO DUE
for raspberry pi 3 B+ 4
for MCU AVR PIC ARM STM32
for FPGA/CPLD
for Toy car
for instrument meter
for Electronic hobby DIY
for Ascii code Text Display Board


For more information, please open the link and download:
https://1drv.ms/u/s!Av4PLxH_z8f1hQQOQjR1Jn_UorNR?e=phG4dw

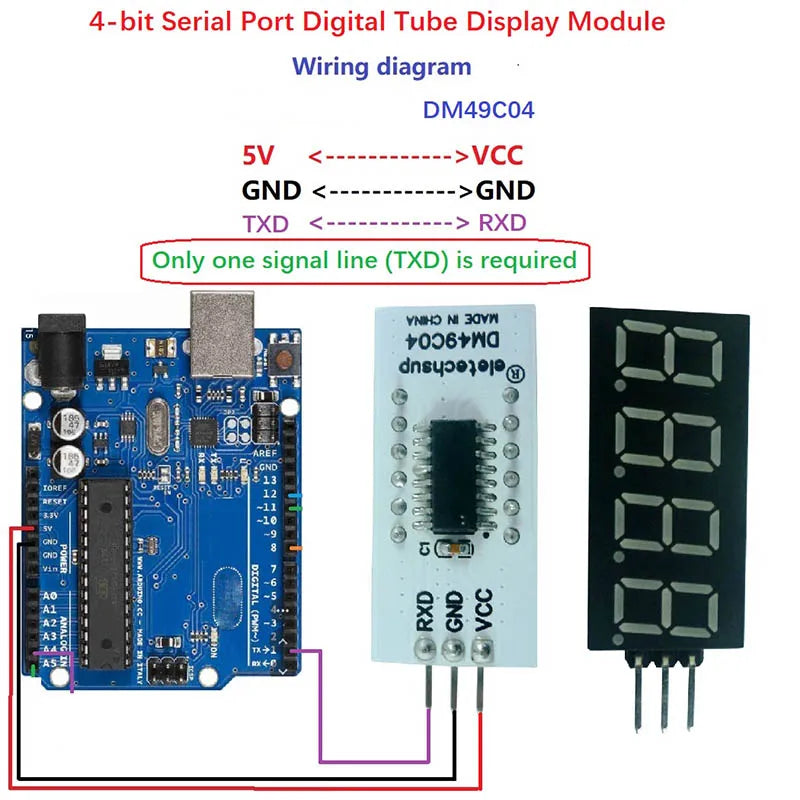

Connect with UNO ( Does not include UNO)

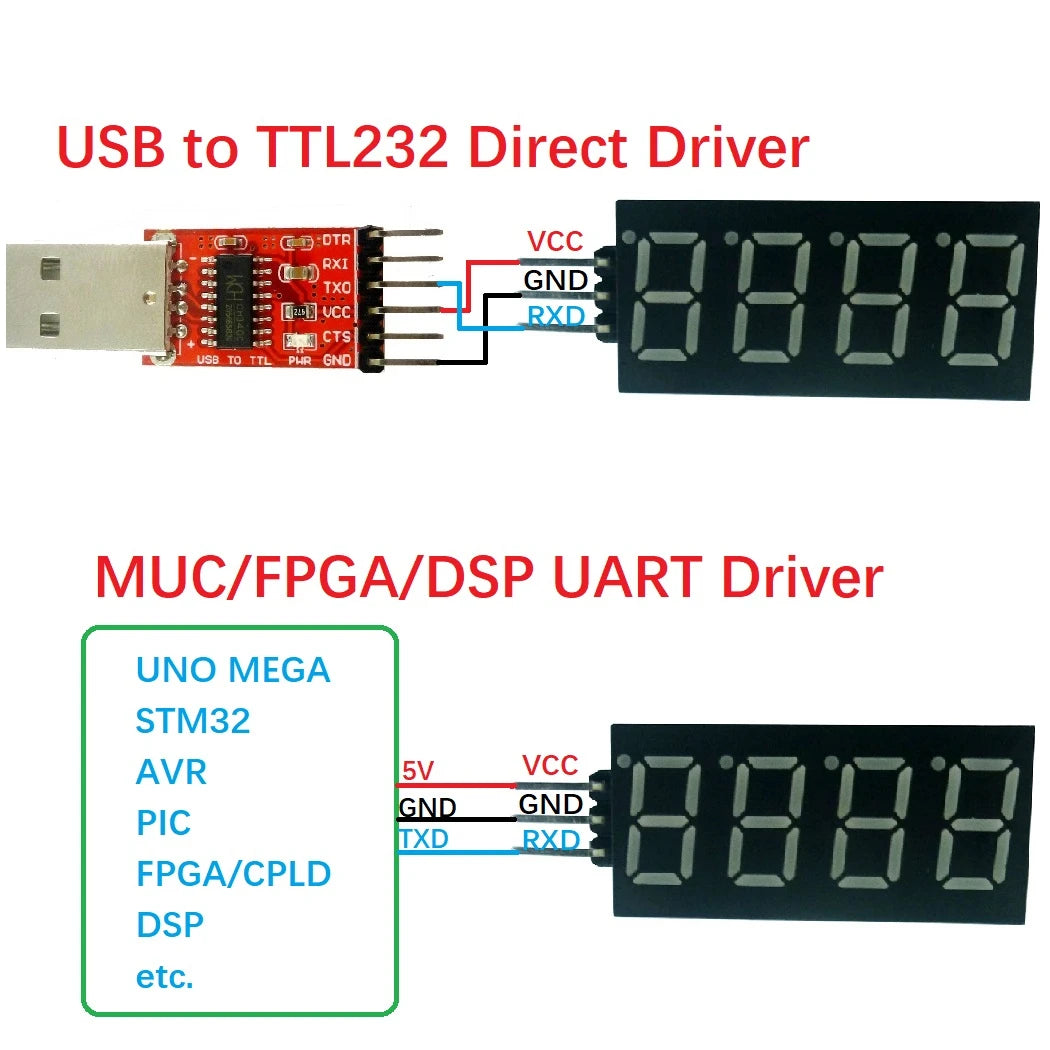

Connect with MCU/FPGA or USB to TTL232 Board

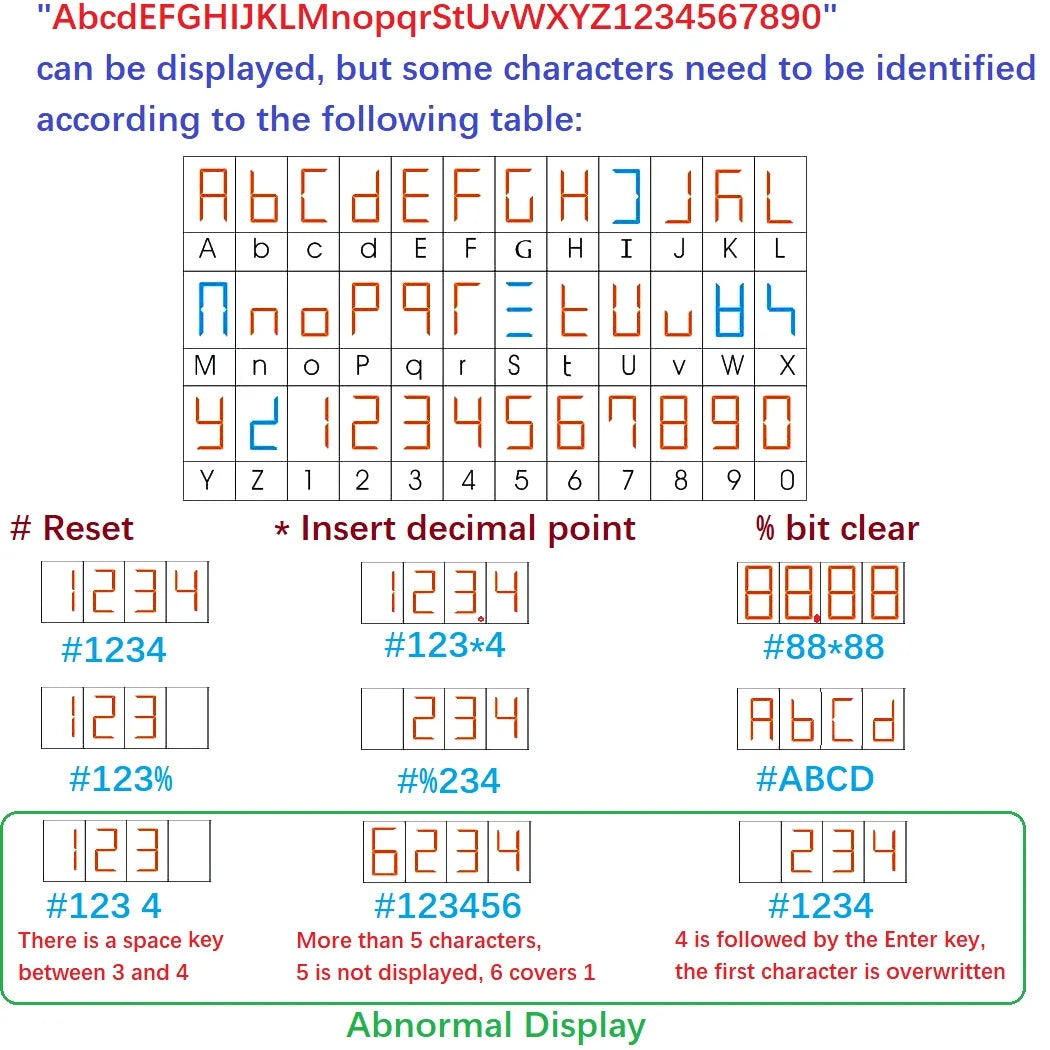

Theoretically, these Ascii characters ''AbcdEFGHIJKLMnopqrStUvWXYZ1234567890'' can be displayed, but some characters need to be identified according to the following table:

3 Special Function Characters:
#:Reset(And Clear Screen)
*:Insert Decimal Point
%:Bit Clear

How to use:
Connect the DC 5V power supply to the VCC GND port, and connect the RXD port to the TXD port of the MCU or USB to TTL Board

UART communication parameters: Baud rate 9600, 8, 1, N

Add the # reset command in front of the character, you can enter 1-5 characters (1-4 characters and 1 decimal point) at a time, more than 5 characters will cover the previous characters, except for #*% and the characters to be displayed, There must be no other characters (space/enter), otherwise an exception will be displayed.

Example:
Display 1234 Input: #1234
Display 123.4 Input: #123*4
Display 88.88 Input: #88*88
Display 123 Input : #123% Do not display the lowest digit
Display 234 Input : #%234 does not display the highest bit

Notice:
If it shows abnormality, please check if the string has ''space/enter'' or other special characters at the beginning or end of the string
