SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS,KC

Compatible Brand: IMX298

Compatible Camera Style: Camcorders

High-concerned chemical: none

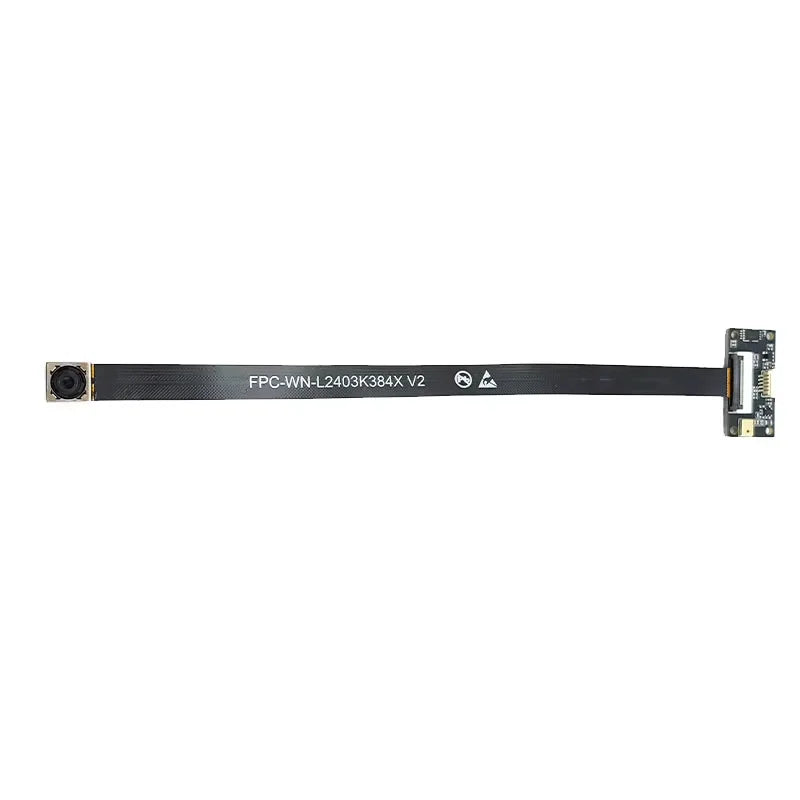

Model Number: WN-L2403K384X FT16MP

Origin: Mainland China

Package: Yes

Certified by CE

Reliable performance guaranteed, as this camera module is certified by the renowned CE standard.

Auto focus/fixed focus 78°

Enjoy flexible focus options with auto or fixed focus settings, ensuring a wide field of view at 78°.

Compatible with Camcorders

Versatile compatibility with camcorders, making it a perfect addition to your filming equipment.

Plug-and-play without driver

Ease of use with plug-and-play functionality, no driver installation required for hassle-free setup.

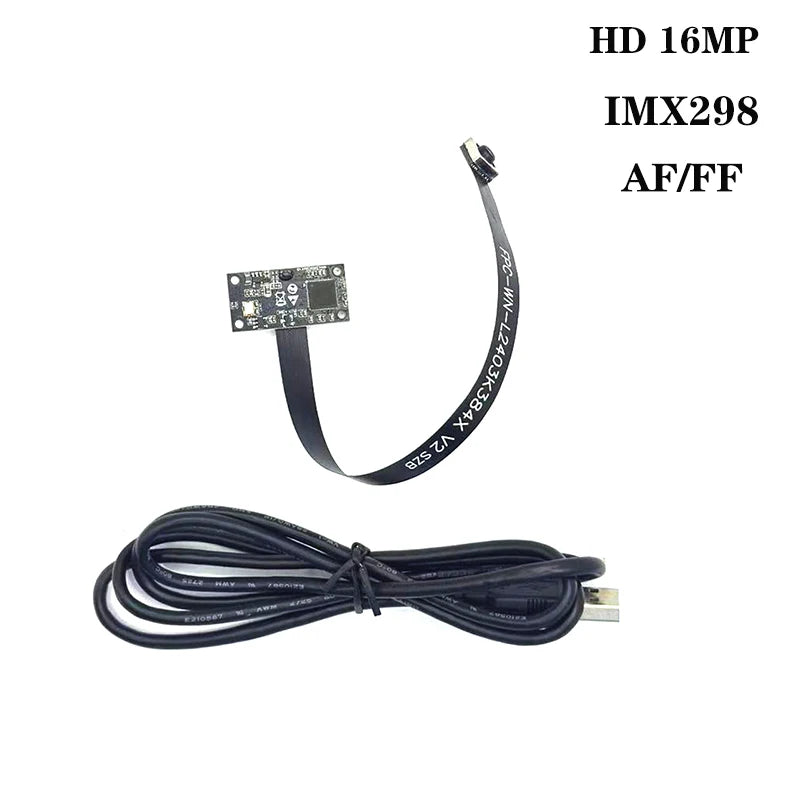

4K 16MP IMX298 Sensor

Experience unparalleled clarity with the 4K 16MP IMX298 sensor, capturing every detail with precision.

Module Size	185.59305.69mm
Sensor	IMX298
Type	1/2.8-Inch
Pixel Size	1.12*1.12µm
Resolution	4624H x 3468V
Lens	6P M6.8 -P0.25
EFLm	3.95
FNO	2.0±5%
FOV	DIAGONAL :78.4° HORIZONTAL:66.2° VERTICAL：52.4°
Scanning Speed	0.1S
Focusing mode	AF/FF
Shutter Type	Electronic shutter doors
Output	USB2.0
Power Supply	VCC-5V
Interface	5P 1.00(SM05B-SRSS-TB)
Controllable	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS	Windows, Android, Linux, Wince, Mac OS
Cable Length	1M
