SPECIFICATIONS

AES128 Data Encryption: YES

Antenna Connection Method: SMA

Audio Interface Type: NA

Brand Name: G-NiceRF

Built-in Hardware Reset Protectioncircuit: YES

CRC Encryption Optional: YES

Communication Channels: Up to 40 Communication Channels In The Same Frequency Band

Communication Interface Type: UART Interface

Frequency Band: 433/470/868/915MHz

High-concerned chemical: none

Information Delivery Content: Data

Listen Before Talk: YES

Maximum Output Power: 160 mW(+22 dBm)

Network Support: Yes

Operating Temperature: -40 ~ +85 °C

Origin: Mainland China

Sensitivity: up to -129 dBm

Single Module Open Transmission Distance: 5Km @ Low Rate

TTL Interface: YES

Transmit Power: 160mW

Type: Lora Module

Voltage: 1.8 ~ 3.7 V

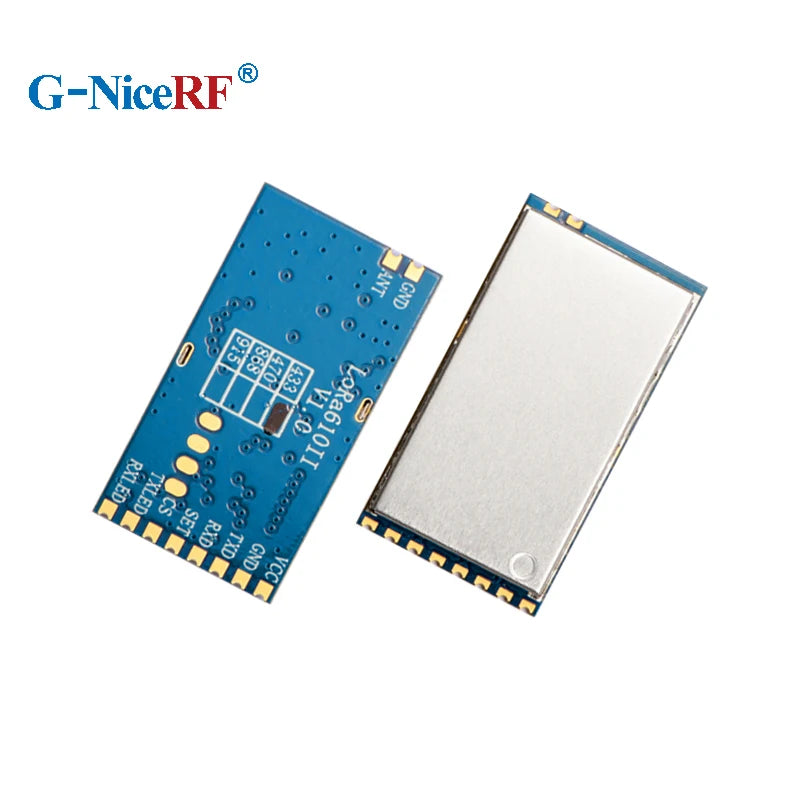

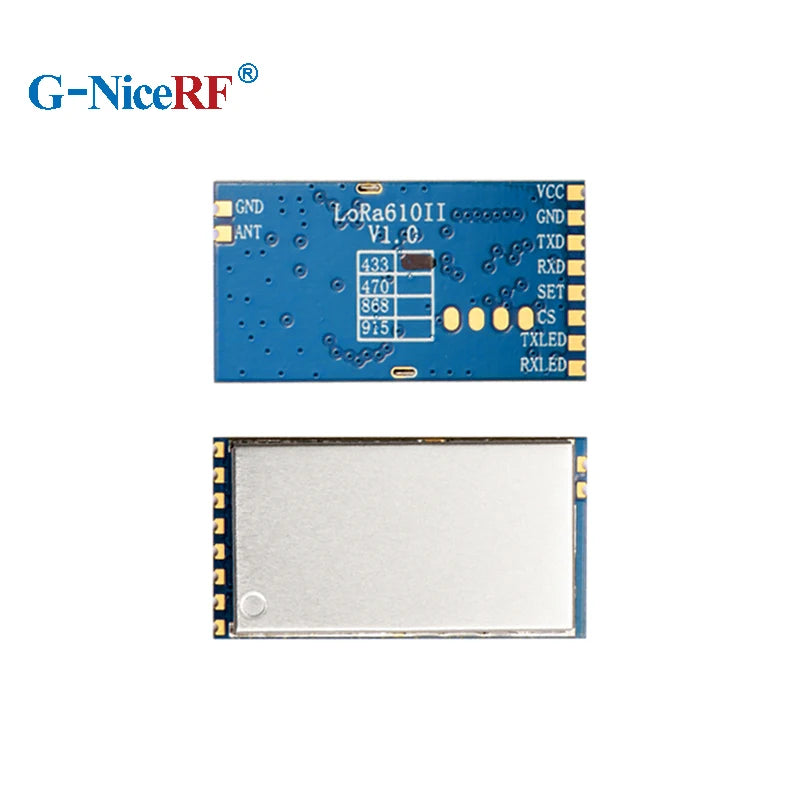

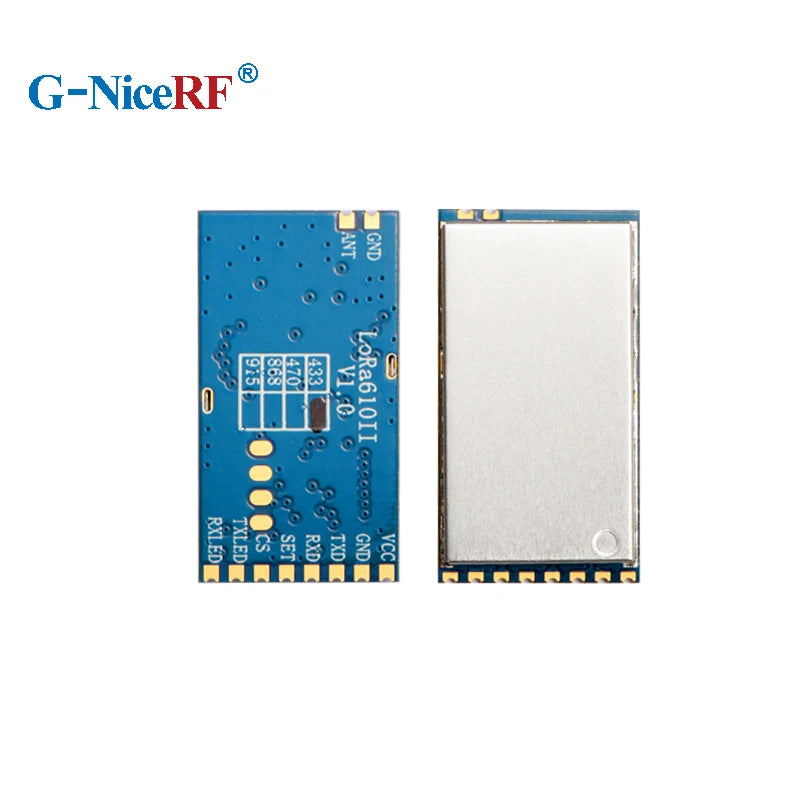

4 PCS  Lora610II LoRa Modules

Overview

The LoRa II module is a new series of upgraded networking wireless communication modules from NiceRF.

It uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity.

The penetrating power and communication distance are far superior to the current FSK and GFSK products,

and have stronger anti-interference. In order to meet the application needs of different customers, we design

the module software of this series as an all-in-one way.

Users can switch between different working modes through the PC software configuration module.
In MESH mode, the routing module has automatic routing. Function, the user can form a network transmission

without blind zone without distance limitation by means of multi-module combination. At the same time, users

can also encrypt AES128 wireless data through PC software or serial port instructions, making data transmission

more secure. The LoRa610II module is designed for 160mW output power and embedded small size design,
which is widely used in wireless remote transmission control industries. LoRa610II strictly uses lead-free process

for production and testing, and meets RoHS and Reach standards.

Note: The LoRa Pro series can be configured to be compatible with our previous LoRa data transmission modules.

Features

• AES128 data encryption method

• No blind zone without distance limitation

• Single module open transmission distance of 5Km @ low rate

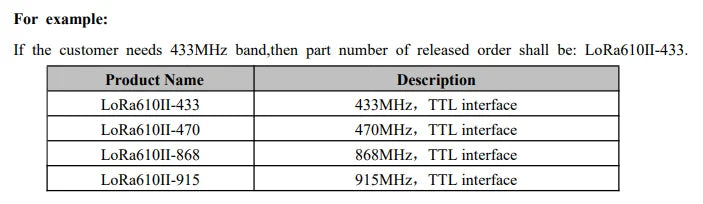

• Frequency band: 433/470/868/915 MHz for option

• Up to 40 communication channels in the same frequency band

• Diversified serial port parameters

• Operating voltage range: 1.8 ~ 3.7 V

• LBT (Listen Before Talk) function optional

• Node/route/node+route optional in MESH mode(Hop level in MESH mode)

• Built-in hardware reset protection circuit

• LoRa modulation

• TTL interface

• Sensitivity up to -129 dBm

• Maximum output power: 160 mW (+22 dBm)

• CRC encryption optional

• Operating temperature range: -40 ~+85 °C

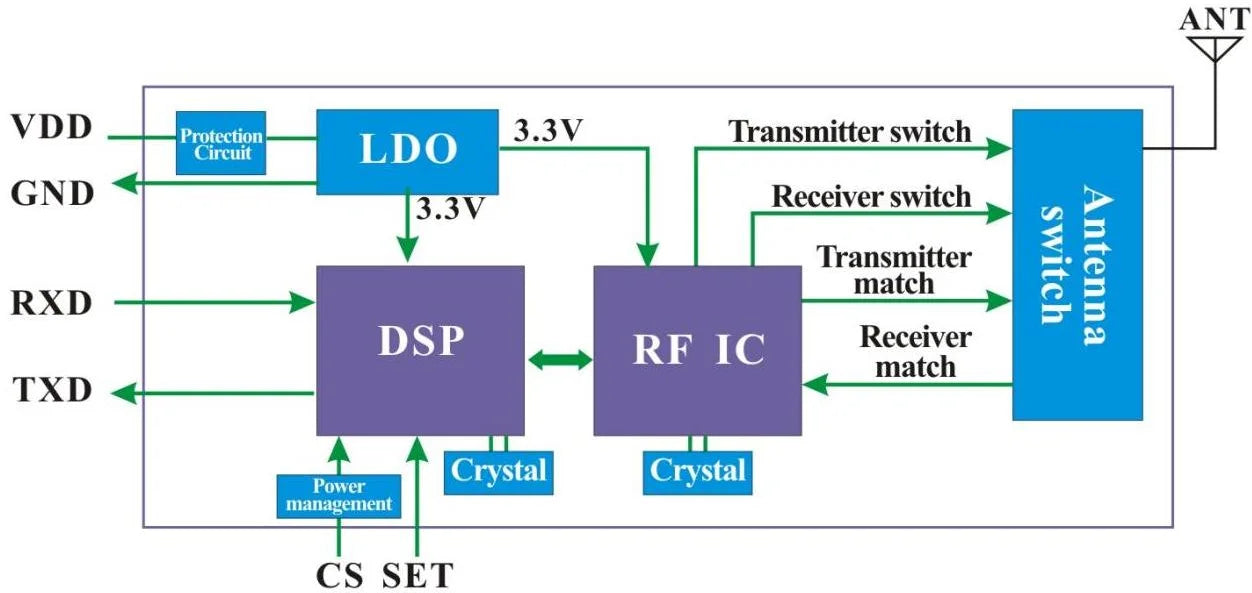

• Block Diagram

•


•

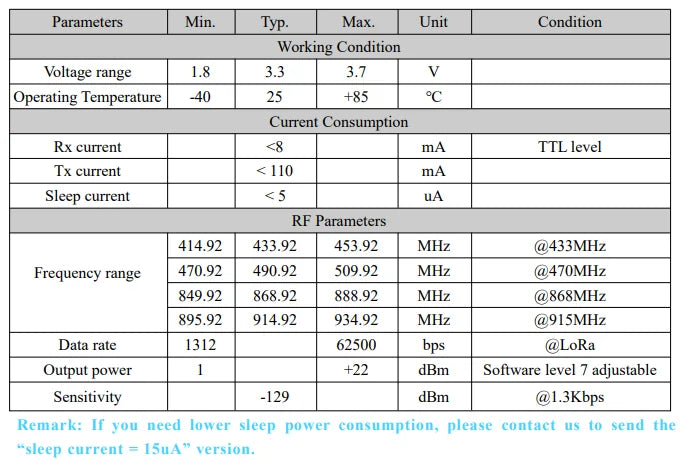

• Electrical Specifications

•

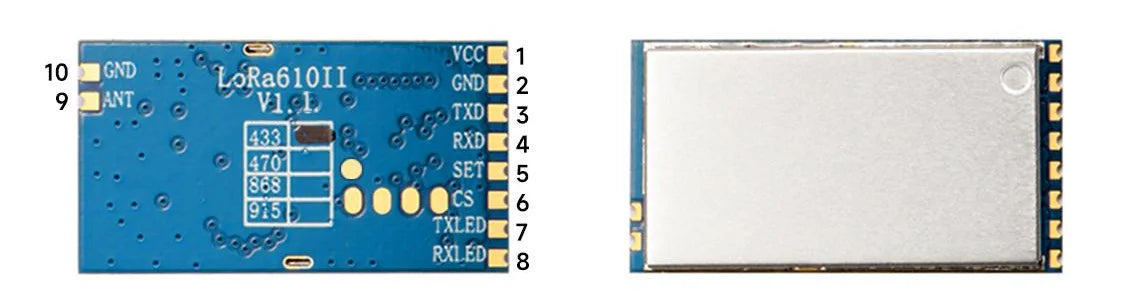

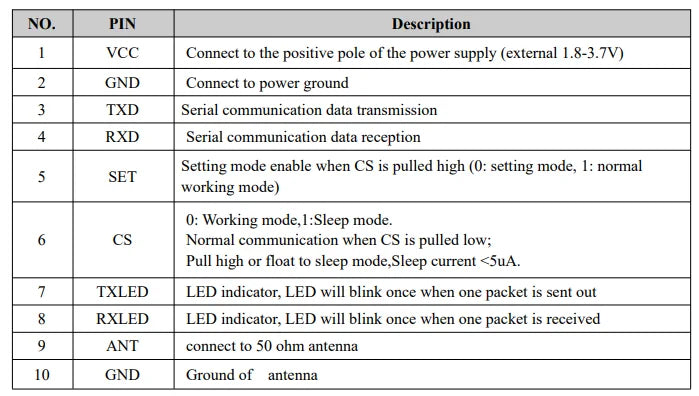

• Pin Definition

•




•

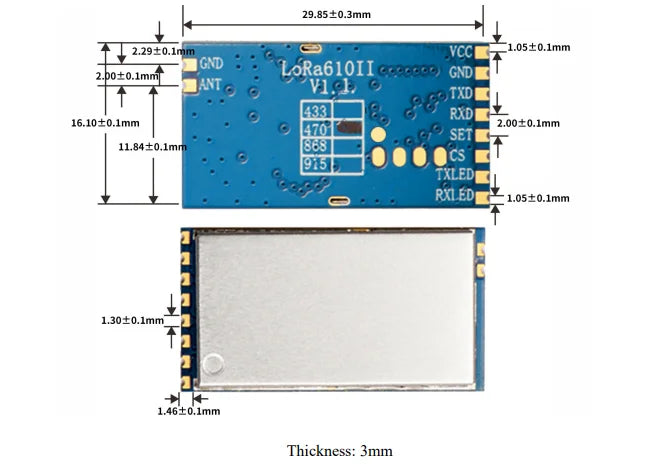

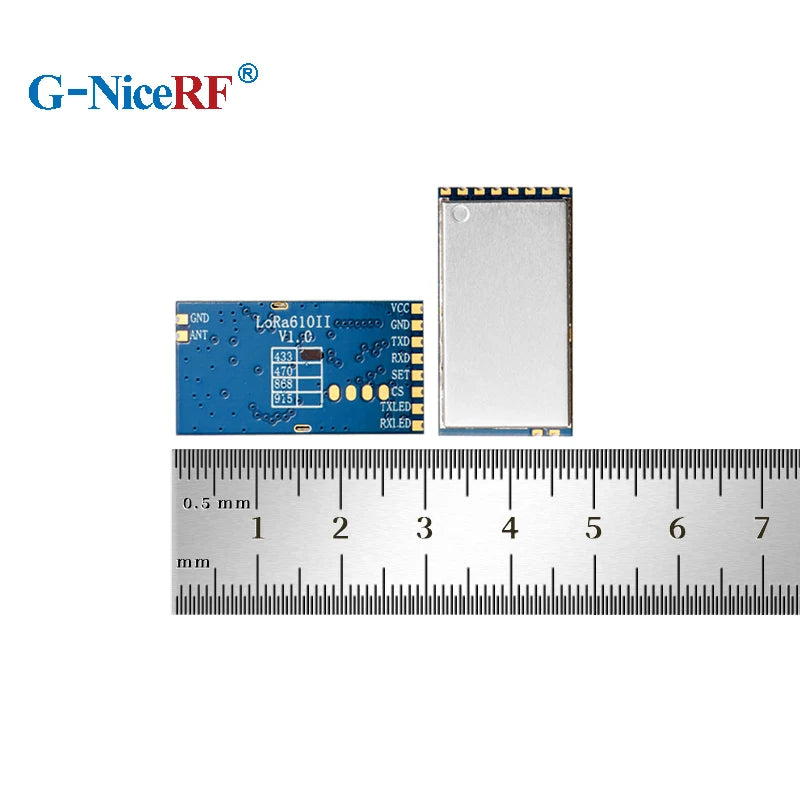

• Dimensions (unit: mm)

•


•


  •




  •
