SPECIFICATIONS

40 Channels: YES

AES128 Data Encryption: YES

Brand Name: G-NiceRF

CRC Encryption Optional: YES

Communication Interface Type: TTL/RS232/RS485

Frequency Band: 433/470/868/915MHz (Customizable)

High-concerned chemical: none

Hop Level in MESH Mode: YES

Interface: TTL/RS232/RS485

MESH Working Mode: YES

Max output power: 5W (+37dBm)

Modulation: LoRa Modulation

Origin: Mainland China

Sensitivity: -139 dBm

Transmission Distance: in open area up to15Km @ 91bps

Transmit Power: Max Output Power 5W

Type: Lora Module

Voltage: 9 ~30 V

Working Temperature: -40 ~ +85 °C

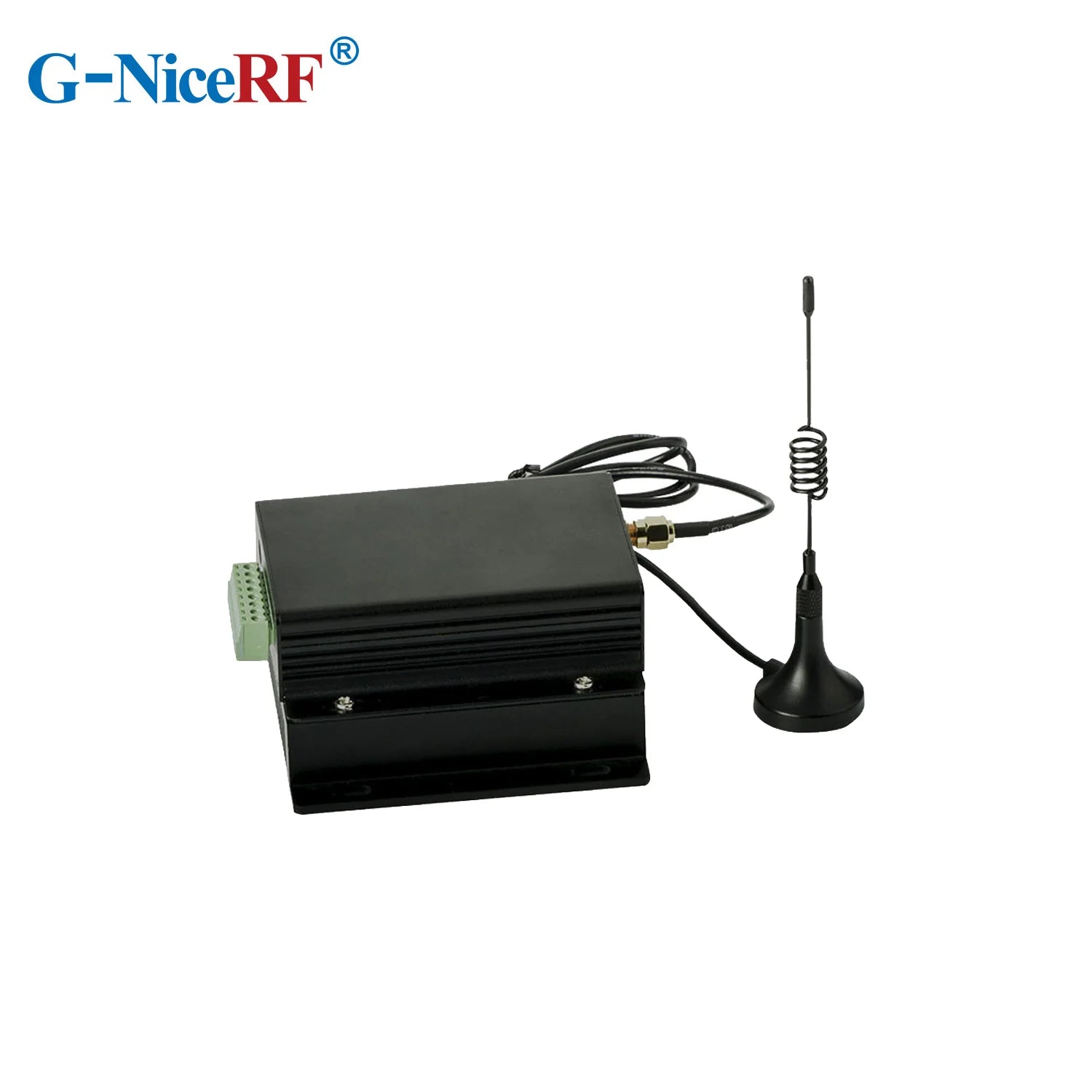

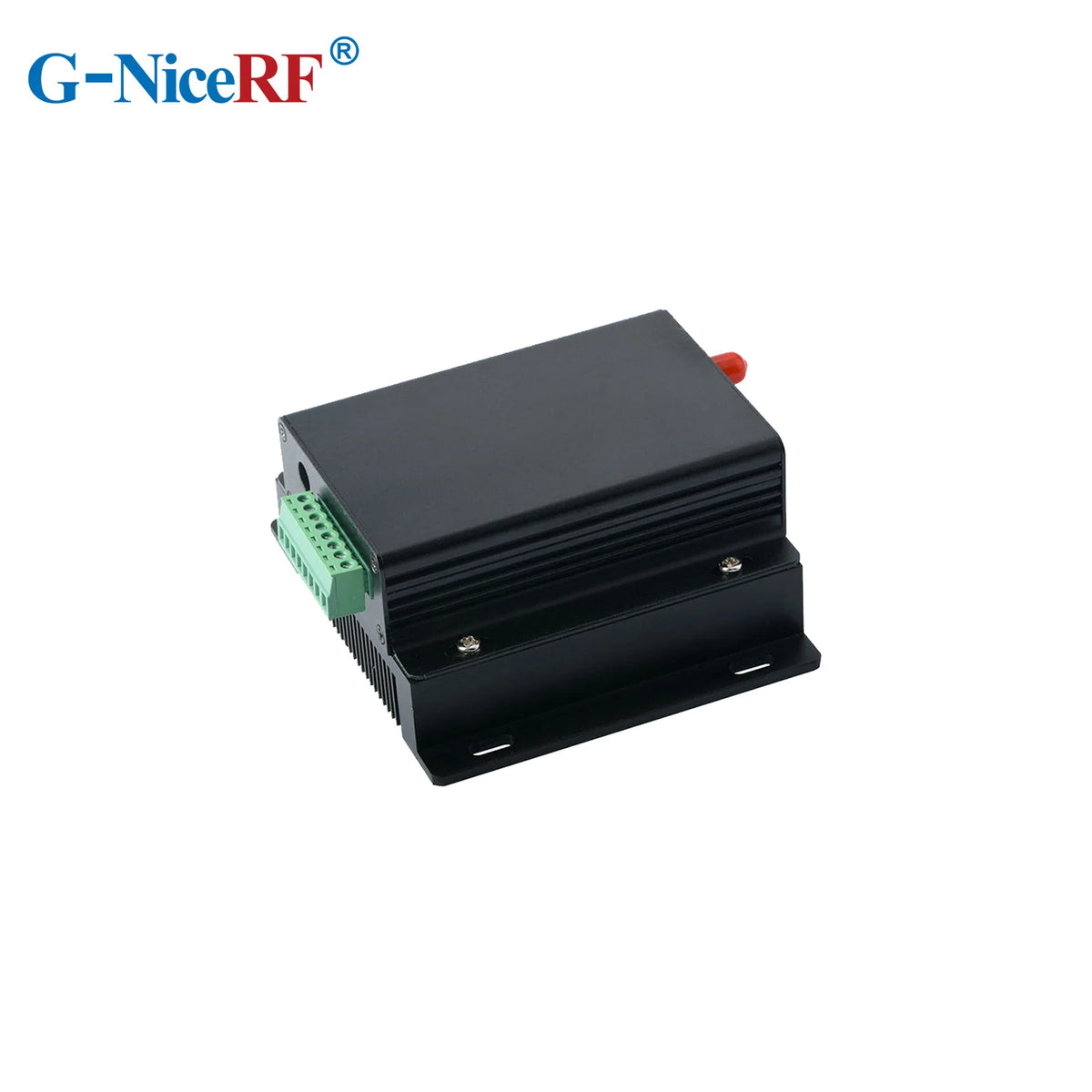

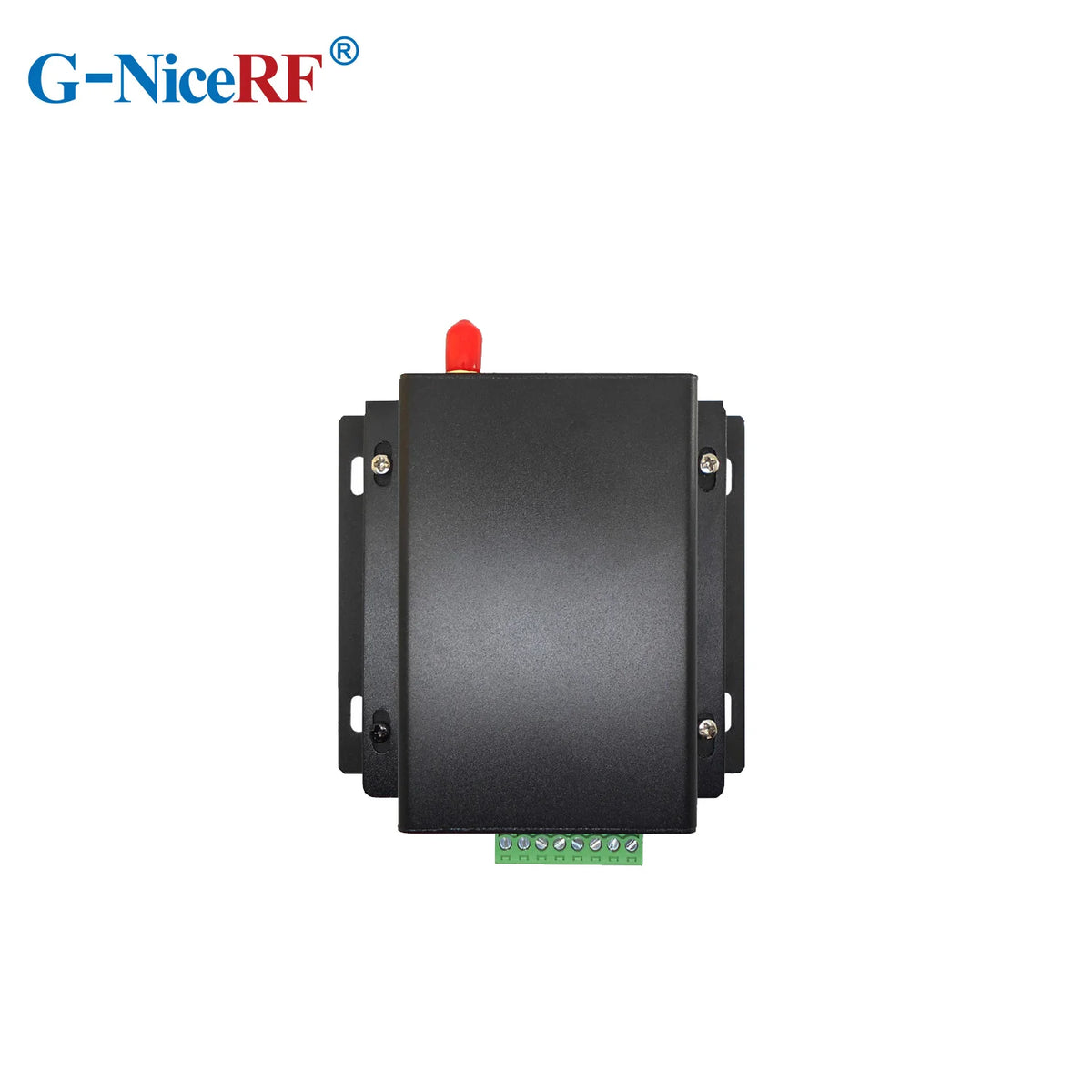

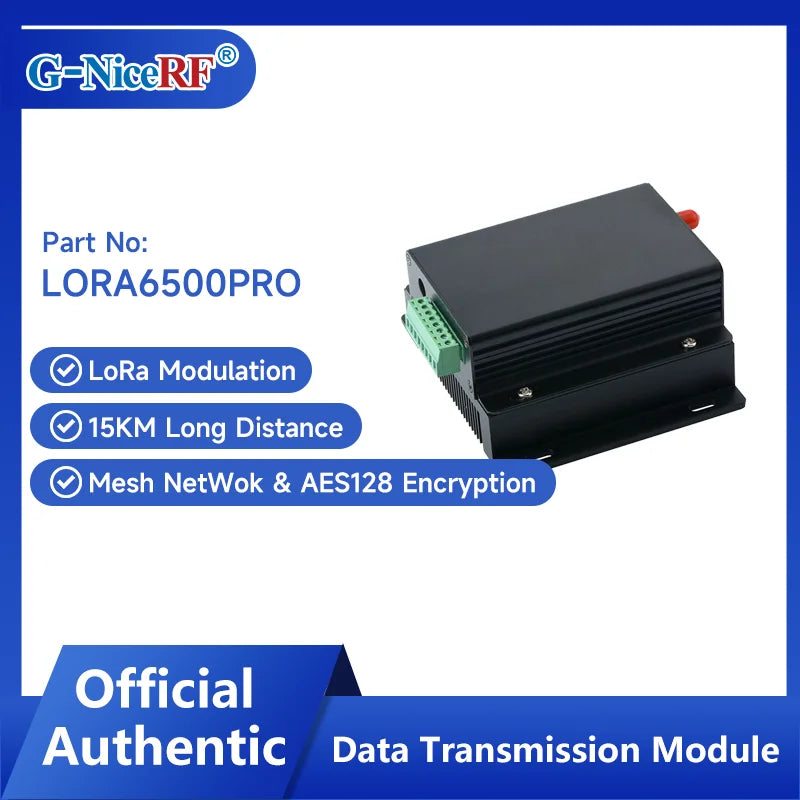

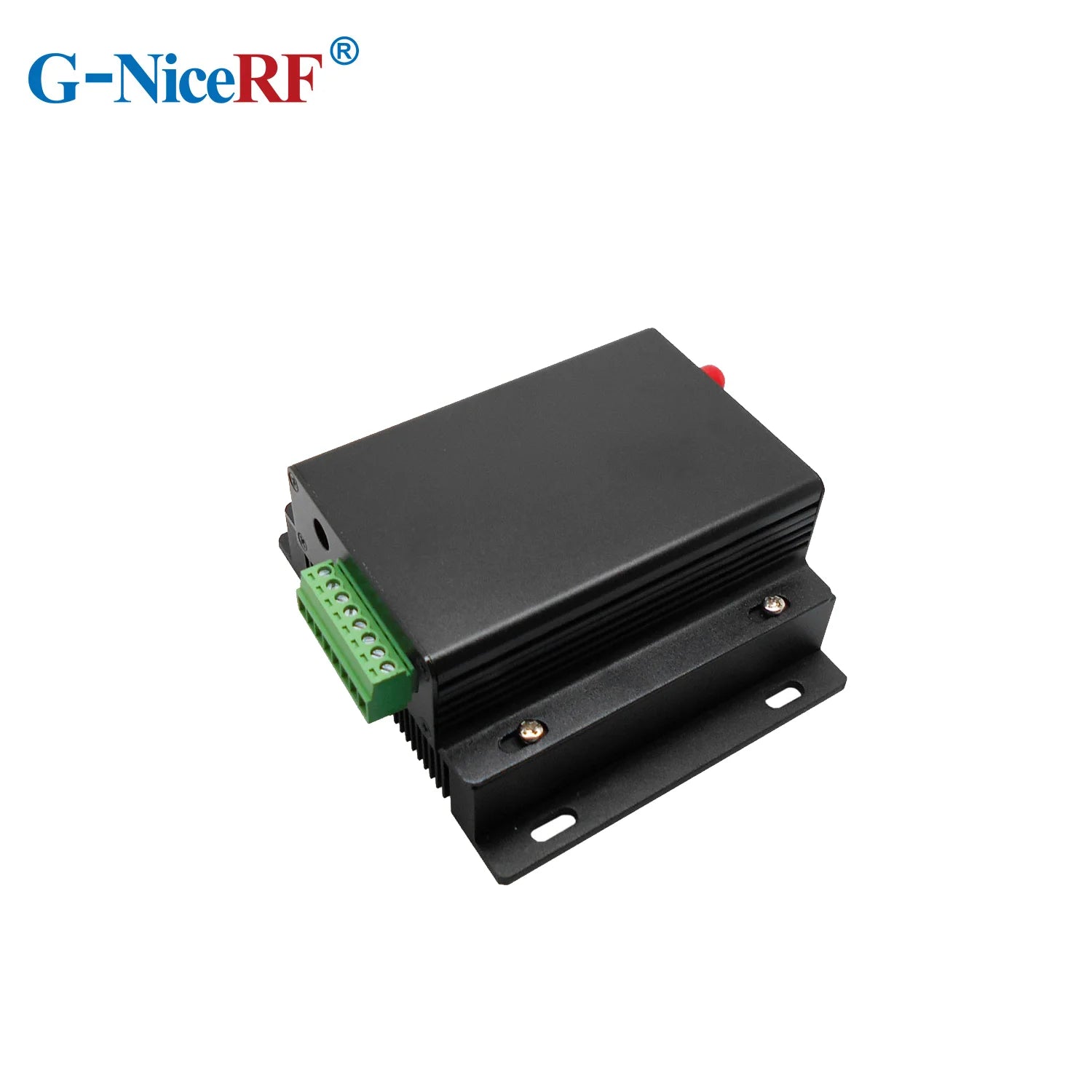

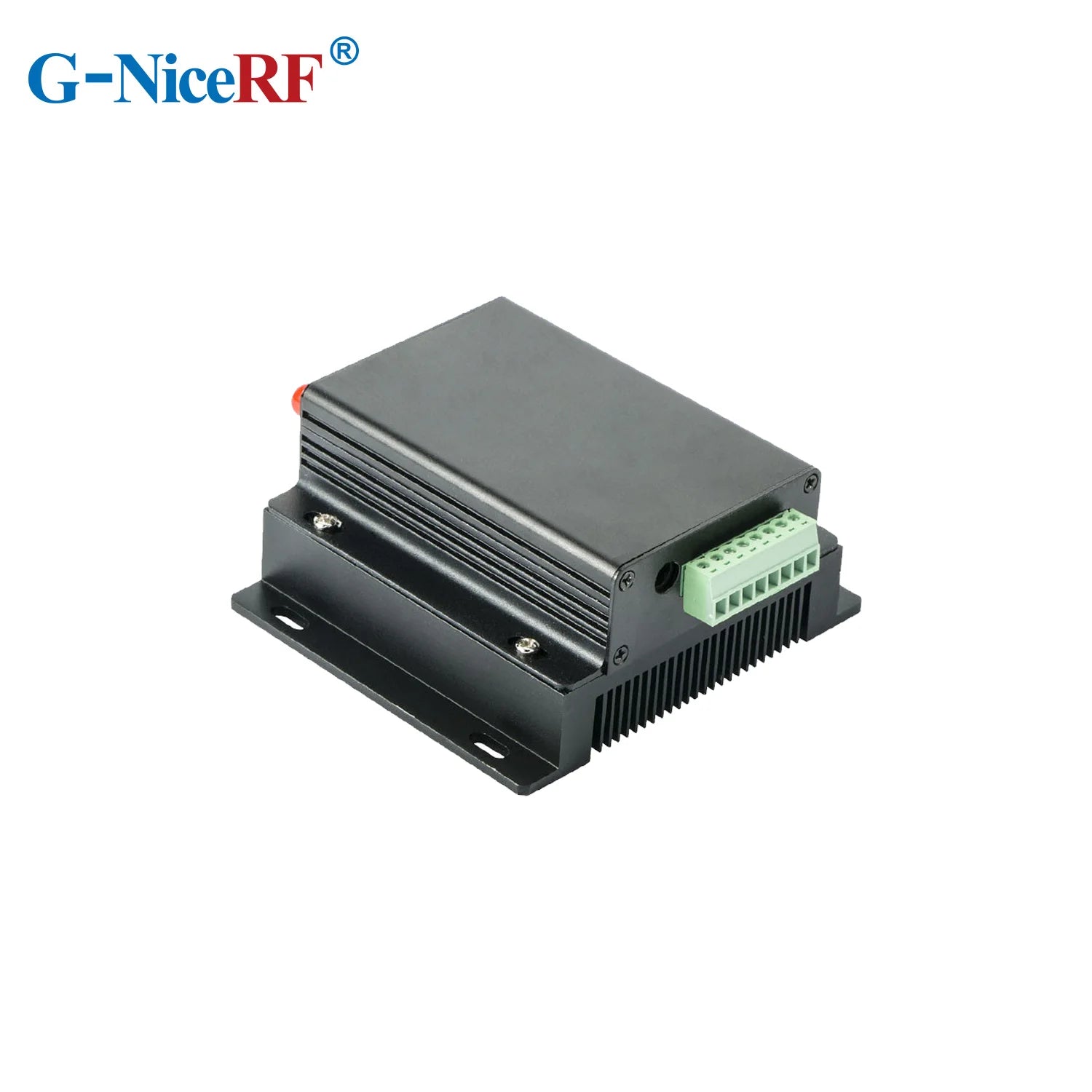

4PCS LORA6500PRO LoRa RF Modems

4PCS Rod Antennas

1PC  USB Bridge Board

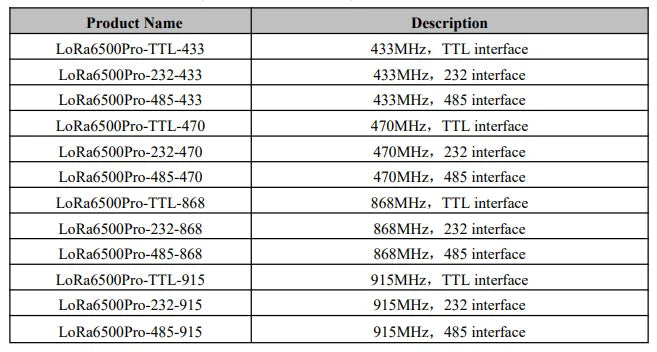

Please Note: If you need other Frequency or Interface, please feel free to contact us to confirm before placing order.

e.g. If you need 485 interface, 433 MHz band module, the order model is: LoRa6500Pro-485-433.

Overview

• The LoRa Pro module is a new series of upgraded networking wireless communication modules from Wireless.

• It is based on Semtech's SX127X chip and uses advanced LoRa spread spectrum modulation frequency hopping

• technology to achieve high sensitivity. The penetrating power and communication distance are far superior to

• the current FSK and GFSK products, and have stronger anti-interference. In order to meet the application needs

• of different customers, we design the module software of this series as an all-in-one way. Users
  can switch between different working modes through the PC software configuration module. In MESH mode, the

• routing module has automatic routing function. The user can form a network transmission without blind zone without

• distance limitation by means of multi-module combination. At the same time, users can also encrypt AES128

• wireless data through PC software or serial port instructions, making data transmission more secure. The LoRa6500Pro

• module is designed for 5W output power and is available in TTL/RS232/RS485 levels. It is widely used in wireless

• remote transmission control.

•


• LoRa6500Pro strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

• Note: The LoRa Pro series can be configured to be compatible with our previous LoRa data transmission modules.

•


Features

• Transmission distance in open area up to 15 Km @ 91 bps

• 433/470 MHz (Customizable)

• AES128 Data encryption

• MESH working mode

• Hop level in MESH mode

• CRC encryption optional

• 40 channels

• LoRa modulation

• Interface: TTL/RS232/RS485

• Sensitivity: -139 dBm

• Max output power: 5 W (+37 dBm)

• Working voltage: 9 ~30 V

• Working temperature: -40 ~ +85 °C

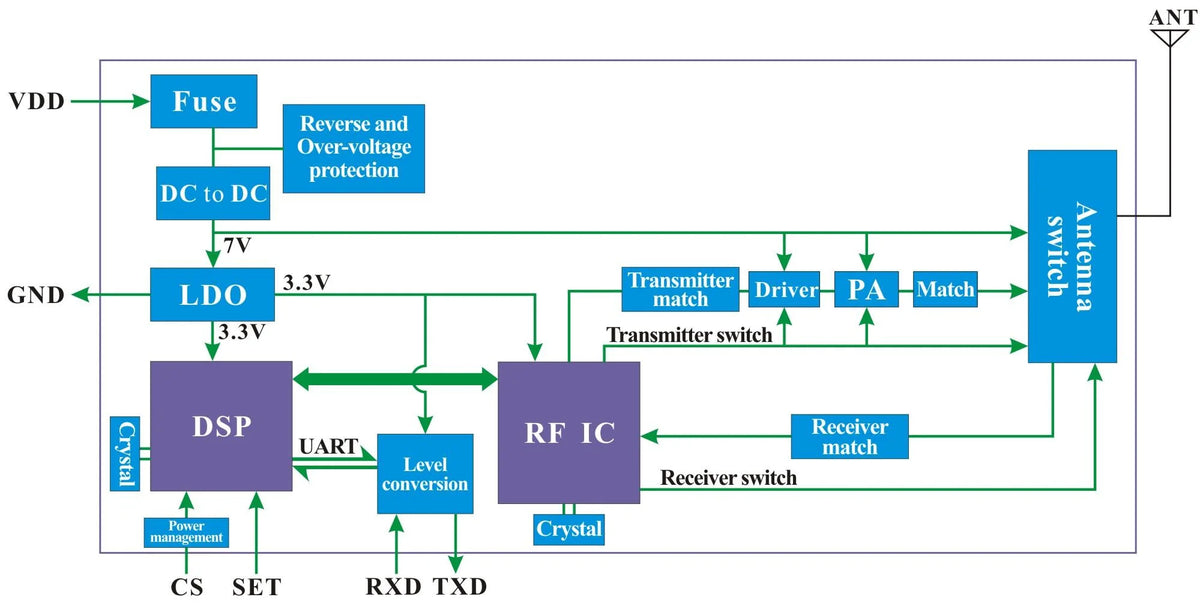

• Block Diagram

•

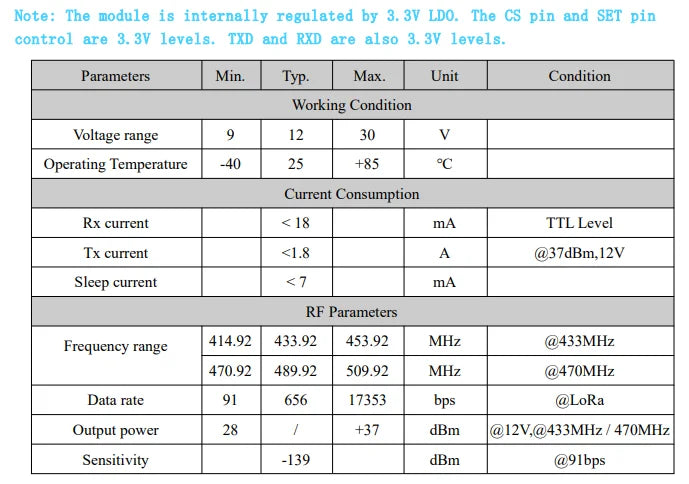

• Electrical Characteristics

•

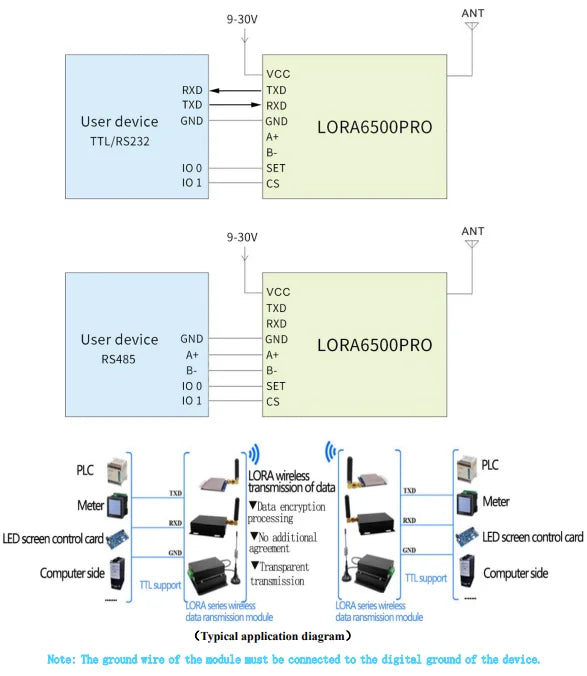

• Typical Application Circuits

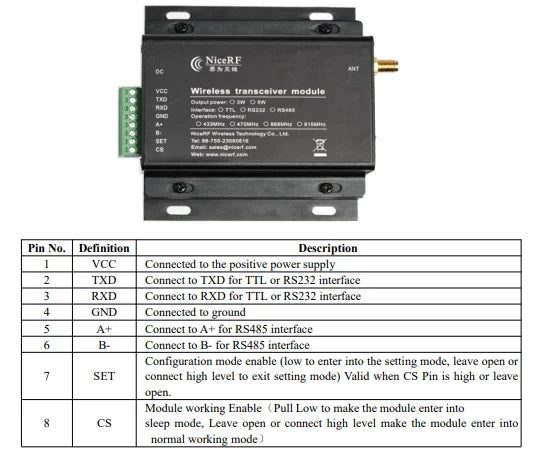

Pin Definition

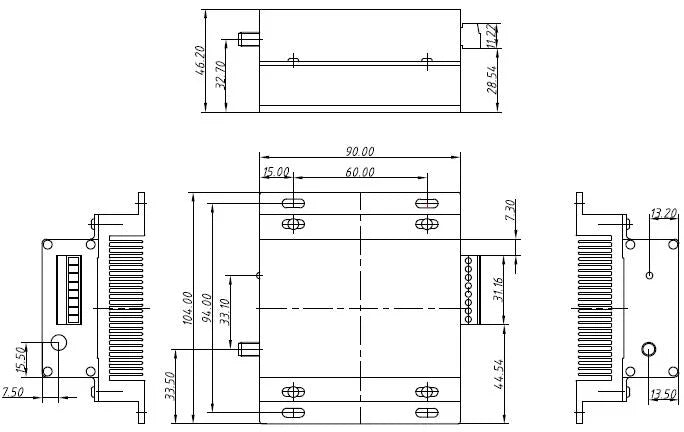

Dimensions (Unit: mm)
