Color
Description

SPECIFICATIONS

255 bytes FiFo: YES

Brand Name: G-NiceRF

Certification: LoRa-CC68-868-TCXO CE Certified LoRa-CC68-915-TCXO FCC Certified

Data Rate: 0.6-300 Kbps @FSK1.76-62.5 Kbps @Lora

Frequency Band: 433/470/868/915 MHz (customizable150-960 MHz)

High-concerned chemical: none

Industrial grade high precision crystal oscillator: YES

Modulation: LoRa,(G)FSK

Origin: Mainland China

Sensitivity: -129dBm @LoRa

Temperature range: -40--+85℃

Transmit Power: Maximum output power 22 dBm (160mW)

Type: Lora Module

Voltage: 1.8-3.7V



4PCS LoRa-CC68-TCXO Modules



Please Note:

1.  Antenna not included.

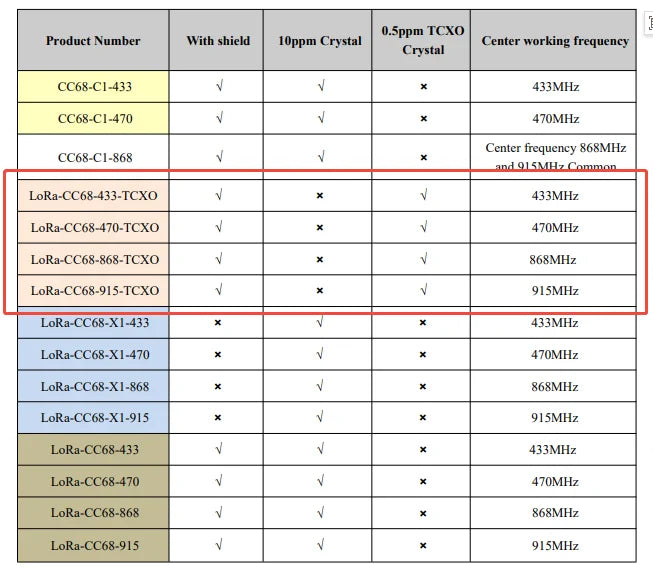

2. If you need other frequency, feel free to contact us to confirm before placing order.






Overview

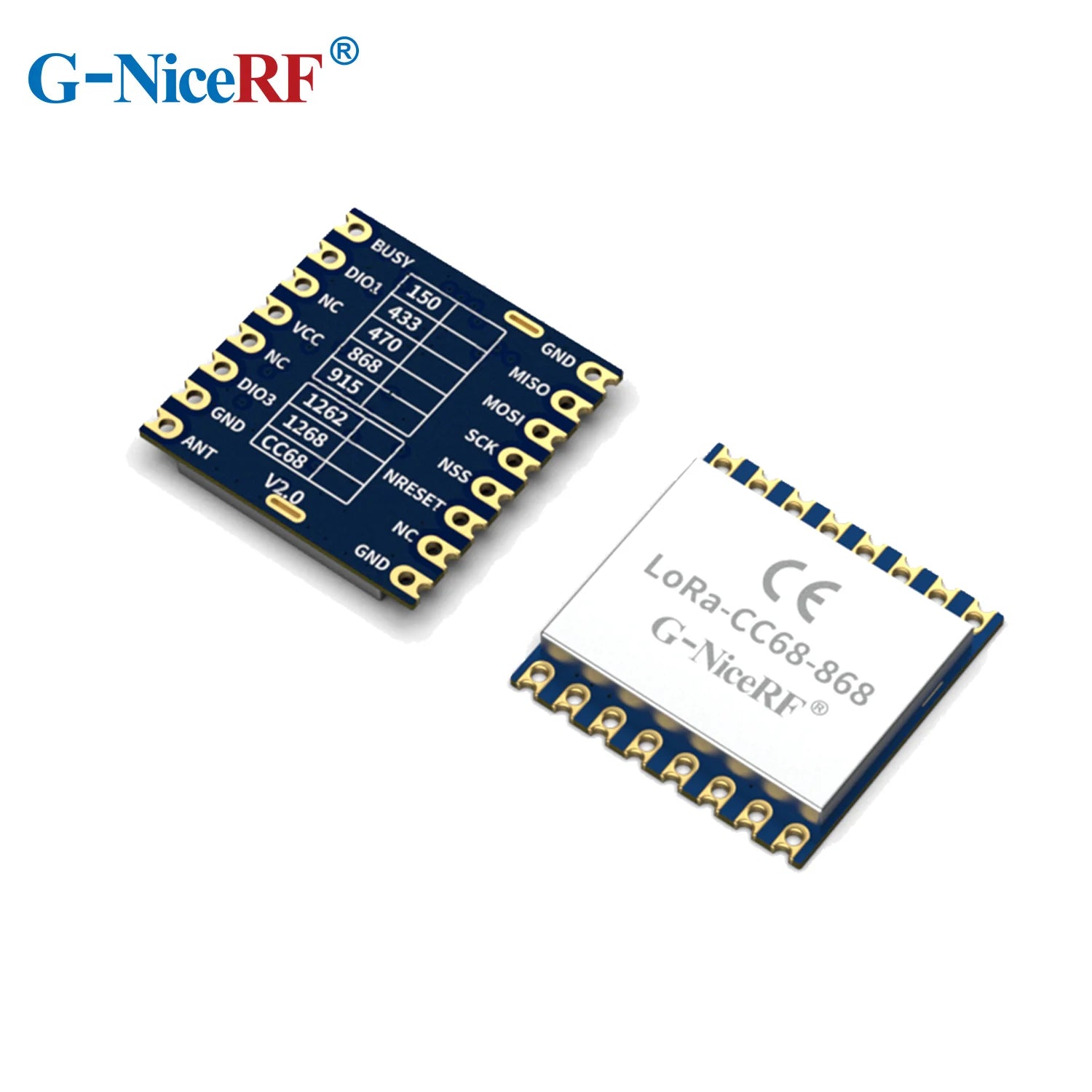

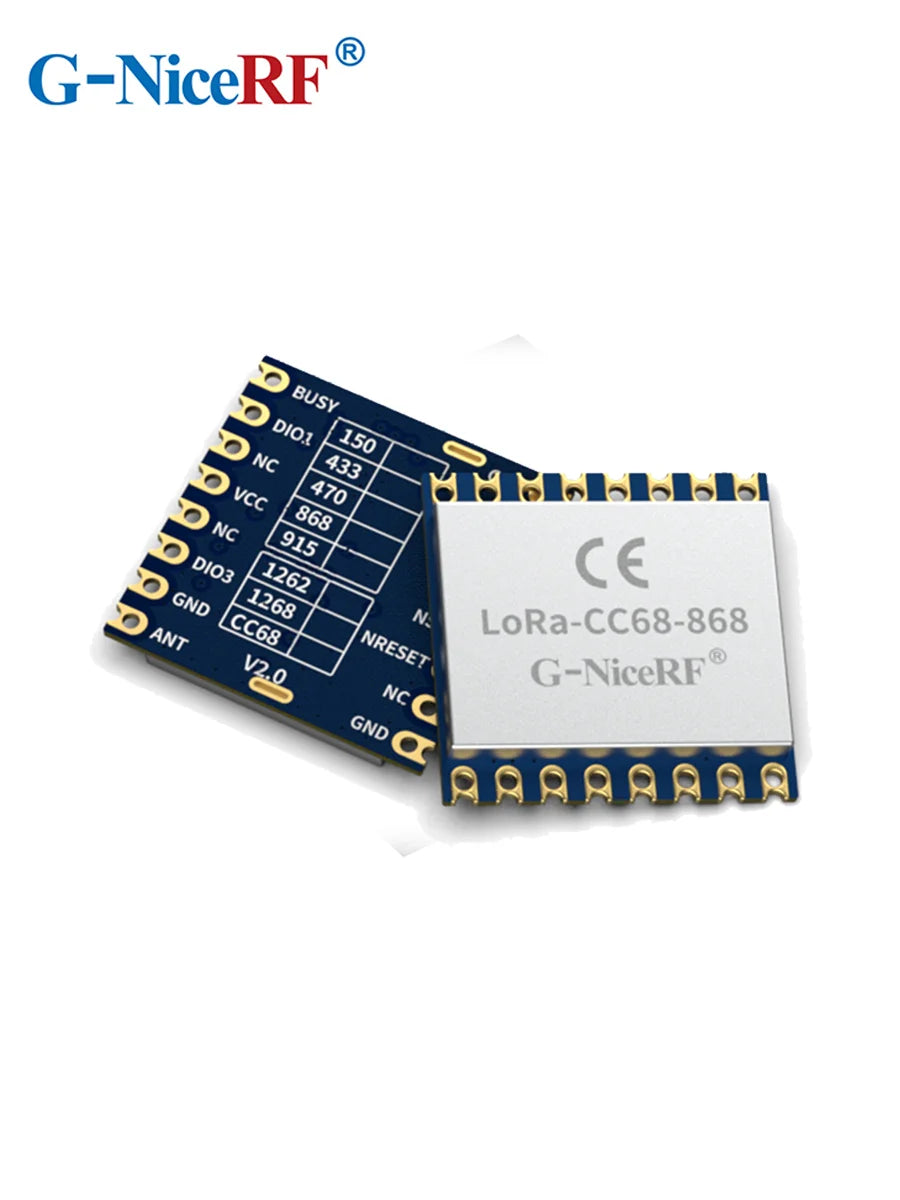

LORA-CC68-TCXO wireless module adopts Semtech's LLCC68 device and Industrial high-precision crystal

oscillator, which make the module having ultra-low receiving current,low sleep current and good sensitivity

-129dBm.It can wake up the external micro-controller periodically under low power consumptionwith built-in

64KHz oscillator . Antenna switchof the module is integrated and controlled by theRF chip, which saves the

resources of the external MCU.Moreover,Lora-CC68 has compact size and 22dBm (160mW) output power,

which have great advantages in IoT and battery-powered applications.


LoRa-CC68 isproduced and tested strictly using lead-free processes, and comply with RoHS and Reach

standards.


Also,LoRa-CC68 is CE certified @ 868MHz and FCC@915MHz.


Features

  • Frequency Band: 433/470/868/915 MHz（customizable150-960 MHz）

  • Sensitivity: -129dBm @LoRa

  • Maximum output power: 22 dBm（160mW）

  • Industrial grade high precision crystal oscillator

  • LoRa,(G)FSK

  • 255 bytes FiFo

  • Data rate: 0.6-300 Kbps @FSK     1.76-62.5 Kbps @Lora

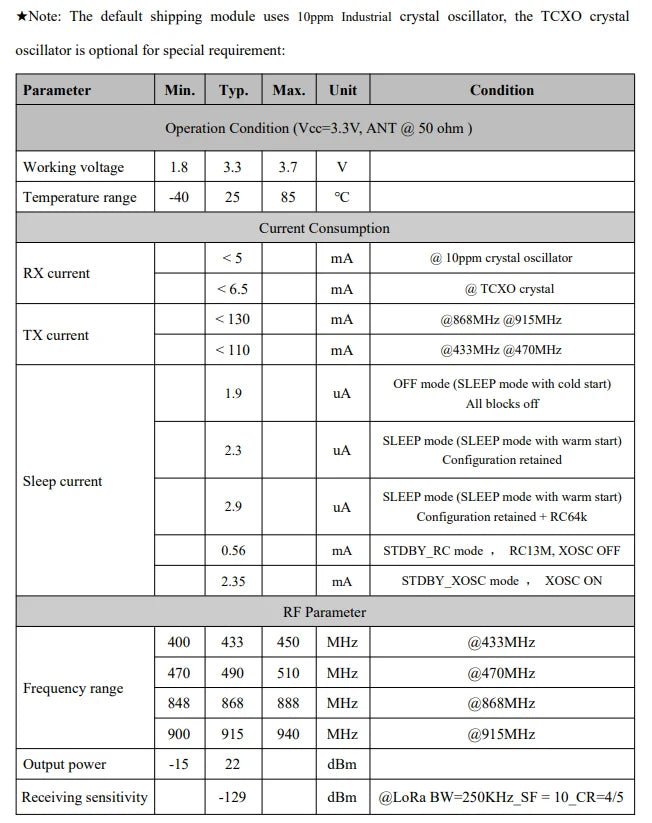

  • Electrical Characteristics

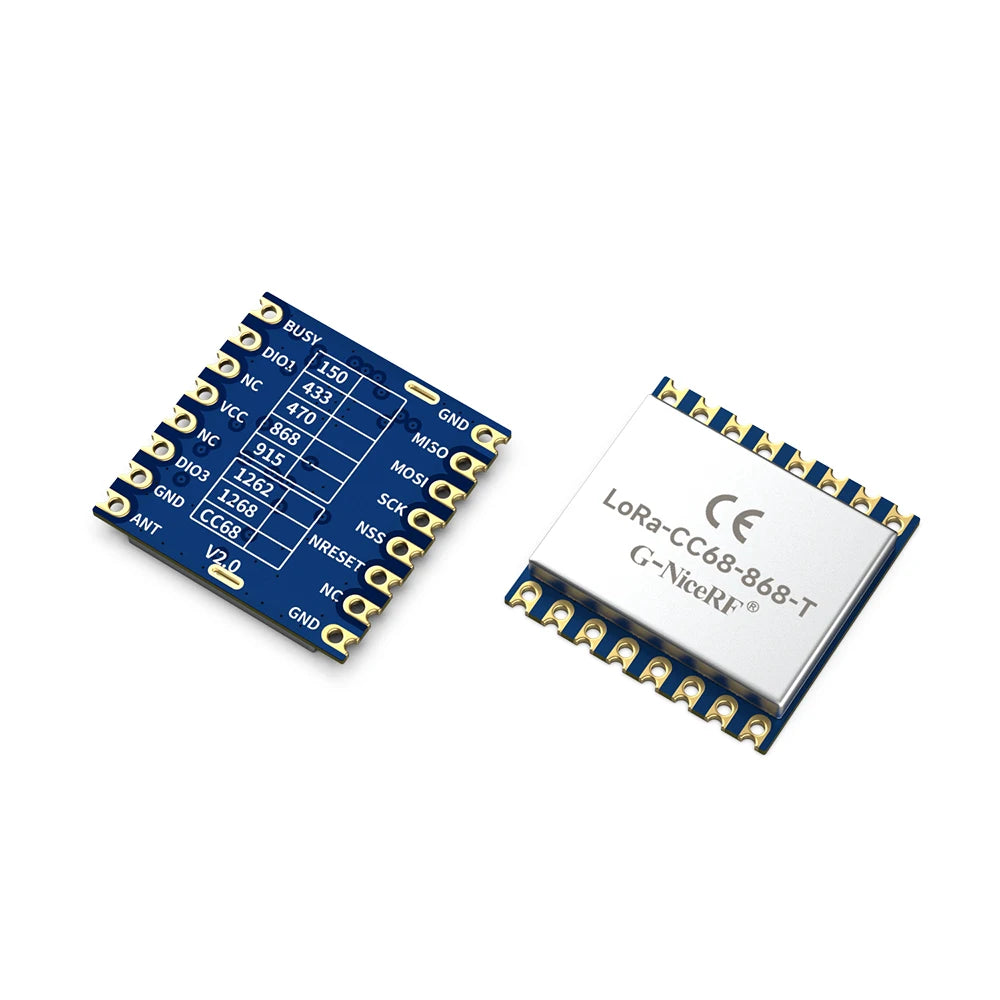

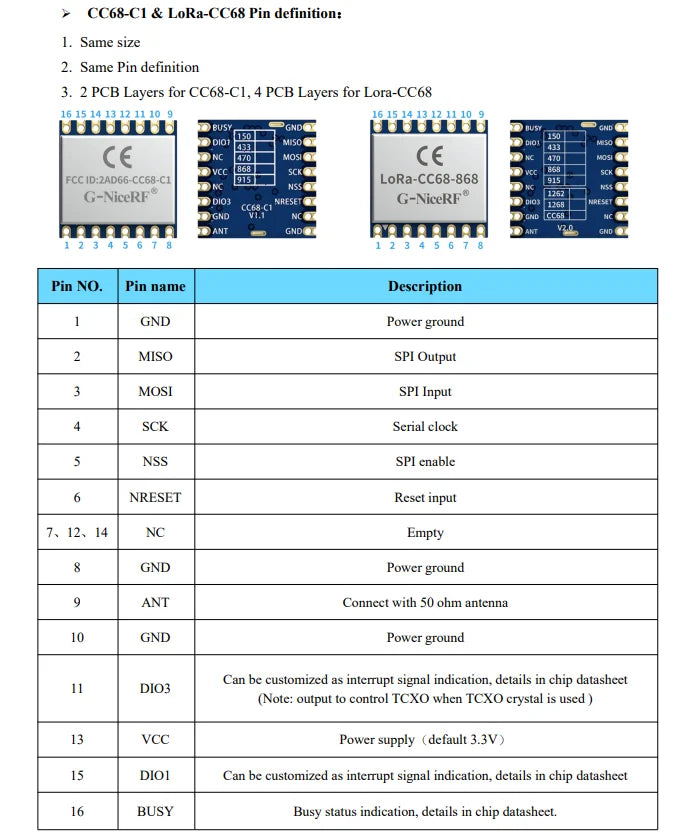

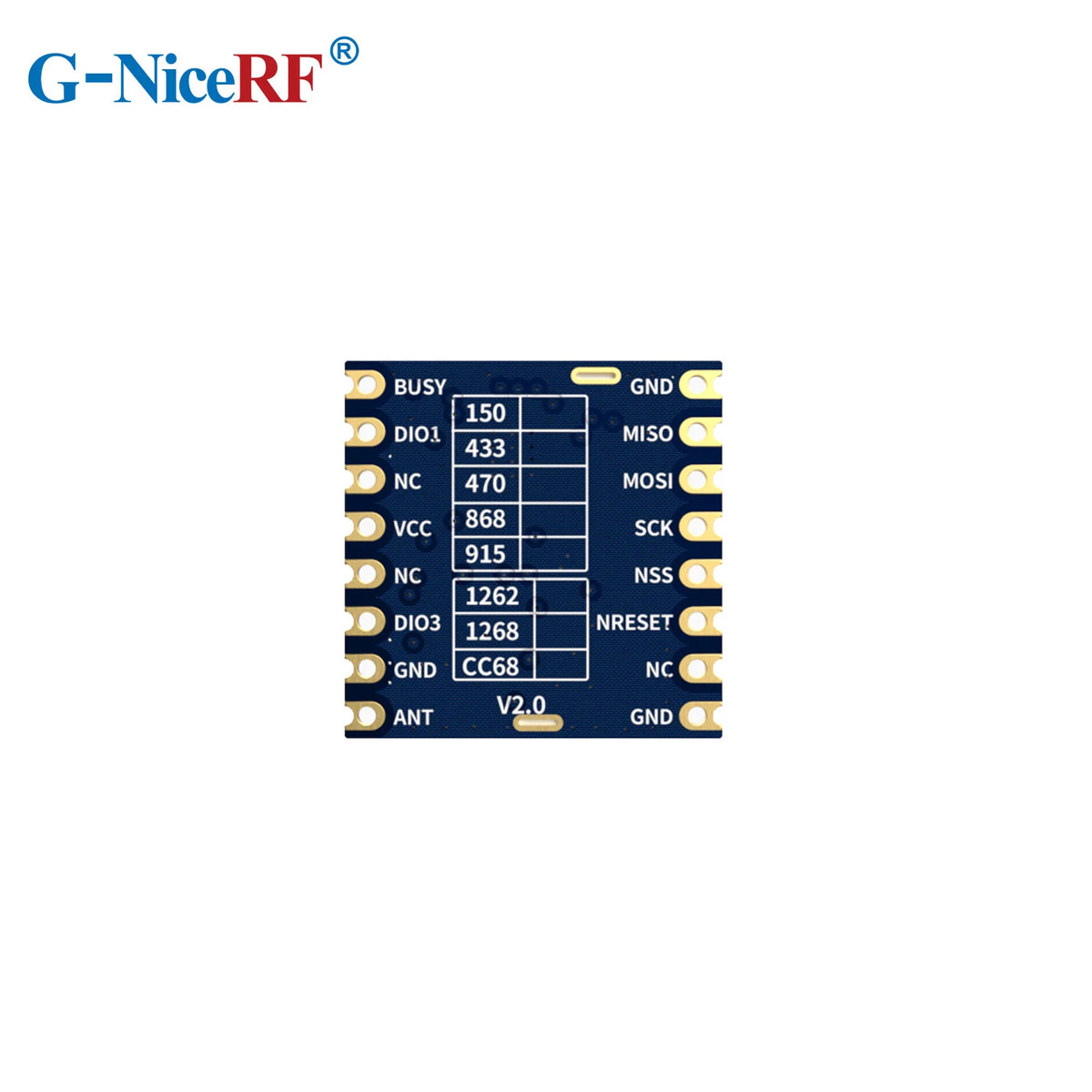

Pin Definition

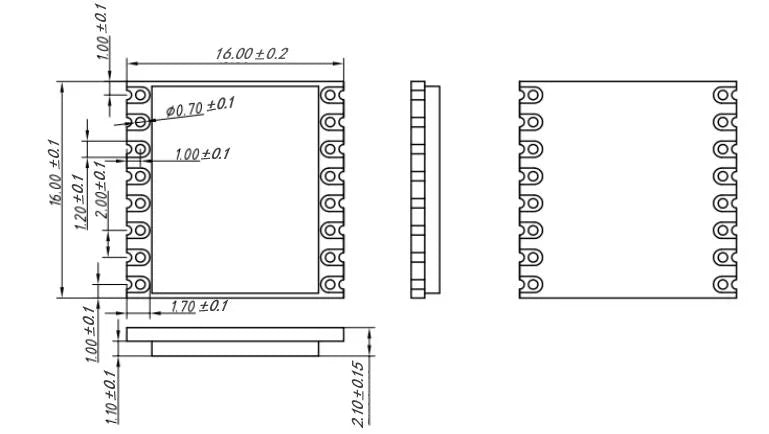

Dimensions (Unit: mm)
