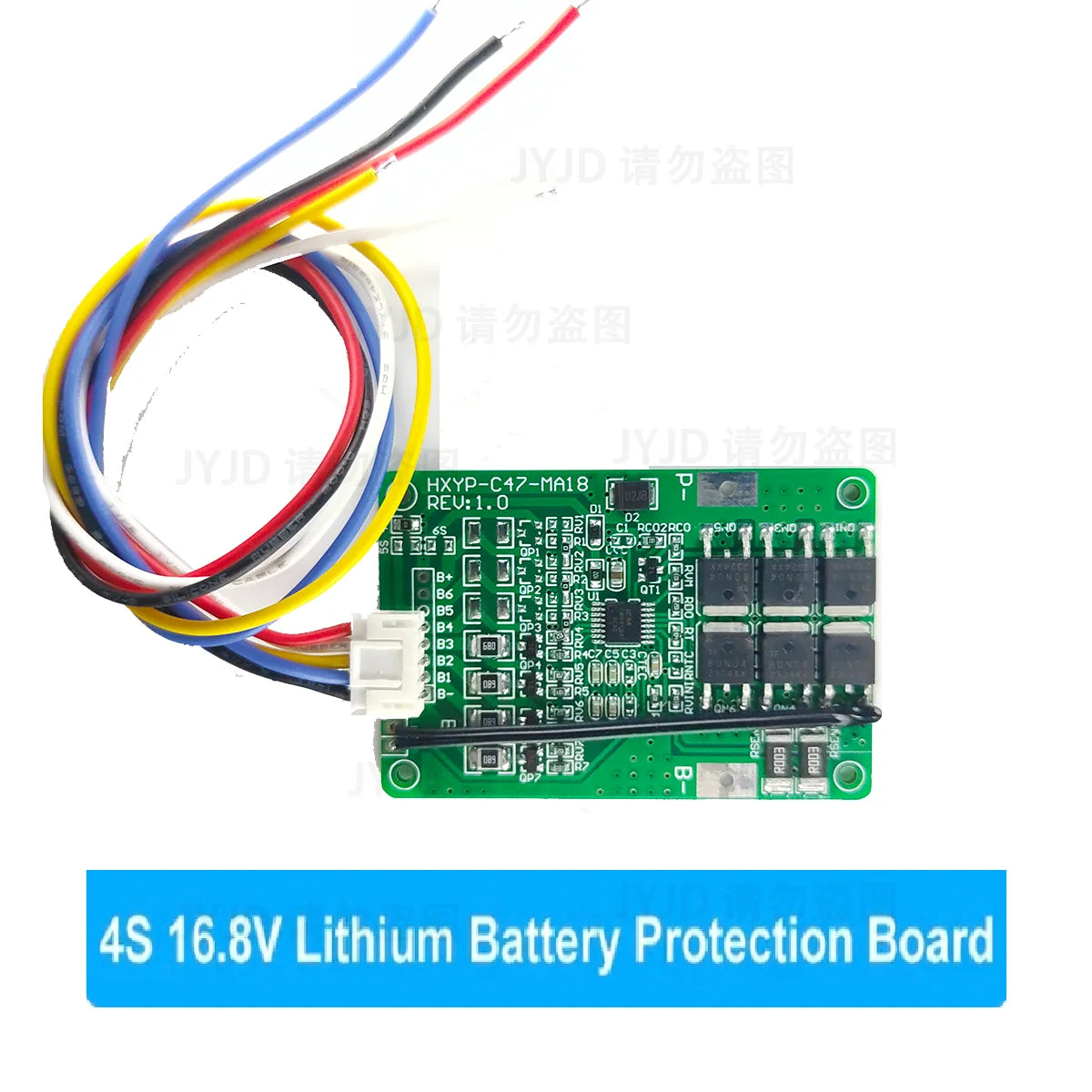

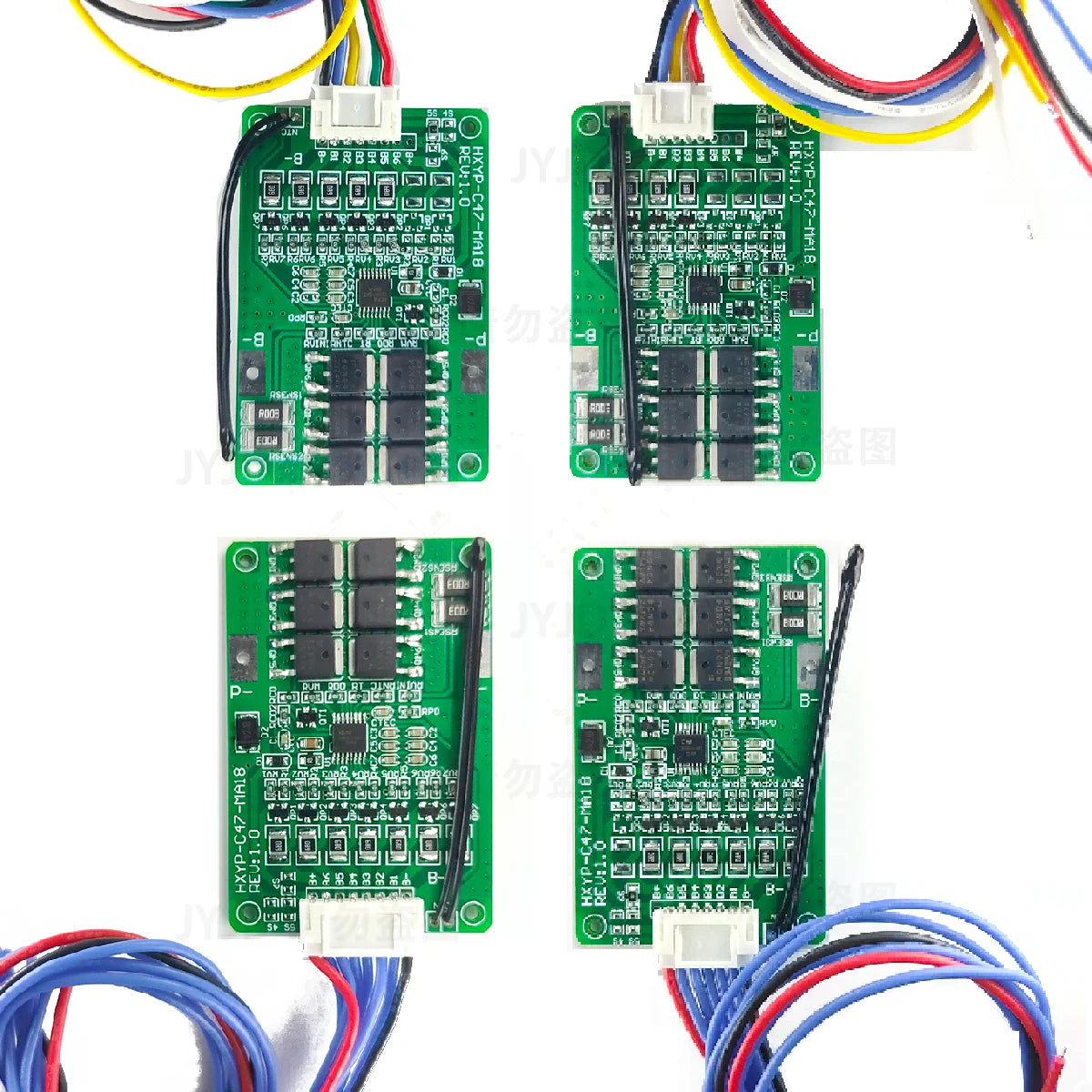

4S/5S/6S/7S BMS 16.8V 21V 20A 18650 Li-ion Lmo Ternary Lithium Battery Charger Protection Board Balance And Temperature Protect
7S 29.4V
$22.95
Sale price
$22.95
Regular price
$0.00
Skip to product information
4S/5S/6S/7S BMS 16.8V 21V 20A 18650 Li-ion Lmo Ternary Lithium Battery Charger Protection Board Balance And Temperature Protect
$22.95
Sale price
$22.95
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
4S/5S/6S/7S BMS 18650 Li-ion Lmo Ternary Lithium Battery Charger Protection Board 16.8V 21V 20A Balance And Temperature Protect Board
Specification:
BMS Voltage: 12.6V 16.8V 21V 25.2V 29.4V
Overcharge Voltage range: 4.25v±0.05v
Over-discharge voltage range: 2.5±0.1v
Upper limit working current: 20A±10A (pay attention to heat dissipation)
Working temperature: -40---+50 °C
Upper limit instantaneous current: 20A-30A
Storage conditions: -40-- +80 ° C
Quiescent current: less than 30uA
Effective life: more than 30,000 hours
Internal resistance: less than 300mΩ
Short circuit protection: protection, delay self-recovery.
Equilibrium current: 68 mA
Charging voltage: 12.6V/16.8V/21V/25.2V/29.4V CC/CV
Maximum charging current: 10A
Dimension: 60*40*3.6mm
BMS Voltage: 12.6V 16.8V 21V 25.2V 29.4V
Overcharge Voltage range: 4.25v±0.05v
Over-discharge voltage range: 2.5±0.1v
Upper limit working current: 20A±10A (pay attention to heat dissipation)
Working temperature: -40---+50 °C
Upper limit instantaneous current: 20A-30A
Storage conditions: -40-- +80 ° C
Quiescent current: less than 30uA
Effective life: more than 30,000 hours
Internal resistance: less than 300mΩ
Short circuit protection: protection, delay self-recovery.
Equilibrium current: 68 mA
Charging voltage: 12.6V/16.8V/21V/25.2V/29.4V CC/CV
Maximum charging current: 10A
Dimension: 60*40*3.6mm
