SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: DC 5V 2A Mobile Power Diy Board

High-concerned chemical: none

Model Number: 5V2A charge-discharge integrated module

Origin: Mainland China

Package: SMD

Supply Voltage: 5V2A

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

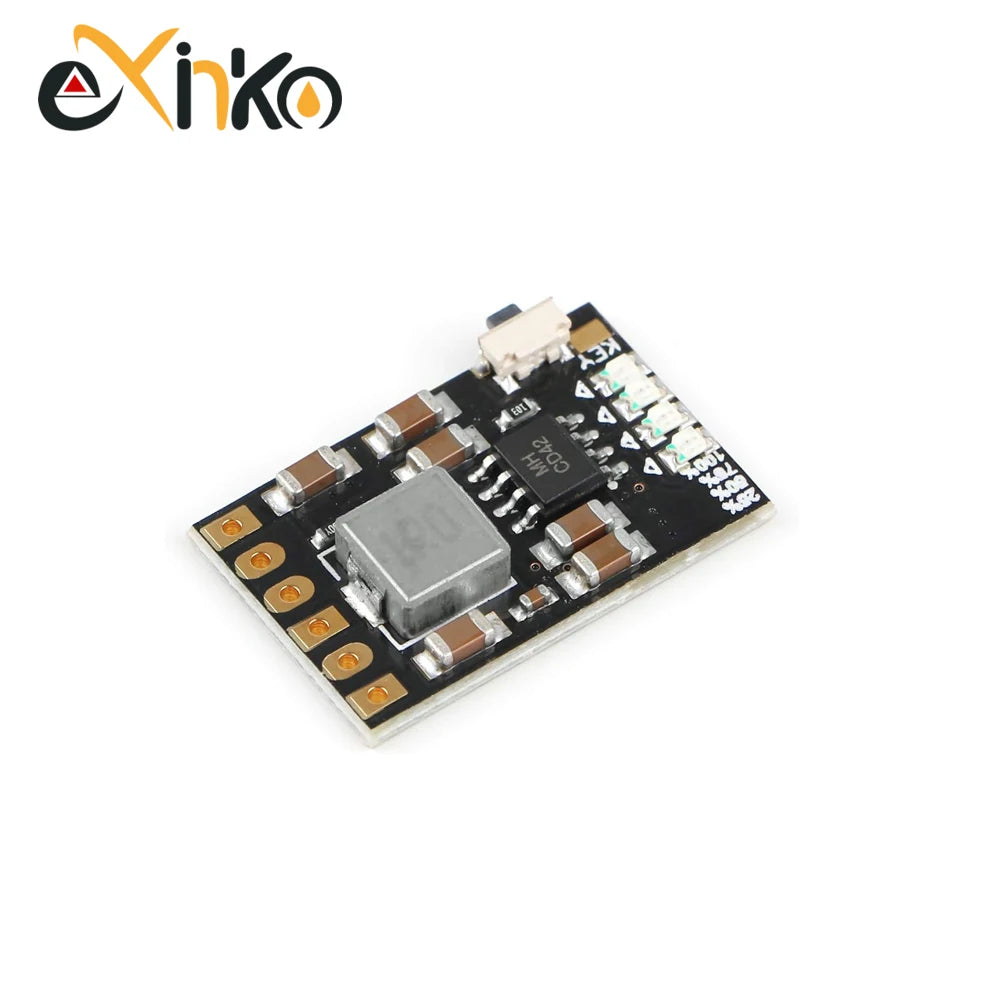

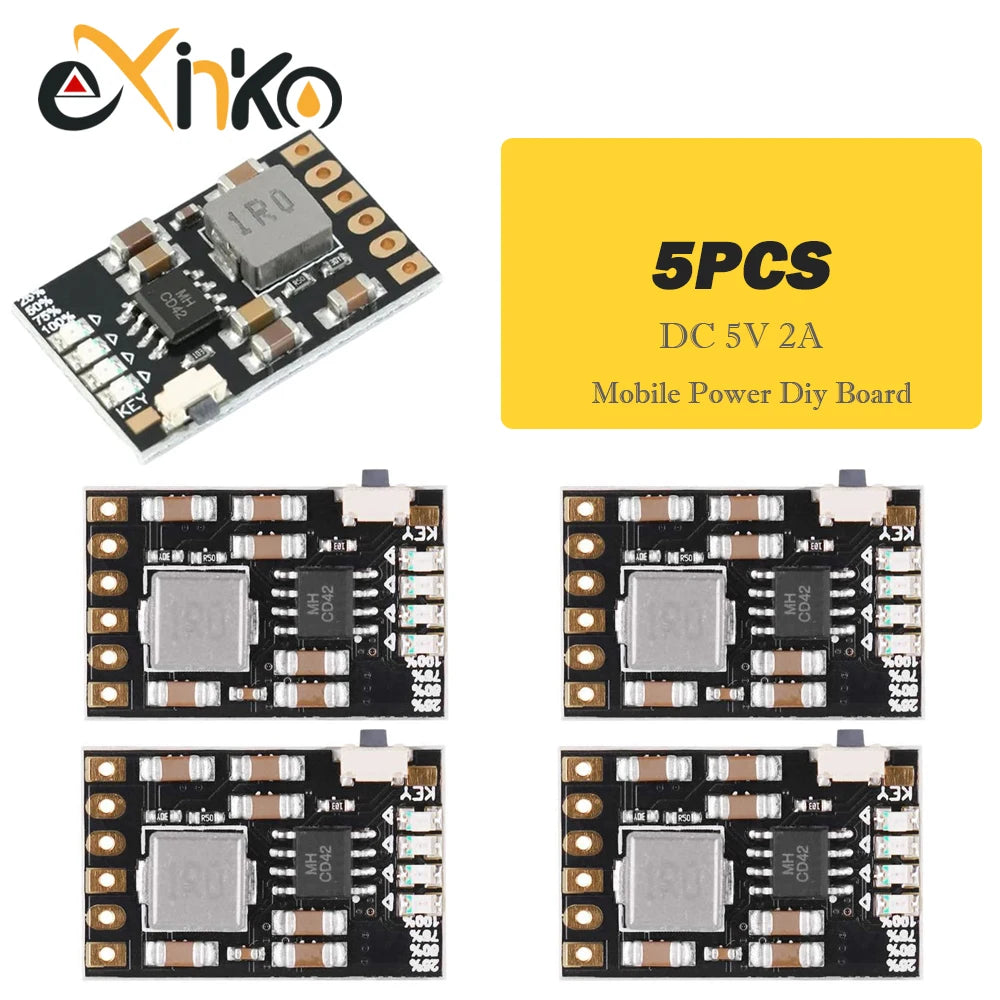

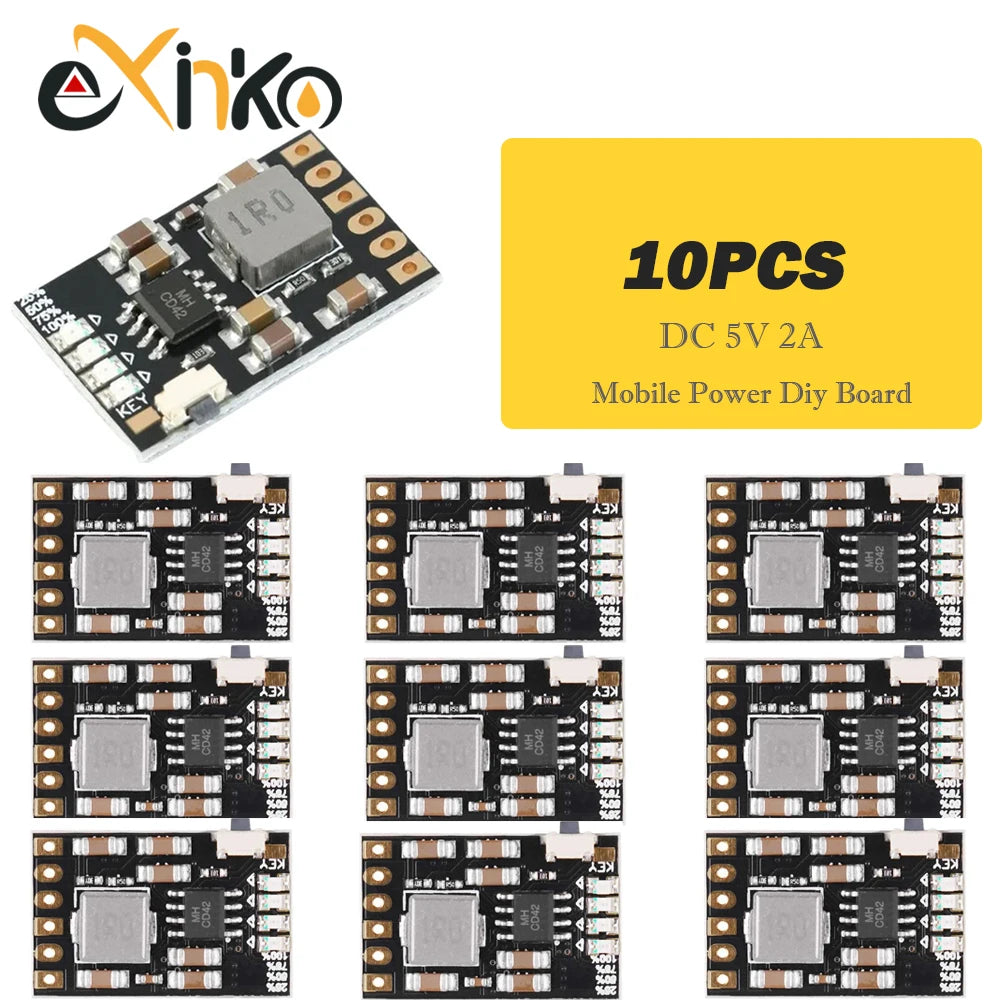

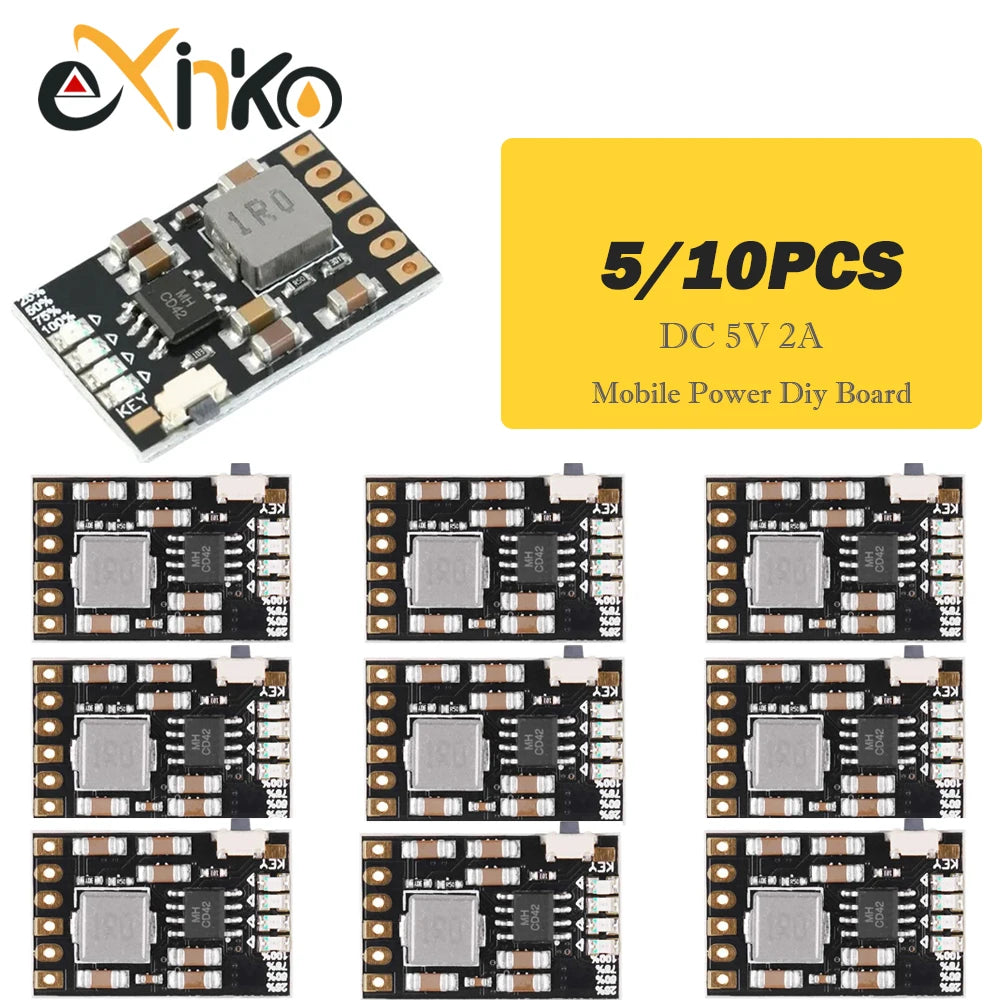

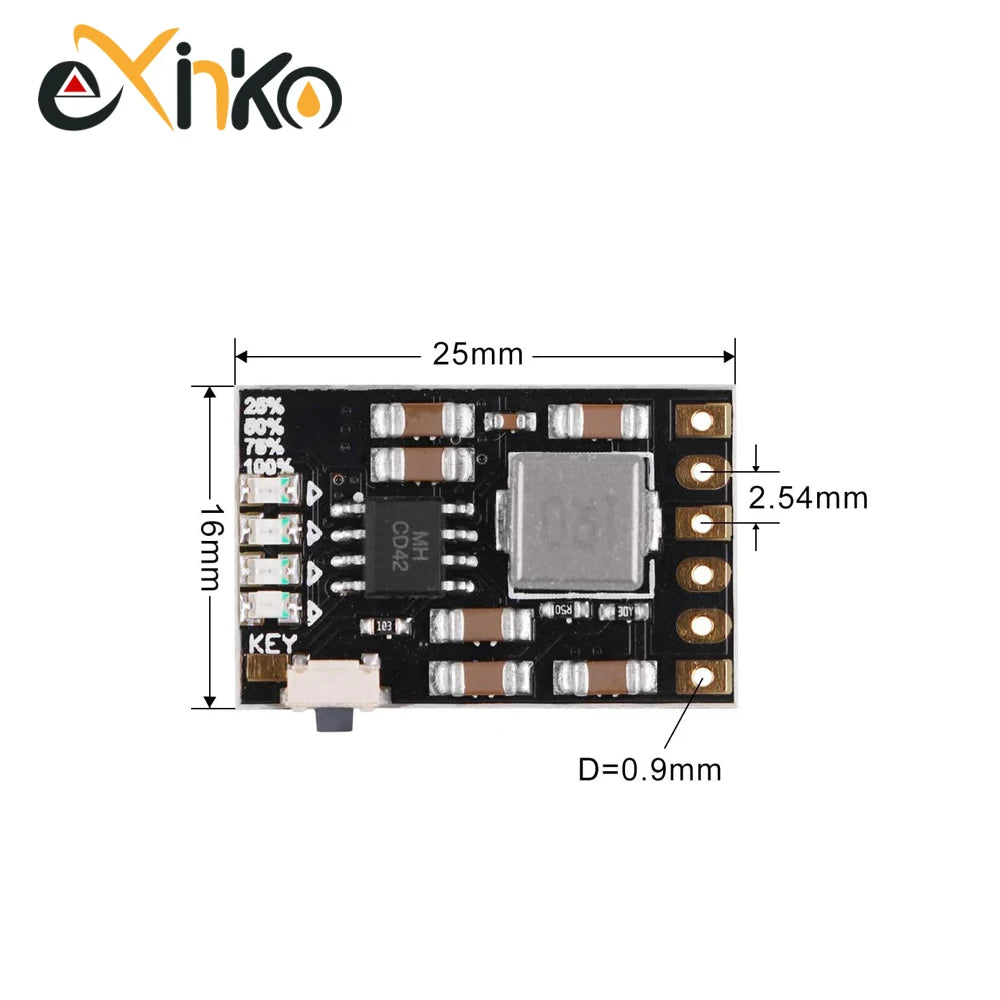

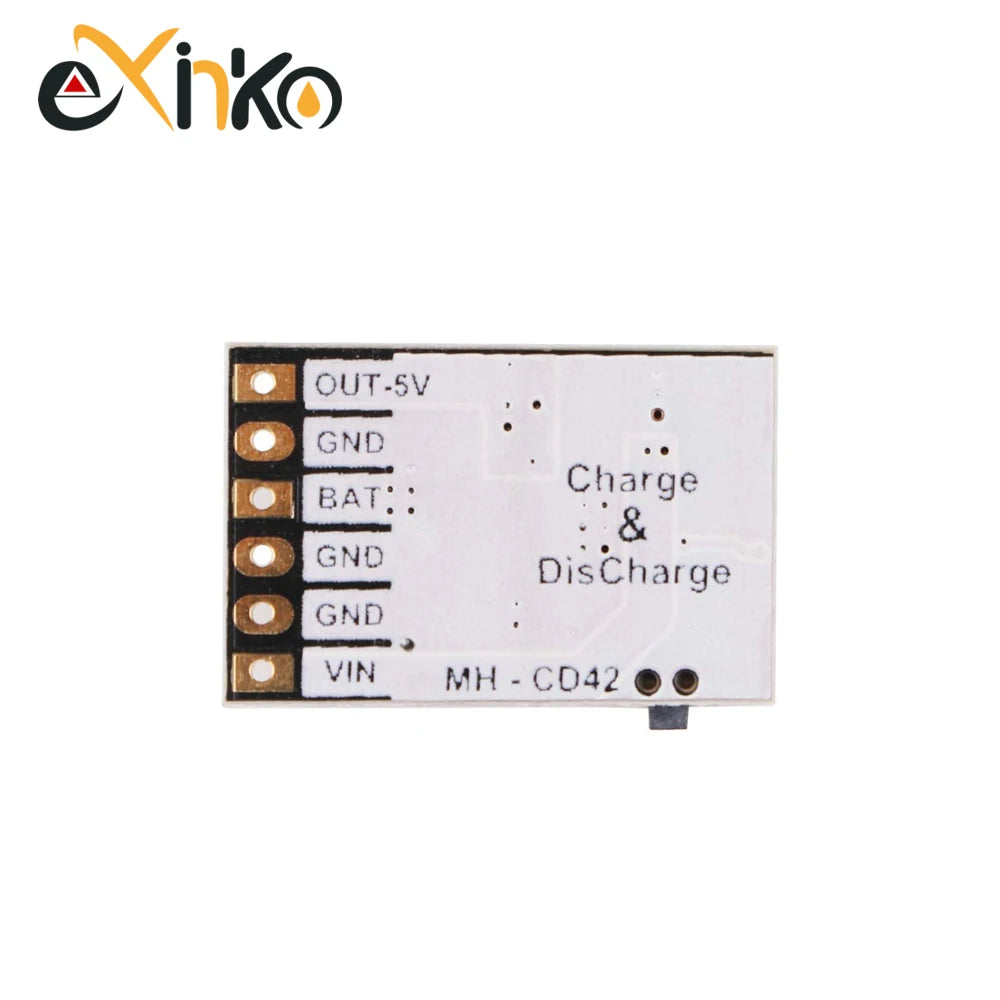

5/10pcs DC 5V 2A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650

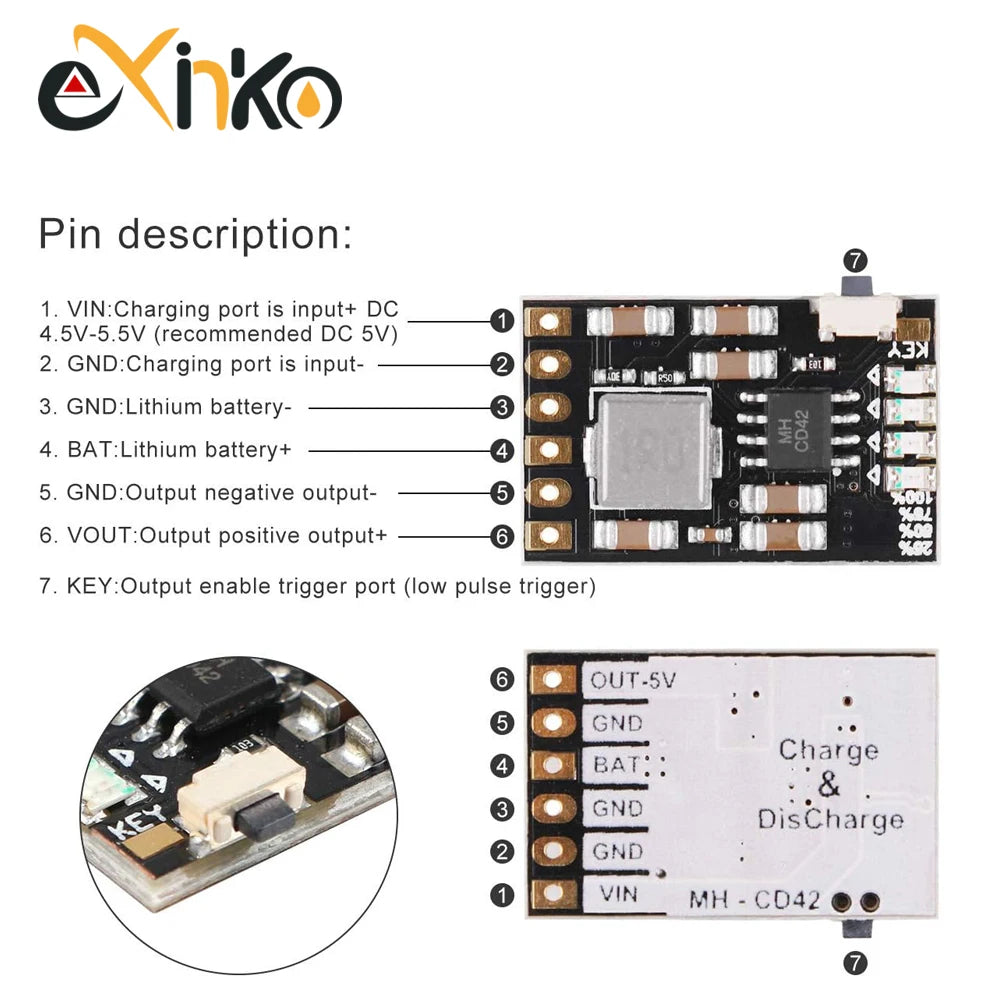

Pin Description

VIN: The correct input of the charging port + (DC4.5V-5.5V (recommended DC 5V)

GND: negative input of the charging port -

GND: Lithium battery -

BAT: Lithium battery +

GND: Output negative output -

VOUT: Output positive output +

KEY: Output enable trigger port (low pulse trigger)

Note

In the discharge mode (the charging mode KEY function is invalid), the KEY port is triggered once, and the output is turned on; the KEY port is continuously triggered twice, and the output is turned off.

When the load is first connected, the output will be automatically turned on. If the small fish 50MA is loaded, the output will be turned off after 30 seconds; if the load is greater than 50MA, the output will be continuously turned on.

 Allow one side to discharge while charging (Note: this is the output voltage >4.7/<5V)

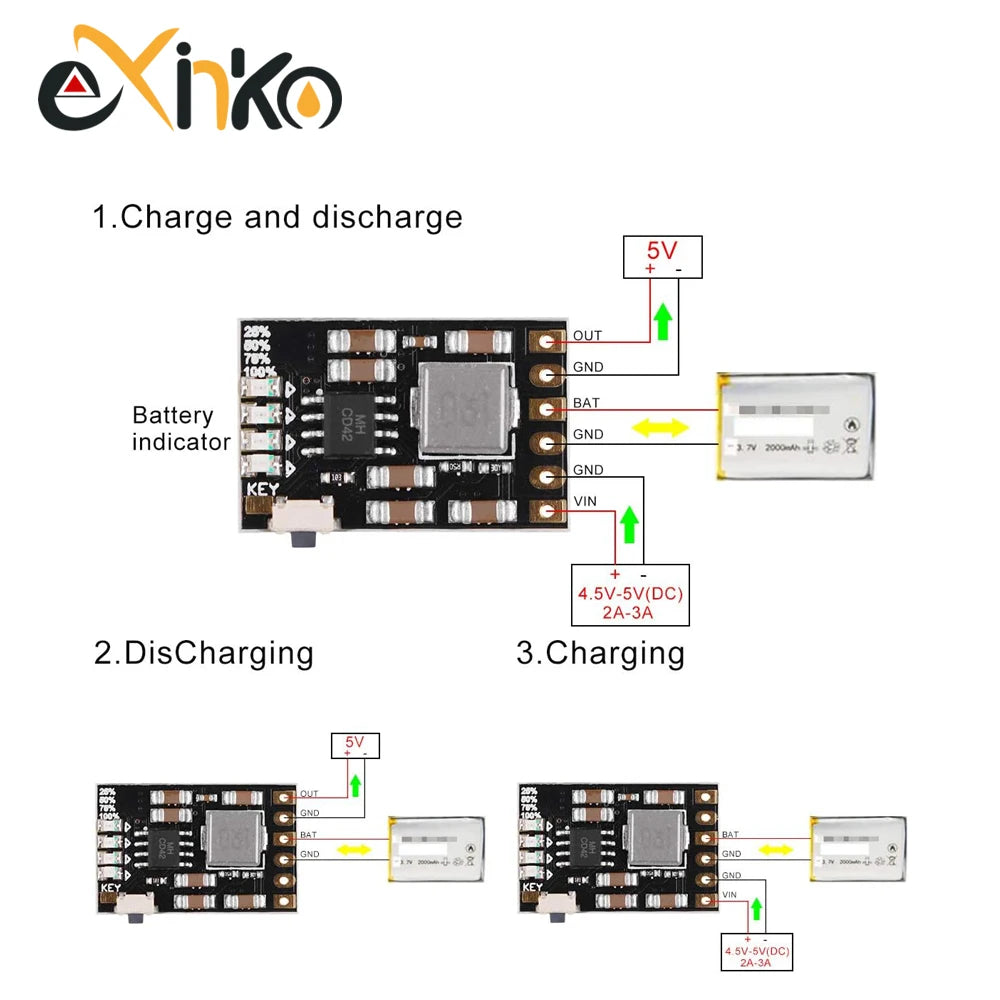

Wiring Instructions

When the module is plugged in, the output will switch to external power supply (it will be powered off for 0.3s). When charging, the output voltage will be less than >4.7/<5V, depending on the charger load capacity!

Trigger mode: low level trigger (ground)

Connect to the single-chip microcomputer, if the connection is less than the load KEY, you can connect the single-chip microcomputer for about 20s to give a low level to keep the module working continuously.

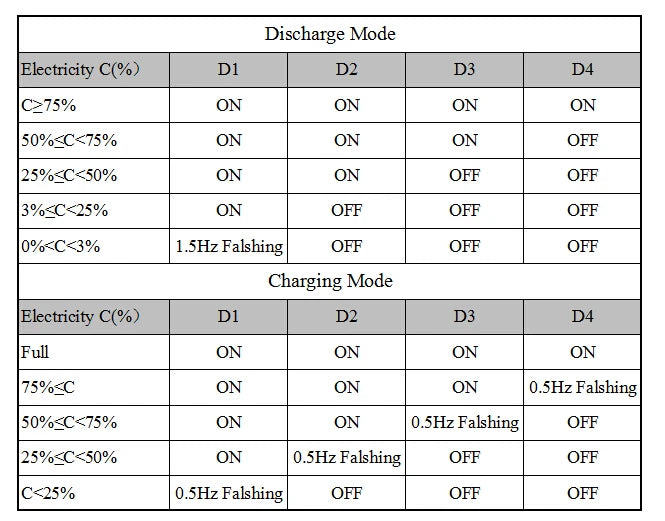

Indicator Light

Applications

Car charging retrofit

Driving recorder power supply

Mobile power / charging treasure

Portable devices such as mobile phones and tablets
