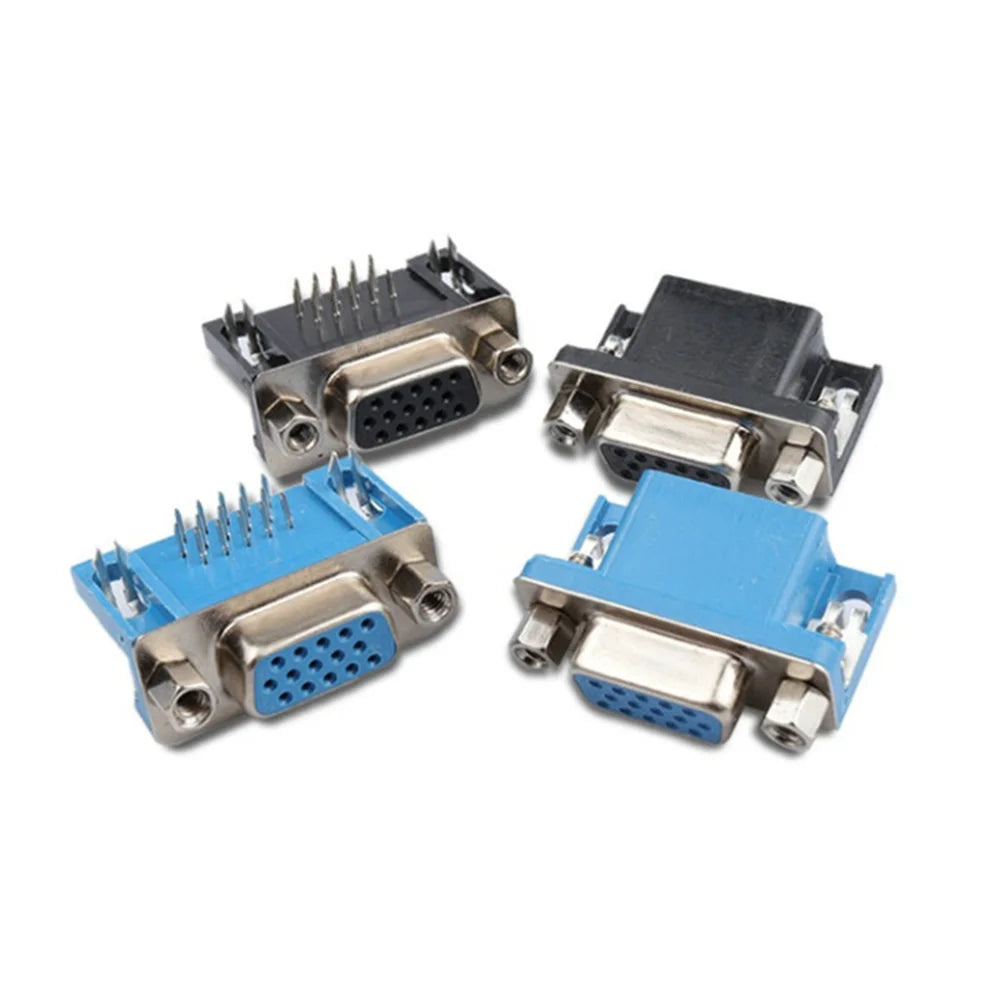

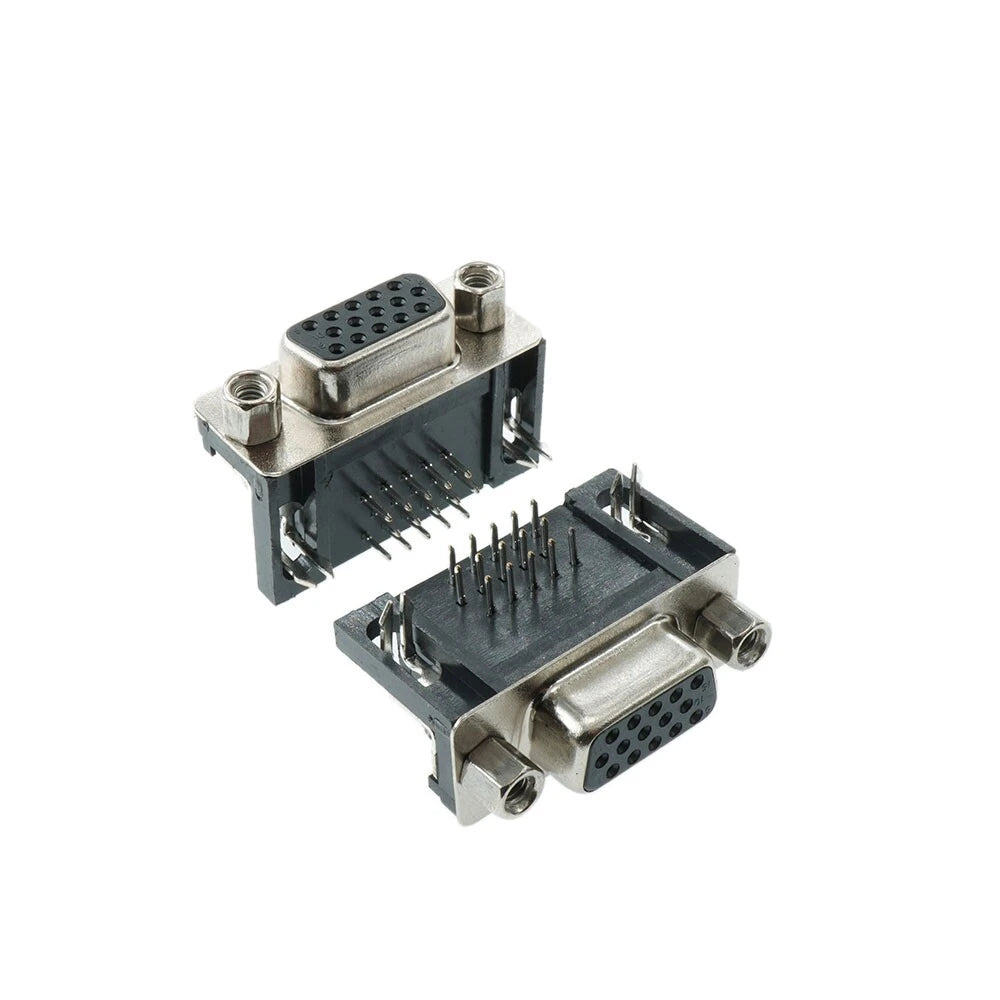

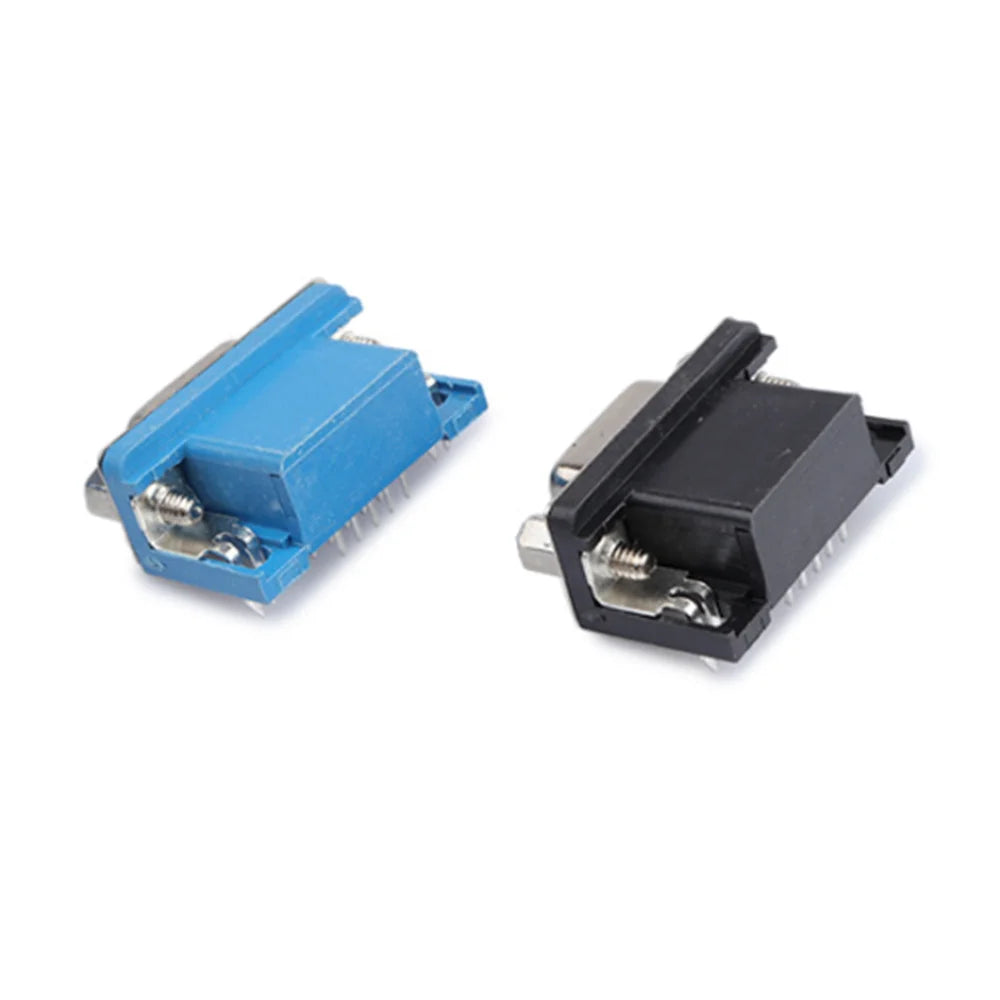

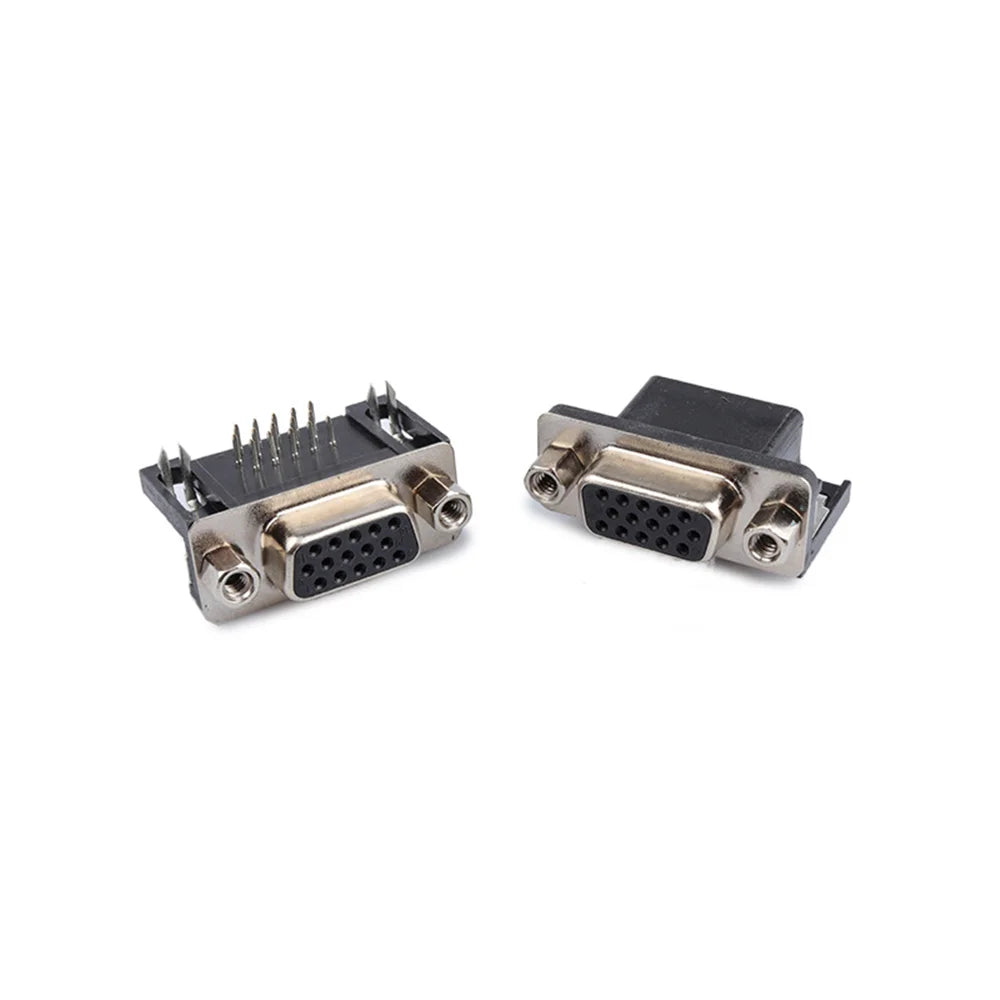

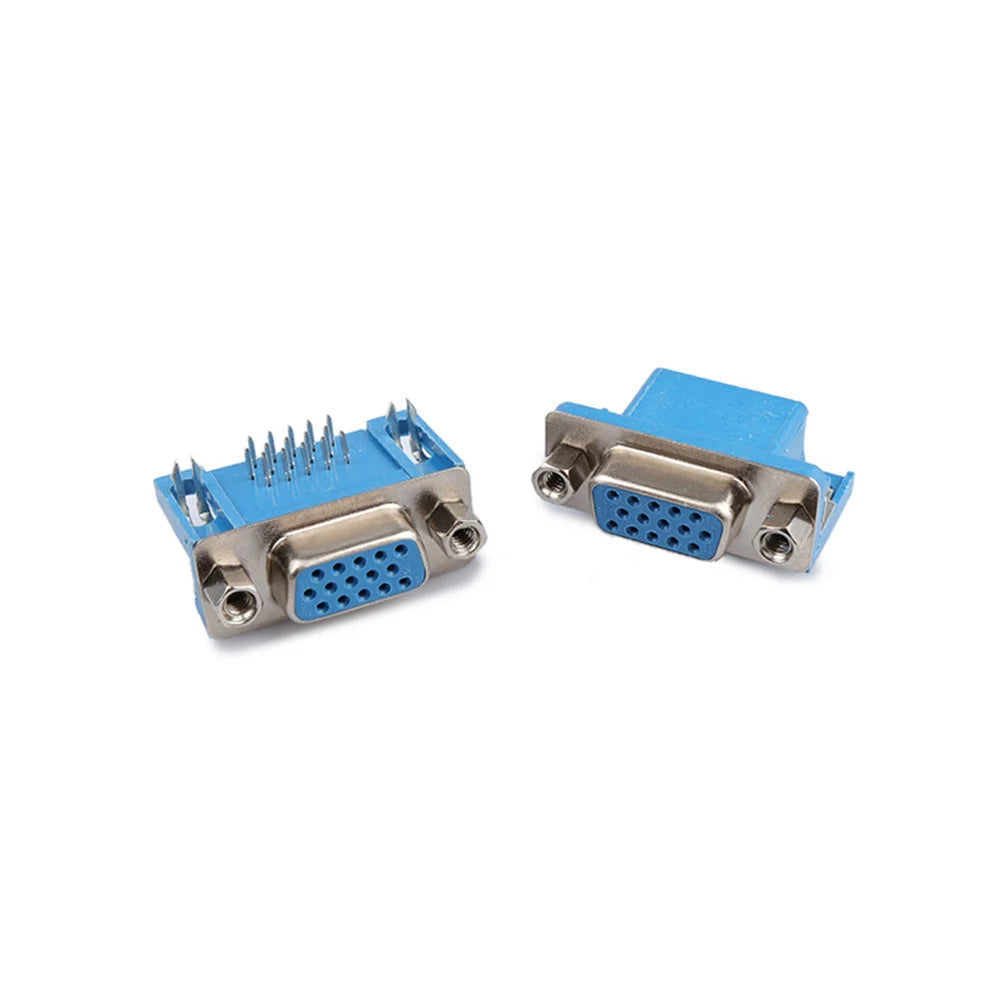

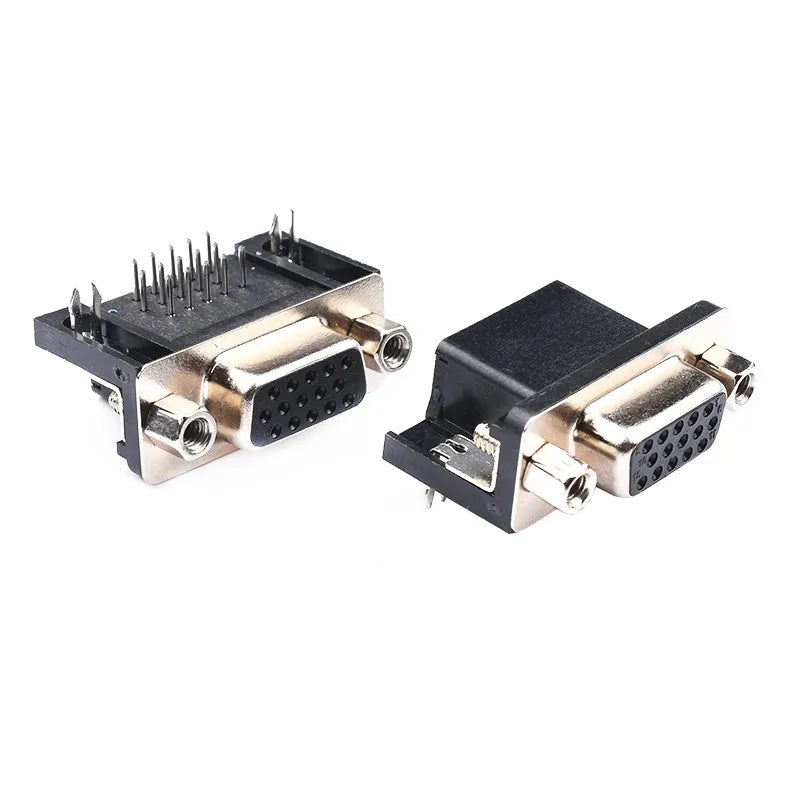

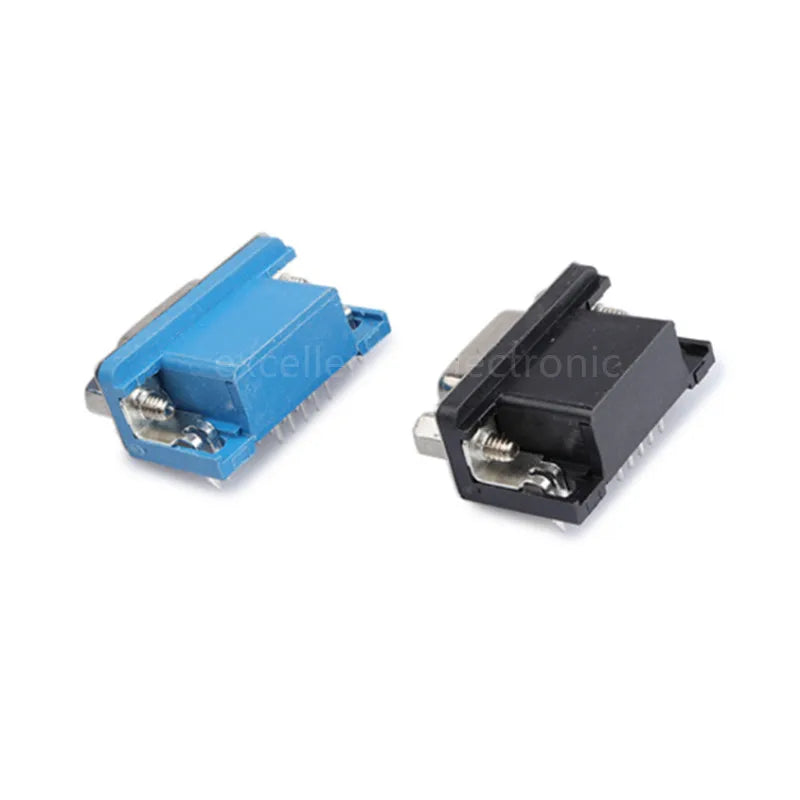

5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15

5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15

Black / 5PCS
$16.70
$16.70 $0.00
Skip to product information
5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
  • 5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
5/10PCS DR15 Female PCB Mount D-Sub 15 Pin VGA Type 8.89 PCB Connector 3 Rows 90-Degree Bent Needle DB15
$16.70
$16.70 $0.00
Color
Package Quantity
Description

SPECIFICATIONS

Brand Name: ZSDZFYLLK

Certification: CE

Choice: yes

Color: Blue/Black

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Gender: Female

High-concerned chemical: None

Model Number: DR-15

Origin: Mainland China

Pins: 15 Pin

Style: Curved pin

Type1: DB-15 Connector

Type2: D-SUB 15 Pin VGA Type Connector

Voltage: None


   Features:

  • BRAND NEW!

  • Quantity:5/10pcs

Materials:

  • Insulator:PBT+30%glass fiber UL94V-0

  • Contact: Phosphor bronze or brass

  • Shell: Steel, Nickel Plated

Specifications:

  • Current Rate:3 Amps

  • Withstanding Voltage: AC 1250V NMS

  • Insulator Resistance:5000 Megohms Min at 500VDC

  • Contact  Resistance:25 Milliohms Max.

  • Operating  Temperature:-55  to +105

  • Contact Insertion Force:300gf Max.

  • Contact Separation Force:25fg Min
