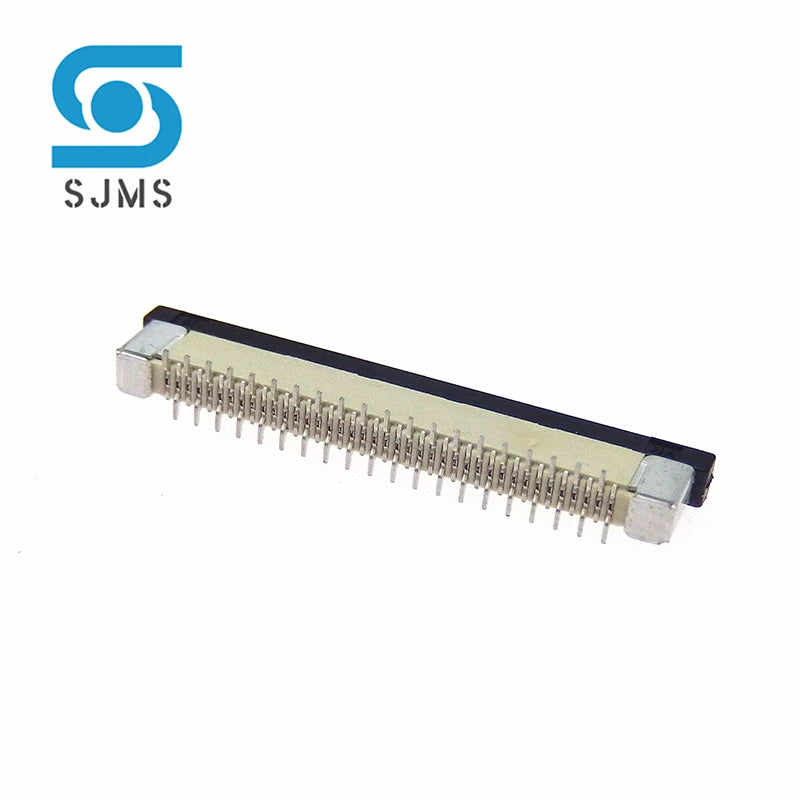

5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector

5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector

5PCS / 5P / Vertical Type
$11.04
$11.04 $0.00
Skip to product information
5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
  • 5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
  • 5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
  • 5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
  • 5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
  • 5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
  • 5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
  • 5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector
$11.04
$11.04 $0.00
Color
Pins
Connector TypeVertical Type
Description

SPECIFICATIONS

Brand Name: SJMSDZ

Certification: RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: FPC FFC Connector

Origin: Mainland China

Voltage: 自定义编辑

semi_Choice: yes

5/10pcs FPC FFC socket 0.5mm Pitch 4 5 6 8 10 12 16 18 20 26 28 30 34 40 50P 54 60 Pin Vertical Type Ribbon Flat Cable Connector


Type: Vertical Type Ribbon Flat Cable Connector

Pitch :0.5mm

Rated current: 0.4A

Rated voltage: 50V

Withstand voltage: 200V

Contact resistance: ≤20mΩ

Insulation resistance: 500mΩ

Working temperature: -25℃~+85℃

Main body (material): LCP,UL94V-0

Latch (material): LCP,UL94V-0

Terminal (material): phosphor bronze tinned


FPC Flex Cable Purchase Links:https://www.aliexpress.us/item/3256805206451154.html?gatewayAdapt=glo2usa4itemAdapt
