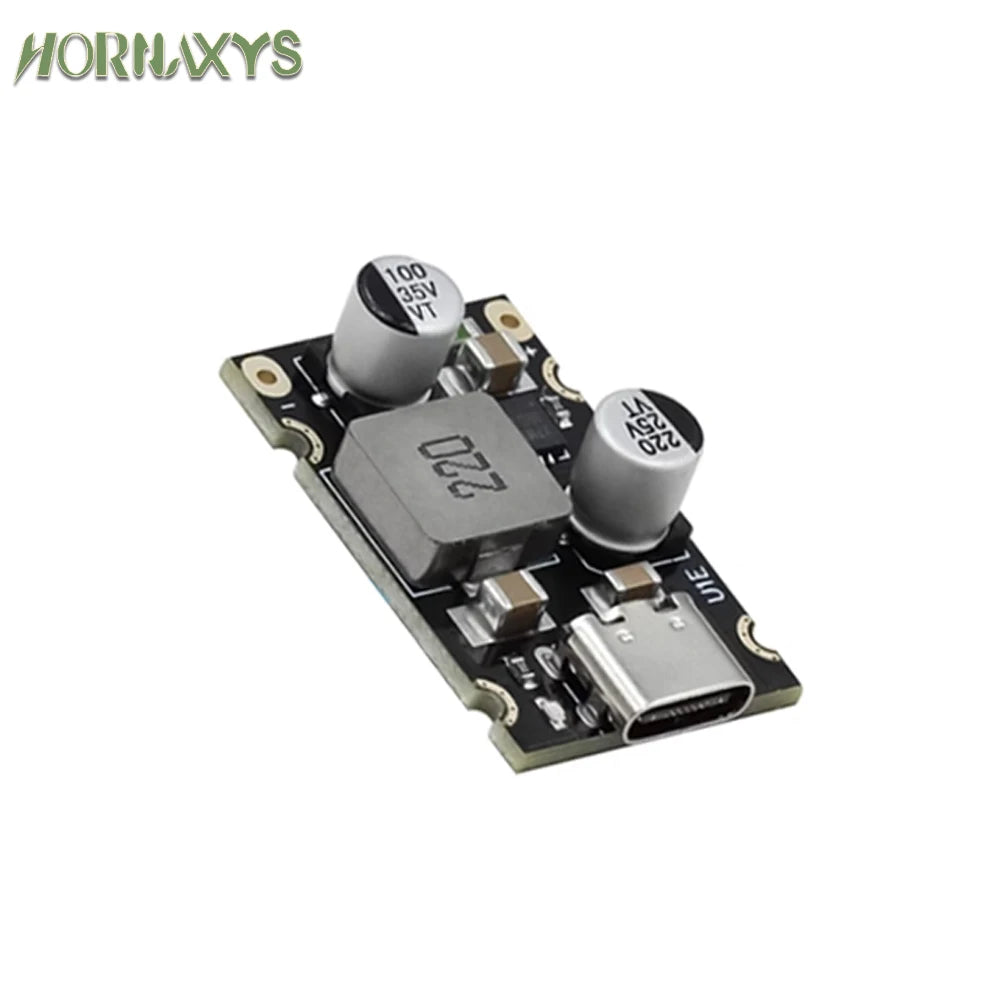

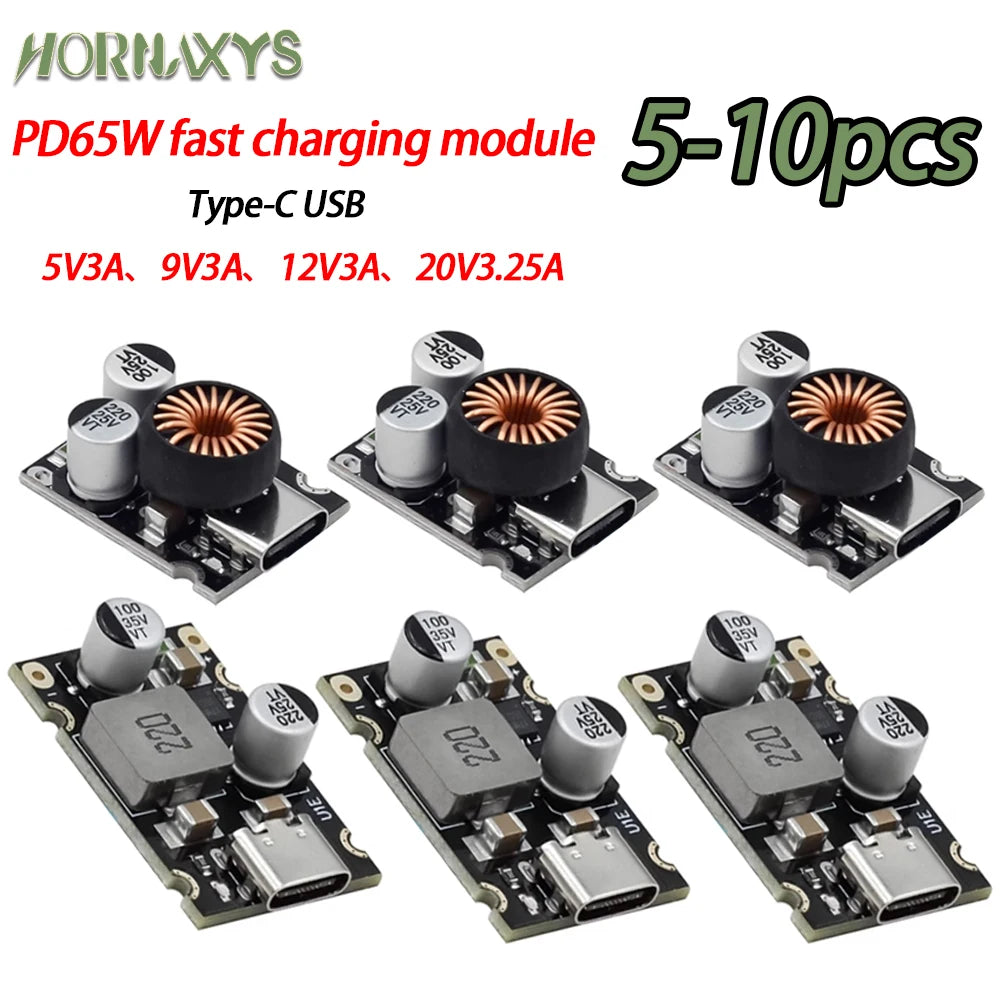

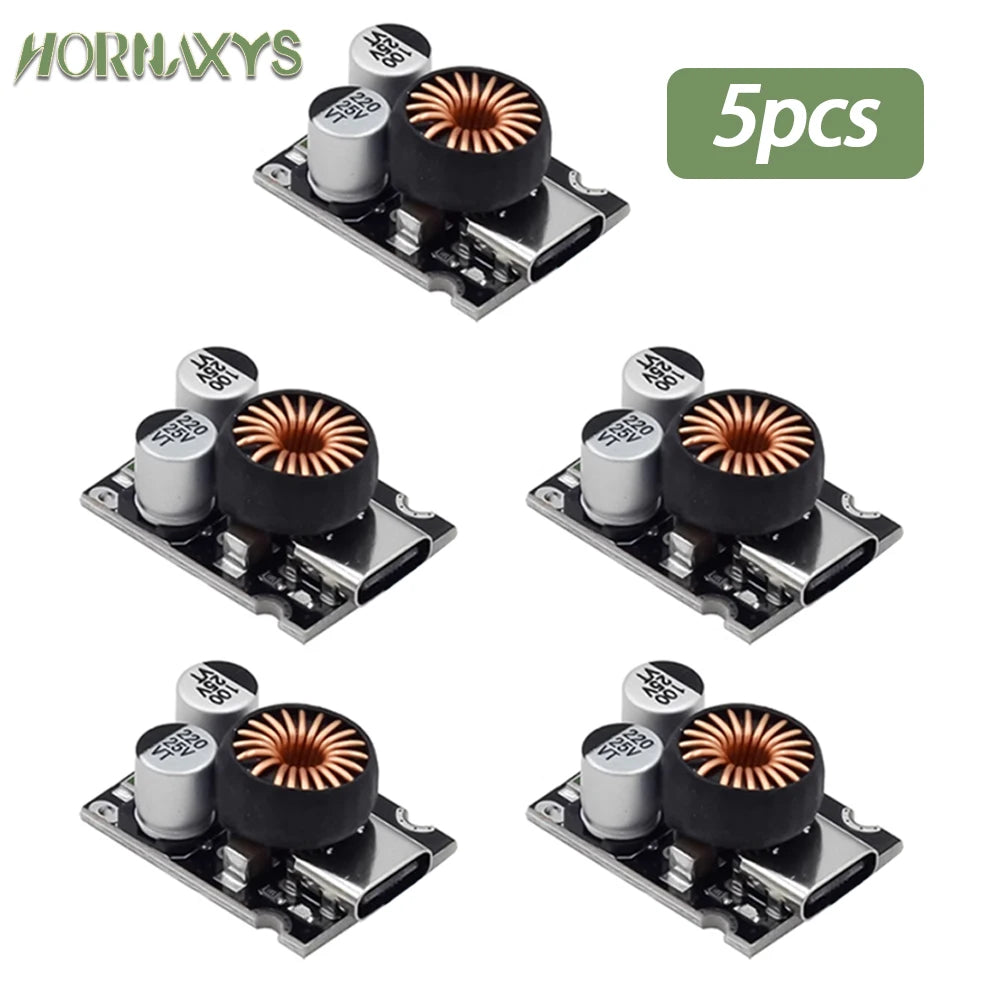

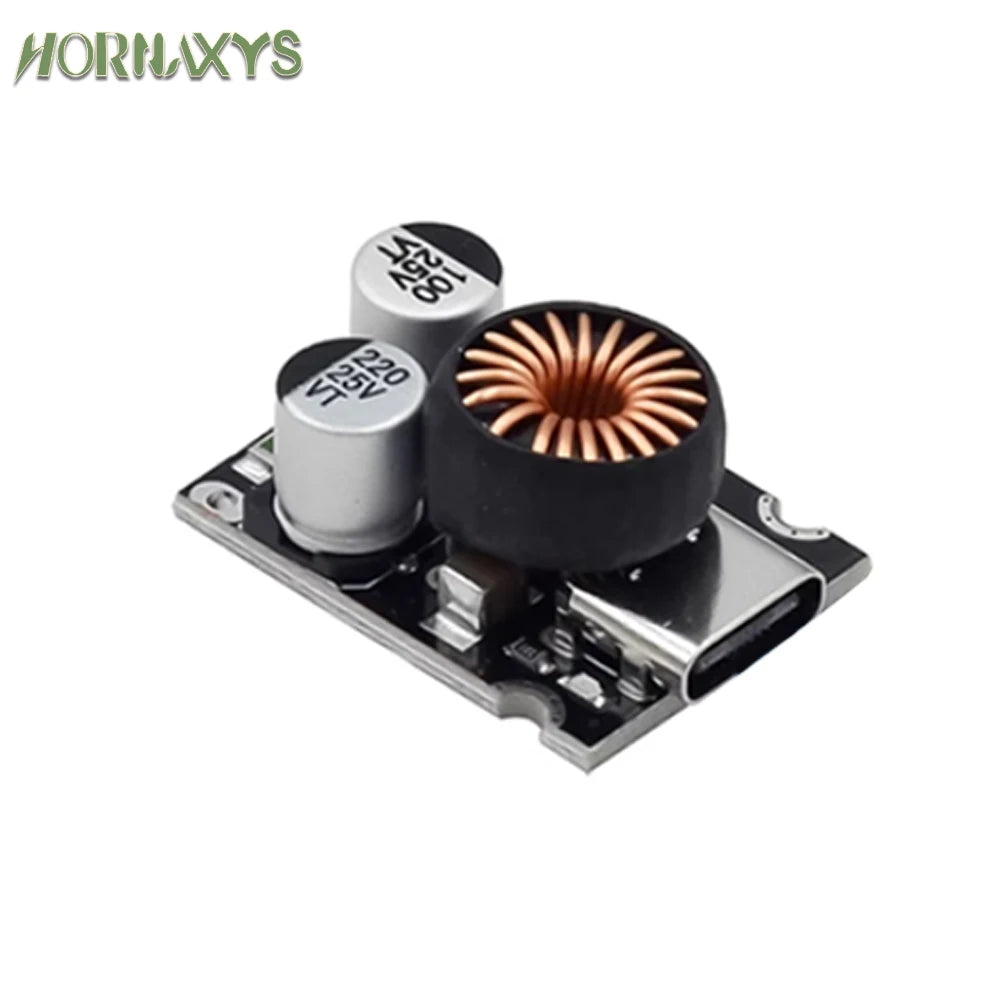

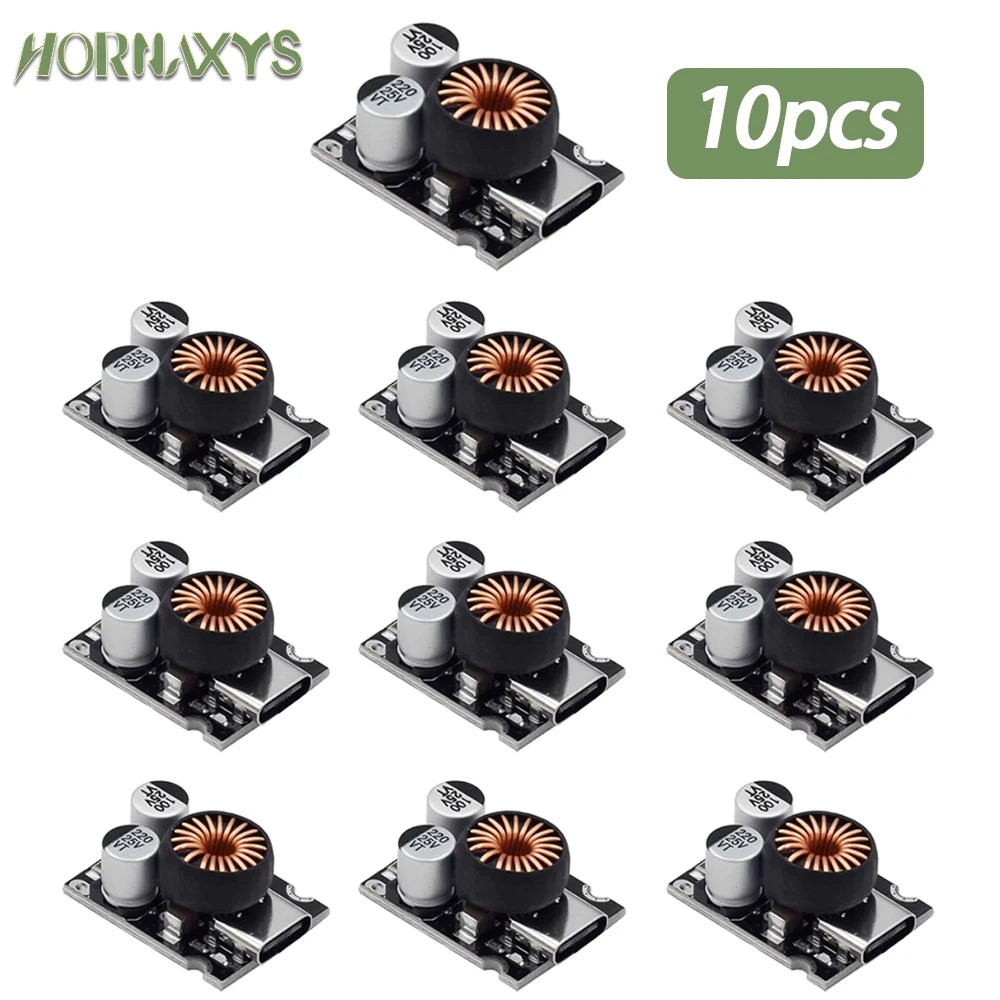

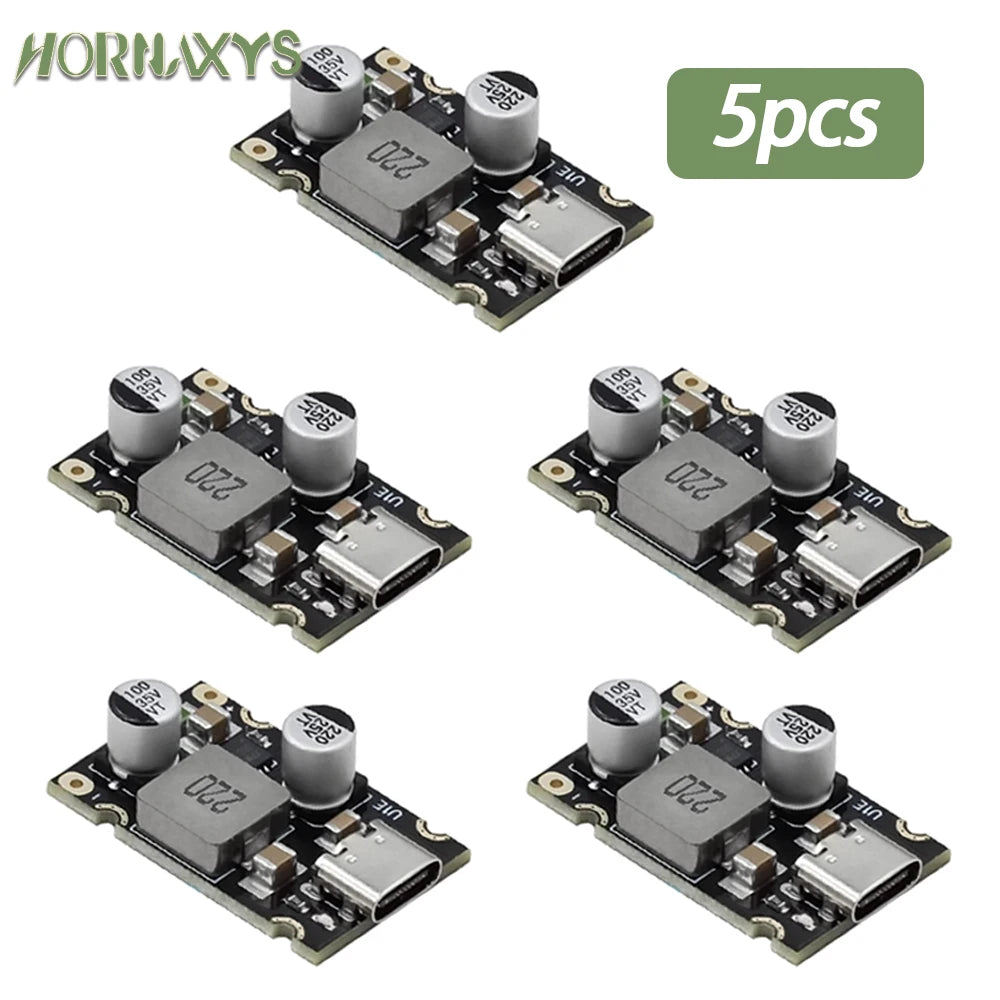

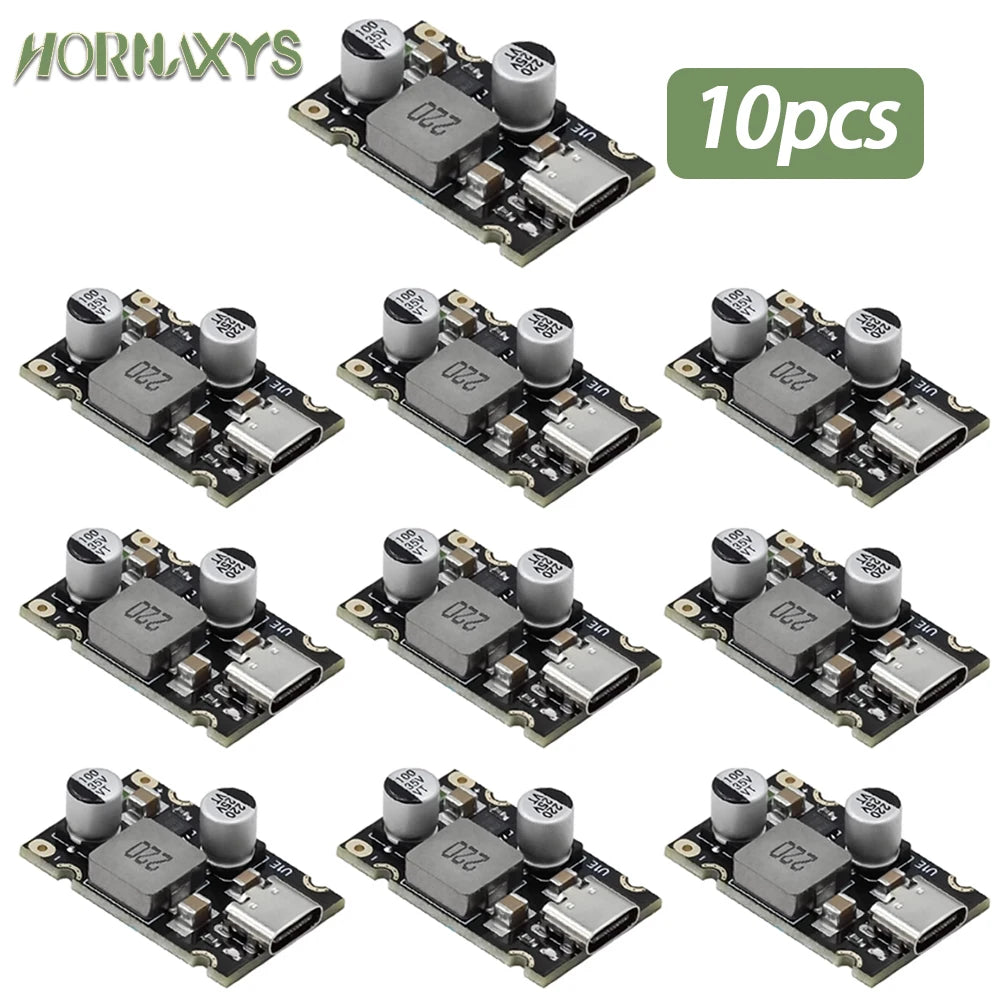

5-10pcs PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V

Product Features

Input voltage: DC8~32V

Output voltage: automatically adjusts between 3.3V~21V when connected to TYPE-C compatible powered devices (input voltage should be higher than output voltage, if you want to trigger 20V fast charging then input voltage should be higher than 20V)

Output power: 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)

Conversion efficiency: 92%~97%

Output voltage ripple: <200mV No-load current: <3mA Input overvoltage, undervoltage protection Input overcurrent protection

Output over-current, short-circuit protection Whole machine over-temperature protection

Supported charging protocols

BC1.2, Apple protocol

Qualcomm QC2.0 and QC3.0

Huawei Fast Charging Protocol FCP and SCP Samsung Fast Charging Protocol AFC

MTK PE+1.1 and MTK PE+2.0

PD2.0/PD3.1 (PPS) output protocols
