SPECIFICATIONS

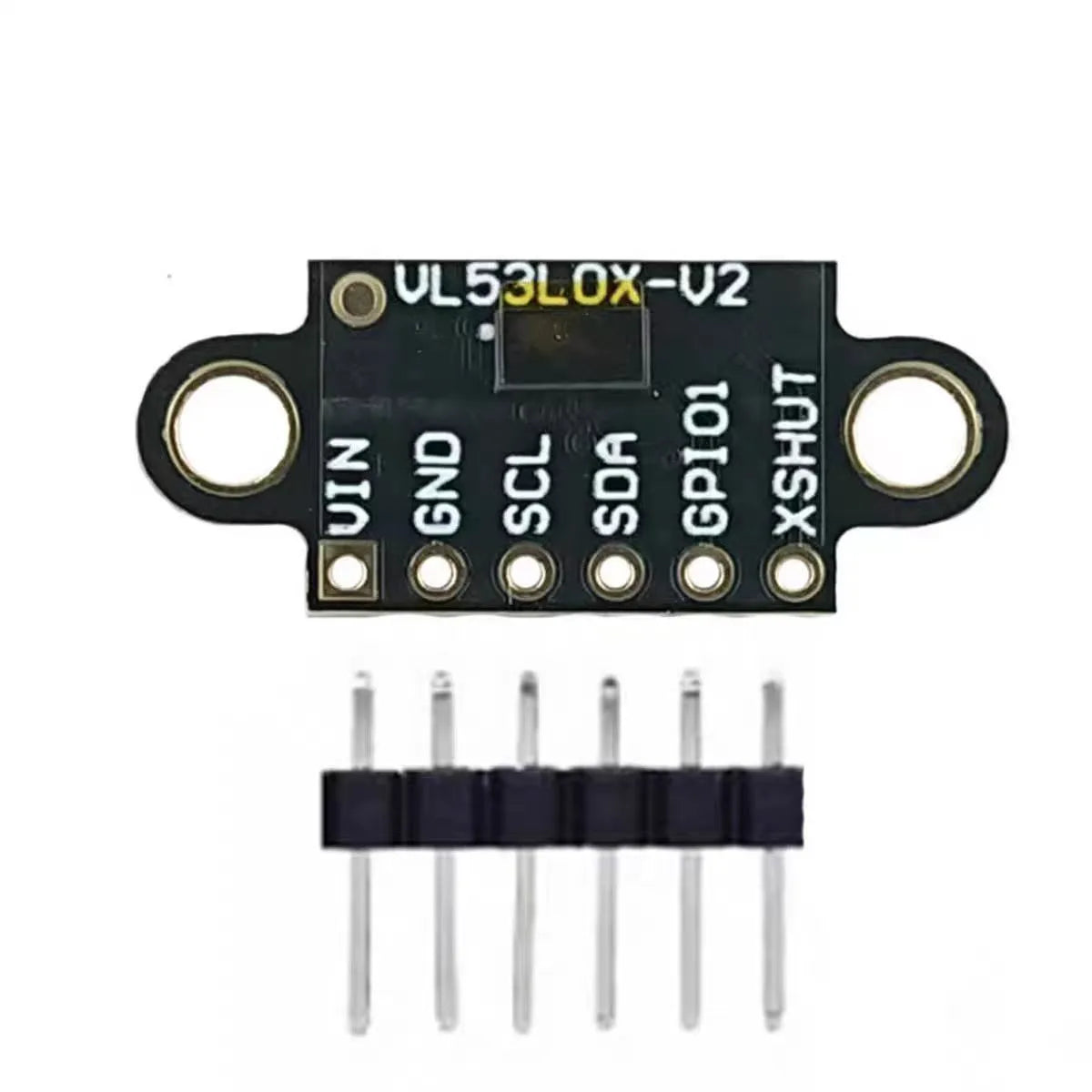

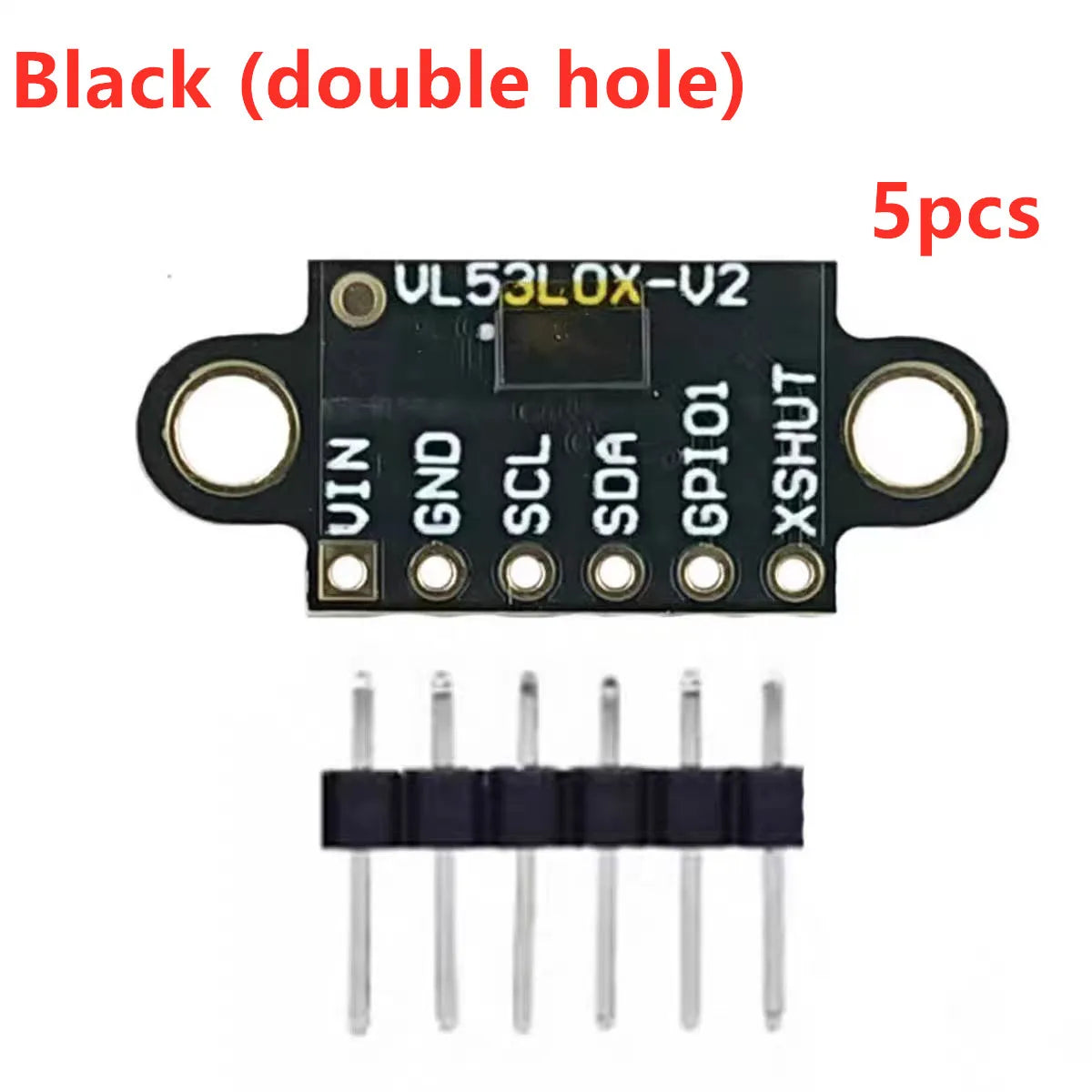

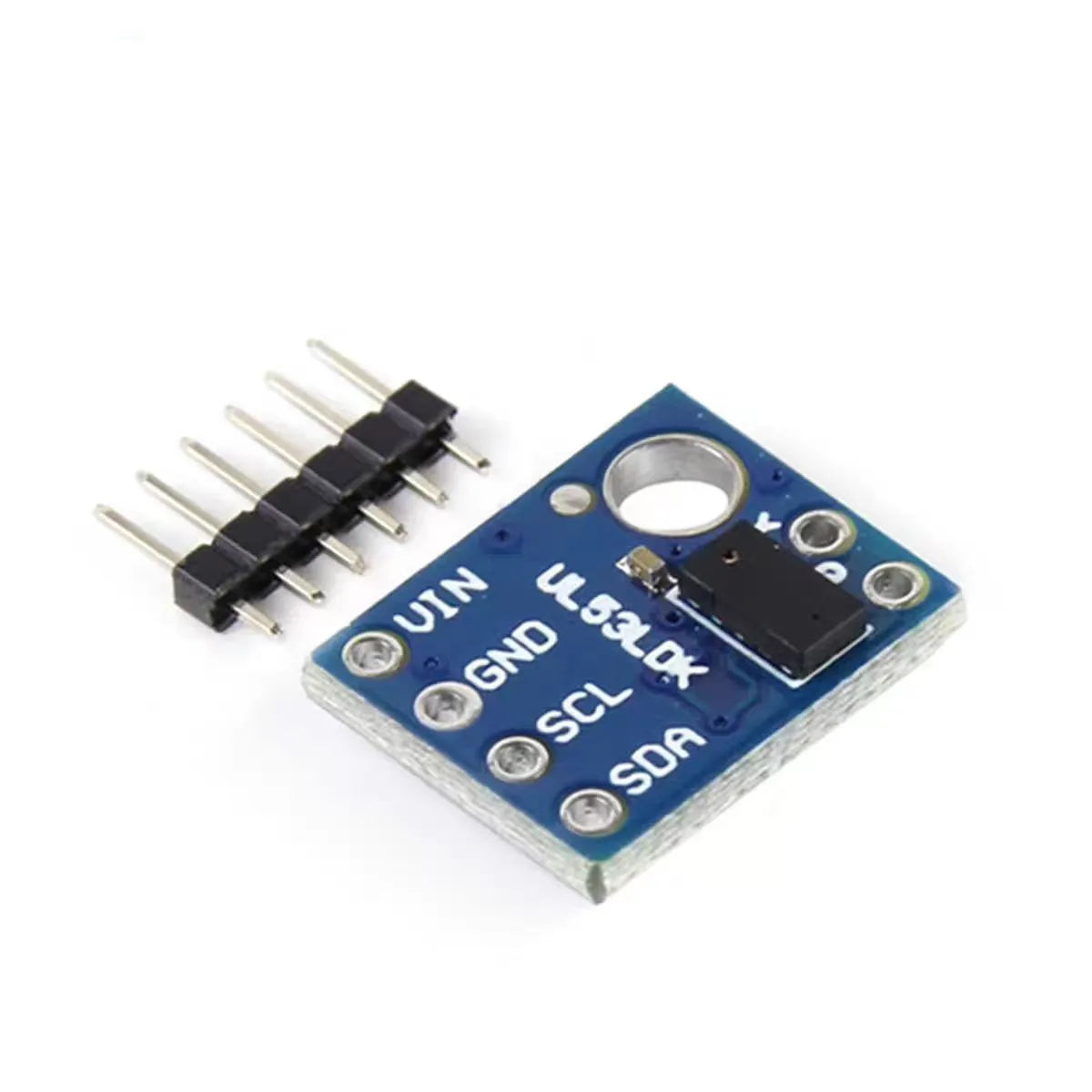

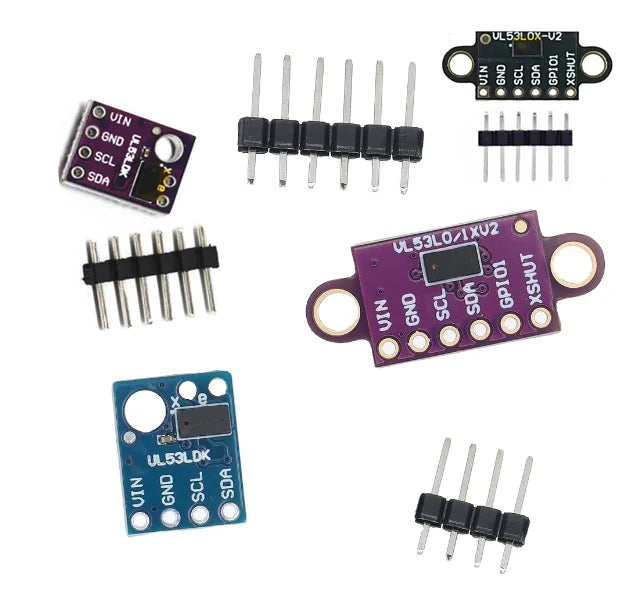

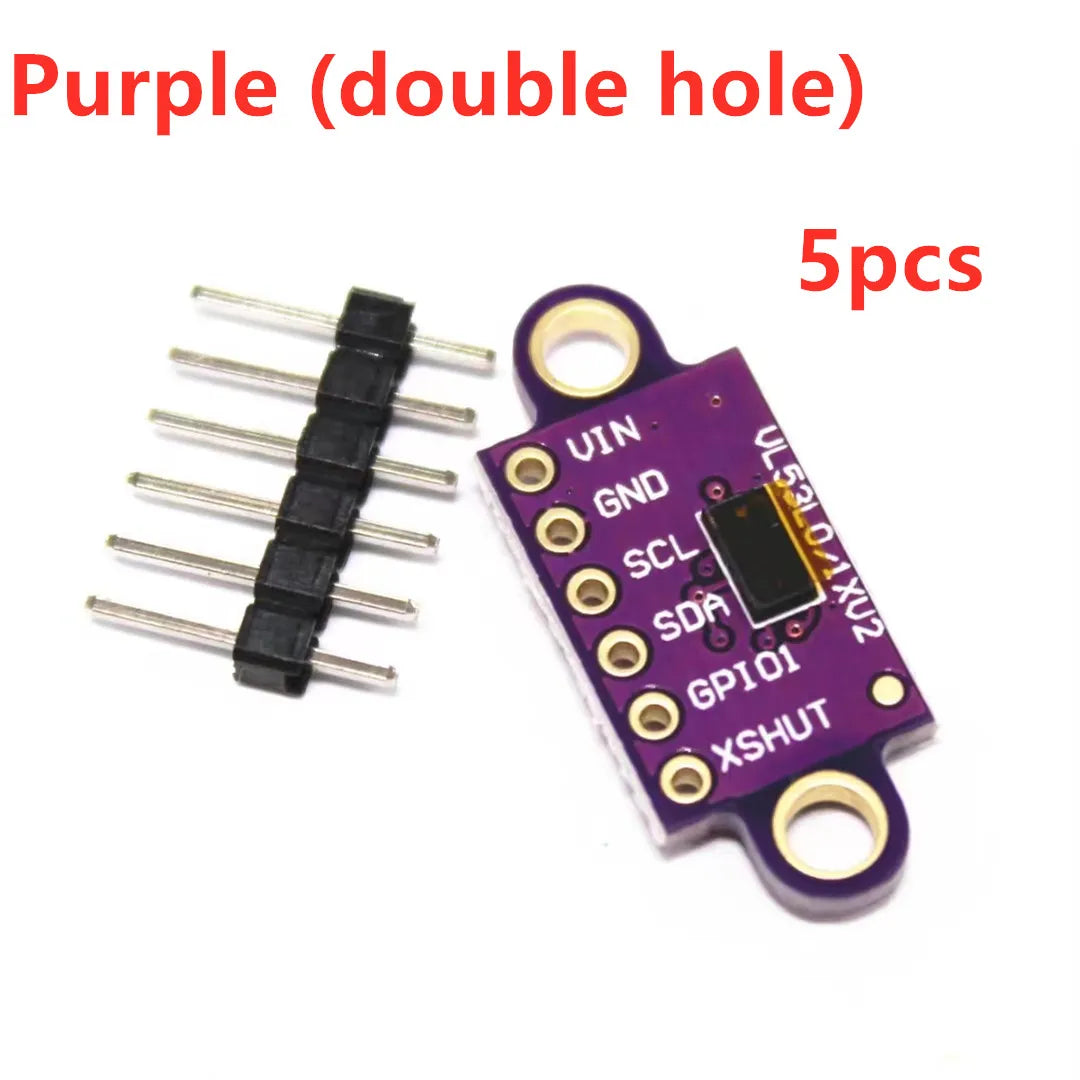

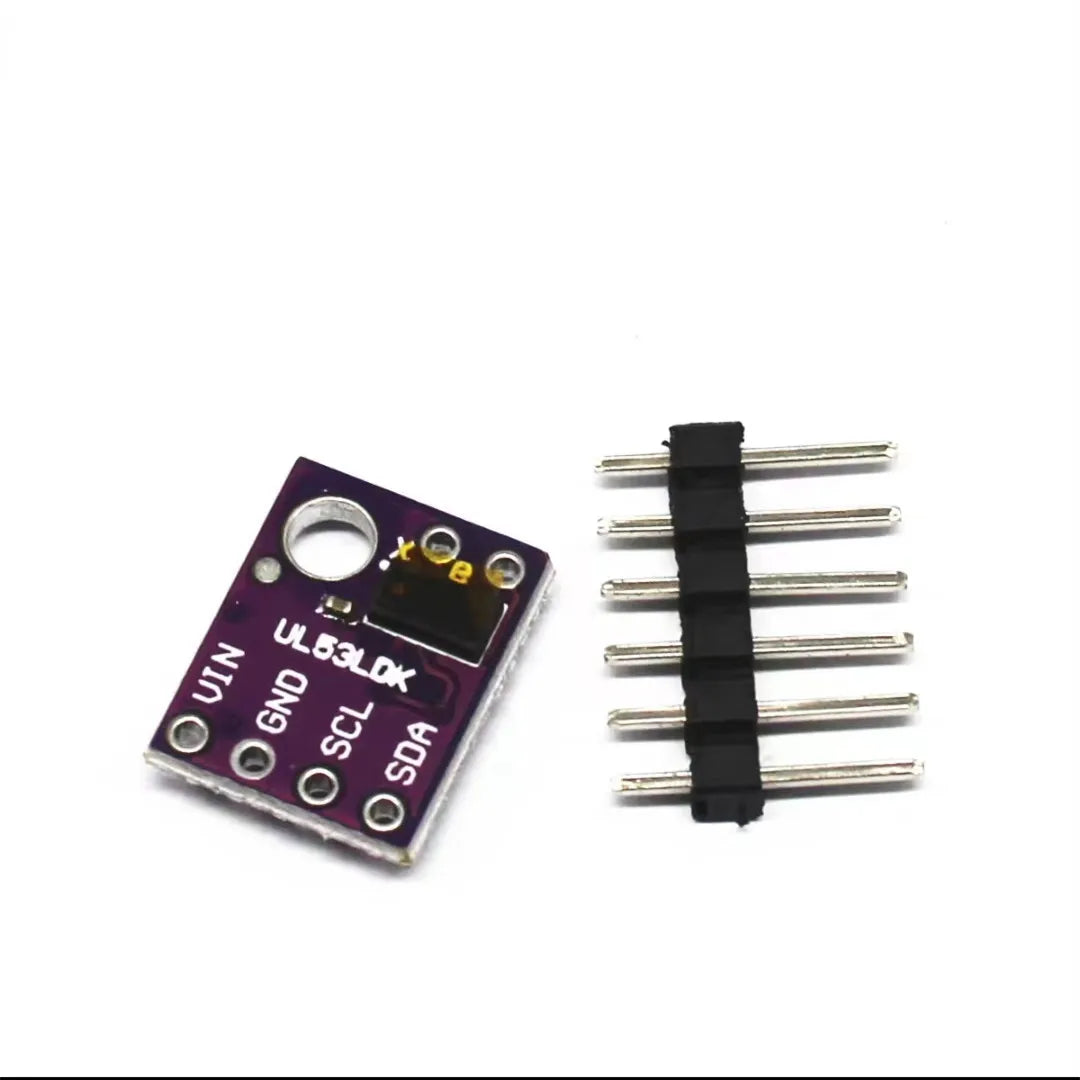

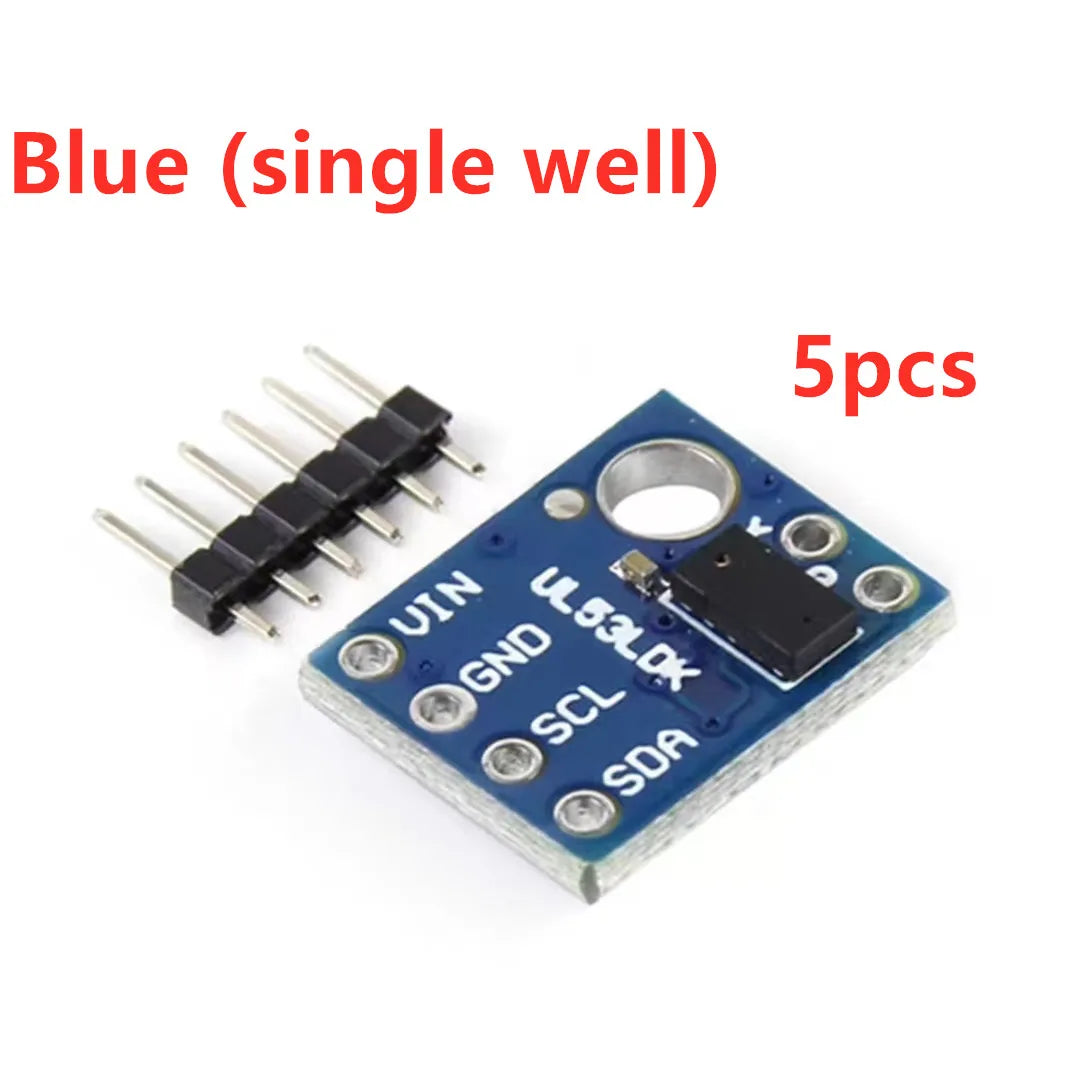

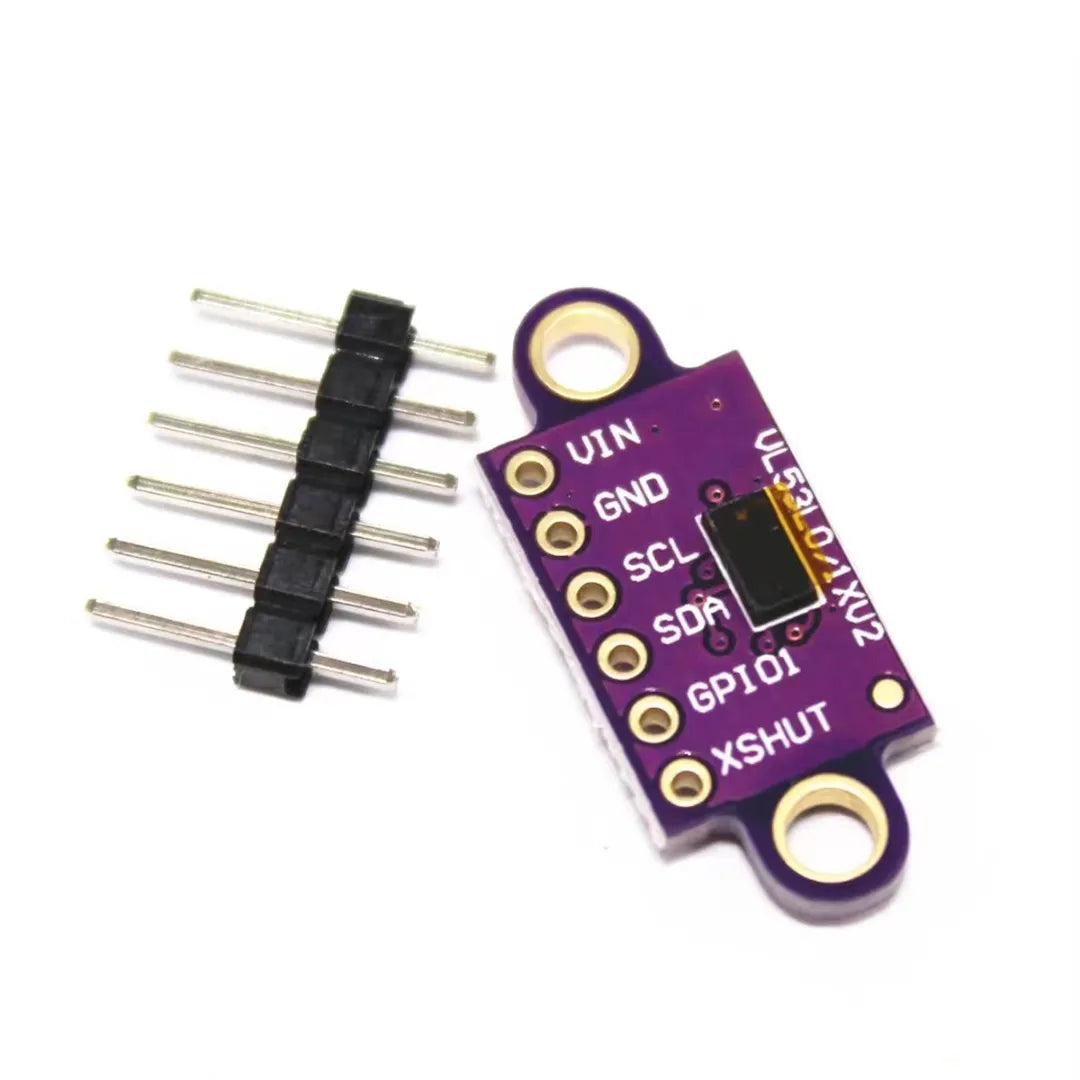

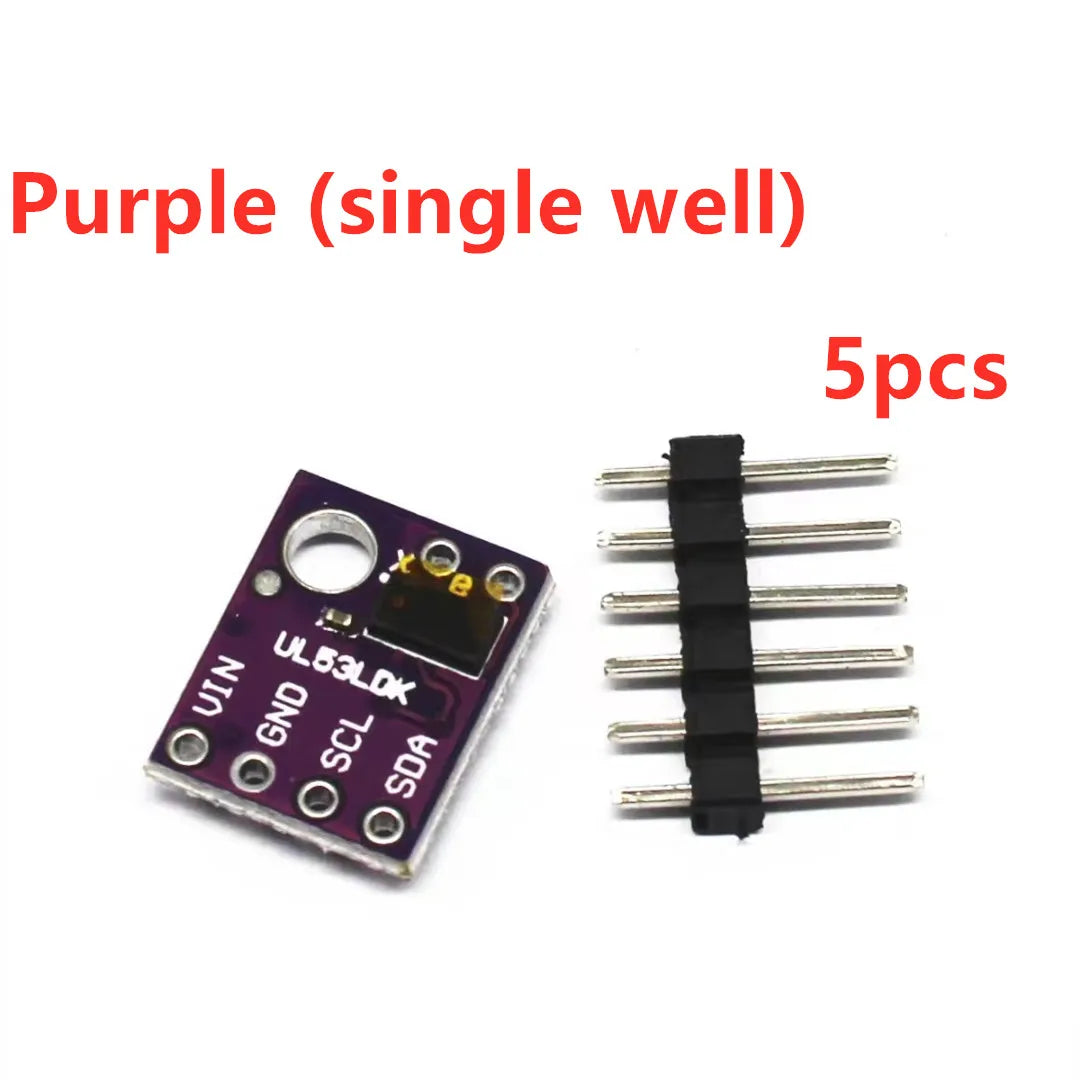

Model: GY-VL53L0X

Chips used:

VL53L0X

Power supply: 2.8-5V

Communication mode: IIC communication protocol (fully compatible with 3-5v system)

Module size: 10.5mm*13.3mm, mounting hole 3mm

The ultra-small size makes it easy to install in confined spaces

Schematics, relevant data sheets, and reference documents are provided

ARDUINO TEST CODE IS PROVIDED

(ST) released the second generation of laser ranging smart sensor VL53L0, the new one

Based on the successful FlightSense™ technology, it achieves faster, farther and more accurate ranging functions, and greatly improves the camera performance of mobile phones and tablets

, user detection, drones, IoT, and wearables open up new application opportunities.

With an external dimensions of 4.4 x 2.4 x 1mm, the VL53L0 is the world's smallest Time-of-Flight (ToF) module and the first ranging smart sensor to integrate a 940nm VCSEL light source, a SPAD photon detector, and an advanced microcontroller that manages the entire ranging function. The first module on the market to use 940nm emitted light, combined with an advanced infrared filter, the VL53L0 has the industry's best ambient light immunity to minimize the effects of ambient light. In end-product applications, embedded

and digital algorithms to minimize host processing load and system power consumption.
