Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Does it include a Battery?: No

High-concerned chemical: none

Model Number: GX16

Origin: Mainland China

Voltage: 自定义编辑

semi_Choice: yes

technology1: Gilding

technology2: Gold-Plated

Product name: GX16 Gold Plated Aviation Plug
Contact resistance: every contact resistance is not greater than 0.005 Ω
Ambient temperature: -50℃--7℃
The materials of the needle: the copper plating Gold
Plug: threaded connection

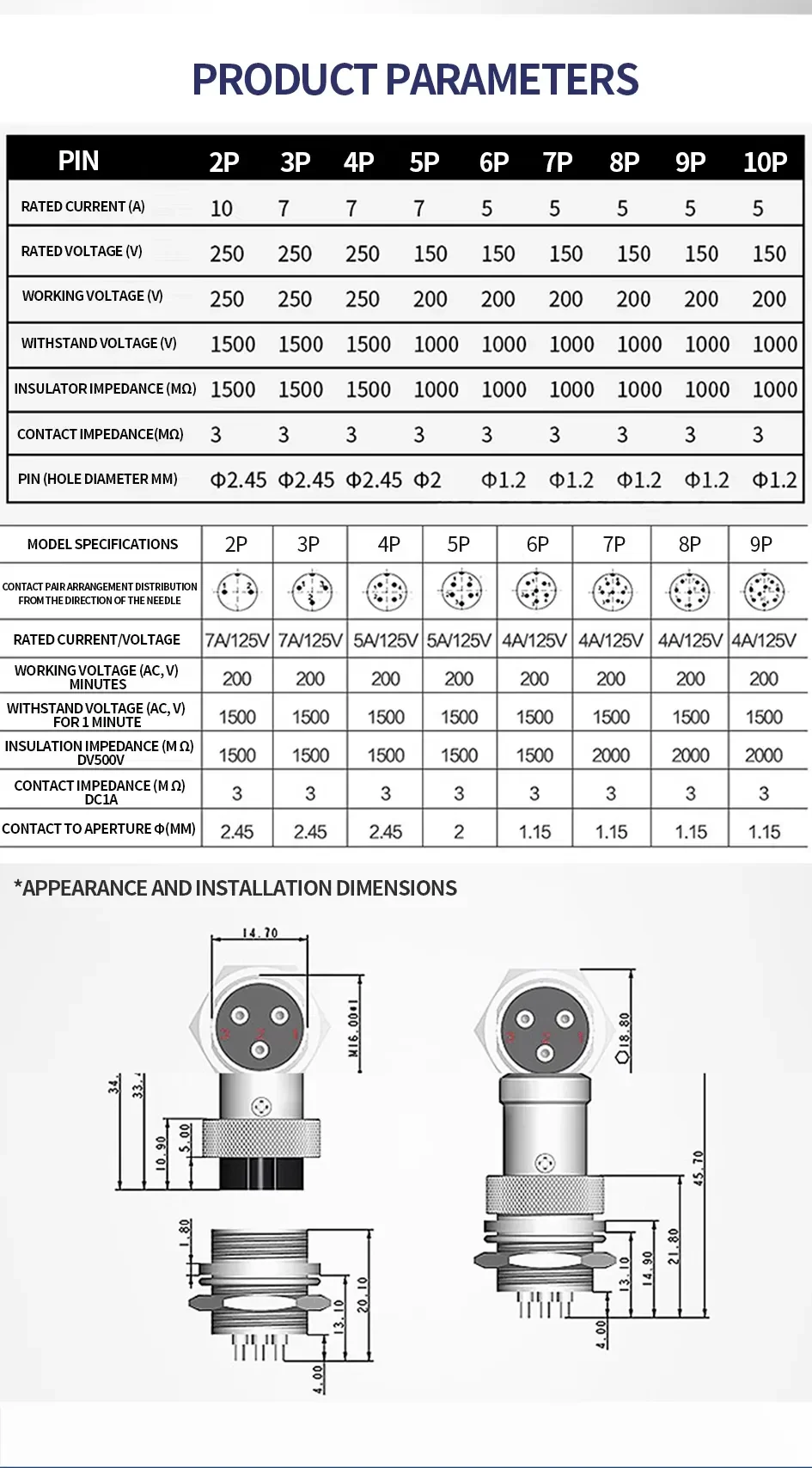

Parameter:
1. GX12 Aviation Connector
Mounting Hole Diameter: 12mm
Pins Number: 2/3/4/5/6/7 pins
Material: Zinc Alloy/ Copper Ally

The materials of the needle: the copper plating Gold
Termination Diameter: ≤5.0mm
2. GX16 Aviation Connector
Mounting Hole Diameter: 16mm
Pins Number: 2/3/4/5/6/7/8/9/10 cores
Material: Zinc Alloy/ Copper Ally

The materials of the needle: the copper plating Gold
Termination Diameter: ≤7.5mm
3. GX20 Air Connector
Mounting Hole Diameter: 20mm
Pins Number: 2/3/4/5/6/7/8/9/10/12/14/15 Pin cores
Material: Zinc Alloy/ Copper Ally

The materials of the needle: the copper plating Gold
Termination Diameter: ≤9.5mm

Packing list:

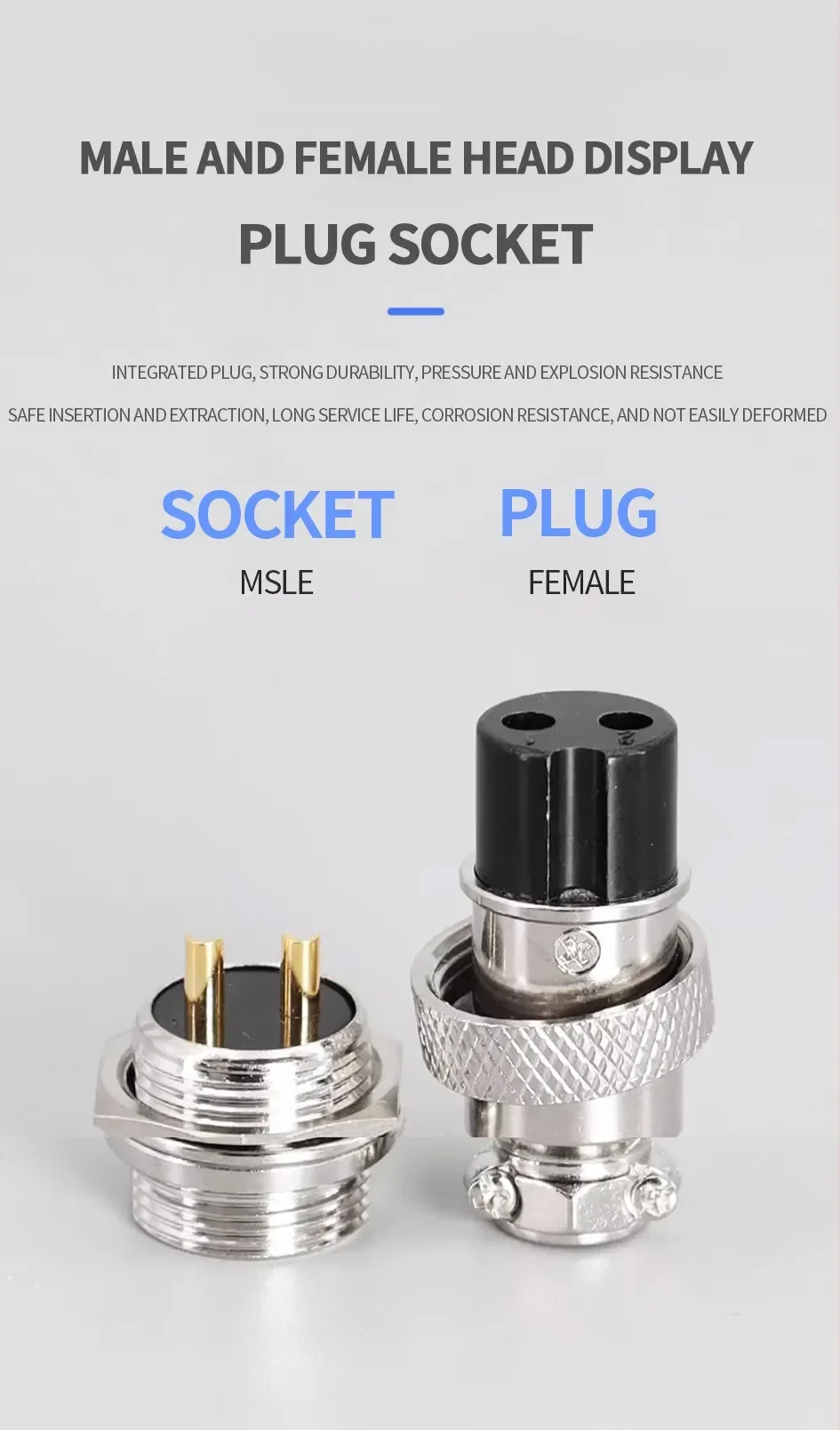

5sets= 5pcs Male Connector +5pcs Female Connector
20sets= 20pcs Male Connector +20pcs Female Connector

100sets = 100pcs Male Connector +100pcs Female Connector
