SPECIFICATIONS

Brand Name: ALLiSHOP

Certification: NONE

Choice: yes

Color: Blue

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature1: KF301 Screw 2/3/4Pin 5.0mm

Feature2: KF301 2/3/4Pin Screw connector

Feature3: Splicing type Screw Terminal

High-concerned chemical: none

Material: Plastic, Metal

Model Number: KF301

Origin: Mainland China

Pin: 2Pin, 3Pin, 4Pin

Pin header: Iron,Tin plated

Pitch: 5.0mm

Quantity: 5/10/20/50Pcs

Rated current: 16A

Rated voltage: 300V

Screws: M2.5 steel Zinc plated

Strip length: 4.5-5mm

Torque: 0.5Nm(3.6lb.in)

Type: Screw 5.0mm Terminal Block

Voltage: none

Wire range: 22-14AWG/2.5mm²

semi_Choice: yes

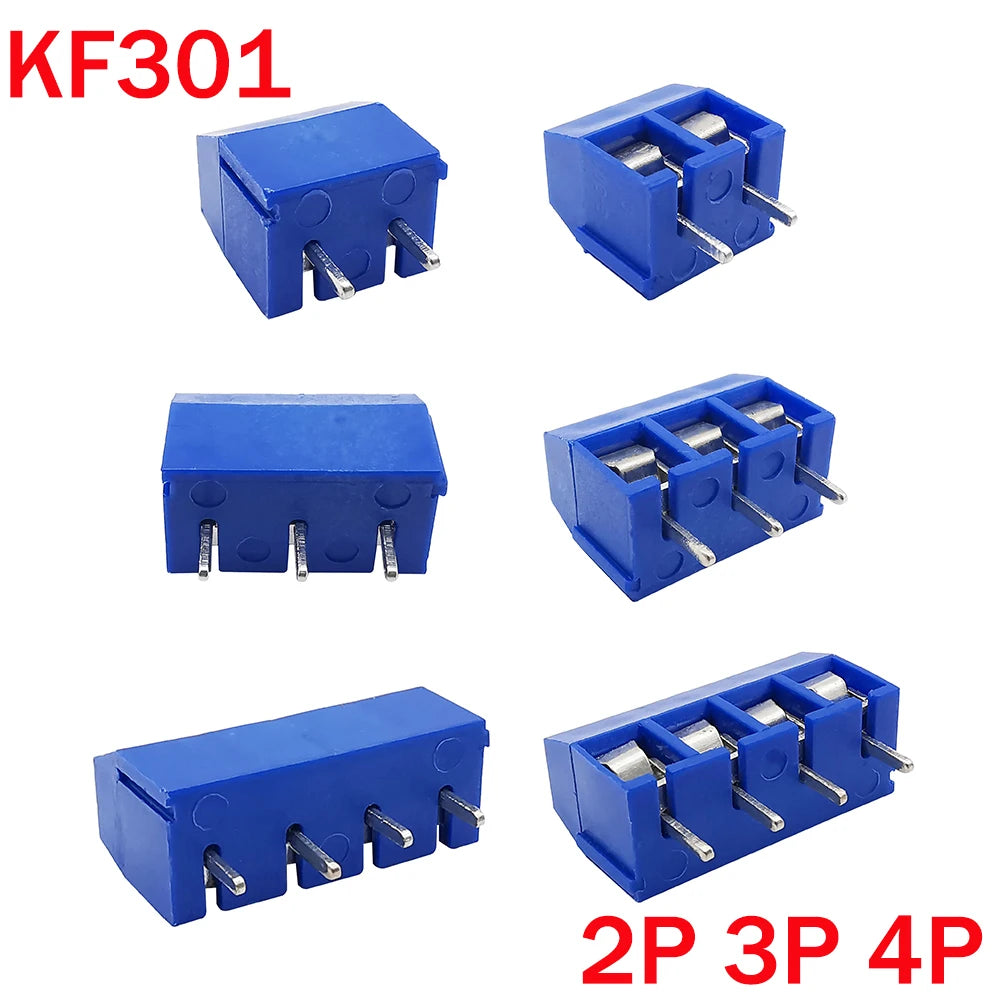

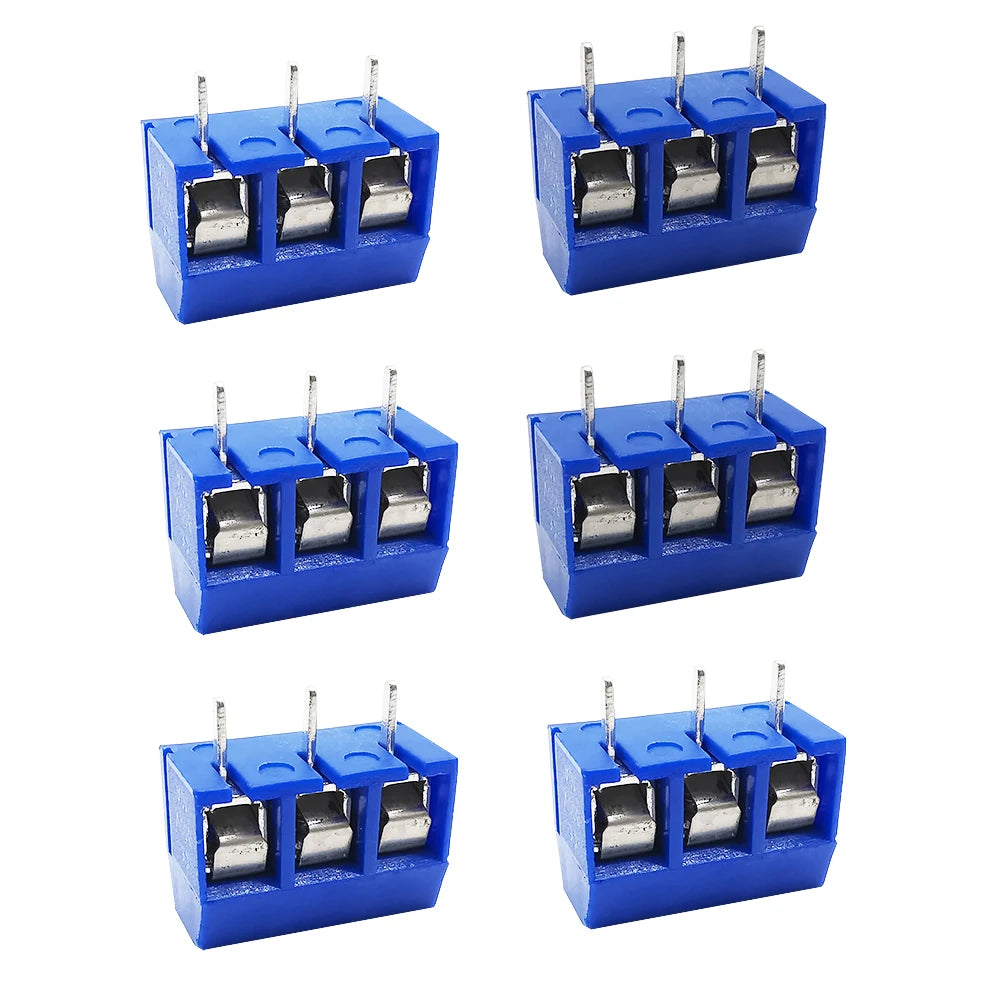

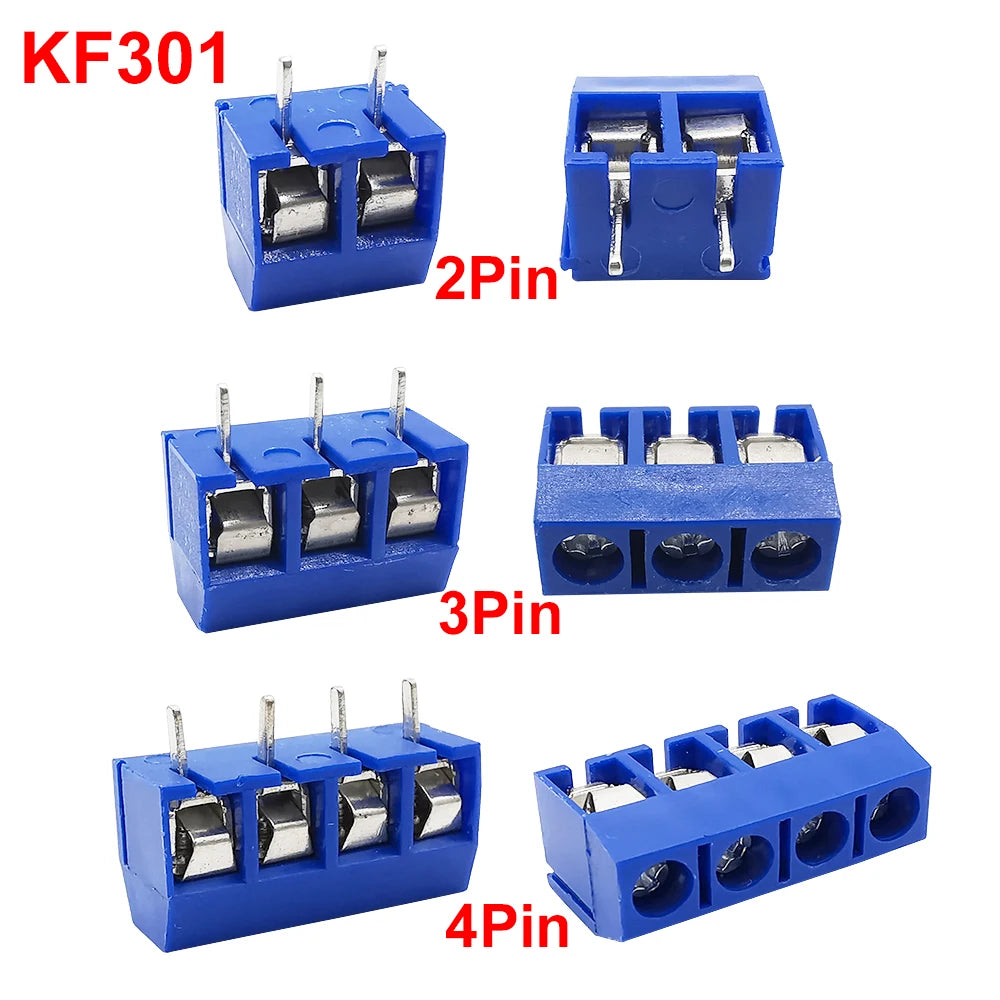

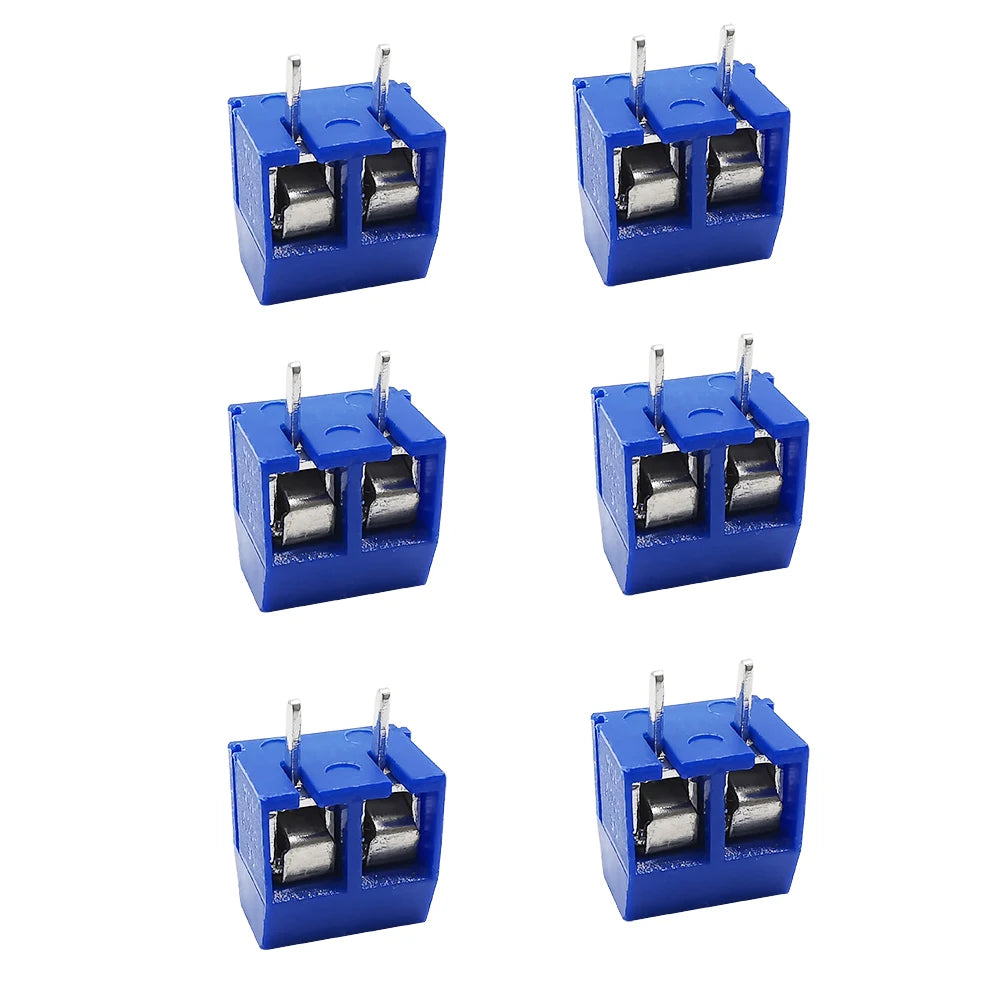

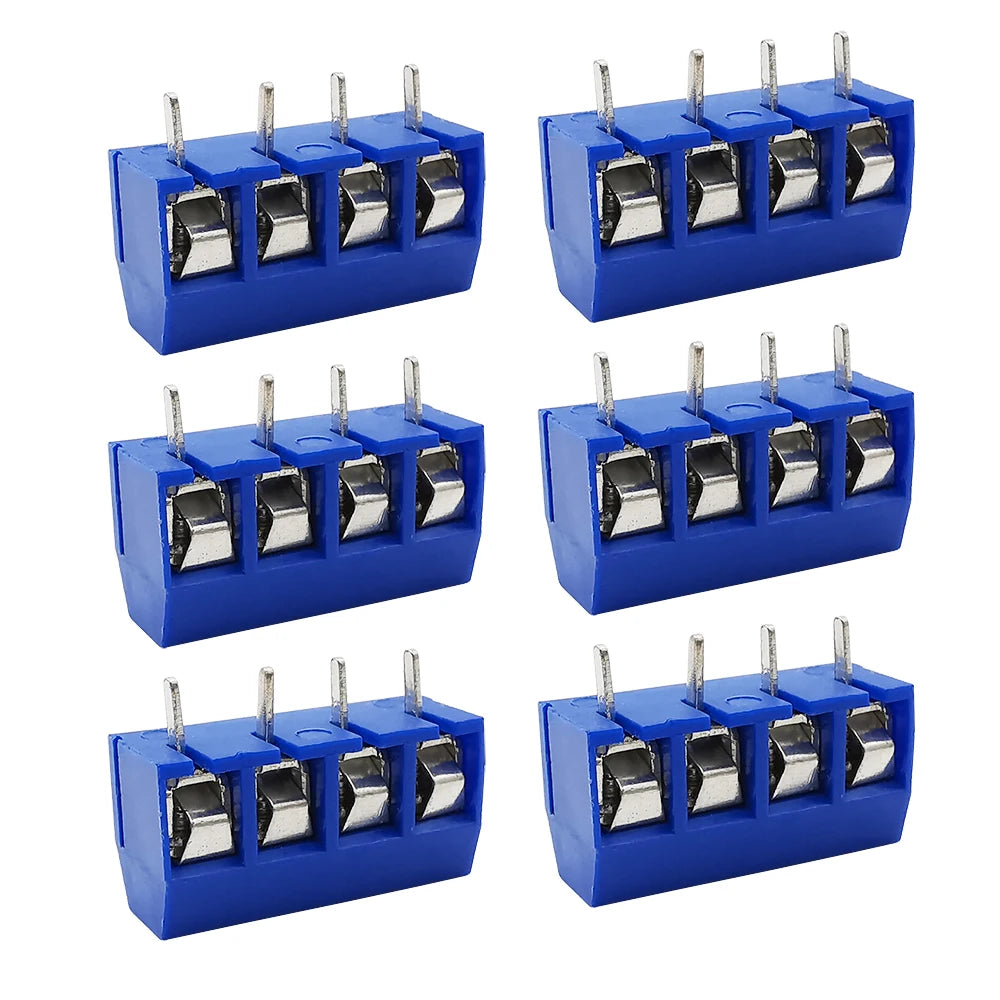

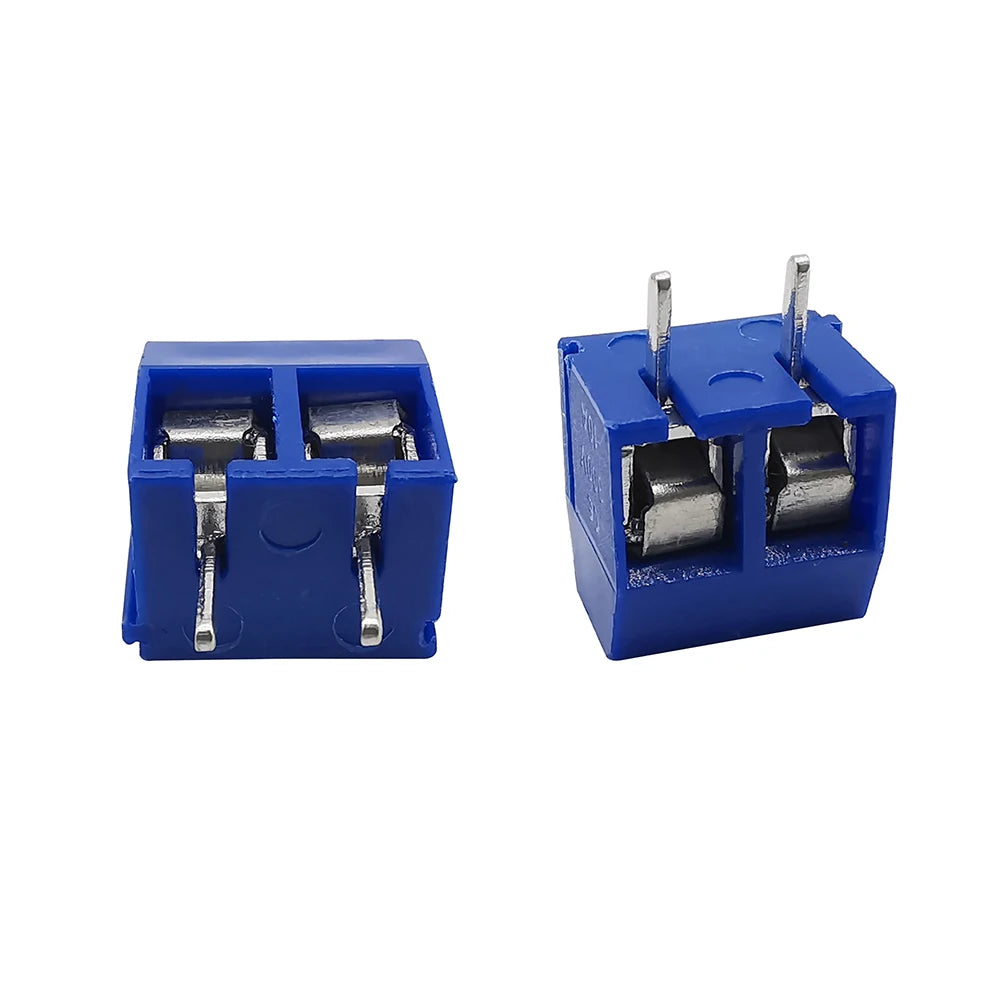

5-50Pcs KF301-2P KF301-3P 5mm PCB Screw Terminal Block KF301 2 Pin 3 Pin Wire Connector Straight Needle Blue

Product Description:

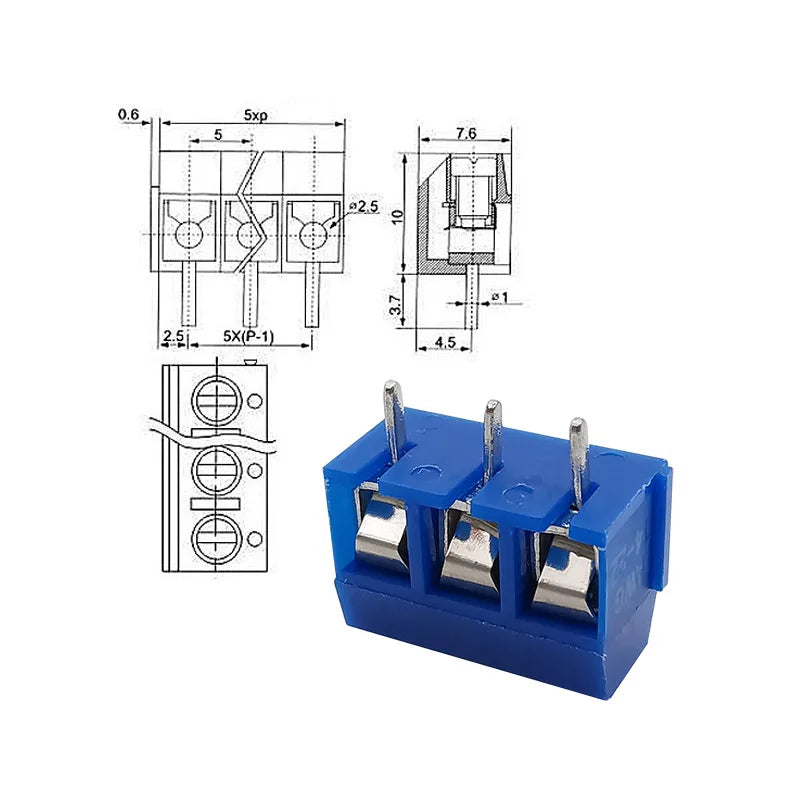

Name: KF301 2/3/4Pin 5.0mm Screw Terminal Block Connector Blue

Material: Plastic, Metal

Pitch: 5.0mm

Pin: 2/3/4Pin

Screws: M2.5 steel Zinc plated

Contact: phosphor bronze Ni plated or stainless steel

Pin header: Iron,Tin plated

Housing: PBT,UL94V-0

Rated voltage: 300V

Rated current: 16A

Contact resistance: 20mΩ

Insulation resistance: 5000MΩ/1000V

Withstanding Voltage: AC1500V/1Min

Wire range: 22-14AWG/2.5mm²

Temp.Range: -30°C~+120°C

MAX Soldering: +250°C for 5 Sec.

Torque: 0.5Nm(3.6lb.in)

Strip length: 4.5-5mm

Package :

5/10/20/50Pcs KF301 2/3/4P PCB Screw Terminal Block Connector

Note:

1.The flaws in the product in the picture are caused by reflections

during shooting, the picture may not reflect the actual color of the

item.
