SPECIFICATIONS

Amass's new XT90-S plug, based on the XT90 plug, has introduced an upgraded version of the plug to meet the current market demand for more current-resistant plugs. XT90 plug is 4.5mm banana plug, lightweight design, light weight, small size, high current resistance.

The special feature of XT90-S plug is the fire-proof design, which integrates resistance into the small plug body to realize the fire-proof function that used to require a large AS150 plug. Size can also be interpolated with traditional XT90.

For more design advantages, see the detailed drawings below.

Female plug: Metal terminal for banana insertion, for battery (with resistance inside, fire proof);


Male plug: metal terminal for banana insertion, power adjustment, charger;

This product can withstand current 90A (continuous), 120A (peak), suitable for situations where the current resistance is larger than XT60 plug, but the plug needs light weight and small volume. For example, 700 class helicopter, high current ship, high current vehicle model, etc.

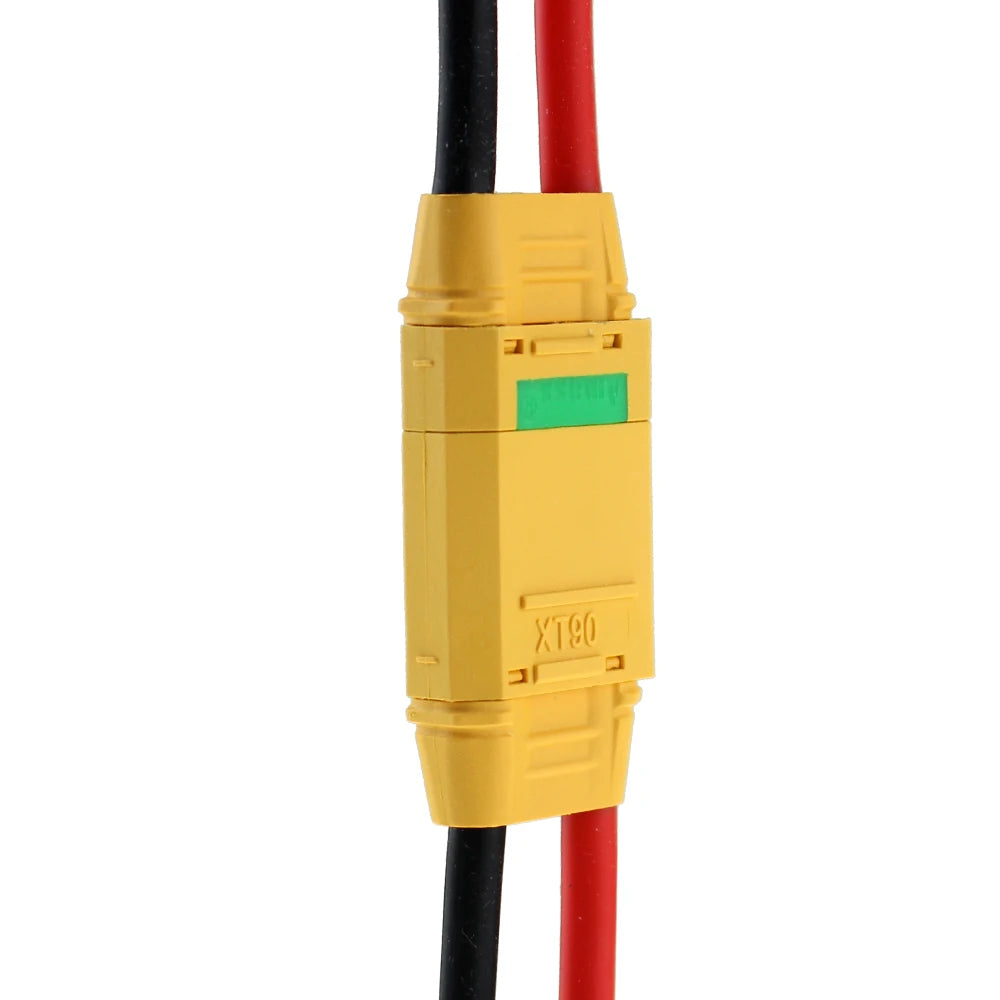

Amass XT90S XT90-S XT90 Connector Anti-Spark Male Female Connector

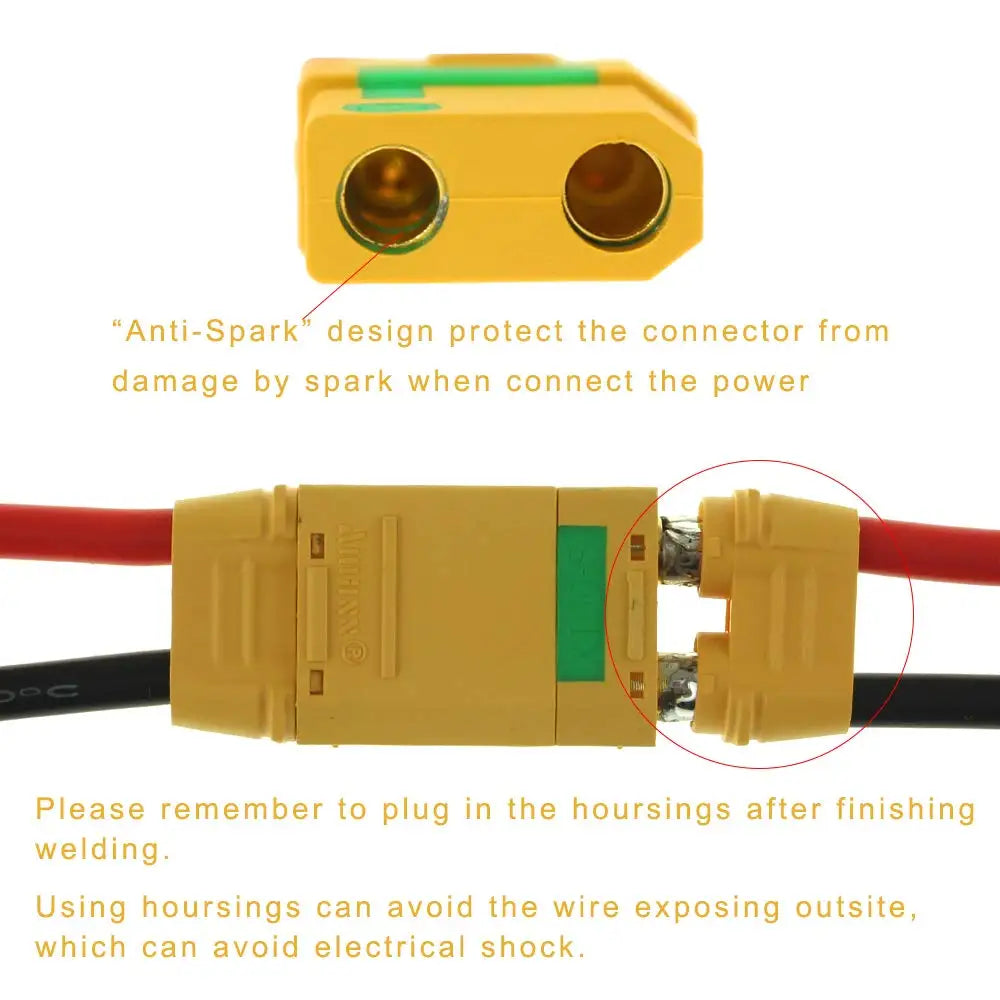

  【Upgrade version--Anti-Spark Design】100% genuine Amass XT90-S connector is a upgrade version of the XT90 connector. the upgrade feature is "anti-spark", it integrated the resistance into this small plug to prevent the spark when open the power,which also could protect the connector from damage.

【High Safety Performance】 XT90-S (compatible with XT90)"Anti-Spark" design, it could protect the connector from damage when open the power. Besides, with the housings, it could make the wire aviod exposing outside, which also aviod the power hurt humans.In addition,XT90-S connector with fireproof material pass many certifications,such as UL, CE,ROHS.Last but not least,the production fully passed IOS9001 certification,you totally could use it in safe.

【Durable Material】Provides Solid and Reliable Connection,reusable Conector end design for times insert and take off from the Enclosure.With high current indurance performance ,it could be used many times, reach to 1000 times.

【Wide Application】 Often used in remote control aircraft and More RC models, like some big RC lipo battery(XT90-s Female), RC ESC(XT90-S male) , RC Charger and so on.

【Package included】5 pairs of Amass XT90-S Anti-Spark Amass connector (5pcs female +5pcs male)

Features:

100% Original Amass
AMASS Patented Anti-Spark Design!
Reusable Conector end design for times insert and take off from the Enclosure.
New style design with the shining and safety construction.
Non-slip insulator, easy to connect.
Clear "+" and "-" mark, avoid the mistake.
Accurate size, perfect connection prevent any inside pollution.
Advanced caseting technology,and integrated with banana plugs fully and closely.
The groove slot design make the connection stronger and avoid any mistake when you use it.
2U thickness gold plating, we use the large flow-line design banana plug which have a larger contact area,
although 3.5mm banana plugs, but can be sustained a constant current 90A,120A current peak.

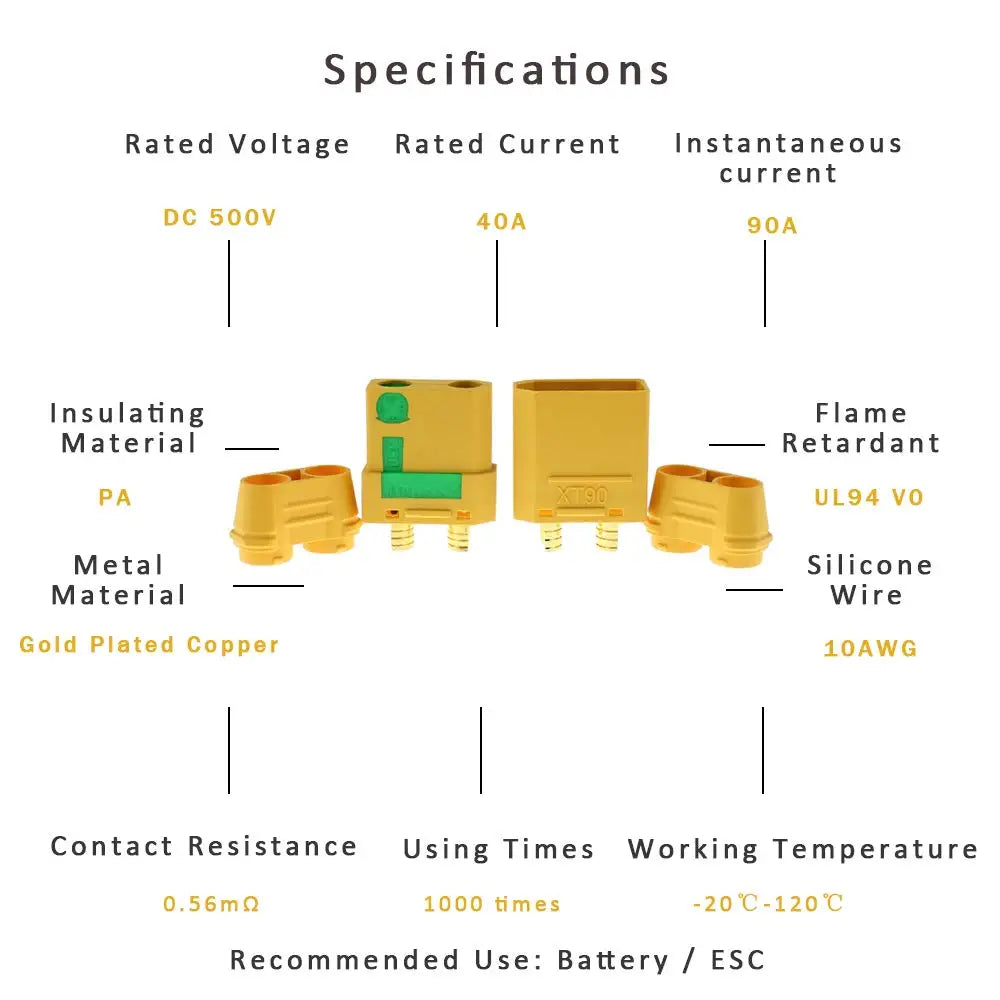

Material of Housing: Heat-resistant nylon material(high temperature resistance to 240°C)
Material of connector : 2U thickness Gold hplated copper
Stable current: 90A /Max. 120A
Temperature resistant:-30°C ~ 240°C
Compatible with AMASS XT90 connector
Product id: XT90-S
Adopts 4.5mm banana plug, upgrade version
Light weight, small size, high current indurance performance
Unique anti-spark design, compatible with XT90.

Package included:

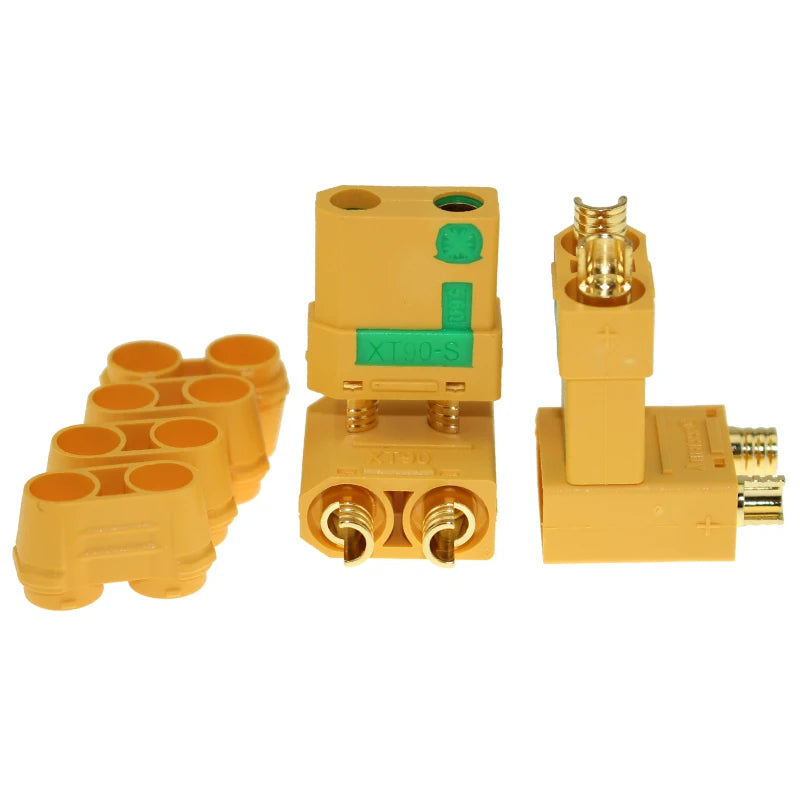

5 Pairs Amass XT90-S Connectors with protection case (5pcs male+5pcs female)

Application:
The male plug is for ESC, female plug is for battery

Kindly note:
Any concern or question if you have ,pls feel free to contact us,we will solve it for you in the first priority.Thank you.
