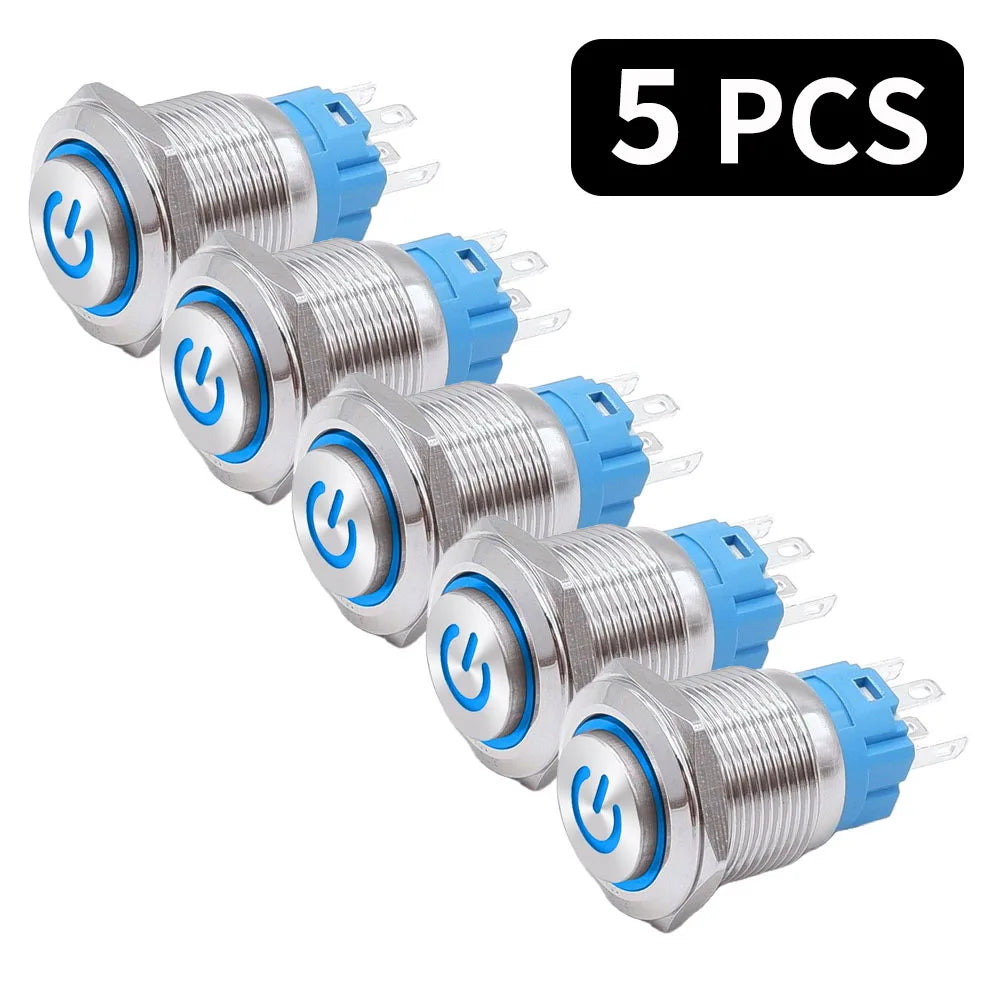

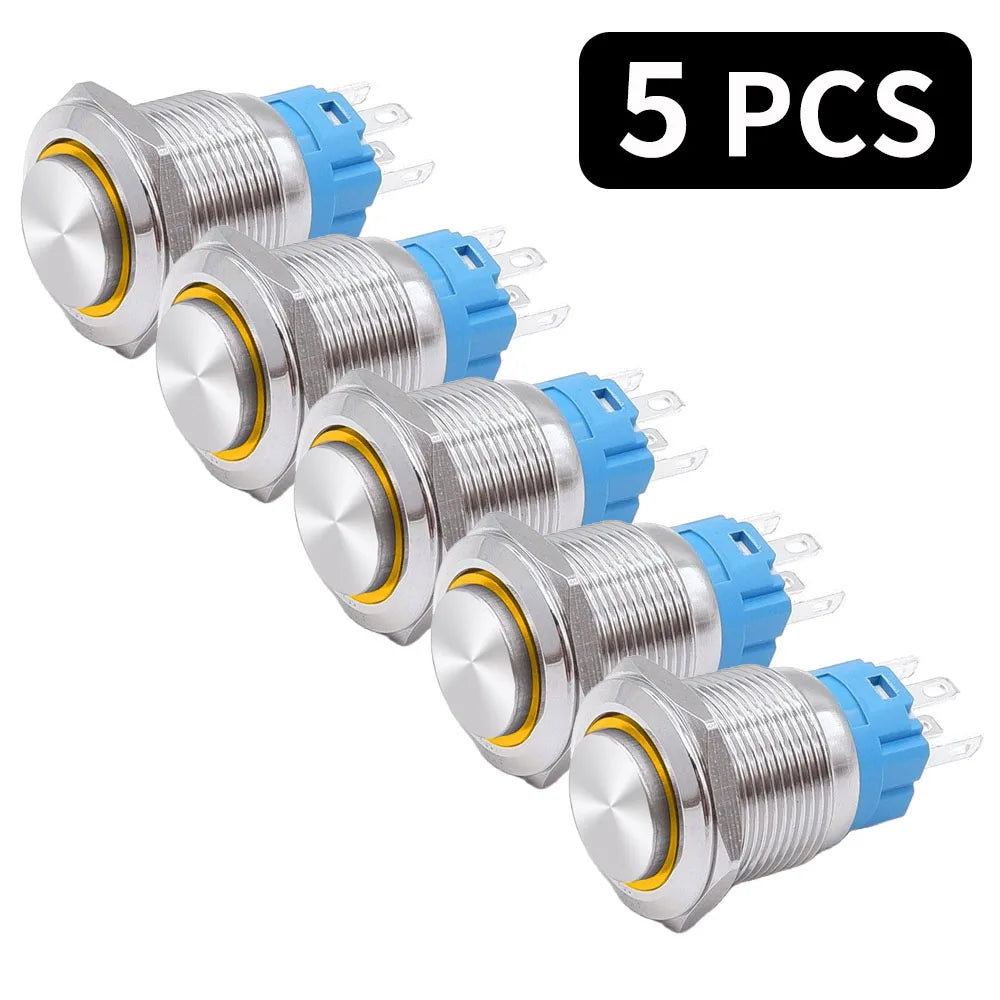

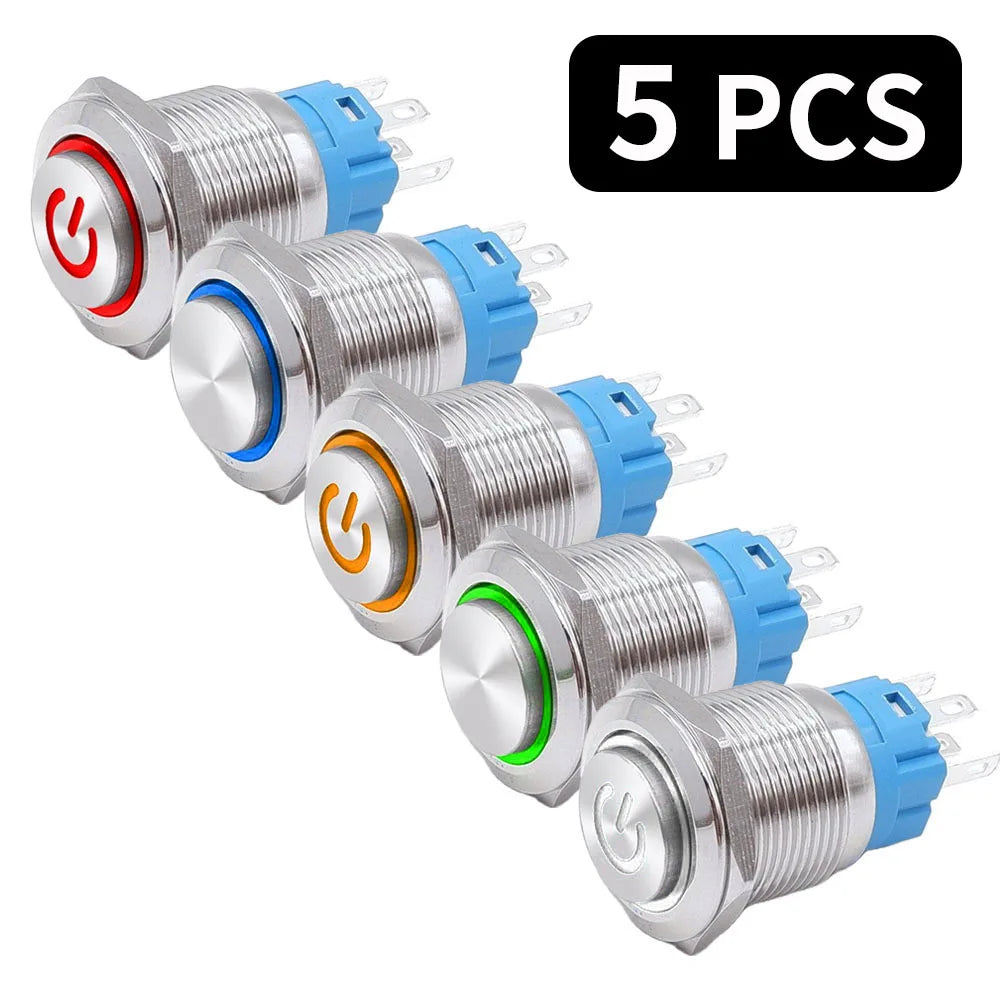

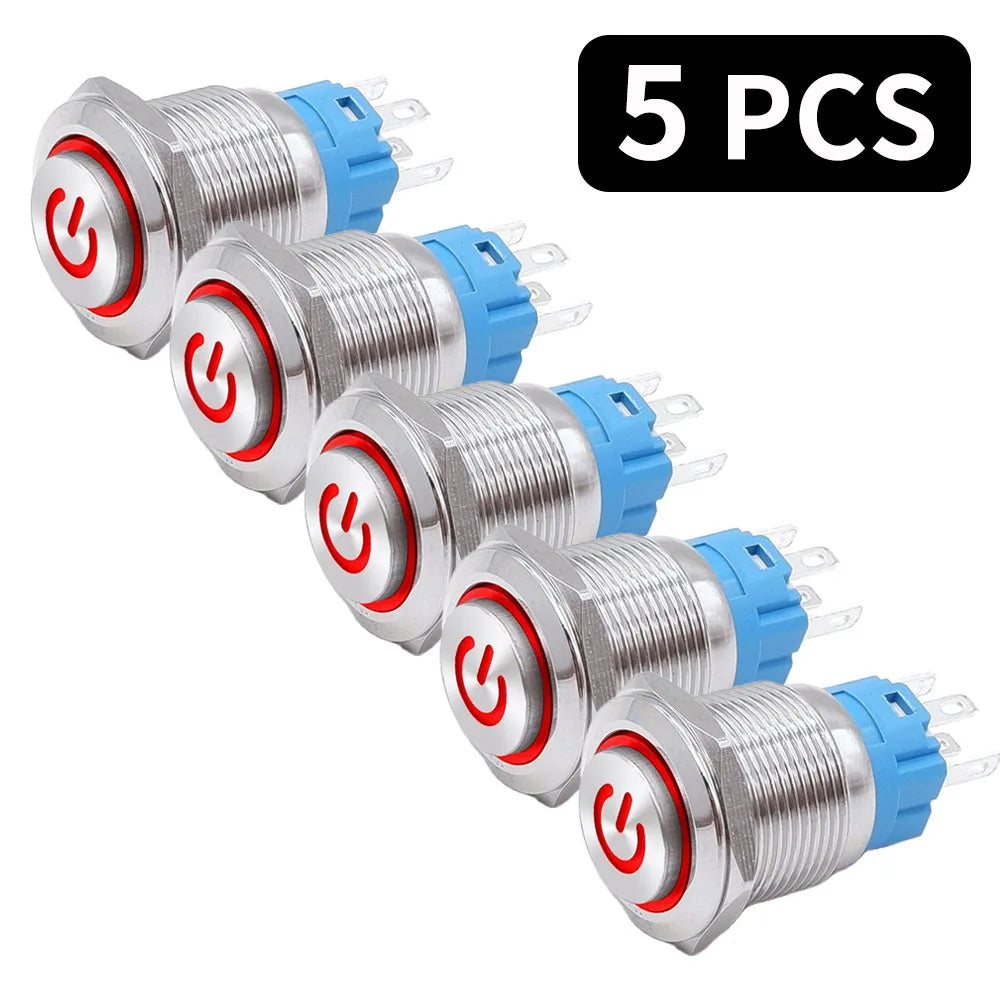

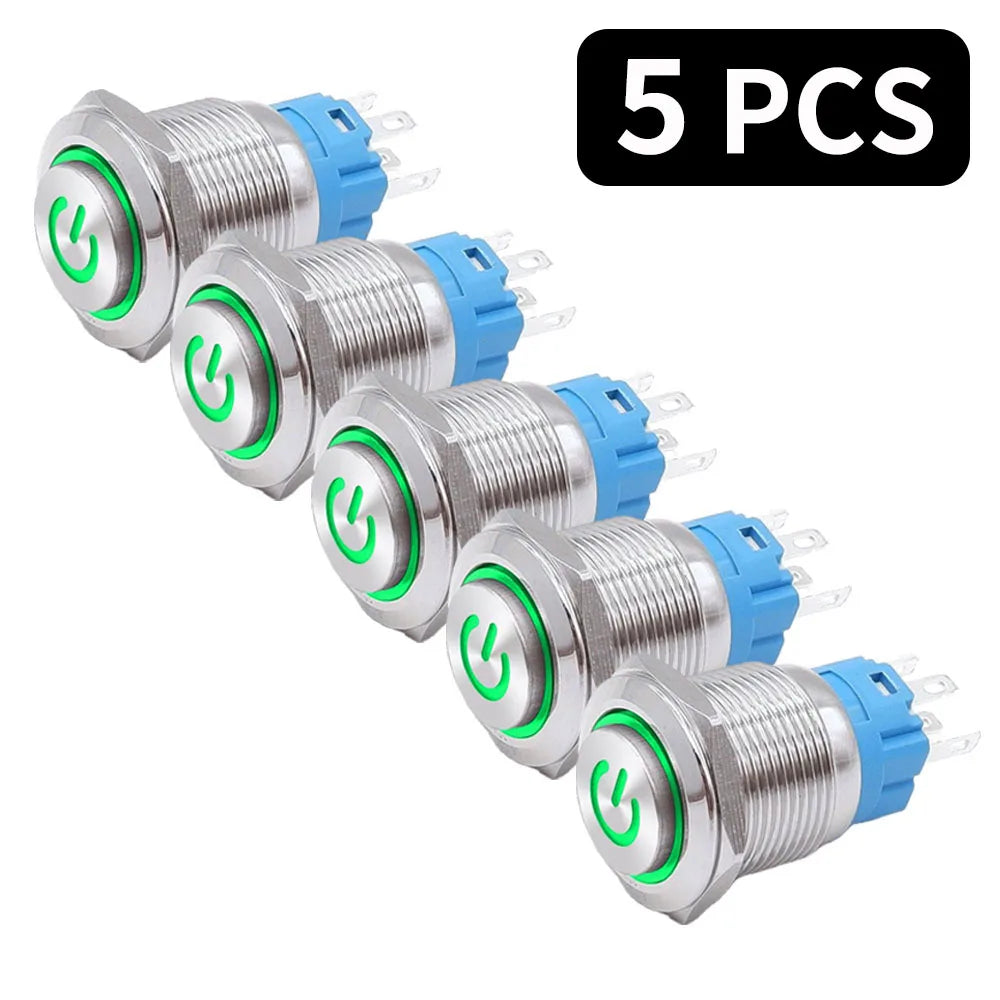

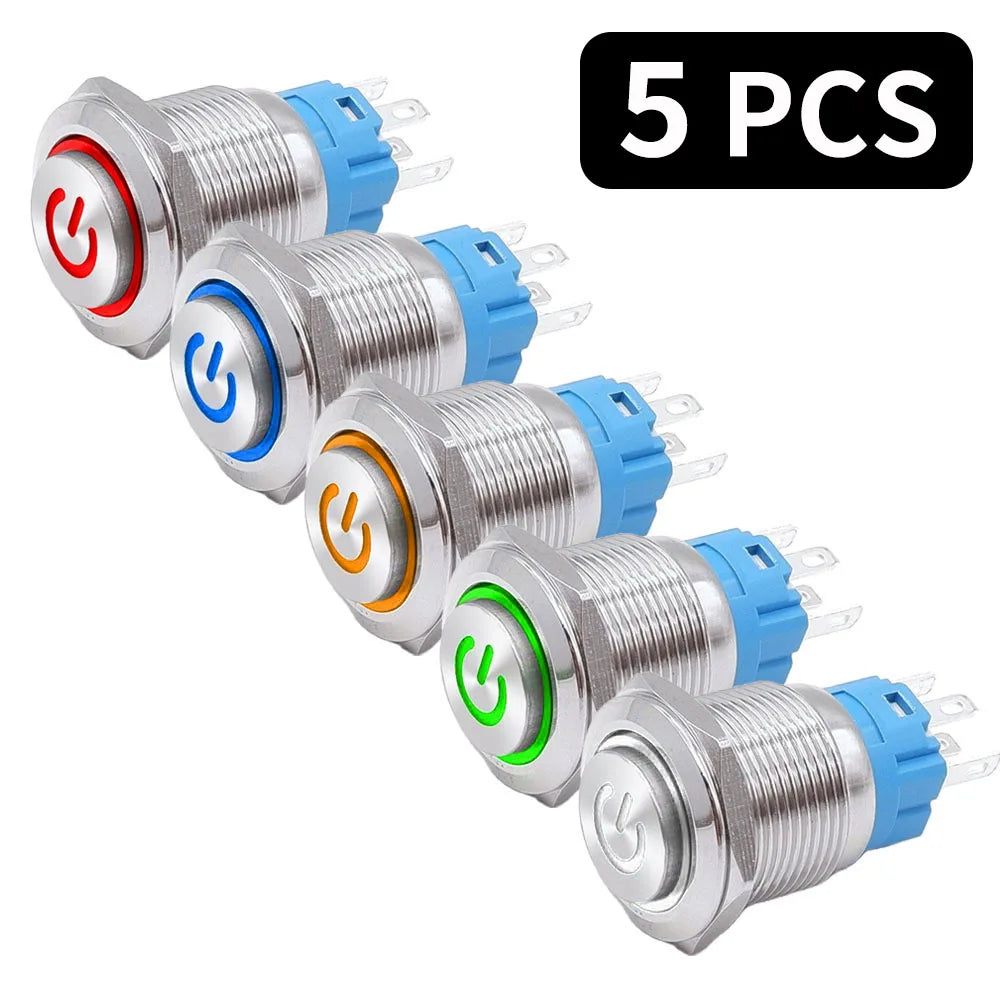

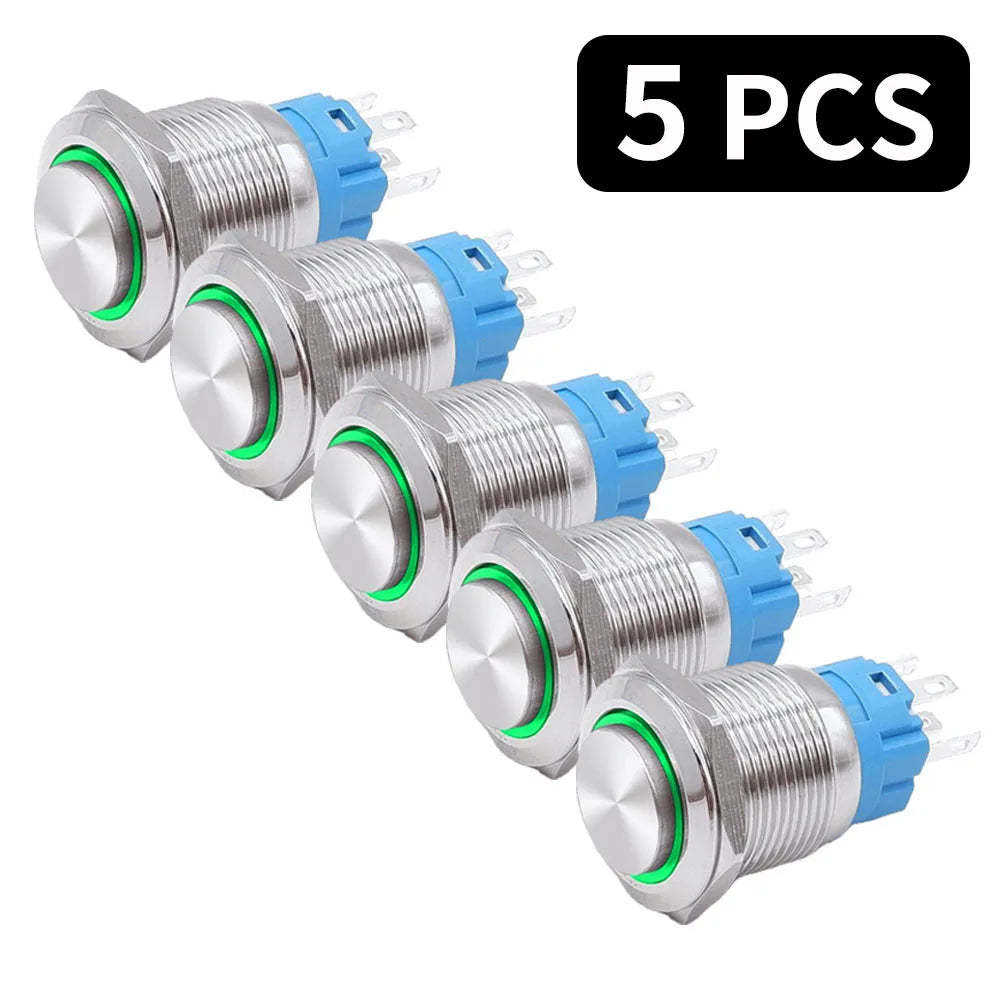

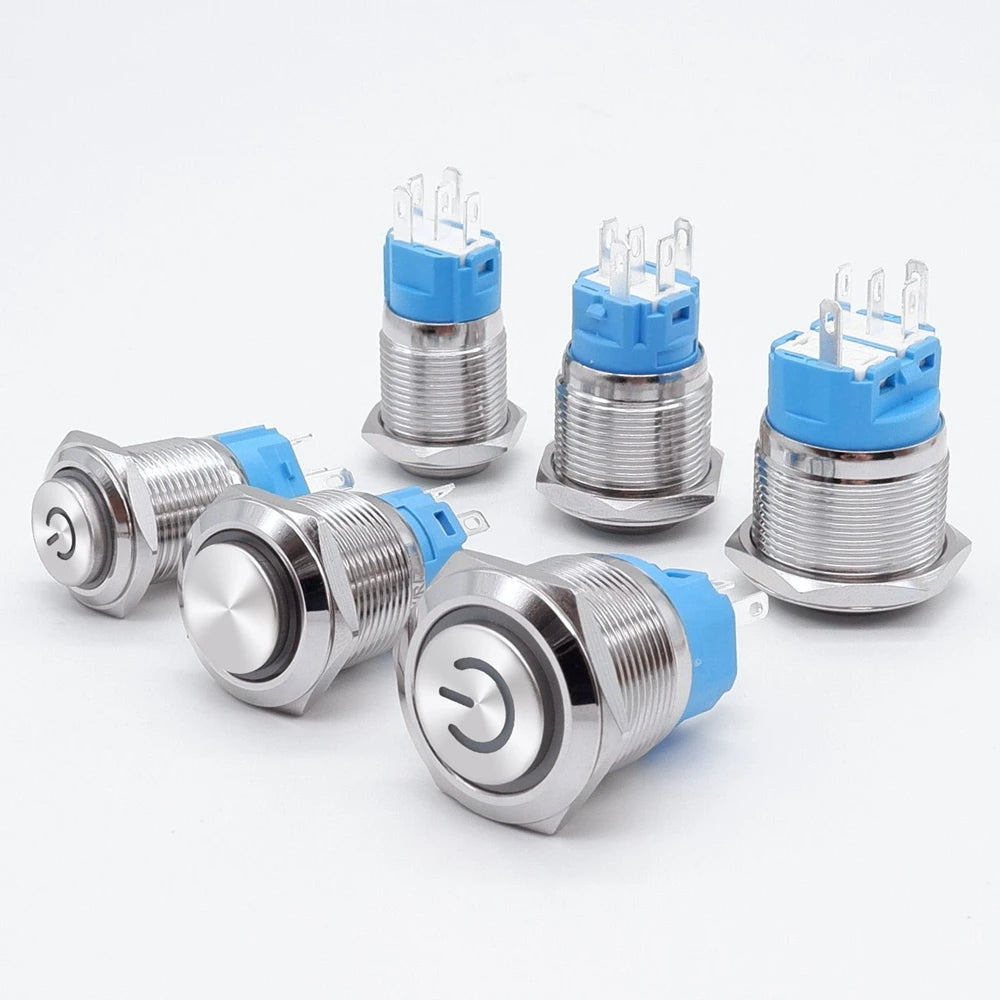

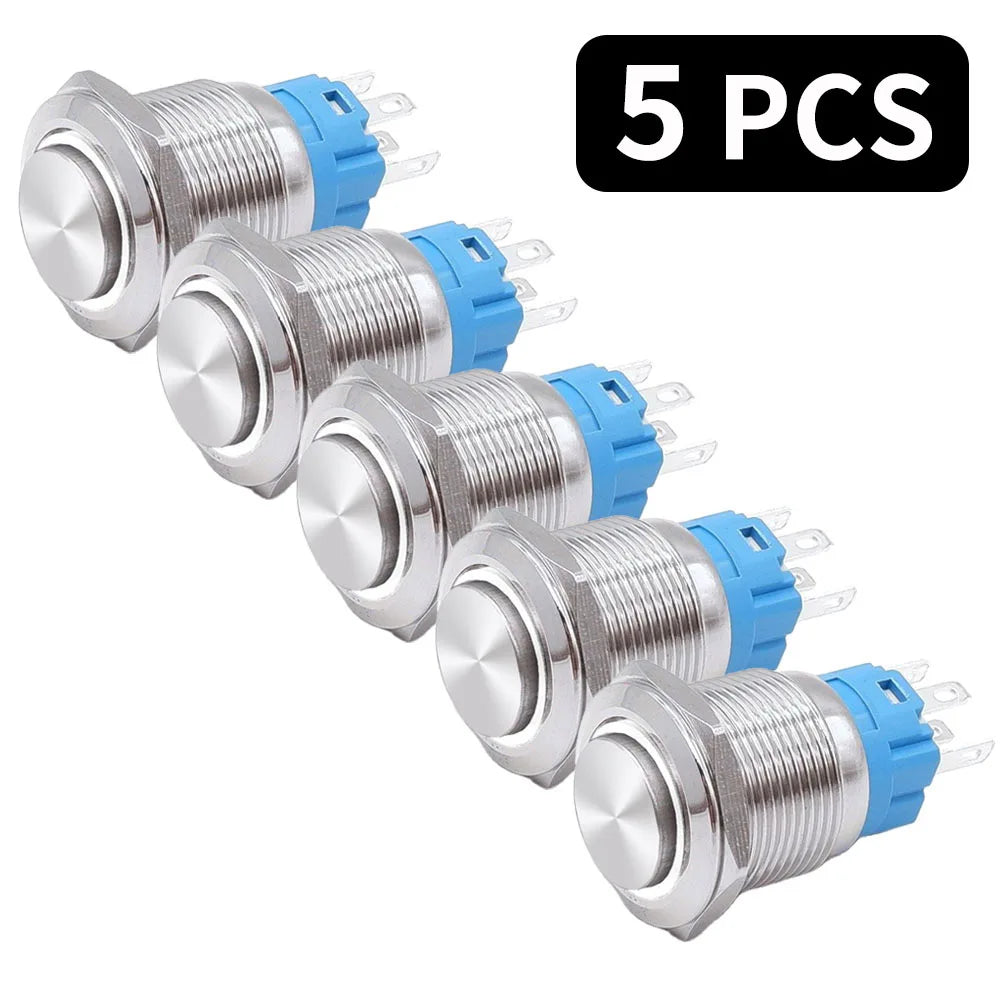

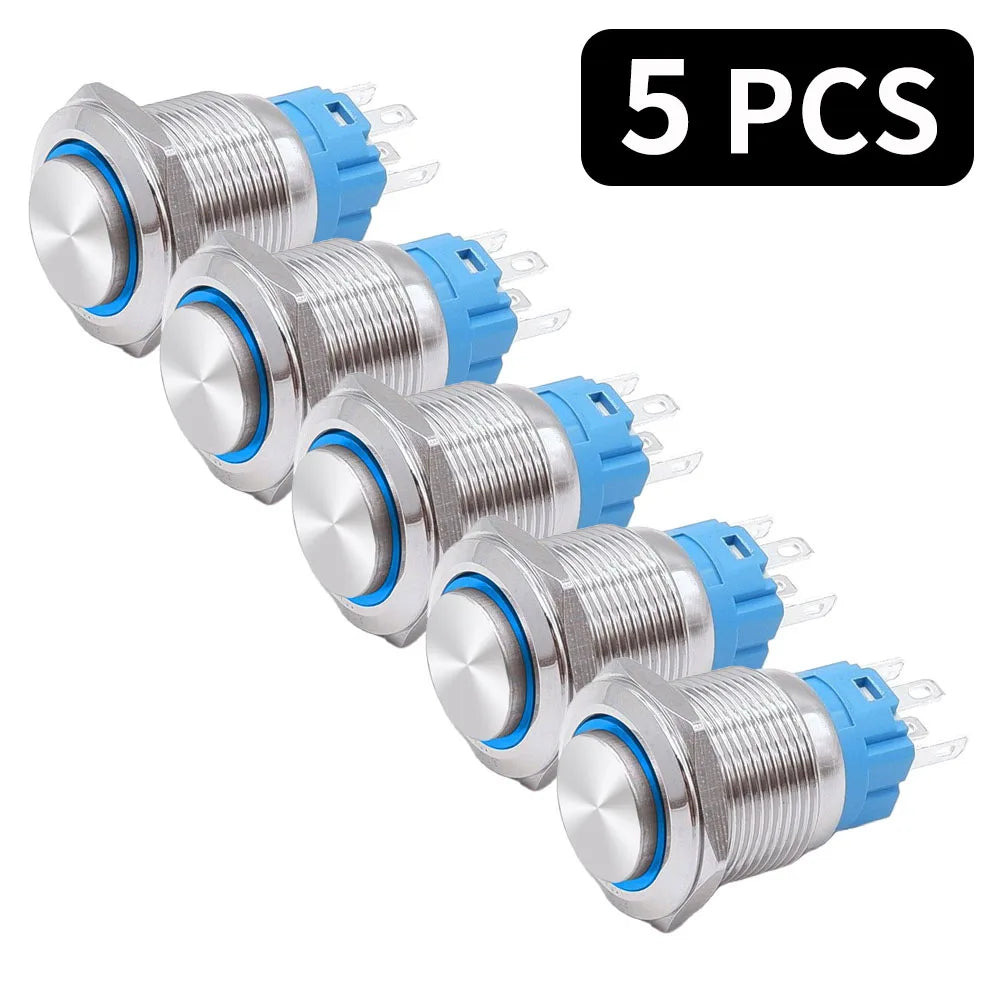

5 PCS 16mm 19mm 22mm Metal Push Button Switch 12v Ring Power Buttons Waterproof LED Light Self-lock Self-reset 220V High Head

5 PCS Blue / 19mm No Connector / 3V-6V(5V)|Momentary Self-reset

$62.06

Sale price $62.06 Regular price $0.00

Skip to product information

5 PCS 16mm 19mm 22mm Metal Push Button Switch 12v Ring Power Buttons Waterproof LED Light Self-lock Self-reset 220V High Head

5 PCS 16mm 19mm 22mm Metal Push Button Switch 12v Ring Power Buttons Waterproof LED Light Self-lock Self-reset 220V High Head

$62.06

Sale price $62.06 Regular price $0.00

Color 5 PCS Blue 5 PCS Blue 1 5 PCS Red 5 PCS Red 1 5 PCS White 5 PCS Green 1 Each Color 5 PCS White 1 5 PCS Green 1 5 PCS Yellow 5 PCS Yellow 1 1 Each Color 1

Size 19mm No Connector 16mm No Connector 22mm No Connector

Description

SPECIFICATIONS

Brand Name: PRONCH

Certification: CE,CCC,CCC,ce

Current: ≤3A

Customizable Material: Stainless steel

Customization: Yes , please leave a message to us

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Momentary Latching

Function: Momentary/ Latching

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

LED Color: Red Yellow Blue White Green

LED Voltage: 3-6V 9-24V 110-220V

Material: Alloy

Model Number: Push button switch

Name: push button switch

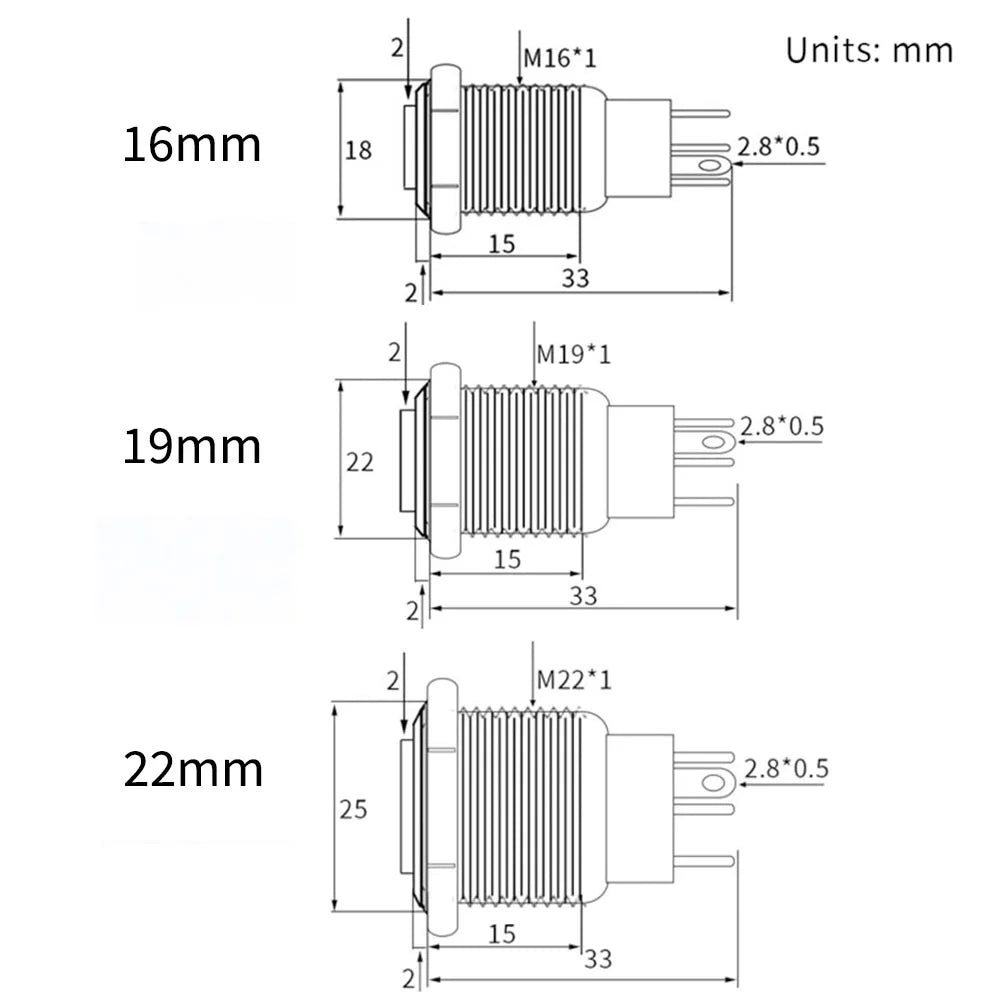

Opening Diameter: 16mm/19mm/22mm

Origin: Mainland China

Shell Material: Brass nickel plated

Switch Type: Push Button Switch,1NO1NC

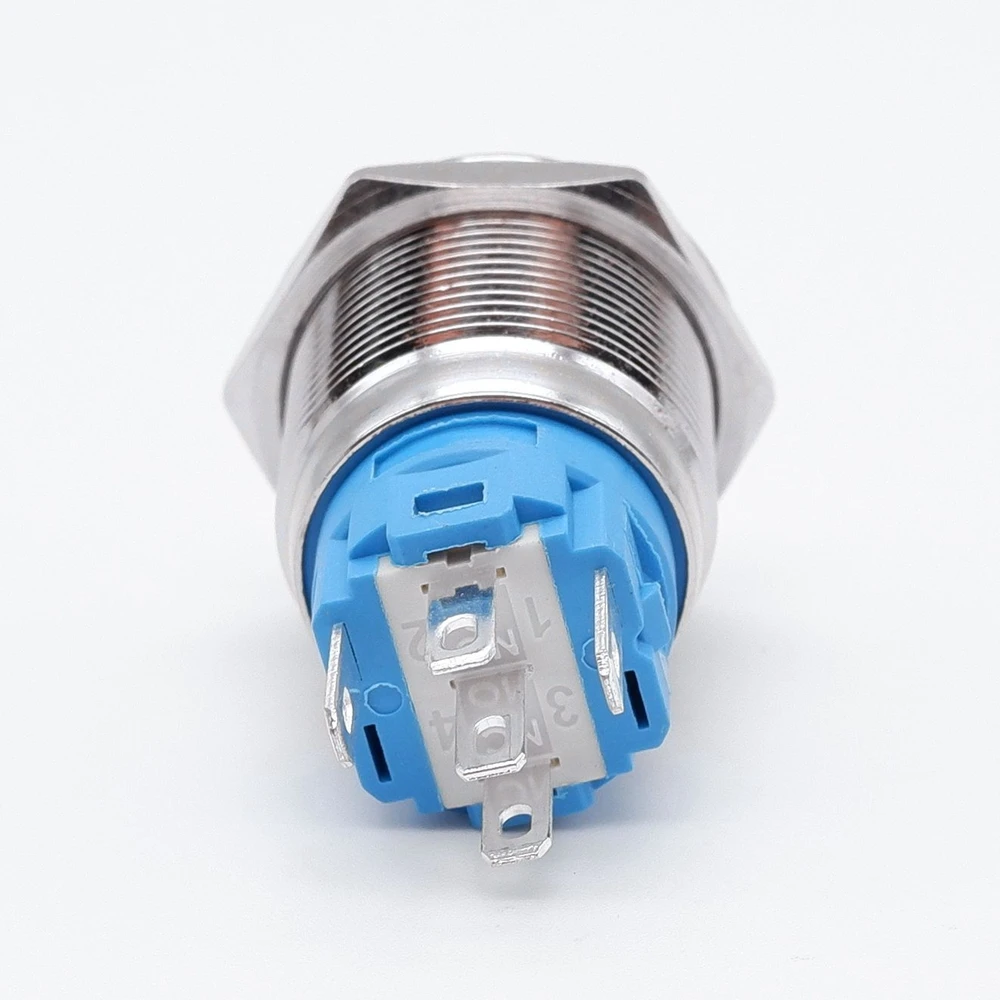

Terminals: 5 Pins

Using: Car PC machine Device buttons

Warranty: 1 Year

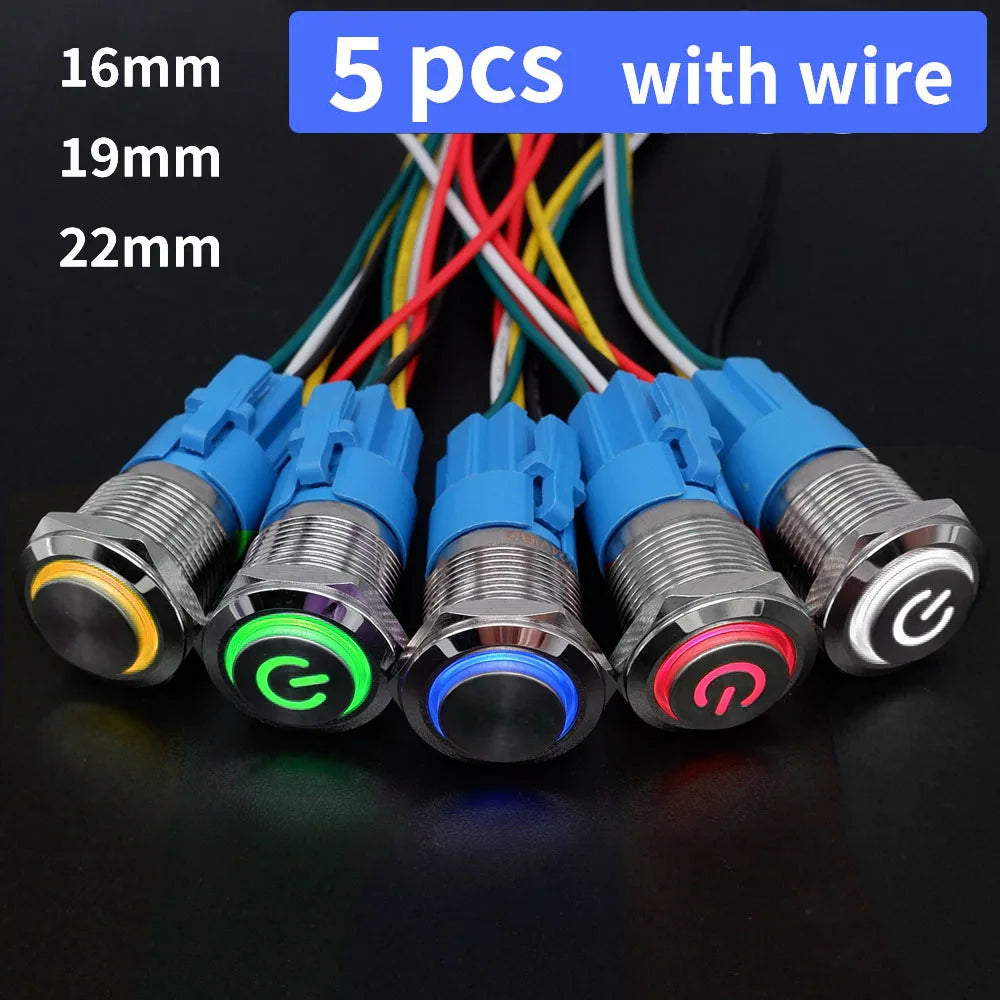

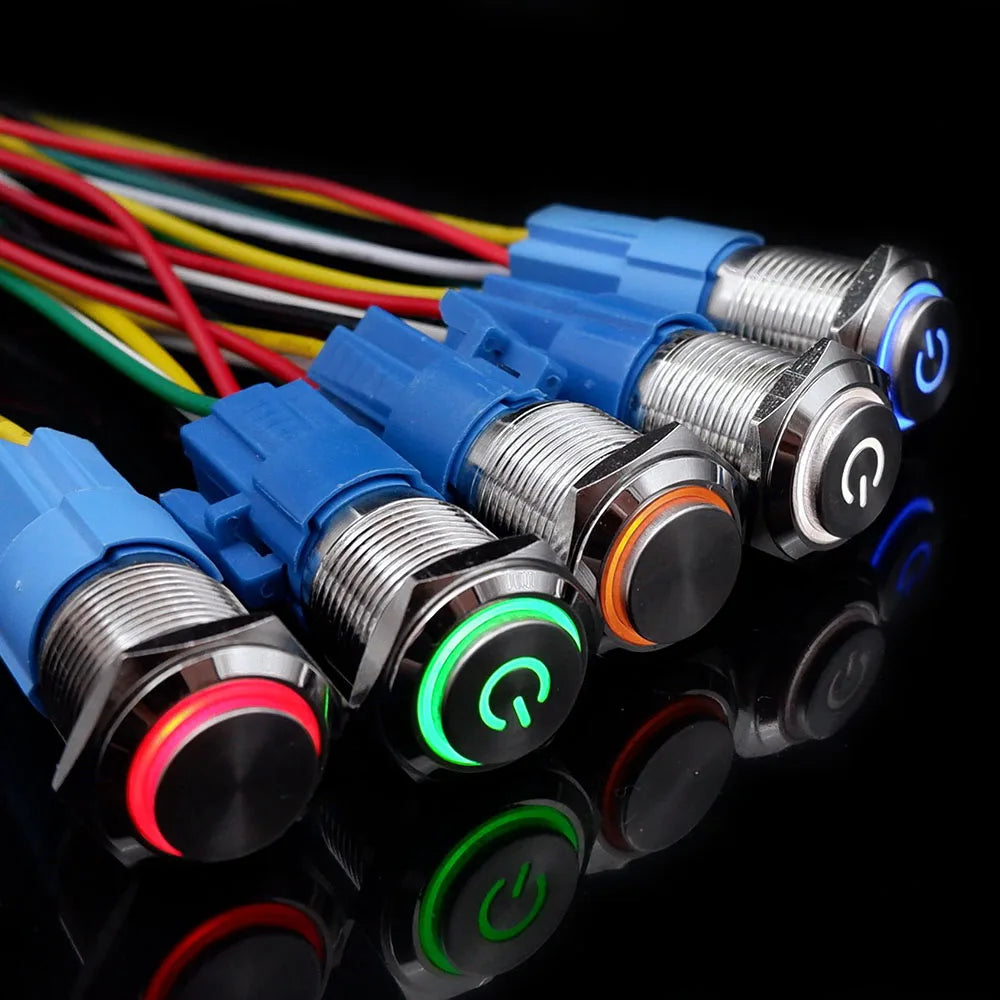

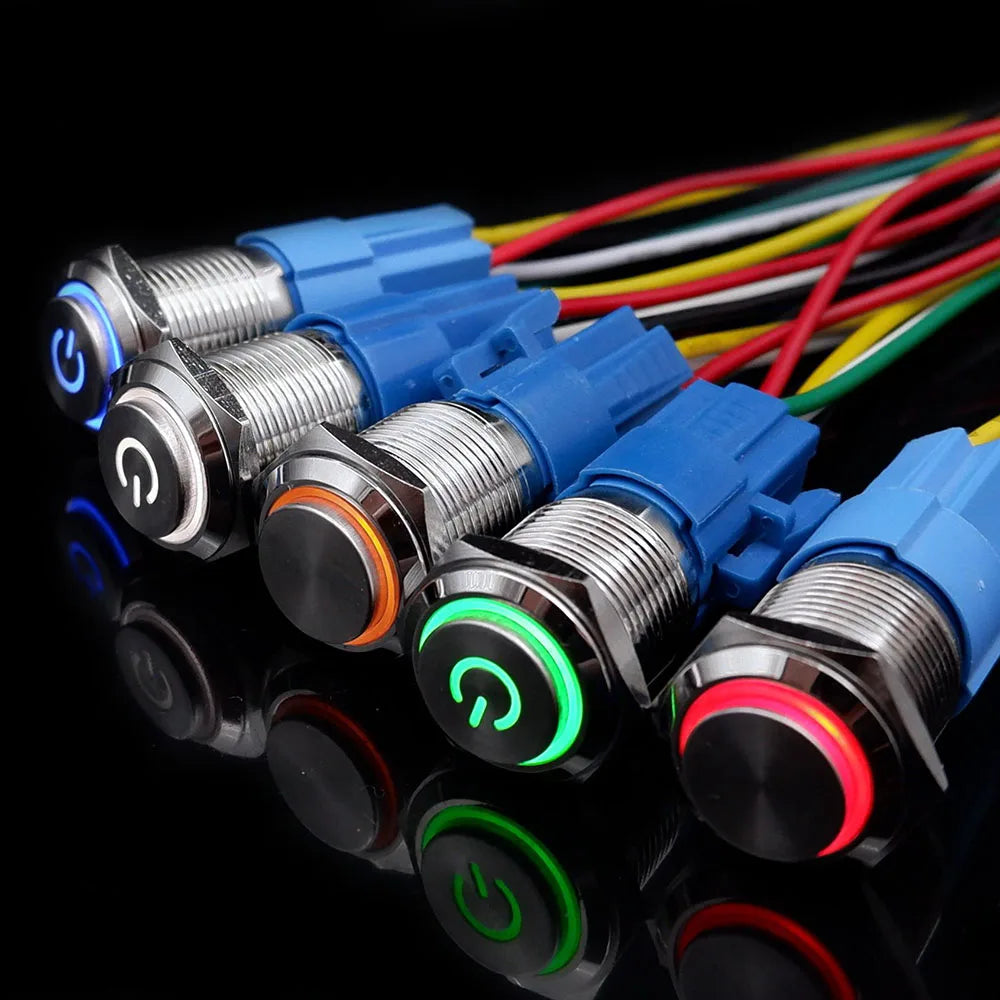

Note: Connectors need to be purchased separately. If you want the switches with connectors, please click the picture below to buy.

Product Name: Push Button Switch
Switch Combination: 1NO1NC
Opening Diameter:16mm/19mm/22mm
Max Current: 3A
Operation Type: Self-recovery 、Self-locking
Material: Brass nickel plating
LED Colors: Red Yellow Blue White Green
LED Voltage: 3-6V;9-24V;110-220V
Waterproof Level: IP65
Customization: Yes , please leave a message to us

Non-polarity LED lamp makes wiring more convenient. High brightness and long service life.

The metal shell can resist corrosion, pressure and wear.

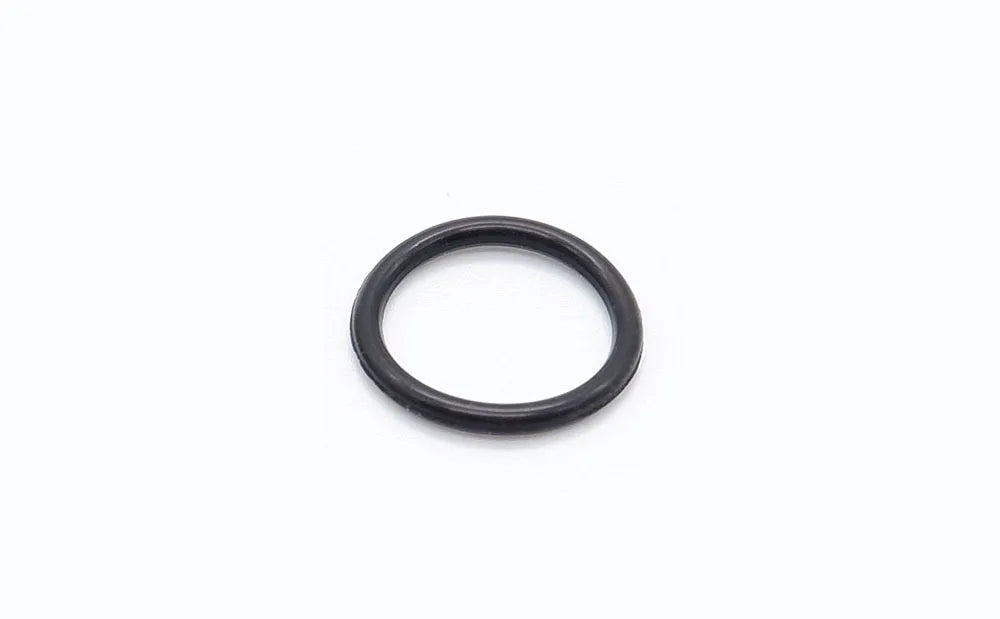

With rubber sealing ring, waterproof and dustproof.

Flame retardant base, fire and electricity proof, safer use.

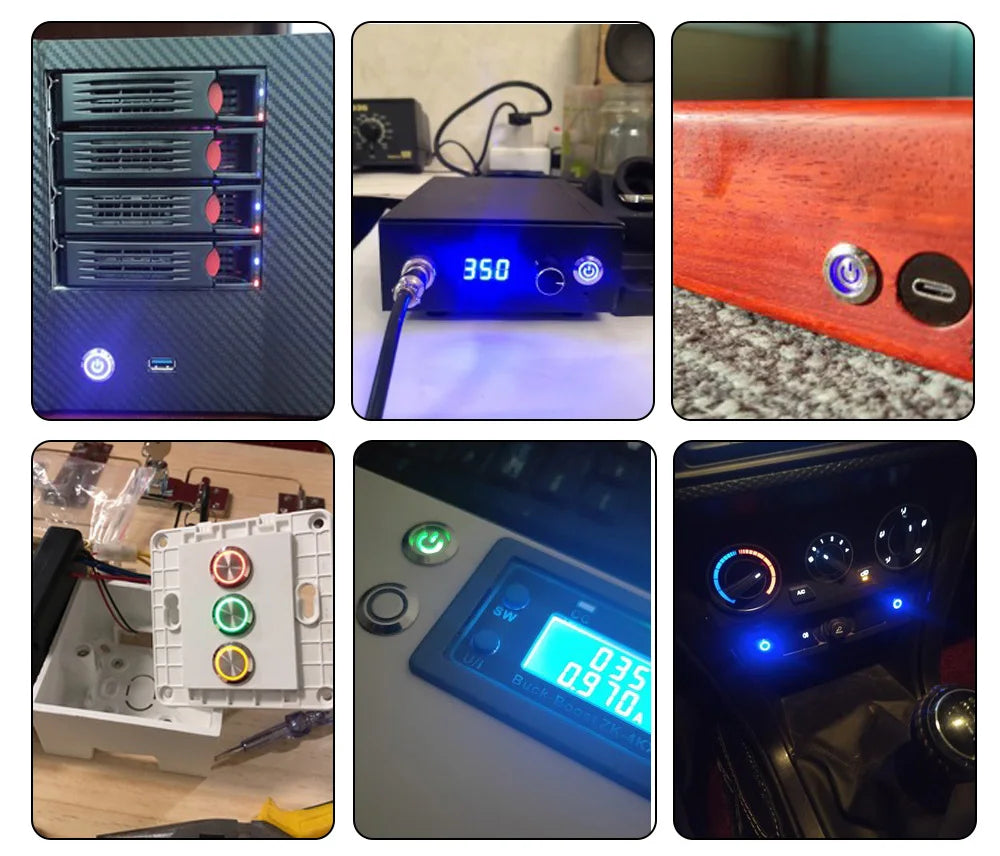

This metal push-button switch has many uses. For example, it is used in cars, computer mainframe, audio, socket, remote control and other places where you need switch control.

Certificate

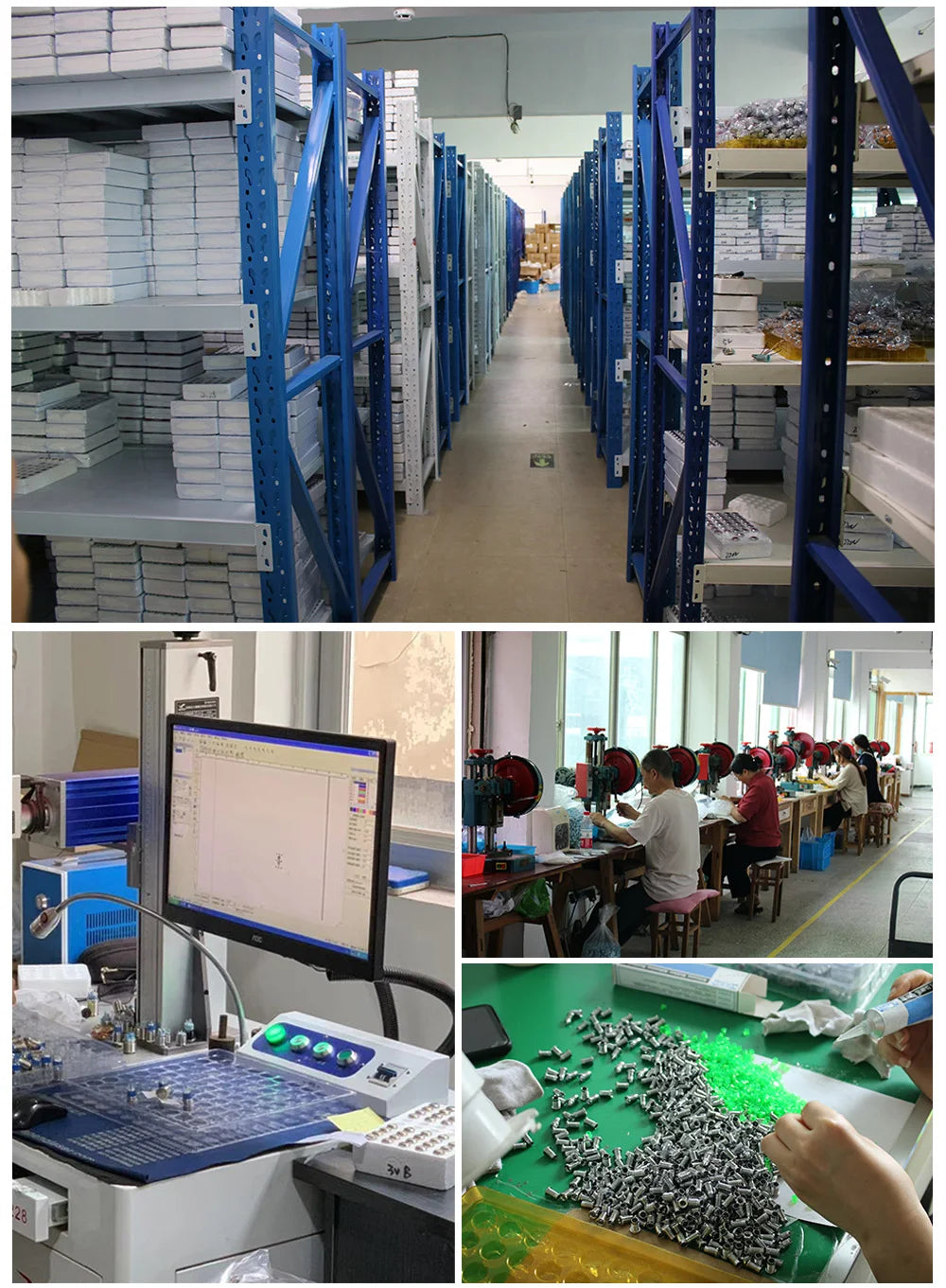

Factory direct sales, sufficient supply.

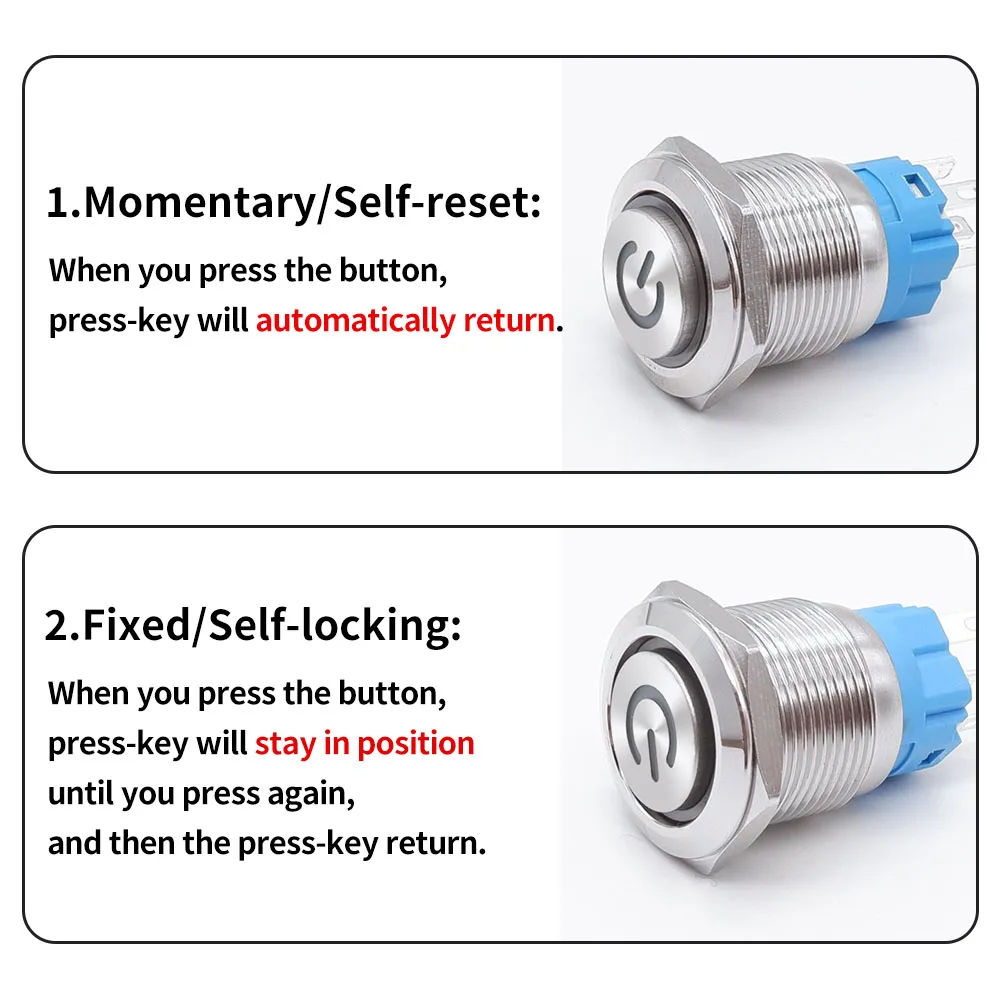

Switch Tip

1.Momentary/Self-reset: When you press the button, press-key will automatically return.

2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then t he press-key return.

Wiring Instructions

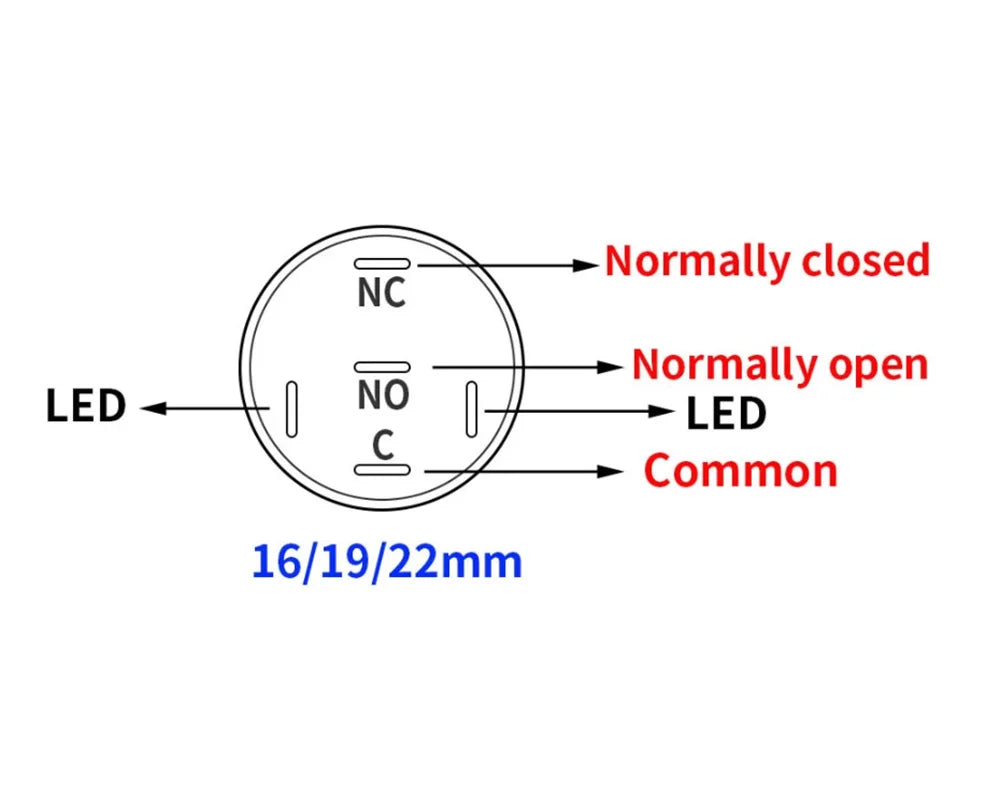

1.What does the signal “C”、"NC" and "NO" means?

" NC ": Normal Close
" NO ": Normal Open
" C " : Common

2.How to connect?

(1).Connect " NO " and " C " : The circuit is alway open unless press the button.
(2).Connect " NC " and " C " : The circuit is alway close unless press the button.

3.Do lights and switches have electrodes?

The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.

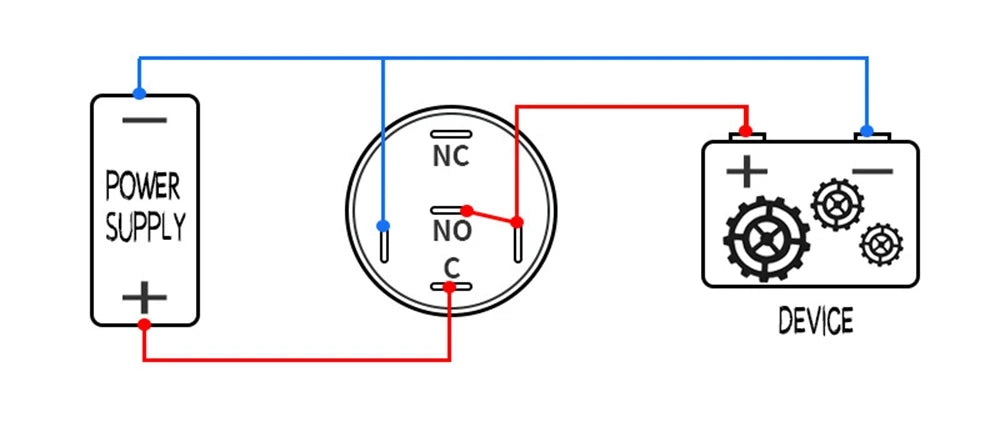

Wiring Diagram

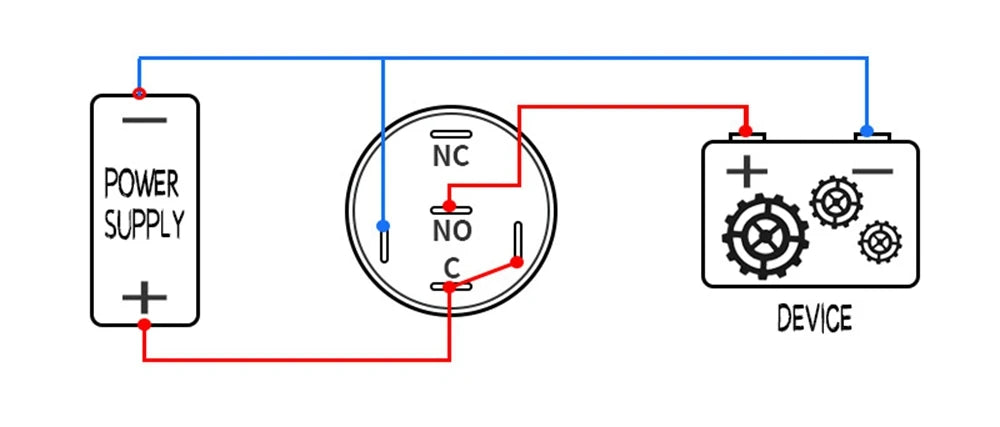

1、The button turns the LED light on and off，the circuit is alway open unless press the button.
