SPECIFICATIONS

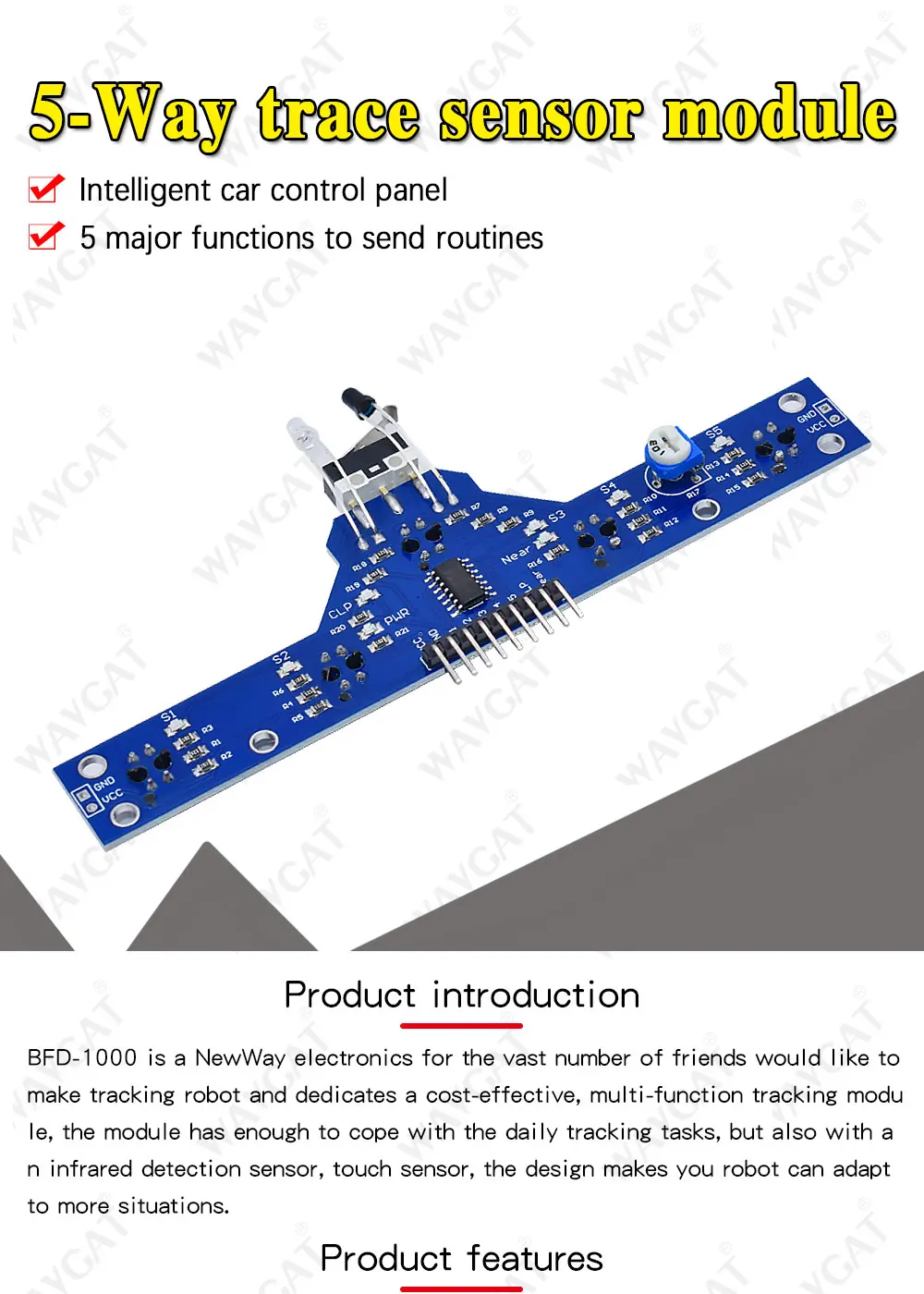

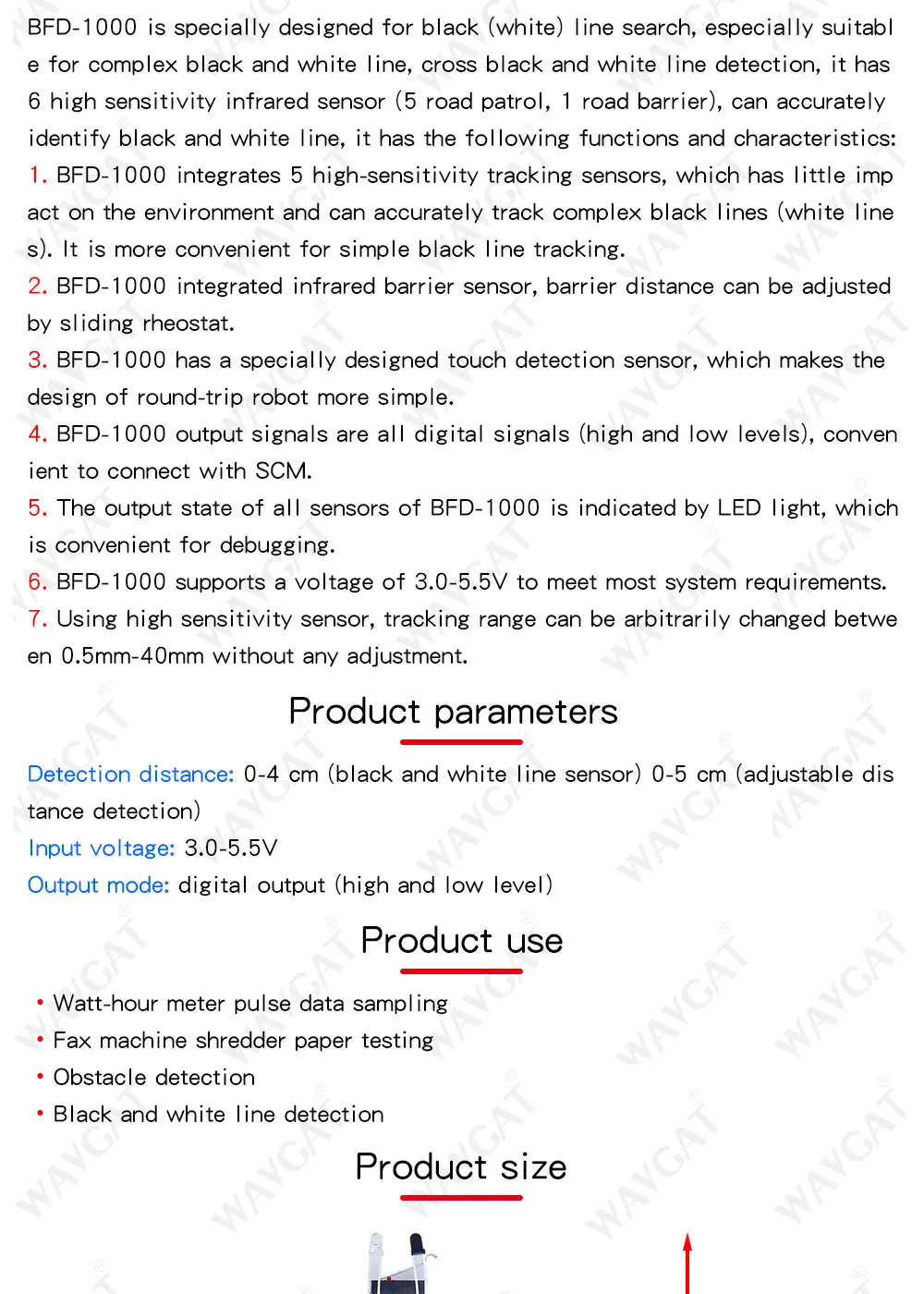

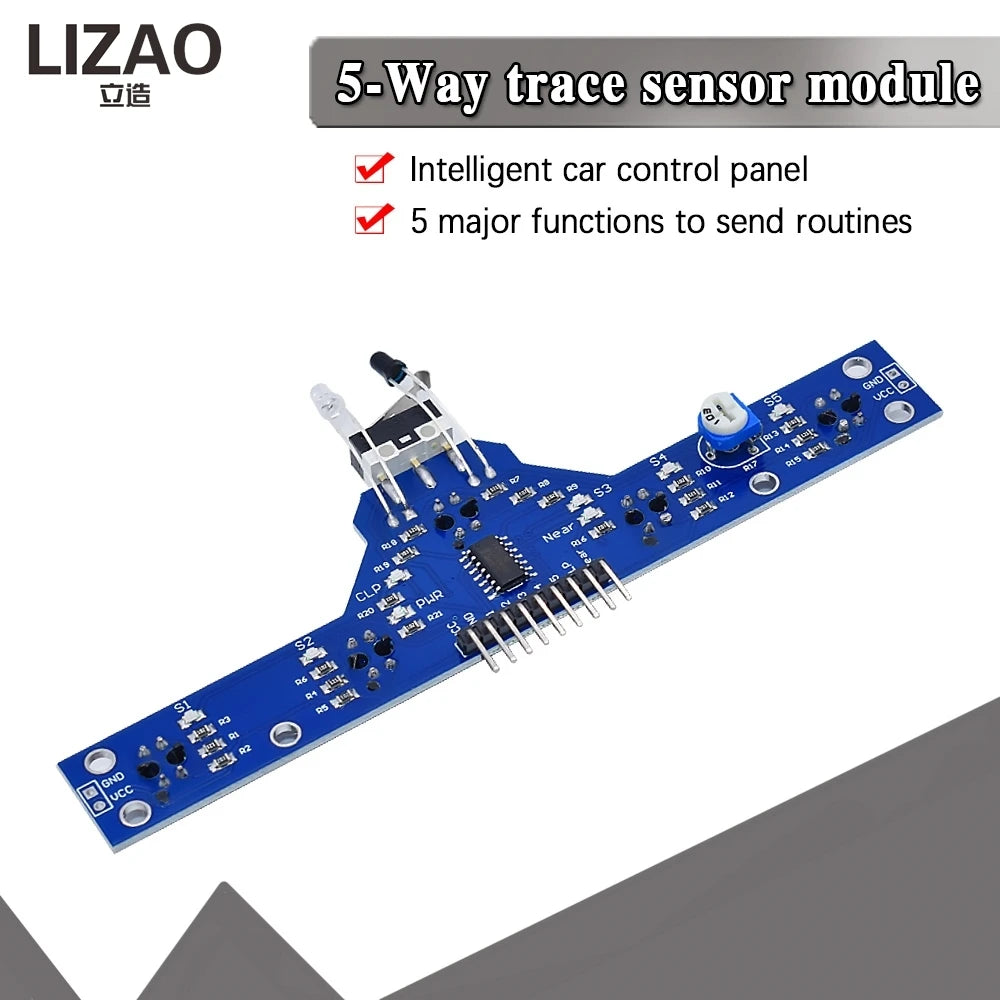

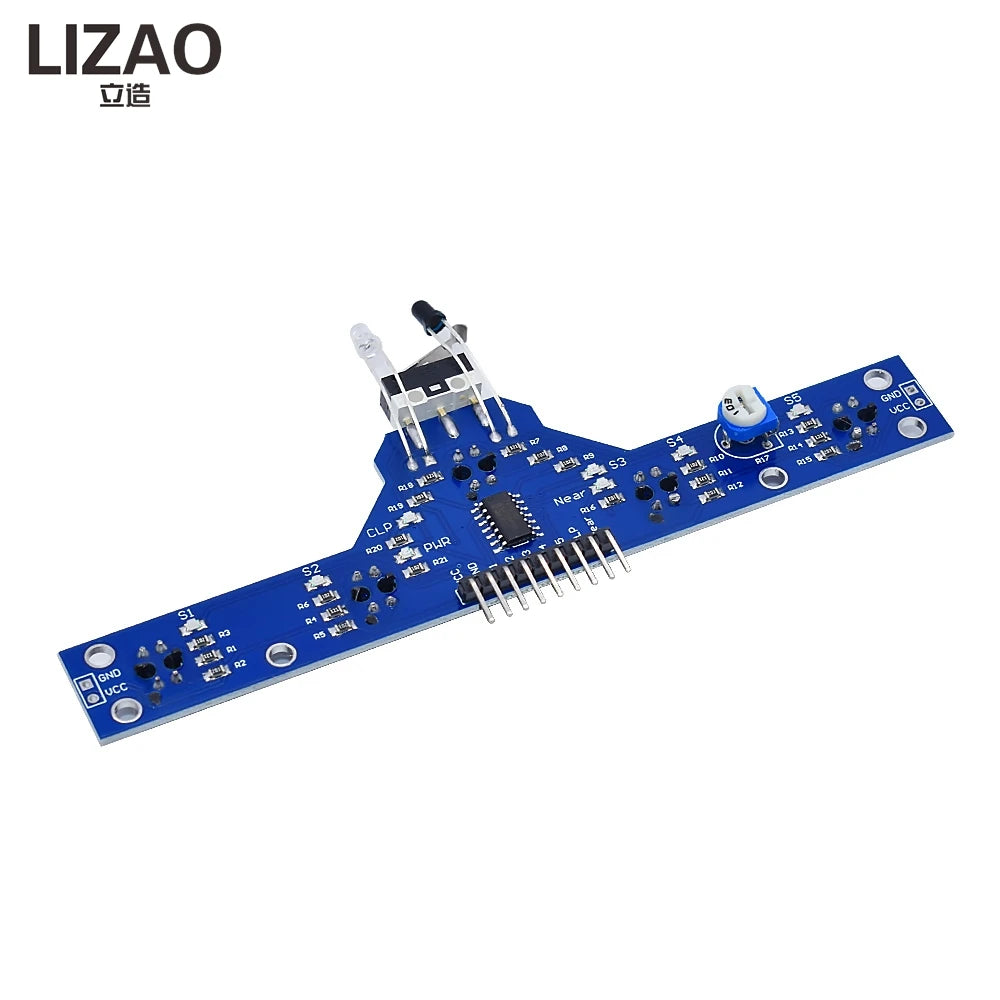

BFD - 1000 specifically designed as a black line (white) XunQu, especially suitable for the complex of black and white line, cross black and white line detection, it has 6 road high sensitivity infrared sensor (5 escapes patrol, 1 road), to the recognition of black and white line accurately, it has the following functions and features:

   1. BFD - 1000 integrated no.5 high sensitivity tracking sensor, for the environmental impact of small, can accurate tracking to complex black line (white line), for the simple black line tracking more comfortable.

   2. BFD - 1000 integrated infrared barrie sensor, escapes distance can be regulated through the slide rheostat.

   3. BFD - 1000 has a specially designed touch detection sensor, from the design of the robot is more simple.

   4. BFD - 1000 all of the output signal to digital signal (v), convenient connected with MCU.

   5. All sensor output state BFD - 1000 have LED lights as instructions, convenient debugging.

   6. BFD - 1000 support voltage of 3.0-5.5 v meet the demand of most systems.

   7. Using high sensitivity of the sensor, tracking range between 0.5 mm to 40 mm any change and don't need to do any adjustment.

 Technical parameters:

   Detection range is 0 to 4 cm (black and white line sensor) 0 to 5 cm (adjustable distance detection)

   The input voltage: 3.0 to 5.5 V

   Output format: digital output (v)
