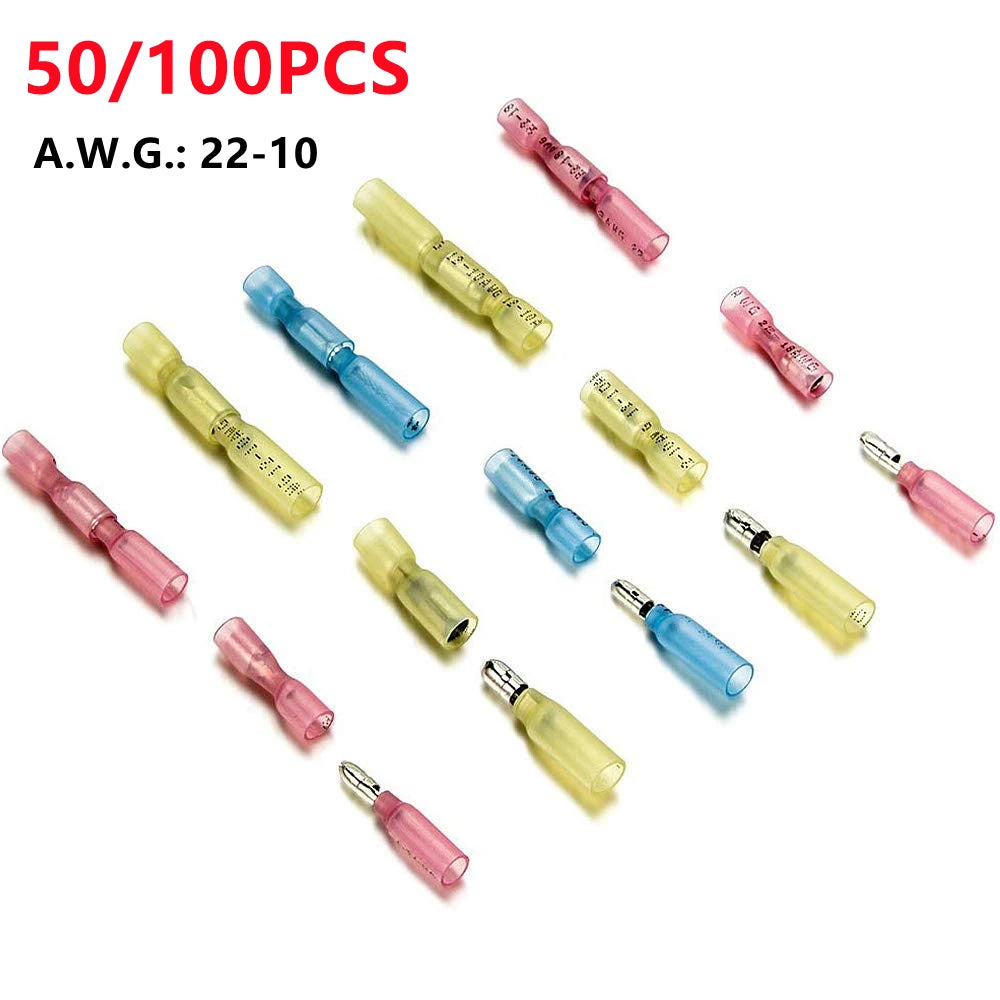

50/100PCS Heat Shrink Bullet Connectors Elelctrical Cable Butt Crimp Terminals Female Male Waterproof Insulated Wire Terminals

50/100PCS Heat Shrink Bullet Connectors Elelctrical Cable Butt Crimp Terminals Female Male Waterproof Insulated Wire Terminals

$20.12

$20.12 $0.00

Color Blue Red Yellow Mixed color

Pins 50pcs(25pairs) 100pcs(50pairs)

Description

SPECIFICATIONS

A.W.G: 22-18 (Red), 14-16 (Blue), 12-10 (Yellow)

Brand Name: NONE

Certification: CE

Choice: yes

Color: Red/Blue/Yellow

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature1: Waterproof

Feature2: Insulated

High-concerned chemical: none

Material: PE+Copper

Model Number: Heat Shrink Bullet Terminals

Origin: Mainland China

Type: Splice,Crimp Terminals

is_customized: Yes

semi_Choice: yes

Feature:

Shrinkage ratio 3:1
Excellent stretch and mechanical damage resistance
Ldeally translucent provides tensile strength
High elasticity keeps steady performance

Operating temperature range
Operating temperature : -55℃～125℃
Minimum shrink temperature : 80?C
Fully recovery temperature : 130?C

Specification:
Color: Red/Blue/Yellow

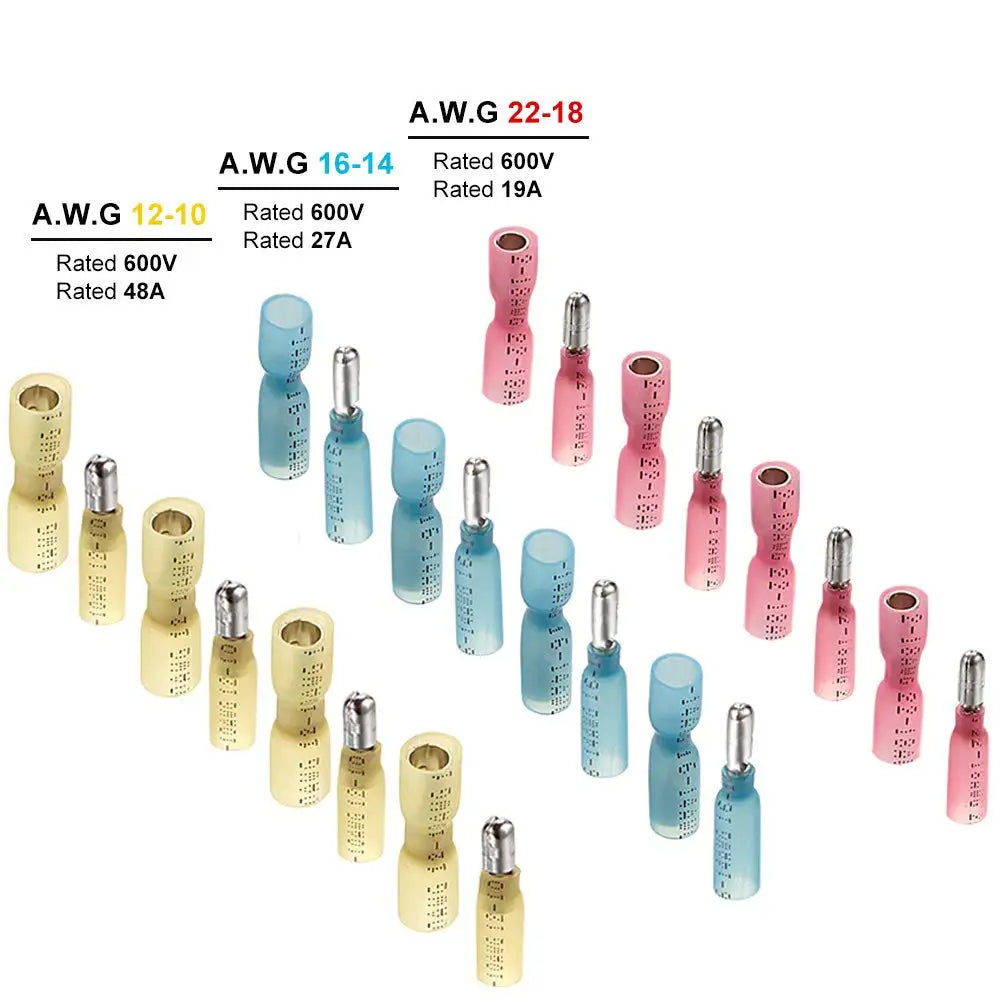

A.W.G.: 22-18 (Red); 14-16 (Blue); 12-10 (Yellow)
Wire range: 0.5-1.0mm2(Red); 1.5-2.5mm2 (Blue); 4.0-6.0mm2 (Yellow)
Rated Current: 19A(Red); 27A(Blue); 48A(Yellow);
Rated Voltage: 600V

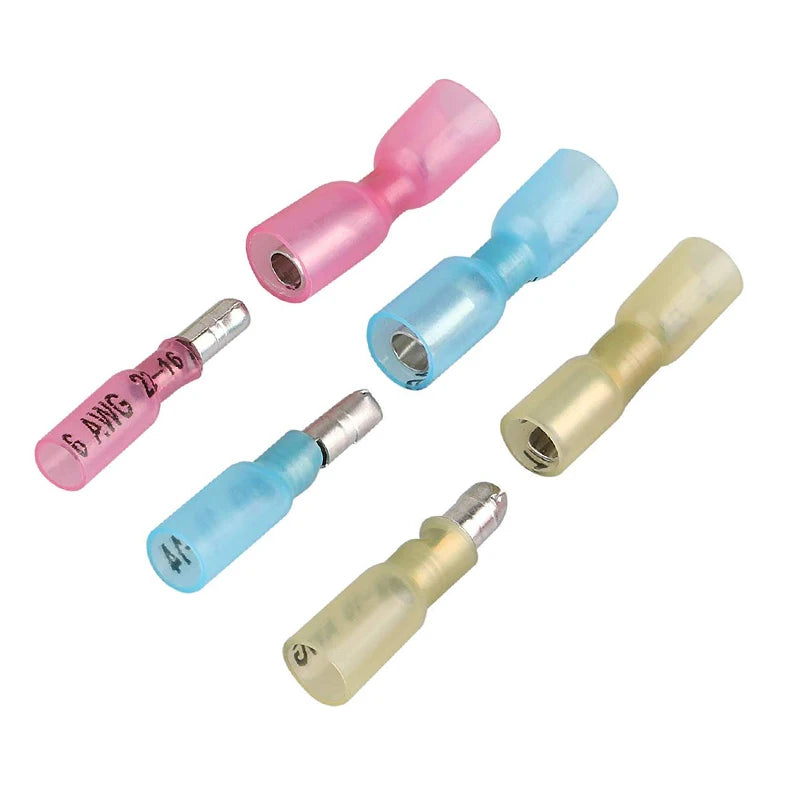

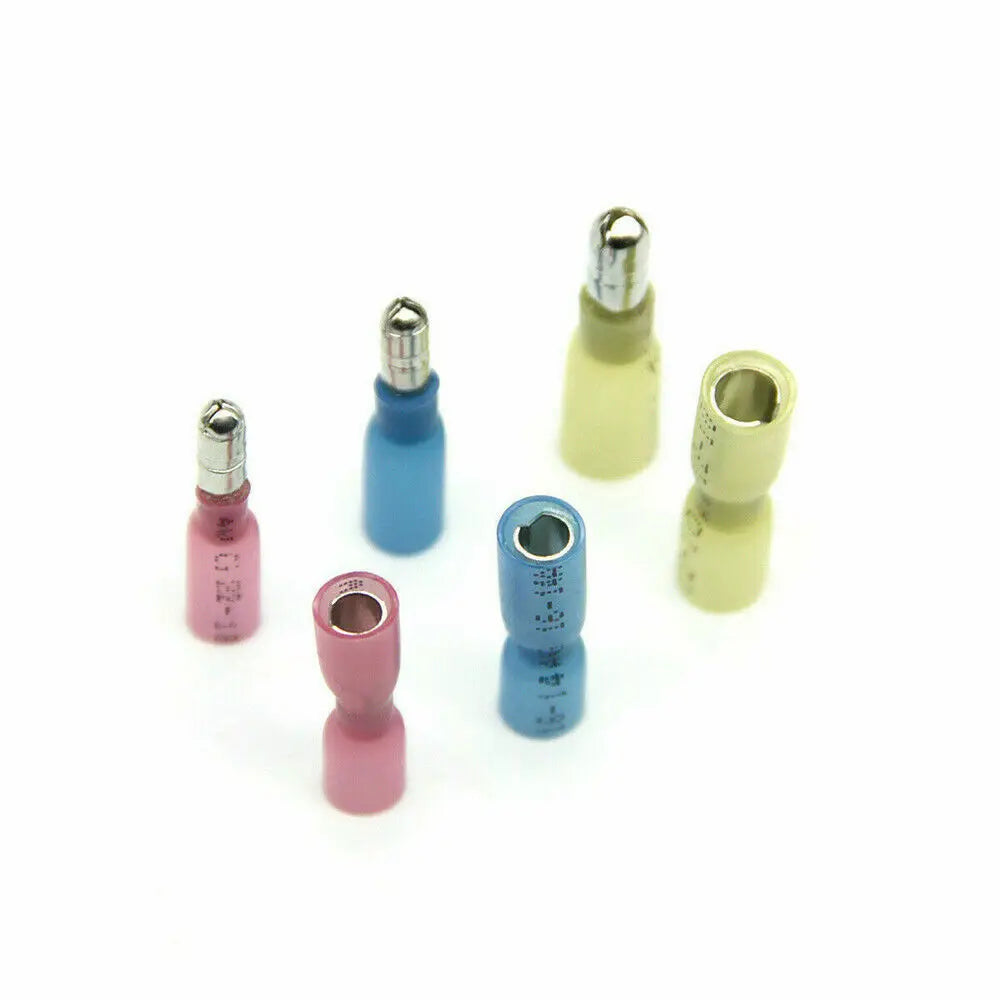

Detailed dimensions:

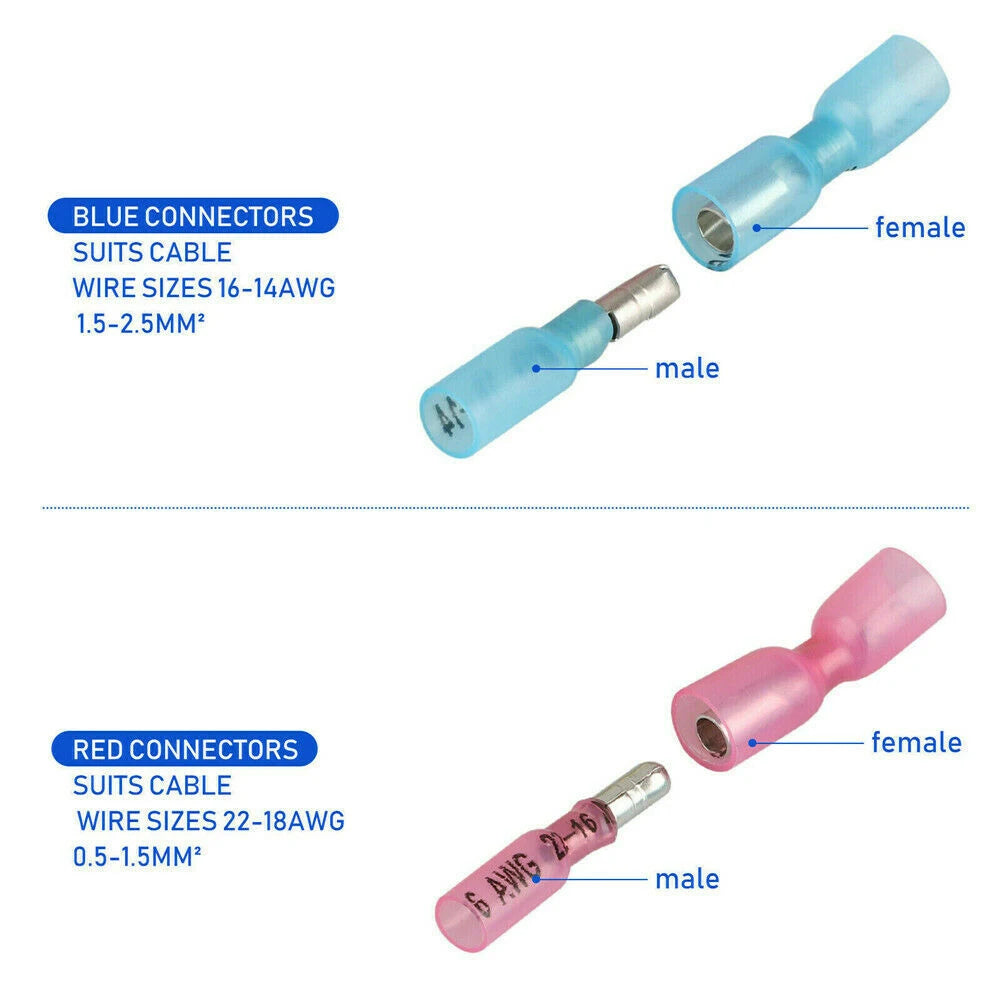

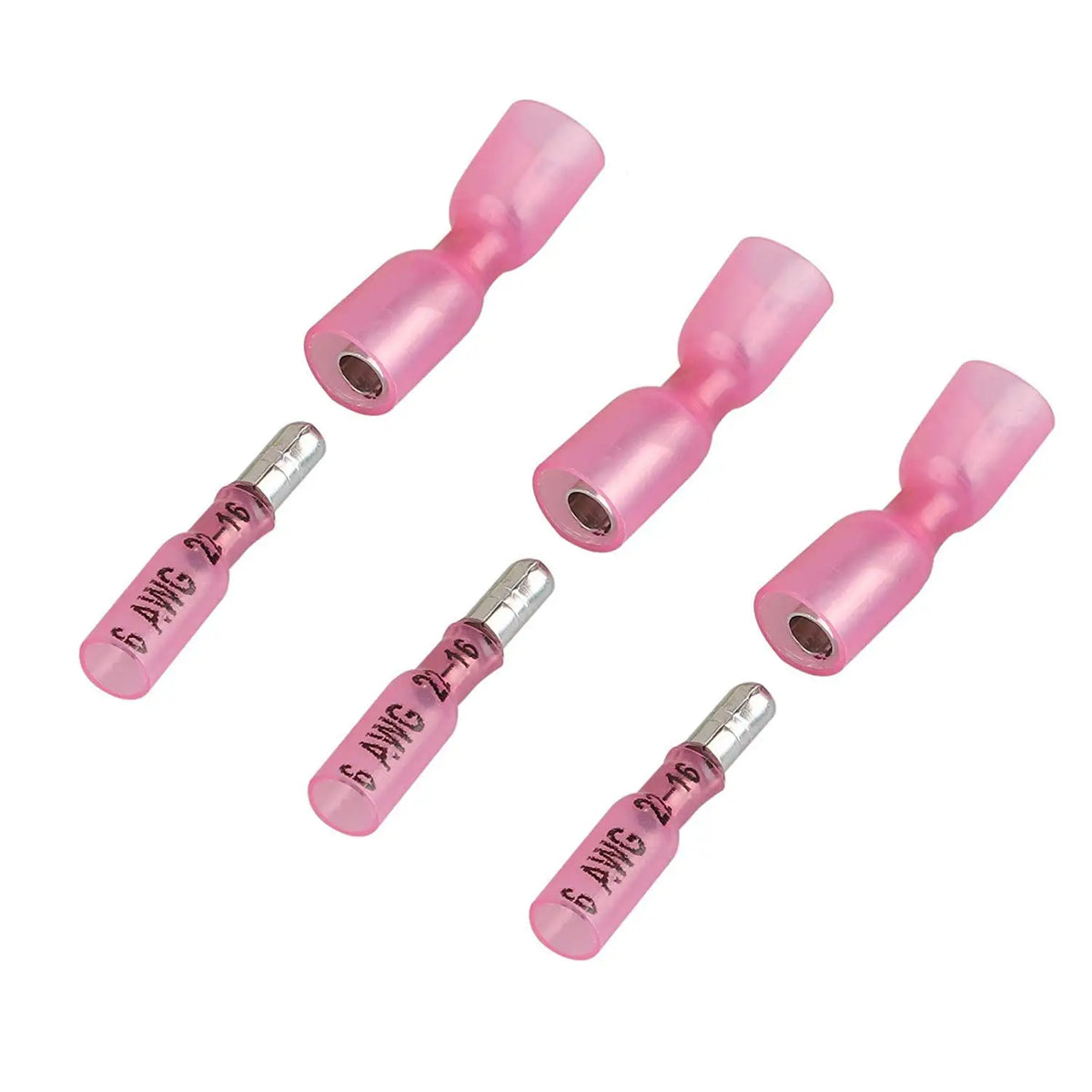

Red
Wire range: 0.5~1.5mm2, A.W.G.:22~18, Max.current = 19A

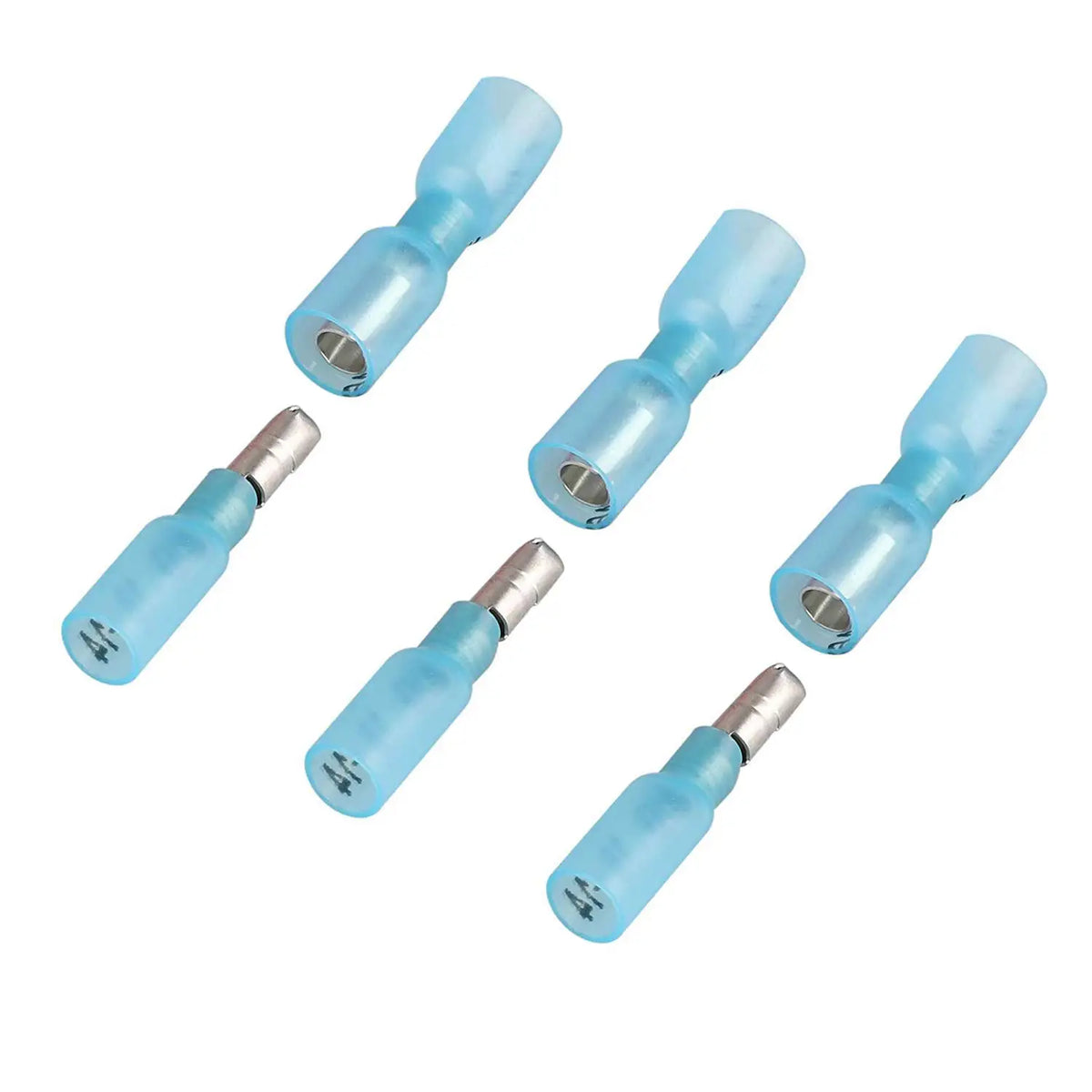

Blue
Wire range: 1.5~2.5mm2, A.W.G.:16~14, Max.current = 27A

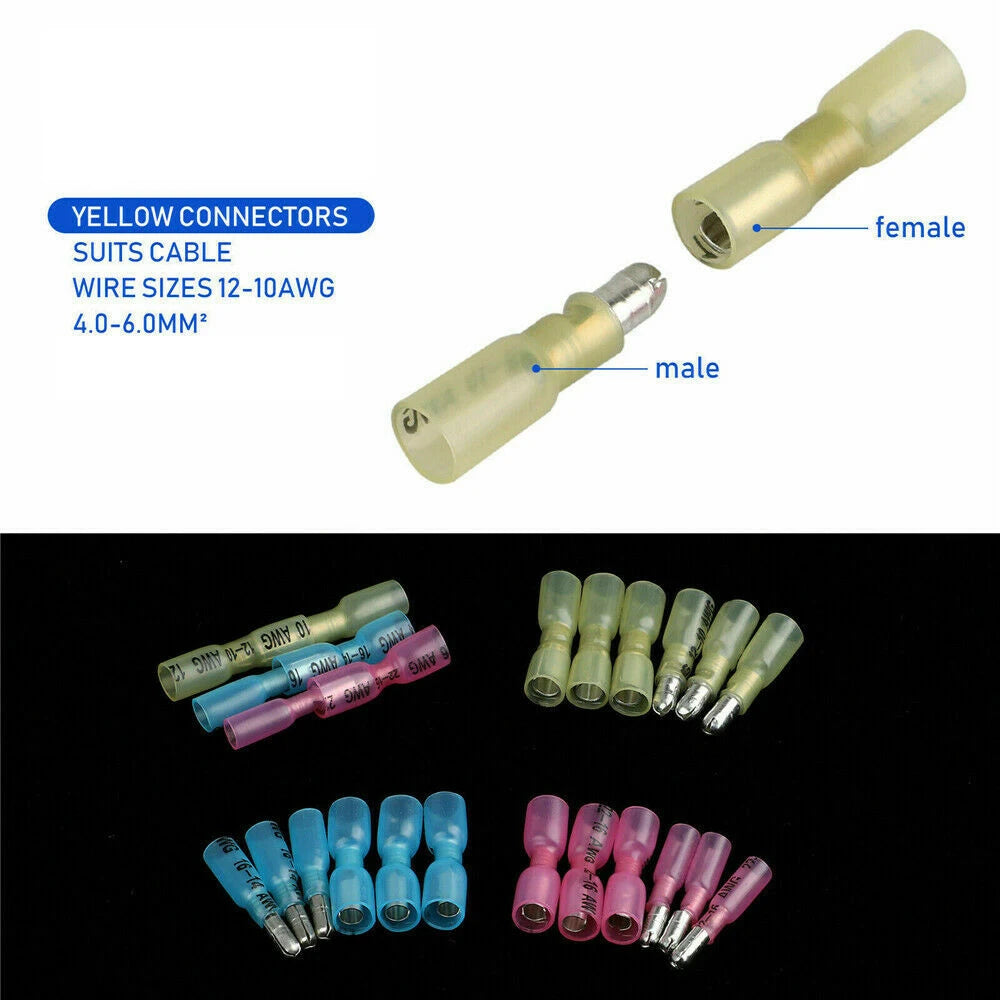

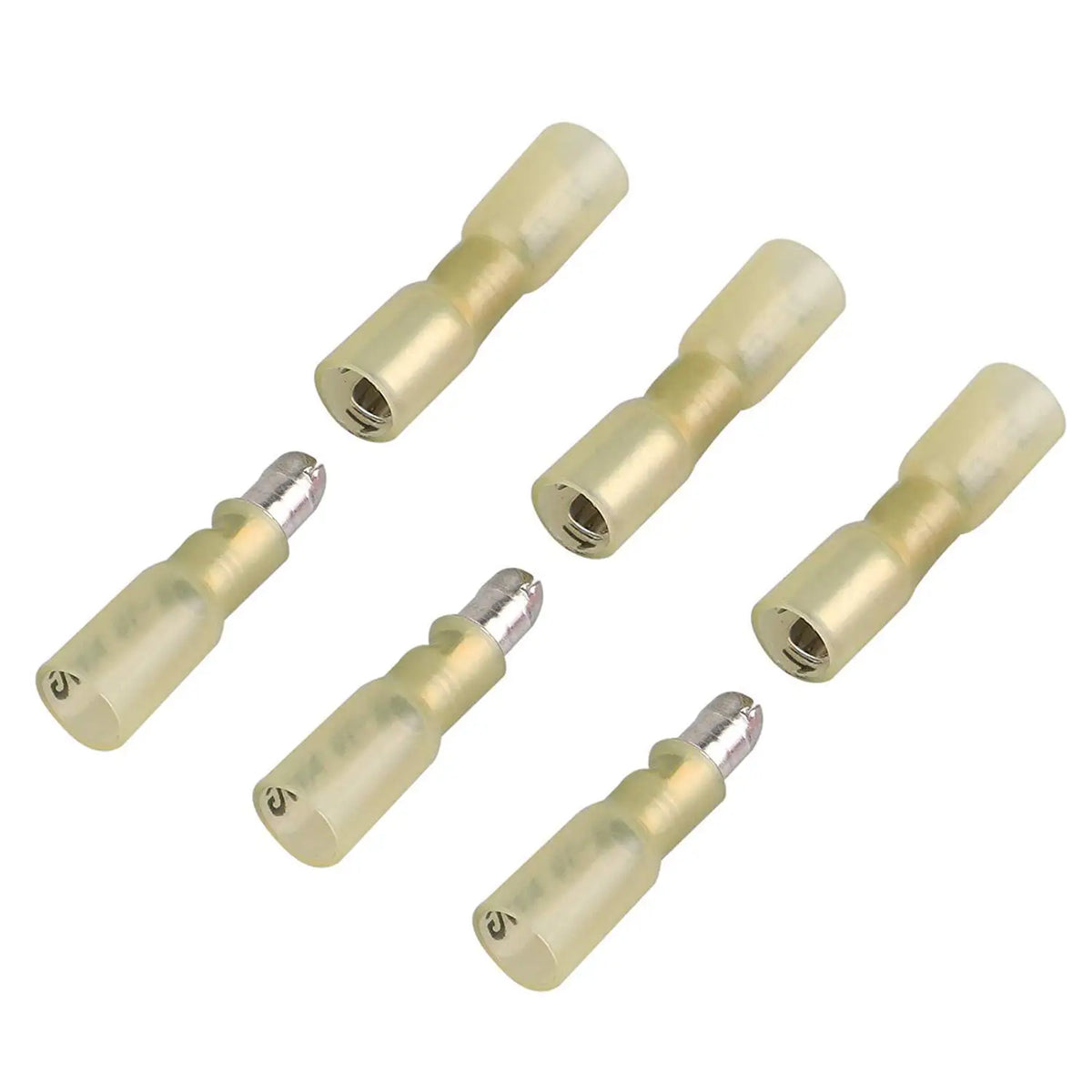

Yellow
Wire range: 4~6mm2, A.W.G.:12~10, Max.current = 48A

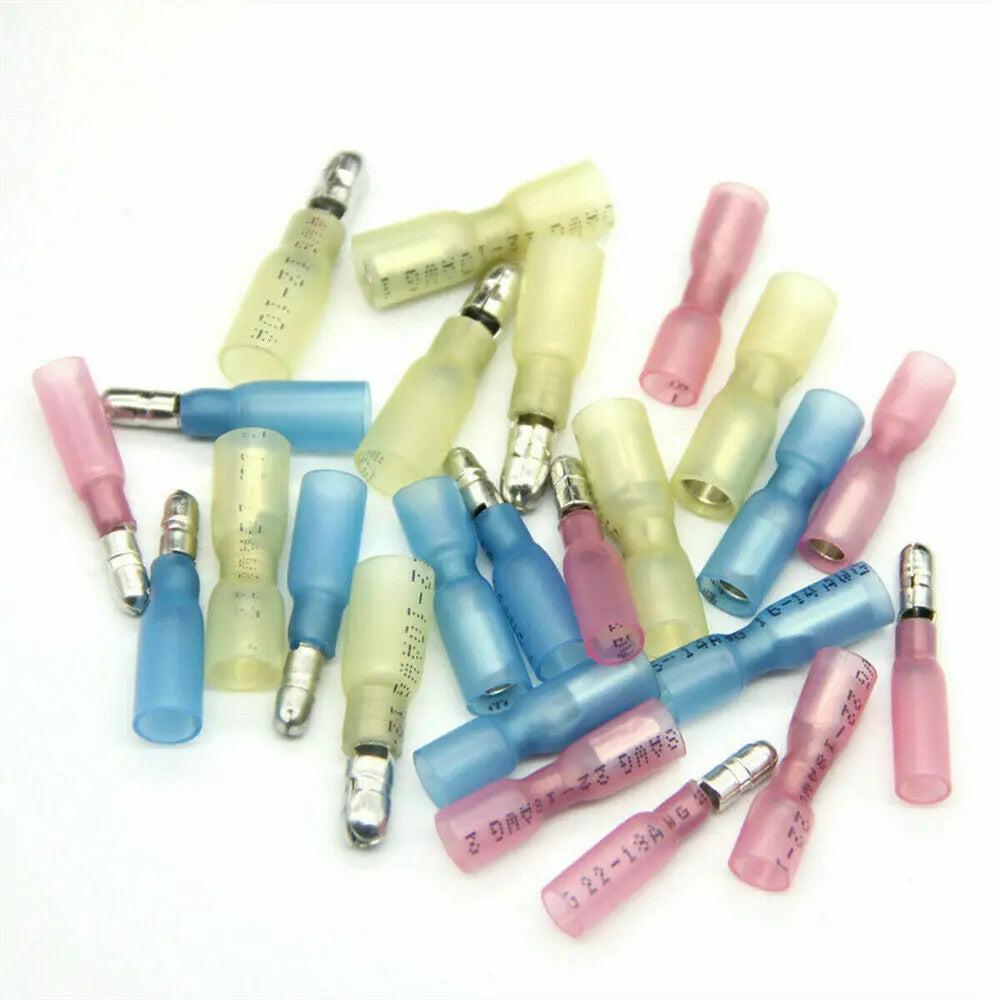

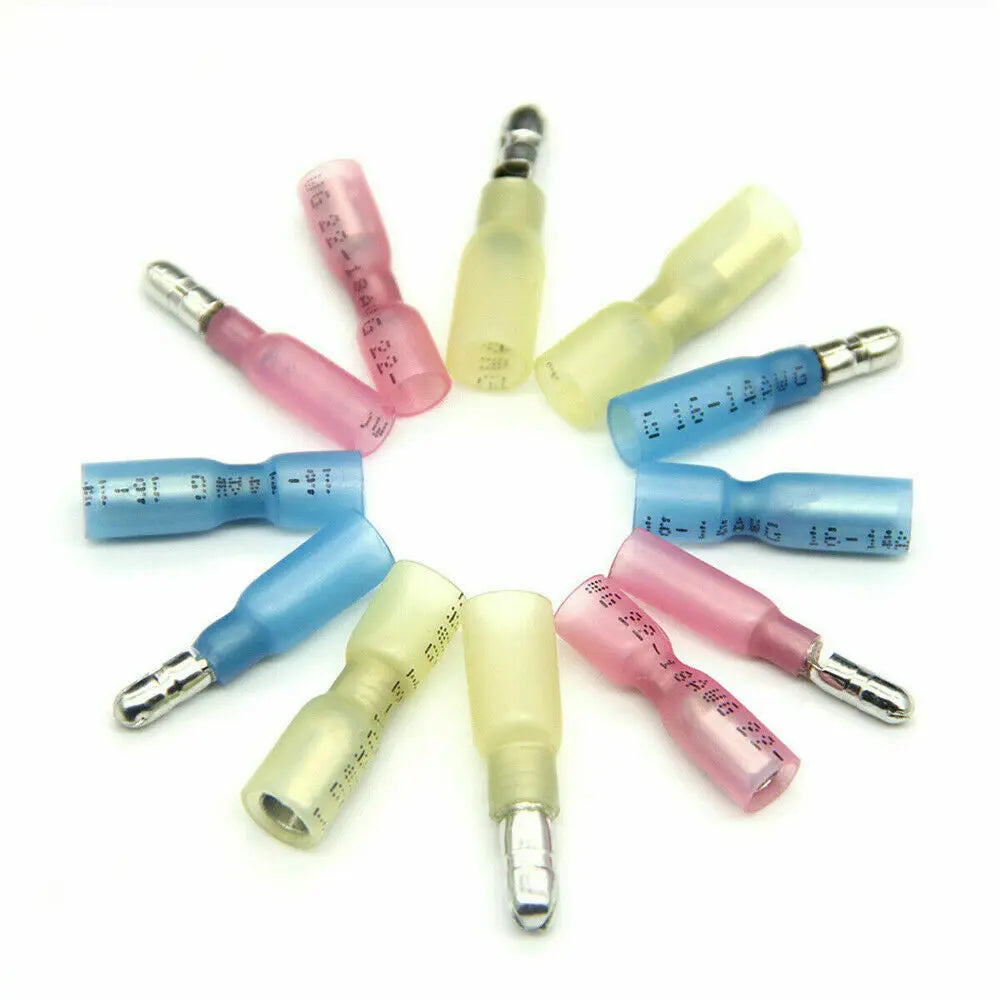

Package includes:
Total:50pcs Mixed color
20 x Red Insulated Male/Female Bullet Connectors: 10pcs male, 10pcs female
20 x Blue Insulated Male/Female Bullet Connectors: 10pcs male, 10pcs female
10 x Yellow Insulated Male/Female Bullet Connectors: 5pcs male, 5pcs female

Total:100pcs Mixed color
40 x Red Insulated Male/Female Bullet Connectors: 20pcs male, 20pcs female
40 x Blue Insulated Male/Female Bullet Connectors: 20pcs male, 20pcs female
20 x Yellow Insulated Male/Female Bullet Connectors: 10pcs male, 10pcs female
