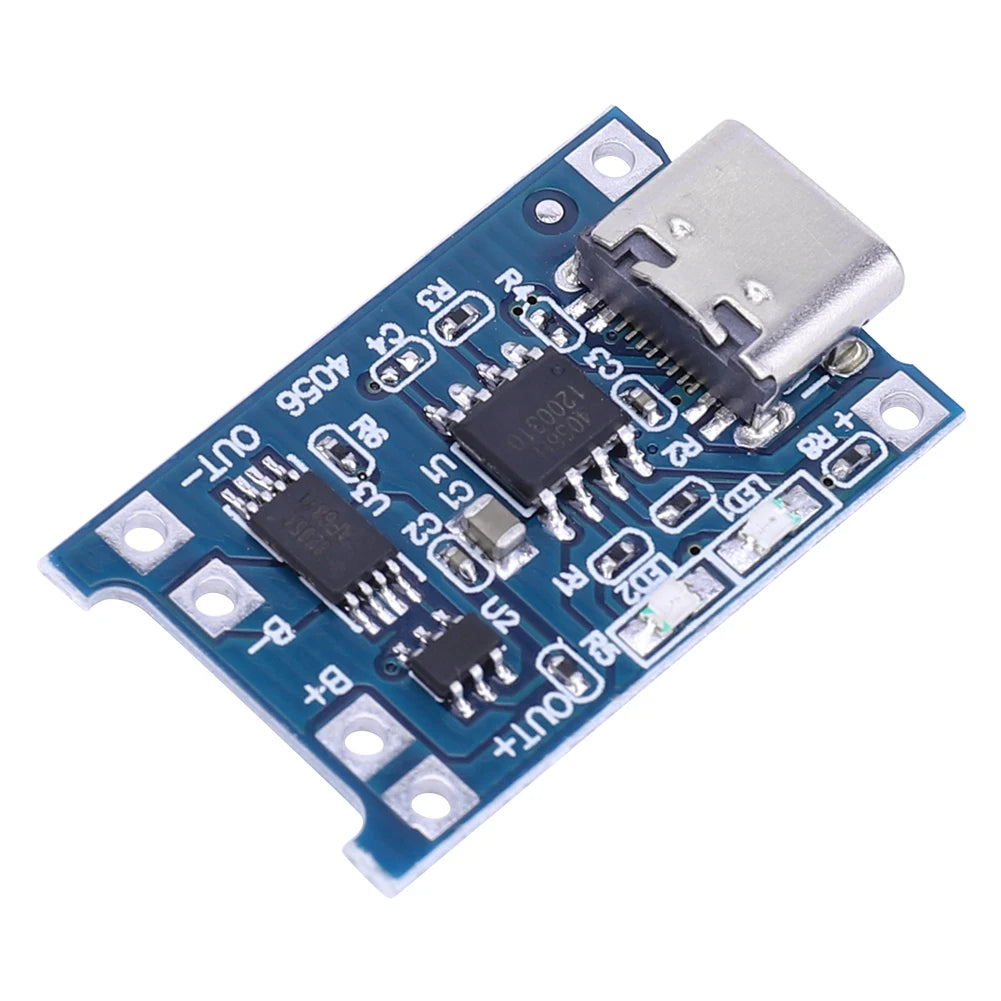

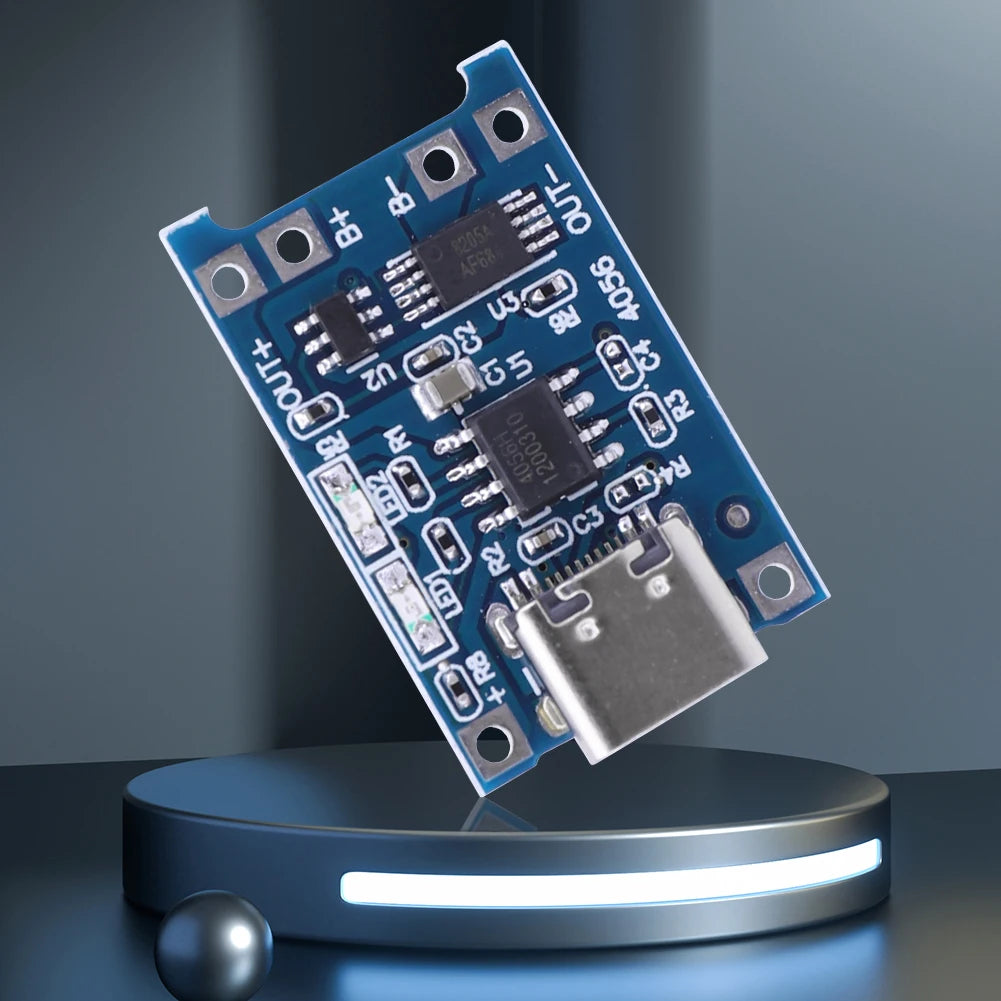

50-1pcs TP4056 3A 5V Lithium Battery Charging Board Module Micro USB/Type-c Interface Charging Protection 2-in-1

50-1pcs TP4056 3A 5V Lithium Battery Charging Board Module Micro USB/Type-c Interface Charging Protection 2-in-1

$6.84

$6.84 $0.00

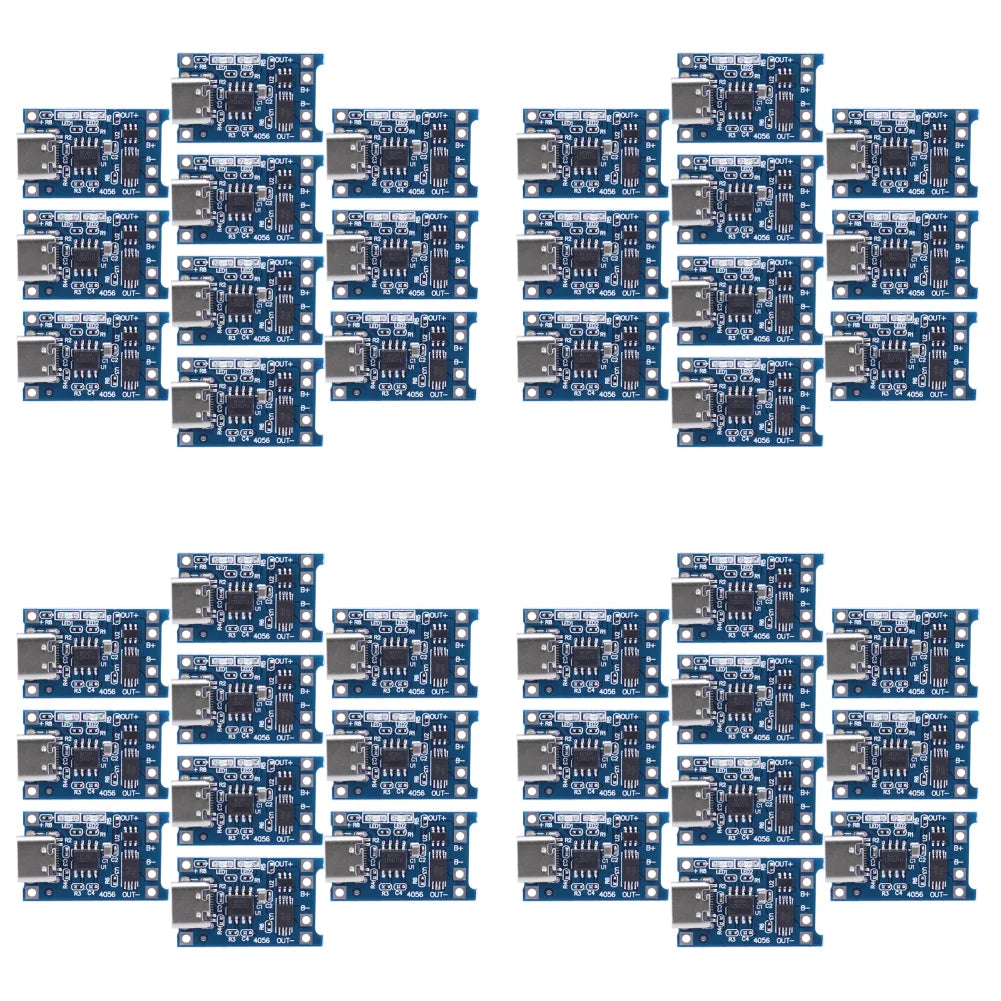

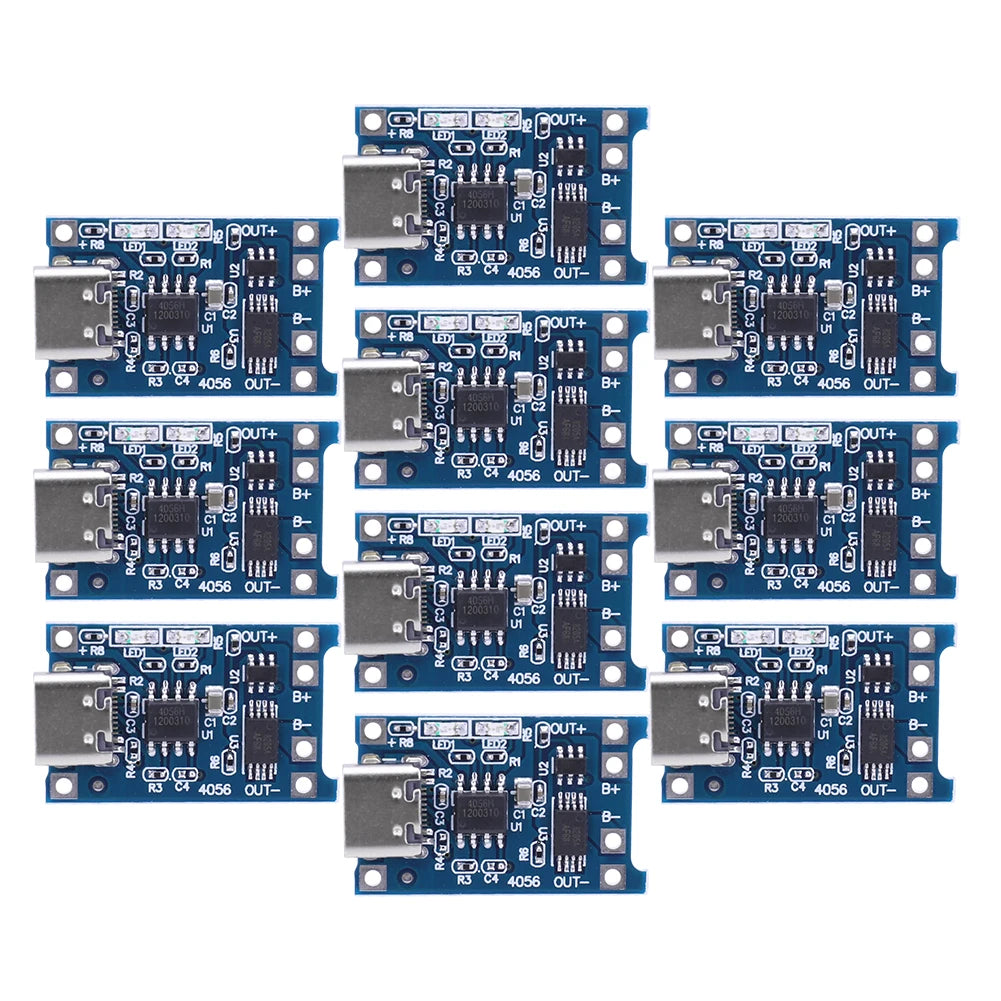

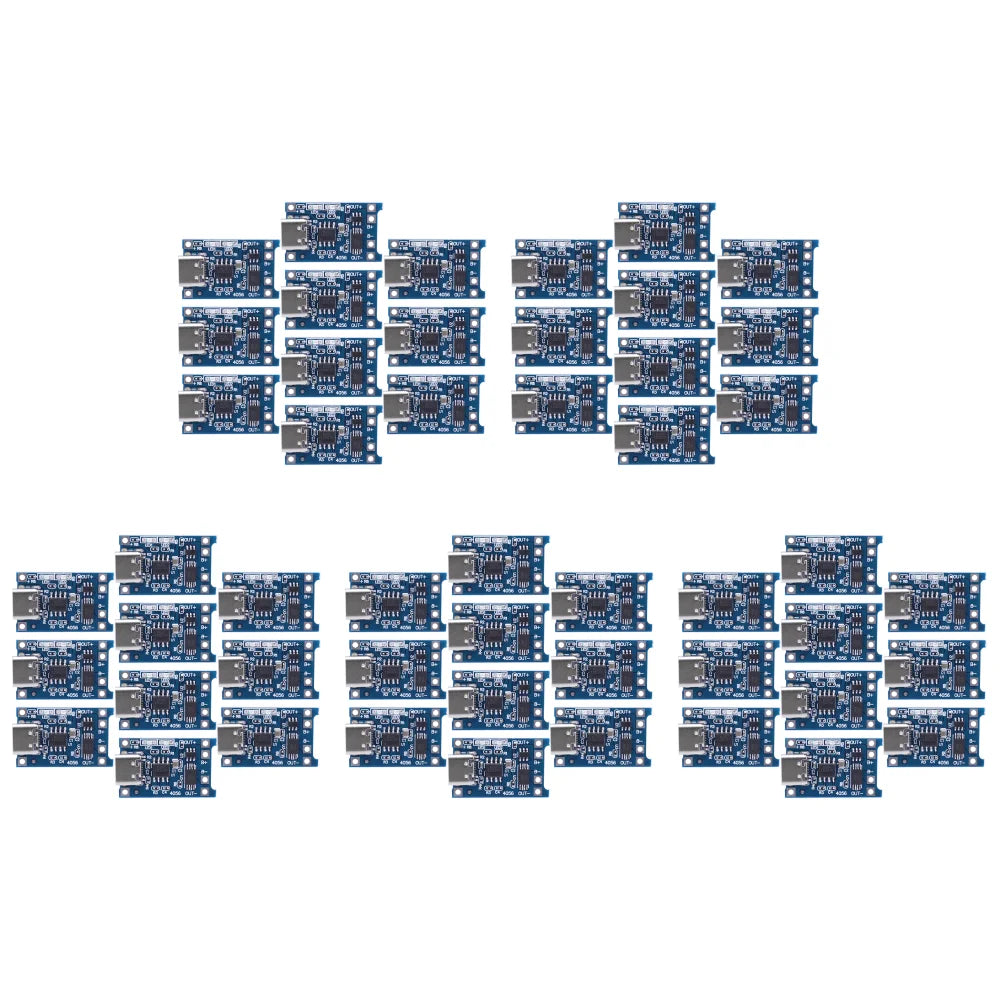

Color 1PCS 5PCS 10Pcs 20pcs 30pcs 40pcs 50pcs

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

TP4056 Lithium Battery Charger Module 1A Portable Battery Charger Panel Type C Micro USB 4.5V-5V for Lithium Batteries

Feature:
1. Wide Input Voltage Range: Our lithium battery charger module is compatible with a wide range of input voltages from 4.5V to 5V, making it versatile and adaptable to a variety of different power sources.
2. High Charging Current: The battery charging board can charge at a maximum current of 1000mA, meaning your batteries will charge quickly and efficiently.
3. Over-Discharge Protection: With over-discharge protection at 2.5V/3A, this battery charging module protects your batteries from damage due to over-discharging.

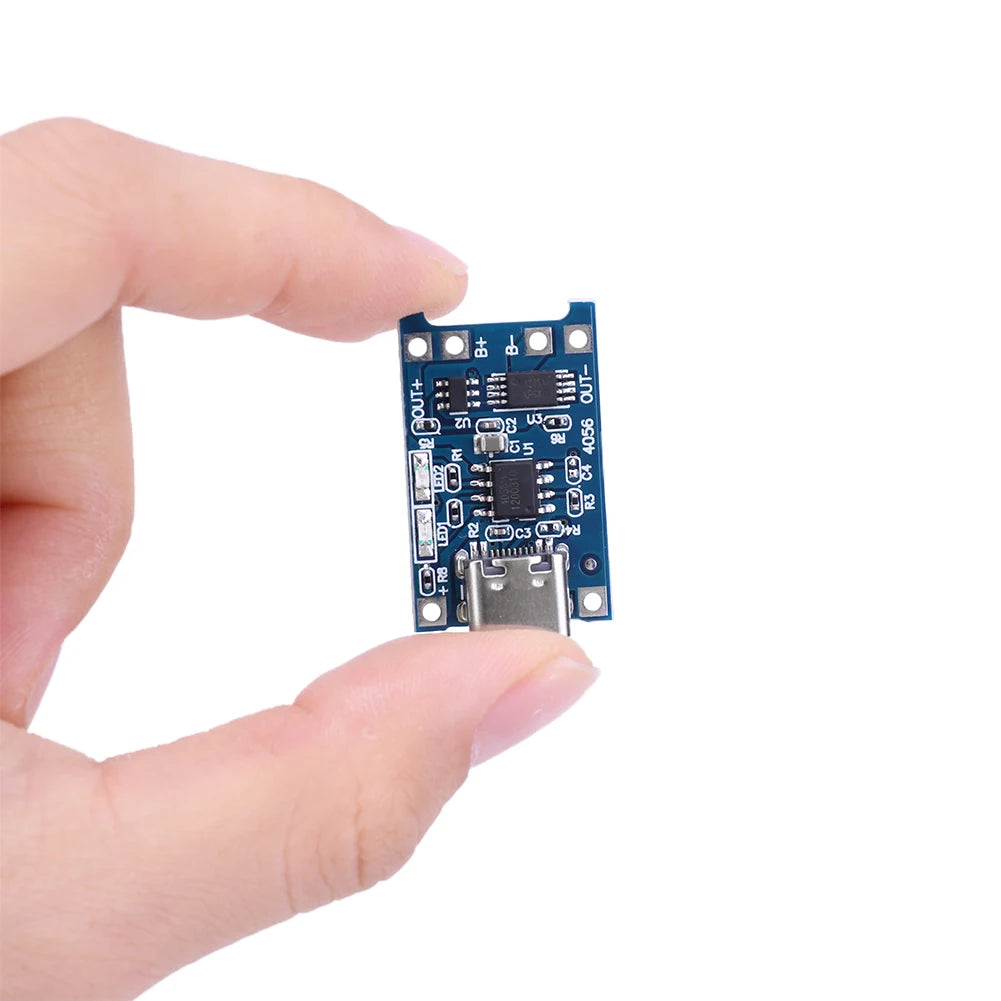

4. Compact Size: The small size of the board, measuring only 28*17*4mm, makes this mini battery charger board easy to install and use in a range of different settings.
5. Multiple Protection Features: This portable battery charger panel features both charging and over-discharge protection, preventing damage to your batteries from over-charging or over-discharging. Additionally, the module automatically controls the charging current, providing optimal protection to your batteries while charging.

Specification:
Certification: NONE
Origin: Mainland China
Accessory Type: Battery Accessories
Model Number: Lithium Battery Charger Module
Type(optional): 1pcs;5pcs;10pcs
Input voltage: 4.5V-5V
Maximum charging current: 1000Ma
Charging cut-off voltage: 4.2V±1%
Battery over discharge protection voltage: 2.5V/3A

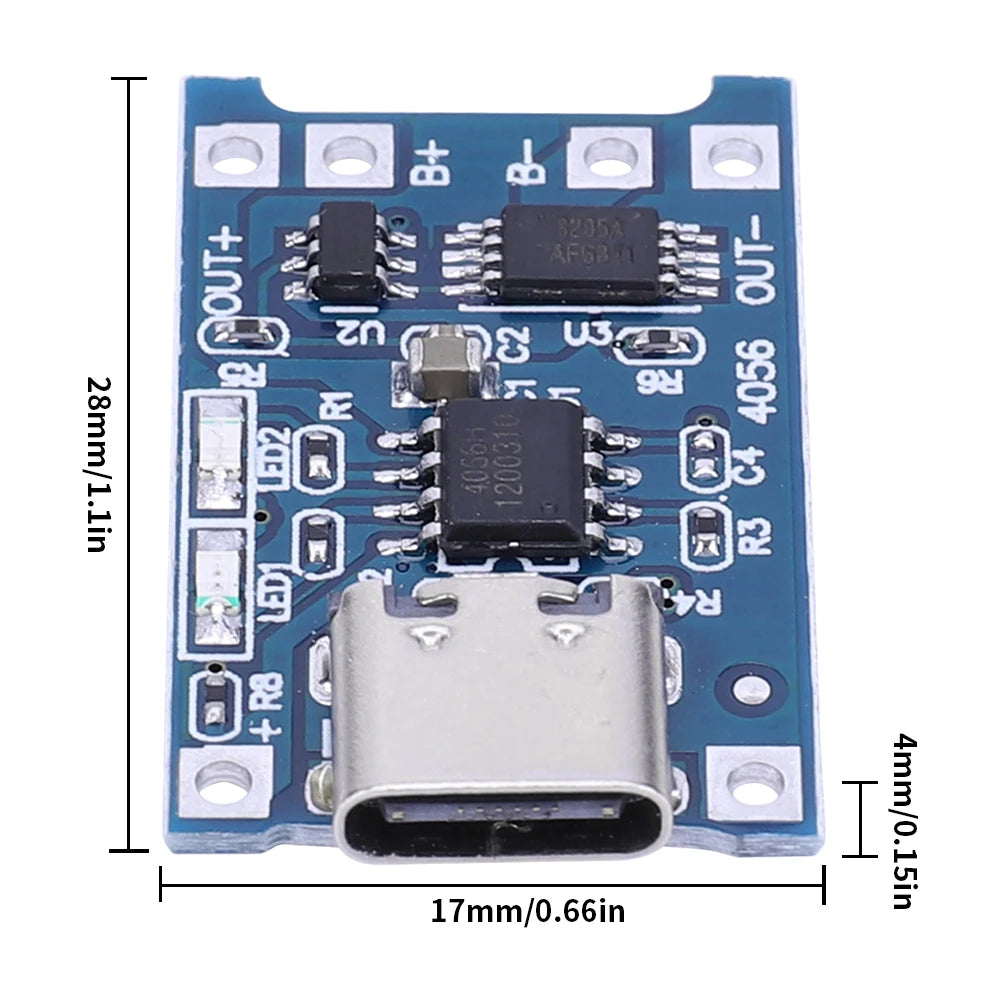

Board size: 28 x 17 x 4mm/1.10 x 0.67 x 0.16inch
Usage:

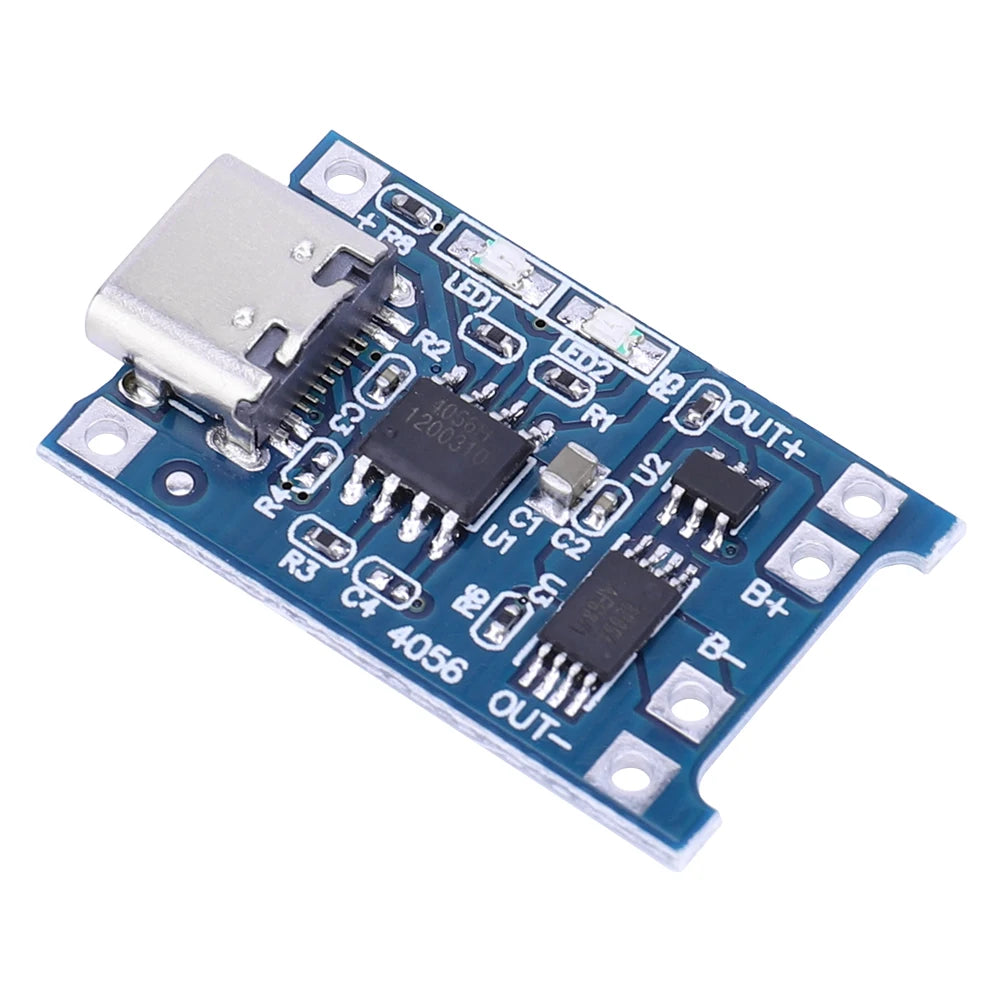

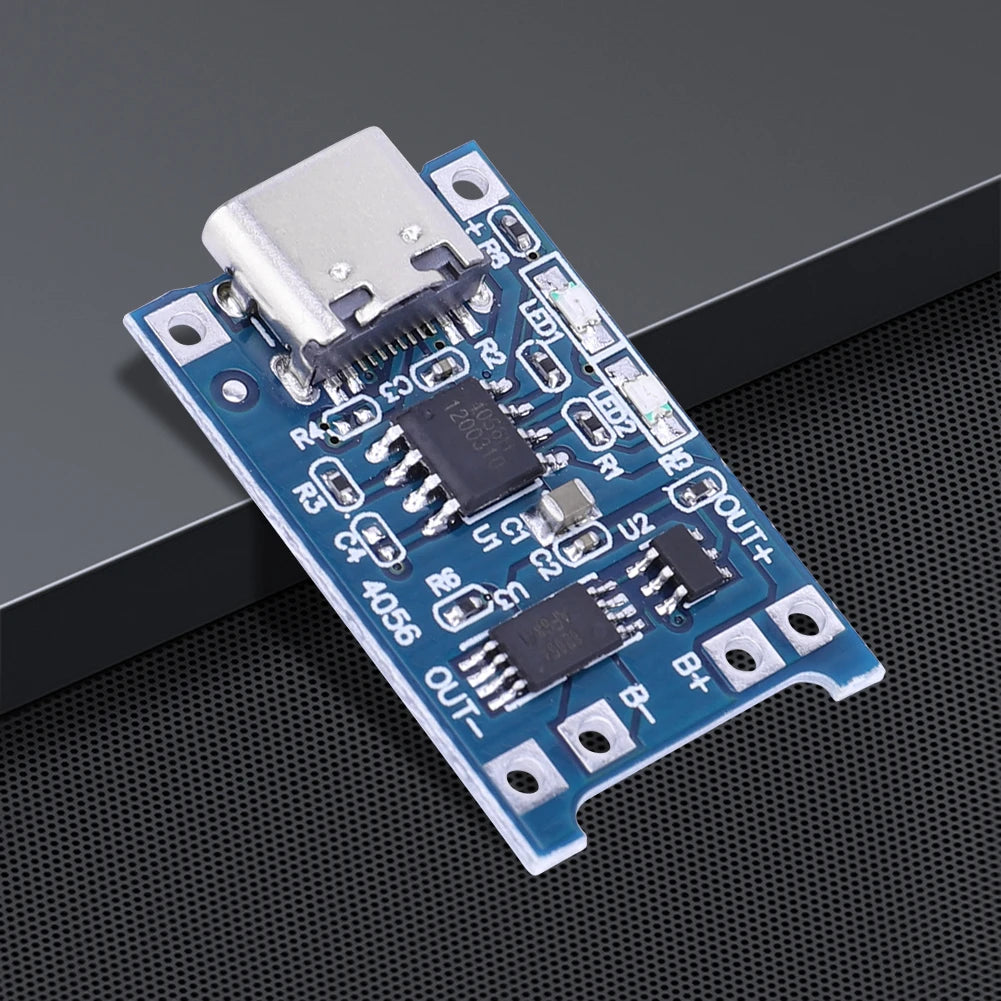

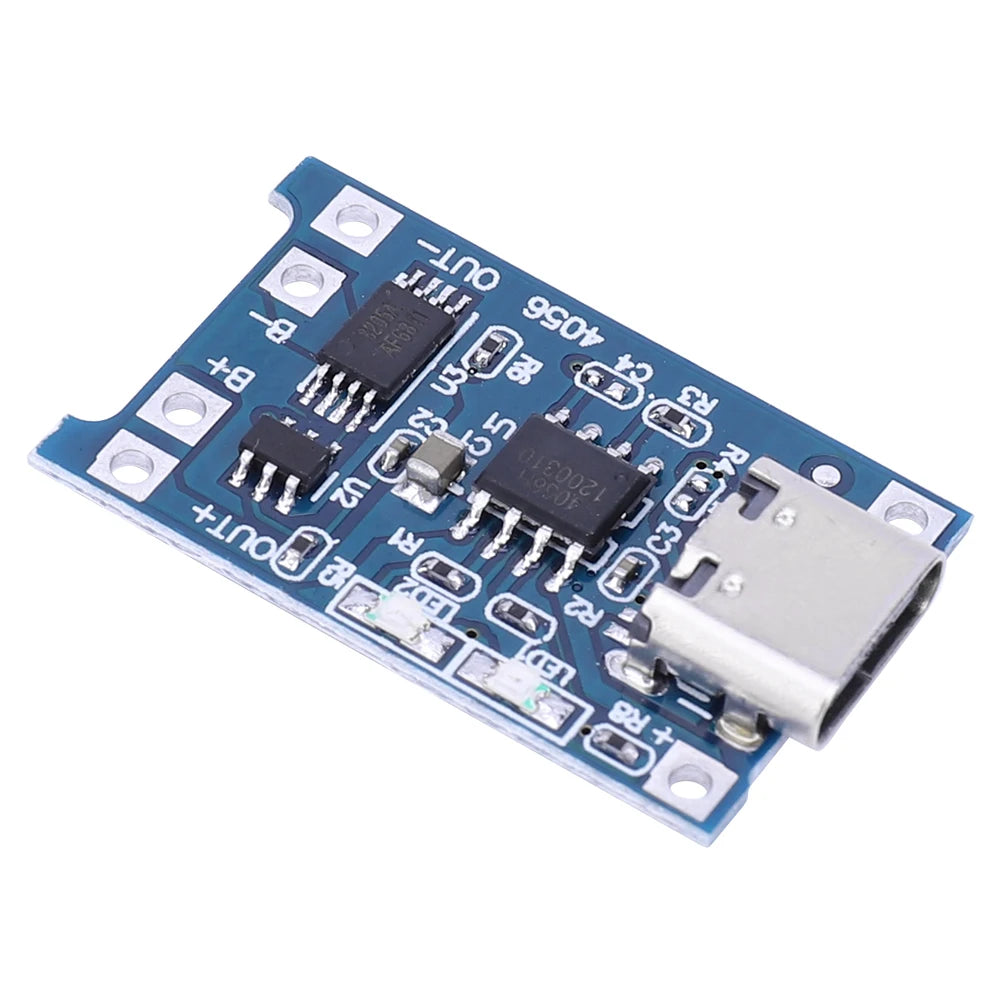

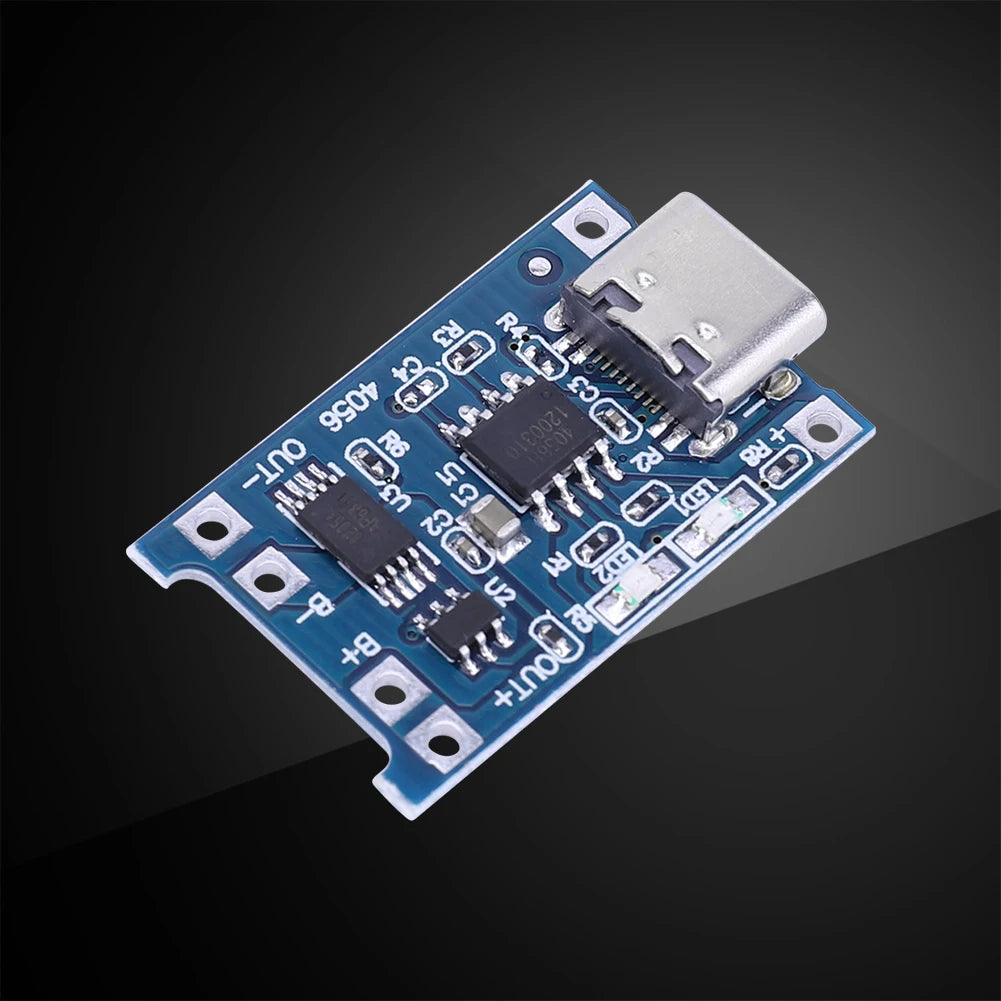

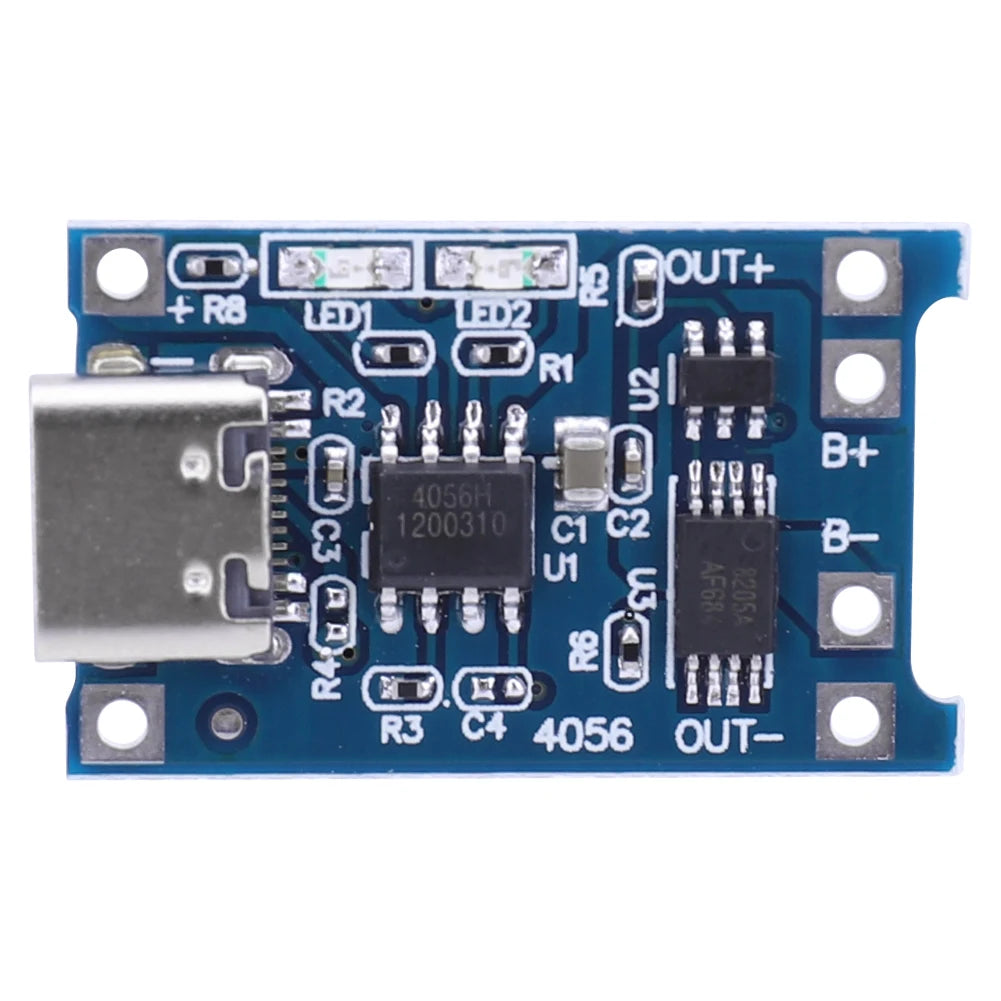

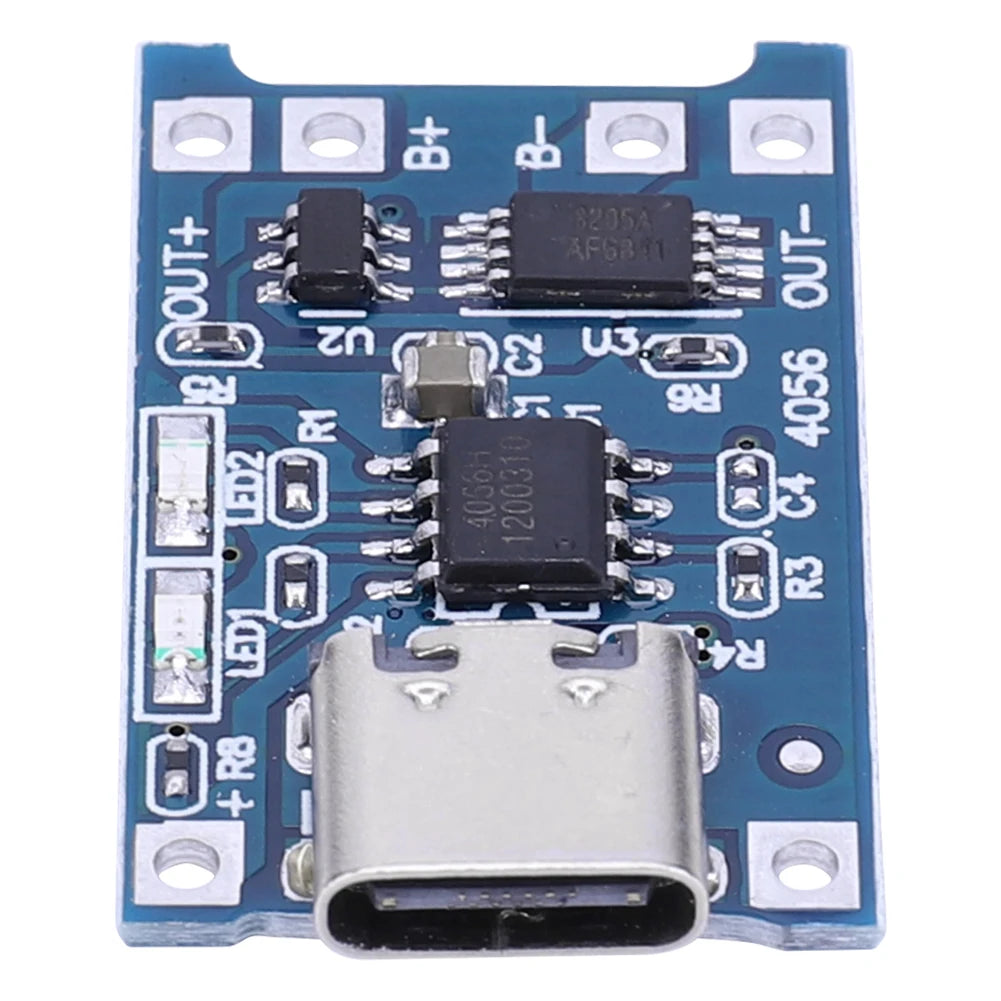

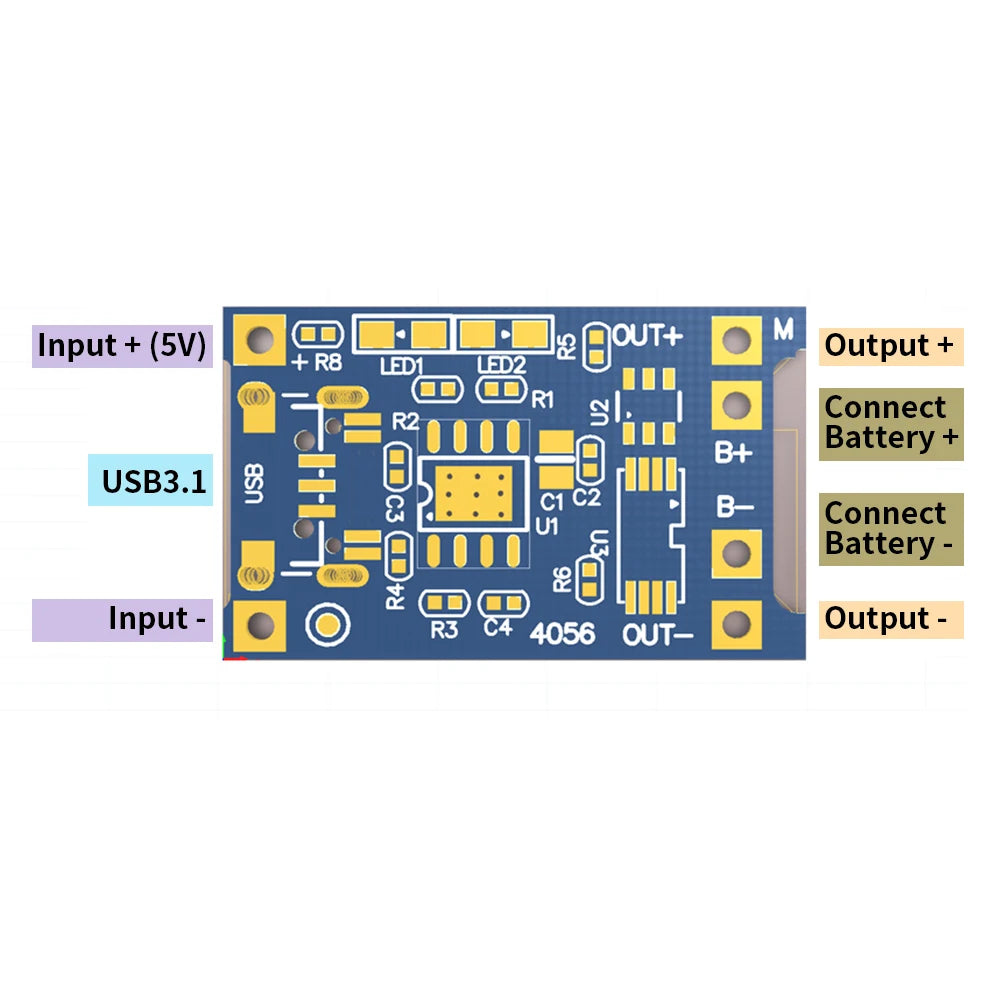

Type-c female socket and the + - pad next to the power input, access the 5V input voltage. b+ connects to the positive terminal of the lithium battery, b- connects to the negative terminal of the lithium battery. out+ out- connects to the load, such as the booster board. Connect the battery to B+ B-, plug in the phone charger to USB, the blue light is on, indicating that there is power access, the red light is flashing, indicating that it is charging. When it is fully charged, the red light will stop flashing and become constant. You can connect a load to the OUT+ OUT- terminal, when the load is connected, the red light is always on. When there is power at the input, current is obtained from the power output, if no power is connected, current is obtained from the battery and the output is automatically switched off when the battery voltage is below 2.5V.
Tip:
When the battery is connected for the first time, there may be no voltage output at the OUT terminal, you need to connect 5V to the power input to charge it a little and activate the protection circuit. When using a mobile phone charger for power supply, it must be able to output more than 1A, otherwise it may not charge properly.
Product features:
1. Charging protection, prevent battery overcharge and over discharge, and automatically control the charging current, better protect the battery
2. type-c female connector, reserved with input voltage welding electricity, convenient for DIY

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
