SPECIFICATIONS

Brand Name: NONE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Features:

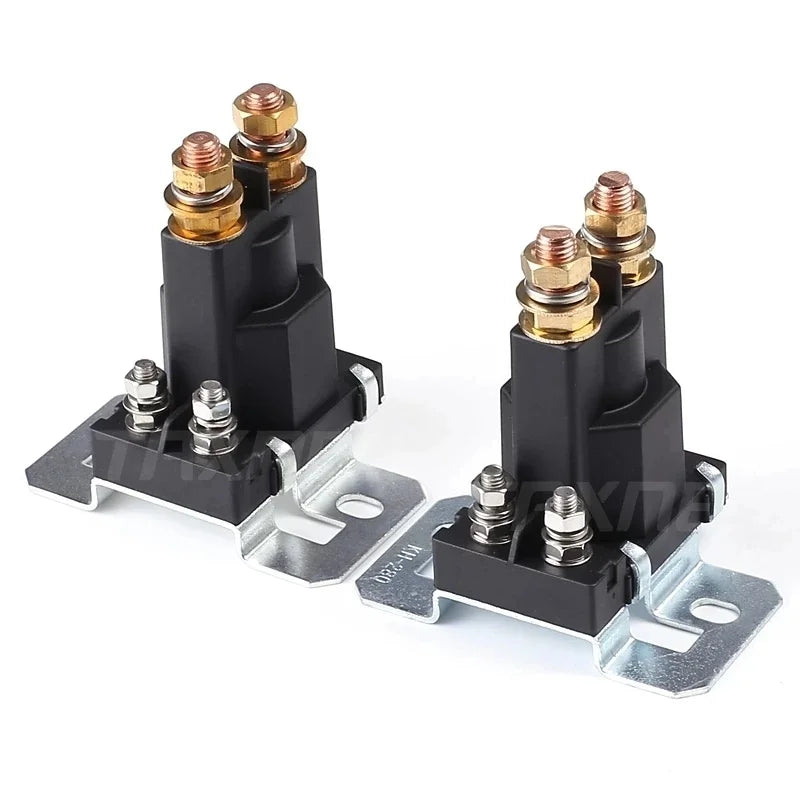

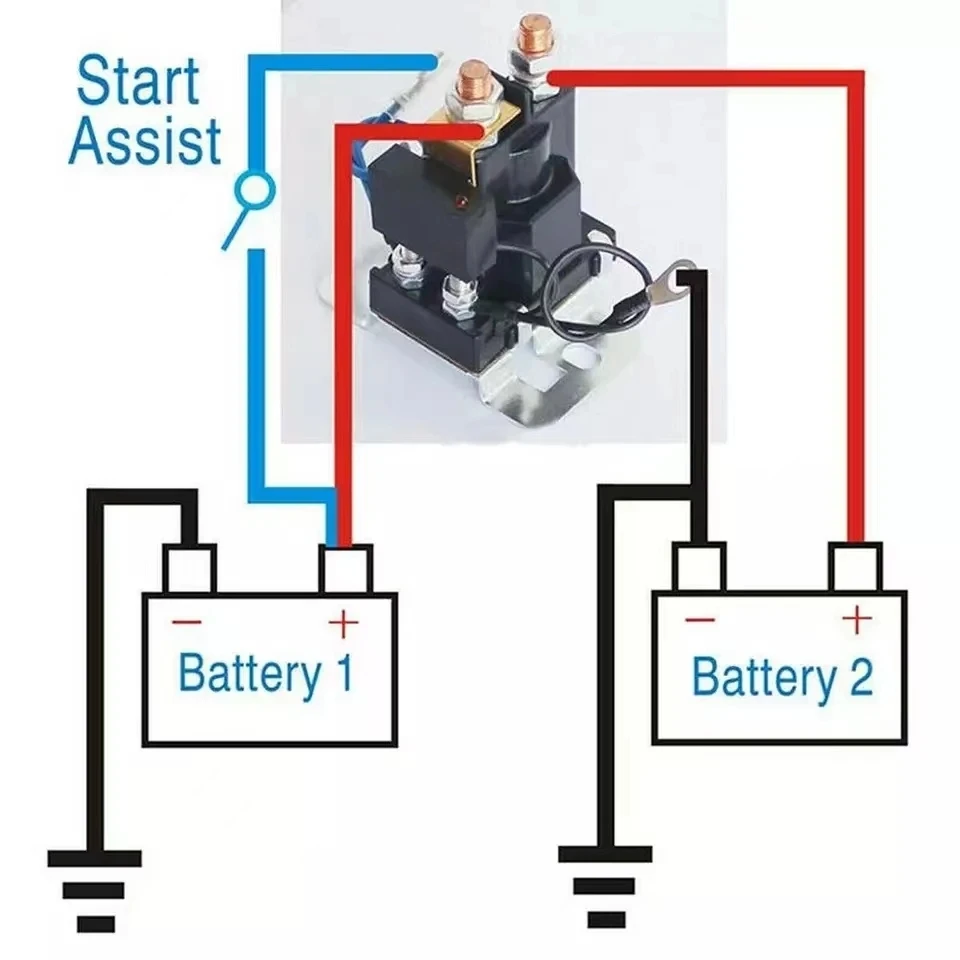

• 4 Pin 12V AMP 500A Relay Car Starter On/Off Power Switch Dual Battery Isolator

• 100% new high quality Perfect match with the original lawn mower.

• Easy installation Stable performance and high reliability Durable and practical

• A good direct replacement.

Specifications:

• Type: Starter Solenoid Relay

• Material: Metal/Plastic

• Color:Black

• Temperature Range: -30°C ~+80°C

• Vibration Resistance: 10~55Hz, 1.5mm

• Shock Resistance:Operations Extremes: 10g,Damage Limits: 100g

• Insulation Resistance: 100m ohm Min at 500VDC

• Dielectric Strength Between Open Contacts 500VAC (for one minute/sec)

• Between Contact and coil: 750VAC (for one minute/sec)

• Operate Time: 25ms

• Release Time: 10ms

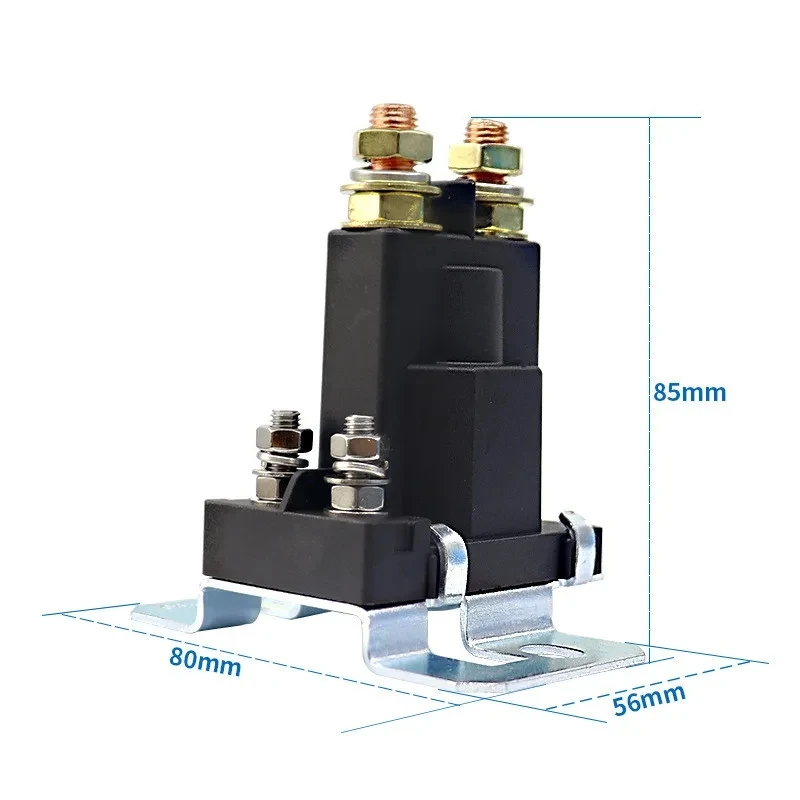

• Size app: 7.6x5.5x8.7cm,Bottom Hole Max Length 6.7cm,Bolt Dia 0.8cm

• Conversion: 1cm=0.39inch/1 inch=2.54cm

Note:

• 1.Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.

• 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
