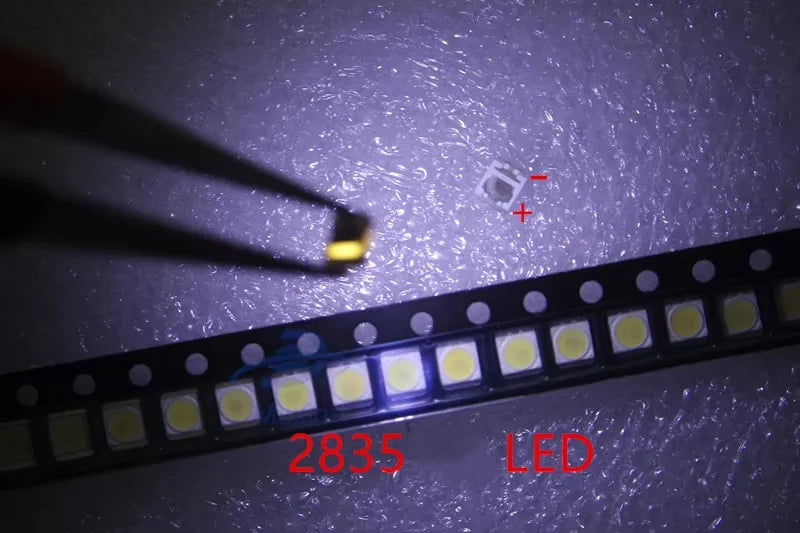

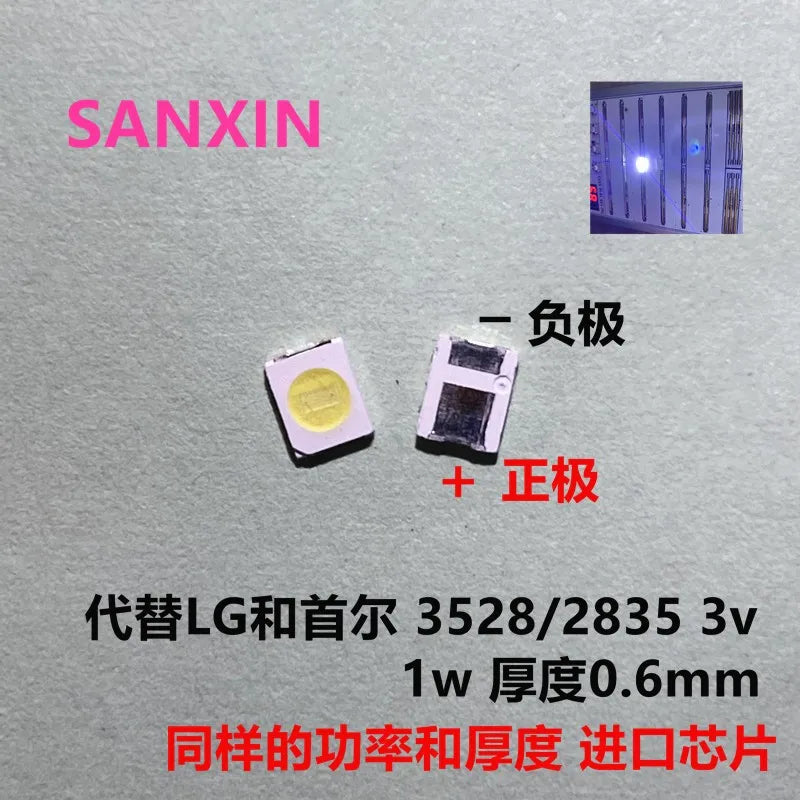

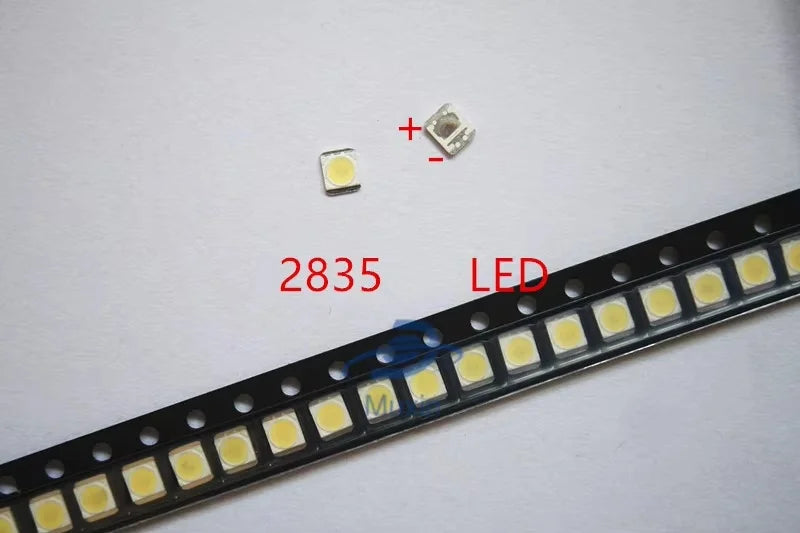

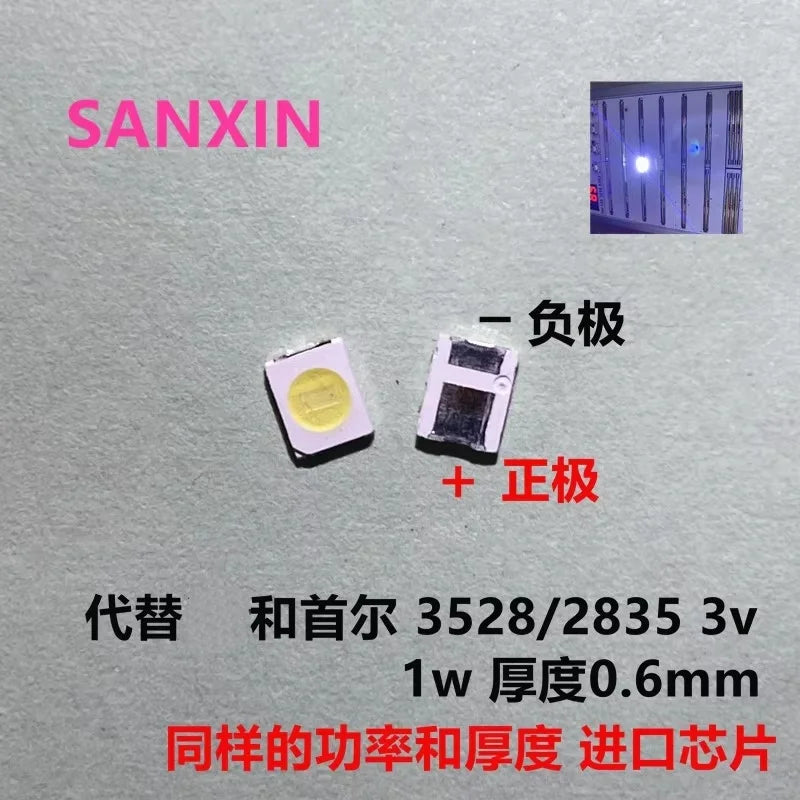

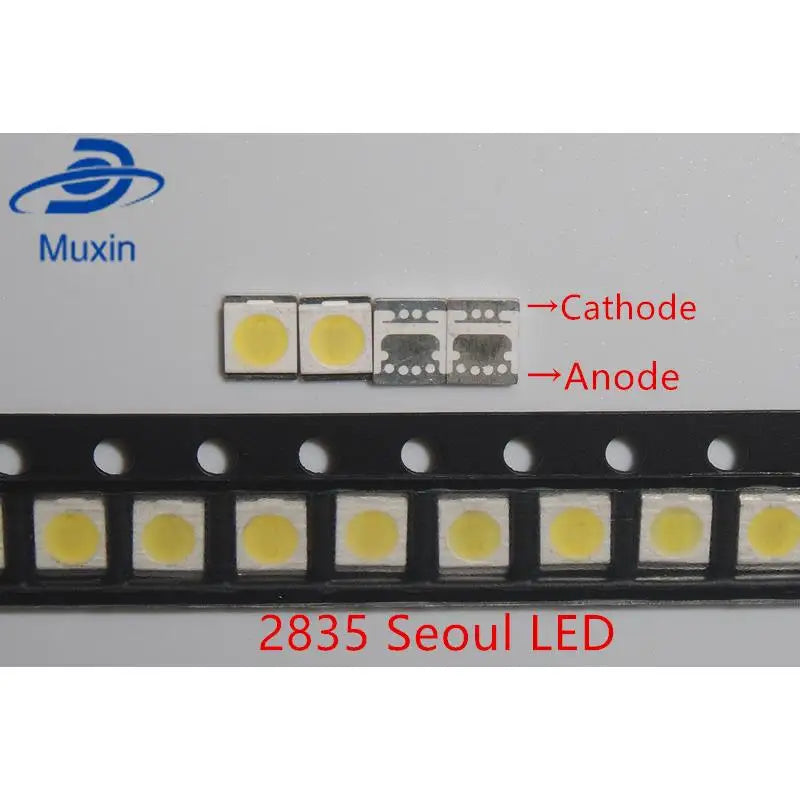

500PCS/Lot 3528 2835 3V SMD LED Beads 1W 100LM Cold White For TV LCD Backlight
replace LG SEOUL
$77.94
Sale price
$77.94
Regular price
$0.00
Skip to product information
500PCS/Lot 3528 2835 3V SMD LED Beads 1W 100LM Cold White For TV LCD Backlight
$77.94
Sale price
$77.94
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: MUXINZILIGHT
High-concerned chemical: none
Item Type: Ball
Model Number: led
Origin: Mainland China
Voltage: 3V
2835 SMD LED - WHITE CW
SIZE:3.5*2.8*0.65MM
1W led Cold Whtie
CAT:110-140lm
CCT:7000-10000k
REF:3.0-3.6V
I(MA):350ma-700ma
QTY:500pcs
MODEL NAME : LATWT470RELZK LED
Manufacturer :
Origin : Korea

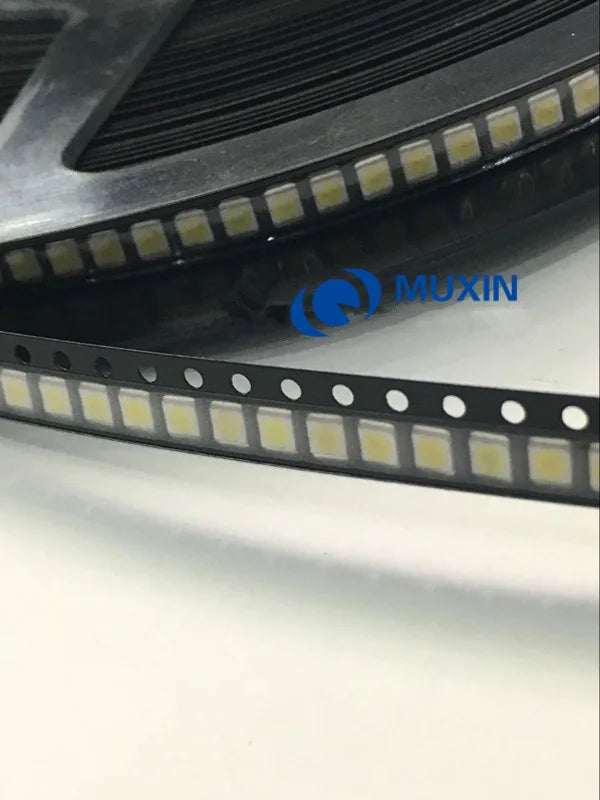

Package Model:Loaded Quantity 3600PCS Per Reel
Forward Current (IF ): 400mA
Pulse Forward Curren t1 (IFp): 650mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 0.8-1.2V (5mA)
Power Dissipation (PD): 1460mW
Operatin Tgemperature (Topr): -30 - +90 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 135°C
Forward Voltage (VF): 3.05-3.65V (250mA)
Luminous Flux (LM): lm (20mA)
Luminous Intensity ( IV ) : 23.5cd (250mA)
Wavelength (nm) : -nm mA
CIE : x=0.2960 y=0.2770 (250mA)
Color Correlated Temperature (CCT):
CRI : 80°
Viewing angle : 120°
Lead Frame Type LED Package: 3.5×2.8×0.60mm L×W×H d=2.0mm
