5050 RGB LED Strip Addressable DC 5V 3pin WS2812B IC 30 LEDs/M 60LEDs/M IP30 IP65 Lamp Waterproof Light Tape Chip LED 5M Digital

DC5V White PCB / 1m 74 IP30

$33.35

Sale price $33.35 Regular price $0.00

Skip to product information

5050 RGB LED Strip Addressable DC 5V 3pin WS2812B IC 30 LEDs/M 60LEDs/M IP30 IP65 Lamp Waterproof Light Tape Chip LED 5M Digital

5050 RGB LED Strip Addressable DC 5V 3pin WS2812B IC 30 LEDs/M 60LEDs/M IP30 IP65 Lamp Waterproof Light Tape Chip LED 5M Digital

$33.35

Sale price $33.35 Regular price $0.00

Emitting Color DC5V White PCB DC12V Black PCB DC12V White PCB DC5V Black PCB

Wattage 1m 74 IP30 5m 74 IP30 4m 60 IP67 5m 60 IP67 2m 60 IP67 3m 60 IP67 5m 60 IP65 1m 60 IP67 1m 96 IP65 5m 96 IP65 1m 96 IP30 5m 96 IP30 1m 74 IP67 5m 74 IP67 1m 74 IP65 5m 74 IP65 5m 30 IP67 1m 60 IP30 5m 30 IP30 5m 30 IP65 1m 30 IP65 1m 30 IP67 1m 30 IP30 3m 60 IP65 4m 60 IP65 1m 60 IP65 2m 60 IP65 4m 60 IP30 5m 60 IP30 2m 60 IP30 3m 60 IP30 1m 96 IP67 5m 96 IP67 1m 144 IP67 5m 144 IP67 1m 144 IP65 5m 144 IP65 1m 144 IP30 5m 144 IP30

Description

SPECIFICATIONS

Brand Name: NONE

Certification: ce,FCC,ROHS,UL,CE,RoHs

Choice: yes

Color Temp(K): RGB

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Model: SMD5050

Luminous Flux: 249-2000

Model Number: 2812

Nominal Voltage: 5v/12v

Occasion: Living room

Origin: Mainland China

Power Generation: light

Power Source: DC

Strip type: SMD

Voltage: 5v/12v

Waterproof: No

semi_Choice: yes

Please note:

The price includes only the LED strip; the power supply and pixel controller are not included.
WS2812B should be controlled using a DC5V power supply and a pixel controller.
There are soldered joints every 0.5 meters, which is common in electronic products and not a quality issue.
The WS2812B LED strip can be cut between each LED to create a custom length. Do not fold the LED strip forcefully.
The LED strip includes a 3-pin SM connector: red: VCC, white: GND, green: DATA.

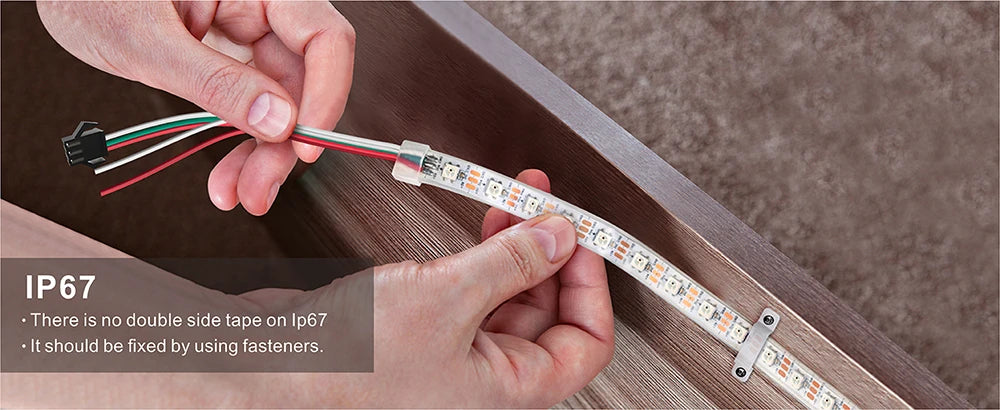

The back of the LED strip PCB has adhesive (except for the IP67 model). Ensure the installation surface is smooth, clean, and dry.
For longer LED strips, it is necessary to add more power through the 2-pin power lines at both ends to reduce voltage drop.

IP30: Poor water resistance
IP65: Silicone coating for dustproofing
IP67: Silicone tube for waterproofing

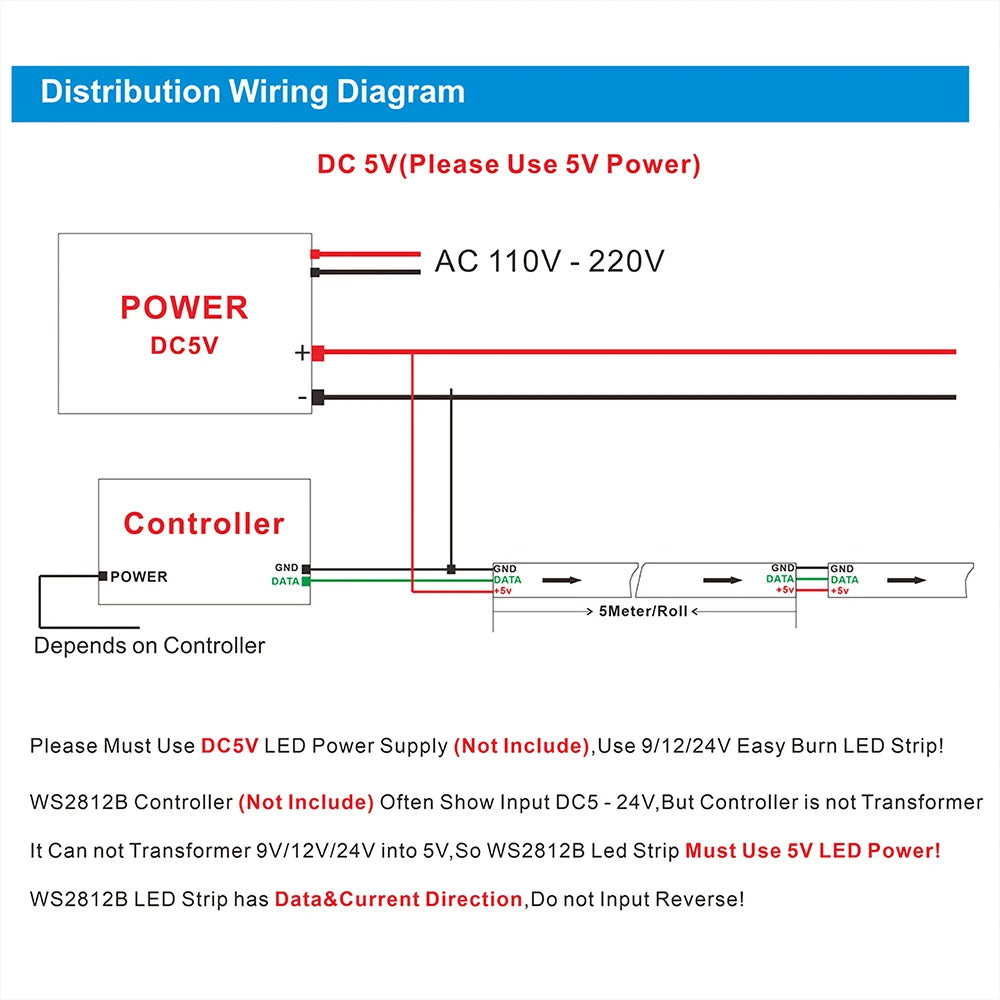

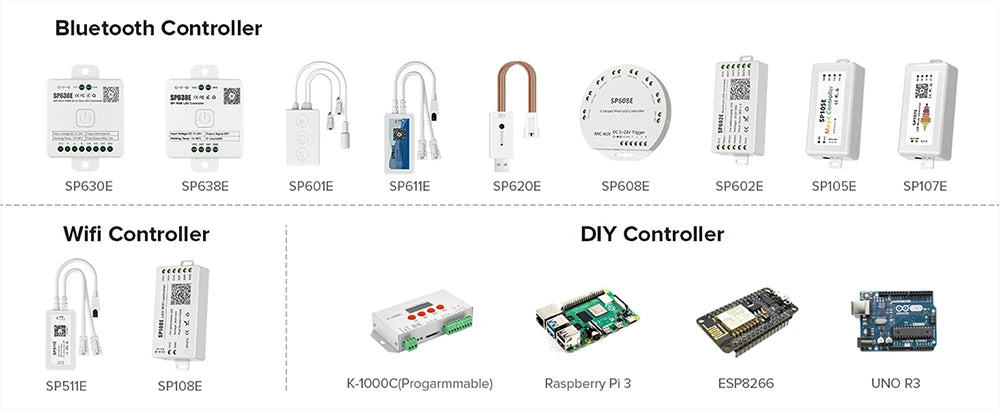

The WS2812B wire-type LED strip uses DC5V (5V power supply not included) and needs to be controlled by a WS2812B LED controller (not included).

Product Description:

The WS2812B LED strip is powered by a "5V power supply" (not included) and controlled by a single data line from a suitable controller (not included).
Includes a 3-pin JST connector: red: VCC, white: GND, green: DAT.

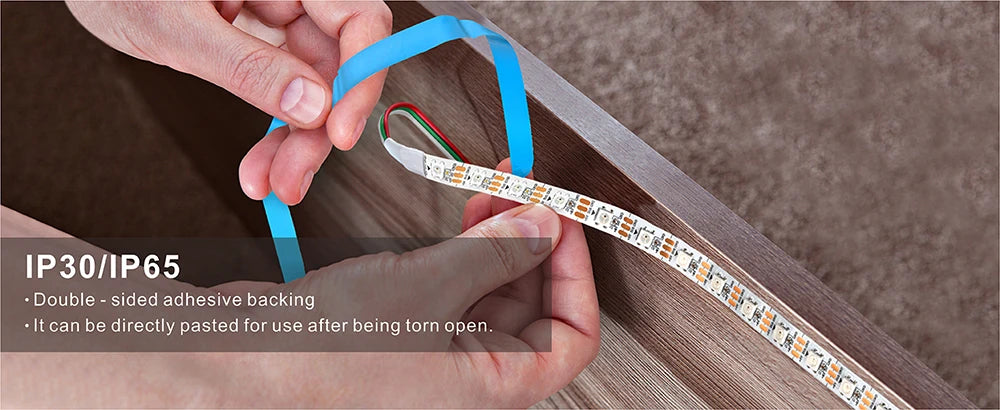

The back of the wire strip has 3M tape (except for the IP67 model). The installation surface must be smooth, clean, and dry.
The LED wire strip can be cut between each LED to create a custom length.
Do not fold the wire strip forcefully.
Longer strips require power supply at both ends to reduce voltage drop.
The wires of the JST 3-pin connector are 20AWG.

Product Applications:
The Dream Color WS2812B LED strip can be used in hotels (for TVs), KTVs, bars, game rooms, and other entertainment venues for decorative purposes to enhance the atmosphere. It is also suitable for car chassis decoration, car decoration, shop decoration, home decoration, and other decorative uses.

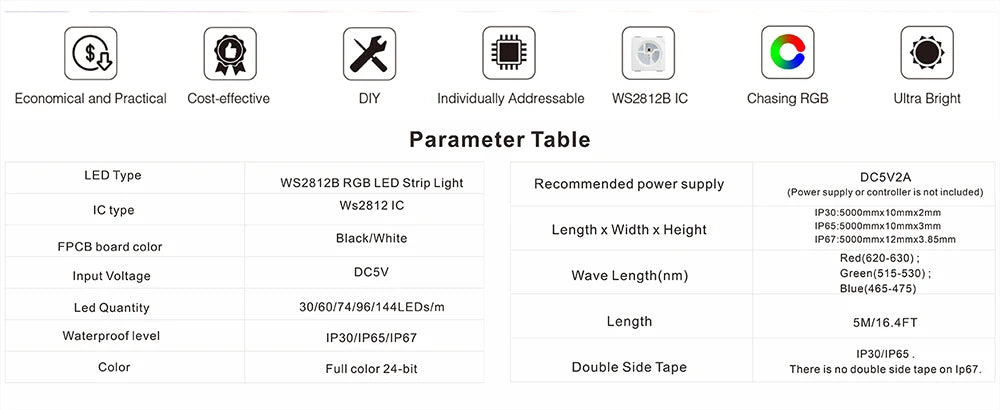

Product Details:
Input Voltage: DC5V
Power: 30 LEDs/m ---- 9 watts/m
60 LEDs/m ---- 18 watts/m
74 LEDs/m ---- 21 watts/m
96 LEDs/m ---- 23 watts/m
144 LEDs/m ---- 43.2 watts/m

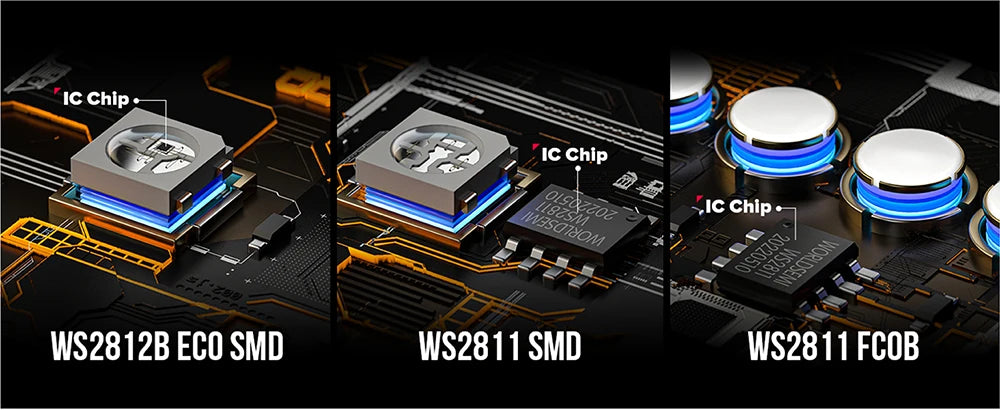

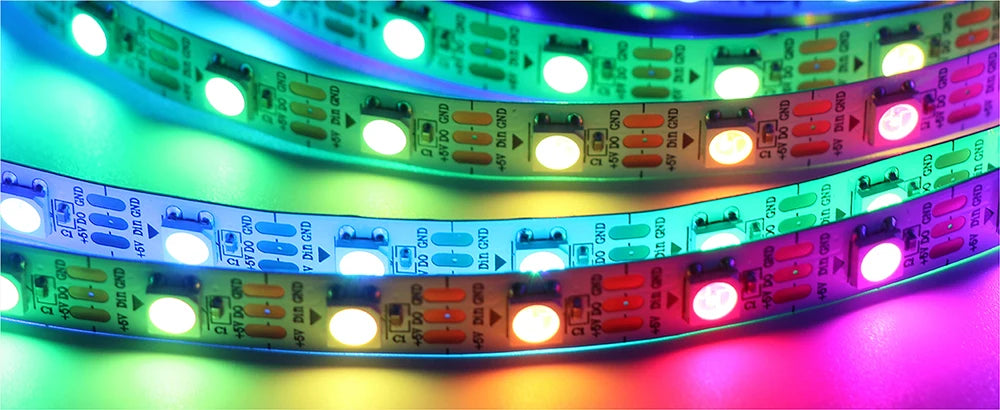

LED Resource: WS2812B LED (5050 SMD RGB LED with built-in improved WS2811 IC)

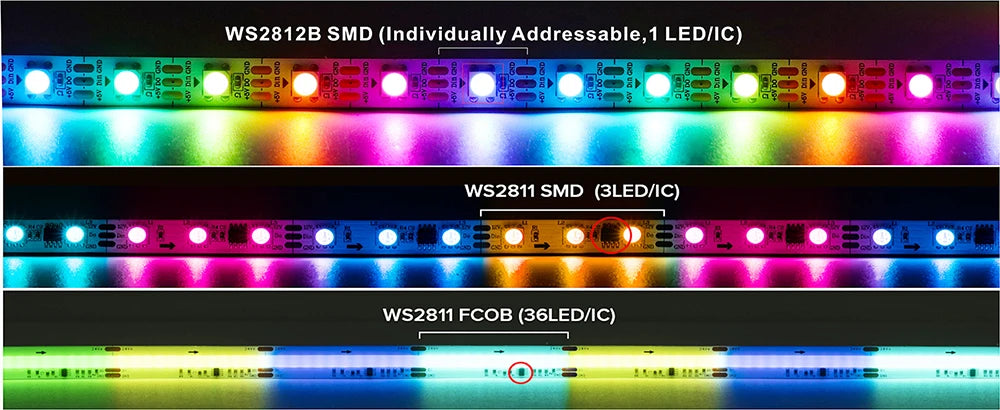

LED: Each LED can be controlled individually
IC Type: WS2812 IC (built into the RGB 5050 SMD LED)
Slave IC: 1 IC drives 1 LED chip
Pixel Count: 30/60/74/96/144 per meter

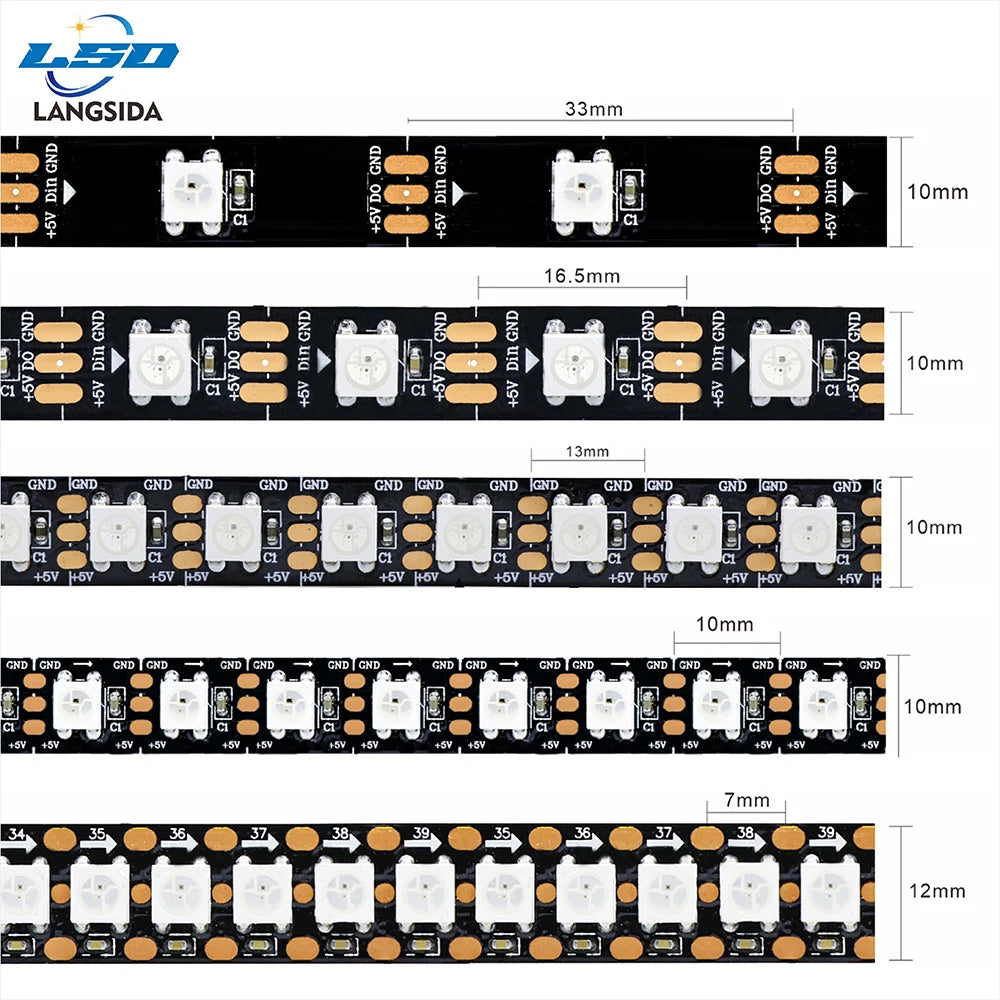

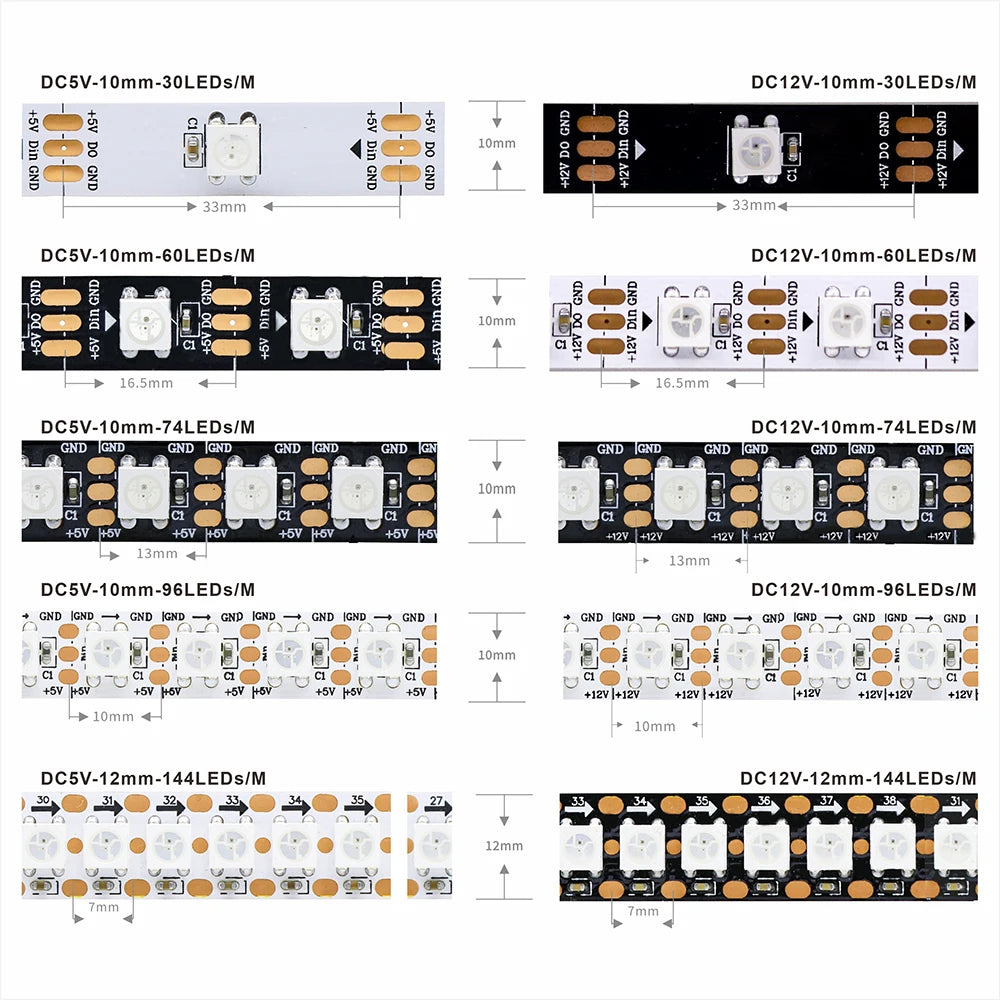

FPC Width:
30 LEDs/m ---- 10 mm
60 LEDs/m ---- 10 mm
96 LEDs/m ---- 10 mm
144 LEDs/m ---- 12 mm

FPC Color: Black/White
Protection Level: IP30/IP65/IP67
Color: RGB color, dreamlike color changing
Cuttable: Can be cut between each LED
Packaging: Anti-static bag. IP30 and IP65 models come with 3M tape on the back (IP67 models do not have 3M tape).

Package Includes:
1m/2m/3m/4m/5m WS2812B wire-type LED strip
