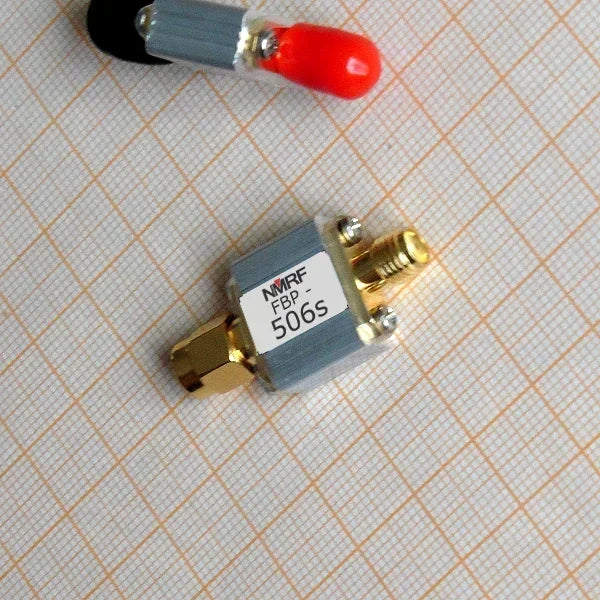

506MHz RF Coaxial Bandpass SAW Filter 1dB Bandwidth 7MHz SMA Interface 503~510MHz
Default Title
$220.50
Sale price
$220.50
Regular price
$0.00
Skip to product information
506MHz RF Coaxial Bandpass SAW Filter 1dB Bandwidth 7MHz SMA Interface 503~510MHz
$220.50
Sale price
$220.50
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Origin: Mainland China
Type: LC Filter
This filter has a 1dB bandwidth of 7MHz and a steep cutoff characteristic. Performance optimization for 506MHz receiving equipment, etc., can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Model: FBP-506s
Impedance: 50 Ohms
Center frequency: 506.5 MHz
1dB pass band: 503~510 MHz
With interpolation loss:< 2.5 dB
Maximum carrying power: 300 mW(25 dBm)
Interface: SMA-M, SMA-F

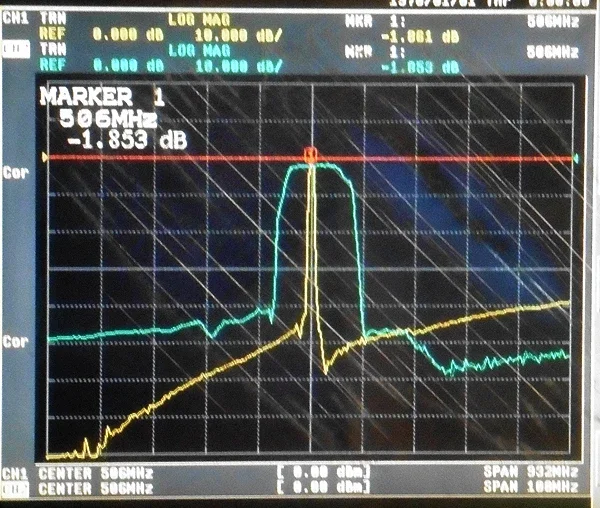

Frequency response chart (vertical division in the figure: 10dB per grid, horizontal division: 10MHz per grid for blue line and 93.2MHz per grid for yellow line):
Exterior dimensions:
