Description
SPECIFICATIONS
Brand Name: TAKORI
Certification: CE
Choice: yes
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Flammability: UL94 V-0
High-concerned chemical: none
Internal shrapnel: 65Mn Steel
Model Number: anderson 50A/120A/175A/350A
Origin: Mainland China
Rated voltage: 600V
Shell material: PC
Temperature: -25~105 degree
Terminal material: Silver-plated Copper
Voltage: 1000 V
semi_Choice: yes

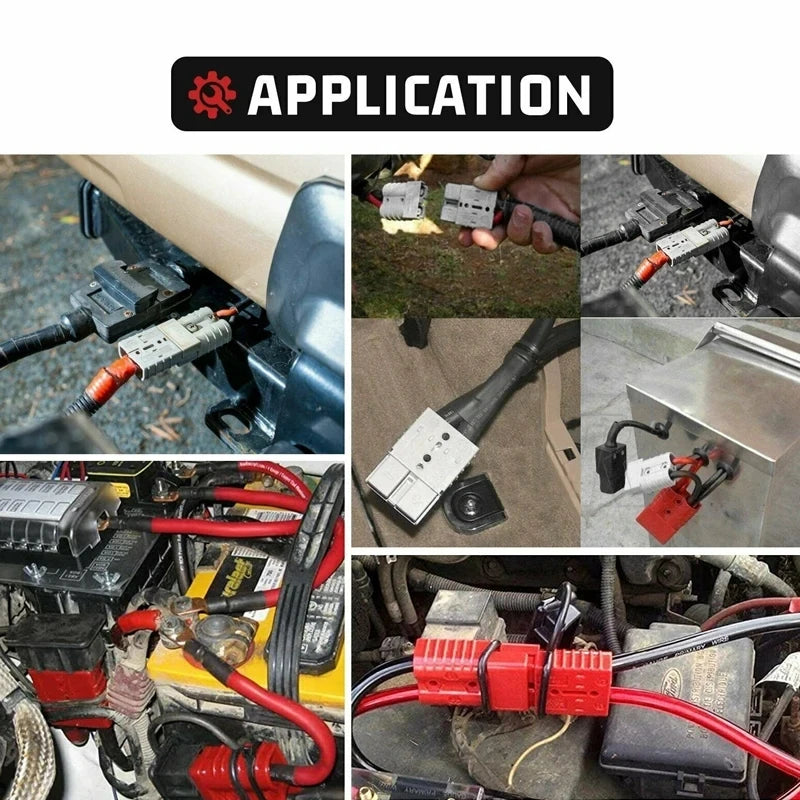

Battery Quick Connect Disconnect Connector 50A 120A 175A 350A DC Power Wire Harness Plug for Inverter,Car,Solar Caravan.
Double Pole Connectors
Note 1: This connector does not distinguish between male and female. Connectors of the same amperage and color can be connected to each other.
Note 2: Different colors cannot be connected
INTRODUCTION
Model : 50A/120A/175A/350A
Color : Red/Gray
Interface type: AC or DC
Rated voltage: 600V
Working Temperature:-25℃-105 ℃
Shell material: PC UL94V0
Terminals material: Silver-plated Copper
Shrapnel material: 65Mn Steel

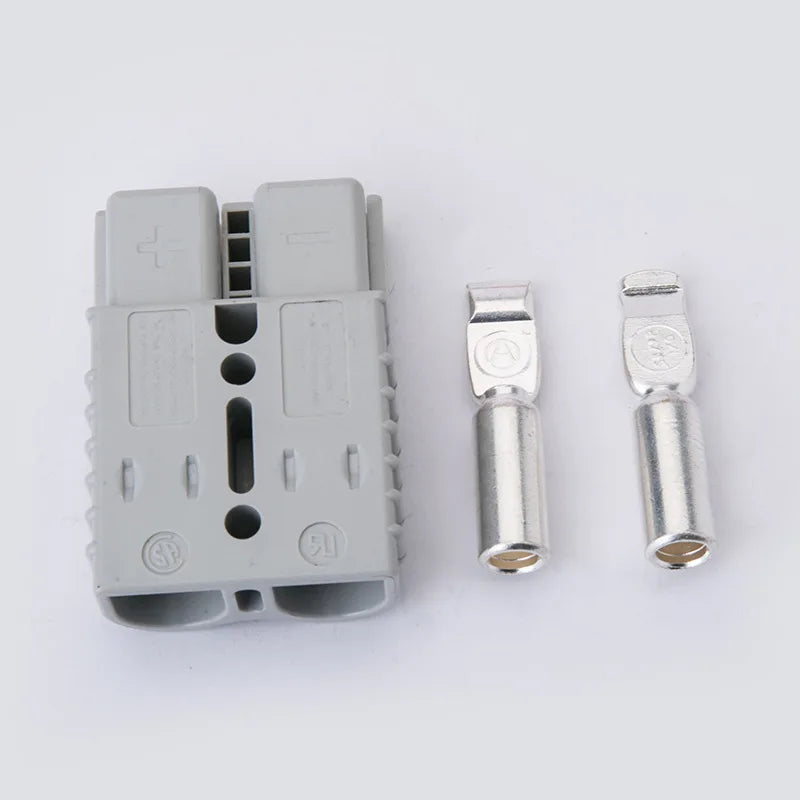

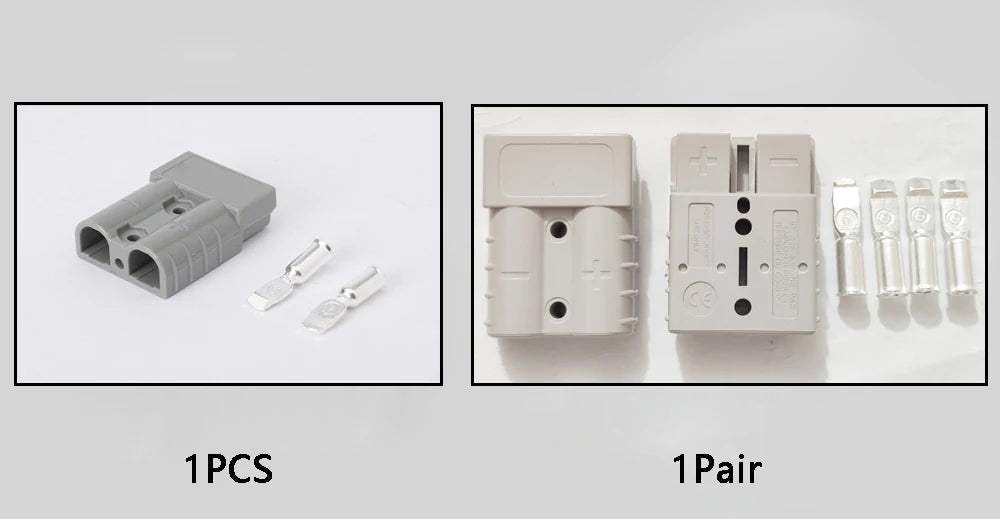

Package: 1 piece connector contains 1 plastic shell and 2 silver-plated copper terminals

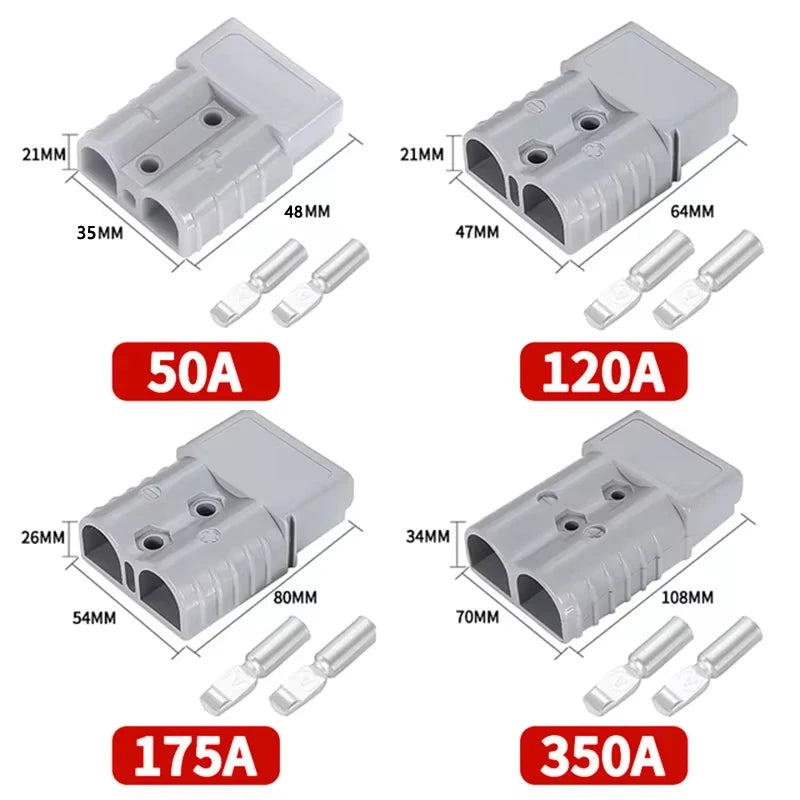

Specification Table
Rated current (A) |
Rated voltage (V) |
Terminal maternal |
Plastic shell material |
Internal shrapnel |
Environment temperature(℃） |
Connector specification(AWG) |
Connector specification(mm²) |
50 |
600V |
Silver-plated Copper |
UL94 V-0 |
65Mn |
-20℃~105℃ |
10,8,7.6 AWG |
6-16 mm² |
120 |
6,4,2 AWG |
16-25 mm² |
|||||
175 |
4,2,1/0 AWG |
25-50 mm² |
|||||
350 |
2/0 AWG |
50-70 mm² |
|||||
