50A 120A 175A Double Pole 600V High Current Plug with 8/6/4/2AWG Silicone Cable Electric Forklift Plug Quick Charging Connector

120A - 6AWG Wire / Length 30cm

$38.00

Sale price $38.00 Regular price $0.00

Skip to product information

50A 120A 175A Double Pole 600V High Current Plug with 8/6/4/2AWG Silicone Cable Electric Forklift Plug Quick Charging Connector

50A 120A 175A Double Pole 600V High Current Plug with 8/6/4/2AWG Silicone Cable Electric Forklift Plug Quick Charging Connector

$38.00

Sale price $38.00 Regular price $0.00

Color 120A - 6AWG Wire 50A - 6AWG Wire 50A - 8AWG Wire 175A - 0AWG Wire 175A - 2AWG Wire 175A - 4AWG Wire 120A - 4AWG Wire

Pins Length 30cm Length 20cm Length 300CM Length 200CM Length 150CM Length 100cm Length 80cm Length 60cm Length 50cm Length 40cm

Description

SPECIFICATIONS

Application: Electrical Folklift/Car/Battery/Motorcycle/Electrical Vehical/Rail Transport etc.,battery connection cable with connector

Brand Name: TAKORI

Cable type: Super soft silicone tinned copper wire

Certification: CE,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: Anderson plug(50A/120A/175A)

Origin: Mainland China

Rated voltage: 600V

Voltage: 24V

Wire gauge: 8AWG/6awg/4awg/2awg/0 AWG

Wire insulation material: High quality silicone

semi_Choice: yes

Battery Trailer Pair Charge Plug Quick Connector 50A/120A/175A 600V With Silicone Cable Battery Terminal Kit，Solar Connector Set

✔ Ordering notes:

The product is single, if you need 1 pair, please pay 2PCS.

Note 1: This connector does not distinguish between male and female. Connectors of the same amperage and color can be connected to each other.

Note 2: Different colors cannot be connected

50A+8AWG Wire

▷50A Power two-pole plug(Gray)

▷10mm² Copper wire(Cross section 8AWG)

50A+6AWG Wire

▷50A Power two-pole plug(Gray)

▷16mm² Copper wire(Cross section 6AWG)

120A+6AWG Wire

▷120A Power two-pole plug(Gray)

▷16mm² Copper wire(Cross section 6AWG)

120A+4AWG Wire

▷120A Power two-pole plug(Gray)

▷25mm² Copper wire(Cross section 4AWG)

175A+4AWG Wire

▷175A Power two-pole plug(Gray)

▷25mm² Copper wire(Cross section 4AWG)

175A+2AWG Wire

▷175A Power two-pole plug(Gray)

▷35mm² Copper wire(Cross section 2AWG)

175A+0AWG Wire

▷175A Power two-pole plug(Gray)

▷50mm² Copper wire(Cross section 0AWG)

Description :

About the ring lug, the default inner diameter is 8.5mm.

Insulation material:silicone
Conductor material:tinned copper
Rated voltage:600V
Wire gauge:8/6/4/2/0AWG
Inner-core diameter:0.08mm
Temperature range:-60°C~+200°C

Test Voltage : 2000 V
Application:Products are widely used in car battery,Lithium battery, inverter, model airplane, audio, industrial robot arm, LED light, spotlight,high-speed motor,etc.

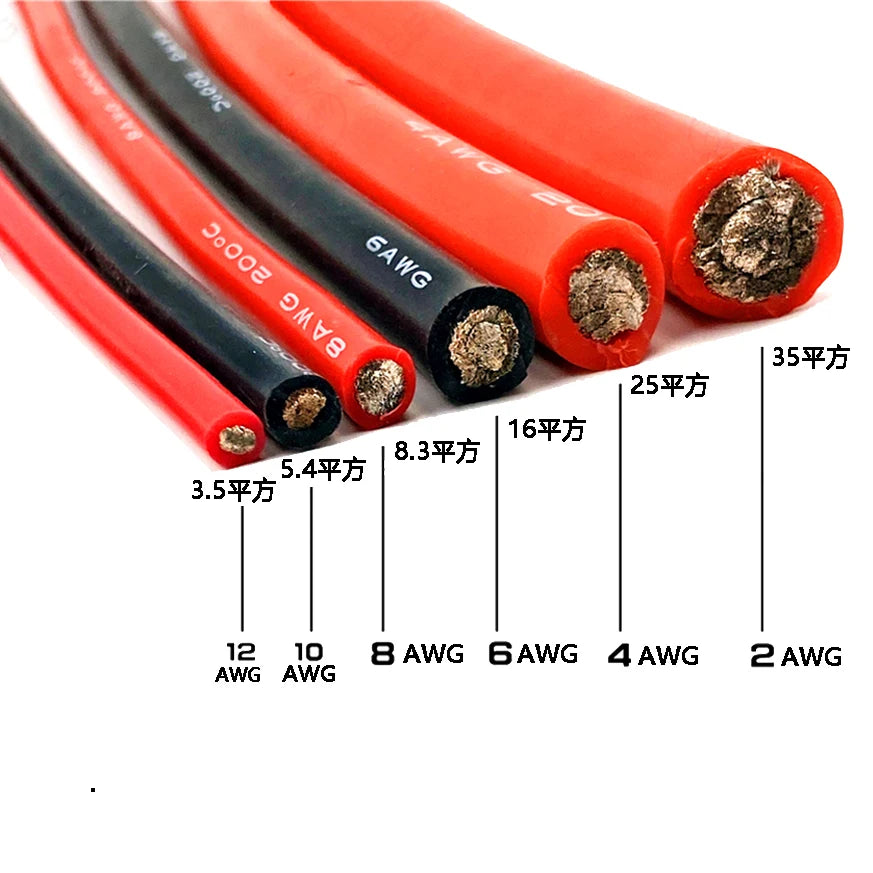

Specification table:

Specifications (AWG)	Copper wire shares (compos.NO./OD)	Insulation thickness (mm)	Diameter (mm)	Overall diameter (mm)	Conductor resistance (Ohm/km)	Sectional area (mm2)	Carrying current (ampere)	packing (M/coils)
0AWG	10000/0.08TS	2.4	9.24	14	0.63	50	630	50
2AWG	6700/0.08TS	2.6	7.73	12.5	0.89	35	500	50
4AWG	5000/0.08TS	2.4	6.53	11	1.25	25	400	50
6AWG	3200/0.08TS	1.65	5.23	8.5	1.9	16	300	100
8AWG	1650/0.08TS	1.5	3.75	6.3	3.7	8.3	190	100
